USER MANUAL URC 7711 ONE FOR ALL

(How to set up the ONE FOR ALL 1 to control your television)

• Direct code set up 6
  Search Method 7

SET UP CODES

Televisions 83

CODE BLINK OUT 8

(To find out which code is currently programmed)

QUICK CODE REFERENCE 8

COLOUR AND BRIGHTNESS 9

TROUBLE-SHOOTING G

Problem & Solution 9

Customer Service 10

About Your ONE FOR ALL 1

Congratulations on your purchase of the ONE FOR ALL 1 Universal Remote Control. By choosing the ONE FOR ALL 1 remote you have opted for the User Friendly remote control solution. Made according to the highest quality, the ONE FOR ALL 1 will provide you with long-term satisfaction. Please read these enclosed instructions carefully before putting your ONE FOR ALL 1 to use.

Your ONE FOR ALL 1 Remote Package contains:

• Your ONE FOR ALL 1 Remote
• Your ONE FOR ALL 1 Manual

Your Manual is divided into two parts: the set-up instructions and the device codes.

PLEASE DO NOT DISCARD THIS MANUAL AS YOU MAY NEED IT AGAIN IN THE FUTURE!

Your ONE FOR ALL 1 can operate a Television.

Batteries

Your ONE FOR ALL 1 Remote needs 2 new "AA/LR6" Alkaline batteries.

1 Push the battery door upwards and lift it up to remove it.
2. Match the batteries to the (+) and (-) marks inside the battery case, then insert the batteries.
3. Replace the battery cover by pushing upwards and allowing it to click back into position.

• In order to avoid having to re-program your ONE FOR ALL 1 after you remove the batteries, you will need to insert new batteries within 5 minutes. Also it is recommended that you do not use rechargeable batteries.
• On the inside of the battery compartment door you will find a label on which to write your Set-Up Codes for future reference. This you will do after setting up your ONE FOR ALL 1 remote for your devices.

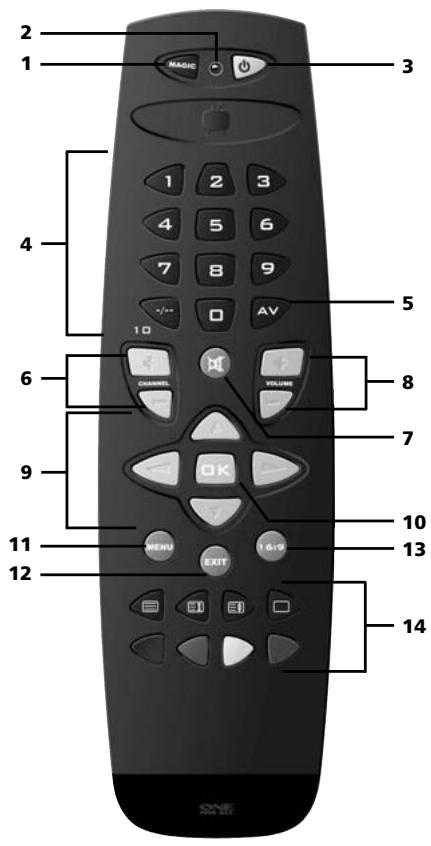

The Keypad

Please refer to the picture of the ONE FOR ALL 1 Remote Control on Page 3.

1 Magic Key:

The Magic key is used to set-up your ONE FOR ALL 1 Remote Control and to access special functions.

2 LED:

During the use of your ONE FOR ALL 1, the LED will light up red.

3 Power Key:

The Power key controls the same function as it did on your original remote.

4 Number Keys:

The Number keys (0-9, --(10)) provide the functions just like your original remote, such as the direct access to program/channel selection. If your original remote uses a 10 key, this function can be found by pressing the -- key.

5 AV

The AV key operates the same function it did on your original remote control.

6 Channel Up / Down Control:

These keys control the same functions as your original remote control.

7 Mute Key:

The Mute key operates the same function it did on your original remote.

8 Volume Up / Down Control:

These keys operate just as those on your original remote.

9 Directional Keys

If available on your original remote, these keys will allow you to navigate through the menu of your device.

10 OK key

If your original remote control required that you press an "OK" or "ENTER" key during Menu operation, this key can be used for this function.

The Keypad

11 Menu Key:

Controls the same function as it did on your original remote control.

12 Exit Key:

The Exit key will exit the Menu.

13 16:9 key

This key allows you to access the wide screen (16:9) view option of your television (if available on your original remote).

14 Teletext Functions:

These keys are used to operate the main Teletext functions.

TEXT ON:

Puts your television in the teletext mode.

HOLD/STOP:

Stops the television changing text pages.

EXPAND:

Shows the top half of the teletext page in larger letters. By pressing again, you can see the bottom half of the teletext page enlarged. To return to the regular teletext viewing, press the Expand key again, or press the Text key, depending on your television.

TEXT OFF:

Switches the television back to regular viewing mode. On some televisions, this may be done by pressing the TEXT key several times.

When accessing the text mode, the keys marked red, green, yellow and blue, allow you to access the Fastext functions of your television. If on your original remote control these keys are used for Menu navigation, the ONE FOR ALL Fastext keys may operate in the same way.

• For a more detailed explanation of the Teletext and Fastext functions, please refer to the manual of your television. Remember, different televisions control Teletext and Fasttext in different ways. Not all Teletext functions may be available for your particular model.

Direct code set-up

To set up the ONE FOR ALL 1 for your television:

1. Make sure your device (television) you wish to operate is switched on (not in standby).
2. ONE FOR: Find the code for your device in the Code List (page 83 - 90). The device codes are listed per brand name. Also the most popular code for each brand is listed first. If your brand is not listed at all, try the Search Method on page 7.
3. MAGIC Press and hold down MAGIC until the red light blinks twice (the red light will blink once then twice).
4. Enter your four-digit device code using the number keys. The red light will blink twice.

5. Now aim the ONE FOR ALL 1 remote at your device (television) and press POWER. If your device switched off, the ONE FOR ALL 1 is ready to operate your device.

6. Most TV's do not switch back on pressing the POWER key, please try pressing a "number" key or the "TV-text off" key to switch your TV back on.

7. If your device does not respond, follow steps 1 through 5 with each code listed for your brand. If none of the codes listed for your brand operate your device, then try the Search Method described on page 7, even if your brand is not listed at all.
8. Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, try another code listed under your brand.
9. Write your device code in the applicable four digit boxes provided in the battery compartment and on page 8 for future reference.

Search method

If your device does not respond to the ONE FOR ALL 1 after you have tried all the codes listed for your brand.
If your brand is not listed at all.

The Search Method allows you to scan through all the codes contained in the memory of the ONE FOR ALL 1.

To search for your television code:

1. Switch your television on (not in standby).
2. Press and hold down MAGIC until the ONE FOR ALL 1 red light blinks twice (the red light will blink once then twice).
3. 9 9 1 Press 9 9 1. The red light will blink twice.
4. Next, press POWER.
5. • CH Aim the ONE FOR ALL 1 at your Television. Now press CH+ over and over, until your Television turns off (every time you press the CH+ key the ONE FOR ALL 1 will send out a POWER signal from the next code contained in the memory). You may have to press this key many times (up to 150 times) so please be patient.

If you skip past a code, you can go to the previous code(s) by pressing the CH- key. Remember to keep pointing the ONE FOR ALL 1 at your Television while pressing this key.

1. MAGIC As soon as your television turns off, press MAGIC to store the code.

2. Most TV's do not switch on pressing the POWER key. Please try pressing a "number" key or the "TV-text off" key to switch your TV back on.

3. If you cannot control your Television properly, please continue the Search Method, you may be using the wrong Code.

Code blink out

(To find out which code is currently programmed)

Once you have Set-Up your ONE FOR ALL 1, you can blink back your Set-up Code for future reference.

To blink out your television code:

1.

Press and hold down MAGIC until the ONE FOR ALL 1 red light blinks twice (the red light will blink once then twice).

1. 9 9

Press 9 9 0. The red light will blink twice.

3.

For the first digit of your four-digit code, press 1 and count all the red blinks. If there are no blinks, the digit is "0".

1. 2

For the second digit of your four-digit code, press 2 and count all the red blinks. If there are no blinks, the digit is 0^ .

1. 3

For the third digit of your four-digit code, press 3 and count all the red blinks. If there are no blinks, the digit is "0".

6.

For the fourth digit of your four-digit code, press 4 and count all the red blinks. If there are no blinks, the digit is "0". Now you have your four-digit code.

Quick Code Reference

Make sure you write down the code for your television in the boxes below and in the battery compartment for future easy reference.

1

Colour and Brightness

Depending on the functions of your original remote control, the ONE FOR ALL 1 may operate the colour and brightness settings of your television.

Colour (+) = Press and release MAGIC then hold Volume (+) Colour (-) = Press and release MAGIC then hold Volume (-)
Brightness (+) = Press and release MAGIC then hold Channel (+) Brightness (-) = Press and release MAGIC then hold Channel (-)

Trouble Shooting

Problem & Solution

Problem:
Solution:

Your brand is not listed in the code section?	Try the search method on page 7.
The ONE FOR ALL 1 does not operate your device(s)?	A) Try all the codes listed for your brand. B) Try the search method on page 7.
The ONE FOR ALL 1 is not performing commands properly?	You may be using the wrong code. Try repeating the Direct Set-Up using another code listed under your brand or start the search method over again to locate the proper code.
Problems changing channels?	Enter the program number exactly as you would on your original remote.
The ONE FOR ALL 1 does not respond after pressing a key?	Make sure you are using new batteries and are aiming the ONE FOR ALL 1 at your device.
The red light (LED) does not blink when you press a key?	Replace batteries with 2 fresh, new “AA/LR6” alkaline batteries.

Trouble Shooting

Customer Service

If you still have questions about the operation of your ONE FOR ALL 1 universal remote and could not find the answer(s) in the TroubleShooting section, you may want to contact the customer service department for assistance.

You may care to visit our Internet-site: www.oneforall.com

Our internet-site has many advantages:

• 24 hours access
• no waiting time
• page for Frequently Asked Questions
• info about the ONE FOR ALL product range

Before contacting us, by Fax, E-mail or Phone, make sure you have the required information available by filling in the table below.

What do we need to know before you contact us:

1 That you have the ONE FOR ALL 1 URC-7711 universal remote.
2 The date of purchase (...../..../....).
3 A list of your equipment/models: (see example below).

Device	Brand	Device model nr.	Remote model nr.	SET-UP code
TV	Sony	KV-25C5D	RM-883	1505 (example)

Type/model numbers can often be found in your equipment owner's manual or on the factory plate behind the device.

1. Then Fax, E-mail or Dial us:

In the UK

E-mail: [e-mail] ( )

Fax :[phone]

Tel. :[phone] (£ 0,50 per minute)

In Ireland

E-mail: [e-mail] ( )

Fax :[phone]

Tel. : [phone]

In South Africa

E-mail : [e-mail]

Fax :[phone]

Tel. : [phone]

Tel. :[phone]

In Australia

E-mail: [e-mail] ( )

Fax :[phone]

Tel. : [phone]

In New Zealand

E-mail: [e-mail] ( )

Fax : [phone]

Tel. : 0508 ONE 4 ALL (663 4 255)

( ) Just send a blank message, you'll get auto-reply.

Universal Electronics BV

Europe & International

P.O.Box 3332

7500 DH, Enschede

The Netherlands

English

UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.
