USER MANUAL AR 638 CLATRONIC

General safety instructions

GB To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar. Use the device only for the intended purpose. Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket. When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction. Assemble the device in such a way that the available ventilation openings are not covered. Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage. For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person. If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries. These symbols may be found on the machine and are intended to indicate the following: The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation. Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened. Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

GB Please install the car radio as shown below a b c d e f g

Nut Spring washer Plain washer Screw Mounting bracket Slide-in housing Threaded bolt

Note: h Retaining screws during transport (please remove before installation) I Extraction tool (spanner for dismantling) j Frame

First place the operating panel in position on the right-hand side and then lock it into place on the left.

Connect the device as shown in the diagram.

1. Do not attach the removable control panel until after connection of the cables. 2. Please use loudspeakers with an impedance of 4 ohm.

Important Information for installing your CARRADIO! 1. For proper instalment of your car radio, please make sure that your car provides an original "ISO JACKET”. This is prepared as the counter part of the "ISO JACKET” of your car radio. Depending on the specific car type, different wiring connection of the Backup wire are available. In these case please contact your authorized car dealer. (However, this is necessary for storing the radio stations). 2. Depending on the specific car type, interferences can be possibly arise during radio/CD operation. These interferences can avoided easily with an additional Interferences filter. (Your car radio AR 638 CD is originally prepared with an Interference Filter already). In these case, please contact your authorized car dealer.

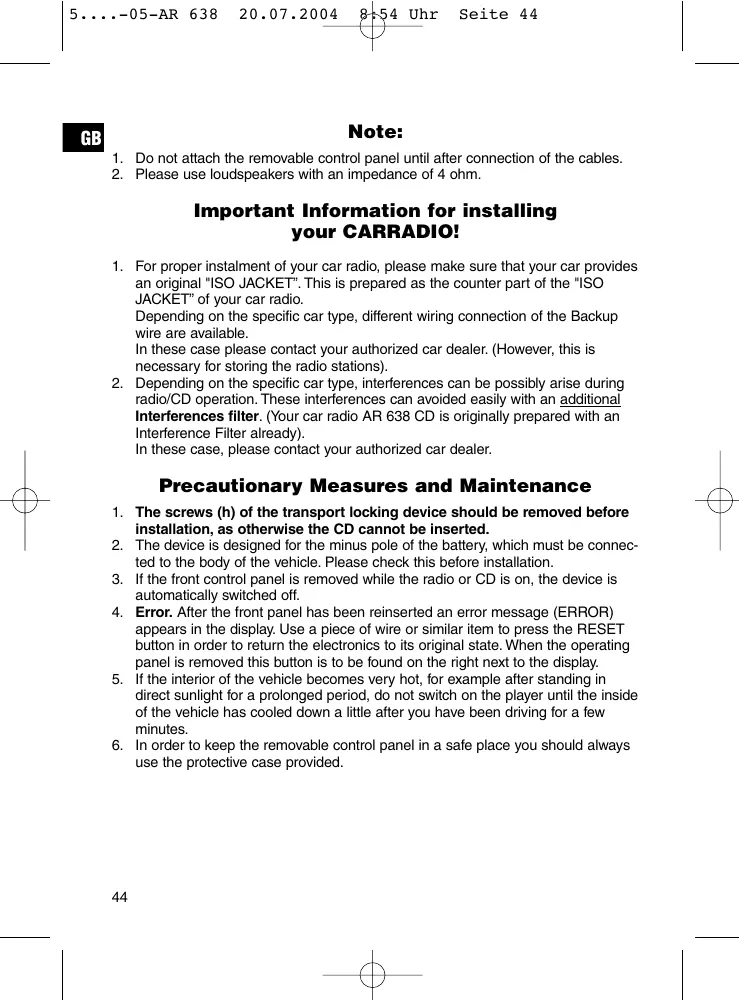

Precautionary Measures and Maintenance 1. The screws (h) of the transport locking device should be removed before installation, as otherwise the CD cannot be inserted. 2. The device is designed for the minus pole of the battery, which must be connected to the body of the vehicle. Please check this before installation. 3. If the front control panel is removed while the radio or CD is on, the device is automatically switched off. 4. Error. After the front panel has been reinserted an error message (ERROR) appears in the display. Use a piece of wire or similar item to press the RESET button in order to return the electronics to its original state. When the operating panel is removed this button is to be found on the right next to the display. 5. If the interior of the vehicle becomes very hot, for example after standing in direct sunlight for a prolonged period, do not switch on the player until the inside of the vehicle has cooled down a little after you have been driving for a few minutes. 6. In order to keep the removable control panel in a safe place you should always use the protective case provided.

REL Button Press the REL button to remove the front operating panel.

+/- Button During normal playback these buttons are used to set the volume. After the SEL button has been pressed it is possible to make changes in the various menus, e.g. under FADER or BALANCE.

SEL Button (Select) a) Press the SEL button briefly to access the selection menu of the sound mode. The letters "VOL" appear in the display for setting the volume. By repeatedly pressing the SEL button you can now select the individual menu items such as VOLUME, BASS, TREBLE, BALANCE and FADER. The settings of the individual menu items are changed using the "+" or "-" button. Note: If equaliser settings such as POP and ROCK have been selected under DSP it is not possible to adjust the BASS and TREBLE. b) Press the SEL button for a longer time to access the selection menu DSP OFF, BEEP ON/OFF, SEEK1/2, VOL LAST/ADJ. The letters "DSP OFF" appear in the display. Repeatedly pressing of the SEL button now brings up the individual menu items. The settings of the individual menu items are changed using the "+" or "-" button.

DSP In DSP mode you can select the equaliser settings POP M, ROCK M, CLASS M and FLAT M. Select DSP OFF to carry out your own adjustments. See also section 3a.

BEEP ON/OFF Confirmation Beep You can select two types of confirmation beep when a button is pressed. BEEP ON: The confirmation beep is heard whenever a button is pressed. BEEP OFF: The confirmation beep is switched off.

SEEK 1, SEEK 2 (only available during radio operation) Seek function with the I / I buttons during radio operation. SEEK 1: Keep the I / I buttons pressed down and the radio will stop at the next station that is reached. SEEK 2: As long as the I / I buttons are pressed down the search function will continue in the frequency band.

VOL LAST/VOL ADJ VOL LAST: The radio switches on at the actual volume it had when it was last switched off. VOL ADJ: Using the + and - buttons you can pre-select a constant switch-on volume.

POWER Button Press this button to switch the device on and off. 45

BAND button Press the BAND button briefly to switch between the three FM levels. The designation of the corresponding level - F1, F2 and F3 - is shown in the LCD.

7/8 I / I Buttons TUNING, SEEK, TRACK, SKIP UP/DOWN a) In radio mode: Press the I or I button briefly to tune into a radio station manually. Keep the I or I button pressed down in order to start searching for a radio station. See also the function SEEK 1 / SEEK 2. b) In CD mode: Press the I or Ibutton briefly to jump forwards or backwards. If you would like to scroll the titles of the tracks keep the I or I arrow button pressed. 9 Mode Button Press this button to select the CD player or radio mode. 10 MUTE Button Press the MUTE button to switch off the loudspeakers for a short time. Press this button again to cancel this function. 11 AP Button (Autostore - Automatic Station Storage) In radio mode: a) Memory function : Press the AP button for longer than one second to activate automatic station storage. The radio searches within the current frequency band, e.g. FM 1, for the strongest signal level until the search cycle has finished. The six strongest stations are then allocated to the corresponding storage locations. The stations that have now been stored are played for approximately 3 seconds each and then the station of the first storage location is set. If you would like to search for more stations in the FM band, press the BAND button in order to change to the FM 2 or FM 3 band. Press the AP button again for more than one second in order to start the continued search. b) Scan Function: After the AP button has been pressed briefly the radio plays all the pre-set stations in the current frequency band for a short time. Note: The scan function ends automatically when it reaches the storage location from which it started. AP button as a search function during MP3 playback If the corresponding data were created when a CD was made in MP3 format, these can be searched for using the following functions:

a) Direct input of the track number for CDs in MP3 format: 1. Press the AP button once. The letters "TRK SCH" appear in the display. 2. Press the SEL button once. The letters "TRK SCH 001" appear in the display. The units place flashes. 3. With the help of the +/- buttons it is now possible to put in a track number from 0 to 9 in the units place. 4. Press the SEL button briefly once more. The tens place flashes. Proceed as described under 3 above. 5. Press the SEL button briefly once more to put in a hundreds place if necessary. 6. Press the SEL button for 1 second to complete entry of the track numbers. Immediately after this the selected track is played. b) File search function for CDs in MP3 format: 1. Press the AP button twice. "FILE SCH" appears in the display. 2. Press the SEL button briefly to show the first directory that has been selected in the display. 3. Using the +/- buttons it is now possible to select the various directories on the CD. 4. Press the SEL button for 1 second. The selected directory is played starting with the first song. Press the SEL button briefly and you can select a track in the directory using the +/- buttons. 5. Complete entry of the titles by pressing the SEL button for 1 second. Immediately after this the selected track is played. c) Keyword search function for CDs in MP3 format: 1. Press the AP button three times. The letters "CHAR SCH" appear in the display. 2. Press the SEL button briefly. The letter "A" appears on the left of the display. 3. By repeatedly pressing the +/- buttons you can now enter a letter from A to Z or a number from 0 to 9 in the first position of the display. Note: The following letters and numbers are entered from left to right. 4. Press the SEL button briefly. An "A" appears in the second position of the display. Proceed as for the entry of numbers and letters as described under 3 above. 5. Repeat the process described under 2 and 3 above until you have entered your search term. Note: The last entry can be deleted by pressing the AP button. 6. Complete entry of the search term by pressing the SEL button for 1 second. Immediately after this the selected track is played. Note: It is not possible to guarantee that CDs created by the user can be played back due to the large variety of software and CD media available.

During the normal playback of CDs in MP3 format the I and I buttons can be used to move up or down one track. Station buttons 5 and 6 can be pressed to move up and down 10 tracks at a time.

12-17 Station buttons (1-6) of preselected stations and as 1 TOP, 2INT, 3RPT and 4RDM buttons during CD operation a) Radio Operation Pressing these buttons briefly directly selects a preset radio station. If these buttons are pressed for more than one second, the station currently being listened to is stored under the selected station button. b) CD/MP3 Operation • Press the 1TOP button to interrupt playback of the CD (pause function). Press this button again to continue listening to the CD/MP3. • Press the 2INT button. Each track on the CD is played for 10 seconds. Press this button again to stop searching. The currently selected track is played. • Press the 3RPT button. The track currently being played is repeated. Press this button again to cancel this function. • Press the 4RDM button. The CD tracks are played at random. Press this button again to cancel this function. 18 ST Button STEREO/MONO switching (only possible during radio operation) 19 CLK Button • Displaying the clock: Briefly press the CLK button to display the time. • Setting the clock: Press the CLK button twice and keep it pressed the second time until the display begins to flash. Press the + button to set the hours and the - button to set the minutes 20 LOUD ON/LOUD OFF Switching the LOUDNESS function on and off. When the volume is low the LOUDNESS function (LOUD) expands the sound characteristics by increasing the treble and bass sounds. 21 CD Slit 22 Eject Button (EJECT) Press this button to eject the CD. 23 Flashing LED (not shown) When the front control panel is removed this display flashes. 24 RESET Button (not shown) Press this button to reset the programme on which there is interference.

GB General Supply voltage Power consumption Power

4 x 35 W PMPO FM band Frequency range Effective sensitivity I.F. frequency

87.6 MHz to 108.0 MHz 3 uV. 10.7 MHz

at CD max. 1200 mV CD player System Suitable CDs Signal format Frequency characteristics Signal-to-noise ratio Number of channels Housing dimensions

GB Before going through the checklist please make all the connections first. If you still have questions after going through the checklist, please consult your local customer service representative. Fault Symptoms

After being inserted into the device the CD or cassette does not turn.

The volume control is set too low. The device has not been correctly connected. Check the connections.

Turn up the volume. Check the +12V and earth connection.

The sound of the CD play- The surface of the road is er "jumps". uneven.

Wait until the road becomes smoother before playing the CD. Install the device firmly. Ensure that the rear attachment is used if the vehicle does not have any suitable retainer for the rear section of the device. Try another CD. If this works correctly, the first CD is probably damaged. Clean the CD.

The device is not firmly installed.

The CD is dirty. There is no power.

The ignition is switched off. The fuse has blown.

Turn the ignition key to "ON" or "ACC". Replace the fuse by another 7A fuse.

The device does not work The microcomputer has Remove the CD or cassetcorrectly (EJECT, LOAD, been affected by electrical te and reinsert it. PLAY). interference. Switch the device off and on again. No radio reception.

The antenna cable is not connected.

Insert the antenna cable firmly into the antenna socket of the device.

In automatic search mode The transmission signals the radio does not stop at are too weak. a transmitting station.

Tune in to a radio station manually.

CDs are drawn only half way into the CD tray.

Remove the transport screws.

The transport screws have not been removed.

Playing a CD GB Cleaning the CD Before playing a CD, wipe it off with a clean, dust-free cleaning cloth. Pull out the CD in the direction of the arrow. Note: Do not use any solvents such as petrol or thinning agents. Commercially available cleaning substances or antistatic sprays will damage the device.

If the CD is inserted with the printed side facing downwards, the device may be damaged. Always insert the CD with the label facing upwards. Note: If there is already a CD in the CD slit, do not try to insert a second CD. This may damage the device. Always hold CDs by the edge. In order to keep the CD clean do not touch the surface.

Do not attach any stickers or adhesive tape to the CD. Do not expose the CD to direct sunlight or sources of heat such as heating pipes. Do not leave CDs in the car if it is parked in direct sunlight as this will lead to a considerable rise in the temperature inside the car.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice!
