USER MANUAL PRO SPRINT LAURASTAR

Operating instructions

Gebruiksaanwijzing

Quelle eau besoin?

If your tap water is soft or medium (equal or less than 18^ / 11^ / 1.8mmol / l ), you may use your tap water. If it's not the case, we advise you to mix it with industrial standard demineralised water: 1/3 tap water 2/3 demineralised water.

To find out the exact hardness of your tap water, use the enclosed water test strip.

Never use additives, deionizised water or water softened with salt, neither distilled water, nor recovery water from the linen-drier, as these products are detrimental to the good quality of the steam.

1. Iron switch
2. Tank switch
3. Temperature thermostat regulator of the iron
4. Steam switch
5. Lid, with safety valve
6. Funnel
7. Hydrometer pole
8. Luminous indicator, it will light when the appliance is ready for use
9. Cord-holder PRO

Omschrijving

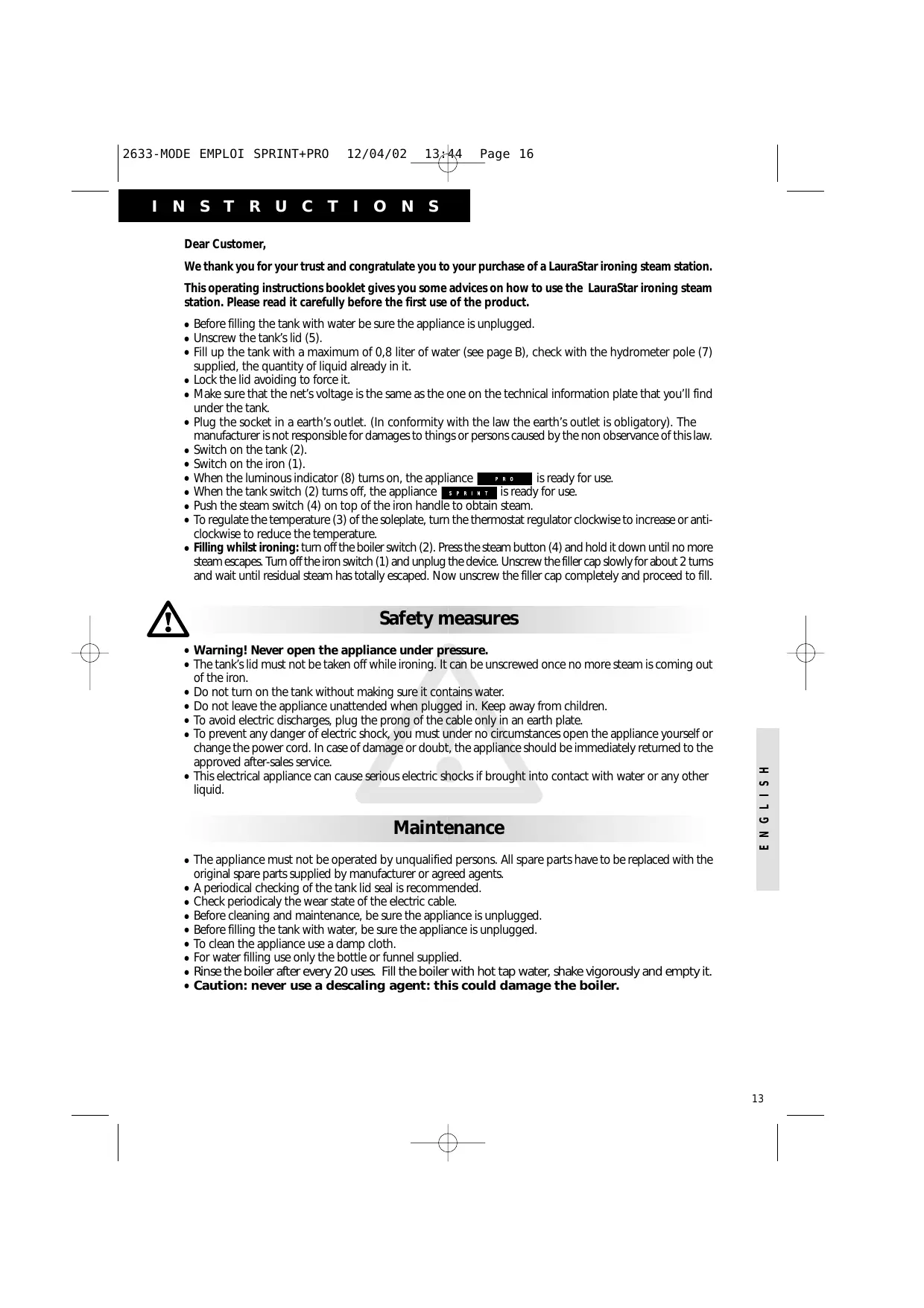

Chere cliente, cher client,

We thank you for your trust and congratulate you to your purchase of a LauraStar ironing steam station.

This operating instructions booklet gives you some advices on how to use the LauraStar ironing steam station. Please read it carefully before the first use of the product.

• Before filling the tank with water be sure the appliance is unplugged.
• Unscrew the tank's lid (5).
• Fill up the tank with a maximum of 0,8 liter of water (see page B), check with the hydrometer pole (7) supplied, the quantity of liquid already in it.
• Lock the lid avoiding to force it.
• Make sure that the net's voltage is the same as the one on the technical information plate that you'll find under the tank.
• Plug the socket in a earth's outlet. (In conformity with the law the earth's outlet is obligatory). The manufacturer is not responsible for damages to things or persons caused by the non observance of this law.
• Switch on the tank (2).
• Switch on the iron (1).
• When the luminous indicator (8) turns on, the appliance is ready for use.
• When the tank switch (2) turns off, the appliance SPRINT is ready for use.
• Push the steam switch (4) on top of the iron handle to obtain steam.
• To regulate the temperature (3) of the soleplate, turn the thermostat regulator clockwise to increase or anticlockwise to reduce the temperature.
• Filling whilst ironing: turn off the boiler switch (2). Press the steam button (4) and hold it down until no more steam escapes. Turn off the iron switch (1) and unplug the device. Unscrew the filler cap slowly for about 2 turns and wait until residual steam has totally escaped. Now unscrew the filler cap completely and proceed to fill.

Safety measures

• Warning! Never open the appliance under pressure.
• The tank's lid must not be taken off while ironing. It can be unscrewed once no more steam is coming out of the iron.
• Do not turn on the tank without making sure it contains water.
• Do not leave the appliance unattended when plugged in. Keep away from children.
• To avoid electric discharges, plug the prong of the cable only in an earth plate.
• To prevent any danger of electric shock, you must under no circumstances open the appliance yourself or change the power cord. In case of damage or doubt, the appliance should be immediately returned to the approved after-sales service.
• This electrical appliance can cause serious electric shocks if brought into contact with water or any other liquid.

Maintenance

• The appliance must not be operated by unqualified persons. All spare parts have to be replaced with the original spare parts supplied by manufacturer or agreed agents.
• A periodical checking of the tank lid seal is recommended.
• Check periodically the wear state of the electric cable.
• Before cleaning and maintenance, be sure the appliance is unplugged.
• Before filling the tank with water, be sure the appliance is unplugged.
• To clean the appliance use a damp cloth.
• For water filling use only the bottle or funnel supplied.
• Rinse the boiler after every 20 uses. Fill the boiler with hot tap water, shake vigorously and empty it.
• Caution: never use a descending agent: this could damage the boiler.

Advice for ironing various fabrics

General rule

• Use steam for all kinds of fabrics. (You can naturally also iron certain fabrics without steam if you prefer).
• To obtain even better ironing results and to extend the length of time before having to refill the water tank go over once using steam, then again without steam to dry the fabric.

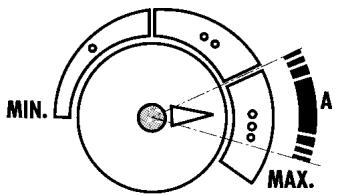

Adjusting the temperature of the iron

The temperature control knob on the upper side of your iron serves to regulate the temperature of the sole plate and does not affect the quantity or the temperature of the steam produced. We recommend ironing all types of fabric at the same temperature (position A), as professionals do.

Silk

Iron silk as usual, using steam (for dark silk it is advisable to use the Softpressing sole-plate which you may obtain separately at your sales point).

Wool and angora pullovers

Steam the garment without touching, from a height of about 10cm , then pick the garment up and shake it to restore its original volume and shape.

Removing creases

Suspended the garment by hand or on a hanger, lightly touch the fabric with the iron using steam. Attention: creases can easily be removed from practically all types of fabric this way, with the exception cotton, linen and certain kinds of silk. If a fabric does not respond well to this kind of crease removal, put it on the ironing board and iron it in the normal manner. For sleeves, use a small sleeveboard.

Special fabrics

Velvet, corduroy velvet, jersey

If not using the Softpressing sole-plate, steam the garment without touching from a height of about 1cm then smooth out the creases by hand.

Technical information

	S PRINT	P R O
Model	SX025	Ecolinda
Mains voltage	230 V ~, 50 Hz	230 V ~, 50 Hz
Output of the steam generator	1000 - 1050W	1000 - 1050W
Output of the iron	800 - 850W	800 - 850W
Steam pressure Max.	2,8 bar	3,5 bar
Tank capacity Max.	0,9 L.	0,9 L.

Made in Italy

What to do if...

...the iron leaks

If your iron is loosing considerable water:

1. Check the temperature of the iron
2. Empty and then rinse the steam generator with warm water
3. Use only water (see page B).

...there is no more steam

Refill the tank.

...the soleplate of the iron is dirty

Clean the soleplate using our Polyfer cleaning mat wich you can obtain from your supplier, making sure you follow the written instructions.

Clean it more often if you use starch when ironing.

If the problem persists, call our customer service. Our service agents are happy to assist you.

After-sales

CH-0800558448

LauraStar SA

Centro Nord-Sud 2C

6984 Bioggio

F-0450315190

LauraStar France Sārī

Site d'Archamps

74160 Archamps

Internet: www.laurastar.com

International guarantee

1. Your LauraStar is guaranteed for 24 months from the date of purchase. The guarantee is valid as from the date on the invoice or the cash receipt.
2. The guarantee does not cover normal wear and tear, wear of the electrical cord or wear of the sole plate. Damage caused by falling, by water, or by connection to a power source outside the specified voltage, is not covered by the guarantee. The equipment is intended for domestic use only.

Inappropriate use of the appliance, non-compliance with the directions on use and maintenance which form an integral part of the instructions for use, as well as an unauthorized interference will result in the cancellation of your guarantee rights.

Use of the equipment for non-domestic purposes will reduce the coverage of the guarantee.

1. If the LauraStar equipment sustains any damage which is not covered by the guarantee, the repair of such damage will also not be covered by the guarantee and will be invoiced accordingly, even if the work is done at an official service point.
2. Transport of the LauraStar equipment to the service point shall be at the customer's cost and under his responsibility.
3. In certain countries, the terms of the guarantee may vary according to the laws applying in those countries, and the effect of such laws on our guarantee will be acknowledged by us.

C E

GEBRUIKSAANWIJZING

Geachte klant,

EC declaration of conformity

Descritpion: Steam station

LAURASTAR SPRINT

Model: SX025

Type:SXP01

LAURASTAR PRO

Model: Ecolinda

Type: SXP01

We declare under our own responsibility that this product complies with the standardised documents or standards in force.

According to the provisions of the directives EEC.
