ATTIX 961-01 - Industrial vacuum cleaner NILFISK - Free user manual and instructions

Product type	Versatile industrial vacuum cleaner
Brand	Nilfisk
Model	ATTIX 961-01
Intended use	Suction of non-flammable dry dust and liquids (max 40 L per cycle)
Power supply	Mains, voltage according to rating plate
Tank capacity	40 liters
Tank type	Removable tank (SD)
Filter type	Dust filter (mandatory)
Integrated socket	Yes, for power tool (limited power according to manual)
Recommended electrical protection	Residual current circuit breaker
Maximum cable length with extension	Up to 50 m with 4.0 mm² cross-section (for 25 A)
Sound level	Not specified
Weight	Not specified
Dimensions	Not specified
Compliance	European Directive 2002/96/EC (WEEE)
Warranty	According to general terms and conditions
Spare parts	Use only Nilfisk-Alto parts
Maintenance	Cleaning and maintenance after disconnection
Safety	Stop and disconnect before maintenance, do not vacuum without filter, do not spray water on the upper part
Areas of use	Hotels, schools, hospitals, factories, shops, offices, rental agencies
Transport	Close the tank locks, do not tilt if liquid, do not lift with crane hooks
Recycling	Do not dispose of in household waste, follow the WEEE directive

Frequently Asked Questions - ATTIX 961-01 NILFISK

What types of materials can I vacuum with the ATTIX 961-01?

You can vacuum non-flammable dry dust and liquids. It is forbidden to vacuum hot, flammable, explosive or aggressive materials.

Can I vacuum liquids without limit?

No. The maximum capacity per suction is 40 liters. If exceeded, the device may be damaged. Stop the vacuum and empty the tank.

How to maintain the device?

Before any cleaning or maintenance, stop the device and disconnect the mains plug. Clean the filter regularly. Use only Nilfisk-Alto spare parts.

Can I use non-original accessories?

No. The use of non-original spare parts or accessories may compromise safety. Use only Nilfisk-Alto accessories.

What to do in case of foam formation or liquid escape?

Immediately stop the device and disconnect the mains plug. Empty the tank and check the filter condition.

How to transport the vacuum safely?

Before transport, close all tank locks. Do not tilt the device if the tank contains liquid. Do not lift the device with crane hooks.

What to do if the power cord is damaged?

Disconnect the device immediately. Do not continue to use it. Have the cable replaced by Nilfisk-Alto after-sales service or by a qualified electrician.

Can the device be used by children?

No. The device must not be used by children. It must be used only by persons instructed in its handling and expressly assigned to its use.

How to recycle the device at end of life?

Do not dispose of the device in household waste. Follow the European Directive 2002/96/EC on waste electrical and electronic equipment. Make the device unusable and take it to a collection point.

Can I connect another device to the integrated socket?

Yes, but only for the uses indicated in the manual. Before connecting, stop the vacuum and the device to be connected. Consult the manual of the device to be connected and follow the safety instructions.

USER MANUAL ATTIX 961-01 NILFISK

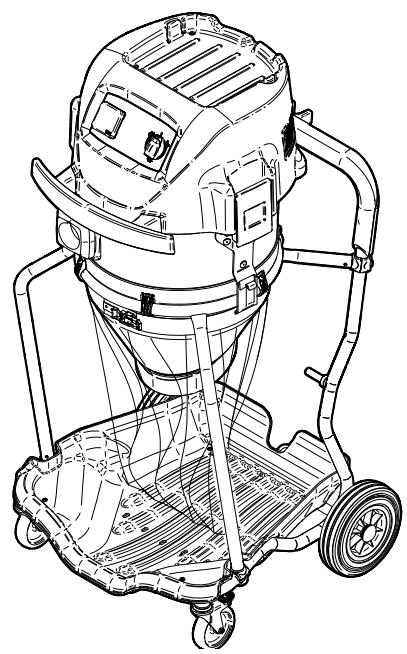

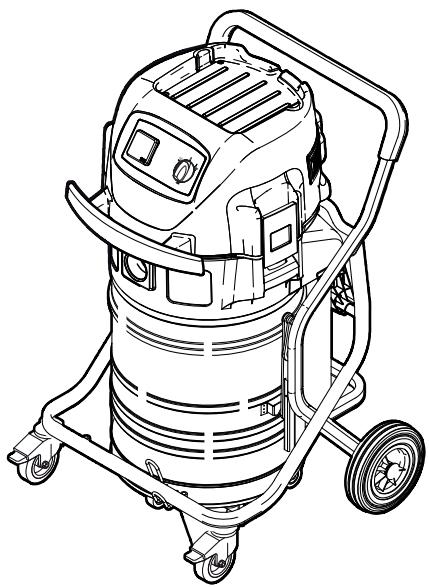

Line drawing of a vacuum cleaner with wheels and control panel (no text or symbols)

Technical line drawing of a vacuum cleaner with wheels and mounting bracket (no text or symbols)

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

Nilfisk ALTO

Why Compromise

1. 1.

2.

3.*

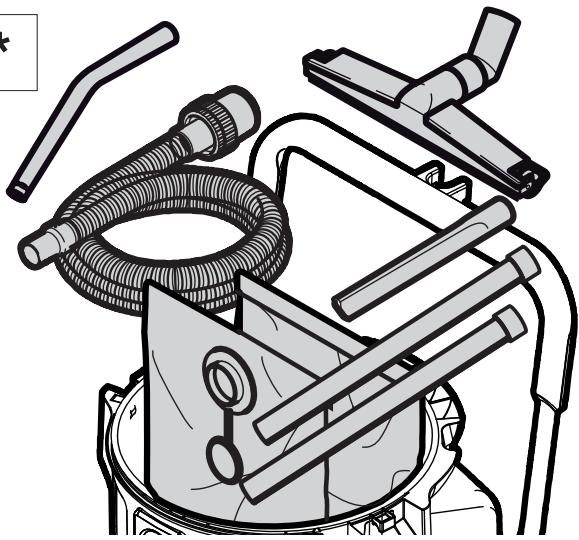

Illustration of various mechanical components including hoses, clamps, and a container (no text or symbols)

4.*

Technical diagram showing a mechanical assembly with labeled dimension 'X' and an arrow indicating direction.

4. 5.* *

5.*

ATTIX 961-01

1. 1.

2.

Technical line drawing of a mechanical device with internal components and no visible text or symbols

4.

ATTIX 965-21 SD XC

1. 1.

2. 3.

4.

5. 6.

ATTIX 963-21 ED XC

1. 1.

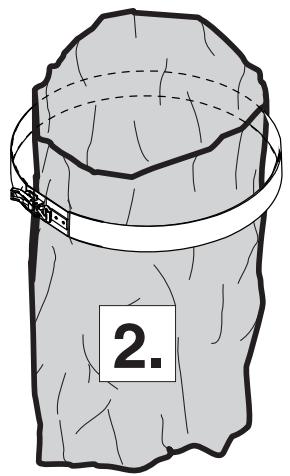

Illustration of a cylindrical object with a ring and label '2.' (no text or symbols on the object itself)

3.

4.

Technical line drawing of a cleaning or cleaning device with a handle and wheels, no text or symbols present

B

Illustration of a hand using a power tool to clean or brush the surface, with radiating lines indicating texture (no text or symbols)

ATTIX 961-01
ATTIX 963-21 ED XC ATTIX 965-21 SD XC
ATTIX 963-21 ED XC / ATTIX 965-21 SD XC

Diagram of a mechanical device with labeled parts and directional arrows, likely illustrating a cam or wheel mechanism.

Simple line drawing of a turtle and a dog on a curved surface (no text or symbols)

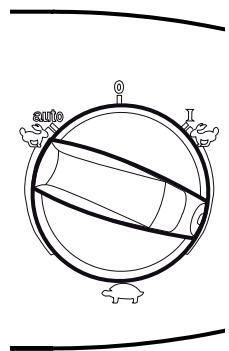

ATTIX 961-01	ATTIX 963-21 ED XCATTIX 965-21 SD XC

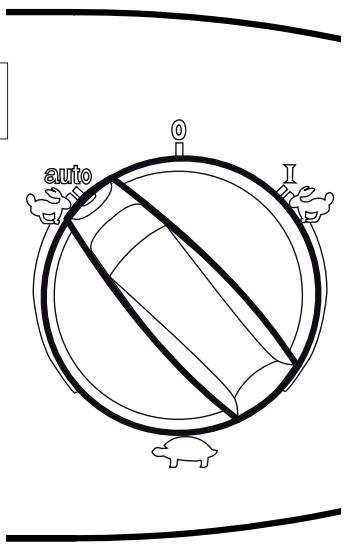

0 = ○I = ◀II = ●	0 = ○I = ●auto =

B

Illustration of a hand using a power tool to clean or brush the surface of a rectangular object (no text or symbols)

ATTIX 961-01

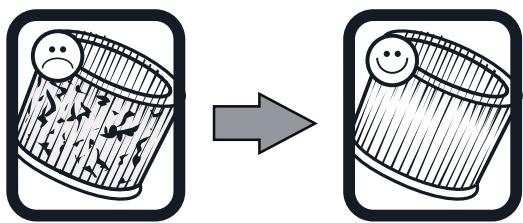

Illustration showing a smiling face inside a container transforming into a smiling face, with arrows indicating transformation.

1

I 0 II

2


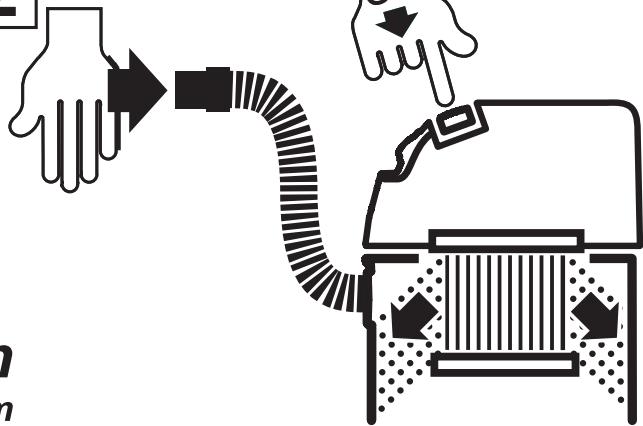

Push & Clean
Filter Cleaning System

ATTIX 963-21 ED XC

ATTIX 965-21 SD XC

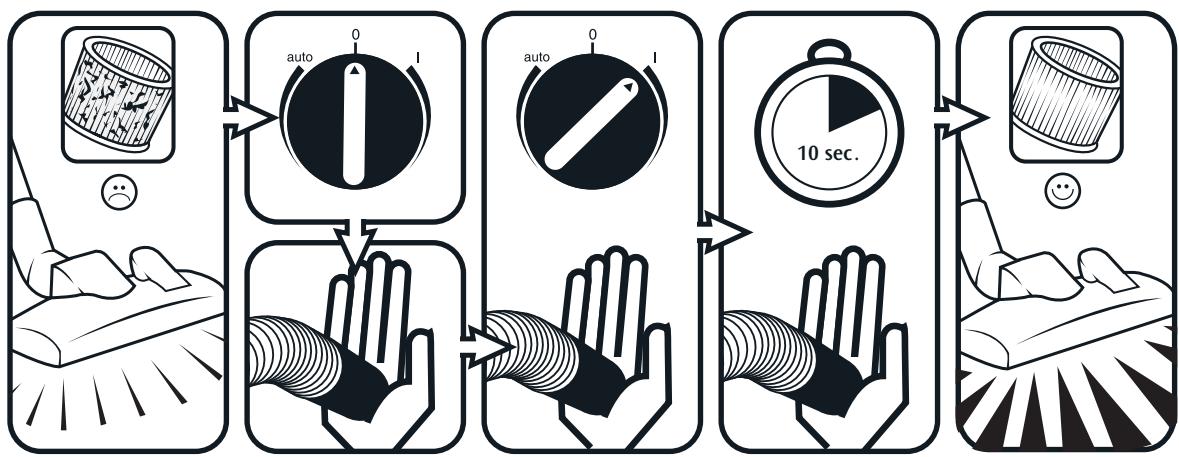

Illustration showing a smiling face inside a box of food, transforming into an empty container with food cuts.

B*

Illustration of a soldering iron on a base (no text or symbols)

1.

2.

auto 0 I

Diagram of a medical or electrical device with a connector and directional arrow, no text or symbols present

1. 2. 3. 4.

C

1. 2. 3.

This document

This document contains the safety information relevant for the appliance along with a quick reference guide.

Prior to using the appliance for the first time, be sure to read this document through and keep it ready to hand.

Further support

Detailed information on the appliance can be found in the operating instructions, which you can download from our web site at www.nilfisk-alto.com.

For further queries, please contact the Nilfisk-Alto service representative responsible for your country.

See reverse of this document.

Important safety instructions

Symbols used to mark instructions

DANGER

Danger that leads directly to serious or irreversible injuries, or even death.

WARNING

Danger that can lead to serious injuries or even death.

CAUTION

Danger that can lead to minor injuries and damage.

The appliance must

• only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it

• only be operated under supervision
  • not be used by children

• Do not use any unsafe work techniques.

• Never use the vacuum cleaner without a filter.

• Switch off the appliance and disconnect the mains plug in the following situations:

• Prior to cleaning and servicing

• Prior to replacing components
• Prior to changing over the appliance

- If foam develops or liquid emerges

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

Purpose and intended use

The appliance is suitable for picking up dry, non-flammable dust and liquids.

Do not use the ATTIX 963-21 ED XC to pick up liquids.

The appliance is suitable for commercial use, such as e.g. in

• Hotels, schools, hospitals, factories, shops, offices, hire shops

Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user.

Proper use also includes proper operation, servicing and repairs as specified by the manufacturer. See operating instructions.

Transport

1. Before transporting the dirt tank, close all the locks.
2. Do not tilt the cleaner if there is liquid in the dirt tank.
3. Do not use a crane hook to lift the cleaner.

Storage

1. Store the appliance in a dry place, protected from frost.

Electrical connection

1. It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker.
2. Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection class is maintained.
3. Connectors and couplings of power supply cords and extension leads must be water-tight.

Extension lead

1. As an extension lead, only use the version specified by the manufacturer or one of a higher quality. See operating instructions.
2. When using an extension lead, check the minimum cross-sections of the cable:

Cable length	Cross section
	< 16 A	< 25 A
up to 20 m	1.5 mm^2	2.5 mm^2
20 to 50 m	2.5 mm^2	4.0 mm^2

Guarantee

Our general conditions of business are applicable with regard to the guarantee.

Unauthorised modifications to the appliance, the use of incorrect brushes in addition to using the appliance in a way other than for the intended purpose exempt the manufacturer from any liability for the resulting damage.

Tests and approvals

Electrical tests must be performed in accordance with the provisions of safety regulations (BGV A3) and to DIN VDE 0701 Part 1 and Part 3. In accordance with DIN VDE 0702 these tests must be performed at regular intervals and after repairs or modifications.

Risks

Electrical components

DANGER

Electric shock due to faulty mains connecting lead.

Touching a faulty mains connecting lead can result in serious or even fatal injuries.

1. Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
2. Regularly check whether the power cord is damaged or shows signs of ageing.
3. Have the faulty mains connecting lead replaced by your Nilfisk-Alto service representative or a qualified electrician prior to using the appliance again.

DANGER

The upper section of the vacuum cleaner contains live components.

Contact with live components leads to serious or even fatal injuries.

1. Never spray water on to the upper section of the vacuum cleaner.

CAUTION

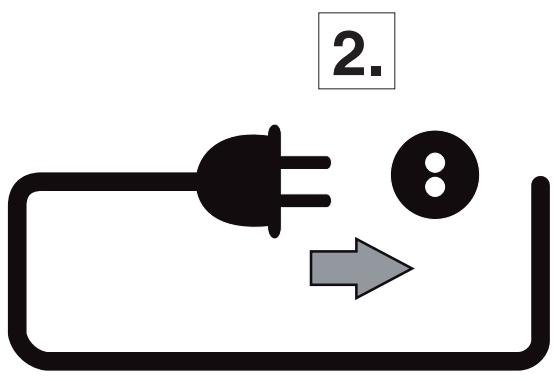

Appliance socket *)

The appliance socket is only designed for the purposes defined in the operating instructions.

1. The connection of different appliances can result in damage.
2. Prior to plugging in an appliance, always switch off the vacuum cleaner and the appliance that is to be connected.
3. Read the operating instructions to the appliance to be connected and observe the safety notes contained in these.

CAUTION

Damage due to unsuitable mains voltage.

The appliance can be damaged as a result of being connected to an unsuitable mains voltage.

1. Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.

Picking up liquids

CAUTION

Picking up liquids.

Due to their construction vacuum cleaners with a removable tank (SD) do not have an automatic level indicator. There is a risk of damage to the vacuum cleaner due to overfilling or of damage due to leakage of the picked up liquid.

1. Never pick up more than 40 litres at once.
2. Switch off the vacuum cleaner and empty the dirt tank.

Hazardous materials

WARNING

Hazardous materials.

Vacuuming up hazardous materials can lead to serious or even fatal injuries

1. The following materials must not be picked up by the vacuum cleaner:

2. hazardous dust

3. hot materials (burning cigarettes, hot ash, etc.)
4. flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
5. flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

Spare parts and accessories

CAUTION

Spare parts and accessories.

The use of non-genuine spare parts and accessories can impair the safety of the appliance.

1. Only use spare parts and accessories from Nilfisk-Alto.
2. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.

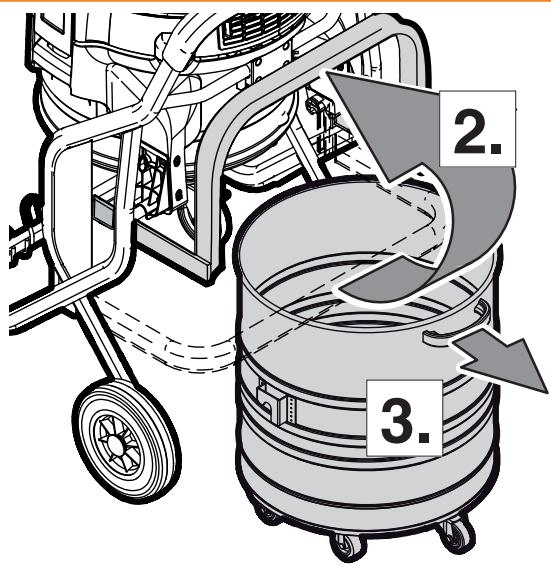

Emptying dirt tank

CAUTION

Picking up environmentally hazardous materials.

Materials picked up can present a hazard to the environment.

1. Dispose of the dirt in accordance with legal regulations.

Recycling the cleaner

Make the old cleaner unusable immediately.

1. Unplug the cleaner.
2. Cut the power cord.
3. Do not discard of electrical appliances with household waste.

As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

Quick reference guide

Pages 2 – 9 feature a pictorial quick reference guide, which is designed to help you when starting up, operating and storing the appliance.

This quick reference guide does not replace the separate operating instructions, which describes the appliance in detail. The operating instructions also contain further information on the operation, maintenance and repair of the appliance.

Meaning of the symbols

The instructions for actions are subdivided into 4 sections, which are represented by symbols.

	A Before starting
	B Control / Operation

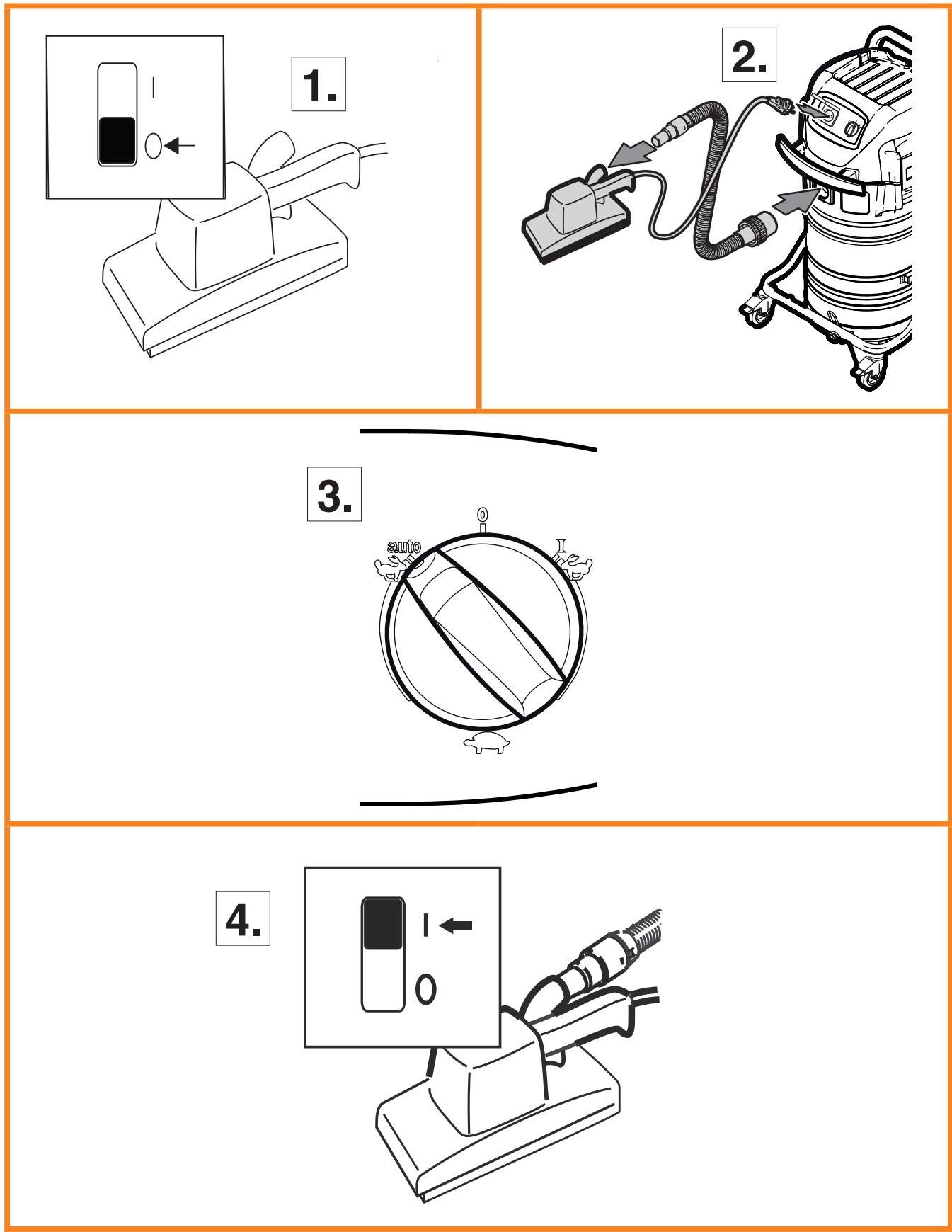

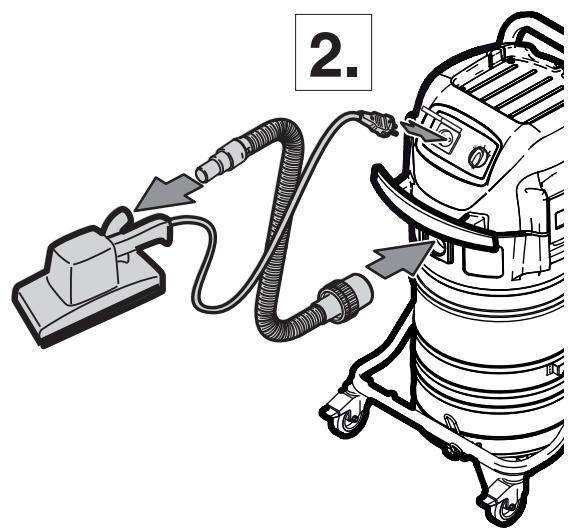

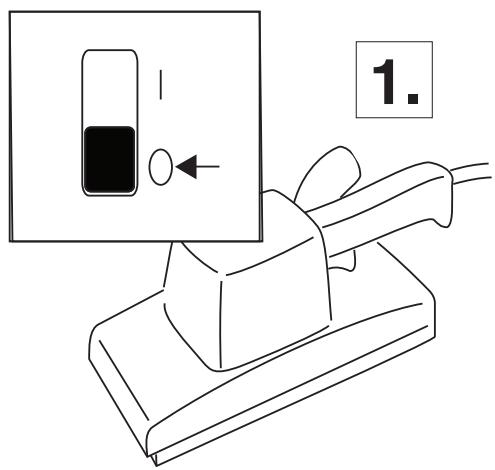

	B Connecting electrical appliances
	C After finishing work

An asterisk (*) indicates a model variant or special accessories.

Check whether your appliance is equipped with the control elements or special accessories depicted. If not, please proceed to the next action.
