USER MANUAL SALTIX 3 NILFISK

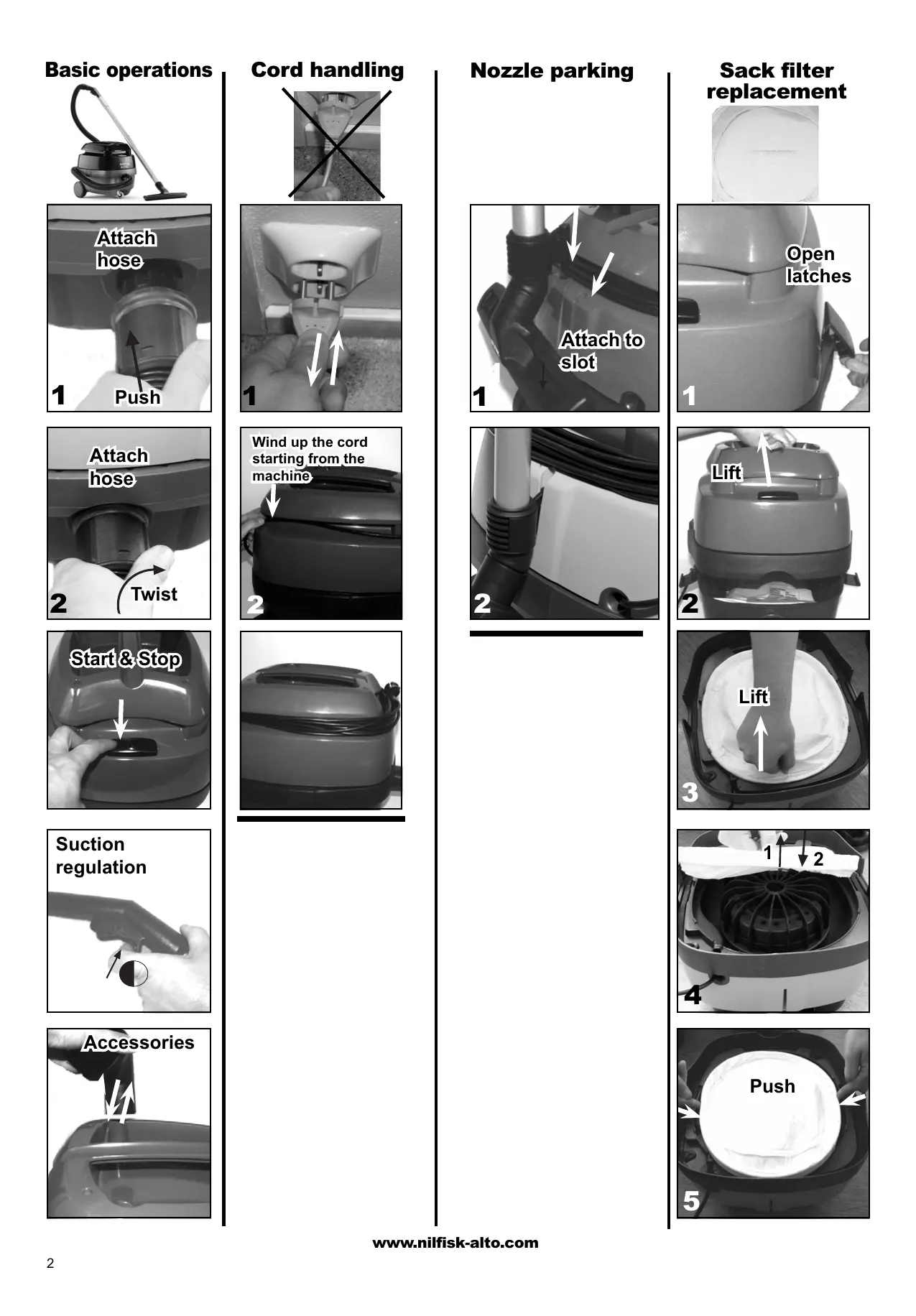

Edition 1 2007-01 Printed in China Basic operations Cord handling Sack filter replacement Nozzle parking

Wind up the cord starting from the machine

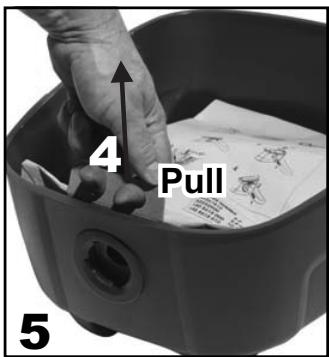

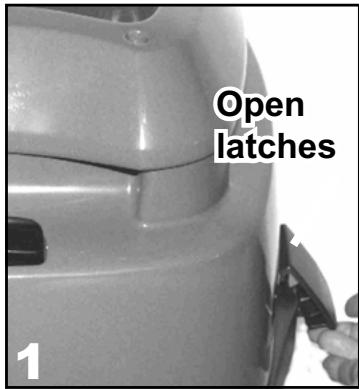

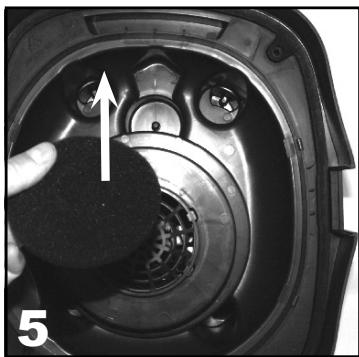

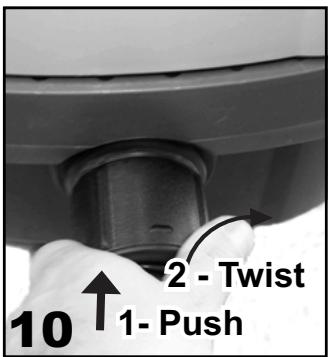

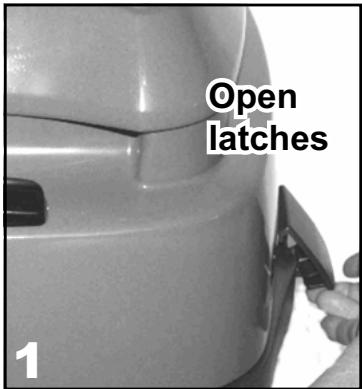

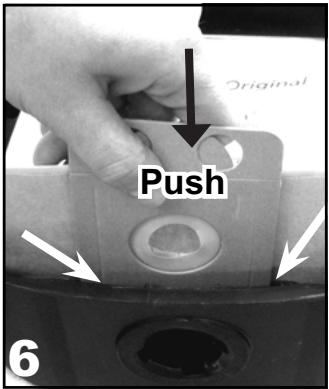

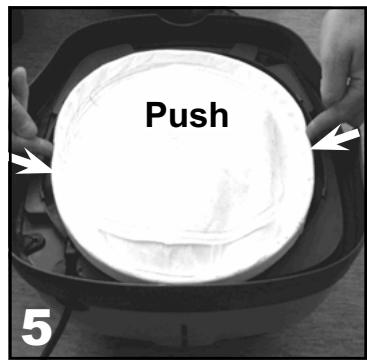

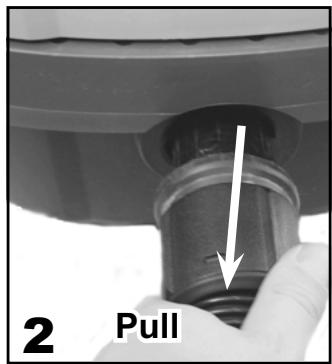

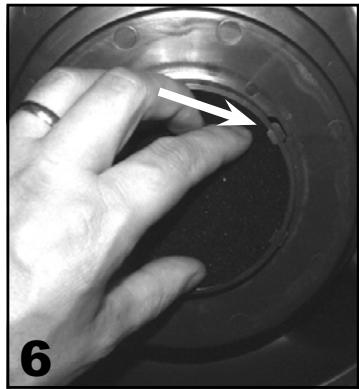

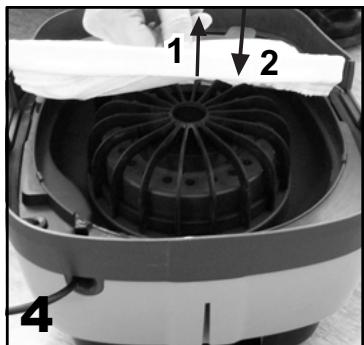

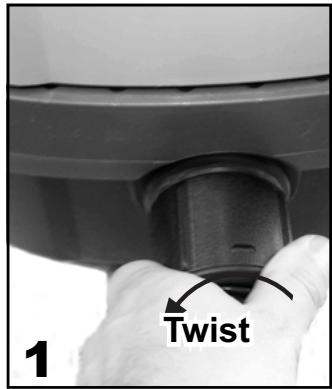

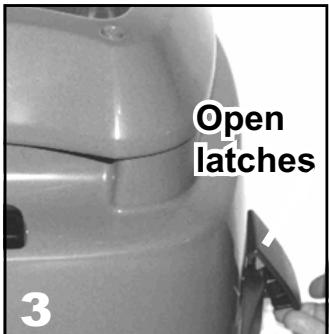

Dust bag replacement Motor filter replacement Open latches Push Twist

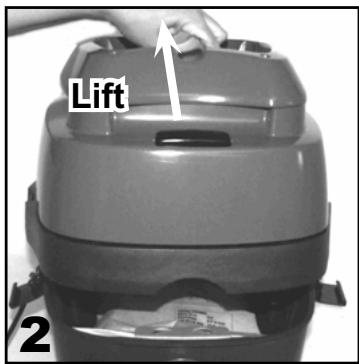

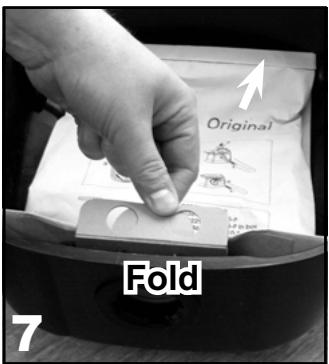

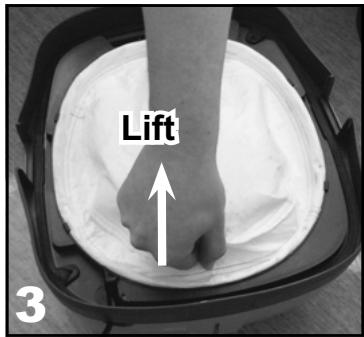

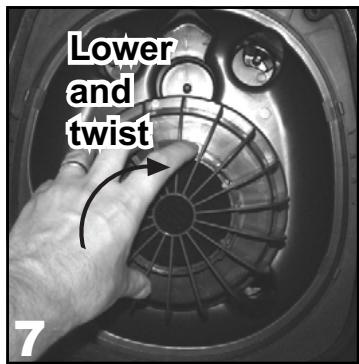

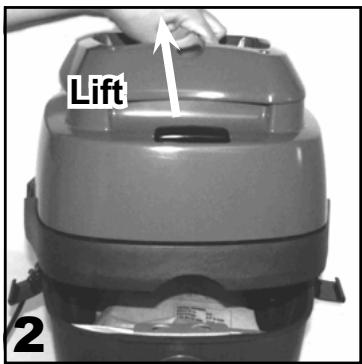

Lower and twist Lift Fold

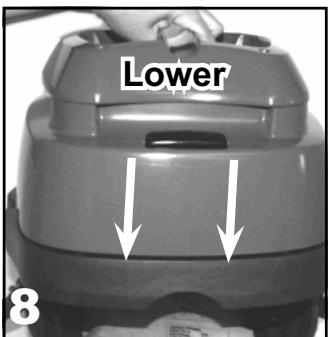

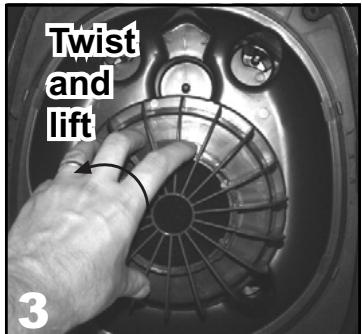

Twist and lift Lower Open latches

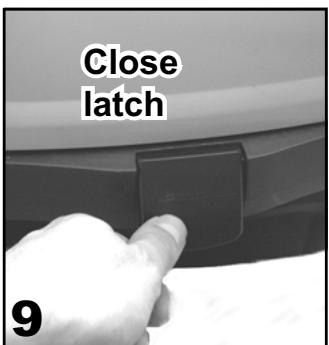

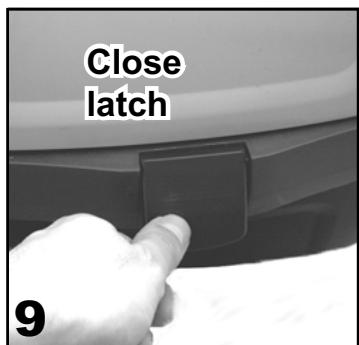

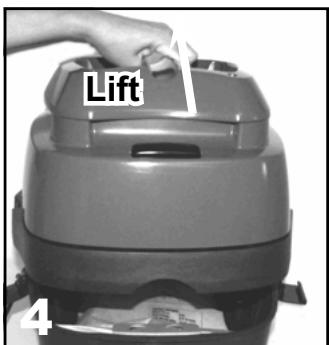

Close latch Lift Close latch

DECLARATION OF CONFORMITY

ENGLISH Instructions for use This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices and for normal housekeeping purposes. Before using this appliance, please read all instructions given here. Save this instruction for future reference. Before using the vacuum cleaner make sure that the voltage shown on the rating plate on the vacuum cleaner corresponds with the main voltage. Specifications and details are subject to change without prior notice. The accessories shown in the pictures may vary from model to model. Important warnings The vacuum cleaner must not be used for picking up hazardous materials - i.e. toxic dust, combustible or explosive materials, nor should it be used in an explosive atmosphere. Under no circumstances should the vacuum cleaner be used for picking up hot material. In particular the vacuum cleaner must not be used for cleaning open and closed fireplaces, ovens or similar that contain warm or glowing ashes. The vacuum cleaner must not be used for the suction of water, liquids or inflammable gases. This machine is for dry use only and shall not be used or stored outdoors in wet conditions. Store indoors between max. 60°C (degrees centigrade) and min. 0°C (degrees centigrade). The vacuum cleaner must not be used if the electrical cable or plug, show any sign of damage. Regularly inspect the cable and the plug for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Do not handle the electrical cable or plug, with wet hands. Do not unplug by pulling on cable. To unplug, grasp the plug, not the cable. The plug must always be removed from the socket outlet before starting any service or maintenance work of the machine or the cable. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. No changes to the mechanical, electrical or thermal safety devices must be made. This machine is equipped with a thermal cut-out to protect the motor and other vital machine parts from overheating. Should the machine cut out, you will have to wait at least 5-10 minutes for it to automatically reset. While you are waiting, switch the machine off and unplug it, then check the hose, dust bag and filter to be sure that nothing is blocking the flow of air through the machine. The equipment meets the requirements in EN 61000-3-11, and connection to the public mains is possible following consultation with the power supplier. The equipment may only be connected to the mains with a network impedance that is below 0.41 ohm. Network impedance at the point of delivery can be obtained from the power supplier. If the mains has a higher network impedance, momentary drops in mains voltage may occur during start/operation of the equipment. This may also affect or disrupt the operation of other equipment, e.g. flashing lights, particularly equipment that is connected to the same service line. Maintenance Always keep the cleaner in a dry place. The cleaner is designed for continuous work. Depending on the number of running hours – the dust filters (dust bag, sackfilter and motor filter) should be renewed. A dust bag must be fitted in the machine if the vacuum cleaners sack filter is vacuumed. Keep the container clean with a dry cloth, and a small amount of spray polish. For details of after sales service contact Nilfisk-Alto directly. The size and quality of the dust bag and filters affect the machine efficiency. Use of non original dust bags or non original filters can cause restricted air flow which may lead to machine overload. Using non-original dust bag or filters will void the warranty. Only use this vacuum cleaner with the equipment and nozzles supplied with the cleaner. The use of other non original nozzles can impair security. In addition all warranty claims expire if a use of non original accessories occur. Recycling the vacuum cleaner As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information. SALTIX 3 220-240V SPECIFICATIONS Rated power Protection grade (moist, dust) Protection class (electrical) Airflow with hose and tube Vacuum, at nozzle Suction power with hose Sound power IEC 704 2.1 Sound preassure BS 5415 Dust bag capacity Tank capacity Weight, cleaner only

Specifications and details are subject to change without prior notice.

(Only applicable to UK) THIS VACUUM CLEANER is designed, developed and rigorously tested to function efficiently and safely when properly maintained and used in accordance with the following instructions. These instructions have been prepared with safety and efficiency paramount. REGULAR SERVICING AND INSPECTION of your machine must be carried out by suitably qualified personnel in accordance with relevant legislation and regulations. In particular, electrical tests for earth continuity, insulation resistance, and condition of the flexible cord should be checked frequently. THE MACHINE OPERATOR must be trained by a suitably qualified instructor and must understand these instructions for use, and be made aware of any relevant regulations and legislation in force at the time of use. In the event of any defect, the machine MUST be withdrawn from service, completely checked and repaired. Trained Service Engineers will be pleased to carry out on site servicing on a regular or as requested basis, to ensure the continuing safety and efficiency of your machine. CAUTION - This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to be produced by the presence of volatile liquid or inflammable gas or vapour. CAUTION - In no circumstances should the power supply cord be wrapped around fingers or any part of the operators person. CAUTION - The electrical supply plug must not be subjected to undue stress by pulling on the power supply cord. YOUR MACHINE must only be connected to an electrical supply of the same voltage and frequency as indicated on the rating plate. Ensure that the plug fitted to the end of the power supply cord is suitable for your supply socket, if not refer to the information contained in ‘Electrical Connections’, or consult a qualified electrician. The electrical installation from which the supply is drawn must be maintained to current Institute of Electrical Engineers wiring regulations.

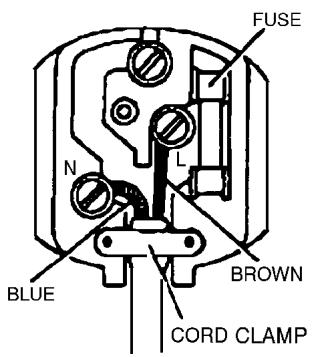

ELECTRICAL CONNECTIONS (Only applicable to UK) This 240 volt 50 Hz. machine are fitted with a 13 amp. 3 pin moulded plug. The plug is fitted with a 13 amp. detachable fuse. The correct replacement for the fuse is identified by marking or colour coding. Only fuses that are ASTA approved to BS 1362 should be fitted. Never use the plug without the fuse cover fitted. Replacement fuse covers are available at any electrical retail outlet. If the available socket outlet is not suitable for the plug supplied, the plug must be cut off and an appropriate plug fitted. The plug thus cut off MUST BE DESTROYED for safety reasons before being disposed of. Machines built for other voltages and frequencies are not normally supplied with a fitted plug. If it is necessary to fit a plug, the wires in this power supply cord are coloured in accordance with the following code: BLUE-NEUTRAL BROWN-LIVE TO CONNECT THE NEW PLUG: If using a three-pin plug, do not make any connection to the the terminal in the plug which is marked with the letter ‘E’ or by the safety earth symbol or coloured green or green & yellow. This machine is double-insulated and no earth connection is necessary. The blue wire must be connected to the terminal in the plug which is marked with the letter ‘N’ or is coloured black or blue. The brown wire which must be connected to the terminal in the plug which is marked with the letter ‘L’ or is coloured red or brown. If the plug to be fitted does not conform to the above notation then consult a qualified electrician.
