‘The Mariner/Yachisman features the following functions: salling timer, barometer, compass and watch. These are identified as sail mode [SAIL], barometer mode [BARO], compass mode [COMP] and time mode [TIME] in this manual and also on the display of the instrument. ‘The Regatta features identical [SAIL], [COMP] and [TIME] modes but does not include [BARO] mode.

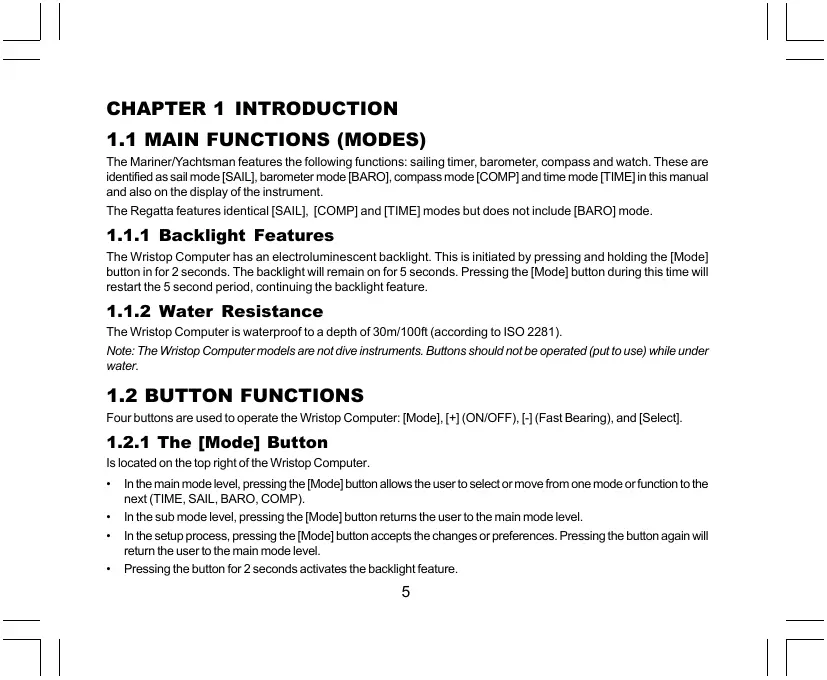

1.1.1 Backlight Features

‘The Wistop Computer has an electroluminescent backlight. This is initiated by pressing and holding the [Mode] button in for 2 seconds. The backlightwil remain on for 5 seconds. Pressing the [Mode] button during this time will restart the 5 second period, continuing the backlight feature.

1.1.2 Water Resistance

‘The Wristop Computer is waterproof lo a depth of 30m/100f (according to ISO 2281) Note: The Wristop Computer models are not ve instruments. Buttons should notbe operated (put to use) while under water.

1.2 BUTTON FUNCTIONS

Fourbuttons are used to opérate the Wrstop Computer: [Mode]. [+] (ON/OFF), [1 (Fast Bearing) and [Selecl}

1.2.1 The [Mode] Button

Is ocated onthe top right the Wristop Computer. + _Inthe main mode level, pressing the [Mode] button allows the user to select ormove from one mode ar function to the next (TIME, SAIL, BARO, COMP). + _Inthe sub mode level, pressing the [Mode] button retums the user to the main mode level. + _Inthe setup process, pressing the [Mode] button accepts the changes or preferences. Pressingthe button again will return the user to the main mode level. + | Pressingthe button for 2 seconds activates the backlight feature.

islocated one bottom right oftne Wrstop Computer. = | Inthe setup process, pressinghe [+] button changes or scroll the value upwrard = Inthe timing funetions, his button can act as à star/stop {or On/OIN button

1.2.3 The [-] Button

Islocated on fe boiomieft the Wristop Computer. = Sets the sang timer value (120 min. 1 min.) Int setup process, pressing te [button changes or scroll the value dounvrarl ‘This button is also known as the “Fast Bearing' button. Pressing the [] button in any ofthe main modes (exceptin Sailing Timer) wi quickly display the compass mode, showing ellher the normal compass or bearing tracking feature {Gepending on wat display has been chosen inthe compass mode)

1.2.4 The [Select] Button

Islocated on te top ef ofthe Wistop Computer. + Inthe main mode level, pressingthe [Seleci] button allows the user lo enterintothe sub modes ofthe particular function orretum to the main mode the useris in. + _Inthe main mode or sub mode, pressing and holding the [Select button in for more than 2 seconds allows the user toenter the setup process. + | Inthe setup process, the [Seleci] button allows the user lo move between seltable units or values and determine preferences.

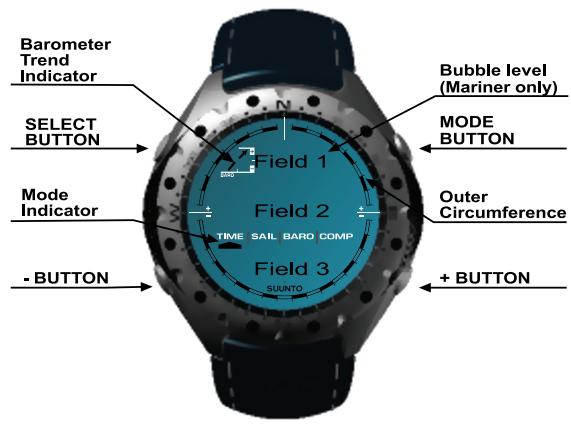

‘The display is designed to offer maximum clarity and simplicity to the user. ‘The display is divided into several regions or areas. + The Outer Circumference encompasses the outer boundary ofthe LCD display.

‘ABarometic Trend Indicator provides a quick reference for forecasting weather conditions (Mariner and Yachisman). Field 1 displays values either numbers or ext depending onthe mode or sub mode the useris in. Field 2 displays large numbers and/or related unit of measure ofthe function. A Mode Indictor Bar displays the main modes (functions) ofthe Wristop Computer (a triangle arrow located just below the barindicales the mode the user is viewing). Field 3 displaying either numbers andlor text. Baromoter Send Maicator Bubble level ndicet (Mariner on SELECT MODE BUTTON BUTTON Mode Outer Indicator. Gircumference

YACHTSMAN) ‘The Wristop Computer supplies wo units of measure: metrc or imperial. Metrc Unit of Measure Imperial Unit of Measure © es mbar ing m ñ

1.4.1 Selecting the Units of Measurement

‘To change the unit of measure displayed:

2. PRESSthe [Mode] and [Selecf/butions simuttaneousiy and holdin for 3 seconds. Field will display" SET" momentariy

andthen display “UN (Fig. 1)

WARNING: [the user presses the [Selec{] button (and does not hold for 2 seconds) while in the “UNI” setting mode,

the user wil be in the Pressure Sensor Calbration. Refer to the next section for details. PRESS the [Select] button and hold in for 2 seconds. Located to the rightin Field 2, "mbar” or“inHg' will begin to flash PRESS the [+] button lo toggle between"mbar and'inHg". Atthe unitofmeasure desired, PRESS the [Selec{] button to move tothe next unit Located atthe top ightin Field 1, *C'or"F will begin to flash, PRESS the [+] bution to toggle belween °C and °F. Atthe unit of measure desired, PRESS the [Selec!] button to move to the next unit. Located to the rightin Field 2, »* or * will begin to flash. PRESS the [+] buton o toggle between “m' and" Atthe unit ofmeasure desired, PRESS the [Mode] button to accept the changes. PRESS the [Mode] button again to relur to the main time mode.

Note: IFthe user does not press any button for 1 minute inthe setup mode, he display will automatically exit setup. Selecting the units of measurement is complete.

1.5 PRESSURE SENSOR CALIBRATION (MARINER AND

WARNING: This is a FACTORY CALIBRATION SETTING. Do not enter this mode.

Ifyou enter this mode in error, exitimmediately by pressing the [MODE] button to return to the “UNI setting mode. Normally there is no need to alter the calibration. Ifthe Pressure Setting Calibration has been altered, you can return the factory setting. Proceed as follows: In the calibration setting mode, scroll the barometri pressure value up or doun until text'4EF” appears. This is the factory setting. Then exit by pressing [MODE].

1.6 CARE AND MAINTENANCE

Perform only the detailed processes discussed in this manual. Do not perform any other service lo the Wristop Computer or attemptto open the case or remove the buttons or the bezel. Protect your Wristop Computer from shocks, extreme heat and prolonged exposure to direct sunlight. Ifnotin use, your Wristop Computer Should be storedin a clean, dry environment at room temperature. ‘The Wristop Computer can be wiped clean with aightiy moistened (warm water) cloth. Applying a mild soap lo the area can clean stubbom stains or marks. ‘Avoid exposing the Wistop Computer o strong chemicals ke gasale, dlsaning solvents, acetone, alcohol, adhesives, and paint, as they will damage the units seals, case and finish. Never attempt take the Wrslop Computer apart or service yoursel. Make sure the area around the sensors (backeide eftheinstument)iskeptfree ofdirt and sand. Neverinsert any objects int the sensor openings of the Wristop Computer.

1.6.1 Battery Replacement

‘The Wistop Compuler operates on athree-volithium cell Type: CR 2430. The maximum life expectancy is approximately 12-18 months.

Alow battery-wamingindicatoris actvated when 5-15 percent ofthe battery capacity is stil available. When this occurs we recommend replacement ofthe battery Extreme cold weather il active the low battery-warningindicator. Thoughthe indicatoris actvaled, he battery may notneed t be replaced due o this condition. I temperatures above 10°C (50°F) andthe low batlery wamingincicator is acivated, the battery vil need to be replaced Note: Heavy use ofthe electroluminescent backigh, and compass wil significantly reduce the life ofthe battery. Toreplace the battery

1. tum he Wristop Computer o view {he backside;

insert a coinin the coin slot located on the battery compariment cover, um the coin counterclokwise ta the open position marked on the back af the case; remove the batlery compartment cover, remove the old cell from the battery compartment and ensure the O-ing and all surfaces are clean and dry. Do not stretch ihe O-ring. place the new cellinto the battery compariment (negative side doun, positive side up): ensure the Oingis in place to keepthe Wristop Computer waterproof and place the batlery compartment cover back onto the backside of the Wristop Computer, insert a coin backinto the coin slot; and um the coin dlockwise to the close position marked on the back ofthe case. Note: Battery replacement should be performed with extreme care so as to ensure the Wiistop Computer continues to remain waterproof is the operators responsiilty to take due care lo ensure the Wiistop Computer remains waterproof. Itis also advisable to replace the O-ring seal. After every battery replacement itis necessary to calibrate he magnetic sensor. Details on perfoming this process are foundin Calbrating the Compass section of this manual.

To view Sailing Timer: Check the Mode Indicalor Bar. Ifhe mode arrow is noton SAIL, PRESS the [Mode] button until ie arrow is directly below SAIL onthe bar. Inthe Sail mode (Fig. 2.) + Field 1 the selected time lobe counted dounin minutes, maximum 120 minutes: + Field 2the time to be counted down minutes and seconds; and + Field 3the current time andthe text‘1og book” lo theleft ofthe currenttime. ‘Te selthe count down, PRESS the [- button, the selection wil begin with 120 minutes. Itis adjustable in 10-minute increments, from 120 to 60 minutes, in 5-minute increments, from 60 to 15 minutes, and from 15 minutes to O by the minute. Continue pressing the [+ button until the desired minute is achieved. The selected lime is stored in Field 1 ‘To begin the countdown, PRESS 1he [+] button. [-] wall start the timer again from the preset minute. During the count down the timer wil activate audible signals. Interval Audible signal Everyful minute Short double beep Every 10 seconds during the lastminute Short double beep Every second during the lastien seconds Short single beep AAtthe completion ofthe count down Long single beep When he lime to count doun has been reached, a stopwatch will automatically start running (Fig. 3). The range ofthe Stopuatch is 120: 00,00. + Field 1 displaysthe seconds and tenths of seconds afthe event; + Field2 displaysthe hours and minutes ofthe event, and + Field 3 displays the current time and he text‘logbook” to the left ofthe current time. Duringthis activity when the stopwalch is running, the [+ button can be used to store up to 50 split times (way pointtimes) tobe viewed after he race has been completed. The splitime (way paint time) wil be displayed for 10 seconds after pushing the button. 1

‘The stopwatchis stoppedby pressing he +] button twice within io seconds. This wi elminate accidental tops ofthe Stopwatch. The finish fime is also storedin the memory Afler the stopwalch has been stopped, the []butlon relurns the userlothe counidown display. PRESS the [Mode] button once Lo relum to the Sailing Timer main mode.

2.1 SAILING TIMER MEMORY SUB MODE

Inthe Sail mode, PRESS the (Seleci] button once. In the first display (Fig. 4): + Field 1 shows the year ofrace: + Field 2 shows the starting ime of {ne race; and + Field 3 shows staring date of race andthe text'log book” and memory lo the ef PRESS the [+] button to view he second display. Inthe second display (Fig. 5): + Field 1 showsthe seconds andtenths ofseconds ofthe med event; + Field2shous the hours and minutes ofthe event: and + Field3 shows the text'dUr (AUr = duration) PRESS the [+] button to display he stored spltimes (way pointtimes) (Fig. 6) :_ Field 1 shows the seconds andenths ofseconds ofthe spl ime; + Field2 shows the hours and minutes ofthe split time and + Field3 shows the actual ime when the split time was taken. you stop to vieurthis display the date as wel as the year ofthe split moment wil start alternating with the time. PRESS the [+] and [- buttons to scrol through the split times. PRESS the [Selecl button to exit and retum to the main mode. Note: Only one race can be storedinthe memory. As soon as the count doun function is restarted, the information from the previous race will be erased from the memory.

‘The Time mode provides the user with: ‘an adjustable 24/12 hour clock display: a calendar pre-programmed to the year 2089; three daily alarmes; Stopwatch countdoun timer, and a dual time operation. To view and use the Time mode function: Checkthe Mode Indicator arrow. Ifthe mode arrow is noton TIME, PRESS the [Mode] button untl the arrow is direct below TIME. Inthe TIME mode (Fig. 7): File 1 displays the day ofhe week Field 2 displays the current time. Field 3 displays the date (montday fthe 12-hour clock has been chosen; day month ifthe 24-hour clock has been chosen).

• The Outer Circumference graphically displays time in seconds. ‘The TIME mode and all sub modes can be adjusted through the set up program ofthe Wristop Computer.

1. PRESS the [Select] button and hold in for 2 seconds. Locatedin Field 3, he seconds will begin to flash (Fig. 8).

2. PRESS the [+] button to scrollihe seconds upward or PRESS the [-] button to resetthe seconds to zero.

3. Atthe seconds desired, PRESS the [Selecl] button to move Lo the nextseting. Located on rightof Field 2, 1he minutes

PRESS the [+] button to scrollihe minutes upward or PRESS he [] button to scrollthe minutes downward. Atthe minutes desired, PRESS the [Selecf button to move o the nextseting Localed inthe center of Field 2, ne hour will begin to flash PRESS the [+]bution to screllthe hour upward or PRESS the [- button Lo scrol {he hour donward. Atthe hour desired, PRESS the [Seleal button to move tothe next setting, Located in Field the 24 or 12hour clock setting will begin to flash.

8. PRESS eitherthe [+Jorthe [] button to toggle between the 24hr and 12hr.

Note: ifthe 12 hour clock is chosen either APM will appear below the hour in Field 2.

2. Atthe clock setting desired, PRESS the [Seleci} button to move lo Ihe next setting. Located inthe center of Field 2,

1. Atthe year desired, PRESS the [Seleci]bution to move to the next seting. Located in the centerof Field 3, the month

represented by a number wi begin to flash.

12. PRESS the [+] button to scrol the month upward or PRESS the [] button to scroll the month dounward.

13. Atthe month desired, PRESS the [Seleci] button to move to the next seting. Located to the rightof Field 3, he day

vill begin to flash 14.PRESS the [+] button to scrol the day upward or PRESS the [] button to scrol the date downward Note: Once the user has determined he year, month and day. the Wistop Computer will supply the day ofthe week in Field 1. Note: the 12-hour clock is chosen, the date wil be displayed as month/day. the 24-hour clock is chosen, the date will be displayed day/month. 15 Atthe desired day, PRESS the [Mode] button lo accept{he changes and return lo Ihe main mode. Note: the user does not press any button for 1 minute inthe setup mode, he display will automatically exit setup. Setingihe time is now complete.

3.2 DAILY ALARM SUB MODE

‘The Wristop Computer allows the user to select and enter settings for up to three alarmns. Inthe TIME mode, PRESS the [Select button once to enter this sub mode. Inthe Daily Alarm sub mode (Fig. 10): + Field 1 displays "ON" or*OFF"(lhe activation status of a particular alarm), + Field 2displays the time of particular alarm, and + Field 3 displays the alarm (1, 2, or 3) the users viewing Pressing the [+] orthe [:] button wil toggle between the alarms 1, 2, or 3 to viewrthe settings for each alarm.

3.2.1 How to Set the Daily Alarms

PRESS the [+] orthe [-] button to select the desired alarm to be set (1, 2, or 3).

2. PRESS the [Select] button and hold in for 2 seconds. Locatediin Field 1, Ihe*ON" or*OFF" will begin to flash.

3. PRESS eitherthe [+]orthe [-] button totoggle between "ON" and'OFF.

4. Atthe setting desired, PRESS the [Selec{butlon to move lo the next seting. Locatedin he center ofField 2, the hour

8. Atthe minutes desired, PRESS the [Mode] button to accept he changes and exitthe setup program. À small bel will

appear atthe bottom left side in Field 2 to signify an alarm has been activated. ‘The Alam setup is complete. To acivate up to three alarms, please repeat steps 1-8 for the selected alarm (1, 2, or 3).

3.3 STOPWATCH SUB MODE

‘The Wristop Computer stopwalch sub mode can provide spl ime measurement and two fish imes up Lo 24 hours. In the TIME mode, PRESS the [Select button bwice Lo enter his sub mode.

Inthe Stopwalch sub mode (Fig. 11} + Field displays he seconds and tenths of a second + Field2displays the currenttime, and + Field 3 displays hours and minutes and t ie farright “stopwatch"

3.3.1 How to Use the Stopwatch

‘There are three timing modes the user can employ + anelapsedtime measurement + aplttime measurement and + atwofnishime measurement Inthe etapsed time mode:

1. PRESS the [+] button to stat, stop, and resta he stopwatch

2. PRESS the f- button to reset the stopwatch to zero once the stopwalch has stopped

Inthe split ime mode:

1. PRESS the [+]bution o startihe stopwatch

2. PRESS 1he -Jbutton once to stop the stopwalch and to display a splittime.

3. PRESS he [button a secondime to release the spitime display and resume the stopwalch

4. PRESS the [+] buton to stop he stopwatch

5. PRESS the buttonto resetthe stapwatch to zero once the stopwalch has stopper.

Inthe to finish time mode: PRESS the [+] button o startihe stopwatch PRESS the [1 button once lo stop the stopwatch to display {ne finish ime ofthe firstperson. PRESS the [+] button to stop the stopwatch. PRESS the [1 button a second me to release and display Ie finish time oflhe second person. PRESS ihe [J button o clear and to reset the stopwalch.

Note: When the stopwelch sub mode is activatedi the stopwatch will continue and remain in the background ifthe user isin other modes or sub modes, The user can identify the stopwalch is stl activated by the Hashing ext “stopwatch”in Field 3.

1. PRESS the [Select] button and holdin for 2 seconds. Located in Field 1, the seconds will begin to flash.

2. PRESS the [+] button to scrol ihe seconds upwrard or

PRESS the [button to scrol the seconds downward

3. Atthe seconds desired, PRESS the [Selecl] button to move Lo the next seting. Located on rightof Field 3,1he minutes

8. Atthe minutes desired, PRESS the [Seleci] button to move to the nextseting. Located inthe center ofField 3, the hour

6. PRESS the [+]button to scrol the hour upward or

PRESS the [1] button to scrollthe hour downwerd. 7.. Atthe hour desired, PRESS the [Mode] button to accept the changes and exitthe setup program {The countdonn timer selup is complete.

1. PRESS the [+] button to start, stop, and restartthe timer.

2. PRESS the [- button lo reset he limer lo zero once the timer has stopped.

Note: When the countdown timer is activated, the countdoun timer will continue and remain in the background the user is in other modes or sub modes. The user can identify the countdown timer st activated by the flashing text ‘timer in Field 3.

3.5 DUAL TIME SUB MODE

Inthe TIME mode, PRESS the [Select button four times to enter this sub mode. Inthe dual ime sub mode (Fig. 13}: + Field 1 displays "dUA'indicating “dual time”, + Field 2 displaysthe curenttime, and + Field3 displays the dual time (e.g. your home time) ‘The user can display the seconds while in this sub mode by pressing the [+] button, in Field 3e seconds il appear for 10 seconds, Aflenwards Ie display relurs lo showing he dual time.

3.5.1 Setting the Dual Time Function

Inthe dualtime sub mode: PRESS he [Selecl] button and holin for 2 seconds. Located in Field 3, the hours il begin to flash. PRESS the [+] butin to scroll the hours upward or PRESS the [button to scrol he hours dounward. AAtthe hour desired, PRESS the [Selecl] button lo move tothe next seting. Locatedin Field 3 to tne right ofthe hour value, the minutes wil begin t flash PRESS the [+] button to scrollthe minutes upward or PRESS {he [1 button o scrol {he minutes dounward. Atihe minutes desired, PRESS the [Mode] button o accept he changes and extthe setup program ‘The dual ime setupis complete.

‘The dual time stays the same, even though the time in the main lime mode is adjusted. For example, i'you setthe dual time to show your home time, your home time vil ahways be displayedin this sub mode even though you travel t a diflerent time zone and adjustihe time in the main time mode. Note: The duel time sub mode is completely independent and does not effectthe alarms orthe memory functions. These are dependent on the current local time.

CHAPTER 4 BAROMETER MODE (MARINER AND

YACHTSMAN) {The Barometer mode provides the user with: an adjustable unit of measure mbar orinHg; mbar range 300 to 1 100 bar, inHg range 8.90 to 32.40; a resolution of 1 mbar or 0.05 inHg: aone hourinterval measuring to estimate barometric trend: a diference measurementfunclon; an automatic 4-day memory of atmospheric pressure for the last hours in 1-hour intervals, Ihereaer, in 6-hour intenvals: temperature compensation (temperature does noteffectihe pressure within the specified temperature range) latemperature range -20° to 60°C or-8° to 140°F; and temperature resolution of 1° C orF. Note: Body heat will effect lemperature when the Wristop Computer is wom onthe wrist. To achieve an aceurae reading remove the Wristop Computer from the wrist and allow atleast 15 minutes before reading the temperature. Ifyouve been in the barometer mode for more than 15 minutes with no rate ofverlical movement, you should allow 1 hour forthe Wristop Computer to adjustthe temperature. To acquire a quicker up-date ofthe temperature, press the [Mode] button 4 times lo re-enterihe mode. To view anduse the Barometer mode: Checkthe Mode Indicator Bar. the mode arrow is noton BARO, PRESS the [Mode] button until the arrow is directly below BARO on the bar.

Inthe Barometer mode (Fig. 14): Field 1 displays the current temperature. Field 2 displays the current absolute atmospheric pressure. Field 3 displays the currenttime. ‘The Outer Circumference graphicallydisplays the atmospheric pressure over 100 milibars or 1 inHg where one complete circle is equivalent to 100 mbar/1 inHg, depending on the unit of measure chosen. Note: The absolute pressure is the actual pressure in any location at any given time. Where as, sea level pressure is the comespanding pressure at sea level.

4.1 PRESSURE DIFFERENCE MEASUREMENT SUB MODE

Inthe Barometer mode, PRESS the [Select button once lo enter this sub mode. In the Pressure Difference Measurement sub mode (Fig. 15): + Field 1 displays the change in temperature. + Field 2 displays the change in atmospheric pressure. + Field 3 displays the currenttime; to the left ofthe time is the textdiffer. The Outer Circumference graphicallydisplays the change in pressure where one ful circle equals 100 mbars or 1 inHg. “This sub mode does continue in the background and allows the user to move lo other modes and atthe users convenience can retum to this sub mode lo show the current reading.

4.1.1 How to Start the Pressure Difference Measurement

‘1. PRESS the [Selec!]bution and hold infor 2 seconds. Located in Field 1 isthe text*SET" located in Field 2, zero will begin to flash (Fig. 16).

2. PRESS the [Mode] button to acceptihe flashing zero and startihe difference measurement

Ifthe user does not desire to begin the difference measurement, PRESS either he [+] or the [:] button t toggle to the current barometrc pressure reading, then PRESS the [Mode] button to exitthe setup program. Note: the user does not press any button for 1 minute inthe setup mode, he display will automatically exit setup.

Inthe Barometer mode, PRESS the [Select button twice to enter this sub mode. This sub mode allows the user to follow changes in pressure that will assist forecasting changes in weather condition (Le. storms). Inthe 4-day memory sub mode (Fig. 17): Field 1 displays the day ofthe week the userisin; Field 2 displays the atmospheric pressure; and Field 3 displays the lime and tothe leftthe tex'memory. ‘The Outer Cirumference graphically displays the atmospheric pressure where one full circle equals 100 mbars or 1'inHg. To viewhe information compled in the 4-day memory: +__ PRESS the [button to scroll back down in increments of one hour forthe first six hours, after hat increments are Ghours. + | PRESS the [+] button to scroll back up. Note: Replacing the battery wil not erase this information.

4.3 SEA LEVEL PRESSURE SUB MODE

Sealevel pressure is pressure relative to sea level where as the pressure readinthe main barometric display is absolute pressure in the current location. Inthe Barometer mode, PRESS the [Selec!] button three times to enter this Sub mode. Inthe sea level pressure sub mode (Fig. 18): + Field { displays the text'SEA"; + Field 2 displays the current sea level pressure; and + Field 3 displays the currenttime.

‘To setthe sea level pressure you have two choices either give the current sea level pressure or give the exact altitude ofthe location (e.g. lake). PRESS the [Select button and hold in for 2 seconds. Locatedin Field 2, the current sea level pressure wil begin to flash, PRESS the [+] button to scrollthe pressure upward or PRESS the [] button to scrollthe pressure dounwerd. Atthe desired pressure, PRESS Ihe [Mode] button lo acceptthe changes and return to the main mode orifyou want use alitude to setthe sea level pressure, PRESS the [Selec{] button. Locatedin the field the current reference alitude vil! begin to flash PRESS the [+] bution to scral the allitude upward or PRESS the [button t scrol the alitude dounward.

5. Atthe desired value, PRESS the [Mode] button to accept the changes and retum to the main mode.

Note: Information on the current sea level pressure can be obtained through newspapers, local news and radio weather reports, the local aipor facilty or through the Intemet under local weather. Information on the alttuce can be found by utlizing a topographical map identiying the current location with the associated altitude marked. Ifthe user does not press any button for 1 minute in the setup mode, the display will automatically exit setup.

4.4 BAROMETRIC TREND INDICATOR

Located on the toplef comer ofthe LCD display resides the Barometric Trend Indicator. This feature is always displayed in all main modes providing the user a continual quick reference Lo analyze upcoming weather conditions. ‘The Barometrc trend is comprised of two lines forming an arrow. Eachline represents a 3-hour period. The rghtline represents the last 3 hours. The lef line represents 3 hours prior to the last 3 hours. The line can indicate 9 different pattems in the baromelrictrend. Situation 6-3 hours ago Situation last 3hours Droppedheawy (2 mbars/3hours) Droppingheavy (>2mbars/ähours) (T] Droppedheawy (2 mbars/3hours) Remaining stable

Droppedhesvy PZmbarsähours) RéingheayCZmbarsätours) Remained stable Droppingheavy (2 mbars/ähours) ER: Remained stable Remaining stable = Remained stable Rising heavy (2 mbars/ähours) A Risen heavy (>2 mbars/3hours) Rising heavy (>2 mbars/3hours) L Risen heavy (2 mbars hours) Remaining stable & Risen heavy (-2 mbars/hours) Droppingheawy (>2mbarshours) LE: Note: Ifthe user remains atthe same elevalion, the barometric trend'indicator can work as a weather forecasting tool.

CHAPTER 5 COMPASS MODE

{The compas mode provides the user with: a cardinal or half cardinal point abbreviation: bearing degrees; a North-South arrow, ‘a bearing track mode showing desired direction and actual bearing: arotating bezel, resolution of 1° for the bearing, 45° for North-South direction: and decination correction feature. Starline function Toviewandusethe Compass mode: Check the Mode Indicator Bar. Ifthe mode arrow is noton COMP, PRESS the [Mode] button uni the arrow is directiy below COMP on the bar. Inthe COMPASS mode (Fig. 19) + Field 1 displaysIhe cardinal or hal-cardinal point. + Field2 displays the bearingin degrees,

+ Field 3 displays the currenttime. The Outer Circumference graphically displays the North-South arrow where one-il segment shows North andhree- litsegments show South. ‘The compas display is active for 45 seconds at a lime. Afler this, the compass enters “sleep” mode and an" indicator appears in the field 2. Reactivate the compass by pressing the -] button. ‘The Mariner provides a bubble level for the user lo achieve a precise reading within 43 degrees. The user centers the liquid bubble Lo ensure the Wrstop Computer position is level and takes a reading Note: Compass readings should be performed away from objects possessing sources ofmagnetism. Avoid buildings, large metal objects, power lines, loudspeakers, electric motors etc. Always take bearings in the open air, not inside lents, caves, orother shelters.

5.1 BEARING TRACKING SUB MODE

‘The user can select to change from the cardinal point mode to the bearing track mode and utlze the bearing lock feature inthis mode for tracking purposes (Fig. 20). Inthe compass main mode: ‘1. PRESS the [Select bution and hold in for2 seconds. Locatedin Field 1, the text'bEA' (bearing) (Fig. 21). PRESS either the [+] or he [:] button to change the setting between ‘OFF and-ON" Atthe selection desired, PRESS the [Seleci] button to move o the next seting. Located in Field 2, the acual bearing in degrees wil begin to flash (Fig. 22). Tum the Wristop Computer o the desired direction. Lockthe bearing displayed by pressing the button. Adjstihe locked bearing, ifnecessary by pressing the [Select button and then adjusting the value with the [+] and Hbuttons. Atthe desired bearing to track, PRESS the [Mode] button to acceptthe changes and exithe setup program. Note: the user does not press any button for 1 minute in the setup mode, the display will automatically exit setup. FFwil begin to flash andthe field 2 shows

5.2 DECLINATION ADJUSTMENT SUB MODE

{The Wistop Computer allows the user lo compensale he difference between true north and magnetic north, This process is accomplished by adjusting the declnation, resulting in the user obaining correct compass readings. Inthe Compass mode, PRESS the [Selecl button once to enter this sub mode. Inthe Decination Adjustment sub mode (Fig. 23): + Field 1 displays the declination direction "OFF" where (OFF = no declination; W = West, E = East + Field 2 displays declination in degrees. + Field 3 displays the text'dEC"

5.2.1 Setting the Local Declination

PRESS the [Selecl button and hold in for 2 seconds. Located in Field 1, "OFF" wil begin to flash. PRESS either the [+] or the [- button to change the declination direction in Field 1 AAtthe direction desired, PRESS the [Seleci] button to move to the next seing. Located in Field 2, the degrees will begin to flash PRESS the [+] button lo scrollthe degrees upward or PRESS the [- button lo scroll the degrees downward Atthe degrees desired, PRESS the [Mode] bution to acceptthe changes and exitthe setup program. Note: IFthe user does not press any button for 1 minute inthe setup mode, he display will automatically exit setup. Local Decination is now set.

5.3 CALIBRATING THE COMPASS

{A compass calibration should be done vien the Wristop Computer is subject to close proximity of magnetic sources, extreme cold weather, every ime the battery is replaced or suspected that her environmental conditions have effected the compass readings. Note: We also recommend calibrating the compass before using the compas the first time and'every time leaving for a hike where the compass wil be used.

To beginthe calibration:

1. PRESS the [Seleci] bution ice when in the main compass mode. Field 1 displays the lex" CMP”. Field 3 displays

the text'CAL” (Fig. 24). PRESS the [Seleci] button and holdin for 2 seconds. Located in Field 2, the text-PUSH" wi begin Lo flash (Fig. 25). PRESS the [- button to start calibration: In Field 2, 360° appears and he Outer Circumerence displays all segments li (Fig. 26). When this occurs, hold the Wristop Computer level and startto slow tum the device around a ful irlein alevel position. The direction ofturning does not matter, The lit segments wil be turned off as the uming proceeds. When the first full circle is completed, the instrument wil inform the user wilhin one minute of whether he calibration was successful isplaying the text “dOnE” in Field 2 (Fig. 27) or iflhe process needs to be repealed displaying “PUSH” and “"in Field 2. Note: The usermay needo perfomm the rotating ofthe compas more than wice around farthe calibration o be completed. Notez: the text “FIL” appears in Field 2 (Fig. 28), the battery should be removed and put backn before trying o proceed with the calibration process. The removal of the battery wil reset" the unit.

5. Once the calibration is successful, PRESS the [Mode] button to accept the process and exitthe calibration mode.

Note: is important to hold the Wiistop Computer level during the calibration process to ensure accuracy. ‘The compas calibration is complete.

5.4 START LINE FUNCTION

‘The / + marks on both sides of the display will help determine the favored end ofthe start ine in a race. Touse the the function: Algnthe wristop with the wind direction. Press [BEARING/-] button to lock the bearing. Align the NORTH on the bezel with the NORTH arrow on the compass. Steer along the start ine and memorize he heading You are steering towards the favored end of the line ifthe corresponding heading reading on the bezel appears on the upper partofthe display (between the + marks). the corresponding heading appears on the lower part ofthe display (between — marks) you are steering away rom the favored end.

Yes, iis waterproof to a depth of 30 meters (100 ). Rain and other normal exposure to water will not effectits operation. You can suim earing your Wistop Computer Hourever, he Wristop Computer is NOT à dving device.

6.1.2 How long will the battery last?

Allusers employ the productin different ways. Battery ife depends mainly on how much the backight and Ihe compas are used. The low-baltery warning symbol appears on the display when 5 lo 15 percent ofbattery capacity remains. This Should give the user plenty oftime to safely change the battery.

6.1.3 What do the segments on the circumference mean?

In he Baromeler mode, one fl circle equals 100 mbar or 1 ing, and {ne segments inicate Ie pressure over full hundred mbar or over aflling. When using the diference measurement funcion f {he barometer the segments indicate the change in atmospherl pressure éhertothe rightifhe pressure has risen rl the fie pressure has Groppes Inthe main Compass mode, he segments indicate ne No ie. he one segmentiicales North andere segments point South you have set he compas: o rack a certain bearing, Ie segments on he ciroumerenceindicale {ne différence betweenthe direction inwich you wantto go and your actual bearing

6.1.4 Why do the segments on the circumference go to the left

(counterclockwise)? Normal. they ahays go lo the right (clockwise) from the 12-noon position: You are in the difference measurement mode and your unitis showing a decreasing value. In normal mode, the segment displayincreases dlockwise, butifyou are in a mode that shows you differences, all decreasing values go counterclackwise from the center position, and all increasing values go clockwise. So, Lis “minus” o the lef (counterciockwise), and “plus” to the right (clockwise).

6.1.5 Why is there a symbol above the Mode Indicator Bar and

what does it mean? ‘The symbol indicates that one, two, or three daily alarms are activated.

6.2.1 Why do the segments on the circumference increase and

decrease when I am in the Time mode? ‘The main function ofthe segments is related 1o the Compass mode, where a divisioninto 36 segments is necessary due Lo he 360-degree scale of compass. Inthe Time mode, he segments showhe advancement ofseconds. Because the number of seconds differs from the number of degrees, iis impossible for the segments to be consecutively it up: they now light up orextinguish, thereby marking the passing of every second.

6.2.2 What is the longest time I can set in the

‘The maximum range oflhe countdown timeris 23 hours 59 minutes and 59 seconds.

6.3.1 What is the little box on the top left of the play?

Itis the barometric trend indicator that shows the general direction of weather changes. The display is based on barometer measurements forthe last hours.

6.3.2 Does the Wristop Computer show future trends in weather

conditions? No, the Wristop Computer coninually accumulates data on barametrc pressure existent within a 3 to 6 hourwindow and displays general barometrctrendé in weather based on the accumulated data. imer?

6.3.3 What does “absolute pressure” and “relative pressure”

mean? Absolute pressure isthe actual pressure in any location atany given time. Relative pressure onthe olherhand equais the corresponding pressure at se level fra certain allude that you are a. For example, fyou are at an allude of 1.000 m 3,300 the absolute pressure normal is around 900 mban/26.60inHg, The reative pressure al sea levelwould en be around 1,013 mbar/29.90inHg

6.3.4 Is the Wristop Computer temperature compensated?

Yes, the Wristap Computers temperature compensated, which means that for the temperature range specifled (-5 to +140*F/-20 to +60°C), the instrument will show accurate pressure. Within this range, the temperature has no effect on the almospheric pressure reading. “Temperature compensation does not, however, mean thatthe temperalure reading isntatal fected by body heal. Body heatwil affect the temperature reading, and to getthe correcttemperature reading of the environment remember to take the Wristop Computer of yourwrist and wait about 15 minutes foritto stabilze and show the correct temperature ofthe surroundings.

6.4.1 What is the purpose of the rotating outer bezel?

‘The purpose oh rotalng bezels that people can use the instruments a regular base plate compass Îihey wantto anduse te bezelo € g. indicate North when in he bearing racking mode ar leaving the compass display for another mode. The bezelis also used for determing ie favored end oftne slartie in arace. (for moreinformion, see chapter 5 Compass mode)

6.4.2 Where do I find the correct declination for my area so | can

set my Wristop Computer? Local decination, either or W.is usually marked on maps with either one-degree orhal-degres accuracy

Battery Replacement Kit (including battery, battery lid and o-ring) Watch Staps in plastic (RegattaMariner) ar leather (Vachtsman) Extension trap in plastic Bezel (Available oniyin Suunto Oy during maintenance) Suunto Oy provides moderate-priced Wristop Computer service lots customers. Batteries are usualy available in sport andwatch shops etc.

“This publication andits contents are proprietary to Suunto Oy and are intended solely for the use ofis clients to obtain knowledge and key information regarding he operation of Suunto products. is contents shall notbe used or distributed for any other purpose and/or otherwise communicated, disclosed or reproduced without the prior written consent of Suunto Oy. While we have taken great care lo ensure thatinformalion contained in this documentation is boih comprehensive and aceurate, no warranty of aceuracy is expressed or implied. is contents subject to change at any time without notice. ‘The latest version oflhe documentation can ahways be downloaded in www.suunto.com.

Suunto, Wristop Computer, Yachtsman, Mariner, Regatta, Replacing Luck, and their logos are registered or unregistered trademarks of Suunto Oy. Al rights are reserved.

‘The CE marks used to mark confommity ith he European Union EMC directives 89/336/EEC.

9.4 ISO 9001 COMPLIANCE

Suunto's Quality Assurance System is certified by Det Norske Veritas to be ISO 9001 compliantin all SUUNTO Oys operations (Quality Certificate No. 96-HEL-AG-220).

Ithis product should fail due to defects in materials or workmanship, Suunto Oy will, tits sole option, repair or replace it with new or rebuil parts, free of charge, for to (2) years from he date of its purchase: ‘This warranty is only extended to the original purchaser and only covers failures due to defects in materials and workmanship that occur during normal use while in the period afthe warranty. It does not cover battery, battery replacement, damage or failures resulting from accidents, misuse, neglect, mishanding, alteration or modifications of {he product, or any failure caused by the operation of the product outside the scope ofits published specifications, or any causes not covered by this warranty. There are no express warranties except as listed above. ‘The client can exercise the right to repair under the warranty by contacting Suunto Oy s Customer Service department to obtain a repair authorization. Suunto Oy andits subsidiaries shal in no event be iable for any incidental or consequential damages arising from the use ofor inability to use the product. Suunto Oy and is subsidiaries do not assume any responsibility forlosses or claims by third parties that may arise Hhrough he use of his instrument.

CHAPTER 11 DISPOSAL OF THE DEVICE

Please dispose of he device in an appropriate way, treating itas electronic waste. Do not throw it in the garbage. If you wish, you may return the device to your nearest Suunto representative.
