USER MANUAL SPE 80 A AEG

Introduction Technical Data Advice for your safety Measured sound value Measured vibration value Use ENGLISH You have high standards and expect to purchase quality goods - quality offered by Atlas Copco. We have built a durable and reliable electic power tool for you. Please read the instructions for use before first operation so you can handle your power tool effectively and safely. We are sure that buying an AEG Electric Power Tool from Atlas Copco was the right choice!

ST 400 ST 440 STEP 420

Cutting depth max. in: Soft wood ........ Hard-wood Steel... Aluminium |. Nominal power : Weight : Stroke rate under no-loa Lengths of stroke Bevel cuts up to... Cutting depth max. in Soft- wood .… mm 70 mm Hard-wood mm Steel mm Aluminium. : mm Nominal power. ....... W... Weight ........................ LT K kg 17 kg Stroke rate under no-load . : 450-3060 min:1 "450-3000 min Lengths ofstroke .… mm . Bevel cuts up to . 19 19 mm ... . 19 . 459 459 .. 45° Please pay attention to the safety instructions in the attached leafeti Dust that arises when working on material containing asbestos or stonework containing crystalline silcic acid is harmful to the health. Please follow accident prevention regulations. Appliances used at many different locations including open air must be connected Via à current surge preventing switch. Almays use the protective shields on the machine. Almays disconnect the plug from the socket before carrying out any work on the machine Almays wear goggles when using the machine. Itis recommended to wear gloves, Sturdy non slipping shoes and apron. Sawdust and splinters must not be removed while the machine is running. Do not pierce the motor housing as this could damage the double insulation (use adhesives) Keep mains lead clear from working range of the machine. Always lead the cable away behind you Only plug-in when machine is switched off. Dust that arises when working on wood or using the tool on industrial material can be dangerous to health. In this case connect the tool to a suitable suction device. Do not use cracked or distorted saw blades. Typically the A-weighted sound pressure level of the tool is 82 dB (A).The noise level when working can exceed 85 dB (A). Wear ear protectors! Measured values determined according to EN 50 144. Typically the weighted acceleration is 3 m/s2. easured values determined according to EN 50 144. This jig saw can cut wood, plastic and metal; it can cut straight lines, bevels, curves, and intemal cutouts. Do not use this product in another way as stated for normal use: ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

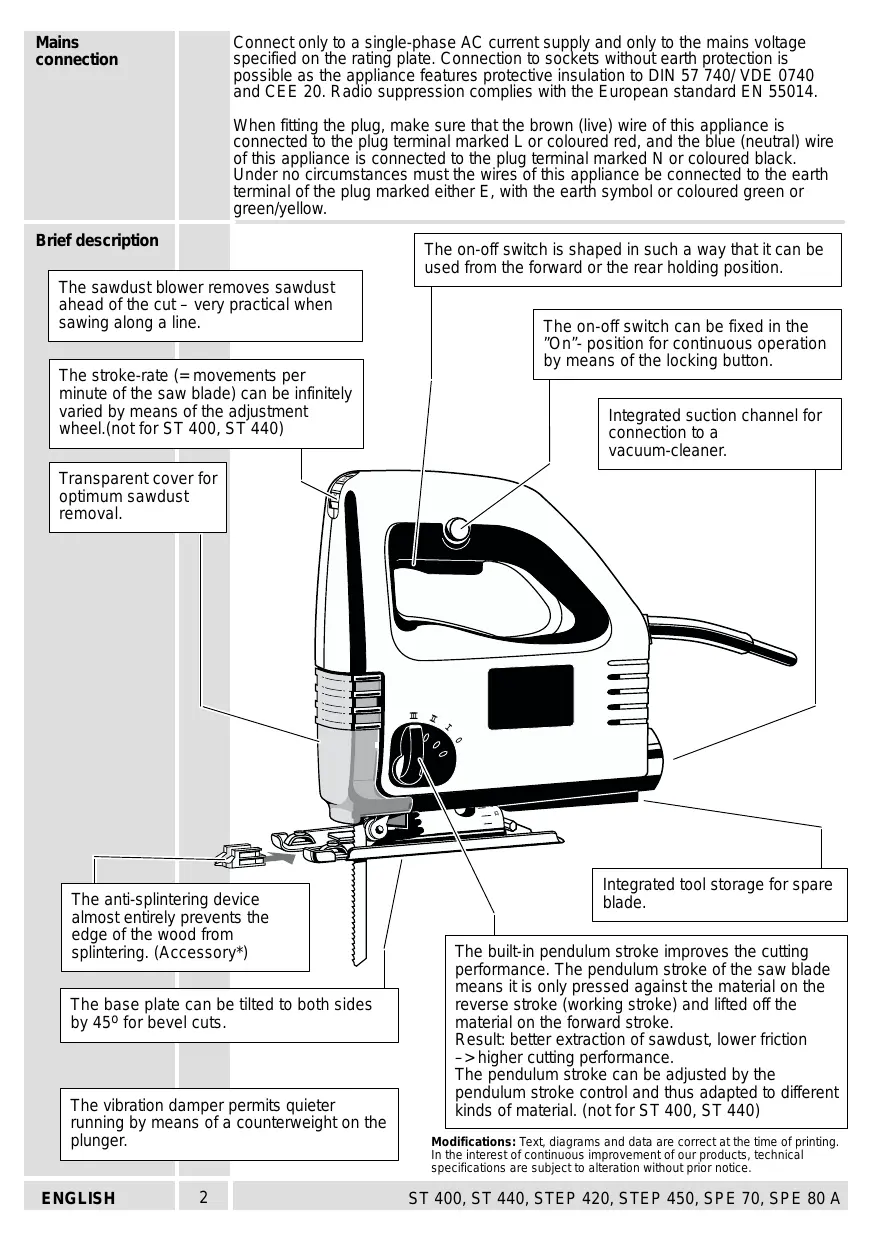

Mains connection Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fiting the plug, make sure that the brown (live) wire of this appliance is connected t the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol or coloured green or green/yellow. Brief description The sawdust blower removes sawdust The on-off switch is shaped in such a way that it can be used from the forward or the rear holding position. ahead ofthe cut very practical when sawing along a line. The stroke-rate (= movements per minute of the saw blade) can be infinitely varied by means of the adjustment wheel.(not for ST 400, ST 440) Transparent cover for | optimum sawdust sé removal.

The ant-splintering device almost entrely prevents the edge ofthe wood from splintering. (Accessory*) The base plate can be tited to both sides by 459 for bevel cuts The vibration damper permits quieter running by means of a counterweight on the plunger. ENGLISH The on-off switch can be fixed in the "On"- position for continuous operation by means of the locking button. Integrated suction channel for connection to à vacuum-cleaner.

Integrated tool storage for spare blade. The buittin pendulum stroke improves the cutting performance. The pendulum stroke of the saw blade means itis only pressed against the material on the reverse stroke (working stroke) and led off the material on the forward stroke Result better extraction of sawdust, lower friction => higher cuttng performance. The penduium stroke can be adjusted by the pendulum stroke control and thus adapted to different kinds of material. (not for ST 400, ST 440) Modifications: Text diagrams and data are correct atthe time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

Inserting the saw-blade Adjusting the base plate On-/off switch ENGLISH

Always disconnect the plug from the socket before carrying out any work on the machine Slide the transparent cover downwards, then the clamping screw is more accessible. Loosen the clamping screw about 2 revolutions by means of the hexagonal llen key (fited into the base plate). Fitthe saw blade into the groove ofthe support roller [al and push itfirmiy into the plunger as far as {will go: the lug ofthe saw blade must contact the end of the (©)] plnger (see ilustration) Retighten the clamping screw. Check thatthe saw blade is sitting firmly (wear protective gloves!) The base plate can be tilted or moved backward or forward. Setting an angle &> For angle cuts and bevels Loosen the fixing screw, pull the base plate out of the mounting, set it atthe required angle (15°, 30°, 45°), push it back into the mounting and tighten the fixing screw again. Angles other than 450 can be set by not pushing the base plate back into the mounting The angle can be read off the scale. For very exact angle cuts itis recommended to make a test cut. Moving the base plate > For plunge cuts or cuts in comers. Loosen the fixing screw, push the base plate to the rear and tighten the fixing screw again. The base plate in this position is fixed at the 0° setting. Moving back => For cutting a hole with a short saw blade and sawing near the edge Take the fixing screw out, push the base plate to the rear and screw the fixing screw tight}y into the rear hole. In this position the base plate can also be offsset in longitudinal direction: Intermittent use Suitching on: Press On-Joff switch Suitching off: Release On-/off switch Continuous use Switching on: Press the On-Joff switch and then the locking button, after that release on-off switch Switching off: Press the On-Joff switch and then release. ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

Adjusting the stroke rate (only applicable for STEP 420 STEP 450 SPE 70 SPE 80 A) Adjusting the ndulum stroke (only applicable for STEP 420 STEP 450 SPE 70 SPE 80 A) Sawdust removal ENGLISH EF The stroke rate can be set on the stroke

The stroke-rate (= movements per minute ofthe saw blade) can be infinitely varied by means of the adjustment wheel. The letters À to G are printed on the speed control, meaning: owest stroke rate G =highest stroke rate The stroke rate appropriate to the material being worked on can be taken from the following table, and the corresponding letter shown on the setting wheel. Material Stroke rate Wood G Steel D-E Aluminium D-E Rubber A-C By adjusting the pendulum action the cuttng depth of the saw blade teeth is increased or decreased. As à rule of thumb: Soft material Large pendulum stroke Hard material Small or no pendulum stroke Clean cutsurface No pendulum stroke The appropriate degree of pendulum effect can be taken from the following chart and compared with the marking at the pendulum stroke lever. Material Degree of swing action Wood Ill Plastic 1 Aluminium 0-1 Steel 0 Ceramics 0 Rubber 0 The stroke rate shown in the chart is only à suggestion for your general guidance! rate control even while the motor is running. Only operate the machine with suitable sawdust removal. The integrated suction channel has the standardized internal diameter of 30 mm. Use the suction hose (Id. No. 4932 3304 12) from our range of accessories to connect it to a household vacuum cleaner or to an wet-and-dry vacuum cleaner. Push in and turn the suction hose into the suction channel until it fits firmly. Push the transparent cover downwards to ensure optimum sawdust removal. ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

Advice for operation

Sawing sheet metal Plunge cuts Anti-splintering ice (Accessory*) ENGLISH Setthe stroke and pendulum stroke according to the material to be cut. Position the machine with the front part of the base plate on the material, and switch on. Press the machine dounwards onto the material and guide it along the cuttng line. Do not press down too hard on the piece you are cutting. Light pressure on the saw blade is sufficient to achieve the optimum rate of sawing. When cutäng along a score line, use the marking on the anti-splintering device as an optical guide. To obtain a perfecty straight cut, clamp a strip of wood as a guide along the material or use the parallel guide (accessory). For cutüng at an angle, or cutting a bevel, adjust the base plate For sawing close to the edge, set the base plate at its rearmost position. To avoid vibration, clamp metal sheets onto a wooden base To saw metal, use cooling agents along the cutting line (oil, white spirit) Plunge cuts without pre-driling a hole are possible with soft materials (wood, light building materials for walls). Harder materials (metals) must fist be drlled with à hole corresponding to the size of the saw blade. Move the base plate to the rearmost setting in order to obtain the best possible cuttng angle for starting the cut(see section ‘Adjusting the base plate”) Setthe pendulum stroke at the pendulum stroke control to “0”. Without switching the machine on, place it with the front edge of the base plate on the cutting point. Switch the machine on and carefully lower the saw blade already running into the material. The ant-splintering device almost entirely prevents the edge of the wood from Splintering, Place the anti-splintering device as shown in the illustration with the smooth side downwards and flush with the base plate {this is only possible with the base plate in the forward position). “Not included in standard equipment, available as an accessory. ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

Parallel guide and circle cutting juide (Access ory*) Assembly of parallel guide Cutting a circle Plastic protection shoe (Accessory*) Assembly Dismanting Maintenance ENGLISH Using the parallel guide or circle cuttng, parallel cuts of 0-200 mm, circular cuts of 100-400 mm are possible. Use cross-cut saw blades. Not included in standard equipment, available as an accessory. Push the parallel guide, with the contact surface facing downwards, through the lugs in the base plate and fasten itin position with the capstand-headed screw. For cutting from the left or from the right, push the parallel guide in from the appropriate side Push the parallel guide, with the contact surface facig upiards, through the lugs in the base plate and fasten itin position with the capstand-headed screw Tighten the centre point into the parallel guide from the top. Ensure that the saw blade and the circle centre point form one single line. When working on delicate surfaces please use the plastic protection shoe. “ot included in standard equipment, available as an accessory. Fitthe plastic protection shoe to the front ofthe base plate (as illustrated) and fix the lugs with the back of the base plate. Bend up both lugs and remove the plastic protection shoe. Further accessories with part numbers are shown in our catalogues. In order to guarantee constant readiness for operation, the machine should be checked for womn carbon brushes at one ofthe AEG after-sales service agencies. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses) If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at Atlas Copco Electric Tools GmbH, Postiach 320, D-71361 Winnenden. ST 400, ST 440, STEP 420, STEP 450, SPE 70, SPE 80 A

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents EN 50144, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, in accordance with the regulations

98BTIEC, THI2IEEC, 89/336/ÈEC

T3I3IJEOF, 89/336/E0F

98/BT/EY, 73/23/ETY, 89/336/E TY
