USER MANUAL BRIGGS & STRATTON 580447 BRIGGS & STRATTON

Briggs & Stratton is a registered trademark of Briggs & Stratton Corporation Form No. 277108WST C 01999-B8010 E 2009 Briggs & Stratton Corporation, Milwaukee, WI, USA. All rights reserved. English Dansk Deutsch ÅëëçíéêÜ Español Suomi Français Italiano Nederlands Norsk Português Svenska

BRIGGSandSTRATTON.COM

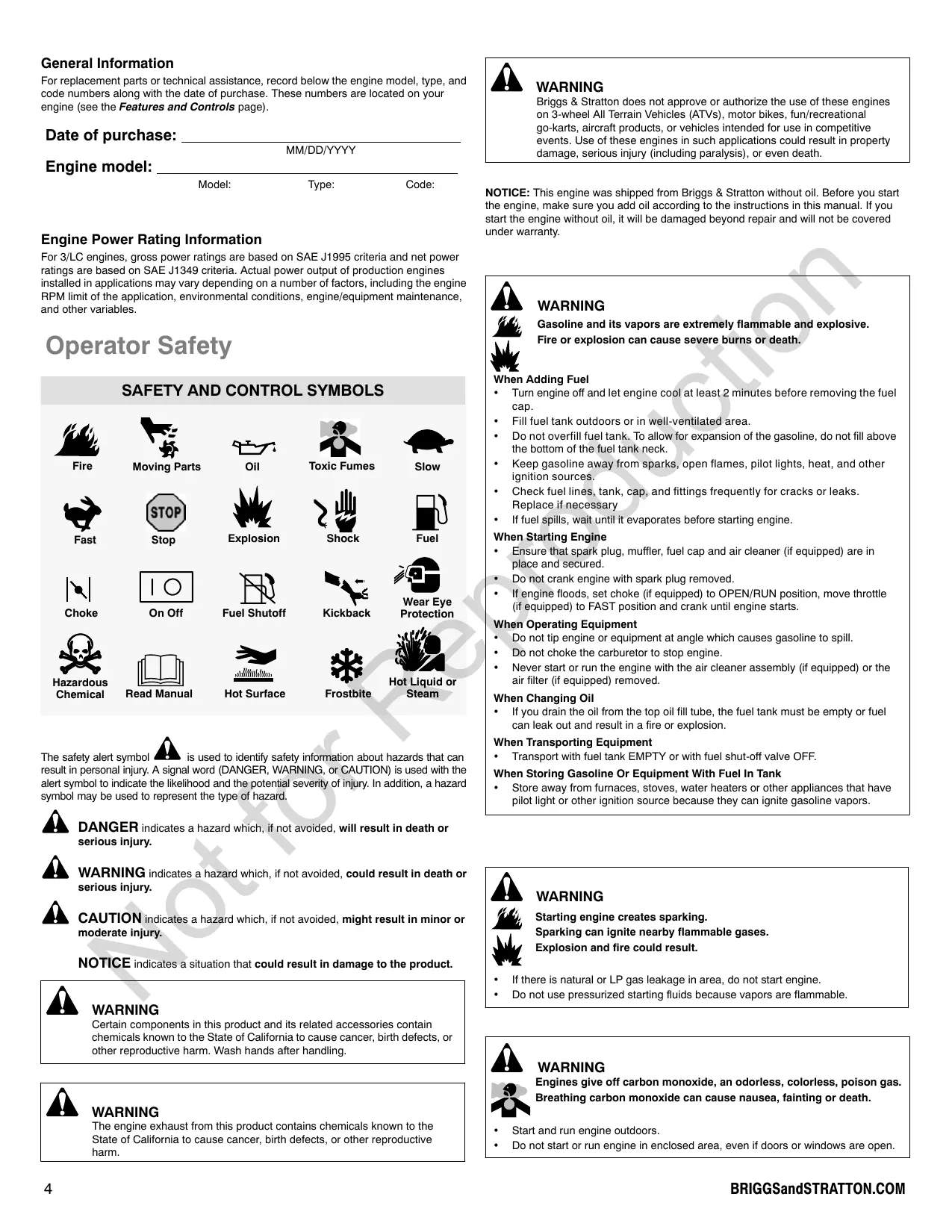

General Information For replacement parts or technical assistance, record below the engine model, type, and code numbers along with the date of purchase. These numbers are located on your engine (see the Features and Controls page). Briggs & Stratton does not approve or authorize the use of these engines on 3-wheel All Terrain Vehicles (ATVs), motor bikes, fun/recreational go-karts, aircraft products, or vehicles intended for use in competitive events. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death.

MM/DD/YYYY

Engine model: Model: Type: Code: Engine Power Rating Information NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty. For 3/LC engines, gross power ratings are based on SAE J1995 criteria and net power ratings are based on SAE J1349 criteria. Actual power output of production engines installed in applications may vary depending on a number of factors, including the engine RPM limit of the application, environmental conditions, engine/equipment maintenance, and other variables. WARNING tio Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Operator Safety Hazardous Chemical Stop Explosion Shock Fuel On Off Fuel Shutoff Kickback Wear Eye Protection Hot Surface Frostbite Hot Liquid or Steam Read Manual

Slow When Starting Engine

• Ensure that spark plug, muffler, fuel cap and air cleaner (if equipped) are in place and secured.
• Do not crank engine with spark plug removed.
• If engine floods, set choke (if equipped) to OPEN/RUN position, move throttle (if equipped) to FAST position and crank until engine starts.

Fast Oil Moving Parts When Adding Fuel

• Turn engine off and let engine cool at least 2 minutes before removing the fuel cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of the gasoline, do not fill above the bottom of the fuel tank neck.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary
• If fuel spills, wait until it evaporates before starting engine.

SAFETY AND CONTROL SYMBOLS

Date of purchase: WARNING

The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard. When Operating Equipment

• Do not tip engine or equipment at angle which causes gasoline to spill.
• Do not choke the carburetor to stop engine.
• Never start or run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed. When Changing Oil
• If you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion. When Transporting Equipment
• Transport with fuel tank EMPTY or with fuel shut-off valve OFF. When Storing Gasoline Or Equipment With Fuel In Tank
• Store away from furnaces, stoves, water heaters or other appliances that have pilot light or other ignition source because they can ignite gasoline vapors. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or

serious injury. WARNING

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result. NOTICE indicates a situation that could result in damage to the product.

If there is natural or LP gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable. WARNING Certain components in this product and its related accessories contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. WARNING Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Start and run engine outdoors. Do not start or run engine in enclosed area, even if doors or windows are open. BRIGGSandSTRATTON.COM WARNING WARNING Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard Rotating parts can contact or entangle hands, feet, hair, clothing, or accessories. Traumatic amputation or severe laceration can result. Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in

Section 4442, maintained in effective working order. Other states or federal

jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine. When testing for spark:

• Use approved spark plug tester.
• Do not check for spark with spark plug removed.

WARNING Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Disconnect battery at negative terminal (only engines with electric start.)
• Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation. tio Operate equipment with guards in place. Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. Do not wear loose-fitting clothing, dangling drawstrings or items that could become caught.

WARNING Severe thermal burns can occur by escaping steam or hot coolant.

DO NOT remove radiator cap or reservoir cap if engine is warm or running. Stop engine and allow it to cool before removing radiator cap or reservoir cap and before changing or adding coolant.

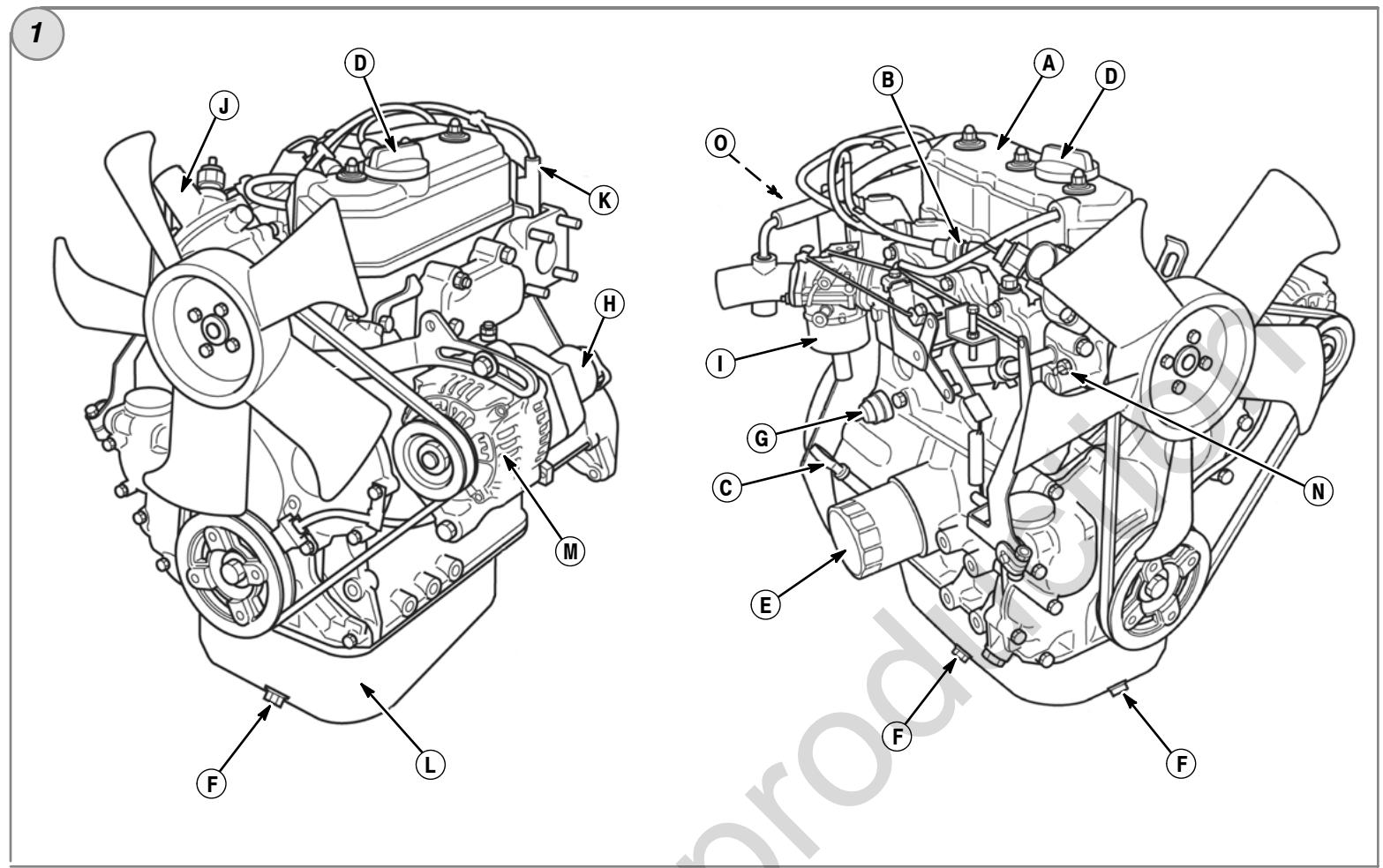

Features and Controls Oil Pressure Compare illustration 1 with your engine to familiarize yourself with the location of various features and controls. Engine Identification Model Type Code B. Spark Plug C. Dipstick D. Oil Fill E. Oil Filter F. Oil Drain Plug G. Oil Pressure Sensor H. Electric Starter

I. Carburetor

J. Thermostat K. Ignition Coil L. Oil Pan M. Alternator N. Coolant Temperature Sending Unit O. Engine Date Code

If the oil pressure is too low, a pressure switch (if equipped) will either stop the engine or activate a warning device on the equipment. If this occurs, stop the engine and check the oil level with the dipstick. If the oil level is below the ADD mark, add oil until it reaches the FULL mark. Start the engine and check for proper pressure before continuing to operate. If the oil level is between the ADD and FULL marks, do not start the engine. Contact any Briggs & Stratton 3/LC Authorized Dealer to have the oil pressure problem corrected. Fuel Recommendations High Altitude Oil capacity (see the Specifications section) Oil Recommendations

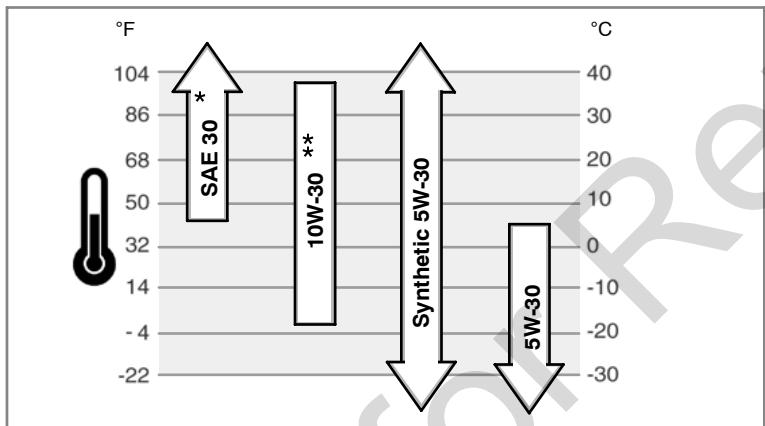

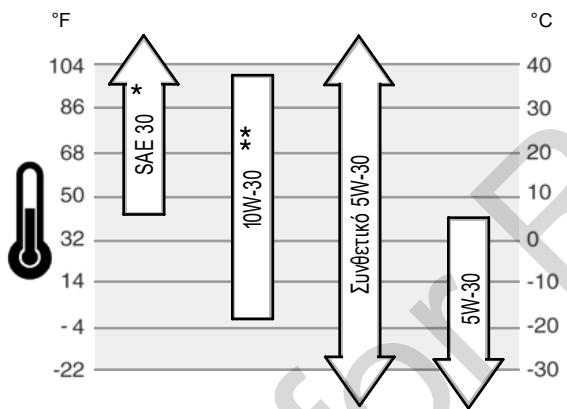

We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives. Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected. At altitudes over 3,000 feet (900 meters), a minimum 85 octane/85 AKI (89 RON) gasoline is acceptable. To remain emissions compliant, high altitude adjustment is required. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. See a Briggs & Stratton 3/LC Authorized Dealer for high altitude adjustment information. Operation of the engine at altitudes below 2,500 feet (762 meters) with the high altitude kit is not recommended.

Fuel must meet these requirements:

• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). High altitude use, see below.
• Gasoline with up to 10% ethanol (gasohol) or up to 15% MTBE (methyl tertiary butyl ether) is acceptable. CAUTION: Do not use unapproved gasolines, such as E85. Do not mix oil in gasoline or modify the engine to run on alternate fuels. This will damage the engine components and void the engine warranty. To protect the fuel system from gum formation, mix a fuel stabilizer into the fuel. See Storage. All fuel is not the same. If starting or performance problems occur, change fuel providers or change brands. This engine is certified to operate on gasoline. The emissions control system for this engine is EM (Engine Modifications). How To Add Fuel - Figure 4 WARNING 5W-30

• Below 40°F (4°C) the use of SAE 30 will result in hard starting. ** Above 80°F (27°C) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently.

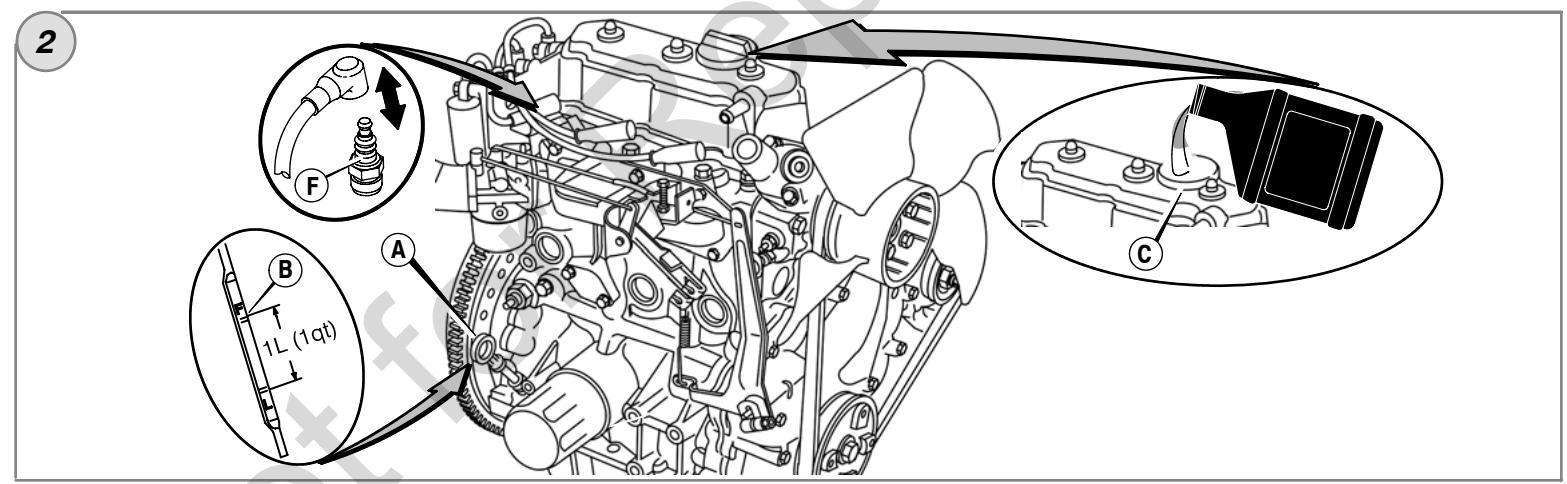

How To Check/Add Oil - Figure 2

Before adding or checking the oil

• Clean the oil fill area of any debris.

1. Remove the dipstick (A) and wipe with a clean cloth (Figure 2).

2. Completely insert the dipstick.

3. Remove the dipstick and check the oil level. It should be at the FULL mark (B) on the

4. If low, remove the dipstick and add oil slowly into the engine oil fill (C). Do not

overfill. Important: When adding oil, adequate venting is required as follows:

• Remove the dipstick.

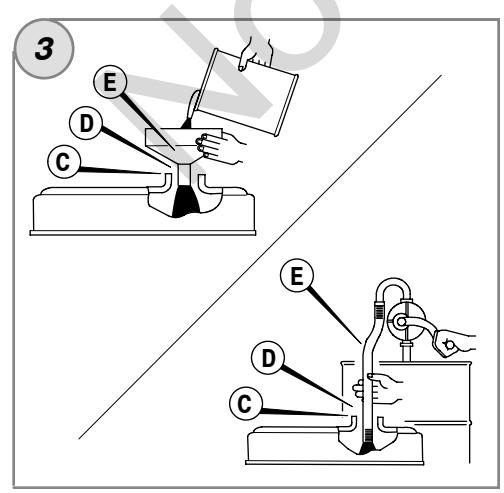

• Make sure adequate clearance (D) is maintained between the oil fill device (E) and the engine oil fill (C). See Figure 3. NOTICE: Before starting the engine, wipe the engine clean of any spilled oil.

5. After adding oil, install the dipstick. Start and run engine at idle for five minutes. See

the How To Start The Engine section. Shut off engine. Wait three minutes and check oil level. If required, add oil to bring oil level to the FULL mark (B) on the dipstick (Figure 2).

6. Install the dipstick.

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

• Turn engine off and let engine cool at least 2 minutes before removing the fuel cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of the gasoline, do not fill above the bottom of the fuel tank neck.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary
• If fuel spills, wait until it evaporates before starting engine.

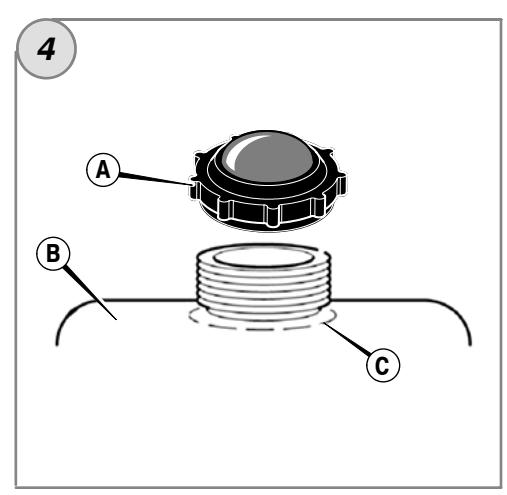

1. Clean the fuel cap area of dirt and debris. Remove the fuel cap (A, Figure 4).

2. Fill the fuel tank (B) with gasoline. To allow for expansion of the gasoline, do not fill

above the bottom of the fuel tank neck (C).

3. Reinstall the fuel cap.

Coolant Recommendations Coolant capacity (see the equipment manufacture’s manual) NOTICE: This is a liquid-cooled engine. A 50/50% mixture of phosphate-free antifreeze and tap water is required for cooling, rust resistance, and lubrication of the water pump. How To Check/Add Coolant WARNING Severe thermal burns can occur by escaping steam or hot coolant.

DO NOT remove radiator cap or reservoir cap if engine is warm or running. Stop engine and allow it to cool before removing radiator cap or reservoir cap and before changing or adding coolant.

1. Before operating, check the coolant level. The coolant level must be between the

FULL and the LOW/ADD marks on the coolant reservoir. If the coolant level is low, add a 50/50% coolant mixture of phosphate-free antifreeze and tap water to the reservoir. BRIGGSandSTRATTON.COM

2. To remove the reservoir cap after engine is cool, place a thick cloth over the reservoir

cap. Slowly turn the reservoir cap counterclockwise to remove.

3. If the reservoir is dry, then add coolant to both the reservoir and to the radiator. See

the equipment manual for location, operation, and maintenance of the coolant reservoir and the radiator.

4. To remove the radiator cap after engine is cool, place a thick cloth over the radiator

cap. Slowly turn the radiator cap counterclockwise to the first stop. If pressurized steam escapes from the cap, stand back to avoid injury. After all pressure is released, push down and turn the radiator cap counterclockwise to remove. Gauges And Lights The gauges and lights shown are typical and represent various options that can be used. See the equipment manual for location and operation of gauges and lights. WARNING Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

Start and run engine outdoors. Do not start or run engine in enclosed area, even if doors or windows are open. NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

Note: Some engines and equipment have remote controls. See the equipment manual for location and operation of remote controls.

1. Check the oil level. See the How To Check/Add Oil section.

2. Make sure equipment drive controls, if equipped, are disengaged.

3. Turn the fuel shut-off valve (A), if equipped, to the on position (Figure 5).

Hour Meter Gauge Indicates the total number of operating hours.

4. Move the throttle control (B) slightly past the slow

6. If the engine does not immediately start, pull out the choke control (C), if equipped, to

the choke position. Note: Choke is usually unnecessary when restarting a warm engine.

Temperature Light If the temperature light comes on, the engine is overheating. Stop the engine and check the coolant level (see the How To Check Coolant section). Check the radiator for debris that could restrict air flow. NOTICE: To prolong starter life, use short starting cycles, not to exceed 15 seconds per minute. Extended cranking can damage the starter motor.

Fuel Gauge Indicates the fuel remaining in the fuel tank. To minimize condensation, keep the fuel tank full. Ignition Light When the electric start switch is turned to the ON position, the ignition light should be on. When the engine is running, the ignition light should go out. If the ignition light is out when then electric start switch in the ON position, check for a blown fuse.

7. As the engine warms up, move the choke control (C) to the run

Charge Light When the electric start switch is turned to the ON position, the charge light should be on. When the engine is running, the charge light should go out. If the charge light comes on when the engine is running, check the electrical system.

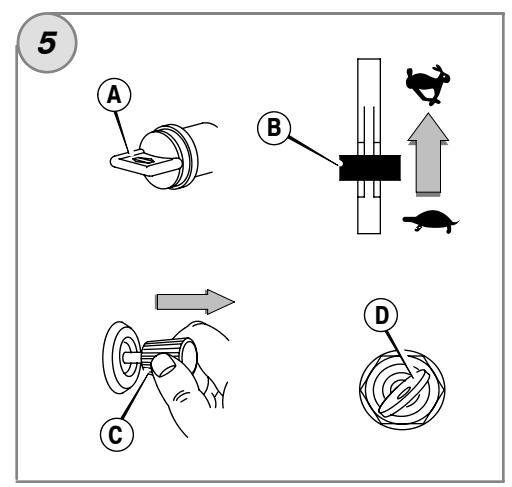

How To Start The Engine - Figure 5 position. How To Stop The Engine - Figure 5 Engine Oil Pressure Light When the electric start switch is turned to the ON position, the engine oil pressure light should be on. When the engine is running, the engine oil pressure light should go out. If the engine oil pressure light comes on when the engine is running, immediately stop the engine. First, check the oil level (see the How To Check/Add Oil section). Next, check the electrical system. WARNING position.

5. Turn the electric start switch (D) to the on/start position (Figure 5).

WARNING Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Do not choke the carburetor to stop engine.

1. Move the throttle control (B) to the slow

position. Turn the key switch (D) to the off position (Figure 5). Remove the key and keep in a safe place out of the reach of children.

2. After the engine stops, turn the fuel shut-off valve (A), if equipped, to the closed

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

When Starting Engine

• Ensure that spark plug, muffler, fuel cap and air cleaner (if equipped) are in place and secured.
• Do not crank engine with spark plug removed.
• If engine floods, set choke (if equipped) to OPEN/RUN position, move throttle (if equipped) to FAST position and crank until engine starts. Maintenance Use only original equipment replacement parts. Other parts may not perform as well, may damage the unit, and may result in injury. In addition, use of other parts may void your warranty. We recommend that you see any Briggs & Stratton 3/LC Authorized Dealer for all maintenance and service of the engine and engine parts. NOTICE: All the components used to build this engine must remain in place for proper operation. WARNING Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result.

If there is natural or LP gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable.

Emissions Control Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. However, to obtain “no charge” emissions control service, the work must be performed by a factory authorized dealer. See the Emissions Warranty.

Inspect Muffler And Spark Arrester WARNING Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. When testing for spark:

• Use approved spark plug tester.
• Do not check for spark with spark plug removed.

Check engine oil level Check coolant level WARNING Severe thermal burns can occur by escaping steam or hot coolant. Every 150 Hours or Annually Change engine oil * Replace oil filter Every 600 Hours or Annually Replace air filter Check valve clearance H Replace fuel filter Replace spark plugs Annually Change coolant

Check fan belt tension Clean radiator Clean air filter Check muffler and clean spark arrestor (if equipped)

Change engine oil * Every 100 Hours or Annually

Service more often when operating under heavy load or in high temperature.

Not required unless engine performance problems are noted.

Carburetor Adjustment Never make adjustments to the carburetor. The carburetor was set at the factory to operate efficiently under most conditions. However, if adjustments are required, see a Briggs & Stratton 3/LC Authorized Dealer for service. NOTICE: The manufacturer of the equipment on which this engine is installed specifies the top speed at which the engine will be operated. Do not exceed this speed. How To Replace The Spark Plug - Figure 6 Check the gap (A, Figure 6) with a wire gauge (B). If necessary, reset the gap. Install and tighten the spark plug to the recommended torque. For gap setting or torque, see the Specifications section. Note: In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this engine was originally equipped with a resistor spark plug, use the same type for replacement.

NOTICE: This is a liquid cooled engine. A 50/50% coolant mixture of phosphate-free antifreeze and tap water is required for cooling, rust resistance, and lubrication of the water pump. First 50 Hours (initial Break-In)

Inspect the muffler for cracks, corrosion, or other damage. Remove the spark arrester, if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts. How To Check Coolant Every 8 Hours or Daily

Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in

Section 4442, maintained in effective working order. Other states or federal

jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.

WARNING: Replacement parts must be the same and installed in the

same position as the original parts or fire could result. Maintenance Chart

tio Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Disconnect battery at negative terminal (only engines with electric start.)
• Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation.

DO NOT remove radiator cap or reservoir cap if engine is warm or running. Stop engine and allow it to cool before removing radiator cap or reservoir cap and before changing or adding coolant.

1. Check the coolant level. The coolant level must be between the FULL and LOW, or

ADD, marks on the coolant reservoir. If the coolant level is low, add a 50/50% coolant mixture of phosphate-free antifreeze and tap water to the reservoir.

2. To remove the reservoir cap after engine is cool, place a thick cloth over the reservoir

cap. Slowly turn the reservoir cap counterclockwise to remove.

3. If the reservoir is dry, add coolant to both the reservoir and to the radiator. See the

equipment manual for location, operation, and maintenance of the coolant reservoir and of the radiator.

4. To remove the radiator cap after engine is cool, place a thick cloth over the radiator

cap. Slowly turn the radiator cap counterclockwise to the first stop. If pressurized steam escapes from the cap, stand back to avoid injury. After all pressure is released, push down and turn the radiator cap counterclockwise to remove. How To Change The Oil - Figure 2

Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal/recycling facilities. Remove Oil

1. With engine off but still warm, disconnect the spark plug wires (F, Figure 2) and keep

them away from the spark plugs.

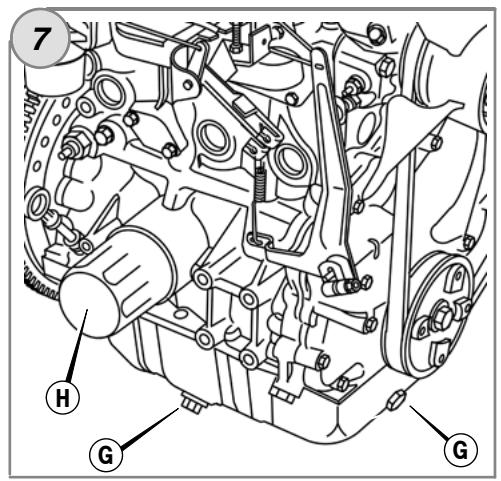

2. Remove the oil drain plug (G, Figure 7). Drain the oil into an approved container.

3. After the oil has drained, install and tighten the oil drain plug.

Change The Oil Filter For replacement intervals, see the Maintenance chart.

1. Drain the oil from the engine. See Remove Oil section.

2. Remove the oil filter (H, Figure 7) and dispose of properly.

3. Before you install the new oil filter, lightly lubricate the oil filter gasket with fresh,

4. Install the oil filter by hand until the gasket contacts the oil filter adapter, then tighten

the oil filter 1/2 to 3/4 turns.

5. Add oil. See Add Oil section.

BRIGGSandSTRATTON.COM Place engine level. Clean the oil fill area of any debris. See the Specifications section for oil capacity. Remove the dipstick (A, Figure 2). Pour the oil slowly into the engine oil fill (C). Do not overfill. Important: When adding oil, adequate venting is required as follows:

• Remove the dipstick.
• Make sure adequate clearance (D) is maintained between the oil fill device (E) and the engine oil fill (C). See Figure 3. NOTICE: Before starting the engine, wipe the engine clean of any spilled oil.

3. After adding oil, install the dipstick. Start and run engine at idle for five minutes.

Check for leaks. Shut off engine. Wait three minutes and check oil level. If required, add oil to bring oil level to the FULL mark (B) on the dipstick (Figure 2).

4. Install the dipstick.

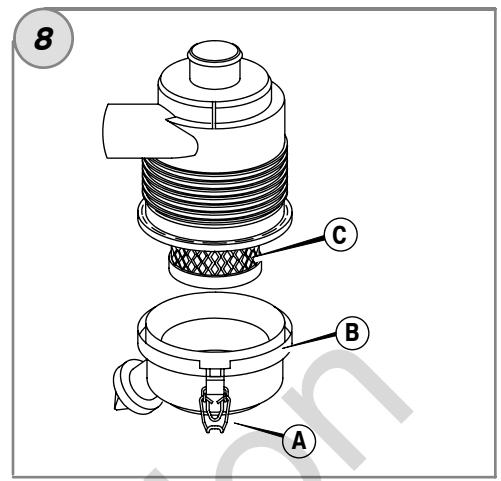

How To Service The Air Filter - Figure 8 Storage WARNING Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Storing Gasoline Or Equipment With Fuel In Tank

• Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or other ignition sources because they can ignite gasoline vapors. tio Fuel System Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or on essential carburetor parts. To keep fuel fresh, use Briggs & Stratton FRESH START® fuel stabilizer, available as a liquid additive or a drip concentrate cartridge. WARNING Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. There is no need to drain gasoline from the engine if a fuel stabilizer is added according to instructions. Run the engine for 2 minutes to circulate the stabilizer throughout the fuel system. The engine and fuel can then be stored up to 24 months.

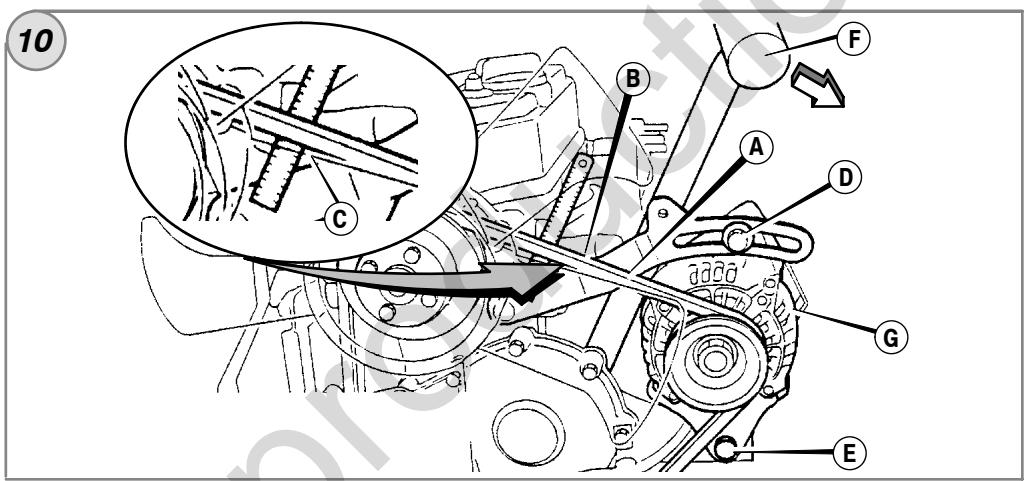

3. Check the tension of the fan belt. See Check Fan Belt section. If necessary, repeat

4. Tighten the alternator mounting bolts.

Torque bolt (D) to 14 ft-lbs (19 Nm). Torque bolt (E) to 45 ft-lbs (61 Nm).

Add Oil If gasoline in the engine has not been treated with a fuel stabilizer, it must be drained into an approved container. Run the engine until it stops from lack of fuel. The use of a fuel stabilizer in the storage container is recommended to maintain freshness. Never start or run the engine with the air cleaner assembly or the air filter removed. Engine Oil While the engine is still warm, change the engine oil.

NOTICE: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter. See the Maintenance Chart for service requirements.

1. Open the latches (A) and remove the cover (B). See Figure 8.

2. Remove the air filter (C).

3. To loosen debris, gently tap the air filter on a hard surface. If the air filter is

excessively dirty, replace with a new air filter.

4. Install the air filter.

5. Install the cover and close the latches.

Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources. Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary. Before replacing the fuel filter, drain the fuel tank or close the fuel shut-off valve. Replacement parts must be the same and installed in the same position as the original parts. If fuel spills, wait until it evaporates before starting engine.

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

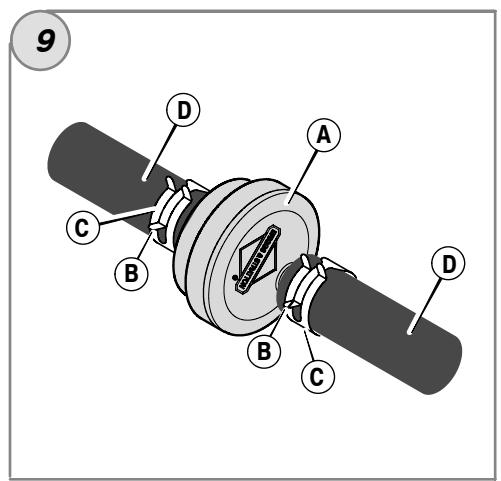

1. Before replacing the fuel filter (A, Figure 9), if equipped, drain the fuel tank or close

the fuel shut-off valve. Otherwise, fuel can leak out and cause a fire or explosion.

2. Use pliers to squeeze tabs (B) on the clamps (C), then slide the clamps away from

the fuel filter. Twist and pull the fuel lines (D) off of the fuel filter.

3. Check the fuel lines for cracks or leaks. Replace if necessary.

4. Replace the fuel filter with an original equipment replacement filter.

5. Secure the fuel lines with the clamps as shown.

How To Check/Adjust The Fan Belt - Figure 10 Check Fan Belt

1. Check the condition of the fan belt (A, Figure 10). If the fan belt has cracks or is

damaged, replace with a new belt.

2. Check the tension (B) of the fan belt. Press on the center (C) of the fan belt. If

tension is correct, the belt will move 3/8 -- 1/2 in (10 -- 12 mm) if 22 lbs (10 kg) of force is applied to the center of the belt. If the tension is too loose, adjust as follows. Adjust Fan Belt Tension

1. Loosen the alternator mounting bolts (D) and (E). See Figure 10).

2. Position a pry bar (F) against the alternator (G) and the side of the engine block. To

tighten the fan belt, pull on the pry bar. Temporarily tighten the alternator mounting bolts.

Need Assistance? Go to BRIGGSandSTRATTON.COM or call 1-800-233-3723. Specifications

How To Replace The Fuel Filter - Figure 9 Troubleshooting Engine Specifications Model

58.16 ci (953 cc)

2.835 in (72 mm)

3.071 in (78 mm)

3.5 qt (3.3 L)

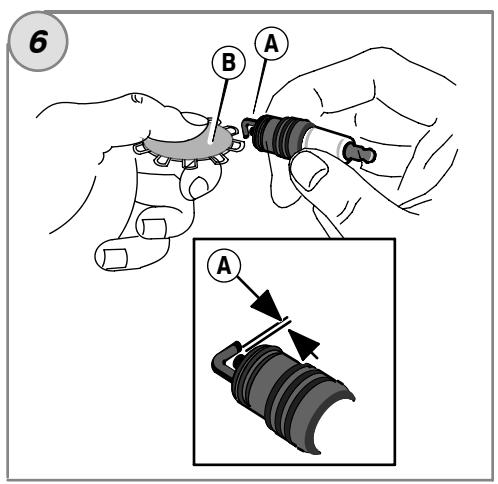

Tune-up Specifications * Model

0.030 in (0.76 mm)

Spark Plug Torque 180 lb-in (20 Nm) Intake Valve Clearance Y

0.007 in (0.18 mm)

Exhaust Valve Clearance Y

0.007 in (0.18 mm)

• Engine power will decrease 3.5% for each 1,000 feet (300 meters) above sea level and 1% for each 10° F (5.6° C) above 77° F (25° C). The engine will operate satisfactorily at an angle up to 15°. Refer to the equipment operator’s manual for safe allowable operating limits on slopes. Y Check when engine is cold. Common Service Parts n Service Part Part Number Air Filter

Resistor Spark Plug 496055, 5066 Spark Plug Wrench

n We recommend that you see any Briggs & Stratton 3/LC Authorized Dealer for all maintenance and service of the engine and engine parts. Use only genuine Briggs & Stratton parts.

LIMITED WARRANTY Briggs & Stratton Corporation will repair or replace, free of charge, any part(s) of the engine that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Briggs & Stratton 3/LC Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1-800-233-3723, or as listed in the ‘Yellow Pages’. OUR PRODUCT Vanguardt 3/LC Major Parts Warranty * Parts & Labor * Consumer and Commercial Use 2 years 3 years 2 years

Warranty Period Note the following special warranty periods: For purposes of this warranty policy, Parts & Labor coverage is 2 years. Major parts only coverage is extended through the third year of operation. Major Parts Warranty (M.P.W.) covers but is not limited to or exclusive to cylinder block, cylinder head, crankshaft, camshaft, gears, pistons, rods, flywheel, flywheel housing, oil pump, fan, pulleys, mechanical governor, intake manifold, and oil pan. M.P.W. does not cover and is not limited to piston rings, replaceable bearings, water pump, any electrical component, valve train components, accessory parts, seals, gaskets, carburetors, exhaust manifold, hoses, all fuel system components, injectors, injector pump, turbocharger, muffler, any filters, radiator, thermostat, spark plugs, glow plugs, and fuel transfer pumps. The warranty period begins on the date of purchase by the first retail consumer or commercial end user and continues for the period of time stated in the table above.

There is no other expressed warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law and all implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and country to country. About Your Warranty

No warranty registration is necessary to obtain warranty on Briggs & Stratton products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period.

Briggs & Stratton welcomes warranty repair and apologizes to you for being inconvenienced. Any Authorized Briggs & Stratton 3/LC Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty would not apply if engine damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the engine has been removed or the engine has been altered or modified.

If a customer differs with the decision of the Service Dealer, an investigation will be made to determine whether the warranty applies. Ask the Service Dealer to submit all supporting facts to his Distributor or the Factory for review. If the Distributor or the Factory decides that the claim is justified, the customer will be fully reimbursed for those items that are defective. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of engine failure that the warranty does not cover.

Normal wear: Engines, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part or an engine. Warranty would not apply if engine damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the engine has been removed or the engine has been altered or modified.

Improper maintenance: The life of an engine depends upon the conditions under which it operates, and the care it receives. Some applications, such as tillers, pumps and rotary mowers, are very often used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, spark plug cleaning grit, or other abrasive material that has entered the engine because of improper maintenance, is not covered by warranty. This warranty covers engine related defective material and/or workmanship only, and not replacement or refund of the equipment to which the engine may be mounted. Nor does the warranty extend to repairs required because of:

Engines that are not properly applied to equipment. It is strongly recommended that the factory be contacted prior to applying a B&S 3/LC engine to equipment that did not originally use a B&S 3/LC engine.

Problems caused by parts that are not original Briggs & Stratton parts.

Equipment controls or installations that prevent starting, cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.)

Leaking carburetors, clogged fuel pipes or injectors, sticking valves, contaminated injector pumps, or other damage, caused by using contaminated or stale fuel. Use clean, fresh fuel (lead free gasoline, diesel fuel) and Briggs & Stratton fuel stabilizer, Part No. 5041.

Parts which are scored or broken because an engine was operated with insufficient or contaminated lubricating oil, or an incorrect grade of lubricating oil (Check oil level daily or after every 8 hours of operation. Refill when necessary and change oil and oil filter at recommended intervals). OIL GARD may not shut down running engine. Engine damage may occur if oil level is not properly maintained. Read Operator’s Manual.

Repair or adjustment of associated parts or assemblies such as clutches, transmissions, remote controls, etc., which are not manufactured by Briggs & Stratton.

Damage or wear to parts caused by dirt, which entered the engine because of improper air cleaner maintenance, re-assembly, or use of a non-original air cleaner element or cartridge. At recommended intervals, clean and/or replace the filter as stated in the Operator’s Manual.

Parts damaged by over-speeding, or overheating caused by grass, debris, or dirt, which plugs, clogs radiator or air cooling access openings,or damage caused by operating the engine in a confined area without sufficient ventilation. Engine damage caused by not using accurate mix of anti-freeze and tap water, or water entering the engine due to any cause.

Engine or equipment parts broken by excessive vibration caused by a loose engine mounting, loose cutter blades, unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft, over-speeding or other abuse in operation. 10 Routine tune-up or adjustment of the engine.

Engine or engine component failure, i.e., combustion chamber, valves, valve seats, valve guides, or burned starter motor windings, caused by the use of alternate fuels such as, liquified petroleum, natural gas, altered gasolines, etc. Warranty service is available only through authorized service dealers by Briggs & Stratton Corporation. Locate your nearest Authorized Briggs & Stratton 3/LC Service Dealer in our dealer locator map on BRIGGSandSTRATTON.COM or by calling 1-800-233-3723, or as listed in the ‘Yellow Pages’. BRIGGSandSTRATTON.COM November 2008 Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB) and the United States Environmental Protection Agency (U.S. EPA) Emission Control System Warranty Statement (Owner’s Warranty Rights and Obligations) California Emission Control Warranty Statement Your Warranty Rights and Obligations and United states Emission Control Warranty Statement Your Warranty Rights and Obligations. Where a warrantable condition exists, B&S will repair your engine at no cost to you including diagnosis, parts and labor. Briggs & Stratton Corporation Warranty Coverage

The 2009 and later off-road spark-ignition engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by B&S. As the engine owner, you are responsible for the performance of the required maintenance listed in your Operating & Maintenance Instructions. B&S recommends that you retain all your receipts covering maintenance on your engine, but B&S cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the engine owner, you are responsible for the performance of the required maintenance listed in your Operating & Maintenance Instructions. B&S recommends that you retain all your receipts covering maintenance on your engine, but B&S cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the engine owner, you should however be aware that B&S may deny you warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. You are responsible for presenting your engine to an Authorized B&S Service Dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at 1--800--233--3723. EMISSION COMPLIANCE PERIOD: 1000 HOURS tio Your emission control system may include parts such as the carburetor or fuel injection system, the air cleaner, ignition system, muffler, and catalytic converter. Also included may be hoses, belts, connectors and other emission related assemblies. Owner’s Warranty Responsibilities

The California Air Resources Board (CARB), U.S. EPA and B&S are pleased to explain the Emission Control System Warranty on your model year 2009 and later off-road spark-ignition engine. In California, new off-road large spark-ignition engines must be designed, built and equipped to meet the State’s stringent anti-smog standards. Elsewhere in the United States, new Non-road spark-ignition engines certified for model year 2009 and later, must meet similar standards set forth by the U.S. EPA. B&S must warrant the emission control system on your engine for the period of time listed below, provided there has been no abuse, neglect or improper maintenance of your engine. General Emissions Warranty Coverage Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:

Fuel Metering System

• Carburetor and internal parts (if applicable)
• Cold start enrichment system (if applicable)
• Fuel injection system (if applicable)
• Air/fuel ratio feedback control system (if applicable)
• Fuel filter Air Induction System
• Throttle body (if applicable) Ignition System
• Ignition processor (if applicable)

Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the warranty period stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by B&S according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period. Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period. Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by B&S according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for

the remainder of the period prior to the first scheduled replacement point for the part.

4. Any warranted part that is scheduled only for regular inspection in the written

instructions supplied is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.

5. Notwithstanding the provisions herein, warranty services or repairs will be provided

at all of our distribution centers that are franchised to service the subject engines or equipment.

6. The off-road engine owner will not be charged for diagnostic labor that is directly

associated with diagnosis of a defective, emission-related warranted part, provided that such diagnostic work is performed at a warranty station.

7. B&S is liable for damages to other engine or equipment components proximately

caused by a failure under warranty of any warranted part.

8. Throughout the off-road engine warranty period stated above, B&S will maintain a

supply of warranted parts sufficient to meet the expected demand for such parts.

9. Any replacement part may be used in the performance of any warranty

maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of B&S.

10. Add-on or modified parts that are not exempted by the Air Resources Board may

not be used. The use of any non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claims. B&S will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

B&S warrants to the ultimate purchaser and each subsequent purchaser that the off-road engine is: designed, built and equipped so as to conform with all applicable regulations; and free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to that part as described in B&S’s application for certification. The warranty period begins on the date the off-road engine is delivered to an ultimate purchaser or first placed into service. The warranty period is two years.

• Exhaust manifold (if applicable) Catalyst System
• Catalytic converter (if applicable) Miscellaneous Items Used in Above System
• Pressure, temperature, position, speed sensitive devices
• Connectors and assemblies

Generelle oplysninger Købsdato: DD/MM/ÅÅÅÅ Motormodel: Modelserie: Type: Kode: VORES PRODUKT Vanguardt 3/LC

0,030 in (0,76 mm) 180 lb-in (20 Nm) 0,007 in (0,18 mm) 0,007 in ( 0,18 mm) UNSER PRODUKT Vanguardt 3/LC Áíïéêôü Êëåéóôü (On Off) Ôóïê ÁÝñá ÂëÝðå åã÷åéñßäéï ¸êñçîç Çëåêôñïðëçîßá 0,030 in (0,76 mm) 180 lb-in (20 Nm) 0,007 in (0,18 mm)

0,030 in (0,76 mm) 180 lb-in (20 Nm) 0,007 in (0,18 mm) 0,007 in (0,18 mm)

TURVALLISUUS- JA SÄÄTÖSYMBOLIT

Seis Nopea Öljy Hidas Räjähdys Sähköisku Polttoaine Päällä Pois Polttoainehana Vaarallinen kemikaali Lue käyttöopas Kuuma pinta Takapotku Käytä suojalaseja

Rikastin NOTRE PRODUIT Vanguardt 3/LC

0,030 in (0,76 mm) 180 lb-in (20 Nm) 0,007 in (0,18 mm) 0,007 in (0,18 mm) ONS PRODUCT Vanguardt 3/LC Sikkerhet for operator

Vanlige reservedeler n Reservedel Del nummer Luftfilter

Drivstofftilsetningsmiddel

Resistortennplugg 496055, 5066 Tennpluggnøkkel

VÅRT PRODUKT

Vanguardt 3/LC 0,030 lb-in (0,76 mm) Åtdragningsmoment, tändstift 180 in (20 Nm)

VÅR PRODUKT
