USER MANUAL LM 2148 CMD JONSERED

LM2148CMD LM2148CMDE

Operator’s Manual Read the operator’s manual carefully and make sure that you understand the contents before using the lawnmower. Briggs & Stratton XTL55 Briggs & Stratton XTL55

3.0 km/h

3.0 km/h

35.5 kg

39.5 kg

25 - 75 mm

25 - 75 mm

82.4 dB(A)

82.4 dB(A)

7.03 m/s2

7.03 m/s2

- CONTENTS Handle Assembly Grassbox Bottle of oil Instruction Manual Mulching Plug Key Start (LM2148CMDE) Warning Label Rating Label Battery Charger (LM2148CMDE) Safety Precautions If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower. Never use the mower unless the grassbox or guards provided by the manufacturer are in the correct position. Explanation of Symbols on your

LM2148CMD, LM2148CMDE

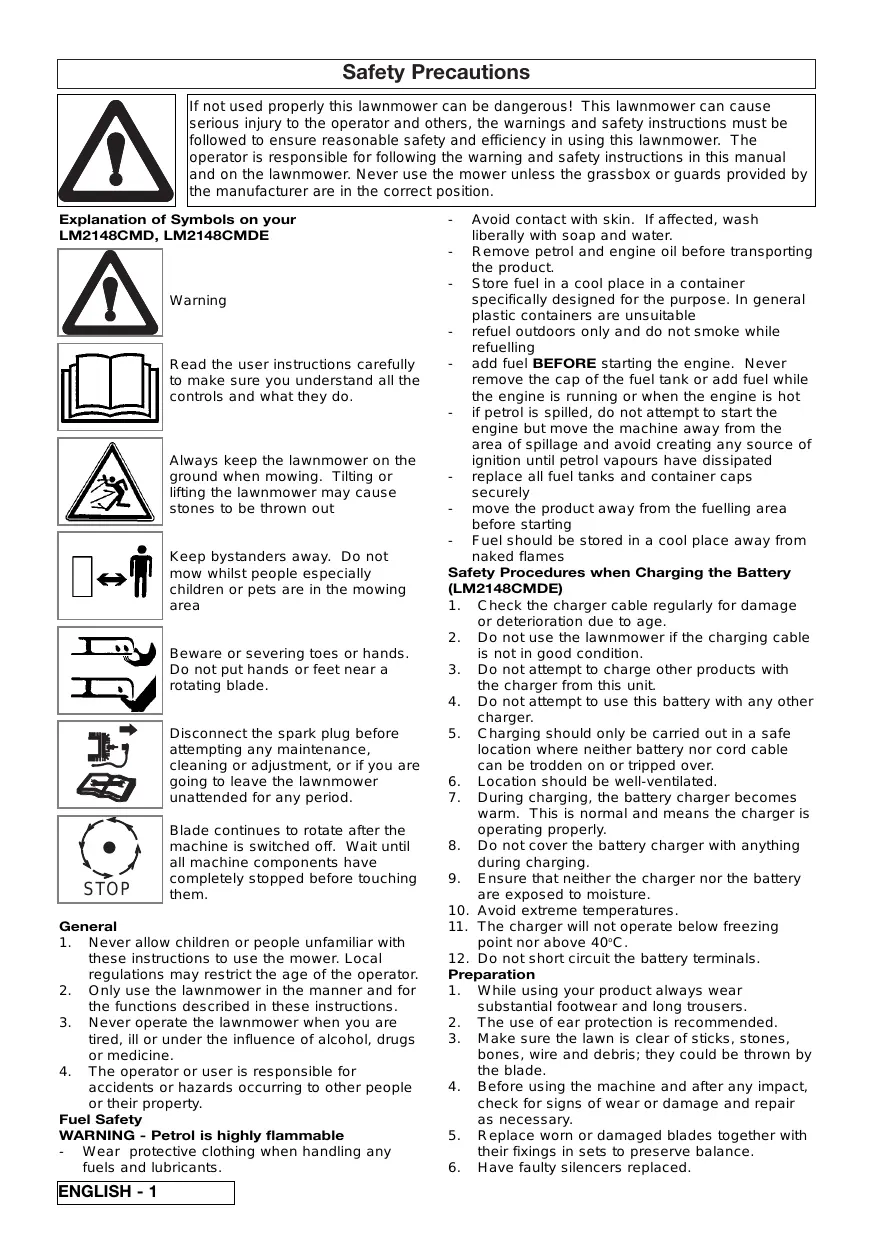

Warning Read the user instructions carefully to make sure you understand all the controls and what they do. Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area Beware or severing toes or hands. Do not put hands or feet near a rotating blade. Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period. STOP Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them. General

1. Never allow children or people unfamiliar with

these instructions to use the mower. Local regulations may restrict the age of the operator.

2. Only use the lawnmower in the manner and for

the functions described in these instructions.

3. Never operate the lawnmower when you are

tired, ill or under the influence of alcohol, drugs or medicine.

4. The operator or user is responsible for

accidents or hazards occurring to other people or their property. Fuel Safety WARNING - Petrol is highly flammable - Wear protective clothing when handling any fuels and lubricants. ENGLISH - 1

Avoid contact with skin. If affected, wash liberally with soap and water. - Remove petrol and engine oil before transporting the product. - Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable - refuel outdoors only and do not smoke while refuelling - add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot - if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated - replace all fuel tanks and container caps securely - move the product away from the fuelling area before starting - Fuel should be stored in a cool place away from naked flames Safety Procedures when Charging the Battery (LM2148CMDE)

1. Check the charger cable regularly for damage

or deterioration due to age.

2. Do not use the lawnmower if the charging cable

is not in good condition.

3. Do not attempt to charge other products with

the charger from this unit.

4. Do not attempt to use this battery with any other

5. Charging should only be carried out in a safe

location where neither battery nor cord cable can be trodden on or tripped over.

6. Location should be well-ventilated.

7. During charging, the battery charger becomes

warm. This is normal and means the charger is operating properly.

8. Do not cover the battery charger with anything

9. Ensure that neither the charger nor the battery

are exposed to moisture.

10. Avoid extreme temperatures.

11. The charger will not operate below freezing

point nor above 40oC.

12. Do not short circuit the battery terminals.

1. While using your product always wear

substantial footwear and long trousers.

2. The use of ear protection is recommended.

3. Make sure the lawn is clear of sticks, stones,

bones, wire and debris; they could be thrown by the blade.

4. Before using the machine and after any impact,

check for signs of wear or damage and repair as necessary.

5. Replace worn or damaged blades together with

their fixings in sets to preserve balance.

6. Have faulty silencers replaced.

Safety Precautions Use

1. Do not operate the engine in a confined space

where exhaust fumes (carbon monoxide) can collect.

2. Use the lawnmower only in daylight or good

3. Avoid operating your lawnmower in wet grass,

4. Take care in wet grass, you may lose your

5. On slopes, be extra careful of your footing and

wear non-slip footwear.

6. Mow across the face of slopes, never up and

7. Exercise extreme caution when changing

direction on slopes.

8. Mowing on banks and slopes can be

dangerous. Do not mow on banks or steep slopes.

9. Do not walk backwards when mowing, you

could trip. Walk never run.

10. Never cut grass by pulling the mower towards

11. Stop the engine before pushing the mower

across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.

12. Never operate the lawnmower with damaged

guards or without guards in place.

13. Do not overspeed the engine or alter governor

settings. Excessive speed is dangerous and shortens lawnmower life.

14. Disengage all blade and drive clutches before

15. Keep hands and feet away from the cutting

means at all times and especially when switching on the engine.

16. Do not tilt lawnmower when starting the engine

17. Do not put hands near the grass discharge

chute whilst engine is running.

18. Never pick up or carry a lawnmower while the

19. Spark plug wire may be hot - handle with care.

20. Do not attempt any maintenance on your

lawnmower when the engine is hot.

21. Stop the engine, and wait until the blade has

stopped:before leaving the mower unattended for any period;

22. Release the Operator Presence Control to stop

the engine, wait until the blade has stopped, disconnect the spark plug lead and wait until the engine has cooled:before refuelling before clearing a blockage; before checking, cleaning or working on the appliance; if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition.; if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.

23. Reduce the throttle setting during engine shut

down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing. Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure

the lawnmower is in safe working condition.

2. Check the grassbox/grassbag frequently for

wear or deterioration. 3 Replace worn or damaged parts for safety.

4. Only use the replacement blade, blade bolt,

spacer and impeller specified for this product.

5. Never store the lawnmower with fuel in the tank

inside a building where fumes can reach an open flame or spark.

6. Allow the engine to cool before storing in any

7. To reduce fire hazard, keep the engine, silencer,

battery compartment and fuel storage area free of grass, leaves or excessive grease.

8. If the fuel tank has to be drained, this should be

9. Be careful during adjustment of the machine to

prevent entrapment of the fingers between moving blades and fixed parts of the machine. Assembly Instructions A2-a - handle adjuster Handle Assembly

1. Your product is supplied with the handles folded

over the product. (A1)

2. Loosen handle adjusters (A2) on both sides of

the product and lift handle assembly up.

3. Adjust handle assembly to the most comfortable

operating position (A3) and tighten handle adjusters (A2) on both sides of the product Recoil Starter

1. Disconnect the spark plug lead.

2. Pull the Operator Presence Control (B1) to

release the brake on the engine. You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

Locate cord in the pull cord guide on the lower handle. (B2) Locate cord in the pull cord guide on the upper handle. (B3) Fitting the Grassbox

1. Lift safety flap. (C1)

2. Locate grassbox to machine. (C2)

3. Locate safety flap onto the top of the grassbox.

(C3). Ensure the grassbox is securely located. Please Note :- Ensure no gap remains between the safety flap and the grassbox Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed ENGLISH - 2 Engine Notes Oil

1. Check oil level periodically and after every five

2. Add oil as necessary to keep the level to the FULL

mark on the dipstick.

3. Use a good quality SAE 30 four stroke oil.

4. To fill with oil:a) Remove oil filler cap. (D1)

b) Fill to the FULL mark on the dipstick. (D2)

5. Change the oil after the first five hours operation

and thereafter every 25 working hours.

6. Always change the oil while the engine is warm but not hot - never attempt any maintenance on a

1. Use fresh regular grade lead free petrol.

2. Do not fill the fuel tank when the engine is hot.

3. Do not fill the fuel tank while smoking.

4. Do not fill the fuel tank while the engine is running.

5. To avoid introducing dirt into the fuel system, wipe

all grass and dirt from the petrol filler cap before unscrewing it. (E1)

6. It is recommended that you fill the tank through a

funnel with a filter. (E2)

7. Wipe away spillages before starting.

Please Note :- move the product away from the fuelling area before starting Starting - Priming the Engine Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section. Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated. Starting the engine for the first time

1. Advance engine speed control to FAST ‘+’ as

described in the Use - starting and stopping section.

2. Push primer bulb (F) firmly five times

3. Follow instructions in the Use - starting and

4. If engine fails to start after three pulls of the pull

cord, push primer bulb three times and repeat step Starting engine thereafter

1. Move engine speed control to FAST ‘+’ position and

push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.) Use - Starting and Stopping G1-a - engine speed control G3-a - recoil starter Starting & Stopping LM2148CMD Starting

1. Connect the spark plug lead.

2. Move the Engine Speed Control to the FAST ‘+’

position before starting. (G1)

3. Pull the operator presence control (OPC) to release

the brake on the engine and the blade.(G2)

4. Pull the recoil starter fully towards you until you feel the

full resistance, return the handle slowly then pull the handle firmly towards you to its full extent. (G3)

5. After the engine has started, allow to run for 30

seconds before commencing to use. Engaging the Drive

1. Forward drive is engaged and disengaged with the

Powerdrive lever at the top of the handle (G4).

2. Releasing the Powerdrive Lever stops the forward

drive automatically. Stopping

1. Release the powerdrive lever.

2. Release the OPC lever.

Starting & Stopping LM2148CMDE Starting

1. Follow steps 1-3 for the LM2148CMD

2. Turn the key and hold until the engine starts (H).

The key will return to the original position when released.

3. If the engine fails to start when you turn the key

your battery may need charging. Engaging the Drive - See LM2148CMD Stopping - See LM2148CMD Please note:- Your LM2148CMDE can be started manually by following steps 1-5 in Starting & Stopping LM2148CMD Key Start Only - During mowing, your engine will recharge the battery. Use - Mowing How to Mow

1. Always use the correct mowing position (J1).

2. Start mowing from the outside edge of the lawn,

mowing in strips in alternate directions (K2).

3. Mow twice a week in the growing season, your

lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection. ENGLISH - 3 Please Note:Do not overload your Lawnmower When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see Cutting Height, will help reduce engine overload and will help prevent damage to your lawnmower. Cutting Height Adjustment

1. The height of cut is altered by pulling the

adjustment lever away from the location slots and moving to the selected position (K3). Use - Mowing Grass Collection Indicator

1. Your lawnmower has a grass collection indicator which

tells you when the grassbox needs emptying. (J4)

2. When the indicator is at the top of the tube, grass

3. When the indicator starts to drop, it’s time to empty

the grassbox. Adopt a stationary position, keeping the lawnmower running for 10 seconds. Release the OPC lever and remove the grassbox for emptying.(J5) Emptying the Grassbox

1. Release the latch on the grassbox. (J6)

2. Release collection bag from grassbox frame. (J7)

3. Empty grassbox. (J8)

1. Your lawnmower is supplied with a mulching plug.

2. Stop your lawnmower as described in Use starting and stopping, and disconnect the spark

3. Lift safety flap. Twist and slide mulching plug into

rear discharge chute. (J10)

4. Ensure mulching plug is securely fitted. (J11)

5. The mulching plug prevents grass from being

collected by blocking the collection chute on the underside of the deck. (J12)

6. Ensure the safety flap is positioned correctly. (J13)

Maintenance IMPORTANT Do not attempt any maintenance on your lawnmower when the engine is hot. Cleaning IMPORTANT Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

1. Remove grass from under the deck with a brush (K1

2. Using a soft brush - remove grass clippings from the

engine air intakes and exhaust (K3), cutting height adjustment area. (K4), around the wheels (K5) and the grassbox (K6 & K7).

3. Wipe over the surface of your lawnmower with a dry

cloth. Cutting System Removing the Blade (L)

• Disconnect the spark plug lead.

1. Use spanner to loosen blade bolt by turning anticlockwise.

2. Remove the blade bolt, blade and spacer washer.

3. Inspect for damage and clean as necessary.

Fitting the Blade (L)

1. Fit the blade to the machine with the sharp edges

pointing away from the machine.

2. Re-assemble blade bolt through blade and spacer

3. Hold firmly and tighten blade bolt firmly with a

spanner. Do not over tighten. Always handle the blade with care - sharp edges could cause injury. USE GLOVES. Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one. How to Charge the Battery (LM2148CMDE ONLY) M1 - Wiring Loom M2 - Charging Point M3 - Cap

1. Stop your lawnmower.

2. Disconnect the spark plug.

3. Remove the cap from the charging point at the

bottom of the wiring loom (M).

4. Plug charger lead into connection on battery loom

5. Plug the battery charger into a domestic electric

6. Charging will then commence.

7. Charge for 24 hours.

8. After charging, disconnect the charger from the

socket and charging point.

9. Replace the cap on the charging point.

10. The unit is now ready for use.

Environmental Information Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products’ life.

• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information. BATTERY DISPOSAL
• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
• Do NOT dispose of battery to water.

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.
• Do NOT dispose of used fuels/oils with household waste
• Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
• Do NOT dispose of used fuels/oils to water.
• Do NOT incinerate ENGLISH - 4 Maintenance Battery Replacement

1. The battery is located underneath a cover behind

2. Stop the lawnmower and disconnect the spark

3. Remove the screws from the cover.

4. Remove cover to gain access to the battery.

IMPORTANT:-Replacement batteries will need to be charged before use. Ensure that neither the charger nor the battery are exposed to moisture The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads. General Guidance on Rechargeable Battery

1. Charging time is 24 hours.

2. Under normal usage the battery will be charged

during the running of the engine.

3. To keep in prime condition the battery should be

charged at least once every six months.

4. Exceeding the charging period may shorten the

5. Protect electric cable. Never carry the battery

charger by the electric cable only.

6. If after an extended usage period the battery

quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.

7. Do not attempt to open the main body casing.

8. Clean only with a dry soft cloth.

9. Never use a damp cloth or flammable liquids such

as petrol, white spirits, thinners etc.

10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 sec. CAUTION! For adjustment contact your authorized service dealer. At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.

2. Clean your lawnmower thoroughly.

3. Ask your local Service Centre to clean the air filter

thoroughly and carry out any service or repairs required.

4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after

2. Wait until the engine has cooled to avoid a

potential fire hazard.

3. Clean your lawnmower

4. Store in a cool, dry place where your lawnmower

is protected from damage. Service Recommendations Your product is uniquely identified by a silver and black product rating label. We strongly recommend that your product is serviced at least every twelve months, more often in a professional application. Engine Maintenance Schedule Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions First 5 hours - Change oil. Every 5 hours or daily - Check oil lever. Clean finger guard. Clean around muffler. ENGLISH - 5 Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner. Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped. Every 100 hours or every season - Clean cooling system*. Replace spark plug. Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass. Engine Servicing & Guarantee The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer. Fault Finding Hints Engine Will Not Start

1. Ensure OPC Lever is in the start position.

2. Check that the control lever is in the '+' position

3. Check that there is sufficient fuel in the tank and

the cap air vent is clear.

4. Remove and dry the spark plug.

5. Petrol may be stale, replace. Once petrol has

been replaced, it may take a little time for fresh petrol to filter through.

6. Check that the blade bolt is tight. A loose bolt

could cause difficult starting.

7. If the engine will still not start, immediately

disconnect the spark plug lead.

8. CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Engine Will Not Turn Over (LM2148CMDE only)

1. Ensure OPC Lever is in the start position.

2. Battery flat - start your lawnmower manually.

3. If the engine will still not turn over,

immediately disconnect the spark plug lead.

4. CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Lack of Engine Power and/or Overheating

1. Check that the control lever is in the 'normal'

2. Disconnect the spark plug lead and allow the

engine to cool down.

3. Clean grass clippings and debris from around the

engine and air inlets and the underside of the deck including the chute.

4. Clean the engine air filter (Ask your local

Approved Service Centre to clean the engine air filter thoroughly).

5. Petrol may be stale, replace. Once petrol has

been replaced, it may take a little time for fresh petrol to filter through.

6. If the engine still lacks power and/or is

overheating, immediately disconnect the spark plug lead.

7. CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Excessive Vibration

1. Disconnect the spark plug lead.

2. Check that the blade is correctly fitted.

3. If the blade is damaged or worn replace it with a

4. If vibration persists, immediately disconnect

the spark plug lead.

5. CONSULT YOUR LOCAL APPROVED SERVICE

EC DECLARATION OF CONFORMITY

I, the undersigned M. Bowden of Electrolux Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP. Certify that the Lawnmower:Category........ Petrol Wheeled Rotary Make.............. Electrolux Outdoor Products Conforms to the specifications of Directive 2000/14/EEC I, the undersigned M. Bowden of Electrolux Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP Certify that a sample of the above product has been tested using directive 81/1051/EEC as a guide. The maximum Aweighted sound pressure level recorded at operator position under free field semi anechoic chamber conditions was :- Type of Cutting Device............ Rotary Blade Identification of Series..............See Product Rating Label Conformity Assesment Procedure....ANNEX VI Notified Body....................I.T.S., Cleeve Road, Leatherhead, Surrey. KT22 7SB England Other Directives:-.............98/37/EEC, 89/336/EEC & applicable standards:- EN836:1997, EN ISO14982:1998 I, the undersigned M. Bowden of Electrolux Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP Certify that a sample of the above product has been tested using ISO 5349 as a guide. The maximum weighted root mean square value of vibration recorded at operator’s hand position was:-

Briggs & Stratton XTL55

82.4 dB(A)

7.03 m/s2

35.5 kg

Briggs & Stratton XTL55

82.4 dB(A)

7.03 m/s2

39.5 kg

Newton Aycliffe, 22/11/2002. M. Bowden, Research & Development Director BELGIQUE/BELGIË Electrolux Outdoor Products, Flymo/Partner A/S, Lundtoftegaardsvej 93A, DK 2800 Kgs.Lyngby Tel: 45 87 75 77, Fax: 45 93 33 08, www.flymo-partner.dk DEUTSCHLAND Electrolux Outdoor Products Finland Tel: 00 358 9 39611, Fax: 00 358 9 3961 2644 ITALIA Electrolux Outdoor Products, Sverige Tel: 036 – 14 67 00, Fax: 036 – 14 60 70 UNITED KINGDOM Electrolux Outdoor Products United Kingdom Tel: 01325 300303, Fax: 01325 310339 Electrolux Outdoor Products Aycliffe Industrial Park NEWTON AYCLIFFE Co.Durham DL5 6UP ENGLAND Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339 UK Telephone - 01325 300303 Fax - 01325 310339 Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries. © Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ Registered number 974979 England From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
