AD 4229 - Food Processor ADLER - Free user manual and instructions

Product type	Multifunction food processor
Brand	Adler
Model	AD 4229
Power	1000 W
Bowl capacity	5 liters
Speeds	6 speeds + pulse
Included accessories	Chopping blade, grating disc, slicing disc, whisk, dough hook
Bowl material	Stainless steel
Dimensions (L x W x H)	35 x 25 x 30 cm
Weight	5.2 kg
Power supply	220-240 V ~ 50/60 Hz
Main functions	Chop, mix, knead, beat, grate, slice, blend
Care and cleaning	Bowl and accessories are dishwasher safe; wipe the motor block with a damp cloth
Safety	Overload protection, non-slip feet, safety bowl lock
Spare parts and repairability	Available through Adler after-sales service; repairability score 8.2/10
Warranty	2 years
Color	White and silver

Frequently Asked Questions - AD 4229 ADLER

How to assemble the Adler AD 4229 for first use?

Before first use, wash all accessories and the bowl with soapy water. Place the bowl on the motor block and turn it clockwise until it locks. Insert the desired accessory onto the shaft and lock the lid. Plug in the appliance and select the appropriate speed.

Can I blend hot liquids in the bowl?

It is not recommended to blend liquids above 60°C to avoid damaging the stainless steel bowl and causing splashes. Allow preparations to cool before blending.

Can the AD 4229 knead bread dough?

Yes, use the dough hook and speed 1 or 2. Do not exceed 500 g of flour. Knead in sessions of 2 minutes to avoid engine overheating.

How to clean the motor block?

Unplug the appliance. Wipe the motor block with a damp cloth. Never immerse the block in water. Accessories and bowl are dishwasher safe.

What to do if the appliance does not start?

Check that the bowl and lid are properly locked. Make sure the socket works. If the problem persists, contact Adler after-sales service.

What is the maximum bowl capacity for liquid preparations?

Do not fill the bowl beyond the maximum marking (4 liters for liquids) to avoid overflow. For thick preparations, the capacity is 5 liters.

Can I use the robot without the lid?

No, the lid is an essential safety device. The appliance only works if the lid is properly locked. Never attempt to bypass this system.

How to grate cheese with the grating disc?

Place the grating disc on the shaft, lock the lid, and insert the cheese through the chute using the pusher. Use speed 4 or 5 for even results.

Is it possible to crush ice cubes?

Yes, with the chopping blade and pulse function. Do not use large ice cubes; break them into small pieces. Do not run continuously for more than 30 seconds.

Where to find spare accessories for the AD 4229?

Spare parts (bowl, blade, discs, etc.) are available on the official Adler website or from authorized dealers. Always use original accessories.

USER MANUAL AD 4229 ADLER

AD 4229

EN	User Manual	3	FI	Käyttöohje	50
DE	Bedienungsanleitung	6	PL	Instrukcja obsługi	53
FR	Mode d'emploi	9	IT	Manuale d'uso	56
ES	Manual de usuario	12	SV	Bruksanvisning	60
PT	Manual de Instruções	16	BG	Ръководство за употреба	63
LT	Naudojimo instrukcija	19	DA	Brugsanvisning	66
LV	Lietošanas instrukcija	22	SK	Používatel'ská príručka	69
ET	Kasutusjuhend	25	BS	Korisnički priručnik	72
HU	Használati útmutató	28	MK	Упатство за употреба	75
RO	Manual de utilizare	31	HR	Korisnički priručnik	78
CS	Návod k použití	34	UK	Керівництво користувача	81
RU	Руководство пользователя	37	SR	Упутство за употребу	84
EL	Еүүхειρίδιο χρήσης	40	AR	دليل المستخدم	87
NL	Gebruikershandleiding	44	AZ	İstifadəçi təlimatı	89
SL	Navodila za uporabo	47	SQ	Manuali i përdorimit	92

User Manual (EN)

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS FOR USE

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes incompatible with its intended use.
3. Connect the device only to a 220-240V~50/60Hz grounded outlet. In order to increase the safety of use, multiple electrical appliances should not be plugged into a single circuit at the same time.
4. Be especially careful when using the device when children are around. Do not allow children to play with the appliance; do not allow children or persons unfamiliar with the appliance to use it.
5. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if it is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.
6. WARNING: Do not leave the device plugged into an outlet unattended.
7. WARNING: Keep the device out of the reach of children.
8. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
9. WARNING: Do not use the device near flammable materials.
10. WARNING: Unplug the power cord from the outlet before cleaning and washing the unit.
11. WARNING: Use caution when mixing hot liquids, as they may be ejected from the container due to the sudden rotation of the mixer's stirrers.
12. WARNING: Always unplug the mixer if it is left unattended, and before assembling, disassembling or cleaning it.
13. Do not immerse the cable, plug or entire unit in water or other liquid. Do not expose the appliance to weather conditions (rain, sun, etc.) or use in high humidity conditions.

(bathrooms, humid motor homes).

1. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.
2. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or malfunctions. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. Any repairs may be made only by authorized service centers. Improper repair may cause serious danger to the user.
3. Place the appliance on a cool, stable, level surface, away from hot kitchen appliances such as electric stove, gas burner, etc.
4. The power cord must not hang over the edge of the table or touch hot surfaces.
5. To provide additional protection, it is advisable to install in the electrical circuit a residual current device (RCD) with a rated residual current of not more than 30 mA. In this regard, consult a specialist electrician.
6. Do not insert fingers or any other objects into the container when the device is turned on.
7. Be careful not to let long hair, scarves, ties, etc. hang over the container and the working parts of the device.
8. For safety reasons, use only original accessories and spare parts adapted to the mixer model sold by an authorized service center.
9. Change accessories only when the appliance is turned off. Unplug the appliance from the power supply.
10. Do not put products other than food and liquids into the mixing container.
11. Do not use aggressive detergents to wash the housing, as they may cause the removal of applied informative graphic symbols such as graduations, markings, warning signs, etc.
12. The maximum continuous operation time of the mixer is 5 minutes. After 5 minutes of continuous operation, wait 3 minutes before restarting it.
13. If the mixers are blocked, always unplug the power cord from the electrical outlet before removing the blocking parts.
14. Do not move the device during operation.
15. Be careful when handling the agitators, when emptying the container, and when cleaning.

DESCRIPTION OF THE DEVICE

1. "Eject" button to release the tips 2. Speed adjustment button
2. On / pause button 4. "Turbo" button
3. Display
4. Beater attachments
5. Dough hooks
6. Whisk
7. Mixer housing
8. Ventilation openings
9. Accessory container

USE OF THE DEVICE

1. Make sure the device is unplugged from the mains.
2. Insert the tips into the holes on the bottom of the appliance. The whisking tips (6) can be inserted in parallel, while the dough hooks (7) should be inserted so that the tip with the extra tooth is placed in the hole on the left side looking from the bottom of the mixer.
3. The whisk (8) for whisking can be placed in either of the two holes on the bottom of the mixer.
4. Make sure the tips are well seated by pulling lightly on them.
5. Connect the mixer to the power supply.
6. Set the desired speed of the appliance by pressing the speed control buttons (2). The symbol: "+" increases the speed of the appliance, the symbol: "-" decreases the speed of the appliance. The speed will be shown on the display (5).
7. Start the mixer by pressing the appliance switch-on button (3).
8. You can change the speed of the mixer while it is running by pressing the speed control buttons (2).
9. You can pause the operation by pressing the on/pause button (3).
10. During operation, you can use the Turbo function (4). When you press and hold the "Turbo" button, the device will start running at maximum engine speed. The display will show the symbol: "P".
11. When finished working, set the speed with the speed control buttons (2) to "0" and unplug the mixer from the mains by removing the plug from the electrical outlet.
12. Remove the blender tips by pressing the "Eject" button (1).

NOTE: To protect the motor part, the mixer will automatically go into standby mode and reduce the speed to "0" after 5 minutes of continuous operation.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the device from the mains.
2. Remove accessories before washing them in water with dishwashing liquid. Do not clean in a dishwasher.
3. Wipe external parts with a kitchen towel or soft cloth.
4. Do not use abrasive materials for cleaning.
5. Do not immerse the mixer body (9) in water or any other liquid.

TECHNICAL SPECIFICATIONS

Power supply: 220-240V~50/60Hz

Nominal power: 400W

Maximum power: 600W

For the sake of the environment. Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.

The marking on the product indicates that the device should not be disposed of in the container with municipal waste. Waste electrical equipment is waste that contains substances harmful to humans, animals and the environment.

These substances can lead to contamination of the soil, water or air, and through this they can enter the human body and lead to numerous health ailments, such as vision, hearing, speech disorders, they can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them may risk the above-mentioned health effects. Do not dispose of the device in the municipal waste container!!!

Service: If you wish to purchase spare parts or report any complaints, please contact directly the seller who issued the receipt.

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the user manual and follow the instructions contained in it. The manufacturer is not responsible for damage caused by use of the device contrary to its intended purpose or improper operation.
2. The device is for household use only. Do not use it for any other purposes that are not in accordance with its intended use.
3. The device should be connected only to a 220-240V~ 50/60Hz grounded outlet. To increase safety in operation, do not connect multiple electrical devices to one circuit at the same time.
4. Be especially careful when using the device when children are nearby. Children should not be allowed to play with the device. Do not allow children or persons unfamiliar with the device.
5. WARNING: This equipment can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or persons lacking experience or knowledge of the equipment, if they are under supervision or have been given instructions on how to use the equipment safely and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device must not be performed by children unless they are older than 8 years and these activities are performed under supervision.
6. WARNING: Do not leave the device plugged into the outlet unattended.
7. WARNING: Keep the device out of reach of children.
8. WARNING: Always unplug the appliance from the outlet after use by holding the plug.

Do NOT pull the power cord.

1. WARNING: Do not use the appliance near flammable materials.
2. WARNING: Before cleaning and washing the appliance, unplug it from the outlet.
3. WARNING: Be careful when mixing hot liquids, as hot liquids may be ejected from the container due to sudden rotation of the mixer blades.
4. WARNING: Always disconnect the mixer from the power supply when unattended and before assembling, disassembling, or cleaning.
5. Do not immerse the cord, plug, or the entire appliance in water or any other liquid. Do not expose the appliance to weather conditions (rain, sun, etc.) or use it in conditions of high humidity (bathrooms, damp campers).
6. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a qualified service center to avoid danger.
7. Do not use the appliance if the power cord is damaged, or if it has been dropped or damaged in any way, or if it does not operate normally. Do not attempt to repair the appliance yourself, as this may result in electric shock. Take the damaged appliance to an appropriate service center for inspection or repair. All repairs must be performed only by authorized service personnel. Improper repairs may pose a serious hazard to the user.
8. Place the device on a cool, stable, flat surface, away from hot kitchen appliances such as electric stoves, gas burners, etc.
9. The power cord must not hang over the edge of the table or touch hot surfaces.
10. To ensure additional protection, it is recommended to install a residual current device (RCD) with a rated residual current not exceeding 30 mA in the electrical circuit. In this regard, consult a qualified electrician.
11. Do not place fingers or any other objects into the bowl when the device is switched on.
12. Make sure that long hair, scarves, ties, etc. do not hang over the bowl and the working parts of the device.
13. For safety reasons, use only original accessories and spare parts adapted to the specific mixer model, sold by an authorized service center.
14. Accessories may only be changed when the device is switched off. Switch off the device.
15. Do not place any products other than food and liquids in the mixing bowl.
16. Do not use aggressive detergents to clean the housing, as they can remove informative graphic symbols such as scales, labels, warning signs, etc.
17. MAXIMUM CONTINUOUS OPERATING TIME OF THE MIXER IS 5 MINUTES.

After 5 minutes of continuous operation, wait 3 minutes before turning it on again.

1. If the mixers are blocked, always unplug the power cord from the electrical outlet before removing the blocking components.
2. Do not move the appliance during operation.
3. Be careful when handling the mixers, when emptying the bowl, and when cleaning.

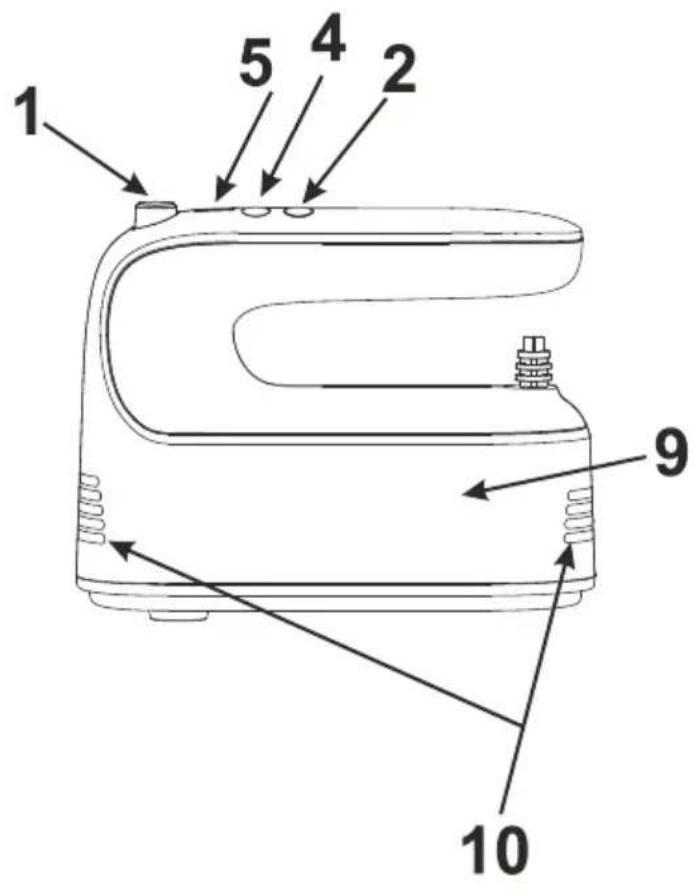

DESCRIPTION OF THE APPLIANCE

1. Eject button to release the beaters 2. Speed adjustment button
2. Power/Pause button 4. "Turbo" button.
3. Display
4. Mixing attachments
5. Mixing tips 8. Whisk for whipping
6. Mixer body 10. Ventilation openings
7. Accessory container

USING THE APPLIANCE

1. Make sure the appliance is unplugged from the electrical outlet.
2. Insert the tips into the holes on the bottom of the appliance. The whisking tips (6) can be inserted in parallel, while the mixing tips (7) should be inserted so that the tip with the additional tooth is placed in the hole on the left side when viewed from the bottom of the mixer.
3. The whisk (8) for whipping can be placed in either of the two holes on the bottom of the mixer.
4. Make sure the tips are firmly seated by gently pulling them.
5. Connect the mixer to the power supply.
6. Set the desired operating speed of the appliance by pressing the speed adjustment buttons (2). The "+" symbol increases the operating speed of the appliance, the "-" symbol decreases the operating speed of the appliance. The speed will be shown on the display (5).
7. Start the mixer by pressing the power button (3).
8. You can change the speed of the mixer while it is running using the speed control buttons (2).
9. You can pause the operation by pressing the On/Pause button (3).
10. You can use the Turbo function (4) while working. After pressing and holding the "Turbo" button, the device will start operating at maximum motor speed. The symbol "P" will appear on the display.
11. After finishing work, set the speed using the speed control buttons (2) to "0" and unplug the mixer from the mains by pulling the plug out of the electrical outlet. 12. Remove the mixer attachments by pressing the "Eject" button (1). NOTE: To protect the motor part, the mixer will automatically enter standby mode and reduce the speed to "0" after 5 minutes of continuous operation.

CLEANING AND MAINTENANCE

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND SAVE FOR FUTURE REFERENCE

1. Before using the appliance, read the user manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the appliance contrary to its intended purpose or by unprofessional operation.
2. The appliance is for household use only. Do not use it for purposes other than those for which it is intended.
3. The appliance should only be connected to a grounded outlet of 220-240V ~ 50/60Hz. To increase operational safety, do not connect multiple electrical appliances to one circuit at the same time.
4. Be especially careful when using the appliance when children are nearby. Children should not be allowed to play with the appliance. Do not allow children or persons who are not
