Product type	Rechargeable electric shaver with automatic cleaning system
Brand	Braun
Model	370CC
Power supply	Mains cord with low-voltage adapter; integrated rechargeable battery
Charging time (initial charge)	4 hours
Charging time (subsequent charges)	Approximately 1 hour
Quick charge	5 minutes for one shave
Shaving autonomy	Up to 45 minutes
Main functions	Retractable trimmer for long hairs; precision adjustment lock for hard-to-reach areas; Clean&Renew™ system for cleaning, charging, and storage
Indicator lights	Charge (green), discharge (red), cleaning (yellow), shaver cassette replacement (8)
Maintenance and cleaning	Automatic via Clean&Renew™; manual possible under warm running water (shaver unplugged); brush for inside of the head
Lubrication	Sewing machine oil on trimmer and cassette once a week if washing with water
Safety	Use only the supplied power cord; do not expose to temperatures >50°C; device not intended for children without supervision; cleaning fluid flammable, keep away from ignition sources
Spare parts	Shaver cassette (foil and cutter block): 32S/32B; Clean&Renew™ cleaning fluid cartridge: CCR
Shaver cassette lifespan	Approximately 18 months (replacement indicator)
Cleaning cartridge capacity	Approximately 30 cleaning cycles (about 4 weeks with daily use)
Warranty	2 years (terms and exceptions according to manual)
Compliance	European directives 2004/108/EC and 2006/95/EC
Package contents	Shaver, power cord, Clean&Rew™ system, cleaning cartridge, case (depending on model), protective cap (350cc)

Frequently Asked Questions - 370CC BRAUN

How to charge the Braun 370CC shaver?

Plug the power cord into the shaver (turned off) and into a mains socket. The initial charge takes 4 hours, subsequent charges about 1 hour. A 5-minute quick charge provides one shave.

What does the yellow indicator light mean?

The yellow indicator means the shaver needs cleaning. It lights up continuously to alert. Use the Clean&Renew™ system or clean manually.

How to clean the shaver manually?

Unplug the shaver, turn it on without the cord, rinse the head under warm water (mild liquid soap possible). Rinse and let the removed shaver cassette dry.

How to use the Clean&Renew™ system?

Place the shaver (off) into the base, head down. Press the on/off button to lock. The cleaning cycle starts (about 2 min cleaning + 4h drying). The yellow indicator blinks then turns off.

When to replace the shaver cassette?

When the replacement indicator (8) lights up, after about 18 months. Replace with a 32S/32B cassette. To reset, press the on/off button for 5 seconds.

Can I shave if the battery is discharged?

Yes, you can shave by plugging the shaver into the mains via the power cord, even if the battery is empty.

How to maintain the battery?

Every 6 months, fully discharge the shaver by using it without recharging, then fully recharge it to maintain optimal capacity.

What to do if the red indicator blinks?

The red indicator means low battery. Recharge the shaver. The remaining charge is normally enough to finish the shave.

Where to find spare parts?

Parts (shaver cassette 32S/32B, CCR cleaning cartridge) are available from retailers or authorized Braun service centers.

Is the shaver under warranty?

Braun offers a 2-year warranty from the date of purchase, covering manufacturing defects. It does not cover normal wear (foil, cutter block) nor damage due to improper use.

USER MANUAL 370CC BRAUN

(Audio Supplies Company Ltd.)

WWW.service.braun.com

C

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Warning

Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.

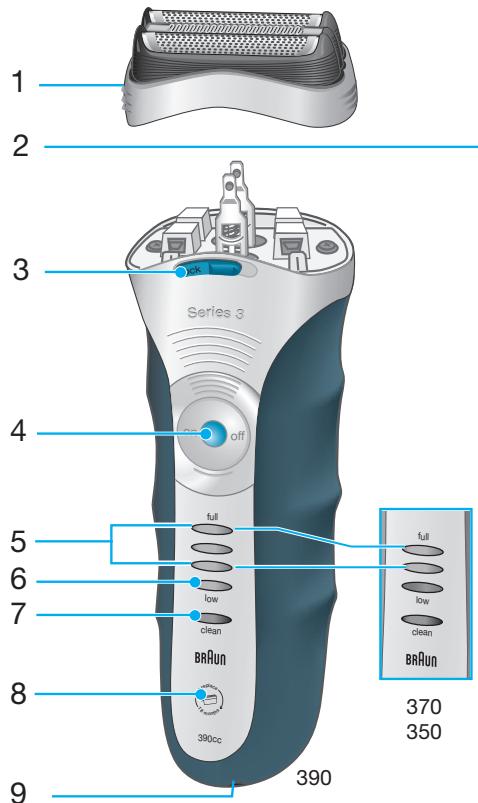

Description

1 Foil & Cutter cassette
2 Long hair trimmer
3 Precision setting switch («lock») (390cc/370cc only)
4 On/off switch
5 Charging lights (green)
6 Low-charge light (red)
7 Cleaning light (yellow)
8 Replacement light for shaving parts (390cc/370cc only)
9 Shaver power socket

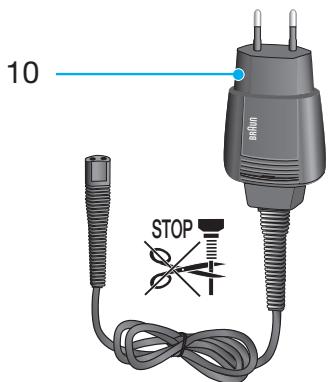

10 Special cord set

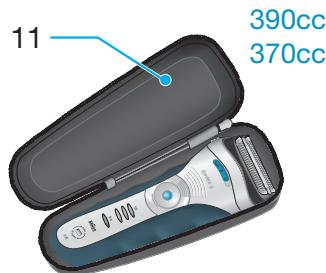

11 Travel pouch (390cc/370cc only)
12 Foil protection cap (350cc only)

Charging

The best environmental temperature for charging is between 15^ to 35^ . Do not expose the shaver to temperatures higher than 50^ for extended periods of time.

• Using the special cord set (10), connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously for 4 hours. Subsequent charges will take about 1 hour.

• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth.

• Shave without the cord. With normal use the shaver will be charged automatically after every cleaning in the Clean&Renew™ (see «C Clean&Renew™»).
  Maximum battery capacity will only be reached after several charging/discharging cycles.

• 5-minute quick charge (with the special cord set (10)) is sufficient for a shave.
• If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set.

Charging lights (5)

The green charging lights show the charge status of the batteries. The green charging light blinks when the shaver is being charged or switched on. When the battery is fully charged, all green charging lights shine permanently, provided the shaver is switched on or connected to an electrical outlet.

Low-charge light (6)

The red low-charge light flashes when the battery is running low.

You should be able to finish your shave.

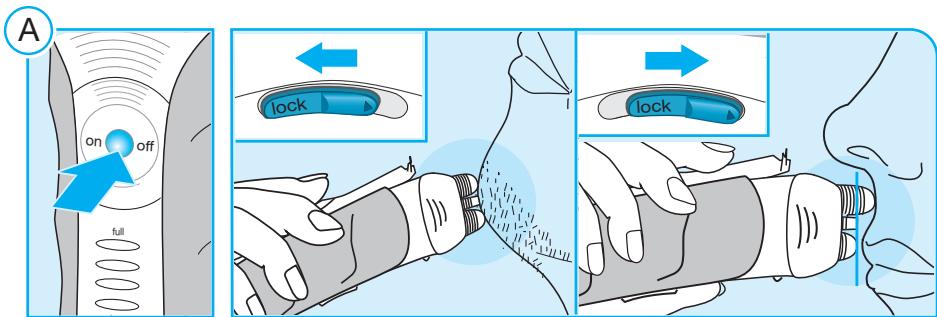

A Shaving

Press the on/off switch (4) to operate the shaver (picture).

The flexible shaving foils automatically adjust to every contour of your face (picture).

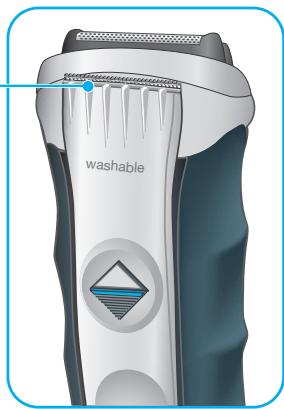

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Precision setting switch («lock») (3)

(390cc/370cc only)

For precise handling in hard to shave areas (e.g. under the nose) slide the switch (3) to the right to position «lock». The centre trimmer and one foil will be lowered.

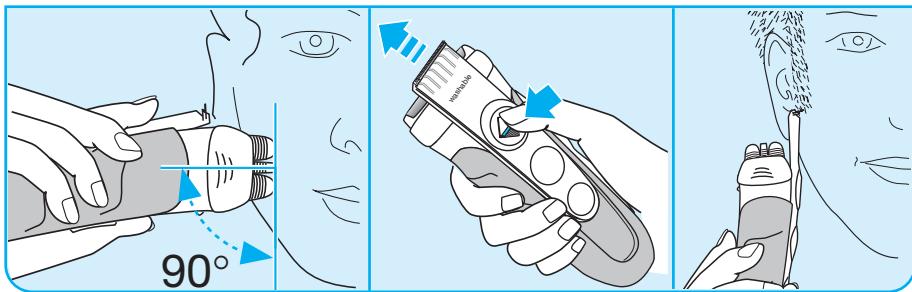

Tips for the perfect shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90^) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

B Keeping your shaver in top shape

Cleaning indicator

Your shaver should be cleaned daily in the Clean&Renew™, and certainly when the yellow cleaning light (7) shines constantly after shaving. If this is not done, the yellow light will go out after some time. The shaver's electronics will then assume it has been cleaned manually and a new calculation of the time when the next cleaning is required will be started. During the cleaning process in the Clean&Renew™ the yellow light will flash and will go off after approx. 4 hours when cleaning is finished.

Automatic cleaning

Once the shaver is put into the

Clean&Renew™, it is cleaned automatically (see «C Clean&Renew™»).

Manual cleaning is recommended only when the Clean&Renew™ is not available, e. g. when travelling.

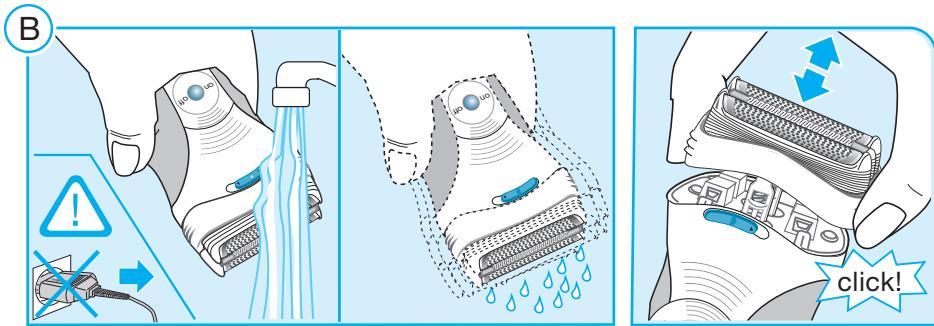

Manual cleaning

The shaver head is suitable for cleaning under running tap water. Warning: Detach the shaver from the power supply before cleaning the shaver head in water.

Regular cleaning ensures better shaving performance. Rinsing the shaver head under running water after each shave is an easy and fast way to keep it clean:

• Switch the shaver on (cordless) and rinse the shaver head under hot running water. You may use liquid soap without abrasive

substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1) and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer (2) and shaver Foil & Cutter cassette (1).

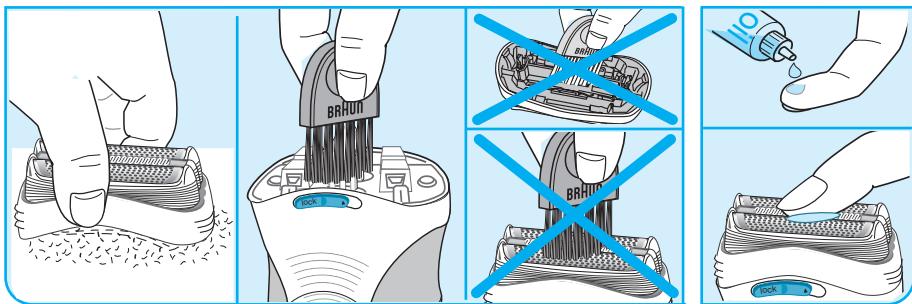

Alternatively, you may clean the shaver using a brush:

• Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it out on a flat surface.
• Using a brush, clean the inner area of the shaver head. However, do not clean the shaver Foil & Cutter cassette with a brush as this may damage it.

Replacement light for shaving parts/Reset (390cc/370cc only)

To maintain 100% shaving performance, replace the shaver Foil & Cutter cassette (1), when the replacement light for shaving parts (8) comes on (after about 18 months) or when worn.

The replacement light will remind you during the next 7 shaves to replace the foil and cutter cassette. Then the shaver will automatically reset.

After you have replaced the Foil & Cutter cassette (1), press the on/off switch (4) for at least 5 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Model 350cc: To maintain 100% shaving performance, replace the shaver Foil & Cutter cassette (1), at least every 18 months or when worn.

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection sites provided in your country.

C Clean&Renew™

Braun Clean&Renew™ has been developed for cleaning, charging and storing your shaver. Clean your shaver daily in the Clean&Renew™. During the automated cleaning process, the shaver is switched on and off at intervals to obtain best cleaning results. Since the specially formulated cleaning fluid contains a small amount of oil, the cleaning procedure also fulfils the lubrication needs of the shaver.

Important

• Only use the power supply cord set supplied with the shaver.
• In order to avoid any leakage of the cleaning fluid, place the appliance on a flat, stable surface. Do not tip, move suddenly or transport in any way if a cleaning cartridge is installed.
• Do not place the appliance in a mirror cabinet, nor store it over radiators, nor place it on polished or lacquered surfaces. Do not expose to direct sunlight.
• The appliance contains highly flammable liquid. Keep it away from sources of ignition. No smoking.
• Keep out of reach of children. Do not refill cartridge. Use only original Braun refill cartridge.

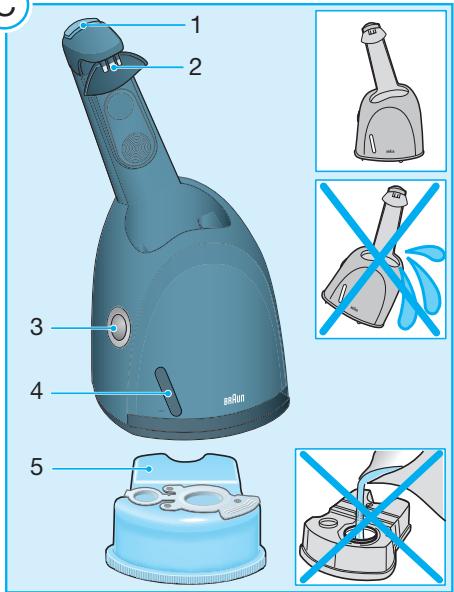

Description

1 Start/release button
2 Contact bow
3 Lift button for cartridge exchange
4 Level indicator
5 Cleaning cartridge

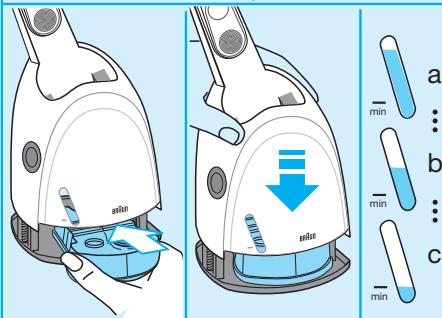

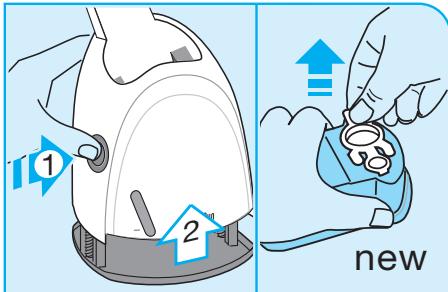

Before using Clean&Renew™ Installing the cartridge

• Press the lift button (3) to open the housing.
• Hold the cartridge down on a flat, stable surface (e.g. table). Carefully remove the lid from the cartridge. Slide the cartridge into the base as far as it will go.
• Slowly close the housing by pushing it down until it locks.

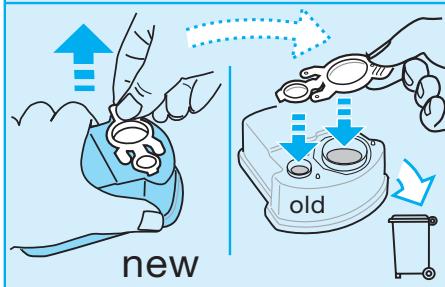

Replacing the cartridge

After having pressed the lift button to open the housing, wait for a few seconds before removing the used cartridge.

Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

The used cartridge can be disposed in the household waste.

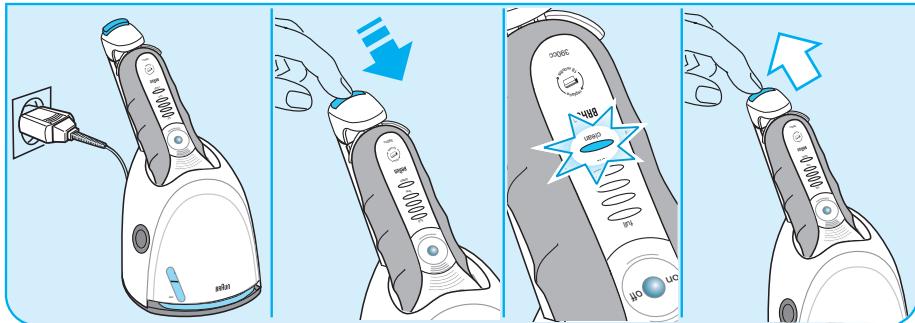

Operating your Clean&Renew™

• Connect your Clean&Renew™ with the cord set to the mains electricity supply. The special socket at the back is adjustable to save space. After each shave, switch the shaver off and put it into the Clean&Renew™, upside down and with the front showing.
• Push the start/release button (1) to lock and connect the shaver. The cleaning process will start. The yellow light on the shaver will flash during the complete process (approx. 2 minutes cleaning, min. 4 hours drying).
• Do not interrupt the cleaning process, as it leaves the shaver wet and not fit for use. If interruption is needed nonetheless, press the start/release button (1).
• When cleaning is finished, the yellow light will go off and the shaver is ready for use. To release it, push the start/release button.
• A cleaning cartridge should be sufficient for about 30 cleaning cycles. When the level indicator (4) has reached the «min» mark, the remaining fluid in the cartridge is

sufficient for about 5 more cleaning cycles. Then the cartridge should be replaced, when used daily approx. every 4 weeks.

• The hygienic cleaning solution cartridge contains alcohol which, once opened, will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily should be replaced after approx. 8 weeks.
• The cleaning cartridge also contains lubricates, which may leave residual marks on the shaver head after cleaning. However, these marks can be removed easily by wiping gently with a cloth or soft tissue paper.
• Clean the housing from time to time with a damp cloth, especially the opening where the shaver rests.

Accessories

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 32S/32B
• Cleaning cartridge Clean&Renew™: CCR

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

For electric specifications, see printing on the special cord set.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver Foil & Cutter cassette) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.
