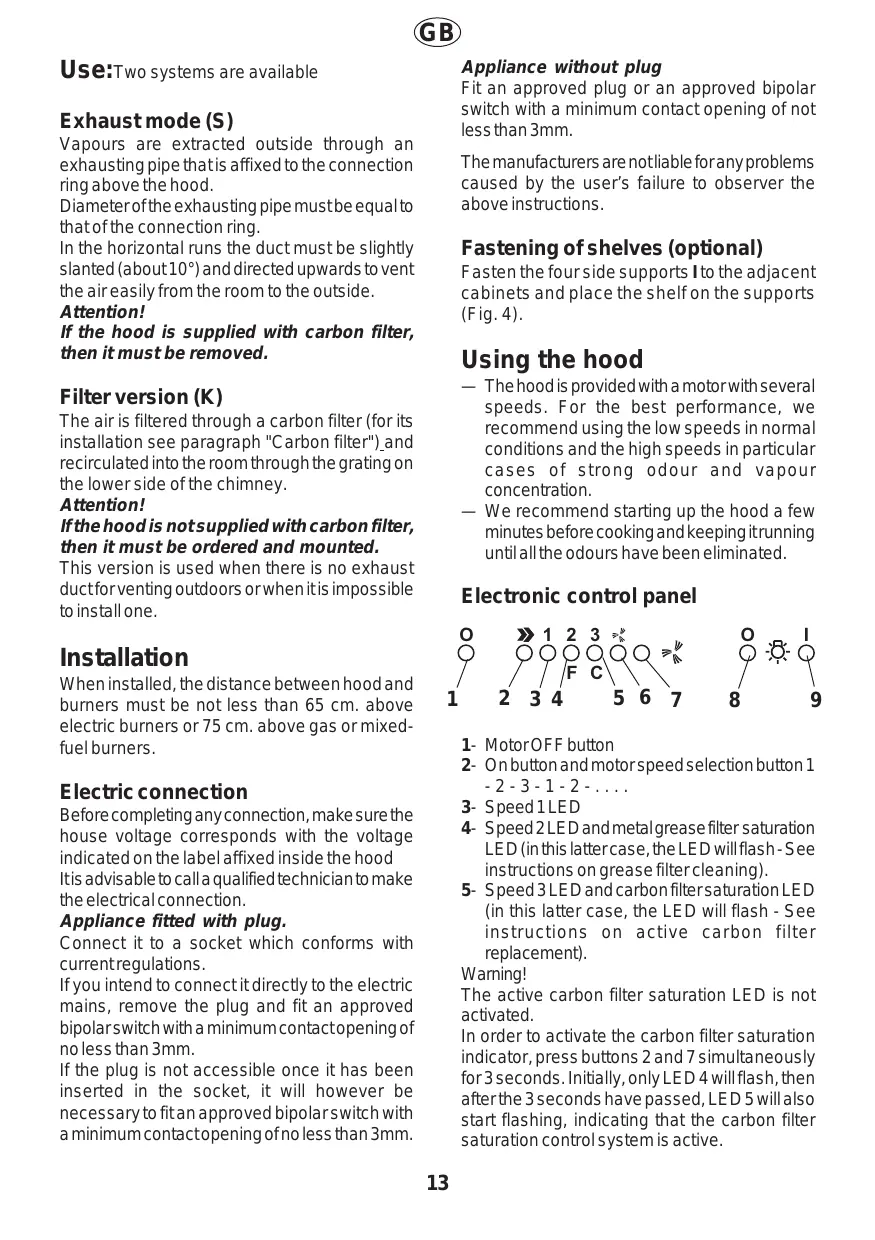

Appliance without plug Fit an approved plug or an approved bipolar switch with a minimum contact opening of not less than 3mm. Use:Two systems are available Exhaust mode (S) Vapours are extracted outside through an exhausting pipe that is affixed to the connection ring above the hood. Diameter of the exhausting pipe must be equal to that of the connection ring. In the horizontal runs the duct must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to the outside. Attention! If the hood is supplied with carbon filter, then it must be removed. The manufacturers are not liable for any problems caused by the user’s failure to observer the above instructions. Fastening of shelves (optional) Fasten the four side supports I to the adjacent cabinets and place the shelf on the supports (Fig. 4). Using the hood — The hood is provided with a motor with several speeds. For the best performance, we recommend using the low speeds in normal conditions and the high speeds in particular cases of strong odour and vapour concentration. — We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated. Filter version (K) The air is filtered through a carbon filter (for its installation see paragraph "Carbon filter") and recirculated into the room through the grating on the lower side of the chimney. Attention! If the hood is not supplied with carbon filter, then it must be ordered and mounted. This version is used when there is no exhaust duct for venting outdoors or when it is impossible to install one. Electronic control panel

Installation When installed, the distance between hood and burners must be not less than 65 cm. above electric burners or 75 cm. above gas or mixedfuel burners.

1- Motor OFF button

2- On button and motor speed selection button 1

3- Speed 1 LED

4- Speed 2 LED and metal grease filter saturation

LED (in this latter case, the LED will flash - See instructions on grease filter cleaning).

5- Speed 3 LED and carbon filter saturation LED

(in this latter case, the LED will flash - See instructions on active carbon filter replacement). Warning! The active carbon filter saturation LED is not activated. In order to activate the carbon filter saturation indicator, press buttons 2 and 7 simultaneously for 3 seconds. Initially, only LED 4 will flash, then after the 3 seconds have passed, LED 5 will also start flashing, indicating that the carbon filter saturation control system is active. Electric connection Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood It is advisable to call a qualified technician to make the electrical connection. Appliance fitted with plug. Connect it to a socket which conforms with current regulations. If you intend to connect it directly to the electric mains, remove the plug and fit an approved bipolar switch with a minimum contact opening of no less than 3mm. If the plug is not accessible once it has been inserted in the socket, it will however be necessary to fit an approved bipolar switch with a minimum contact opening of no less than 3mm.

To switch off the system, re-press the same two buttons: after 3 seconds LED 5 will stop flashing and the device will be switched off.

6 - Intensive speed LED

7 - Intensive speed ON switch

This speed should be used when the concentration of cooking fumes or odours is particularly strong (for example when frying, cooking fish etc.). The fast speed will run for about 5 minutes and then return to the speed previously set automatically (1, 2 or 3), or switch off if no speed was selected. To turn off the fast speed, before the end of the 5 minutes, press button 1 or button 2.

8 - OFF lamp button

9 - ON lamp button

Maintenance Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Metal grease filter (2 or 3 pieces) The metal grease filter lasts forever and must be washed either by hand or in the dishwasher (65°C) with suitable detergents. When washed in a dish washer, the grease filter may discolour slightly, but this does not affect its filtering capacity. The metal grease filters must be washed at least once a month and anyhow whenever the LED 4 indicates the saturation of the filter (see page 13). This LED flashes to warn you that the metal grease filters must be cleaned. Generally, these must be cleaned after 40 hours of use. Once the grease filters have been cleaned, press button 1 for about3 seconds until you hear the acoustic signal (beep): the LED 4 will now stop flashing. If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service. Warning! — This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance . — The hood cannot be connected to flues of other appliances that run on energy sources other than electricity. — When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air. — No food must be cooked flambé underneath the hood. The use of an unprotected flame is dangerous for the filters and could cause fires. Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up. — Please, keep to the provisions of official directives regarding the question of fume discharge. — The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions. Remove the filter using the handles designed for this purpose by pulling the filter backwards and then downwards (Fig. 1). Let the filter dry without damaging it before putting it back into place. Carry out the above steps in reverse order to put the filters back after having washed them. Carbon filter (2 pieces) This filter dissolves cooking odours. The carbon filter must never be washed. The carbon filter should be replaced every 4 months under normal use and anyhow whenever LED 5 indicates the saturation of the filter (see page 13). This LED flashes to warn you that the carbon filter must be replaced. This must be done after approximately 160 hours of use. Once you have replaced the carbon filter, press button 1 for about 3 seconds until you hear the acoustic signal (beep). The LED 5 will now stop flashing.

Mounting and replacing the carbon filter: a) Disconnect the hood from the electricity. b) Remove the metal grease filters (Fig. 1). c) If the filters have not been installed, place one filter on each side so that they cover the grates protecting the rotor on the motor. Then turn the center handle for the filters in the clockwise direction (Fig. 2). d) If the charcoal filters have already been installed (covering the grates protecting the rotor on the motor) and must be replaced, turn the central handle in the counter-clockwise direction until the filters are unlocked. e) Refit the the metal grease filters. Cleaning To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasive. Wipe brushed stainless steel in the same direction as the brushing to avoid scratching. Clean the external surface of the cooker hood almost once every 10 days. Attention Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires. Therefore, we recommend observing these instructions. Replacing the lamp a) Disconnect the hood from the electricity. b) Unscrew the light shield (Fig. 3). c) Replace the damaged lamp with a new halogen lamp of 20Watt max. d) Refit the the metal grease filters and the light shield. e) Before calling for repair service because the hood fails to light up, make sure the bulbs are screwed in tightly.
