Product type	Compact multifunction food processor
Brand	Bosch
Model	MUM54Q40
Color	White
Power consumption	700 W
Mixing bowl capacity	3.9 L (for dough) / 1.75 L (for liquid preparations)
Dimensions (W x D x H)	28.5 x 22.5 x 31.5 cm
Weight	5.8 kg
Number of speeds	7 speeds + pulse function
Included accessories	Whisk, beater, dough hook, 1.25 L blender, universal chopper, citrus press, slicing/shredding disc
Bowl material	Stainless steel
Safety system	Swivel arm safety lock, automatic shut-off in case of overload
Care and cleaning	Dishwasher-safe accessories, bowl and lid not dishwasher-safe
Warranty	2 years
Repairability index	7.5/10 (spare parts available for 5 years)
Power supply	220-240 V, 50/60 Hz
Cable length	1.2 m
Main functions	Kneading, beating, mixing, chopping, blending, juicing, grating, slicing
Noise level	85 dB (A)
Country of manufacture	Slovenia

Frequently Asked Questions - MUM54Q40 BOSCH

How to use the pulse function on the MUM54Q40?

The pulse function is activated by turning the speed dial to the P position. Hold it for short impulses, release to stop. Ideal for chopping or blending in bursts.

Can I wash the stainless steel bowl in the dishwasher?

No, the bowl and lid are not dishwasher-safe. Wash them by hand with a soft sponge and dish soap. The accessories (whisk, beater, etc.) are dishwasher-safe.

What to do if the appliance stops during use?

This may be due to an overload or blockage. Unplug the appliance, remove some of the mixture, check that no object is blocking the accessories, and let it cool for a few minutes before restarting.

What is the maximum flour capacity for the dough hook?

The dough hook can handle up to 1.5 kg of flour for bread dough. Follow the recommended proportions in the manual to avoid overloading the motor.

How to secure the swivel arm of the appliance?

To secure the arm, lower it until it clicks into place. Check that the safety lock is engaged. A click confirms the lock. The appliance will only operate if the arm is properly locked.

Can I blend hot liquids in the blender?

No, never pour liquids hotter than 60°C into the blender. Thermal shock could damage the glass or lid. Let your preparations cool before blending.

How to change the grating/slicing discs?

Unplug the appliance, open the arm, and remove the disc holder. Place the desired disc (toothed side up for grating, down for slicing). Insert it into the slot until it clicks into place.

Are the accessories for the MUM54Q40 compatible with other Bosch models?

Some accessories (such as the blender or citrus press) are compatible with the MUM4 and MUM5 series. Check the reference on the packaging or in the manual to avoid errors.

Why isn't the whisk whipping egg whites?

Make sure the whisk is clean and grease-free. Use eggs at room temperature and a completely dry bowl. Gradually increase the speed to position 7 for optimal results.

Where to find spare parts for the MUM54Q40?

Visit the Bosch Home Comfort website or authorized stores. Use the model number (MUM54Q40) to identify parts. The manufacturer guarantees the availability of spare parts for 5 years after the end of commercialization.

USER MANUAL MUM54Q40 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

MUM54Q.. MUM56Z..

BOSCH

MUZ5MX1

Mixing bowl

0/off (0/WP) = Stop

discs, fine (3 mm), coarse (6 mm)

For the noodle mill MUZ5FW1.

1 packet of baking powder

125 ml milk

Operating the appliance ..... 115

Cleaning and servicing 118

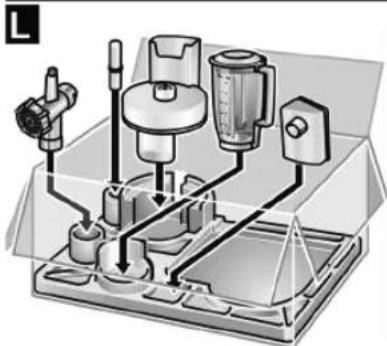

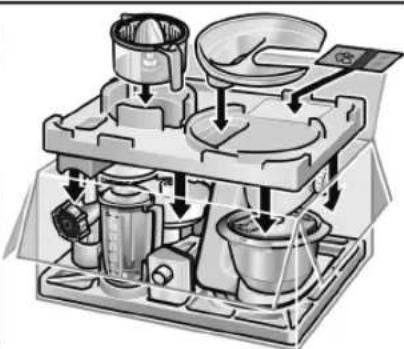

Storage 119

Troubleshooting 119

Application examples 120

Optional accessories 121

Instructions on disposal 123

Warranty conditions 123

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading and beating food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only.

When using the accessories, follow the enclosed operating instructions.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance. Do not leave the running appliance unattended. Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors.

Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Cleaning and user maintenance must not be performed by children unless they are supervised.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete. Never immerse the base unit in liquid or hold under running water. Do not use a steam cleaner.

Do not adjust the swivel arm while the appliance is switched on.

Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

Risk of injury from the rotating tools!

Keep hands clear of rotating parts. While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance!

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move the swivel arm until the tool has come to a standstill. For reasons of safety the appliance cannot be operated unless unused drives are covered with drive guards (5, 8).

Before attaching/removing the continuous-feed shredder, wait until the drive has come to a standstill and pull out the mains plug. Do not reach into the feed tube.

Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs.

Take hold of cutting discs by the edge only.

Do not touch blender blades with bare hands.

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender!

Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing liquid.

Important!

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Use only one tool or accessory at any one time.

Explanation of the symbols on the appliance or accessory

Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools.

Do not place fingers in the feed tube.

Safety systems

Start lock-out

See "Operating positions" table.

The appliance can be switched on in pos. 1 and 3 only:

- when the bowl (11) has been inserted and turned until it locks into place and - the blender drive cover has been attached (8).

Restart lock-out

If the power is interrupted, the appliance remains switched on but the motor does not start running again when the power is restored. To switch the appliance on again, turn the rotary switch to 0/off, then switch on.

Overload protection

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated. A possible cause may be that too much food was processed at one time.

If a safety system is activated, see "Troubleshooting".

The operating instructions describe several models, see also overview of models (Fig. M).

The appliance requires no maintenance.

Overview

Please fold out the illustrated pages.

Fig.

Base unit

1 Release button

2 Swivel arm

"Easy Armlift" function to support the upward movement of the arm (see "Work positions").

3 Rotary switch

When the appliance has been switched off (position 0/off), the appliance runs automatically to the optimum position for changing the tools.

0/off = Stop

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–7, Operating speed:

1 = low speed - slow, 7 = high speed - fast.

4 Operating indicator

Is lit while the appliance is operating (rotary switch on M or 1–7).

Flashes if the appliance has been operated incorrectly, the electronic fuse has tripped or the appliance is defective – see section "Troubleshooting".

5 Drive cover

To remove the drive cover, press on the rear area and remove cover.

6 Drive for

- continuous-feed shredder and - citrus press (optional accessory *). When not in use, attach the drive cover

7 Drive for tools (stirrer, whisk, kneading hook) and mincer (optional accessory *)

8 Blender drive cover

9 Drive for blender (optional accessory *) When not in use, attach the blender drive cover.

10 Cord store

MUM54..: Stow the cord in the cord store. MUM56..: Automatic cord winder

Bowl with accessories

11 Stainless steel stirring bowl

12 Lid

Tools

13 Stirrer

14 Whisk

15 Kneading hook with dough deflector

16 Accessories bag

For storage of the tools and cutting discs.

Continuous-feed shredder

17 Pusher

18 Cover with filling shaft

19 Cutting discs

19a Reversible slicing disc – thick/thin 19b Reversible shredding disc – coarse/fine 19c Grating disc – medium-fine

20 Disc holder

21 Housing with outlet opening

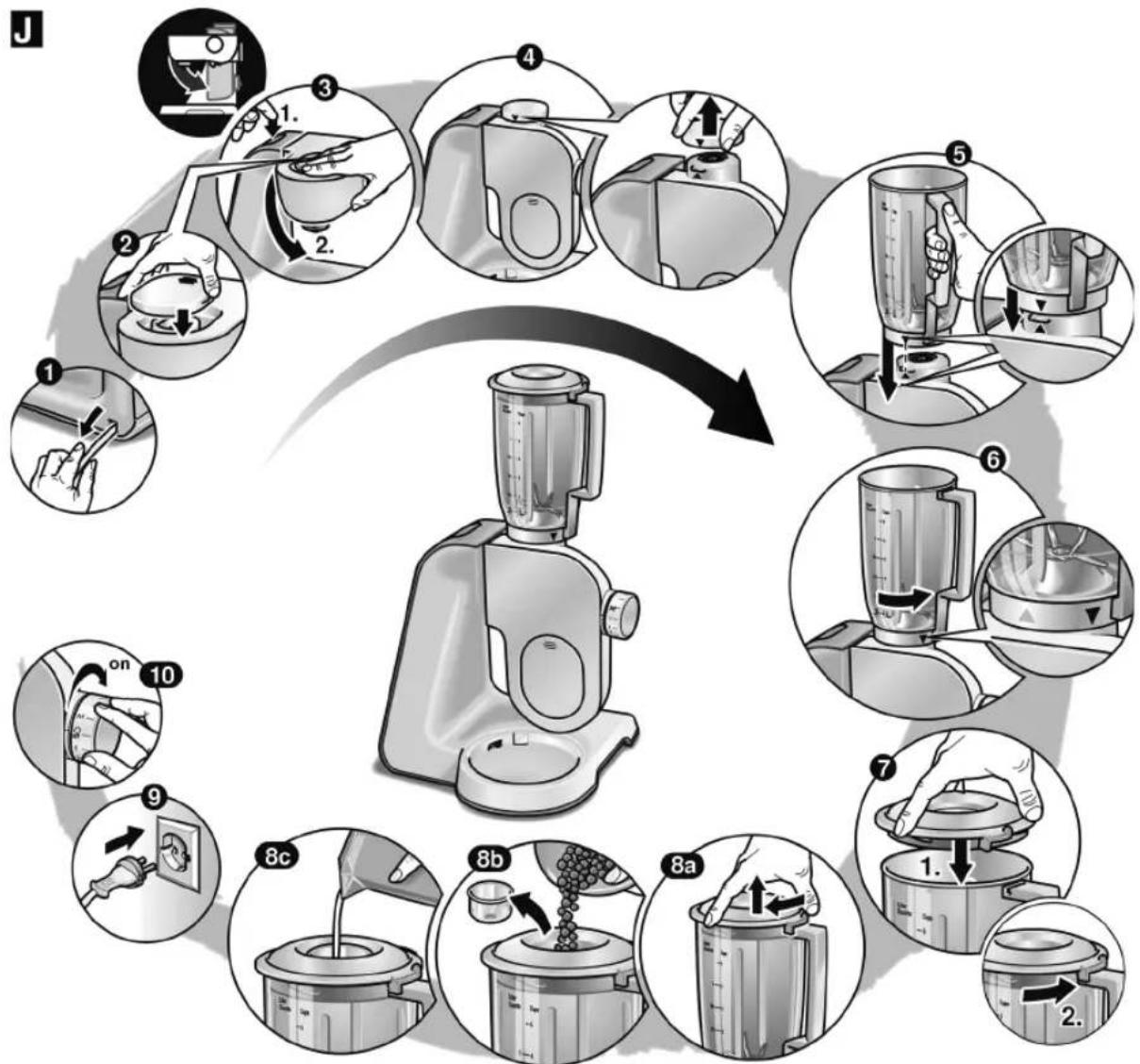

Blender *

22 Blender jug

23 Lid

24 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions Fig. B

Note:

The swivel arm features an "Easy Armlift" function which supports the upwards movement of the swivel arm.

Selecting the operating position:

• Press the Release button and move the swivel arm. Support movement with your hand.
• Move the swivel arm until it engages in the required position.

Position Drive			Operating speed
1 7		[OKHS]	1-7
			1-7
			1-3
2 7		*	-
3 6			3-7
			3-5
4	9		5-7
	7		5-7

* Insert/remove whisk, stirrer or kneading hook. Add large quantities of ingredients.

Operation

- Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

en

Important information

These operating instructions contain a sticker with reference values for the operating speed of the appliance when using the tools or accessories.

We recommend attaching this sticker to the appliance (Fig. C).

Preparation

• Place the base unit on a smooth, clean surface.
• Pull out the power cord (Fig. D). MUM54..

Cord store:

Pull out cable to the required length.

MUM56..

Automatic cord winder: Pull out the cord in one go to the required length (max. 100 cm) and slowly release; the cord is locked.

Reducing the cord length:

Pull gently on the cord and allow it to roll up to the required length. Then gently pull the cord again and slowly release; the cable is locked.

- Insert the mains plug.

Bowl and tools

Stirrer (13)

for stirring dough, e.g. cake mixture

Whisk (14)

for whisking egg whites, cream and light dough, e.g. sponge mixture

Kneading hook (15)

for kneading heavy dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips)

Working with the bowl and the tools Fig. E

- Press the Release button and move the swivel arm to position 2.

- Insert the bowl:

• Tilt the bowl forwards and then set it down.
• Turn anti-clockwise until it locks into place.

- Depending on the processing task, insert the stirrer, whisk, or kneading hook until it locks into position.

Note:

If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position (Fig. 1-4b).

• Put the ingredients to be processed into the bowl.
• Press the Release button and move the swivel arm to position 1.
• Attach the cover.
• Set the rotary switch to the desired setting.

Our recommendation:

- Stirrer:

first stir in at setting 1, then select setting 7

- Whisk:

setting 7, mix in at setting 1

- Kneading hook:

first stir in at setting 1, knead at setting 3

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Add more ingredients through the feed tube in the cover.
• Remove lid.
• Press the Release button and move the swivel arm to position 2.
• Add ingredients.

en

After using the appliance

• Switch off the appliance with the rotary switch.
• Remove mains plug.
• Remove lid.
• Press the Release button and move the swivel arm to position 2. • Take the tool out of the drive.
• Remove the bowl.
• Clean all parts, see "Cleaning and servicing".

Continuous-feed shredder

Reversible shredding disc – coarse/fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan). Process at setting 3 or 4.

Designation on the reversible shredding disc: "2" for the coarse shredding side "4" for the fine shredding side

Grating disc - medium-fine

for grating raw potatoes, hard cheese (e.g. Parmesan), cooled chocolate and nuts. Process at setting 7.

Working with the continuous-feed shredder Fig. ©

• Press the Release button and move the swivel arm to position 2.
• Insert the bowl:
• Tilt the bowl forwards and then set it down. – Turn anti-clockwise until it locks into place.

- Press the Release button and move the swivel arm to position 3.

• Remove drive cover from the drive of the continuous-feed shredder (Fig. G-5a).
• Hold disc holder at the lower end, ensuring that the two tips are face up.
• Carefully place the required slicing or shredding disc onto the tips of the disc holder (Fig. G-6a). In the case of reversible discs, ensure that the required side is face up. Grip the disc holder at the upper end and insert it into the housing (Fig. G-6b).
• Attach the cover (note the mark) and turn it all the way in a clockwise direction.
• Place the continuous-feed shredder on the drive and rotate it all the way in a clockwise direction, as illustrated in Fig. 6-8.
• Turn the rotary switch to the recommended setting.
• Put the food to be processed in the feed tube and push it down with the pusher.

Predetermined breaking point (Fig. F)

The built-in predetermined breaking point protects the drive of the appliance. If an overload occurs, the drive shaft of the continuous-feed shredder breaks. However, the drive shaft can easily be replaced.

A new disc holder with drive shaft is available from customer service.

Reversible slicing disc - thick/thin

For slicing fruit and vegetables. Process at setting 5.

Designation on the reversible slicing disc:

"1" for the thick slicing side

"3" for the thin slicing side

Tip: To ensure even cutting results, process thin ingredients in bunches.

Note: If the food to be processed sticks in the continuous-feed shredder, switch the food processor off, pull out the mains plug, wait until the drive comes to a standstill, remove the cover from the continuous-feed shredder, and empty the feed tube.

After using the appliance

• Switch off the appliance with the rotary switch.
• Rotate the continuous-feed shredder in an anti-clockwise direction and remove it.
• Rotate the lid in an anti-clockwise direction and remove it.
• Remove the disc holder with the disc. To do this, press a finger from below against the drive shaft (Fig. H).
• Clean the parts.

Blender

Working with the blender (Fig. 1)

- Press the release button and move the swivel arm to position 4.

- Remove the blender drive cover.

- Attach the blender jug (align the mark on the handle with the mark on the base unit) and turn it all the way in an anti-clockwise direction.

• Add ingredients. Maximum capacity – liquid = 1.25 litres; maximum capacity for frothing or hot liquids max. 0.5 litres; optimal processing capacity – solids = 50–100 g;
• Attach the cover and turn it anti-clockwise all the way into the blender handle. The cover must be locked in position.
• Set the rotary switch to the desired setting.

Adding more ingredients (Fig. J-8)

• Switch off the appliance with the rotary switch.
• Remove the lid and add ingredients.
• Remove the funnel and gradually add solid ingredients through the refill opening.

or

or

• Pour liquid ingredients through the funnel.

After using the appliance

• Switch off the appliance with the rotary switch.
• Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Cleaning the base unit

• Remove mains plug.
• Wipe the base unit and drive cover with a damp cloth. If required, use a little detergent.
• Then dry the base unit.

Cleaning the bowl and tools

The bowl and tools are dishwasher-proof. Do not wedge plastic parts in the dishwasher, as they could be permanently deformed during the washing process!

Cleaning the continuous-feed shredder

All parts of the continuous-feed shredder are dishwasher-proof.

Tip: To remove the red film after processing e.g. carrots, pour a little cooking oil on a cloth and rub the film off the continuous-feed shredder (not the cutting discs). Then rinse the continuous-feed shredder.

Cleaning the blender

The blender jug, lid and funnel are dishwasher-proof.

Tip: After processing liquids, it is often sufficient to clean the blender without removing it from the appliance. Pour a little water and washing-up liquid into the attached blender.

Switch on the blender for several seconds (setting M). Pour out the water and rinse out the blender with clear water.

Important information

If required, clean accessories bag. Follow care instructions in the bag.

Storage

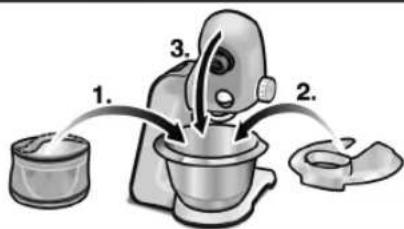

Fig. K

• Store tools and cutting discs in the accessories bag.
• Keep accessories bag in the bowl.
• To store in the original packaging, see Fig. L.

Troubleshooting

Important information

The Operating indicator flashes if the appliance has been operated incorrectly or the electronic fuse has tripped or the appliance is defective.

The swivel arm must be engaged in every operating position.

Initially try to eliminate the problem which has occurred with the help of the following information.

Fault

Appliance does not start.

Remedial action

• Check the power supply.
• Check the mains plug.
• Check swivel arm. Correct position? Engaged?
• Screw on blender or bowl as far as possible.
• Attach the blender cover and screw on as far as possible.
• Attach drive cover to unused drives.
• The safety lock is active. Switch appliance to 0/off and then back to the required setting.

Fault

Appliance switches off during use. The overload protection feature has been activated. Too much food was processed at one time.

Remedial action

• Switch off the appliance.
• Reduce processing quantity. Do not exceed permitted maximum quantities (see "Application examples").

Fault

While the drive was running, the release button was inadvertently pressed.

The swivel arm moves up. The drive switches off, but does not stop in the tool change position.

Remedial action

• Set the rotary switch to 0/off.
• Move swivel arm to position 1.
• Switch on appliance (setting 1).
• Switch off appliance again. Tool stops in tool change position.

en

Fault

Blender does not start working or stops during use, the drive is "humming". Blade is blocked.

Remedial action

• Switch off the appliance and pull out the mains plug.
• Detach the blender and remove the obstruction.
• Re-attach the blender.
• Switch on the appliance.

Important information

If the fault cannot be eliminated, please contact customer service.

Application examples

Whipped cream

100 g–600 g

- Whip cream with the whisk for 1½ to 4 minutes at setting 7 – depending on the quantity and properties of the cream.

Egg white

1 to 8 egg whites

Beat egg white with the whisk for 4 to 6 minutes at setting 7.

Sponge mixture

2 eggs

2–3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour

Baking powder if required

Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 7 until frothy.

Rotate switch to setting 1 and spoon in the sifted flour and cornflour within approx. 1/2 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

3-4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 1/2 lemon

200–250 g butter or margarine (room temperature)

500 g flour

1 packet of baking powder

125 ml milk

Mix all ingredients with the stirrer for approx. 1/2 minute at setting 1, then for approx. 3–4 minutes at setting 7.

Maximum quantity: 1.5 x basic recipe

Short pastry

125 g butter (room temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Mix all ingredients with the stirrer for approx. 1/2 minute at setting 1, then for approx. 2–3 minutes at setting 6.

From 500 g flour:

- Knead the ingredients with the kneading hook for approx. 1/2 minute at setting 1, then for approx. 3–4 minutes at setting 3.

Maximum quantity: 2 x basic recipe

Yeast dough

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 1/2 lemon

1 pinch of salt

- Mix all ingredients with the kneading hook for approx. 1/2 minute at setting 1, then for approx. 3–6 minutes at setting 3.

Maximum quantity: 1.5 x basic recipe

Pasta dough

300 g flour

3 eggs

1–2 tbsp. (10–20 g) cold water as required

- Process all ingredients for approx. 3–5 minutes at setting 3 until a dough forms.

Maximum quantity: 1.5 x basic recipe

Bread dough

750 g flour

2 packets of dry yeast

2 tsp. salt

450–500 ml warm water

Mix all ingredients with the kneading hook for approx. 1/2 minute at setting 1, then for approx. 4–5 minutes at setting 3.

Mayonnaise

2 eggs

2 tsp. mustard

1/4 | o i |

2 tbs. lemon juice or vinegar

1 pinch of salt

1 pinch of sugar

Ingredients must be at the same temperature.

• Process the ingredients (except the oil) in the blender for several seconds at setting 3 or 4.
• Switch the blender to setting 7 and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Eat the mayonnaise immediately, do not store.

Honey bread spread

30 g butter (from refrigerator, 7 °C)

190 g honey (from refrigerator, 7 °C)

• Cut butter into small pieces and put into the blender.
• Add honey and blend for 15 seconds at setting 7.

Optional accessories

MUZ5ZP1

Citrus press

For squeezing oranges, lemons and grapefruits.

MUZ5CC1

Dicer

For cutting fruit and vegetables into equally sized cubes

MUZ5FW1

Mincer

For cutting fresh meat for steak tartare or meat loaf.

MUZ45LS1

Perforated disc set fine (3 mm), coarse (6 mm)

For the mincer MUZ5FW1.

Fine disc for pasties and spreads, coarse disc for sausages and bacon.

MUZ45SV1

Viennese whirl attachment

For the mincer MUZ5FW1.

With metal template for 4 different pastry moulds.

MUZ45RV1

Grater attachment

For the mincer MUZ5FW1.

For grating nuts, almonds, chocolate and dried bread rolls.

	MUZ45FV1Juicer attachment	For the mincer MUZ5FW1.For pressing soft fruit, except raspberries, tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.
	MUZ45PS1Chipper disc	For the continuous-feed shredder MUZ5DS1.For slicing raw potatoes for chips.
	MUZ45AG1Asian vegetable disc	For the continuous-feed shredder MUZ5DS1.Slices fruit and vegetables into fine strips for Asian vegetable dishes.
	MUZ45RS1Grating disc coarse	For the continuous-feed shredder MUZ5DS1.For grating raw potatoes, e.g. for potato pancakes or dumplings.
	MUZ45KP1Potato fritter disc	For the continuous-feed shredder MUZ5DS1.For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.
	MUZ5ER2Stainless steel stirring bowl	Up to 750 g of flour plus ingredients can be processed in the bowl.
	MUZ5KR2Plastic mixing bowl	Up to 750 g of flour plus ingredients can be processed in the bowl.
	MUZ5MX1Plastic blender attachment	For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.
	MUZ5MM1Multi-mixer	For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

If an accessory is not included in the product package, it can be purchased via the trade or from customer service.

en

Instructions on disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE. The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

200–250 g butter or margarine

(room temperature)

500 g flour

1 packet baking powder

125 ml milk

450–500 ml warm water

2017

1

( x - 2x) t - xy² = ( x - 2x) f t

( x - 2x) t - xy² = ( x - 2x) f t

∴ m = 3/11

1

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Guangliyun Smart Retail Cashier System

Therefore m = 3/11

Guangliyun Smart Retail Cashier System

Guangliyun Smart Retail Cashier System

[Non-Text]

■

-

-

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

Guangliyun Smart Retail Cash Register System

•

i

1

Li k+

1 KI

2. Validity period of this shareholders' meeting resolution

-

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

-

[Non-Text]

[Non-Text]

[Non-Text]

[Table 1]

+ +

.

(1)

ca

3

24

III

(1) Summary of this report

er h

2.1

广力云智慧零售收银系统

1.1

11

2016

poli

id

1

la

Guangliyun Smart Retail Cashier System

Guangliyun Smart Retail Cashier System

-

Guangliyun Smart Retail Cashier System

(1)

uǎo

uga

5

Guangliyun

-

-

Legal Representative: Chen Zhijun

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Related parties:

Staying Educational Privacy Policy (8)

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com/ae

Republic of Albania, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bg

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.co.uk or call

Tel.: [phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel: [phone]

Fax: [phone]

mailto:[e-mail]

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com/ie

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bhārat

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax:[phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, Lebanon

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LT Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

www.siemens-home.com/lu

LV Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

Shchuseva St. 98

2012 Chisinau

tel./fax: [phone]

MK Macedonia, Makedonia

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

*(PT 0.10 €/min., Mobile 0.25 €/min)

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/ro

RU Russia, Russia

www.siemens-home.com/sk

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

United States of America

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA, 92614

Tel.: [phone] toll-free

Fax: [phone]

mailto:siemens-usa-questions@

bshg.com

www.siemens-home.com

XK Kosovo

NTP GAMA

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

mailto: a service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

[e-mail]

M	M/1...7
MUM 54230	√	√		√	√	√	√
MUM 54240	√	√		√	√	√	√
MUM 54251	√	√		√	√		√
MUM 54Q40	√	√		√	√	√	√
MUM 56340	√		√	√	√	√	√
MUM 56Z40	√		√	√	√	√	√

MUM 54230
MUM 54240
MUM 54251
MUM 54Q40
MUM 56340
MUM 56Z40
