Product type	Surveillance camera
Brand	ABUS
Model	HDCC31500
Resolution	HD 1080p
Viewing angle	90°
Night vision	Yes, up to 20 meters
Power supply	12 V DC / PoE
Connectivity	Coaxial cable (HD-TVI)
Dimensions	70 x 70 x 120 mm
Weight	300 g
Protection rating	IP66
Operating temperature	-20 °C to 50 °C
Housing material	Aluminum
Main functions	Motion detection, continuous recording, night vision
Maintenance and cleaning	Clean with a soft, dry cloth
Safety	Mounting on suitable bracket, surge protection
Spare parts and repairability	Cables, brackets, power supplies available
Warranty	2 years

Frequently Asked Questions - HDCC31500 ABUS

How to install the ABUS HDCC31500 camera?

Mount the camera on a suitable bracket using the included screws. Connect the coaxial cable to an HD-TVI recorder and the 12 V DC or PoE power supply. Ensure the area is covered and adjust the angle.

Does the camera work at night?

Yes, it has infrared night vision up to 20 meters, allowing surveillance in low-light conditions.

What type of recorder is compatible?

The camera uses HD-TVI technology. It is compatible with HD-TVI recorders supporting 1080p resolution.

Can I use the camera outdoors?

Yes, thanks to its IP66 protection rating, it is resistant to rain and dust, ideal for outdoor use.

How to clean the camera?

Use a soft, dry cloth to clean the housing and lens. Avoid harsh chemicals.

What to do if the image is blurry?

Check that the lens is clean and the focus is correct. Adjust the focus ring if necessary.

Does the camera support PoE power?

Yes, the model is compatible with PoE (Power over Ethernet) to simplify wiring by using a single cable for power and data.

What is the maximum coaxial cable distance?

For quality HD-TVI transmission, the recommended maximum distance is 300 meters with a good quality coaxial cable.

How to reset the camera to factory settings?

Press and hold the reset button (located under the cover) for 10 seconds. Refer to the manual for the exact location.

Where to find spare parts?

Spare parts such as cables, brackets, and power supplies are available from ABUS customer service or authorized dealers.

USER MANUAL HDCC31500 ABUS

Close-up of a white radar-style surveillance camera (no visible text or symbols)

D Bedienungsanleitung
GB User guide
F Notice d'utilisation
NL Gebruikershandleiding
DK Betjeningsvejledning
PL Instrukcja obsługi
E Manual de instrucciones
① Istruzioni per l'uso
s Bruksanvisning

D	Diese Bedienungsanleitung enthält wichtige Hinweise zur Inbetriebnahme und Handhabung.Achten Sie hierauf, auch wenn Sie dieses Produkt an Dritte weitergeben.Heben Sie deshalb diese Bedienungsanleitung zum Nachlesen auf!Eine Auflistung der Inhalte finden Sie im Inhaltsverzeichnis mit Angabe der entsprechenden Seitenzahlen auf Seite 7.	PL	Niniejsza instrukcja obsługi zawiera ważne wskazówki dotyczące uruchamiania i obsługi.Pamiętaj o tym, także przekazując produkt osobie trzeciej. Zachowaj instrukcję do wykorzystania w przyszłości!Wykaz treści znajdziesz w spisie treści z podaniem odpowiednich liczb stron na stronie62.
GB	This user guide contains important information on starting operation and using the device.Make sure that this user guide is handed over when the product is given to other persons.Keep this user guide to consult later.A list of contents with the corresponding page number can be found in the index on page 18.	E	Este manual de instrucciones contiene indicaciones importantes para la puesta en funcionamiento y para la utilización.Tenga esto en cuenta, también cuando transfiera este aparato a terceras personas.Por este motivo, guarde este manual para poder consultarlo cuando lo necesite.El listado de los contenidos figura en el índice junto a las páginas correspondientes en la página73.
F	Les recommandations contenues dans cette notice d'utilisation sont importantes pour la mise en service et l'utilisation du produit.Nous vous prions de bien vouloir les respecter. Si vous étiez amené à revendre le produit, nous vous prions de bien vouloir transmettre cette notice au nouvel acquéreur.Nous vous recommandons également de conserver cette notice d'utilisation afin de pouvoir la consulter à tout moment.Vous trouverez le récapitulatif des indications du contenu á la table des matières avec mention de la page correspondante á la page 29.	I	Le presenti istruzioni per l'uso contengono note importanti sulla messa in funzione e sull'utilizzo.Vanno osservate anche in caso di cessione del prodotto a terzi.La preghiamo pertanto di conservare le presenti istruzioni per l'uso in vista di una consultazione futura.Un elenco dei contenuti con l'indicazione delle pagine corrispondenti è riportato nell'indice a pagina 84.
NL	Deze gebruiksaanwijzing hoort bij dit product.Er staan belagrijke aanwijzingen in betreffende ingebruikname en gebruik, ook als u dit product doorgeeft aan derden. Bewaar deze hendeiding zorgvuldig, zodat u deze later nog eens kunt nalezen!U vindt een opsomming van de inhoud in de inhoudsopgave met aanduiding van de paginanummers op pagina 40.	S	Denna bruksanvisning innehåller viktiga anvisningar för idrifttagande och användning.Dessa anvisningar ska observerad även om denna produkt överlämnas till tredje part.Förvara denna bruksanvisning för framtida referens!På sidan 95 finns finns en innehållsförteckning med sidoreferenser.
OK	Denne manual hører sammen med dette produkt. Den indeholder vigtig information som skal bruges under opsætning og efterfølgende ved service. Dette skal huskes også når produkter gives videre til anden part.Læs derfor denne manual grundigt igennem også for fremtiden.Indholdet kan ses med sideanvisninger kan findesi indekset på side 51.

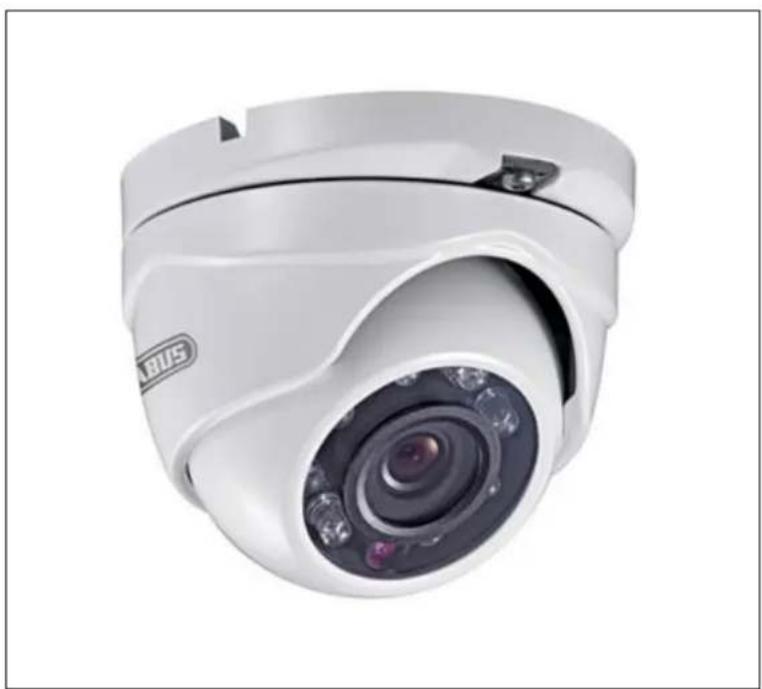

HDCC31500

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Bedienungsanleitung

Simple line drawing of a symmetrical object with concentric circles (no text or symbols)

Analog HD 720p Außen Dome Kamera inkl. Montagematerial

Technical line drawings of electronic components including a battery, a switch, and two cylindrical batteries (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

30m Kombikabel

Technical diagram of a mechanical component with screws and a circular housing, no text or symbols present

Technical diagram showing a mechanical assembly above a bowl with an upward arrow indicating motion (no text or symbols present)

Rotation 360^

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

User manual

You can find important information and FAQs about this and other products online at:

www.abus.com

Introduction

Dear Customer,

Thank you for purchasing this product.

This device complies with the requirements of the applicable EU directives. The declaration of conformity can be obtained from:

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.

Please read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Data storage is subject to national data privacy guidelines.

Disclaimer

This user manual has been produced with the greatest of care. Should you discover any omissions or inaccuracies, please contact us in writing at the address provided above.

ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No guarantee is made for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in this user manual which must be observed.
	This symbol indicates special tips and notes on the operation of the device.

Important safety information

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.
	We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

• There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee/warranty.
• The product may be damaged if it is dropped, even from a low height.
• Install the device so that the image sensor is not exposed to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user manual.
• The device is designed for indoor and outdoor use (IP66).

Avoid the following adverse conditions during operation:

• Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapours or solvents
  • Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)
• The camera must not be installed on unstable surfaces.

General safety information:

• Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with.
• The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons.
• Do not insert any objects into the device through the openings.
• Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
• Please pay attention to the safety information and user manuals for the other connected devices.
• Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage.

- Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

Safety information

1. Power supply: Power supply unit 100–240 V AC, 50/60 Hz / 12 V DC, 1 A (included in the scope of delivery).
   Only operate this device through a power source which supplies the mains power specified on the type plate. If you are unsure of the available power supply, contact your utility company.
   Disconnect the device from the power supply before carrying out maintenance or installation work.

2. Overloading

Avoid overloading electrical sockets, extension cables and adapters, as this can result in fire or electric shock.

1. Surveillance

The use of surveillance equipment may be forbidden or regulated by law in some countries.

Before using this equipment, ensure that all of your surveillance activities are completely legal.

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not bend or twist the power cable.
4. Do not pull the cable when disconnecting the device from the power – always take hold of the plug.

5. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

6. Follow these instructions. Non-compliance with these instructions could lead to electric shock:

7. Never open the housing or power supply unit.

8. Do not insert any metallic or flammable objects into the device.

9. Use surge protection to prevent damage caused by overvoltage (e.g. in electrical storms).

10. Disconnect defective devices from the power immediately and contact your specialist dealer.

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installations puts both you and others at risk.Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Unpacking the device

Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, start by inspecting the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Contents

1. Intended use.... 19
2. Scope of delivery 19
3. Features and functions ...... 19
4. Camera descriptions....20
5. Mounting/installation....21

5.1. Mounting the camera....21
5.2. Orientation of the camera....22
5.3. Power supply 22
5.4. Connecting the video cable 22

1. Maintenance and cleaning....23

6.1. Maintenance 23
6.2. Cleaning....23

1. Disposal 23
2. Technical data 24

1. Intended use

The dome camera is designed for use both during the day and at night. Since it has protection class IP66, it can be used both inside and outside. The day & night outdoor dome camera is equipped with a high-quality image sensor. It provides video images in HD resolution. The output signal is provided in HD-TVI format. This allows the use of a conventional coaxial cable for signal transmission. It is used for video surveillance in conjunction with recording devices or surveillance monitors compatible with HD-TVI.

2. Scope of delivery

Simple line drawing of a circular object with concentric rings (no text or symbols)

Analogue HD 720p outdoor dome camera including mounting material

Technical line drawings of electronic components including a battery, two cylindrical batteries, and a multi-pin connector (no text or symbols)

Power supply unit including EU, Australian and UK adapters
12 V DC/1 A

Manual

Coiled black cable with multiple connectors, no visible text or symbols

30 m combination cable

3. Features and functions

• Detailed high resolution (thanks to 1280 x 720 pixels at 25 frames per second)
• Sturdy weatherproof camera housing (IP66)
• With 24 IR LEDs for night vision, up to approx. 10 m range
• Noise reduction (DNR) for clear images even at low light levels
  • Automatic day/night switching
• Can be mounted on ceilings and walls
• Including 1 x 30 m combined video cable (video signal + power supply)
• Plug-and-play installation and connection using a BNC connector, including for existing analogue cables

4. Camera descriptions

1	Camera base plate
2	Camera cap
3	Camera centre section
4	HD-TVI video output (BNC, labelled 'TVI')
5	Power supply connection (5.5 x 2.1 mm, barrel connector)

5. Mounting/installation

5.1. Mounting the camera

IMPORTANT!

The camera must be disconnected from the power supply during installation.

Loosen the fixing screws for the camera cap and remove them. Use

the accompanying drilling template for drilling the mounting holes.

If the cable is to be routed through the side, first guide the connecting cable through the base plate and the side opening on the base plate.

Now fix the base plate in place.

Technical line drawing of a mechanical component with screws and a hatched ceiling (no text or symbols)

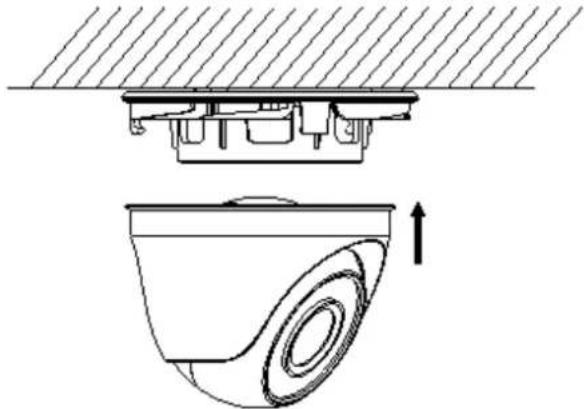

Then fix the camera centre section in place by attaching the camera cap. Loosely tighten the fixing screw for the camera cap to allow you to perform camera orientation.

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

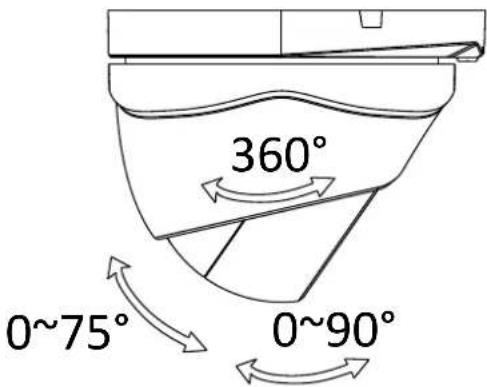

5.2. Orientation of the camera

Loosen the fixing screw on the camera base plate if necessary. The camera centre section can now be oriented in three axes. Tighten the fixing screw again when finished.

Tilting 75°

Panning 90°

Rotation 360°

5.3. Power supply

	IMPORTANT!Before starting installation, ensure that the mains voltage and the rated voltage of the camera are identical.
		(1) Video signal (BNC)(2) Power supply12 V DC (5.5 x 2.1 mm)[IMAGE]

The cameras have a 12 V DC power supply. Ensure correct polarity when connecting. A power supply unit (round plug, 5.5 mm x 2.1 mm) is provided for the connection.

5.4. Connecting the video cable

In order to transmit the HD-TVI video signal from the camera to an HD-TVI recorder, an RG59 type coaxial cable with BNC connector (male) must be connected to the connection labelled 'TVI'. The cable length to the next device must not exceed 500 m (RG6) or 300 m (RG59).

To ensure optimum quality of the HD-TVI signal transmission, it is important that the cable is neither kinked nor crushed at any point, and that its radius is adequate (min. bending radius 6 cm).

Damage to the cable or porosity as a result of ageing can have a negative impact on the quality of the signal or image (e.g. shadowing around the edges).

6. Maintenance and cleaning

6.1. Maintenance

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use.

It is likely that safe operation is no longer possible in the event that:

• the device shows signs of visible damage
  • the device no longer works correctly

Please note:

You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product to check. Never open it.

6.2. Cleaning

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Do not allow any liquids to enter the device.

Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discolouration).

7. Disposal

Important: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserve natural resources and ensure that all the provisions for protecting health and the environment are observed when recycling the product.

8. Technical data

Model number	HDCC31500
Dimensions (H x∅)	89.6 mm x 59.1 mm
Connections	Video signal (BNC), power supply (DC)
Resolution	720p
Operating temperature	-20°C–50°C
Image sensor	1/3 inch progressive scan CMOS
Pixels (effective)	1280 (H) x 720 (V)
Frame rate	25 fps (PAL)/30 fps (NTSC)
Electronic shutter regulation	1/25~1/50,000 sec.
Backlight compensation	Yes
Weight	400 g
Horizontal angle of view	76.88°
IR LEDs	24
IR range	10 m
Camera type	Mini dome
Humidity	Max. 90%
Minimum illumination (colour)	0.01 Lux
Minimum illumination (B/W)	0.01 Lux (image integration on)
Minimum illumination (IR)	0 Lux
Lens	3.6 mm, fixed lens
Noise reduction	2D DNR, 3D DNR
Protection class	IP 66
Power supply	12 V DC ± 10%
Power consumption	Max. 300 mA (max. 3.5 W)
Day/night switching	Electromechanical IR cut filter
Video system	HD-TVI

The IR range is strongly dependent on the environmental conditions. If the area in the camera's field of view reflects poorly or if there are no objects within the max. illumination range, the brightness of the video image at night may be too low. This will result in poor usability of the video image.

In addition, when installing the camera it must be ensured that no objects are located in close proximity to the camera's field of view (e.g. roof gutter or wall). These objects can reflect back the IR light, resulting in circular fading on the video image in the opposite direction to the object.

HDCC31500

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Simple line drawing of a symmetrical object with concentric circles (no text or symbols)

Technical line drawings of electronic components including a battery, two cylindrical batteries, and a base with three black tubes (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

Technical line drawing of a mechanical component with screws and a hatched ceiling (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Simple line drawing of a symmetrical object with concentric circles (no text or symbols)

Analoge HD 720p Buiten Dome Camera incl. bevestigingsmateriaal

Technical line drawings of electronic components including a device, battery pack, and two cylindrical batteries (no text or symbols)

Voeding incl. EU-, AU- en UK-adapter 12 V DC / 1 A

Handleiding

Coiled black cable with multiple connectors (no text or symbols visible)

30m combikabel

Technical line drawing of a mechanical component with screws and a circular housing (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Analog HD 720p udendørs domekamera inkl. monteringsmateriale

Technical line drawings of electronic components including a battery, two cylindrical batteries, and a multi-pin connector (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

30 m kombi-kabel

5. Montering / installation

Technical line drawing of a mechanical component with screws and a circular housing (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Instrukcja obsługi

Simple line drawing of a symmetrical object with concentric circles (no text or symbols)

Technical line drawings of electronic components including a device, battery pack, and two cylindrical batteries (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

Kabel kombi 30 m

3. Cechy i funkcje

Technical diagram of a mechanical component with screws and a hatched ceiling (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Simple line drawing of a symmetrical object with concentric circles (no text or symbols)

Technical line drawings of electronic components including a battery, two cylindrical batteries, and a base with three black tubes (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

Technical diagram of a mechanical component with screws and a hatched ceiling (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Telecamera analogica per esterni Dome HD 720p

Technical line drawings of three electronic components: a cylindrical device, two cylindrical batteries, and a multi-pin battery pack (no text or symbols)

Coiled black cable with multiple connectors, no visible text or symbols

Technical line drawing of a mechanical component with screws and a hatched ceiling (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a white surveillance camera with visible lens and control buttons (no text or symbols)

Bruksanvisning

Simple line drawing of a circular object with concentric rings (no text or symbols)

Analog HD 720 p Utomhus-Domekamera inkl. monteringsmaterial

Technical line drawings of electronic components including a battery, two cylindrical batteries, and a multi-pin connector (no text or symbols)

Coiled cable with multiple connectors (no text or symbols visible)

1	Kamerans basplatta
2	Kamerans lock
3	Kamerans mellandel
4	HD-TVI-videoutgång (BNC, tryckt text "TVI")
5	Spänningsterminal (5,5 x 2,1 mm, centrumstift)

5. Montering/installation

Technical diagram of a mechanical component with screws and a circular housing, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

5.2. Justering av kameran

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print.

We reserve the right to change the technical or physical specifications.

Note de l'éditeur

© Copyright 09/2015 by ABUS Security-Center
