USER MANUAL AGS 60 LI ALPINA

Black manual tool with chainmail and handle, no visible text or symbols

1

DE

1 Accumulator
2 Charging device for accumulator
3 Grass cutting blade
4 Housing
5 Shrub cutting blade
6 Switch-on lock
7 Switch

IT

Mechanical device with attached cable and labeled component (no text or symbols visible)

Illustration of a hair curling tool interacting with two separate hatched bars, showing mechanical components and motion arrows (no text or symbols)

Technical illustration of a mechanical device with labeled parts (C and D), no readable text or symbols present.

1 Use protective means for eyes and ears!
2 Warning!
4 Read the operation instructions
6 Keep third persons out of the danger zone
3 After-running of the appliance!
5 Do not use tool in wet weather conditions
7 Defective accumulators should be recycled!
8 Battery contains lithium! Do not dispose of as household refuse!
9 Attention: Environmental Protection! This device may not be disposed of with general/household waste. Disposeof only at a designated collection point.

FR

GB | Operating Instruction

Accu- Grass- und Shrub shear

Dear customer,

We have created this instruction manual for you in order to ensure the reliable operation of your clippers. By following the instructions, your machine will always work to your satisfaction and we can guarantee its long lifetime.

Our machines were tested under extremely severe conditions prior to production. They were also subjected to continuous testing during production. This series of tests guarantees the consumer a high quality product.

Design and performance are subject to change, without prior notice, due to improvements.

CONTENT Page

Illustrations	I 1 - 3
Pictogram illustration and explanation	I 4
Technical Specifications 1
Intended use 2
General safety instructions 2
Charging the battery 3
Switching the tool on/off 4
Refitting the tool / Changing the shear systems 4
Hints for your work with the tool 4
Maintenance 4
Storage 4
Waste disposal and environmental protection 4
Declaration of Conformity	II
Warranty	III

Technical Specifications
Model AGS 60 LI / XGS 60 LI / SGS 60 LI / MGS 60 LI

Battery voltage/operation voltage		V/DC	3,6
Battery type		lithium-ion	K: K
Charging current mA	350
Charging time		h	4 hours
Operating time		min.	ca. 45
Operation output W	6
Cutting movements		min^-1	1000 * / 2000 **
Cutting width *		mm	80
Cutting length **		mm	160
Cutting thickness **		mm	8
Noise pressure level as per (DIN EN 60745-2-15)		dB (A)	73 K=3,0 dB (A)
Vibrations (DIN EN 60745-2-15)		m/s2	< 2,5 K=1,5 m/s2

The machines comply with the safety class III.
Technical changes are reserved.
* Grass trimmer ** Shrub trimmer

Attention: Noise protection! Please observe the local regulations when operating your device

Intended use

Application note:

The battery-powered grass and shrub shear can not and should not replace your hedge shears.

They are exclusively designed to trim and cut back ornamental shrubs and brush -wood with a low wood thickness. Any other use is not deemed appropriate and the manufacturer/ supplier is not liable for damages resulting from such use.

If required, the shrub trimmer may be easily turned into a grass trimmer by replacing the assembled shearing blade with the one provided with your package.

General safety instructions

Attention! Read all instructions contained herein. Failure to observe the following instructions may result in electric shock, burns and/or severe injury. The term 'power tool' used in the following includes both mains-operated tools (with mains supply) and battery-operated tools (without mains supply).

KEEP THESE INSTRUCTIONS CAREFULLY!

Safety instructions for hedge trimmers:

• Keep all parts of your body away from the cutting blades. Do not try to remove cut-off matter with the tool running. Do not try to hold material to be cut off with your hand. Remove cut-off matter that is stuck between the blades only with the tool being switched off! When working with hedge trimmers even a short moment of inattentiveness may result in severe injury.
• Carry the hedge trimmer at the handle with the cutting blades standing still. Always put on the protection cover when transporting or storing the hedge trimmer. Careful handling reduces the risk of injury through the cutting blades.

1) Working area

a) Do not operate the tool in potentially explosive environments containing combustible fluids, gases or dusts. Power tools generate sparks that may ignite dusts or fumes.

2) Electrical safety

a) Avoid physical contact with earthed surfaces as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body earthed.
b) Keep the tool out of the rain. The penetration of water into a power tool increases the risk of electric shock.

3) Personal safety

a) Always pay attention to what you do and apply reasonable care when working with a power tool. Do not use the tool when you are tired or under the influence of medication, drugs or alcohol. When working with power tools even a short moment of inattentiveness may result in severe injury.
b) Do not overestimate your abilities. Take care of a safe footing and keep your balance at all times. This will allow you to better control the tool in unexpected situations.

4) Careful handling and use of power tools

a) Do not use a power tool with a damaged switch. A power tool that cannot be switched on or off any more is dangerous and must be repaired.
b) Never allow people unfamiliar with these instructions or children to use the machine. Local regulations can restrict the age of the operator.
c) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
d) Store power tools out of the reach of children. Do not allow persons to use the tool if they are not familiar with the tool or these instructions. Power tools are dangerous if used by inexperienced persons.

5) Appropriate handling and use of battery-operated power tools

a) Make sure that the device has been switched off before inserting the battery. Inserting a battery into a switched-on power tool may lead to accidents!
b) Only use charging devices recommended by the manufacturer to charge the batteries. Charging units are usually designed for certain types of batteries; if used with other types there is a risk of fire!
c) Only use batteries designed for your power tool. The use of other batteries may lead to injury and risk of fire!
d) Keep unused batteries clear of paper clips, coins, keys, nails, screws or other small metal objects that may bridge the contacts. A short circuit between the battery contacts may lead to burns or fire!
e) Improper use may result in fluid leaking out of the battery. Avoid any contact with battery fluid. Flush with water in case of contact. If battery fluid should get into your eyes seek medical advice additionally. Leaking battery fluid may lead to irritations of the skin or burns!

Grass shears safety warning

- This machine may cause serious injuries. Please read the instruction manual carefully as to the correct handling, the preparations, the maintenance and the proper use of the hedgetrimmer. Familiarize yourself with the machine before the first use

and also have yourself introduced to practical use of the machine.

- The instrument does not cease movement after being turned off.

- Turn off power before cleaning.

- Beware! Keep your fingers away from the cutting area!

- Only switch on the device if your hands and feet are away from the cutting tools.

- Remove all debris from the working area before use and pay attention to such debris while working!

- Turn the machine off before transporting and wait until the blade stops moving. Maintenance and cleaning should be performed only when the machine is turned off.

• Children and teenagers under 16 years of age must never use this device!

- Be aware of third persons in the work area.

- Do not use the shears if other persons, children or domestic animals are found nearby.

- Only use the shear in daylight or sufficiently bright artificial illumination.

- The clippers must be subjected to regular maintenance and checks. Damaged blades must be replaced as a pair. Professional repair is required if damage occurs due to impact.

- The trimmer should be regularly maintained by an accordingly authorised service point.

- Wear suitable working clothes, i.e. protective glasses, protective means for ears, non-slippery shoes and working gloves. Do not wear broad clothes which could be caught by the moving parts.

- After you finish using the clippers and before cleaning them, it is necessary to ensure that the machine cannot be accidentally turned on, such as by unlocking the switch.

- Check the cutting unit regularly for damage

- Never hold the clippers by the blades, you may run the risk of injury even when the clippers are not moving!

- Never touch moving blades in an attempt to remove debris or if the blades are blocked. Always switch off the device.

- Keep the machine away from children and store it in a safe place.

- When working with the shears, always take a stable standing position, particularly when you are using steps or a ladder.

- Do not use shears with a damaged or excessively worn-out cutting part

- Ensure that all protective devices and handles are installed on the machine. Never try to put an incomplete machine in operation.

• Always use the protective part designed for the blade when transporting and storing the shears.

- Before starting the work, make yourself familiar with the surroundings and possible dangers which you may not hear because of the noise.

- Only use the spare sparts and accessories recommended by the manufacturer.

Before starting

Charging the battery

Safety Instructions

The tool is delivered with the lithium-ion battery charged. However, we recommend recharging the battery before the tool is operated for the first time.

• Use the included charging unit for charging the battery only. It is specially designed to match the tool's battery.
• Never use other charging unit. This will result in fire and/or explosion hazard!
• Always keep the charging unit clear of rain or moisture. Hazard of electric shock! - Never charge the battery in the open without protection, always choose a dry, protected place.
• Never try to charge third-party batteries with this charging unit. This will result in fire and/or explosion hazard!
• Check the housing, plug and cable for damage before each use of the charging unit. Do not use the unit if you detect damage.
• Do not open the charging unit by force. In case of a defect, the charging unit must be replaced.
• The charging unit heats up during the charging process. Do not place the unit on a flammable surface or operate it in a flammable environment. Fire hazard!
• Never open the battery cells. Hazard of short circuits!
• In case of damage to the battery, hazardous vapours or fluids may escape. In case of incidental contact flush with water and seek medical advice immediately. The fluid may have irritating or caustic effects on the skin.
• Protect the battery from heat, intense insolation and fire. Explosion hazard!

Charging process:

To charge the battery connect the charging unit to an electrical socket. Then connect the plug of the charging cable to the charging socket of the grass and shrub shears or trimmer (fig. 2)

The start of the charging process is indicated by the green control light (X) fig. 2 at the end of the handle. If the battery is completely empty the charging time is about 6 hours. After the charging process has been completed, the electronic control automatically switches off the charging process. The green control light extinguishes thereby indicating the end of the charging process. It is not required to monitor the charging time.

The charging unit and the handle of the tool heat up during the charging process. This is nothing unusual.

Pull the plug of the charging unit if it is not in use.

The tool must never be switched on during the charging process!

Recharge the battery every time you realise a considerable decrease of the tool's cutting performance. The battery additionally features an electronic total discharge protection that protects the battery from damage. This feature switches the battery off if the discharging thresh-

GB | Operating Instruction

old is reached. Do not switch the tool on afterwards and make sure to recharge the battery first.

Switching the tool on/off

Slide the switch-on lock A (fig. 3) forward and push switch B. After the tool has been switched on, you do not have to hold the switch-on lock A any longer.

To switch off just let go of the switch B.

Attention! The blades will coast for a certain time after switch-off!

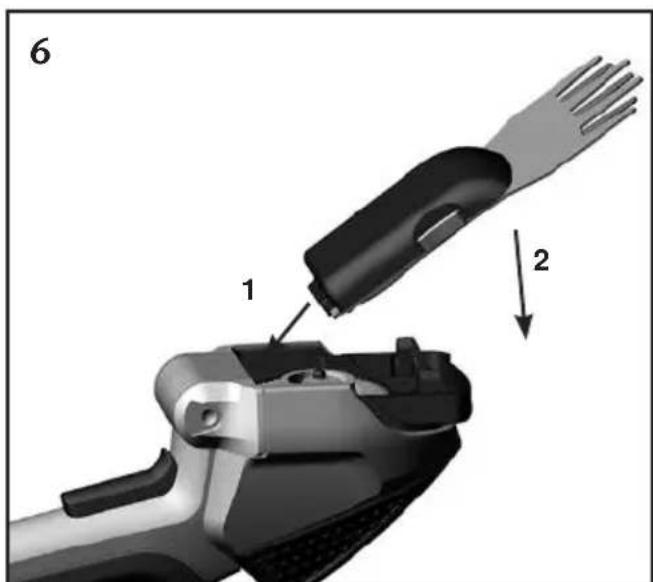

Refitting the tool / Changing the shear systems

Put the included blade guard into the blade(s) and use protective gloves to protect yourself from injury.

Push both lateral push buttons concurrently and re-move the shearing blades (Fig. 5).

Remove any dirt from the gear area (if necessary).

Please slightly grease the drive area using commercial universal grease as described in the Maintenance section before putting the replacement shears in place (Fig.7).

Lead the cutting blades with the rear holding toe into the housing of the grass shears as shown in fig. 6 and lock the click system in place by strongly pushing on the blade base plate.

The position of the eccentric drive does not have to be considered when changing the blades. When the device is switched on, the gear eccentric unit automatically engages into the appropriate relief in the shearing blade.

The device is now ready for operation.

Hints for your work with the tool

The shrub trimmer cuts ornamental shrubs and light undergrowth or bushes. The device is also well-suited for ornamental cuts as, for example, for the care of graves.

The grass shears allow for clean cuts of lawn edges or hardly accessible lawn areas.

As the device is operated with one hand please be careful not to move the other hand near the running cutting tools.

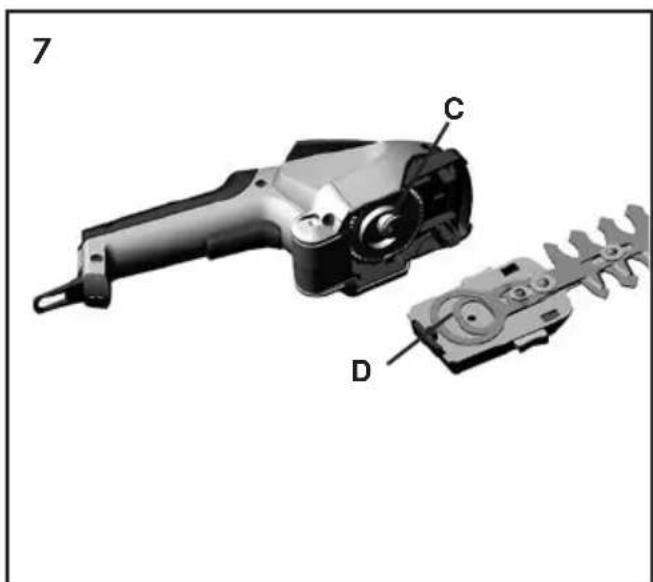

Maintenance (Fig.7)

Clean the blade from any crushed plants and dirt. The blades should be detached at least once a season for the removal of debris. Lubricate the C pinion and the D back of the blade with a light oil. Do not lubricate the motor and other parts. Should the blade become dull after a long period of use, a spare part can be ordered.

Warning! The leading edges of the blades must be oiled to ensure proper lubrication. If the leading edges are not oiled, blade durability may be adversely affected.

If the cutting tools have become dull after long use please replace them with original spare parts.

Clean the device using only a brush or cloth. Do never wash down the device with water and do never dip the device into water.

Apply protective spray to the blades after each use.

Replace blunt blades.

Always put on the blade guard after use.

Examine the tool for obvious defects and have it repaired in an authorised service shop if required.

Storage

Always store the tool in a dry, clean place outside the reach of children. Make sure that the place of storage is frost-free.

Waste disposal and environmental protection

Please observe the following directions for the disposal of your accumulator/battery.

Batteries are not to be put into the rubbish. As a consumer you are legally obliged to return used batteries and accumulators. At the end of the duration of your apparatus, the batteries or accumulators have to be taken from the apparatus, disposing of them separately. You have the possibility of delivering your old batteries and accumulators to the local collecting points of your municipality or to your dealer or to the distribution centers.

If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner.

Please dispose of the device itself at an according collecting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration.

TYTO POKYNY SI DOBŘE USCHOVEJTE.

TIETO POKYNY SI DOBRE USCHOVAJTE.

INNEHÅLLSFÖRTECKNING Sida

EC Declaration of Conformity

We, MOGATEC Moderne Gartentechnik GmbH, Im Grund 14, 09430 Drebach, declare under our sole responsibility that the products Accu-Grass- und Shrub shear AGS 60 LI / XGS 60 LI / SGS 60 LI / MGS 60 LI (GBS 6050 LI), to which this declaration relates correspond to the relevant basic safety and health requirements of Directives 2006/42/EC (Machinery Directive), 2004/108/EC (EMC-Guideline), 2006/95/EC (Low Voltage Guideline), 2011/65/EU (RoHS-Guideline) and 2000/14/EC (noise directive) incl. modifications. For the relevant implementation of the safety and health requirements mentioned in the Directives, the following standards and/or technical specification(s) have been respected:

EN 60745-1:2009; EN 60745-1 Corr.:2009; EN 60745-1/A11:2010; EN 60745-2-15:2009+A1:2010

EN 60335-1:2002+A11+A1+A12+A2+A13+A14:2010; EN 60335-1/A15:2011

measured acoustic capacity level 77,5 dB (A)

guaranteed acoustic capacity level 79,0 dB (A)

Conformity assessment method to annexe V / Directive 2000/14/EC

The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.

Münster, 07.01.2013

Gerhard Knorr, Technical Management Ikra GmbH

Maintenance of technical documentation: Gerhard Knorr, Kärcherstraße 57, DE-64839 Münster

FR

The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.

Münster, 07.01.2013

For this electric tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties:

The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts and defects caused by the use of not fitting accessories, repair with parts that are no original parts of the manufacturer, use of force, strokes and breaking as well as mischievous overload-ing of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void.

All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.
