Arena 170 - Loudspeaker JBL - Free user manual and instructions

Product Type	Passive speaker (loudspeaker)
Dimensions (W x H x D)	Approx. 200 x 300 x 150 mm
Weight	Approx. 2.5 kg
Power	Passive (requires external amplifier)
Power handling	50 W RMS
Impedance	8 ohms
Frequency response	50 Hz - 20 kHz
Sensitivity	88 dB (1W/1m)
Speakers	1 dome tweeter and 1 woofer
Main functions	Stereo audio reproduction, compatible with Hi-Fi amplifiers
Care and cleaning	Clean with a soft, dry cloth; avoid moisture and abrasive products
Safety	Place on a stable surface; do not expose to water or extreme temperatures
Spare parts and repairability	Contact JBL customer service or an authorized dealer
General information	Brand: JBL; Model: Arena 170; Made in China

Frequently Asked Questions - Arena 170 JBL

What is the impedance of the JBL Arena 170 speaker?

The nominal impedance is 8 ohms, compatible with most Hi-Fi amplifiers.

What amplifier power is recommended?

It is recommended to use an amplifier delivering between 20 and 100 W RMS per channel into 8 ohms.

How do I connect the speaker to my amplifier?

Use a suitable speaker cable: connect the + and - terminals of the speaker to the corresponding outputs of the amplifier, respecting polarity.

Can I use this speaker for home theater?

Yes, the Arena 170 can be used as a front or surround speaker in a home theater system, provided it is paired with a suitable amplifier.

What is the best position for placing the speaker?

Place the speakers at ear height, equidistant from the listening position, and at least 20 cm from the wall to avoid resonances.

How do I clean the speaker?

Use a soft, dry cloth. Do not use chemical or abrasive products that could damage the finish.

What should I do if the speaker produces no sound?

Check the connections to the amplifier, ensure the amplifier is on and the audio source is active. Try swapping cables to identify a fault.

Can I use any gauge speaker cable?

For a standard distance (< 5 m), a cross-section of 1.5 mm² is sufficient. For longer distances, prefer 2.5 mm².

Is the speaker delivered with a cable?

The speaker cable is generally not included. You must purchase it separately.

Where can I find spare parts?

Contact JBL customer service or an authorized dealer. Do not attempt to repair the speaker yourself as this may void the warranty.

USER MANUAL Arena 170 JBL

Simple line drawing of a two-decker refrigerator with no text or symbols

Three simple line drawings of rectangular panels with control buttons, no text or symbols present

Simple line drawing of a two-tiered rectangular cabinet or enclosure with no text or symbols

OWNER'S MANUAL

|

[Non-Text]

—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
一
|
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
|
•
[Non-Text]
[Non-Text]
[Non-Text]
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
—
|
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
一
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
1
|
[Non-Text]
[Non-Text]
[Non-Text]
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
一
|
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
1
1
[Non-Text]
[Non-Text]
[Non-Text]
—
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]

THANK YOU FOR CHOOSING THIS JBL ^® PRODUCT

For more than 68 years, JBL ^® engineers have been involved in every aspect of music and film recording and reproduction, from live performances to the recordings you play on-the-go and in your home, car or office.

We're confident that the JBL system you have chosen will provide every note of enjoyment you expect – and that when you think about purchasing additional audio equipment, you will once again choose JBL products.

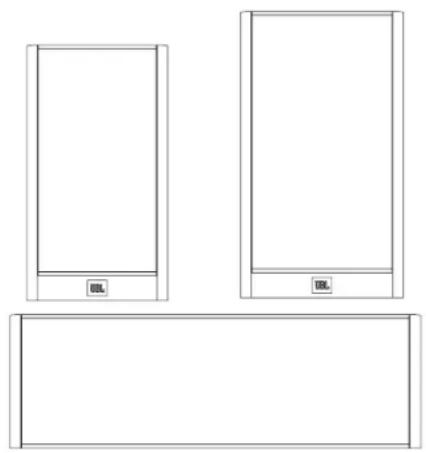

INCLUDED ITEMS

Each box contains one or two loudspeakers, depending on the model, as indicated below.

Arena 180
(1) Arena 180 speaker

Simple line drawing of a vertical rectangular cabinet or enclosure with a central square and two side supports at the bottom (no text or symbols)

Arena 170
(1) Arena 170 speaker

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130
(2) Arena 130 speakers

Arena 120
(2) Arena 120 speakers

Arena 125C
(1) Arena 125C speaker

Rubber Feet
Arena 125C = 4 Arena 130/120 = 8

Carpet Spikes
(Arena 180/170)

PLACEMENT

ARENA 180/170/130/120 - LEFT AND RIGHT CHANNELS

For best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening position can improve the stereo imaging. The speakers will produce the most accurate stereo soundstage when the angle between the listener and the speakers is between 40 and 60 degrees.

Use the included carpet spikes for stability if you are placing your Arena 180/170 speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each rubber foot on the base of the speaker.

CAUTION: Floorstanding (tower) loudspeakers have a high center of gravity and may become unstable and tip over during earthquakes or if they are rocked, tipped or improperly positioned. Consider anchoring these speakers to the wall behind them, using the procedures and hardware customary for anchoring bookcases and wall units. You are responsible for proper installation and proper selection of hardware.

Generally, bass output will increase as the speaker is moved closer to a wall or corner.

For best performance, we recommend that you place the speakers at least 20 inches (51cm) away from the side walls.

Position Arena 130/120 shelf speakers so that their tweeters are approximately at ear level. Peel off the adhesive backing and apply 4 rubber feet to the corners on the bottom of each speaker.

WALL-MOUNTING THE ARENA 120

We have designed the Arena 120 speakers to mount directly onto a wall. Each speaker has two keyholes on the back and will require two 1-1/2" (38mm), #10 wood screws fastened to a wall stud. If a wall stud is unavailable, install an anchor appropriate for a 1-1/2", #10 screw.

NOTE: You are responsible for the correct selection and use of mounting hardware (available through hardware stores) that will ensure the proper and safe wall-mounting of the speakers.

1) Using the included wall template, mark the positions on the wall where you would like to place the mounting screws.
2) Fasten two 1-1/2" (38mm), #10 wood screws to the wall using the markings from Step 1 as your guide. Leave an 1/16" (1.59mm) space between the wall and screwhead. If a wall stud is not available, use an appropriate anchor.
3) To protect wall, attach 4 rubber cushions (included) in suggested locations.
4) Place the speaker on the wall by aligning the keyholes on the back of the speaker to the screwheads on the wall.

Once positioned properly, the speaker should slide down slightly and become secure.

ARENA 125C

You should place the center speaker directly above or below the center of your TV screen. The speaker's tweeter should be no more than 2 feet (61cm) above or below the tweeters of the front left and front right speakers.

Peel off the adhesive backing and apply 4 rubber feet to the corners on the bottom of the center channel speaker.

ARENA 130/120 - SURROUND CHANNELS (5.1-CHANNEL SYSTEM)

When you use these speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind the listening position, facing each other. Ideally, they should be 5 – 6 feet (1.5m – 1.8m) above the floor. An alternate location would be on a wall behind the listening position, facing forward. The surround speakers should not call attention to themselves while they're playing. Experiment with their placement until you hear a diffuse, ambient sound accompanying the sounds that you hear from the front left, front right and center speakers.

If you are using the Arena 130 bookshelf as a wall-mounted surround solution, be sure not to block the rear port opening.

ARENA 130/120 - SURROUND CHANNELS (7.1-CHANNEL SYSTEM)

When you use these speakers as surround-channel speakers in a 7.1-channel system, place the surround side speakers directly to the sides of the listening position, at least 5 – 6 feet (1.5m – 1.8m) above the floor. Place the surround back speakers on the wall behind the listening position, also at least 5 – 6 feet (1.5m – 1.8m) above the floor and 3 – 6 feet (0.9m – 1.8m) apart.

CONNECTIONS

CAUTION: Make sure that all of the system's electrical components are turned OFF (and preferably unplugged from their AC outlets) before making any connections.

Speakers and amplifiers have corresponding positive and negative ("+" and "-" connection terminals. All Arena series speakers have connection terminals that are marked "+" and "-" on the terminal-cup assembly. Additionally, the "+" terminals have red markings, while the "-" terminals have black markings.

To ensure proper polarity, connect each "+" terminal on the back of the amplifier or receiver to the respective "+" (red) terminal on each speaker. Connect the "-" terminals in a similar way. Do not reverse polarities (i.e., "+" to "-" or "-" to "+" when making connections. Doing so will cause poor stereo imaging and diminished bass performance.

IMPORTANT : Make sure the (+) and (−) wires or connectors do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage your receiver or amplifier.

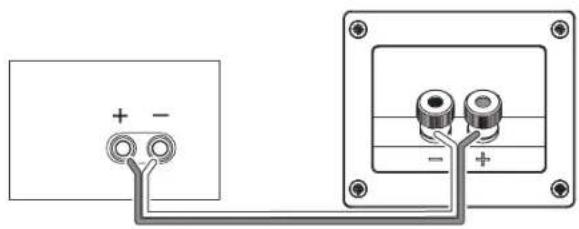

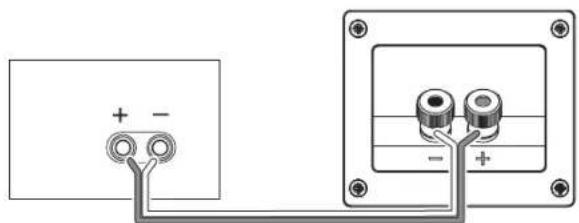

BASIC SINGLE-WIRE CONNECTION

Connect the amplifier to each speaker as shown in the illustration below.

CARING FOR YOUR SPEAKERS

• Do not place objects on top of the speaker.
• Wipe the cabinet with a clean, dry cloth to remove dust. Damp cloths may dull the cabinet finish. Do not use volatile liquids or solvents such as benzene, paint thinner or alcohol on the cabinet.
  • Do not spray chemicals near the cabinet.
• To remove dust from the grille fabric, use a vacuum cleaner set to "low" suction.
• Do not wash the grilles in water, as it may fade the color or make them uneven.
• If the woofer cones become dusty, you can carefully sweep them clean with a soft, dry calligraphy brush or paint brush. Do not use a damp cloth.
  • NEVER touch the tweeter dome or put anything against it.

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. All rights reserved.

Features, specifications and appearance are subject to change without notice.

www.jbl.com

by HARMAN

SÉRIE ARENA JBL®

Enceintes

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

MERCI D'AVOIR CHOISI CE PRODUIT JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Enceintes Arena 120

Arena 125C
(1) Enceinte Arena 125C

Pieds en caoutchouc
Arena 125C = 4
Arena 130/120 = 8

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

GRACIAS POR ELEGIR ESTE PRODUCTO JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a central square and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130

Arena 120
(2) Altavoces Arena 120

Arena 125C
(1) Altavoz Arena 125C

Patas de goma
Arena 125C = 4
Arena 130/120 = 8

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 HARMAN International Industries, Incorporated. Todos los derechos reservados.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Arena 120-Lautsprecher

Arena 125C
(1) Arena 125C-Lautsprecher

Gummistandfüße
Arena 125C = 4
Arena 130/120 = 8

Teppichstifte
(Arena 180/170)

AUFSTELLEN

ARENA 180/170/130/120 - LINKE UND RECHTE KANÄLE

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

GRAZIE PER AVER SCELTO QUESTO PRODOTTO JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Diffusori Arena 120

Arena 125C
(1) Diffusore Arena 125C

Piedini in gomma
Arena 125C = 4
Arena 130/120 = 8

MONTAGGIO A PARETE DEI DIFFUSORI ARENA 120

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Tutti i diritti riservati.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

Simple line drawing of a 3D rectangular block with four corner holes and an arrow pointing to its top face (no text or symbols)

2)

Line drawing of a rectangular box with four corner holes and an arrow pointing to the top-left corner (no text or symbols)

Simple line drawing of a human figure sitting on a sofa, with no text or symbols present.

Pure electrical circuit lines without any symbols

HARMAN

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

by HARMAN

JBL® Arena 시리즈

라우드스피커

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

Simple line drawing of a vertical rectangular cabinet or enclosure with a central square and two side supports at the bottom (no text or symbols)

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130

Arena 120
(2) Arena 120 스피커

Arena 125C
(1) Arena 125C 스피커

© 2014 Harman International Industries, Incorporated. All rights reserved.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

OBRIGADO POR ESCOLHER ESSE PRODUTO JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal bar and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130

Arena 120
(2) Alto-falantes Arena 120

Arena 125C
(1) Alto-falante Arena 125C

Pés de borracha
Arena 125C = 4
Arena 130/120 = 8

Pontas para carpete
(Arena 180/170)

POSICIONAMENTO

ARENA 180/170/130/120 - CANAIS ESQUERDO E DIREITO

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 EUA

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

TAKK FOR AT DU VALGTE DETTE JBL®-PRODUKTET

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Alle rettigheter reservert.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

KIITÄMME ETTÄ VALITSIT TÄMÄN JBL® TUOTTEEN

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with no text or symbols

Front view of a vertical rectangular appliance with a small square label on the side (no text or symbols visible)

TACK FÖR ATT DU VALDE EN PRODUKT FRÅN JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal divider and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Arena 120 högtalare

Arena 125C
(1) Arena 125C högtalare

Gummifötter
Arena 125C = 4
Arena 130/120 = 8

Mattspikar
(Arena 180/170)

PLACERING

ARENA 180/170/130/120 - VÄNSTER OCH HÖGER KANALER

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Alla rättigheter reserverade.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

TAK FOR DIT VALG AF DETTE JBL®-PRODUKT

Simple line drawing of a vertical rectangular cabinet or enclosure with a small square symbol on the top panel (no text or labels)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Alle rettigheder forbeholdt.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

DANK U VOOR DE AANKOOP VAN DIT JBL® PRODUCT

Simple line drawing of a vertical rectangular cabinet or enclosure with a central horizontal bar and two side supports at the bottom (no text or symbols)

Arena 170

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130

Arena 120
(2) Arena 120 luidsprekers

Arena 125C
(1) Arena 125C luidspreker

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Alle rechten voorbehouden

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

DZIEKUJEMY ZA WYBRANIE PRODUKTU JBL®

Simple line drawing of a vertical rectangular cabinet or enclosure with a small square symbol on the top panel (no text or labels)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Głośniki Arena 120

Arena 125C
(1) Glośnik Arena 125C

Gumowe stopy
Arena 125C = 4 Arena 130/120 = 8

Kolce do dywanu
(Arena 180/170)

USTAWIENIE

ARENA 180/170/130/120 - LEWY I PRAWY KANAŁ

DBANIE O TWOJE GŁOŚNIKI

Harman International, Inc.

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

感謝您選購本 JBL® 產品

Simple line drawing of a vertical rectangular cabinet or enclosure with a central square and two side supports at the bottom (no text or symbols)

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols

Arena 130

Arena 120
(2) Arena 120 音箱

Arena 125C
(1) Arena 125C 音箱

橡膠墊腳
Arena 125C = 4
Arena 130/120 = 8

Pure electrical circuit lines without any symbols

HARMAN

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

by HARMAN

JBL®

Simple line drawing of a two-decker refrigerator with no text or symbols

Pure architectural line drawing of two rectangular windows with base markers, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

Simple line drawing of a refrigerator with no text or symbols

Simple line drawing of a two-tiered rectangular cabinet or enclosure with no text or symbols

Arena 120

Arena 125C = 4 Arena 130/120 = 8

(Arena 180/170)

Technical line drawing of a door panel with two buttons and a central socket (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a rectangular box with four corner holes and an arrow pointing to the top-left corner (no text or symbols)

3)

ARENA 125C

Line drawing of a rectangular box with four corner holes and an arrow pointing to the top-left corner (no text or symbols)

Simple line drawing of a person sitting on a bench with no text or symbols

Pure electrical circuit lines without any symbols

HARMAN

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

by HARMAN

JBL® SERI ARENA

Pengeras Suara

Simple line drawing of a two-decker refrigerator with no text or symbols

Three simple line drawings of rectangular panels with control buttons, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

TERIMA KASIH TELAH MEMILIH PRODUK JBL® INI

Simple line drawing of a vertical rectangular cabinet or enclosure with a small square symbol on the front panel (no text or labels)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Pengeras suara Arena 120

Arena 125C
(1) Pengeras suara Arena 125C

Kaki Karet
Arena 125C = 4 Arena 130/120 = 8

Pasak Karpet
(Arena 180/170)

PENEMPATAN

ARENA 180/170/130/120 - SALURAN KIRI DAN KANAN

Harman International, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2014 Harman International Industries, Incorporated. Hak cipta dilindungi undang-undang.

Simple line drawing of a two-decker refrigerator with no text or symbols

Three simple line drawings of rectangular panels with control buttons, no text or symbols present

Front view of a tall rectangular appliance with a small square label on the side (no text or symbols visible)

Simple line drawing of a vertical rectangular cabinet or enclosure with a small square symbol on the front panel (no text or labels)

Arena 170

Simple line drawing of a rectangular cabinet or enclosure with no text, numbers, or symbols

Arena 130

Arena 120
(2) Колонки Arena 120

Arena 125C
(1) Колонка Arena 125C

HARMAN Harman International, Inc. 8500 Balboa Boulevard, Northridge, CA 91329 USA (CWA)

© 2014 Harman International Industries, Incorporated. Все права защищены.
