SDV5122P - TV Antenna PHILIPS - Free user manual and instructions

Product type	Indoor TV antenna
Brand	Philips
Model	SDV5122P
Dimensions (L x H x D)	320 x 180 x 50 mm
Weight	250 g
Power supply	5 V DC via mains adapter (included)
Power consumption	2 W
Frequency band	VHF (174-230 MHz) / UHF (470-862 MHz)
Maximum gain	30 dB
Impedance	75 ohms
Connector	Female IEC (coaxial)
Built-in amplifier	Yes, with on/off switch
Main features	HD DTT reception, built-in amplifier, low power consumption
Maintenance and cleaning	Unplug before cleaning; use a soft dry cloth
Operating conditions	Temperature: 0°C to 40°C; humidity: 20% to 80%
Storage temperature	-20°C to 60°C
Safety	Do not expose to rain or moisture; do not open the casing
Spare parts and repairability	Repairability index: 8.4/10; parts available through Philips authorized service
Package contents	Antenna, mains adapter, coaxial cable, user manual
Warranty	2 years (excluding misuse)

Frequently Asked Questions - SDV5122P PHILIPS

How to connect the Philips SDV5122P antenna to my TV?

Connect the supplied coaxial cable to the ANT IN socket of your TV, then plug the antenna into a power outlet via the mains adapter.

Should I use the built-in amplifier?

The amplifier improves reception, especially if you are far from the transmitter. Set the switch to ON to activate amplification.

What is the range of the antenna?

The range depends on the environment, but it can pick up signals up to 30-50 km in clear conditions.

Can I use this antenna for FM radio?

No, the Philips SDV5122P antenna is designed only for VHF/UHF TV reception (DTT).

What to do if I don't receive all channels?

Try moving the antenna to a window or an upper floor. Activate the amplifier and restart an automatic channel search on the TV.

How to clean the SDV5122P antenna?

Unplug the antenna before any cleaning. Use a slightly damp soft cloth, without solvents. Avoid wetting the connectors.

Does the antenna work on the move (motorhome)?

Yes, it can be used indoors, but it requires mains power. For nomadic use, prefer a 12V model.

What to do if the antenna does not turn on?

Check that the mains adapter is properly plugged in and that the socket works. If the indicator does not light up, contact Philips after-sales service.

Can I replace the coaxial cable?

Yes, the cable is removable. Use a standard coaxial cable of type IEC 60728-4 with a female connector.

Where to find the complete manual in French?

The complete manual is available for free download on notice-facile.com or directly on the Philips support portal.

USER MANUAL SDV5122P PHILIPS

Register your product and get support at

www.philips.com/welcome

Black Philips stand with a rectangular base and a cutout, no visible text or symbols on the device itself.

SDV5122P

EN User manual 3

1 Important 4 Safety 4 Recycling 4

2 Your SDV5122P 4 Overview 4

3 Get started 5 Installation 5

4 Set up the SDV5122P 6 For UHF reception 6 Set up a digital tuner with this antenna 6

5 Frequently asked questions 7

6 Warranty and Service 7

7 Glossary 7

1 Important

Safety

This manual contains important information about the Philips indoor television antenna. Read it carefully before you start the installation and setup.

• The product shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be placed on the product.
  • To completely disconnect the power input, the main plug of the product shall be disconnected from the mains outlet.
• Where the main plug is used as the disconnect device, the disconnect device shall remain readily operable.
• No naked flame sources, such as lighted candles, should be placed on the product.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent

potentially negative consequences on the environment and human health.

When this logo is attached to a product, it means a financial contribution has been paid to the associated national recovery and recycling system.

© 2011 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

CE

2 Your SDV5122P

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

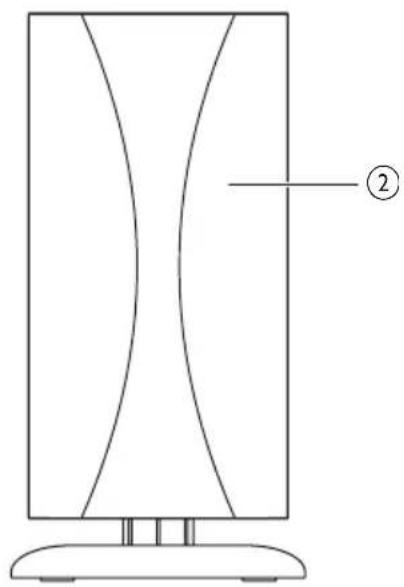

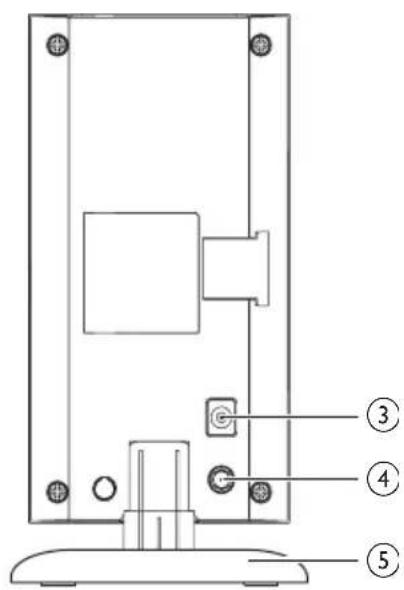

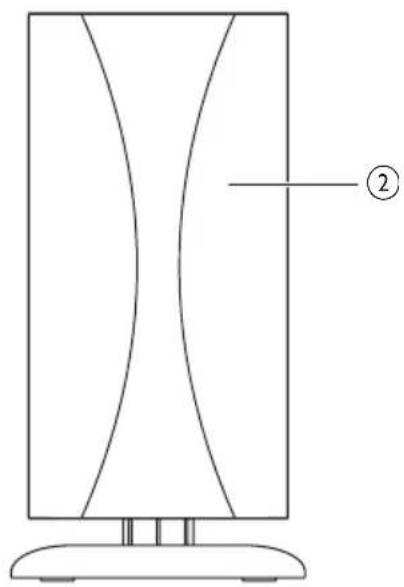

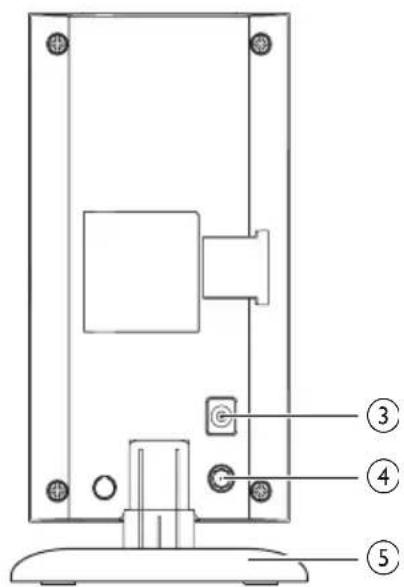

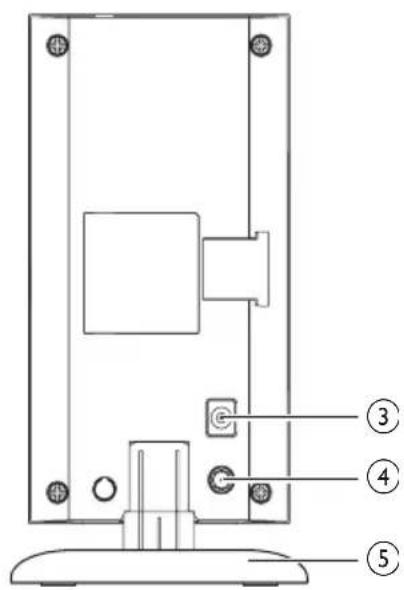

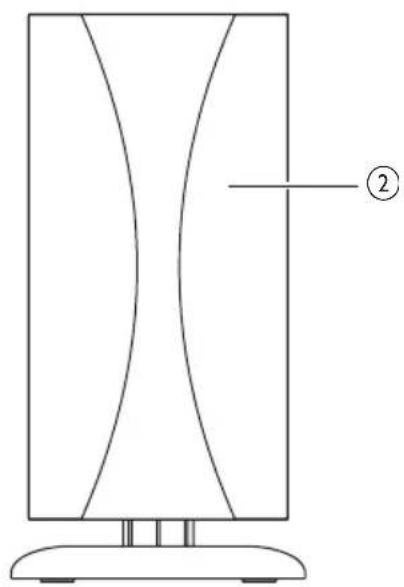

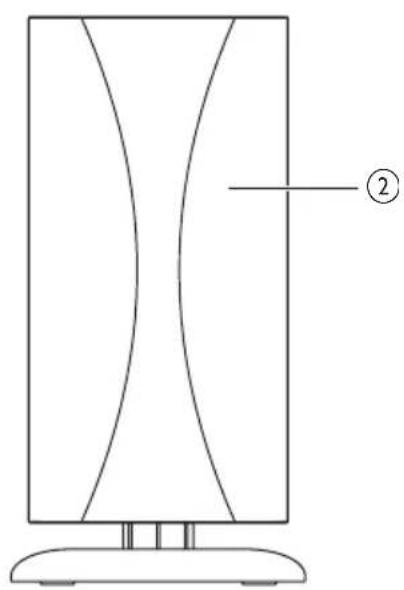

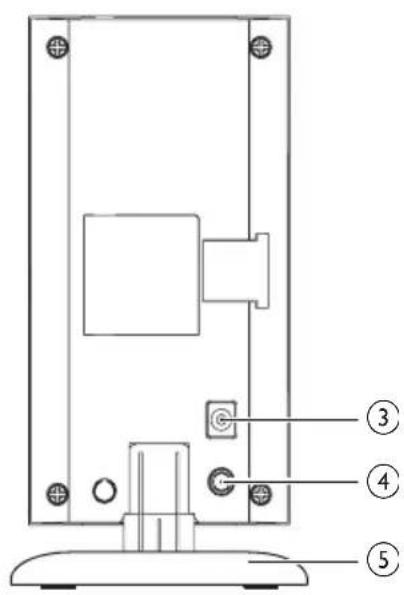

Overview

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Simple line drawing of a vertical panel or enclosure with a base, no text or symbols present

1 100-240V AC 6V DC

power adapter (included)

2 UHF antenna

3 6V DC connection

4 Signal output (for TV

connection)

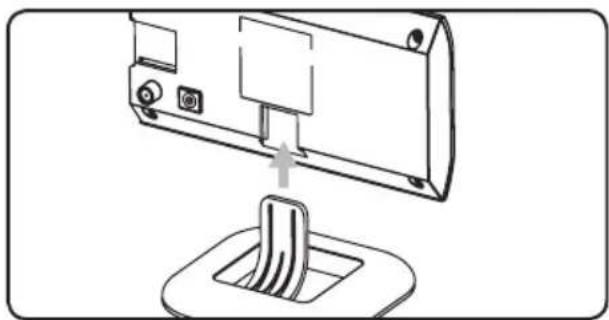

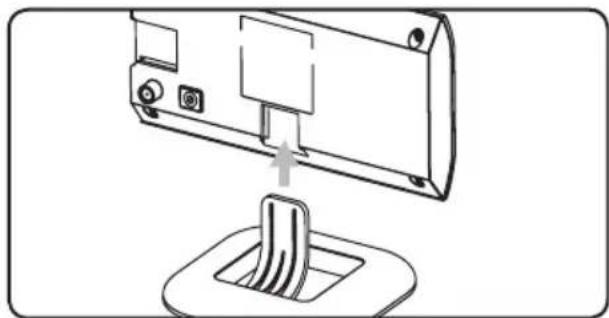

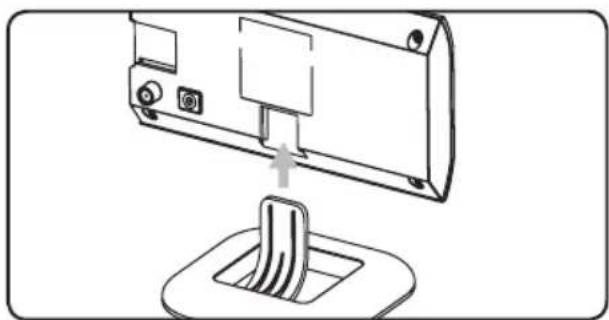

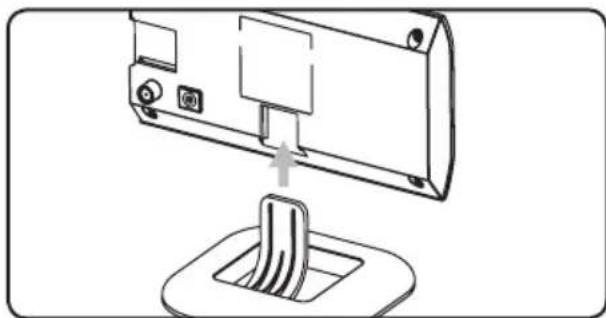

5 Antenna stand

3 Get started

To ensure the antenna to work properly, read the user manual of your television before you start. Set the television so that it receives the signal from an ANTENNA instead of CABLE or SATELLITE.

Installation

Determine the signal strength

Before Installation, determine the best location for optimum reception. It is important for the antenna to have an unobstructed path to the transmitter. For best results, ensure the antenna faces the location of the transmitter.

Note

- Choose a location near a window which gives the antenna a clear view of the transmitter.

Note

- Place the antenna away from the metal surface to avoid interference.

Connect to the TV

1 Connect a coaxial cable to:

• the signal output of the antenna;
• the input on the TV receiver.

2 Connect the DC plug to the antenna and the power supply to a 100-240V AC outlet.

Diagram of a device with labeled components and wiring, no readable text or symbols present

Note

- Ensure the antenna is placed on a flat surface.

4 Set up the SDV5122P

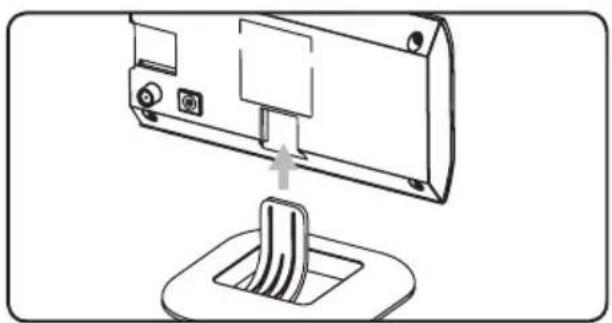

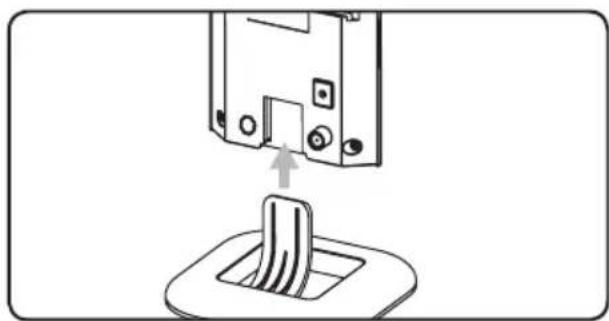

For UHF reception

1 Turn the TV to the desired channel/ station.
2 Position the UHF antenna horizontally or vertically.

Diagram showing a device being inserted into a socket (no text or symbols present)

Diagram of a device with a handle and screw, showing internal components (no text or symbols)

Note

• To check the distance from the local TV broadcast transmitters to your location, visit www.antennaweb.org for more information.

Set up a digital tuner with this antenna

You can install available channels with the digital TV tuner. This automatic process is part of the setup of the tuner. Ensure the antenna has set up properly before the tuner can receive viewable channels.

There are two ways to connect the antenna to the TV:

• Connect the antenna to a digital tuner. If the signal strength is good enough, the channels can be memorized in the tuner automatically.
• Connect the antenna directly to the TV. Tune to the analogue channels and find the best antenna location. Then re-connect the antenna to the digital tuner. Ensure the signal strength is good enough before you install the channels with the tuner.

5 Frequently asked questions

Can this antenna work with Analogue transmissions?

Yes, this antenna can receive analogue television broadcasts in the UHF bandwidths.

Can this antenna receive digital or work with ATSC broadcasts?

Yes, this antenna is designed to receive ATSC and HDTV broadcasts in the UHF bandwidths.

Can the antenna be powered by a DC power supply in a boat, RV or camper?

Yes, there is a DC power socket located at the back of the antenna. Plug your cable/adapter into the antenna and then into your power source.

Where should I place the antenna in order to get the best reception possible?

Choose a location near a window which gives the antenna a clear view of the transmitter.

Note

- For best reception, place the antenna away from the metal surface to avoid interference.

How do I know how much gain (amplification) is required to receive a clear picture?

Turn on the amplifier. Turn the amplifier up to the max position and then reduce as needed. In some case, you need to turn the amplifier down to receive a clearer picture.

Can I set up this antenna with a digital tuner?

Yes, this antenna can be set up with a digital tuner. (see 'Set up a digital tuner with this antenna' on page 6)

6 Warranty and Service

Warranty information can also be found at: www.philips.com/welcome

For technical support, send us an email with the model number of the product and a detailed description of your problem to:[e-mail]

7 Glossary

A

Amplifier

A device, either a single stage or a large scale circuit with multiple stages for creating gain, i.e. it makes small signals larger.

Antenna

A device, such as a rod or wire, which picks up a received radio frequency signal or radiates a transmitted RF signal.

C

Coaxial

A single copper conductor, surrounded with a layer of insulation, covered by a surrounding copper shield and finally, an insulating jacket. An unbalanced transmission line with constant impedance. In audio, this type is commonly used for low level, line signals terminated in RCA connectors.

F

Female connector

A female connector is a connector attached to a wire, cable, or piece of hardware, having one or more recessed holes with electrical terminals inside, and constructed in such a way that a plug with exposed conductors (male connector) can be inserted snugly into it to ensure a reliable physical and electrical connection.

FM (Frequency Modulation)

In radio broadcasting: a method of modulation in which the frequency of the carrier voltage is varied with the frequency of the modulation voltage.

H

HDTV (High-Definition Television)

It is a digital television broadcasting system with higher resolution than traditional television systems (standard-definition TV, or SDTV). HDTV is digitally broadcast; the earliest implementations used analog broadcasting, but today digital television (DTV) signals are used, requiring less bandwidth due to digital video compression.

M

Male connector

A male connector is a connector attached to a wire, cable, or piece of hardware, having one or more exposed, unshielded electrical terminals, and constructed in such a way that it can be inserted snugly into a receptacle (female connector) to ensure a reliable physical and electrical connection.

U

UHF (Ultra high frequency)

In radio or TV broadcasting: it is the frequency range of electromagnetic waves which lies between 300 MHz and 3 GHz (3000 MHz).
