SDV2730 - TV Antenna PHILIPS - Free user manual and instructions

Product type	Indoor TV antenna
Brand	Philips
Model	SDV2730
Dimensions (L x W x H)	30 cm x 10 cm x 5 cm
Weight	200 g
Power supply	USB 5 V (cable included) or 5 V mains adapter (not included)
Maximum gain	25 dB
Frequency band	VHF (174-230 MHz) and UHF (470-862 MHz)
Connector	75 ohm coaxial cable (IEC connector)
Built-in amplifier	Yes, with on/off switch
Range	Up to 50 km from the transmitter
Reception angle	360° (omnidirectional)
Main functions	Reception of HD DTT channels, compatible with DVB-T/DVB-T2
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use chemicals.
Safety	Do not expose to moisture. Unplug before cleaning.
Spare parts and repairability	Repairability index: 6.5/10. Available parts: cable, adapter, stand.
General information	2-year warranty. Compatible with all TVs equipped with an antenna input.

Frequently Asked Questions - SDV2730 PHILIPS

How to install the SDV2730 antenna?

Connect the coaxial cable to the antenna input of your TV. Connect the USB cable to a USB port on the TV or to a mains adapter. Place the antenna near a window for better reception. Start channel scanning on your TV.

The antenna picks up no channels, what to do?

Check that the antenna is plugged in and the amplifier is on (switch to ON). Make sure the TV is in DTT mode. Try moving the antenna to a higher place or near a window. Perform a new channel scan.

What is the maximum range of this antenna?

The indicated range is 50 km under optimal conditions. In practice, it depends on the environment (obstacles, distance from the transmitter).

Can I use the antenna without the amplifier?

Yes, the amplifier can be turned off with the switch. This can be useful if you are close to the transmitter to avoid saturation.

Is the antenna compatible with HD DTT?

Yes, it supports DVB-T and DVB-T2 standards, so it receives HD and SD channels.

Is an external power supply required for the antenna?

The antenna can be powered by the TV's USB port. If the TV does not provide enough current, use a 5 V USB mains adapter (not included).

How to clean the SDV2730 antenna?

Unplug the antenna and wipe it with a soft dry cloth. Do not use harsh cleaning products.

Can I use this antenna outdoors?

No, this antenna is designed for indoor use only. Exposing it to weather would damage it.

What to do if the picture jerks or freezes?

This may be due to a weak signal. Try repositioning the antenna, turn on the amplifier, or move it away from other electronic devices.

Where to find the serial number of my antenna?

The serial number is printed on a label under the antenna or on the original packaging.

USER MANUAL SDV2730 PHILIPS

Exterior view of a Philips electronic device (no visible text or symbols on body)

Register your product and get support at: www.philips.com/welcome

EN Amplified indoor antenna 2

2. Your indoor television antenna 3

2.1 Product overview 3

3. Getting Started 3

3.1 Installation 3

3.2 Connect to your TV 4

4. Using your television antenna 4

4.1 For VHF reception 4

4.2 For UHF reception 4

4.3 Setting up a digital tuner 5 with this antenna

1. Frequently asked questions 5

2. Warranty and service 5

1 Important

Take time to read this manual before you use your Philips indoor television antenna. It contains important information and notes regarding installation and set up.

All rights reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Please inform yourself about your local collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Take the package to your local recycling center.

2 Your indoor television antenna

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

2.1 Product overview

A VHF antenna
B Power indicator
C UHF antenna
D Power switch/gain control knob
E 6V DC power connection
F Out to TV connection
G Stand
H 120V AC/6V DC power adaptor, included

3 Getting Started

Before you start: For this antenna work properly, you must access the menu on the television you are connecting this antenna to (consult your television owner's manual) then set it to receive the signal from an ANTENNA or OFF AIR instead of CABLE or SATELLITE.

3.1 Installation

Determining Signal Strength

Before installation determine the best location for optimum reception. It is important for the antenna to have an unobstructed path to the transmitter. For best results, the antenna should be facing towards transmitter.

Tip

Where possible, choose a location near a window which will give the antenna a clear view of the transmitter.

Tip

Do not place the antenna on a metal surface.

3.2 Connect to your TV

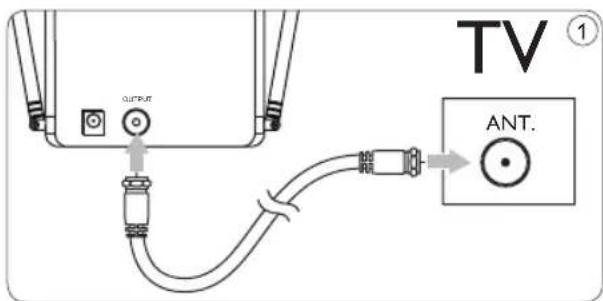

1 Connect one end of the coaxial cable to signal output of the antenna and the other end to the input on your TV receiver. ①
2 Connect DC plug to the antenna and the power supply to a 120V AC outlet. ②

4 Using your indoor television antenna

4.1 For VHF reception

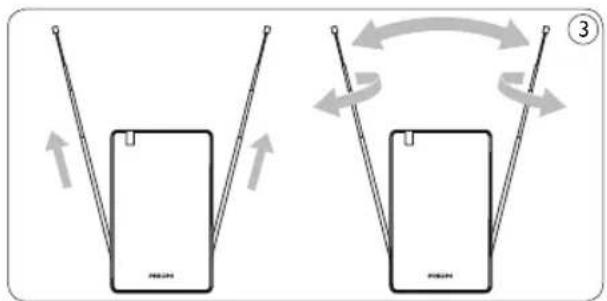

1 Extend the telescoping dipoles to the longest possible length. ③
2 Turn your TV to the desired channel. Adjust the dipoles by moving in different directions up and down, until reception is achieved. ③
3 Turn on the amplifier by rotating the gain control knob towards the max position until better reception is achieved. ④

Note

You may need to turn the gain control down to a lower setting for best reception.

4.2 For UHF reception

1 Turn your TV to the desired channel.
2 Position antenna toward transmitter until reception is achieved.
3 Turn on the amplifier by rotating the gain control knob towards the max position until reception is improved.

Note

You may need to turn the gain control down to a lower setting for best reception.

Tip

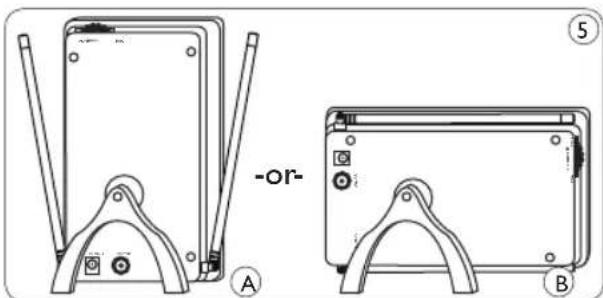

This antenna can be placed on a vertical and horizontal orientation to extend reception choices. 5

Diagram showing a connected electrical component with wires and a terminal block (no text or symbols)

4.3 Setting up a digital tuner with this antenna

Digital TV tuners require you to program the tuner with the available channels in your area. Generally this automatic process is part of the set-up of the tuner. However, if you do not have the antenna set up properly you may find that the tuner receives no viewable channels.

If you have access to a rooftop antenna or another antenna which is currently connected to a digital tuner you may use the antenna to program the tuner. The channels will be memorized in the tuner - which will make aligning this antenna easier.

Another method is to connect the antenna directly to your TV (not using the tuner) and tune to analog channels to find best location of the antenna, then re-connect the digital tuner – if you have adequate signal level you should be able to program the tuner.

5 Frequently asked questions

Will this antenna work with Analog transmissions?

Yes, this antenna is capable of receiving analog television broadcasts in the UHF and VHF bandwidths.

Will this antenna receive digital or work with HD-ATSC broadcasts?

Yes, this antenna is designed to receive Digital ATSC and HDTV broadcasts in the UHF and VHF bandwidths.

Where should I place the antenna in order to get the best reception possible?

Where possible, choose a location that is near a window which will give the antenna a clear view of the transmitter.

Note

For best reception you should also avoid placing the antenna on a metal surface which may cause interference.

How do I know how much gain (amplification) is required to receive a clear picture?

Once you have the VHF dipoles extended to the longest length turn on the amplifier. It is easiest to start with the maximum gain and then reduce as needed. In some cases you may receive a clearer picture with less gain than the maximum setting.

Can I set this antenna up with a digital tuner?

Yes, this antenna can be set up with a digital tuner. See section 4.3 of your user manual.

6 Warranty & Service

Warranty information can be found at: www.philips.com/welcome

For technical support, send us an email with the model number of the product and a detailed description of your problem to: [e-mail]
