Product type	Built-in hood
Brand	Beko
Model	CTB 6407 W
Color	White
Width (cm)	60
Depth (cm)	50
Height (cm)	15
Net weight (kg)	12
Supply voltage (V)	220-240
Frequency (Hz)	50
Motor power (W)	170
Max airflow (m³/h)	600
Number of speeds	3
Lighting type	Halogen
Lighting power (W)	40
Control type	Mechanical slider
Grease filter	Dishwasher-safe aluminum
Charcoal filter	Optional (replaceable)
Exhaust mode	Recirculation or external exhaust
Energy class	B
Max noise level (dB)	65
Filter maintenance	Clean grease filters every month
Charcoal filter replacement	Every 3 to 6 months depending on usage
Repairability index	7.5/10
Available spare parts	Filters, bulbs, motor

Frequently Asked Questions - CTB 6407 W BEKO

How to install the Beko CTB 6407 W hood?

Installation must be carried out by a qualified professional. Ensure that the wall can support the weight of the hood (12 kg). Use the provided dowels and screws. For exhaust mode, connect the duct to the recommended diameter (120 or 150 mm).

What is the recommended mounting height?

The minimum distance between the hood and the cooktop is 65 cm for electric or induction cooktops, and 75 cm for gas.

How to clean the grease filters?

The aluminum grease filters can be cleaned in a dishwasher at low temperature or by hand with hot water and detergent. Allow them to dry completely before putting them back. Clean them every month.

When to replace the charcoal filter?

The charcoal filter must be replaced every 3 to 6 months depending on usage. It is not washable. Use a compatible Beko filter.

How to change the hood's light bulb?

Unplug the appliance. Remove the lighting cover, unscrew the defective bulb and replace it with a bulb of the same type (halogen G4, 20W max). Screw back and replace the cover.

The hood is very noisy: what to do?

Check that the filters are clean and properly installed. Make sure the exhaust duct is not obstructed. If the noise persists, contact customer service.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode with an active charcoal filter (not supplied). The air is filtered and then returned to the room.

How to adjust the suction speed?

Use the mechanical slider on the front. Speeds 1, 2 and 3 correspond to low, medium and maximum airflow respectively.

What to do if the hood does not turn on?

Check that the appliance is properly plugged in and that the fuse has not blown. If the light works but the motor does not, the motor may be defective. Contact a professional.

Where to find spare parts for this hood?

Spare parts (filters, bulbs, motor) are available from Beko customer service or on approved spare parts websites. Use the reference CTB 6407 W.

USER MANUAL CTB 6407 W BEKO

Simple line drawing of a kitchen range hood with three circular buttons (no text or symbols)

CTB 6407 W

CTB 6407 XH

DT 312 W

CTB 6407 X

CTB 9407 X

DT 312 I

EN DE FR NL ES

PT R U LT R O PL

EL BS CZ SR SL

DA ET HR HU KK

LV MK SK SQ

beko

CONTENTS

ENGLISH	04-13
DEUTSCH	14-26
FRANÇAIS 27-38
NEDERLANDS 39-49
ESPAÑOL	50-62
PORTUGUÊS	63-75
PYCCKIЙ 76-90
LIETUVIŲ K 91-101
ROMÂNĂ 102-114
POLSKI 115-129
ΕΛΛΗΝΙΚΑ	130-141
BOSANSKI 142-152
ČESKY 153-163
CPΠСКИ 164-175
SLOVENŠČINA 176-186
DANSK 187-197
EESTI 198-208
HRVATSKI 209-219
MAGYAR 220-230
KAZAKH 231-242
LATVIAN	243-253
MAKEДОНСКИ	254-265
SLOVENSKÝ	266-276
SHQIPTARE	277-287

01M-8851523200-4520-02

01M-8851533200 -4520-02

01M-8851503200-4520-02

01M-8851511200-4520-02

01M-8844443200-4520-02

01M-8844453200-4520-02

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Warning for danger of fire.

Warning for electric shock.

Protection class for electric shock.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

1 Important Safety and Environmental Instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

- Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, and other residential type environments;

- Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

- The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

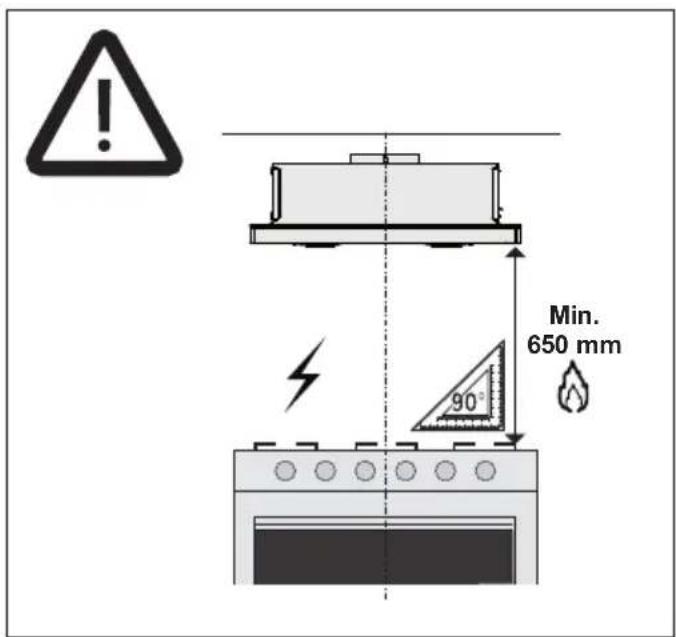

- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

- If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

• Make sure that your mains power

1 Important Safety and Environmental Instructions

supply complies with the information supplied on the rating plate of the appliance.

• Never use the appliance if the power cable or the appliance itself is damaged.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.
• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.
• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.
• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.
• Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months.
• Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.
• Do not use non-fire-resistant filtering materials instead of the current filter.
• Only use the original parts or parts recommended by the manufacturer.
• Do not operate the product without the filter and do not remove the filters while the product is running.
  • In the event of be started any flame, de-energize your product and cooking appliances.
  • In the event of be started any flame, cover the flame and never

1 Important Safety and Environmental Instructions

use water to extinguish.

• Unplug the appliance before each cleaning and when the appliance is not in use.
• The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.
• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.
• When connecting the flue, use pipes with a diameter of 120 or 150 ~mm . Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

• The product outlet must not be connected to air channels that include other smoke.
  • The ventilation in the room may

be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

• Objects placed on the product may fall. Do not place any objects on the product.
• Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1 Important Safety and Environmental Instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification

symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General Appearance

2.1 Overview

1. Main Body
2. Aliminium Grease filter
3. Lighting
4. Control Panel
5. Chimney

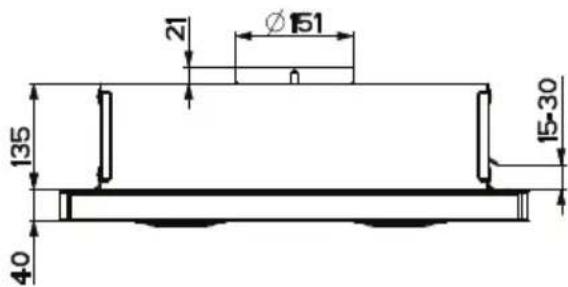

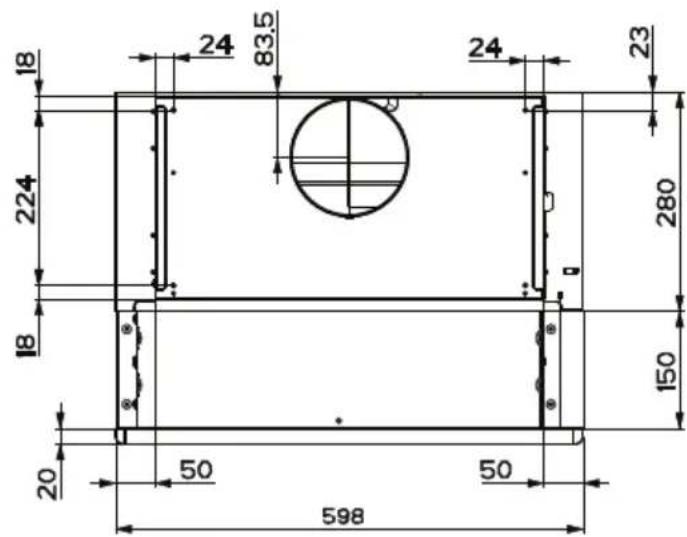

2.2 Technical Data

Model	CTB 6407 XH / CTB 9407 X / CTB 6407 W / CTB 6407 X / DT 312 W / DT 312 I
Supply Voltage	220-240V ~ 50 Hz
Lamp Power (W)	2x4
Motor Power (W)	1 x 125
Air Flow ( m^3/h ) - 3. Level	310
Insulation Class	CLASS II

3 Using the Appliance

3.1 Controls Panel

L	Light Switches the lighting system on and off
M	Motor Switches the extractor motor on and off
V	Speed Sets the operating speed of the extractor:

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3 Using the Appliance

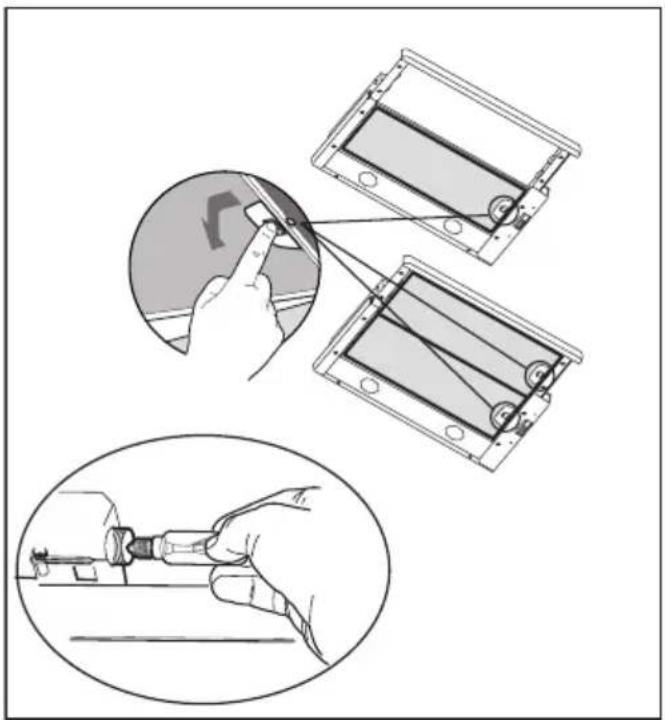

3.2 Lamp Replacement

	Before replacing the light bulbs, disconnect the power supply of the hood.
	Do not touch the light bulbs when they are hot.
	Be careful not to touch the replaced light bulb directly with hands.
	You may procure lamps from Authorised Service Agents.

Lamp Power (W)	Socket Voltage (V)	Dimension (mm)	ILCOS Code
[15WK]	2x4 E14	220-240	104 x 35	HSGSB/C/UB-28-220/240-E14

• Candle type LED lamp is used in this product
• Max 4 W lamp must be used when the change of lamp

4 Cleaning and maintenance

Prior to cleaning and maintenance, unplug the appliance or turn the main switch off or loosen the fuse that supplies the hood.

Failure to comply with the provisions relating to cleaning of the device and replacement of filters may cause fire risks. It is therefore recommended to comply with the guidelines given herein. The manufacturer is not liable for any damage to the engine or fires caused by improper use.

Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instruments. Do not use abrasive products. Do not use alcohol

4.1 Cleaning of Aluminium Grease Filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Aluminium grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

You can wash the Aluminium filter in the dishwasher

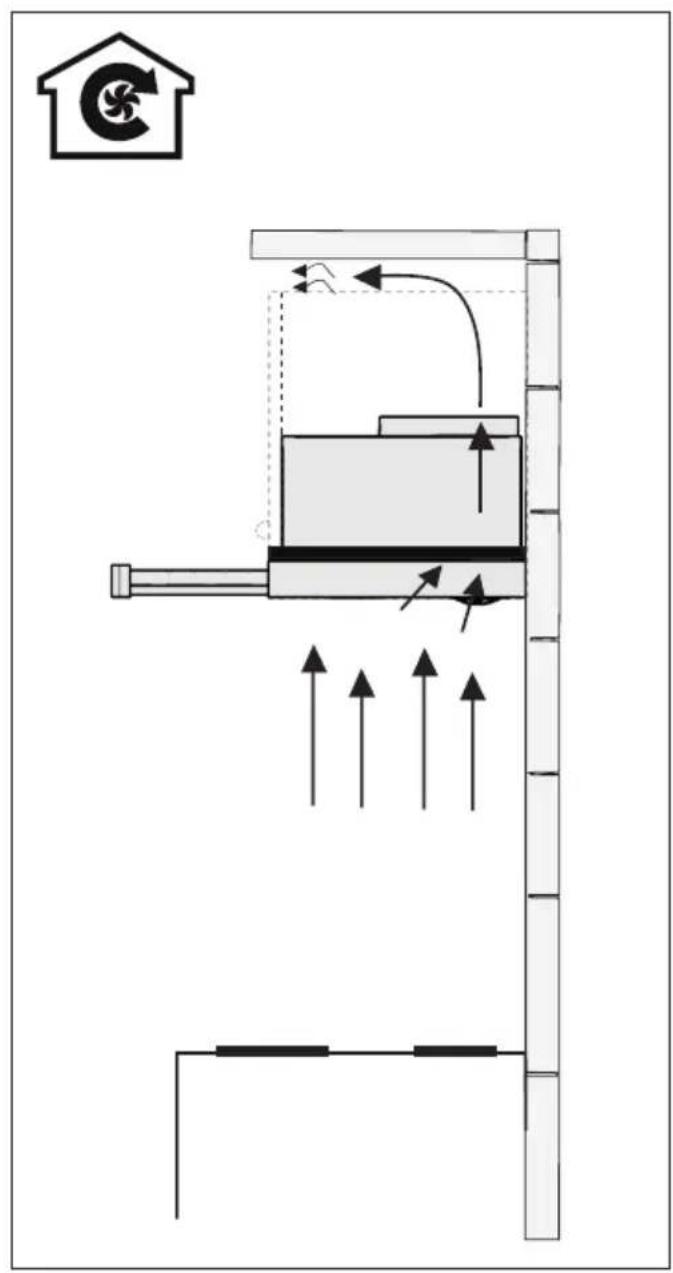

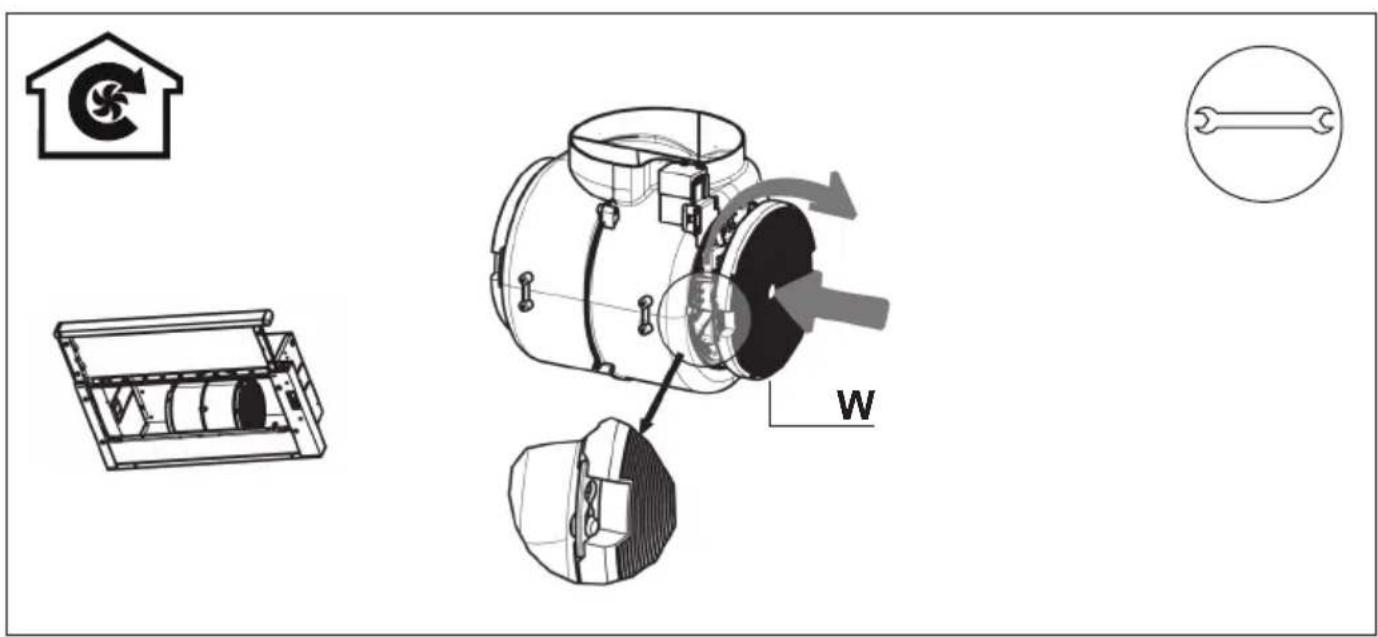

4.2 Changing of Carbon Filter (Air Circulation Mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct. In any case it is necessary to replace the carbon filter at least every three months.

WARNING: The carbon filter is never washed.

WARNING: Carbon filter is available from Authorized Services.

5 Setting Up the Device

WARNING

Please read saffety instructions before setting up.

NOTE

Please refer to page 288 for the installation guide

WARNING

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

5.1 Installation Accessories

1-Hood
2- Air Outlet Grille
3- Closing Element (Optional)
4-4×4,2×44,4 Screws
5-2×4,2×12,7 Screws
6-2×2,9×12,7 Screws
7- User Manual

6 Troubleshooting

Troubleshooting	Reason Help
The product does not work.	Check your fuse. Your fuse might be closed, make it work.
The product does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The product does not work.	Check the electrical connection.	Check if the other products in your kitchen are working or not.
The lighting lamp does not work.	Check the electrical connection.	The mains voltage should be between 220-240 V.
The lighting lamp does not work.	Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp does not work.	Check the lamps. The lamps of the product should not be faulty.
The air intake of the product is poor.	Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month under normal conditions.
The air intake of the product is poor.	Check the air vent flue. The air vent flue should be in the “on” position.
The air intake of the product is poor.	Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.

Ampoule	Absorption (W)	Culot Voltage (V) Dimensions (mm) Code ILCOS
[24HY]	2x4 E14	220-240	104 x 35

Lamp	Stroomop-name (W)	Aansluiting	Voltage (V)	Afmeting (mm)	ILCOS-code
	2x4 E14	220-240 104 x 35			HSGSB/C/UB-28-220/240-E14

U kunt het aluminium filter wassen in de vaatwasmachine.

Illustration of a kitchen range hood with three circular buttons (no text or symbols)

CTB 6407 W | CTB 6407 XH | DT 312 W CTB 6407 X | CTB 9407 X | DT 312 I

RU |

01M-8851523200 -4520-02

01M-8851533200 -4520-02

01M-8851503200-4520-02

01M-8851511200-4520-02

01M-8844443200-4520-02

01M-8844453200-4520-02

Lemputė	Galingumas (W) Lizdas tampa (V) Matmenys (mm) ILCOS kodas
[7008]	2x4 E14 2	20-240	104 x 35		HSGSB/C/UB-28-220/240-E14

Illustration showing three steps of a tool application: adding a component, adjusting a device, and using a tool to adjust the component (no text or symbols present)

Bec	Putere absorbită (W)	Dulie Tensiune (V)		Dimensiune (mm)	Cod ILCOS
	2x4 E14 2	20-240	104 x 35		HSGSB/C/UB-28-220/240-E14

Illustration showing three steps of a tool application: adding a component, adjusting a device, and using a tool to adjust the component (no text or symbols present)

Illustration showing three steps of a tool application: adding a component, adjusting a panel, and using a tool to adjust the component (no text or symbols present)

Illustration showing three steps of a tool application: adding a component, adjusting a panel, and using a tool to adjust the component (no text or symbols present)

Lampica	Snaga (W) Utičnica	Napon (V) Dimenzije (mm)	ILCOS šifra
[2DWS]	2x4 E14 2	20-240 104 x 35		HSGSB/C/UB-28-220/240-E14

• U ovom proizvodu se koristi LED lampica tipa svijeće
• Prilikom zamjene lampice mora se koristiti lampica od maksimalno 4 W

Illustration showing three steps of a tool application: adding a component, adjusting a panel, and using a tool to adjust the component (no text or symbols present)

Illustration showing a hand using a tool to adjust or install electronic components, with three views of the device (no text or symbols present)

Illustration showing a tool being inserted into a flat panel, with magnified views of the process (no text or symbols)

Svetilka	Absorpcija (W) Vtičnica Napetost (V) Mere (mm) Koda ILCOS
[1XW8]	2x4 E14 2	20-240	104 x 35		HSGSB/C/UB-28-220/240-E14

HOIATUS: Söefiltrit ei tohi kunagi pesta.

HOIATUS: Söefilter on saadaval volitatud teenindustes.

5 Seadme seadistamine

HOIATUS

Aluminijski filtar možete prati u perilici suđa.

VÝSTRAHA: Uhlíkový filter sa nikdy neumýva.

Two identical house icons with a wind turbine symbol inside, no text or labels present.

598 mm
CTB 6250 W
CTB 6250 B
CTB 6250 X
CTB 6250 XH

898 mm
CTB 9250 X
CTB 9250 XH

4
