english: Paper shredder HSM Classic 102.2 / Primo 1200 9

White paper<|im_start|> Papua can with a black downward arrow indicating compression (no text or symbols visible)

1 Proper use, warranty

Check the name plate on the back of the machine to find out the cutting width and mains voltage for your document shredder and observe the applicable instructions in the operating manual.

The shredder is designed for destroying paper. Depending on the cutting type, it can also handle small quantities of the following materials:

Shred width (mm) 3.9 5.8
Credit and charge cards	●	●

Its sturdy drive mechanism is not damaged by paper clips and staples.

The warranty period for the document shredder is 2 years. There is a special warranty for the HSM solid steel cutting rollers in the document shredder, which is provided independently of the guarantee, and remains valid for the entire service life of the machine (HSM Lifetime Warranty). This warranty and guarantee exclude wear and damage caused by improper handling or actions taken by third parties.

2 Safety instructions

Classifi cation

Safety notice Explanation

WARNING Failure to observe this warning can lead to serious or fatal injury.

Notice Failure to observe this instruction can cause damage.

Before using the machine for the first time, read the operating manual, and keep it for later use and to

pass on to any subsequent users. Observe all safety instructions on to the machine.

WARNING

Dangerous for children and others!

The machine may not be used by persons (including children under 14 years of age) with limited physical, sensory or mental capabilities or with a lack of experience and

knowledge, unless they are supervised by a responsible person or are instructed by them on the use of the machine. Children must be supervised to ensure they do not play with the machine. Do not leave the document shredder switched on when it is unattended.

WARNING

Risk of injury!

Do not reach into the paper feed slot.

Risk of injury from being pulled in!

Keep long hair, loose articles of clothing, ties, scarves, jewellery, etc. away from feed opening. Material with the tendency to form loops, e.g. tapes, strapping material, etc. must not be shredded.

Risk of combustion!

Do not use cleaning agents or pressurized air sprays which contain infl ammable substances, as they could ignite.

WARNING

Dangerous mains voltage!

Improper handling of the machine can lead to an electric shock.

• Before you insert the power plug, make sure that the voltage and frequency of your power supply comply with the information on the name plate.
• Make sure that the power plug is easily accessible.
• Make sure that no water gets into the shredder. Do not immerse the power cable or the power plug in water.
• Never touch the power plug with wet hands.
• Never pull the plug out of the socket using the power cable. Always pull out the plug directly.
• Only use the machine in a dry room indoors. Never operate the machine in damp rooms or in the rain.

Check the machine and cable regularly for damage. Switch the shredder off if it is damaged or not working correctly or before relocating or cleaning it and disconnect it from the mains.

• Keep the machine, the plug and cable away from open fire and hot surfaces. The ventilation slots must not be blocked or covered and there must be at least 5 cm space between the shredder and any wall or furniture.
• Disable the machine when not in use: disconnect the power plug from the mains and cut the power cable.

Service work may only be carried out by HSM Customer Service or by the service technicians of our contractual partners.

See page 76 for our customer service addresses.

Notice Danger from improper use

Only operate this machine in accordance with the instructions outlined in "Proper use".

3 Machine components

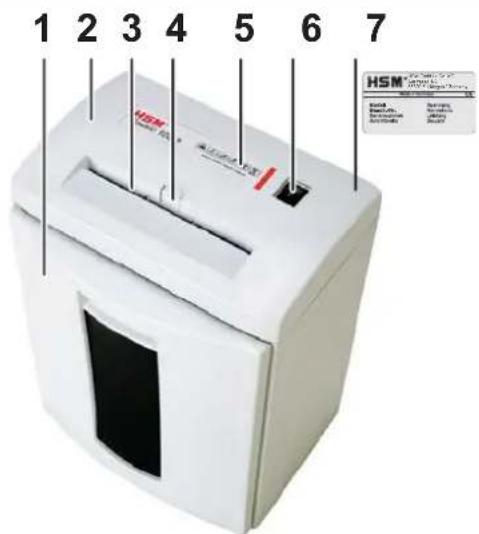

1 2 3 4 5 6 7 HSM HSM® (SAP-0.01) HSM® (SAP-0.02) HSM® (SAP-0.03) HSM® (SAP-0.04) HSM® (SAP-0.05) HSM® (SAP-0.06) HSM® (SAP-0.07) HSM® (SAP-0.08) HSM® (SAP-0.09) HSM® (SAP-0.10)

1 Cut material container
2 Cutting head
3 Paper feeding opening
4 Automatic start stop control
5 Safety instructions
6 Rocker switch

▲: On
▼: Off, Reverse

7 Name plate

5 Operation

WARNING

Before switching the machine on, make sure that you observe all safety instructions.

Switching the paper shredder on

- Press rocker switch ▲.

▶ Rocker switch locks in place.
▶ Paper shredder is ready for operation (standby).

Feed paper

White paper envelope with a black downward arrow indicating compression or download (no text or symbols visible)

- Insert the paper to be destroyed. See „Technical data“ for sheet capacity.

▶ Automatic start stop control starts the cutting system automatically.
▶ Paper is pulled into cutting system and shredded.

Swit ching paper shredder off

• Tap rocker switch ▼.
  ▶ Switch returns to ze ro po si ti on.

4 Scope of delivery

• Paper shredder, ready for connection, in carton packing
• Special cutting block oil 50 ml (cross cut)
- Operating instructions

Acces so ries

• Special cutting block oil 250 ml order No.: 1.235.997.403

See page 76 for our customer service addresses.

6 Troubleshooting

Paper jam

You have fed in too much paper.

Notice Do not press rocker switch alternately forwards/backwards (▲ - ▼). Cutting unit could be damaged.

• Press rocker switch ▼.
  ▶Paper is pus hed out.
  • Se pa ra te pa per stack.
• Press rocker switch ▲.
• Feed in pa per successively.

Shredded material container full

Notice Empty the cut material container, immediately because if it is too full, malfunctions can occur in the cutting system.

• Press automatic start stop control for 2 sec.
• Switch equipment off. To do this tap rocker switch ▼.
  • Empty cut material container.

Shredded material container contact interrupted (Cross cut only)

▶ Paper shredder switches off.
- Check whether shredded material container is correctly inserted in bottom frame.

For all other malfunctions, check whether the motor was overloaded before contacting our customer service. Let the shredder cool down for approx. 15 – 20 mins. before using it again.

7 Cleaning and maintenance

WARNING

Dangerous mains voltage!

Switch off the shredder and pull out the mains plug.

When cleaning only use a soft cloth and a mild soap-water solution. However, no water must enter the equipment.

DON'T FORGET

Oil the cutting unit when cutting performance de-creases or the device becomes noisy, or every time you empty the waste

container (Cross cut only):

• Spray special cutting block oil through paper feed opening across the whole width of the cutting system blades.
• Press automatic start stop control and run cutting system forwards and backwards (▲ - ▼) several times without feeding paper. Paper dust and particles are shaken off.

8 Disposal / Recycling

Electrical and electronic old devices contain a variety of valuable materials, but also hazardous substances which were required for function and safety. Incorrect disposal or handling can be dan-

gerous to your health and the environment. Never dispose of old devices in the household waste. Observe the current applicable regulations and use the collection points for returning and recycling electric and electronic devices. Dispose of all the packaging materials also in an environmentally-responsible way.

9 Technical data

Cutting type Strip cut Cross cut
Shred size (mm) 1.9 3.9 5.8 4 x 25
Sa fe ty ra ting German DIN 32757 - 1 3 2 2 3
Cutting ca pa ci ty* (Sheet) DIN A4 70 g/m280 g/m2	8 - 95 - 7	13-1510-12	16-1813-15	6 - 73 - 5
Weight	6,3 kg			6,8 kg
Lo ading width	225 mm
Cutting speed	60 mm/s
Voltage	230 V, 50 Hz
Power for the maximum number of sheets	150 W
Operating mode	Brief operation
Operating time	2 min
Idle time	15 min
Dimensions W x D x H (mm)	365 x 273 x 500
Ambient conditions in operation:TemperatureRelative humidityHeight above sea-level (MSL)	-10°C to +40°Cmax. 90%, without condensationmax. 2,000 m
Volume of shred. mat. container	25 l
Noise level (idle running)	60 dB (A)

* The maximum number of sheets (DIN A4, 70 g/m² or 80 g/m²), fed lengthways, which can be cut in one cycle. The performance data is determined when the motor is cold and the cutting device is freshly oiled. A weaker mains voltage or a different mains frequency to the one specified could result in less sheet capacity and increased noise during operation. The sheet capacity can vary depending on the structure and properties of the paper and on the way it enters. The performance data in 80 g/m² is calculated.
