USER MANUAL VT 40 Z ATIKA

Original instructions – Safety instructions – Spare parts

J 1 6 5 6

K ① ②

Illustration of a cart rolling down a barbed wire with an arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a lawn mower with blade and wheel assembly (no text or labels)

Illustration of a manual lawn mower with a tool, showing motion direction and checkmark (no text or symbols)

Technical illustration showing two steps of a mechanical device with hands operating, no text or symbols present.

O max 20°

Inhalt

Declaration of conformity 16
Extent of delivery 16
Operating times 16
Symbols machine 16
Symbols used in the operating instructions 17
Normal intended use 17
Residual risks 17
Safety instructions 17
Assembly	19
Start-up	19
Setting the work depth 20
Working instructions 20
Working with the scarifier 20
Working with the lawn aerator 21
Maintenance and care 21
Transport 21
Storage 21
Possible faults	22
Guarantee	22
Technical data	23
Description of device / Spare parts	23

EC Declaration of Conformity

No. (S-No.): 13832

according to EC directive: 2006/42/EC

We,

ATIKA GmbH

Schinkelstraße 97

59227 Ahlen - Germany

herewith declare under our sole responsibility that the product

Scarifier / Lawn aerator model VT 40 Z

Serial number: 000001 - 020000

is conform with the above mentioned EC directives as well as with the provisions of the guidelines below:

2004/108/EC, 2000/14/EC and 2011/65/EC.

Following harmonized standards have been applied:

EN 60335-1:2002+A1+A11+A12+A2+A13+A14;

Conformity assessment procedure: 2000/14/EC - Appendix V.

Measured level of the acoustic output L_WA 93 dB (A).

Guaranteed level of the acoustic output L_WA 96 dB (A).

Keeping of technical documents at:

ATIKA GmbH – Technical department – Schinkelstr. 97 59227 Ahlen – Germany

i.A. f A i.A. G. K. K. K. K. K.

Ahlen, 18.04.2013

Engineering design management

Extent of delivery

A After unpacking, check the contents of the box

▶ That it is complete
▶ Check for possible transport damage

• 1 Pre-assembled device
• 2 Connecting bars (5)
• 1 Handle hoop (1)
• 1 Aerator drum (31) – optional accessory, if applicable
- 1 Grass catching bag (40) – optional accessory, if applicable
- 1 Screw bag
• 1 Operating manual
- Warranty declaration

Report any damage or missing items to your dealer, supplier or the manufacturer immediately.

Packaging material can be recycled and should be brought to an eco-friendly recycling facility.

Operating times

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control.

Symbols machine

Carefully read operator's manual before handling the machine.

Caution: - Sharp tines. The tines still continue to rotate after motor cut-off. Pull the mains plug from the socket before maintenance work or if the cable is damaged.

Danger – objects may be thrown out at high speed when motor is running. Keep people, pets and domestic

Keep the mains cable free from the tines or blades. Tines or blades may damage the cables and cause contact

animals out of the danger area.

with live parts.

Beware of rotating blades or tines. Do not keep hands and feet near or under rotating parts while the machine is running.

When connecting cable is damaged or cut through immediately pull out the power plug.

Wear eye and ear protection.

Machine of the protection class II (double insulated)

This product complies with European regulations specifically applicable to it.

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2002/96/EC on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Symbols Operating instructions

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

The numbers refer to the figures on the pages 3 through 6.

Proper use

• The scarifier / lawn aerator is suitable for raking and scarifying lawns as well as collecting leaves on lawns in the private home and hobby garden.
• The device is not allowed to be used in public gardens, parks, sports centres or at roadsides as well as in agriculture and forestry. The device is not allowed to be used in public gardens, parks, sports centres or at roadsides as well as in agriculture and forestry.
  ■ The scarifier / lawn aerator may not be used:

— to trim bushes, hedges and shrubs
— to level uneven grounds (e.g. mole hills)
- as power tiller
— on plastered or gravelled areas

Risk of injuries existing!

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
• Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
• Arbitrary modifications on the scarifier / lawn aerator exclude a liability of the manufacturer for damages of all kinds resulting from it.
• Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.
• The machine may not be used in a potentially explosive environment or be exposed to the rain.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the “Safety information” and the “Intended usage” as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Risk injury of hands and feet if they come close to or under the rotating parts.
• Risk of injury of fingers and hands during assembly and cleaning activities on the scarifier drum.
  ■ Stones and soil may be thrown off.
• Danger resulting from electric current, if improper connecting wires are used.
  ■ Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

⚠ Scarifiers / lawn aerators can be dangerous when used improperly. The use of electrical tools requires the observation of basic safety precautions to eliminate risk of fire, electrical shock and personal injuries.

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine.

Keep these safety instructions in a safe place.

■ Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
- Be attentive. Be careful what you do. Behave sensibly when working. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

• Do not use the device for purposes it is not intended for (see "Intended use").
• Familiarize yourself with your environment and pay attention to possible dangers which you may not be able to hear because of the motor noise.
• Within his area of work the operator is responsible for third parties.
• Children and young persons under 16 years of age as well as persons who have not read the instruction manual are not allowed to operate this product.
• Physically, sensorially or mentally handicapped persons or persons who have no relevant experience and/or knowledge are not allowed to operate the device, unless a person responsible for their safety supervises them or instruct them on how to use the device.
• Children must be supervised to make sure that they do not play with the device.
• Keep bystanders and animals away from your working area. Do not allow other persons, especially children, to touch the tool or cable.
• Switch off the machine if persons, in particular children or pets, are close to you or if you change your working area.
  ■ Never leave the device unattended.
  ■ Wear protective clothing:

- safety goggles

- ear protection (Sound intensity level at workplace can exceed 85 dB (A))

■ Wear suitable work clothes:

• do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
  – Solid shoes or boots with a nonskid sole
  – Trousers to protect the legs

- Do not work with the device barfooted or only with thongs on your feet.

■ Take into consideration environmental influences:

• Do not use the device in moist or wet ambience.
• Do not expose the device to rain.
  — Do not work directly near swimming pools or garden ponds

• Do only work with sufficient visibility conditions. Provide for good illumination.
  — Do not operate the device when the grass is wet, if possible.

• Before trimming, remove all foreign objects (e.g. stones, branches, wires, etc.). While working watch out for further foreign objects.

• If you come across to foreign objects, please power off the device and remove those foreign objects. However before you restart the device, check it for possible damages and have it repaired if necessary.
• Do not overload the device! You work better and safer in the given performance range.

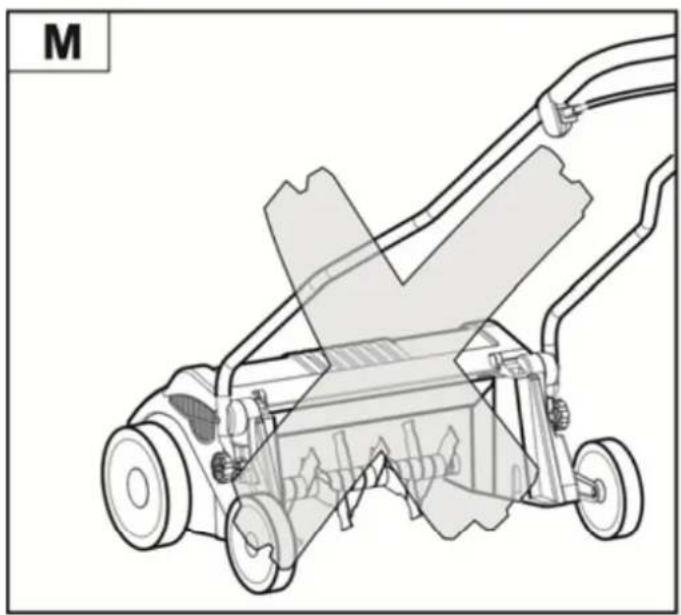

  ■ M Only operate the machine with complete and correctly attached safety equipment (impact guard and/or catching bag) and do not alter anything on the machine that could impair the safety.
• Do not alter the revolution speed of the motor, since this controls the safe maximum operating speed, and protects the motor and all rotating parts against damage due to excess speed.
• Do not modify the device or parts of the device respectively.
  ■ Before turning on the motor, make sure that your feet are at a safe distance from the cutting tools.
• L If not absolutely necessary, do not tilt the device when starting the motor. If it is necessary only tilt the device to the required extent and only lift the side which is averted to the operator.
• N Never keep hands or feet close to or under rotating parts. Keep away from the ejection slot.
• Pay attention to sure footing especially when working on slopes or on wet grass and keep your balance at all times. Guide the device only a walking speed.

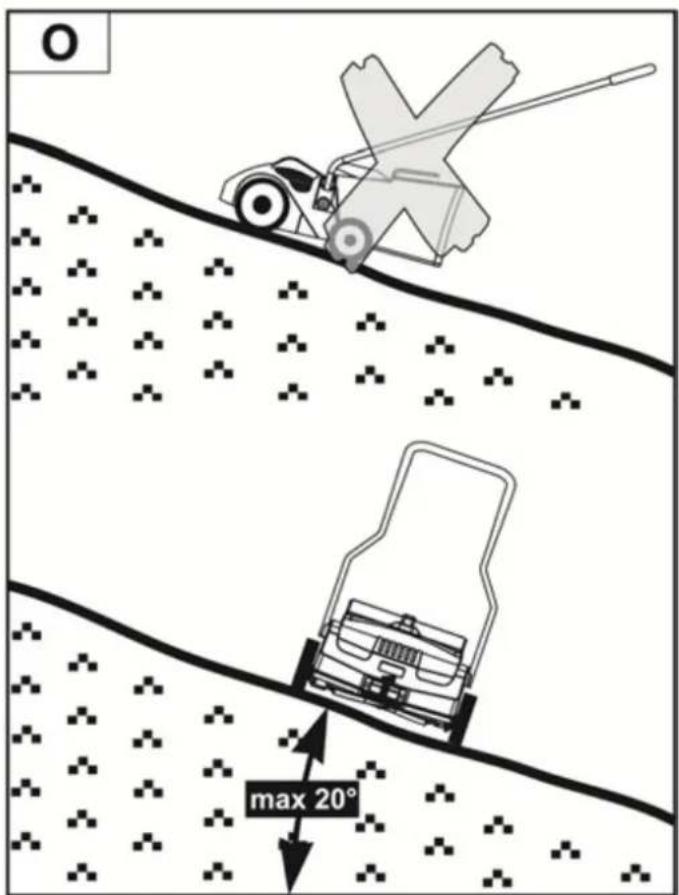

  ■ 0 Do not thatch on steep slopes.
• 0 When thatching on slopes, always work perpendicular to the slope and never up and down.
• Be especially careful when changing the operating direction on a slope.
• Observe the safety distance given by the handle bar.

• Always push the device forward while it is operating. Do not pull it to yourself or behind you.
  ■ While the motor is running, do not

• lift or carry the device about

• lift the impact guard

• Caution! The tool runs after. Do not try to slow down the tool by hand.

• M Pay attention that the impact guard is closed or that the grass catching bag (optional accessory, if applicable) is attached.
  ■ Turn off the device and wait until the drum has stopped when

- tilting the scarifier

– crossing areas not planted with grass
— transporting the device to and from the work area

- Switch the machine off and remove the mains plug from the socket when

– carrying out repair works
— maintenance and cleaning
– Removing malfunctions and blockages
- transport and storage
- Blade replacement
— leaving unattended (even during short interruptions)
— when the scarifier begins to exhibit unusual vibrations
— when you have hit an obstacle with the scarifier.

• Do not wash down device with water. (origin of danger electric current).
• Store unused equipment in a dry, locked place out of the reach of children.
• Check the machine for possible damage:

- Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function. This includes also the grass catching bag if available.

• Check if parts are damaged or defective. All parts must be properly mounted and meet all conditions to ensure flawless operation.
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
• Damaged or illegible safety warning labels should be replaced immediately.

- Maintain your scarifier / lawn aerator with care:

— Ensure that all nuts, bolts and screws are tight.
— Make sure that the ventilation apertures are free.
— Keep handles free of oils and grease.
– Follow the maintenance instructions.

Electrical safety

■ Design of the connection cable according to IEC 60245 (H 07 RN-F) with a core cross-profile section of at least

• 1.5 mm ^2 for cable lengths up to 25 m

• 2.5 mm ^2 for cable lengths over 25 m

• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.

• Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
  ■ The connector of the connection cable must be splash-proof.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
  ■ Wind off completely the cable when using a cable drum.

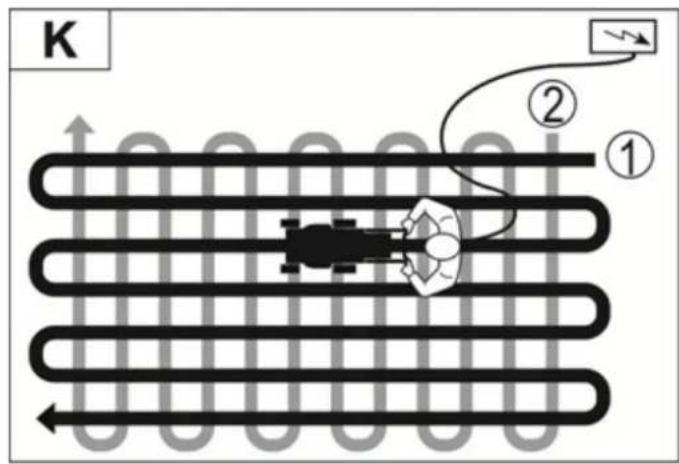

• K Do not drive the device across the extension cable. Make sure that it is behind you in a secure position. Place the cable on a path or area that has already been thatched.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Protect yourself against electric shocks. Avoid touching earthed parts with your body (e.g. pipes, heating apparatus, cookers, fridges etc.).
• Regularly check the extension cables and replace them if they are damaged.

• Do never connect a damaged cable to the mains. Do not touch a damaged cable before it is disconnected from the mains. A damaged cable may cause contact with live parts.
• Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
• Do not set up any provisional electrical connections.
  ■ Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations – especially regarding protective measures – must be observed.

Damaged mains leads must be replaced by the manufacturer or one of their service workshops or a similar qualified person to prevent dangers.

Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.

Use only original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Assembly

To achieve perfect function of the machine, follow the notes given in these instructions

Handle hoop

A / B Turn the hoop holders (8/9) and slide the screw heads in the guide slots of the holders (11/12).
→ Firmly tighten the star grips (6).
C Secure the connecting bars (5) to the hoop holders (8/9). Use the supplied fasteners (2x star grip (6), 2x screw M6x45 (7)).
A / C Secure the handle hoop (1) to the connecting bars (5). Use the supplied fasteners (2x star grip (6), 2x screw M6x45 (7)).
A Fix the cable using the cable holders (4). Make sure that the cable has enough free motion.

Adjusting the operating height

A / B Loosen the star grips (6) on the hoop holders (8/9).
Turn the handle hoop to your desired position and retighten the star grips.

Grass catching bag – optional accessory, if applicable

→ D Pull the impact guard (36) up and hold it.
Mount the hook of the grass catching bag (40) to the holder on the housing (35).

Installing the aerator drum - optional accessory

Before exchanging the drums:

• switch off device
• wait until the drum is stationary
• pull out main plug

Wear protective gloves when exchanging the drums. Risk of injury!

If the device shall be used as lawn aerator, the scarifier drum (29) must be exchanged against the aerator drum (31).

→ E Remove the cylinder head screws (34) on the bearing holder (33) using the supplied installation wrench (42).
→ Lift the scarifier drum and pull it out.
→ Push the hexagonal protrusion (a) of the aerator drum into the drive opening (32).
Remount the bearing holder (33) using the screws (34).

Start-up

Mains connection

Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the machine to the relevant and properly earthed plug.

Connect the machine via a circuit breaker switch (residual-current-operated circuit switch) 30 mA.

- Use connecting or extension cables up to a length of 1.5 m featuring a core cross section of at least 25 mm ^2 .

Mounting of the extension cable

F Plug the female connector of the extension cable on the male connector (2) of the switch-connector combination.
Thread the extension cable through the strain relief (3) as a loop and hang it up.
Make sure that the extension cable has enough free motion.

Switching on

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

The device is equipped with a safety circuitry preventing inadvertent switching on.

Start the device only after you have placed it on a low-growth area.

Switching on

L Tilt the scarifier slightly towards you so that the front wheel are above the ground.
G Push the safety button ① and keep it depressed.
G Next, pull the switch lever ② toward the handle hoop.
The scarifier starts and the scarifier drum can rotate freely.
Now release the safety button.

Switching off

When you release the switch lever it returns automatically to its original position.

Motor protection

The motor is equipped with a protective circuit breaker and switches off automatically in case of overloading. After a cooling-down break (approx. 15 min), the motor may be restarted.

⚠️ Release the switch lever because the device will otherwise restart immediately after it has cooled down. Risk of injury!

Setting the work depth

Before settings the work depth:

• switch off device
• wait until the drum is stationary

Adjust the working height by pushing the height adjustment switch (22) to your desired position.

Position	Work depth
	Scarifier	Lawn
1	10 mm 15 mm
2	5,0 mm 10,0 mm
3	0 mm 5 mm
4	-5 mm 0 mm
5	-10,0 mm -5 mm

① Set the work depth according to the grass and ground conditions at both running wheels.

Recommended work depths: Position
Regularly scarified soft ground; without stones 5-4
Seldom scarified mossy ground; with stones 2-3
Uncultivated very mossy; with stones 1-2

If the scarifying blades are worn, adjust lower by 1-2 levels.

Set a lower work depth when the motor is straining (motor speed drops and motor noise changes).

Example: Work depth set to 4 → change to 3

Working instructions

⚠️ Before commencing work, ensure the following:

• You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!
  ■ Provide for a safe and cleaned workplace. Remove from the working area objects which might be thrown off.
  ■ Before starting your work make sure that: — the tools and bolts are not worn or damaged. To avoid any unbalance worn or damaged tools and bolts must only be replaced as a whole set.
• drum and blades are in proper condition (see "blade replacement")
  – all screw connections are tight
  — no other persons or animals stay within the working area,
  — you can always step back without any barriers,
  — you have always a secure standing position.

Always keep your hands and feet at a safe distance to the rotating tool.

Vibration

⚠️ If persons who have blood circulation problems are too often exposed to vibrations damages to the nervous system or to blood vessels may occur.

You can reduce vibrations

• by thick and warm working gloves,
• shorter working time (have longer breaks).

See a doctor if your fingers swell, you don't feel well or your fingers become numb.

Working with the scarifier

Scarifying

Using the scarifier drum, the device can be used as scarifier aerator to remove mats and mosses in the lawn and to cut through wild growth with low roots.

To enable the growth of a healthy lawn in spring, the absorption of water, air and nutrients in the root area needs to be increased. We recommend scarifying the lawn in spring and autumn.

To achieve good results and to extent the life of the scarifier drum, the lawn should be mowed before scarifying (shorter than 4 cm).

Do not scarify when the lawn has been freshly sown or when it is wet or too dry.

• Place the scarifier at the edge of the lawn near the receptacle.
• K Move the cable after each turn to the opposite already scarified side.
• Select the work depths according to the condition of the lawn (see "Setting the work depth").
  • Make sure not to place excessive strain on the scarifier.

In case of excessive strain, the motor speed drops and the motor noise changes.

→ Stop and release the switch lever
→ Wait until the scarifier drum stands still
→ Set a lower work depth

- K Move the scarifier at an appropriate uniform speed in straight lines across the lawn. ①

The lawn surface will be damaged if you let the scarifier run too long at one spot.

• K In case of uncultivated very mossy lawn ②, move once more across to the rows setting the work depth then to a higher position (e.g. from 4 to 3)
• 0 When working on slopes, always position yourself perpendi-cular to the incline and ensure safe footing. Do not scarify on steep slopes.
• Empty the grass catching bag when it is full to prevent the blades from being blocked and subsequently the motor from being overloaded.
• Mow the lawn once more after scarifying.
• Reseed blank spots that may have developed after scarifying.
• Fertilize the lawn only after fresh grass seeds have put down roots.

⚠ In any case, adhere to all safety notes (see "Safe working").

Working with the lawn aerator

Aerating

With the aerator drum (optional accessory, if applicable) the device can be used as lawn aerator to remove grass and moss as well as cutting through wild growth with low roots.

To enable the growth of a healthy lawn in spring, the absorption of water, air and nutrients in the root area needs to be increased. We recommend aerating the lawn, depending on the condition, every 6–8 weeks.

To achieve good results and to extent the life of the aerator drum, the lawn should be mowed before aerating (approx. 2 cm).

• Install the aerator drum (see "Assembly")
- Fight the moss with a commercially available agent before aerating.
• Proceed as described under "Scarifying".

Maintenance and cleaning

Before each maintenance and cleaning work:

• switch off device
  — wait until the drum is stationary
• pull out main plug

Maintenance and cleaning activities beyond those described in this chapter may only be performed by customer service.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

To make sure that the device is in a safe condition regularly check the device for apparent defects such as

• loose fastening elements (nuts, bolts, screws),
  – catching bag for wear or damaged parts,
• worn or damaged components.

Maintenance

Blade replacement

Wear protective gloves when working with the blades. Risk of injury!

Worn blades reduce the performance of the device and put excessive strain on the motor. Therefore check the condition of the blades before each use. If necessary, have the blades sharpened by an expert or replaced by new ones.

The blades can be turned. To turn the blades, proceed as follows:

Remove the cylinder head screws (34) on the bearing holder (33) using the supplied installation wrench (42).
Remove the scarifier drum (29).
Remove the hexagon nut (b) and remove the cover (c), flange (d), blades (30) and the spacer rings (e) from the axle.
Turn the blades or insert new ones and install the drum again in the opposite sequence.
Replace worn or damaged blades only as a set to avoid imbalances!
Retighten the hexagonal nut and place the drum in the device.

Cleaning

i Clean the device carefully after each use to ensure faultless function to be maintained.

Wear protective gloves when working with the blades. Risk of injury!

• Clean the device immediately after finishing the work.
  ■ Empty and clean the grass catching bag if necessary.
• Clean the bottom of the device and the scarifier or aerator drum.
• Clean the housing, especially the vent slots, from grass and dirt stuck to it.
  ■ Remove the dirt with a cloth or brush.
• Do not clean the machine with running water or high-pressure cleaners.
• Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage the synthetic parts.

Transport

Pull the mains plug prior to transport.

The drum can be damaged during transport, e.g. on hard ground, even when the motor is switched off. Therefore set the work depth of the drum to position 1 during transport.

Storage

Pull out main plug.

■ Store unused equipment in a dry, locked place out of the reach of children.
■ In case of extended storage (e.g. during winter) ensure that the device is protected against frost and corrosion.
■ Before extended storage, please observe the following to increase the service life of the device and to ensure smooth operation:
— thoroughly clean the device
- Treat metal parts after each use against corrosion using an environmentally friendly biologically degradable spray oil.

Never use any grease!

J To facilitate space-saving storage of the device, you can fold down the handle hoop. For this, loosen the star grips (6) so that the handle hoop (1) and the connecting bars can be swung in.

Possible faults

Before each fault clearance

• switch off device
• wait until the drum is stationary
• pull out main plug

After each fault clearance, put into operation and recheck all security installations.

Fault Possible cause Remedy
Device doesn't start	no power	Check power supply, power socket and fuse protection
	Extension cable defect	Check extension cable, exchange defect cable immediately
	Main plug, motor or switch defect	Have motor or switch checked by an approved electrician or replaced by original spare parts
	Protective motor switch has tripped	Work depth too deep reduce work depthDrum blocked remove the blockageGrass too long mow the grassAllow the motor to cool down approx. 15 minutes before continuing to work
	Incorrect start-up	Use the correct start-up procedure.
The device operates with interruptions	Extension cable defect	Check extension cable, exchange defect cable immediately
	Internal fault.	Please contact the after sales service.
	ON/OFF button defective.	Please contact the after sales service.
Unusual sounds	Drum is blocked	Remove the blockage
	Toothed belt slips	Please contact the after sales service.
	Loose screws, nuts or other fasteners	Tighten all parts; contact customer service if the noises continue to occur.
Unusual vibrations	Cutting blade damaged or dull	See “Changing blades”
	Work depths too deep	Set a lower work depth
	Lawn too high	Mow the lawn before thatching
Unsatisfactory verticulating result	Work depth too low	Set a greater work depth
	Dull blades	See “Changing blades”
	Discharge opening blocked	Empty the grass catching bag and remove the blockage

Guarantee

Please observe the enclosed terms of guarantee.

Technical data

Type / Model VT 40 Z Year of construction see last page
Motorrating P1			1600 W		Mains voltage / Mains frequency		[AHYB]	230 V~ / 50 Hz
Mains fuse	A		10 A inert No-load speed n 0					2700 min -1
Working width			40 cm		Work depth scarifier			-10 – 10 mm in 5 steps
Work depth lawn aerator			-5 – 15 mm in 5 steps		Grass catching bag capacity		[B37Y]	40 l
Hand-arm vibration (according to EN 1033:1995) 5.75 m/s					2
Measuring uncertainty KPA					1.5 2 m/s
Sound levels at the work-place LPA (according to 2000/14/EC)					83.5 dB (A)
Measuring uncertainty KPA					3 dB (A)
Measured sound power level LWA (according to 2000/14/EG)					93 dB (A)
Guaranteed sound power level LWA (according to 2000/14/EG)					96 dB (A)
Measuring uncertainty KWA					3 dB (A)
Safety class	[7824]	II			Protection class			P X4
Dimensions (length x bright x height)						120 cm x 63 cm x 97 cm
Weight						Approx. 15.3 kg

Description of device/ spare parts

Pos.	Denomination	Order-no.
1	Handle hoop with switch-connector combination	381632
2	Switch-plug unit (VDE)	381633
2	Switch-plug unit (CH)	381634
3	Cable strain relief	381635
4	Cable bracket	380953
5	Connecting bar	381636
6	Star grip M 6	381637
7	Screw M6 x 45	381638
8	Hoop holder LH	381639
9	Hoop holer RH	381640
10	Fixing cup cpl.	381641
11	Holder LH	381642
12	Holder RH	381643
13	Screw M 6 x 30	390162
14	Motor cover	381644
15	Motor complete 1600 W	381645
16	Bearing 6000	381646
17	Belt pulley	381647
18	Snap ring ∅ 24 mm	381610
19	Bearing 61805 Z	381611
20	Belt pulley	381648

Pos.	Denomination	Order-no.
21	Belt (18 mm)	381649
22	Height adjustment switch	381650
23	Work depth setting left complete	381651
24	Running wheel ∅ 180	381652
25	Wheel cover ∅ 30 mm	381620
27	Wheel suspension RH	381654
28	Running wheel ∅ 145 mm	381655
29	Scarifier drum complete with blades	381656
30	Blade set (22 blades)	381657
31	Aerator drum complete with springs (optional accessory, if applicable)	381658
32	Drive opening
33	Bearing holder	381659
34	Pan head screw M 5 x 35	381660
35	Housing
36	Impact guard	381661
37	Spring	380972
38	Fastening bolt 26 mm	381623
39	Fastening bolt 65 mm	380971
40	Grass catching bag (optional accessory, if applicable)	381662
41	Safety label	380975
42	Hexagon spanner	380999

Sommaire

D-59227 Ahlen - Germany

på eget ansvar, at produkt

conform directivei 2006/42/UE

Prin prezenta, noi

ATIKA GmbH

Schinkelstraße 97

59227 Ahlen – Germany

2004/108/UE, 2000/14/UE, 2011/65/UE.

Conformity assessment procedure 2000/14/UE – Appendix V

2004/108/ES, 2000/14/ES, 2011/65/ES.

Uporabljeni so bili naslednjih harmonizirani standardi:

EN 60335-1:2002+A1+A11+A12+A2+A13+A14;

Exploded view diagram of a lawn mower system with numbered components and safety warnings

Simple line drawing of stacked open books or documents (no text or symbols visible)

Close-up of dense, fibrous plant material with no visible text or symbols

D	Baujahr	HR	Godina gradnje
GB	Year of construction	I	Anno di costruzione
F	Année de construction	N	Byggeår
BC	Година на производство	NL	Bouvwjaar
CZ	Rok výroby	PL	Rok produkcji
DK	Produktionsår	RO	An de constructie
FIK	Valmistusvuosi	S	Tillverkningsår
GR	étos kataσκευης	SK	Výrobný rok
H	Gyártási év	SLG	Leto izdelave

ATIKA GmbH
