USER MANUAL RC-EX25S JVC

RC-EX25S MUTING FM MODE PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

PUSH STANDBY/ON DISPLAY CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE PRES FM MODE

PRESET MUTING VOLUME

BAND PLAY REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

CAUTION To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
Do not place any naked flame sources, such as lighted candles, on the apparatus.
When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
Do not expose this apparatus to rain, moisture, drippimg or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no

user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when

open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL,

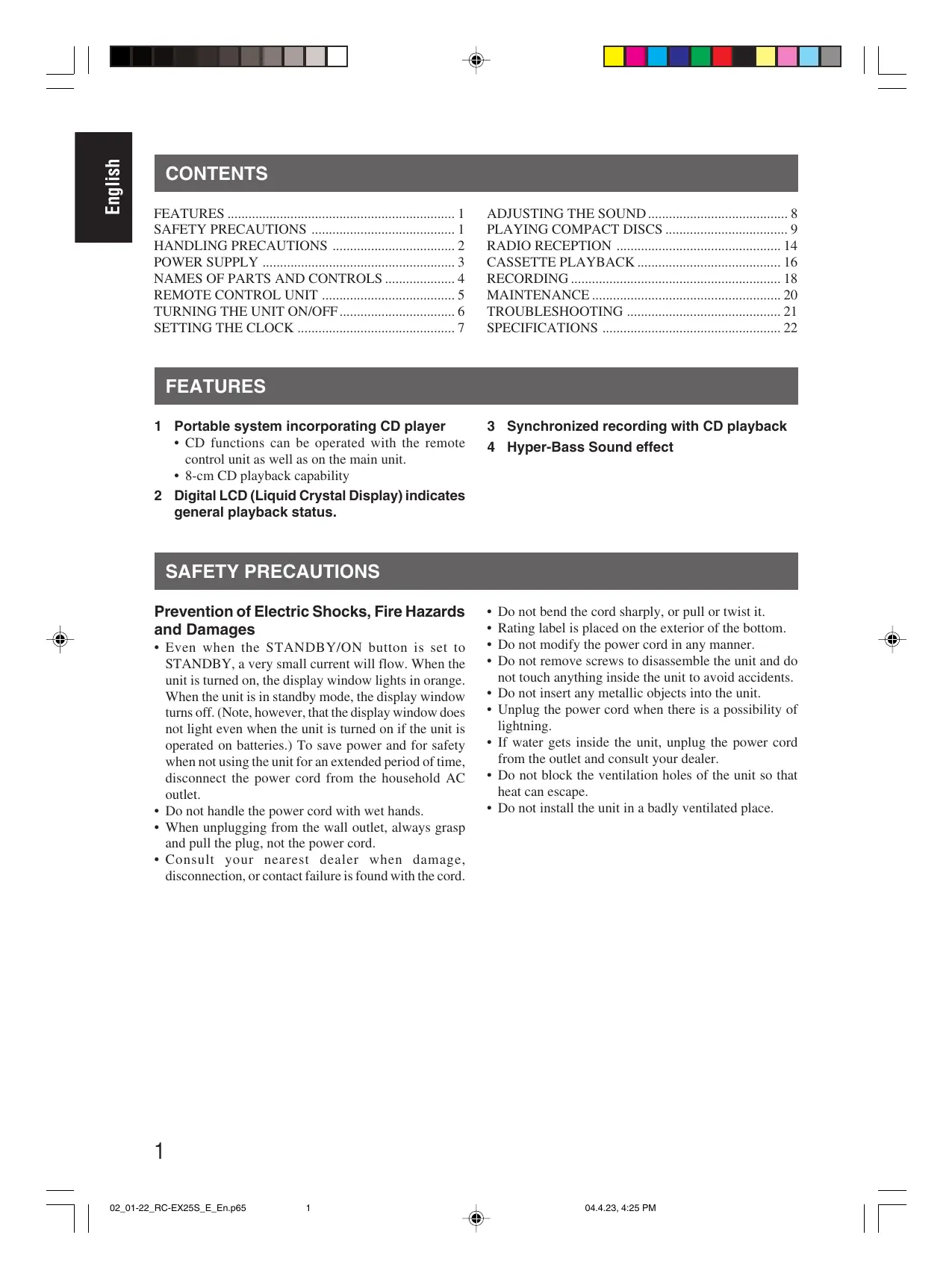

PLACED INSIDE THE UNIT. INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. VORSICHT ! FEATURES 1 Portable system incorporating CD player

CD functions can be operated with the remote control unit as well as on the main unit.
8-cm CD playback capability 2 Digital LCD (Liquid Crystal Display) indicates general playback status. 3 Synchronized recording with CD playback 4 Hyper-Bass Sound effect SAFETY PRECAUTIONS Prevention of Electric Shocks, Fire Hazards and Damages
Even when the STANDBY/ON button is set to STANDBY, a very small current will flow. When the unit is turned on, the display window lights in orange. When the unit is in standby mode, the display window turns off. (Note, however, that the display window does not light even when the unit is turned on if the unit is operated on batteries.) To save power and for safety when not using the unit for an extended period of time, disconnect the power cord from the household AC outlet.
Do not handle the power cord with wet hands.
When unplugging from the wall outlet, always grasp and pull the plug, not the power cord.
Consult your nearest dealer when damage, disconnection, or contact failure is found with the cord.

Do not bend the cord sharply, or pull or twist it. Rating label is placed on the exterior of the bottom. Do not modify the power cord in any manner. Do not remove screws to disassemble the unit and do not touch anything inside the unit to avoid accidents. Do not insert any metallic objects into the unit. Unplug the power cord when there is a possibility of lightning. If water gets inside the unit, unplug the power cord from the outlet and consult your dealer. Do not block the ventilation holes of the unit so that heat can escape. Do not install the unit in a badly ventilated place.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

Do not use this unit in direct sunlight or leave the unit in a closed automobile (or yacht, etc.) where it would be exposed to high temperatures above 40°C. 1 Avoid using the unit in the following places:

Where the temperature may become excessively high or low; the recommended temperature range is 5°C and 35°C.
Where it could be subject to vibrations.
Where it is excessively humid, such as in a bathroom.
Where it could be magnetized by a magnet or speaker. 2 Pay attention to dust. Be sure to close the disc door so that the lens is not contaminated by dust. Do not touch the lens. 3 Condensation Condensation may occur in the following cases, in which the unit may not operate correctly:
The unit is in a room where a heater has just been switched on.
The unit is in a place where there is smoke or high humidity.
The unit has just moved from a cold place to a warm room. In these cases, set the STANDBY/ON button to ON and wait one or two hours before use. 4 Volume control Compact discs produce very little noise compared with analog records. If you adjust the volume by listening to the noise as you do with analog records, the speakers could be damaged by a sudden blast of sound when playback starts. Therefore, turn down the volume before starting and adjust it as required while playing a CD. 5 Safety mechanism The unit incorporates a safety interlock mechanism which switches off the laser beam when the disc door is opened. 6 Do not place magnetic objects such as cassette tapes near the speakers. Since the speakers contain magnets inside, do not place cassette tapes or magnetic cards nearby as recorded data could be erased. 7 Keep the unit away from the TV. When the unit is used near a TV, the TV picture could be distorted. If this happens, move the unit away from the TV. If this does not correct the situation, avoid using the unit when the TV is turned on. 8 Cleaning the cabinet If the cabinet gets dirty, wipe it with a soft, dry cloth. Never use benzine or thinner as these could damage the surface finish. 9 When listening with headphones
Do not listen at high volumes as it could damage your hearing.
For safety, do not drive while listening with headphones. 10 Carrying handle Do not raise or lower the carrying handle with the telescopic antenna extended, to avoid damaging the antenna. Position the carrying handle so that it does not interfere with operation.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

English HANDLING PRECAUTIONS English POWER SUPPLY Checking batteries Operation on household AC When the tape speed or output sound level decreases, or CD playback becomes intermittent, replace all batteries with fresh ones. When making an important recording, use new batteries (preferably alkaline batteries for a longer service life) to avoid any possible failure. Connect the AC power cord. AC IN For better battery usage CAUTIONS:

Use only with the JVC power cord provided with this unit to avoid malfunction or damage to the unit. Remove batteries when using the power cord.

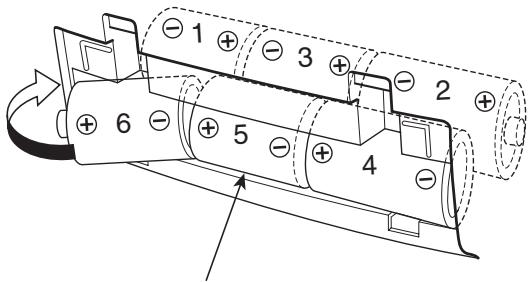

Be sure to unplug the power cord from the outlet when going out or when the unit is not in use for an extended period of time. Operation on batteries Loading batteries 1 Open the battery cover. Pull the battery cover toward you while pressing the sections marked by the arrows. 2 Insert six R20 (SUM-1)/D (13D)-size batteries. Be sure to insert the batteries with the ª and · terminals positioned correctly.

Continuous operation of the unit causes the battery power to be consumed more quickly than noncontinuous operation.
Operation of the unit in a cold place causes the battery power to be consumed more quickly than in a warm place. CAUTIONS:
When not using the unit for a long time (more than two weeks) or when using the household AC, remove the batteries to avoid a malfunction or damage to the unit.
When the JVC power cord provided with this unit is connected, the power is automatically switched from the batteries to the household AC even when the batteries are loaded. However, remove the batteries when using the power cord. CAUTIONS WHEN USING BATTERIES: When batteries are used incorrectly, it may result in the leakage of chemicals from the batteries or they may explode. The following care should be taken:
Check that the positive ª and negative · terminals of the batteries are positioned correctly and load them as shown in the figure on the left.
Do not mix new and old batteries together, or mix different types of batteries.
Do not try to recharge non-rechargeable batteries.
Remove the batteries when the unit is not to be used for an extended period of time. If chemicals from the batteries come in contact with your skin, wash them off immediately with water. If chemicals leak onto the unit, clean the unit completely. R20 (SUM-1)/D (13D)-size batteries 3 Replace the cover.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

NAMES OF PARTS AND CONTROLS

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

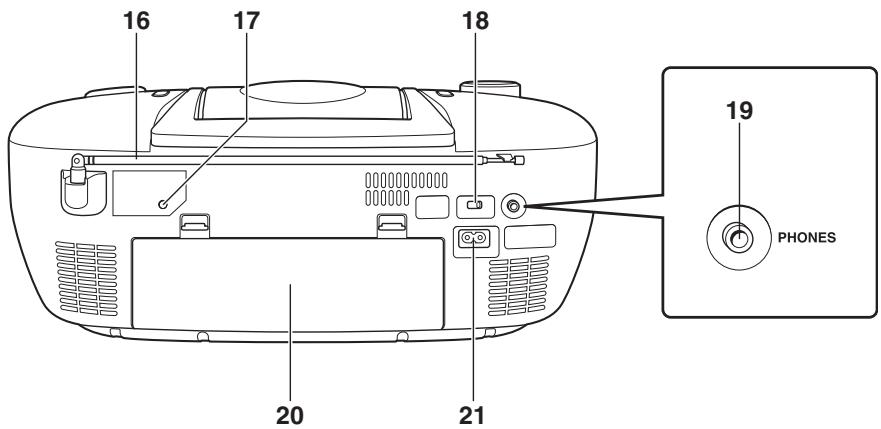

Telescopic antenna RESET button BEAT CUT switch PHONES jack Connect stereo mini headphones (3.5-mm diameters, impedance of 16 Ω to 32 Ω) to this jack. The speaker output is switched off with headphones connected.

20 Battery compartment cover 21 ÓAC IN (AC input) jack

REMOTE CONTROL UNIT

Installing batteries 3 Replace the battery cover. 1 Remove the battery cover from the back of the remote control unit. Battery replacement 2 Insert two AAA (UM-4)/R03-size batteries (supplied). Insert the batteries with the ª and · terminals matching the indication inside the battery compartment. Insert the · ends first. AAA (UM-4)/R03-size batteries The maximum operating distance between the remote control unit and the remote sensor section of the unit is approximately 7 meters. When the operating range decreases or remote control operation becomes unstable, replace the batteries with new ones. Notes on using the remote control unit

Point the top of the remote control unit toward the remote sensor section of the unit as directly as possible. The operable distance from the main unit decreases if you point the remote control unit at an angle.
Press the buttons gently and firmly.
Do not expose the remote sensor section of the unit to strong light (direct sunlight or artificial lighting) and make sure that there are no obstacles between the remote sensor section and the remote control unit.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

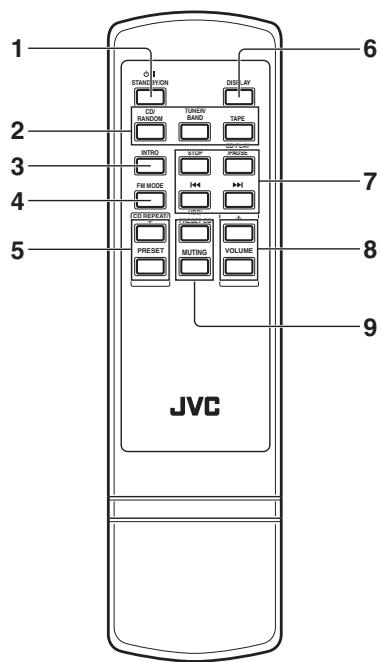

English Names of buttons STANDBY/ON

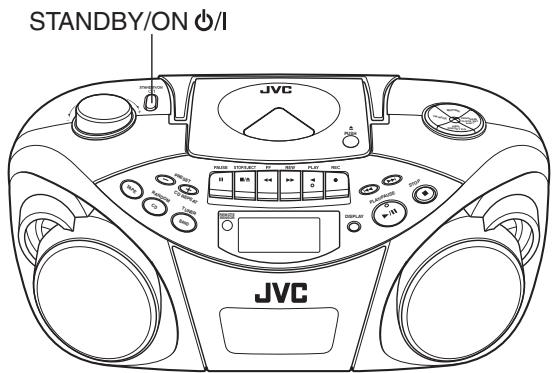

TURNING THE UNIT ON/OFF

STANDBY/ON STANDBY/ON STANDBY/ON DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

STANDBY/ON STANDBY/ON button Press the STANDBY/ON button on the unit to turn on and off the unit. You can also press the STANDBY/ON button on the remote control unit. The display window lights up when the unit is turned on. (Note, however, that the display window does not light even when the unit is turned on if the unit is operated on batteries.) The unit comes on ready to play the source selected when the unit was last turned off. Notes:

When you unplug the AC power cord or if a power failure occurs, the clock is reset to “0:00” right away, while the tuner preset stations (see page 15) will be erased in a few days. The clock indication will keep flashing until you set the clock again.
Remove the batteries when carrying the unit by hand or in the trunk of a car. This prevents the power from being accidentally turned on, thus avoiding wasteful battery consumption. To switch off the power supply completely Unplug the AC power cord from the AC outlet. If the batteries are inserted in the unit, take them out.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

SETTING THE CLOCK

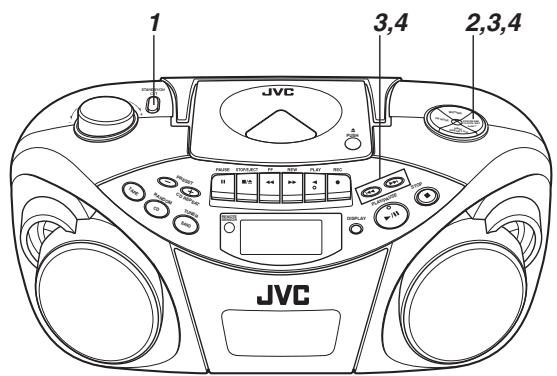

3,4 2,3,4 1 3,4 STANDBY/ON DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

Before operating the unit any further, first set the clock built in this unit. The clock uses 24-hour indication. 1 Press STANDBY/ON to turn off the unit, if it is turned on. The clock flashes on the display window. 2 Press and hold PROGRAM/CLOCK SET for more than 2 seconds. The hour digits start flashing. Note: If there is a power failure, the clock loses the setting and is reset to “0:00.” The clock indication will keep flashing until you set the clock again. To show the clock when CD or tuner is selected Press DISPLAY. Each time you press the button, the display changes the clock indication and the normal indication alternately. (Operating the unit while clock indication is displayed changes the display to the normal indication.) DISPLAY 3 Press 4 or ¢ to adjust the hour, then press PROGRAM/CLOCK SET. The minute digits start flashing. Main unit 4 Press 4 or ¢ to adjust the minutes, then press PROGRAM/CLOCK SET.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

DISPLAY Remote English PHONES (on the rear)

HBS/PRESET EQ

VOLUME VOLUME +/– STANDBY/ON DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

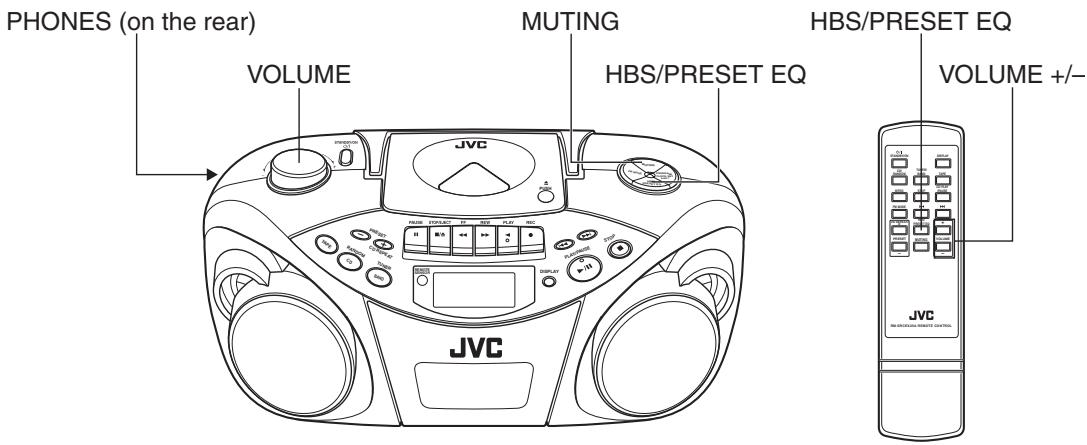

Adjusting the volume Reinforcing the bass sound Turn VOLUME clockwise to increase the volume or counterclockwise to decrease it. You can press VOLUME + or VOLUME – on the remote control unit to increase or decrease the volume respectively. You can enjoy powerful bass sound with the Hyper-Bass Sound effect. Press and hold HBS/PRESET EQ so that the HBS indicator lights up in the display window. To turn off the effect, press and hold the button again so that the HBS indicator goes off. The volume level can be adjusted in 31 steps (00 VOL to 30 VOL). Selecting the sound mode You can select one of the 5 preset sound modes. Caution: DO NOT turn off the unit with the volume set to an extremely high level; otherwise a sudden blast of sound could damage your hearing and/or the speakers and headphones, when you turn on the unit or start playing another source next time. REMEMBER you cannot adjust the volume unless the unit is turned on. Turning off the sound temporarily During playback, press MUTING. The sound is turned off and the MUTING indicator appears in the display window. To restore the sound, press MUTING again. Listening through headphones CLASSIC: Good for classical music. ROCK : Boosts low and high frequency. Good for acoustic music. POP : Good for vocal music. JAZZ : Good for jazz music. FLAT : Normal sound. To select the sound mode Press HBS/PRESET EQ repeatedly until the indicator for the sound mode you want appears in the display window. Each time you press the button, the sound mode changes as follows: CLASSIC ROCK FLAT JAZZ POP Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers anymore. Be sure to turn down the volume before connecting headphones.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

PLAYING COMPACT DISCS

Notes on compact discs

Removing the disc from its storage case and replacing it This unit has been designed only to play back the following CDs.
Recordable digital audio CD (CD-R)
Rewritable digital audio CD (CD-RW) Press the center and lift out. When playing a CD-R or CD-RW You can play back finalized CD-R or CD-RW recorded in music CD format. (If a CD-RW has been recorded in a different format, erase all the data on the CD-RW completely before recording on it.)
You can play back CD-R or CD-RW like an audio CD.
Some CD-R or CD-RW may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player lens is dirty.
The reflection factor of CD-RW is lower than that of other CDs, possibly causing CD-RW to take longer time to read.
CD-R and CD-RW of MP3 format cannot be played back. Press to secure the disc.

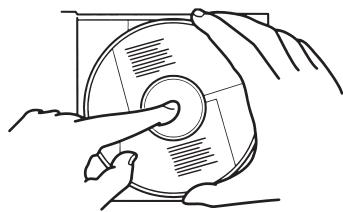

Handling Handling discs Since dirty, damaged or warped discs could damage the unit, care should be taken of the following:
Do not touch the reflective recorded surface.
Do not stick or write anything on the label side.
Do not bend discs. Incorrect
After removing a disc from the unit, be sure to put it back in its case.
Do not expose discs to direct sunlight, high temperatures from a heater, etc., high humidity or dust. Correct Cleaning discs Before loading a disc, wipe off any dust, dirt or fingerprints with a soft, dry cloth. Discs should be cleaned by wiping radially, from the center to edge. Never use thinner, benzine, record cleaner or antistatic spray. Incorrect

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

English Basic operation

DISPLAY MUTING FM MOD

CD/ RANDOM PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

1 Press CD/RANDOM to enter CD mode, if the unit is in TUNER or TAPE mode. You can press CD/RANDOM on the remote control unit to enter CD mode. 2 Press ) PUSH to open the disc door. 3 Load a disc with the label side facing up and close the disc door.

8-cm CD can be played on the unit without an adapter. 4 Press PLAY/PAUSE 3/8 to start playback. You can start playback by pressing CD PLAY/PAUSE on the remote control unit. The current track number and elapsed playing time are displayed during playback.

To stop playback Press STOP 7. You can press STOP on the remote control unit to stop playback. STOP STOP Main unit Remote Caution: Stop playback before opening the disc door. Check that the disc has completely stopped rotating before unloading the disc. To pause playback 5 Adjust the volume. Notes:

The following indication may be displayed when the disc is loaded upside down. Reload the disc correctly. Press PLAY/PAUSE 3/8 during playback. You can press CD PLAY/PAUSE on the remote control unit to pause playback. To resume playback, press the button again. PLAY/PAUSE CD PLAY /PAUSE

If mistracking occurs during playback, lower the volume.
Mistracking may occur if a strong shock is applied to the unit or if it is used in a place subject to vibrations (e.g. in a car travelling on a rough road).
If you press CD/RANDOM while in CD mode, the unit enters the random playback mode.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

English Skipping Search – locating a desired position on the disc

To skip back to the previous track During playback, press 4 once to return to the beginning of the current track, press twice to skip back to the beginning of the previous track.
To skip to the next track During playback, press ¢ to skip to the beginning of the next track. Press and hold 4 or ¢ during playback. Monitor the sound and release the button when the desired position is located. Main unit Main unit Remote Remote Repeat/Random playback

CD/RANDOM PRESET+/CD REPEAT

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

BAND STOP PLAY REMOTE SENSOR /PAU

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

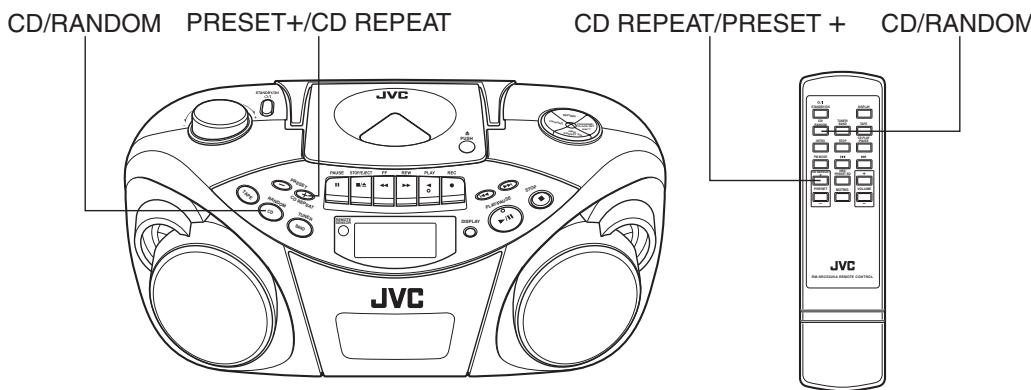

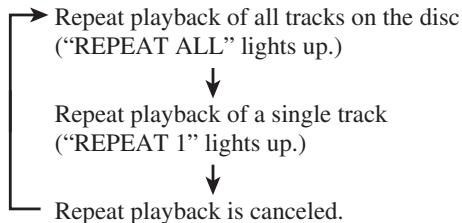

Repeat playback Random playback Press PRESET + / CD REPEAT during playback. You can press CD REPEAT / PRESET + on the remote control unit to select repeat playback. Each time you press the button, the repeat mode changes in the following order: Press CD/RANDOM in CD mode so that the RANDOM indicator lights up in the display window. You can press CD/RANDOM on the remote control unit to select random playback. Tracks are played in random order. Repeat playback of all tracks on the disc (“REPEAT ALL” lights up.) To cancel random playback, press the button again so that the RANDOM indicator goes off. Repeat playback of a single track (“REPEAT 1” lights up.) Repeat playback is canceled.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

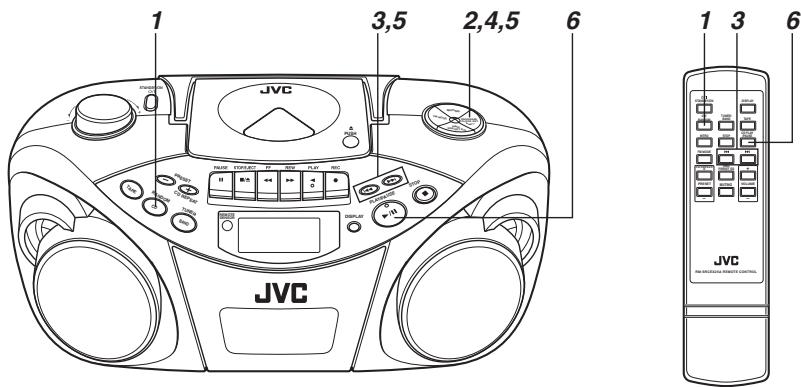

English Programmed playback Up to 20 tracks can be programmed to play in any desired order.

DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

Note: There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again. To stop during playback 1 Press CD/RANDOM to enter CD mode. You can press CD/RANDOM on the remote control unit to enter CD mode. 2 Press PROGRAM/CLOCK SET in stop mode. The PROG indicator starts blinking in the display window. To check the program contents

Press STOP 7 (or STOP on the remote control unit). The PROG indicator goes off and the unit exits from programmed playback. Before starting programmed playback, press PROGRAM/CLOCK SET. Each time you press the button, the programmed tracks are shown in the display window. To add tracks in the program 1 Press PROGRAM/CLOCK SET repeatedly so that “00” appears as the track number. 2 Press 4 or ¢ to select the track number, then press PROGRAM/CLOCK SET. PROG 3 Press 4 or ¢ to select a desired track to be programmed. To edit the program 1 Press PROGRAM/CLOCK SET repeatedly so that the program number you want to edit is shown. 2 Press 4 or ¢ to select a new track number, then press PROGRAM/CLOCK SET.

PROG Track to be programmed 4 Press PROGRAM/CLOCK SET. 5 Repeat steps 3 and 4 to program other tracks. 6 Press PLAY/PAUSE 3 /8 while the PROG indicator blinks. The tracks are played in the order you have programmed. You can press CD PLAY/PAUSE on the remote control unit to start programmed playback. Notes:

If the PROG indicator goes off before you press PLAY/ PAUSE 3/8 (or CD PLAY/PAUSE on the remote control unit), press PROGRAM/CLOCK SET, then start playback.
If you press CD/RANDOM while in CD mode, the unit enters the random playback mode. To repeat programmed playback Press PRESET + / CD REPEAT (or CD REPEAT / PRESET + on the remote control unit) after starting programmed playback. To erase the entire program in the memory Press PROGRAM/CLOCK SET so that the PROG indicator blinks, and press STOP 7 (or STOP on the remote control unit) while the PROG indicator blinks. The stored program is also cleared when the disc door is opened. Note: After you have programmed 20 tracks, the program number returns to “1.” Programming more tracks overwrite the tracks already programmed to those numbers.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

English Playing back introductions – Intro playback Every track or every programmed track of a CD can be played for the beginning 10 seconds. INTRO STANDBY/ON DISPLAY CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

Press INTRO. The INTRO indicator appears in the display window and intro playback starts. To use intro playback for programmed and random playback, press the button after starting playback. Note: If you press INTRO while playing a track over ten seconds from the beginning, the introduction of the next track begins to play. To stop during playback Press STOP 7 (or STOP on the remote control unit). The INTRO indicator goes off and the unit exits from the intro playback. To cancel intro playback without stopping Press INTRO during playback. The INTRO indicator goes off and the unit continues playback.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

English RADIO RECEPTION Tuning in a station

DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

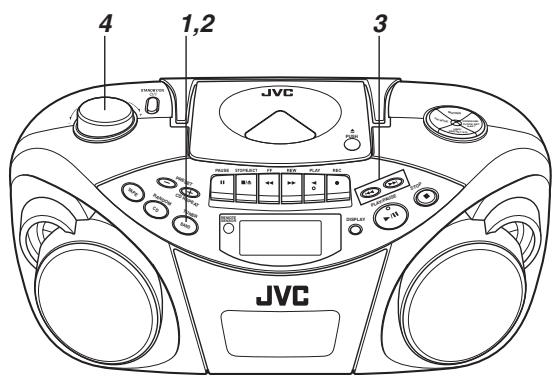

1 Press BAND/TUNER to enter the tuner mode. 2 Press BAND/TUNER to select the band, FM or AM. 3 Press and hold 4 or ¢ for more than 1 second. The unit starts searching and stops when a station of sufficient signal strength is tuned in. If you press 4 or ¢ briefly and repeatedly, the frequency changes step by step. 4 Adjust the volume. Using the antennas

Changing the FM reception mode When an FM stereo broadcast is hard to receive or noisy, reception improves in monaural reception. Press FM MODE so that the MONO indicator appears in the display window. To restore the stereo effect, press FM MODE again so that the MONO indicator goes off.

MUTING FM MODE PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

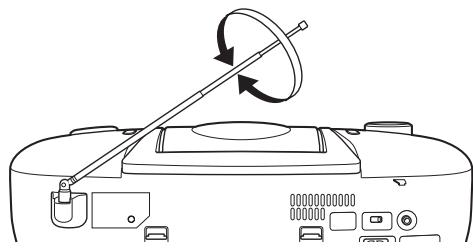

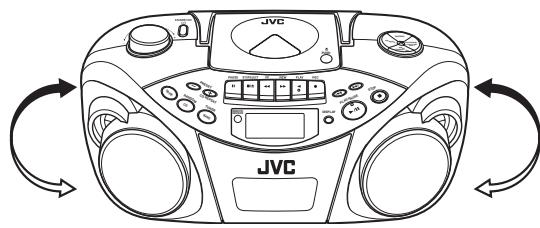

/PA DISPLAY FM MODE FM MODE Main unit Remote Note: The FM reception mode setting will be canceled when you tune in another station. Note: The built-in ferrite core antenna may pick up interference from television receivers in the neighborhood disturbing AM reception.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

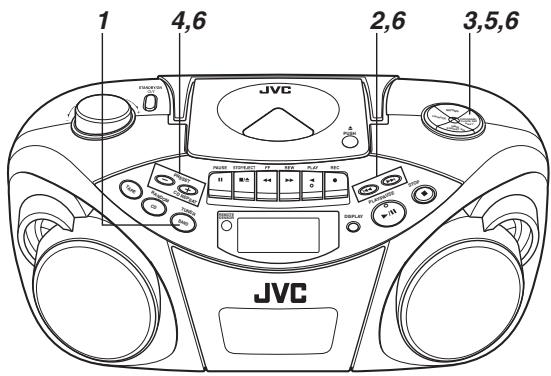

English Presetting stations You can preset 10 FM and 10 AM stations.

STANDBY/ON 2,6 DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 3 again. Note: In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method. 1 Press BAND/TUNER to select the band, FM or AM. 2 Press 4 or ¢ to tune in the station you want to preset. 3 Press PROGRAM/CLOCK SET. The PROG indicator starts blinking in the display window. TUNER PROG 5 Press PROGRAM/CLOCK SET. The tuned station in step 2 is stored in the preset number selected in step 4. Storing a new station on a used number erases the previously stored one. 6 Repeat steps 2 to 5 to preset other stations, using different preset numbers. Tuning in a preset station 1 Press BAND/TUNER to select the band, FM or AM. 2 Press PRESET + / CD REPEAT or PRESET – repeatedly until the desired preset number appears. Note: If you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

MHz 4 Press PRESET + / CD REPEAT or PRESET – to select the preset number. You can press CD REPEAT / PRESET + or PRESET – on the remote control unit to select the preset number. TUNER PROG

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

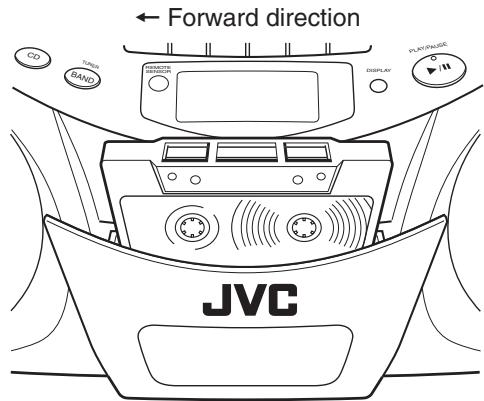

English Loading a cassette

Use only type-I normal tapes. The recording/playback characteristics of this unit are those for normal tapes, which have different characteristics from CrO2 and metal tapes.
The use of tapes longer than 120 minutes is not recommended, since characteristic deterioration may occur and these tapes easily jam in the pinch roller and the capstan.
Loose tape may cause trouble. Gently tighten the tape with a pencil as shown in the figure below. 1 Press STOP/EJECT § to open the cassette holder. 2 Load a cassette with the open side up and the playback side facing out as shown in the figure below. + Forward direction /PAUS PLAY

REMOTE SENSOR DISPLAY

Turn the pencil to take up the slack.

To prevent recordings from being accidentally erased, remove the tab(s) with a screwdriver. After the tabs have been broken off, reseal the slots with adhesive tape to erase or re-record. 3 Close the cassette holder by pressing it gently and firmly. The cassette holder clicks back into position.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:25 PM

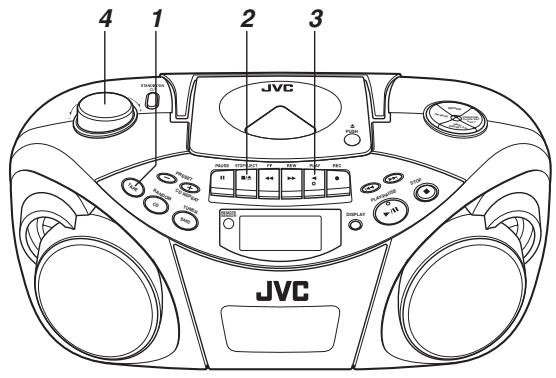

English Basic operation

DISPLAY MUTING FM MOD

CD/ RANDOM PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

1 Press TAPE to enter the tape mode. 2 Load a cassette. Use only a type-I normal tape. 3 Press PLAY 2 to start playback. 4 Adjust the volume. Fast-winding a tape Press REW ¡ or FF 1. When the tape reaches the end, press STOP/EJECT § to release REW ¡ or FF 1. To stop playback Press STOP/EJECT §. The tape also stops when it reaches the end.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

English RECORDING Basic operation

STANDBY/ON DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

/PAU PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

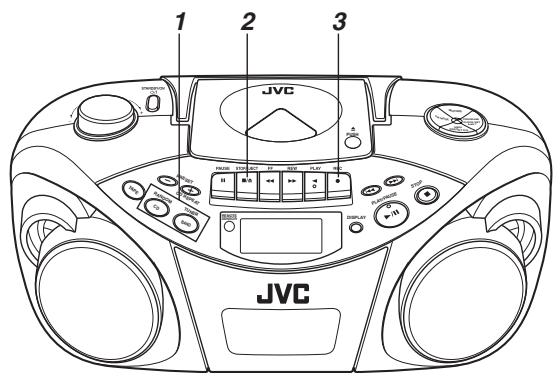

Standard recording Using the beat-cut function 1 Prepare the recording source.

When recording from the radio: Set to the tuner mode and tune in a desired station.
When recording from a CD: Set to the CD mode and load a CD. 2 Load a blank or erasable cassette. Use only a type-I normal tape. 3 Press REC ¶. PLAY 2 is also depressed, and recording starts. When recording an AM broadcast, beats may occur. If this happens, change the BEAT CUT switch on the rear of the unit to either “1” or “2” to reduce the beating sound. To stop recording Press STOP/EJECT §. The tape also stops when it reaches the end. Notes:
It should be noted that it may be unlawful to rerecord pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable program and in any literary, dramatic, musical, or artistic work embodied therein.
The recording level is automatically set correctly, so it is not affected by VOLUME. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.
If a recording you made has excessive noise or static, the unit may have been too close to a TV which was on during the recording. Either turn off the TV or increase the distance between the TV and the unit. BEAT CUT

To start recording at the exact moment 1 Press PAUSE 8 first, then press REC ¶, thus entering the record-pause (standby) mode. 2 Press PAUSE 8 to release the tape at the exact moment you want to start recording. Note: Do not leave the unit in pause mode for more than a few minutes. Instead, press STOP/EJECT § to stop the tape.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

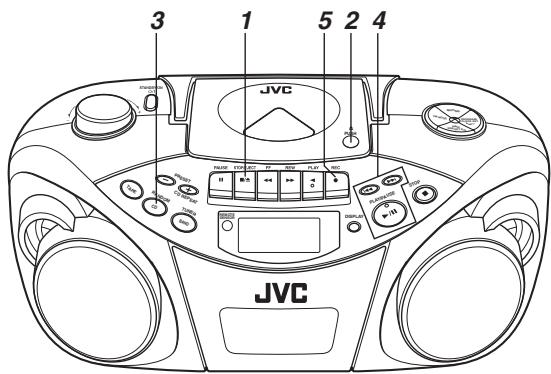

English Synchronized recording with CD playback You can make the CD player to start playback when the tape deck enters the recording mode.

STANDBY/ON DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

1 Load a cassette. Use only a type-I normal tape. 2 Load a CD. 3 Press CD/RANDOM to enter CD mode. You can press CD/RANDOM on the remote control unit to enter CD mode. 4 Specify a track or point on the disc to start recording.

To start recording from the desired track, select the track by pressing 4 or ¢ in stop mode.
To start recording from the desired point on a disc, play the disc and pause at the desired point by pressing PLAY/PAUSE 3/8 (or CD PLAY/PAUSE on the remote control unit). 5 Press REC ¶. PLAY 2 is also depressed, and synchronized recording starts. When the tape reaches the end first, the CD player enters the pause mode. Press PLAY/PAUSE 3/8 (or CD PLAY/PAUSE on the remote control unit) to continue playback, or press STOP 7 (or STOP on the remote control unit) to stop playback. When the CD player stops first, the tape continues running. In this case, press STOP/EJECT § to stop the tape.

The CD SYNC indicator appears in the display window during synchronized recording. Erasing When recording on a pre-recorded tape, the previous recording is erased and only the new recording is heard next time the tape is played back. To erase a tape without making a new recording 1 Press TAPE on the unit to enter the tape mode. 2 Press REC ¶.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

English MAINTENANCE Cleaning the heads, capstan and pinch roller Cleaning is important! When the tape is running, magnetic powder and dust naturally accumulate on the heads, capstan and pinch roller. When they become too dirty;

Sound quality deteriorates.
The sound output level drops.
The previous recording is not completely erased.

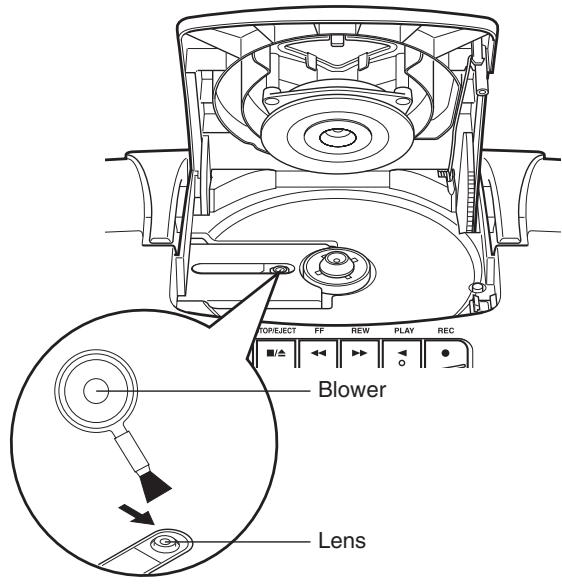

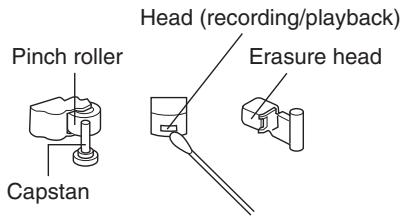

Recording is not performed satisfactorily. To avoid these, clean the heads, capstan and pinch roller every 10 hours of use. Cleaning the CD pickup lens If the CD pickup lens is dirty, the sound may be degraded. Open the disc door and clean the lens. Use a blower (available at a camera store, etc.) to blow off dust on the lens. Head (recording/playback) Pinch roller Erasure head Capstan Blower Open the cassette holder. Clean the heads, capstan and pinch roller. For effective cleaning, use a cleaning kit available at an audio store. After cleaning, make sure that the cleaning fluid has dried completely before loading a cassette. Lens Cautions:
Keep magnets and metallic objects away from the head. If the head becomes magnetized, noise will increase and the sound will deteriorate.
Demagnetize the recording/playback head every 20 to 30 hours of use with a head demagnetizer available at an audio store. When demagnetizing the head, the unit should be turned off. As the erasure head of the unit is of magnetic type, do not demagnetize it.
Do not use anything other than alcohol for cleaning. Thinner and benzine will damage the rubber pinch roller.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

English TROUBLESHOOTING

If you are having a problem with your unit, check this list for a possible solution before calling for service. Symptom

If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service. Possible cause Power cannot be turned on. The power cord is unplugged. Action Connect the power cord. When PLAY 2 is pressed, tape does not PAUSE 8 is pressed. move. Press PAUSE 8 again to release it. Playback sound is at a very low level.

Batteries are run down.

Replace the batteries with new ones.
Clean the head. REC ¶ does not function.

The safety tabs of the cassette have • Reseal the slots with adhesive tape. been broken off.
No cassette is loaded.
Load a cassette. The disc is loaded but does not play.

The disc is upside down.

No sound from the speakers. The disc is dirty. The disc is damaged or warped. The lens is dirty. There is moisture condensation. Headphones are conneced.

Load the disc with the label side facing up.
Replace the disc with a playable one.
Turn the unit on and wait one or two hours before use. Disconnect the headphones. Since the tape speed is irregular, wow • The pinch roller or capstan is dirty. and flutter occur.
Batteries are run down.

Clean the pinch roller and capstan.
Replace the batteries with new ones. Radio reception is poor and there is The antenna is not properly adjusted. much static. Adjust the antenna correctly. Remote control is impossible.

Batteries in the remote control unit are • Replace the batteries with new ones. run down.

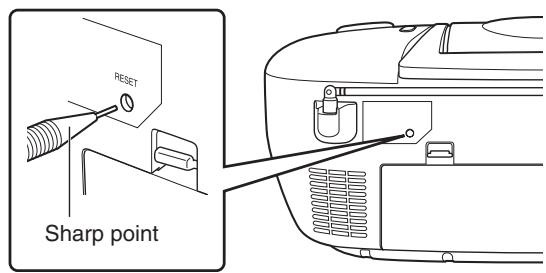

The remote sensor section is exposed • Try not to operate the unit under direct to bright light (direct sunlight, etc.) sunlight, etc. Note: When the unit is moved from a cold place of around 0˚C to a warm place, it may not operate normally, because moisture has formed inside the unit. Normal operation will be restored after waiting one or two hours. Resetting the unit If “TROUBLESHOOTING” does not eliminate malfunctioning (failure to operate or display properly, etc.), press the RESET button on the rear of the unit with something having a sharp point, while the unit is turned on. Sharp point Note: Resetting causes the unit to restore its factory default settings and results in all the settings made by the user being deleted.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

English SPECIFICATIONS CD player CD capacity Signal-to-noise ratio Dynamic range Output terminals Power supply Tuner Frequency range Antennas : FM 87.5 – 108.0 MHz AM 522 – 1 629 kHz : Telescopic antenna for FM Ferrite core antenna for AM Power consumption Dimensions Mass Cassette deck Frequency response Wow & flutter Fast wind time Speakers Speaker impedance Output power : 9 cm cone × 2 :4Ω : 4 W (2 W + 2 W) at 4 Ω (10% THD) : PHONES × 1 : AC 230 V Ó, 50 Hz

DC 9 V (R20 (SUM-1)/D

(13D)-size batteries × 6) : 13 W (at operation) 3 W (on standby) : 420 mm × 178 mm × 250 mm (W/H/D) : Approx. 3.2 kg (without batteries) : AC power cord × 1 Remote control unit × 1 Batteries for the remote control unit (AAA/UM-4/ R03) × 2 Design and specifications are subject to change without notice.

02_01-22_RC-EX25S_E_En.p65

04.4.23, 4:26 PM

Deutsch MUTING FM MO

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

STANDBY/ON STANDBY/ON -Taste (Bereitschaft) MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" Deutsch HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME Deutsch

AM (MW) MUTING FM MODE PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

/PA DISPLAY MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET Deutsch PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

BAND PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE STOP CD PLAY /PAUSE

INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME Deutsch

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

/PAU PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

Standardaufnahme MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET Deutsch PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

REMOTE SENSOR DISPLAY Français BAN

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

STANDBY/ON MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY Français

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

/PA DISPLAY FM MODE FM MODE Unité principale Télécommande MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE STOP CD PLAY /PAUSE

INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

/PAU PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE STOP CD PLAY /PAUSE

BAND STOP /PAU PLAY REMOTE SENSOR

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

Herhaalde weergave Willekeurige weergave MUTING FM MOD

RM-SRCEX25A REMOTE CONTROL

Pilas R20 (SUM-1)/D (13D) MUTING FM MO

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

STANDBY/ON MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET TUNER/ BAND TAPE STOP CD PLAY /PAUSE

PUSH INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

/PA DISPLAY FM MODE FM MODE Unidad principal MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

BAND PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE STOP CD PLAY /PAUSE

INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

/PAU PLAY REMOTE SENSOR CD REPEAT/

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

BAND STOP PLAY REMOTE SENSOR /PAU

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PUSH FM MODE CD REPEAT/

PRESET MUTING VOLUME

BAND REMOTE SENSOR DISPLAY

RM-SRCEX25A REMOTE CONTROL

MUTING FM MODE PROGRAM/ CLOCK SET Add"/" HBS/ PRESET

/PA DISPLAY Italiano MUTING FM MOD

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

BAND PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE STOP CD PLAY /PAUSE

INTRO FM MODE CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

/PAU PLAY REMOTE SENSOR CD REPEAT/

PRESET MUTING VOLUME

RM-SRCEX25A REMOTE CONTROL

PROGRAM/ CLOCK SET Add"/" HBS/ PRESET PUSH CD/ RANDOM TUNER/ BAND TAPE INTRO STOP CD PLAY /PAUSE

PRESET MUTING VOLUME
