USER MANUAL DHD345XP1 DE DIETRICH

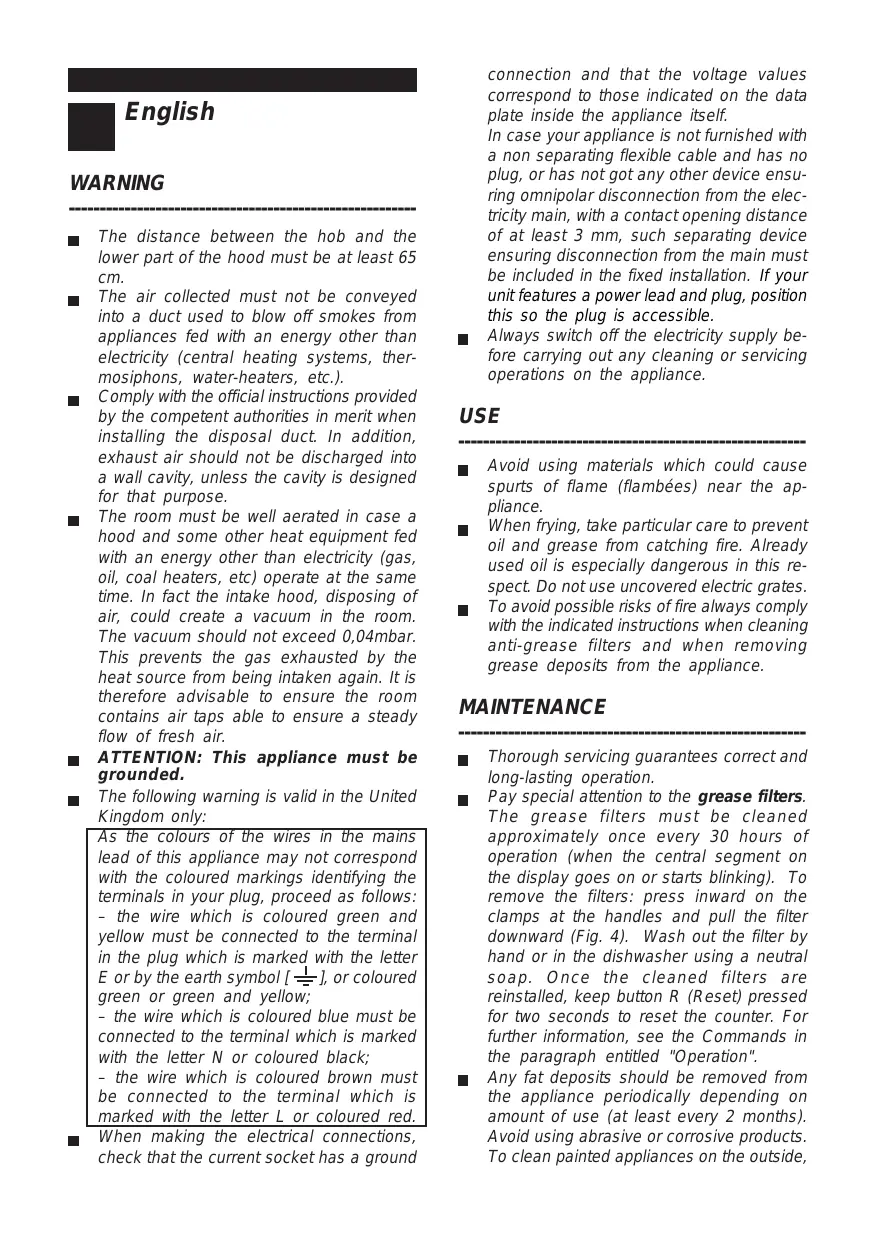

The distance between the hob and the lower part of the hood must be at least 65 cm.
The air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosphons, water-heaters, etc.).
Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.
The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time. In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.
ATTENTION: This appliance must be grounded.
The following warning is valid in the United Kingdom only:

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: - the wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol [1] or coloured green or green and yellow; - the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black; - the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When making the electrical connections, check that the current socket has a ground

connection and that the voltage values correspond to those indicated on the data plate inside the appliance itself.

In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm such separating device ensuring disconnection from the main must be included in the fixed installation. If your unit features a power lead and plug, position this so the plug is accessible.

Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.

USE

Avoid using materials which could cause spurts of flame (flambées) near the appliance.
When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.
To avoid possible risks of fire always comply with the indicated instructions when cleaning anti-grease filters and when removing grease deposits from the appliance.

MAINTENANCE

Thorough servicing guarantees correct and long-lasting operation.
Pay special attention to the grease filters. The grease filters must be cleaned approximately once every 30 hours of operation (when the central segment on the display goes on or starts blinking). To remove the filters: press inward on the clamps at the handles and pull the filter downward (Fig. 4). Wash out the filter by hand or in the dishwasher using a neutral soap. Once the cleaned filters are reinstalled, keep button R (Reset) pressed for two seconds to reset the counter. For further information, see the Commands in the paragraph entitled "Operation".
Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abrasive or corrosive products. To clean painted appliances on the outside,

use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

DESCRIPTION

This apparatus includes a hood, a hanging telescopic structure and a telescopic flue that must be set on top of the hood to cover the air evacuation pipe.

The appliance can be a filtering version one, a ducting version one or with an external motor.

In the Filtering version the air and the kitchen fumes that are conveyed by the apparatus are depurated by the charcoal filter and put back into the room through the small grilles of the ventilation flue (Fig. 1). ATTENTION: When using the filtering version, a charcoal filter and an air baffle (Fig. 1A) must be used, which placed at the top of the structure, allows the air to recycle back into the room.

In the Ducting version, cooking vapours and odours are conveyed straight outside by a disposal duct which passes through the ceiling (Fig. 2).

In the version with an External motor (Fig.3), the appliance must be connected to an ducting apparatus/motor which works on its own using the appliance as a union for the air to be scavenged. Use only motors proposed in the original catalogue.

In the Ducting version and in the version with an External motor, to get optimal conditions the air venting pipe should:

• be as short as possible.
  have the lowest number of bends (max bend angle: 90^
• be made of material approved by local authorities (according to the State).
  have its inner side as regular and smooth as possible.

It is moreover recommended to avoid drastic changes of pipe cross section (recommended diameter: 150~mm ).

INSTALLATION

ATTENTION: Two persons are required for proper installation; the unit should be installed by a qualified operator.

Also follow carefully each step of the assembly instructions, and once installation has been completed, make sure that the hood is firmly secured in place.

To facilitate installation, before starting remove the anti-grease filters: press inward on the clamp at the handle and pull the filter downward (Fig. 4).

For assembling it is essential to:

• prepare the connection to the mains within the telescopic structure.
• prepare the air venting hole if your appliance is to be installed in the ducting version or in the version with an external motor.

ASSEMBLING

Using the special drilling template, drill the holes for fixing to the ceiling on the vertical side of your hob. Carefully observe all the indications for final positioning of the apparatus. Take into account that one of the template axes must correspond to the axis of the hood controls.

Fix the bracket to the ceiling using the screws and screw anchors provided (Fig. 5). Be careful, because the position of the bracket determines the final position of the apparatus: the side with the slot B corresponds to the control side.

Ducting version and version with an external motor:

Fix the telescopic structure to the bracket using 4 screws (provided), running the air evacuation pipe and the electric power cable through the structure (Fig. 6).

Adjust the height of the telescopic structure by means of the four retaining screws C (Fig. 7), taking into account that the height of the hood is 130mm and that the distance between the hood and the hob must be at least 650~mm (Fig. 8).

Take the telescopic flue and with some adhesive tape fix the lower pipe to the upper pipe. Check that the slots of the upper pipe are in the lower part (Fig. 9); if not, turn around the upper pipe. Fit the telescopic flue on the telescopic structure and fix it to the bracket with two screws (provided) - Fig. 10.

Fit the hood to the telescopic structure by means of 6 screws (provided) - Fig. 11.

Through the openings D (Fig. 11) fix the air evacuation pipe to the air outlet mouth of the

hood.

Concerning the version with external motor only (Fig. 12): make the electrical connection between the hood and the external motor by means of the proper terminal board: take off the cable clamp A and the cover B of the wiring junction box; fix the connection cable of the motor onto the terminal board C; reassemble the cable clamp A and the cover B of the junction box; the other end of the cable must be fixed onto the terminal board of the external motor.

Make the electrical connection by means of the power cable.

Remove the adhesive tape and pull the lower pipe downwards, placing it gently onto the apparatus.

Installation is now complete and the anti-grease filters can be remounted.

Filtering version:

Fix the telescopic structure to the bracket using 4 screws (provided), running the electric power cable through the structure (Fig. 6).

Adjust the height of the telescopic structure by means of the four retaining screws C (Fig. 7), taking into account that the height of the hood is 130mm and that the distance between the hood and the hob must be at least 650~mm (Fig. 8).

Insert the air baffle in the structure (Fig.13).

Through the openings E (Fig. 13), fit the flange to the baffle locking it with a turning movement. Fix a flexible pipe to the flange for air evacuation (Fig. 14).

Take the telescopic flue and with some adhesive tape fix the lower pipe to the upper pipe. Check that the slots of the upper pipe are in the upper part (Fig. 15); if not, turn around the upper pipe. Fit the telescopic flue on the telescopic structure and fix it to the bracket with two screws (provided) - Fig. 10.

Fit the hood to the telescopic structure by means of 6 screws (provided) - Fig. 11.

Through the openings D, mount the flange (provided) on the air outlet mouth of the hood (Fig. 16). Then fit the air evacuation pipe to the flange.

Make the electrical connection by means of the power cable.

Remove the adhesive tape and pull the lower pipe downwards, placing it gently onto the apparatus.

Install the charcoal filters clipping the 2 filter clips into place (Fig. 17) and turn the filter upwards.

Installation is now complete and the anti-grease filters can be remounted.

Commands (Fig. 18):

Button A = turns the lights on/off

Button B = turns the TIMER on/off: press once to turn the timer on, therefore, after 5 minutes, the motor cuts out (at the same time the selected speed blinks on the display); the timer remains on if the motor speed is changed.

Display C

• indicates the selected motor speed (from 1 to 4).

• indicates Timer On when the number blinks.

• indicates Filter Alarm when the central segments is on or blinking.

Button D = makes the motor work (at the last speed selected). Pushing the button again, the speeds of the motor are sequentially selected from 1 to 4. Keeping this button pressed for about 2 seconds shuts down the motor.

Button R = resets the grease filters or carbon filters. When the filter alarm appears (i.e. when the central segment on the display goes on), the grease filters must be cleaned (30 hours of operation). When the central segment starts blinking, the grease filters must be cleaned and the carbon filters replaced (120 hours of operation). Obviously, if the hood is not a filtering model and does not have a carbon filter, clean the grease filters both when the central segment goes on and when it starts blinking. The filter alarm can be seen when the motor is off and for about 30 seconds.

To reset the hour counter, keep the button pressed for 2 seconds while the alarm can be seen.

Replacing the carbon filters

If the unit is a filtering hood, the charcoal filters must be replaced: to remove them press inward on the clamp (Fig. 17) and rotate the filter downward until the 2 tabs can be removed from the housing. The charcoal filters must be replaced whenever the central segment of the display starts blinking (i.e. every 120 hours of operation).

Lighting:

To remove the halogen lamps, turn the locknut counter-clockwise (Fig. 19). Replace with the same type of lamp.
