Product Type	Range Hood
Brand	De Dietrich
Model	DHG356XP1
Width	90 cm
Height	60-90 cm (adjustable)
Depth	50 cm
Weight	Approx. 20 kg
Power Supply	220-240 V, 50 Hz
Motor Power	250 W
Maximum Extraction Rate	600 m³/h
Noise Level (max)	55 dB
Number of Speeds	3 + Boost
Control Type	Touch controls
Lighting	LED (2 x 3 W)
Exhaust Mode	Ducting or recirculation (with carbon filter)
Grease Filter Type	Aluminum washable
Carbon Filter	Optional replaceable
Duct Diameter	150 mm
Energy Class	A
Color	Black stainless steel
Automatic Shut-Off Timer	Yes (10 min delay)
Thermal Protection	Yes
Spare Parts Available	Grease filters, carbon filters, LED bulbs, motor
Warranty	2 years (standard)

Frequently Asked Questions - DHG356XP1 DE DIETRICH

How to clean the grease filters on my De Dietrich DHG356XP1 hood?

Remove the filters by releasing the clips or handles. Wash them in warm soapy water or in the dishwasher (60°C). Let them dry completely before reinstalling. Clean every 2-3 months for optimal performance.

How do I replace the carbon filter for recirculation mode?

The carbon filter is optional for recirculation. Open the filter cover, remove the old saturated filter, and insert a new one (reference DHG356XP1-C). It should be replaced every 6-12 months depending on use.

What size ducting is required for the DHG356XP1?

The ducting diameter required is 150 mm. Use rigid or flexible ductwork compatible with this size. Ensure minimal bends for efficient air extraction.

How do I adjust the height of the chimney?

The telescopic chimney can be adjusted between 60 and 90 cm. Loosen the fixing screws, slide the upper section to the desired height, and retighten the screws securely.

Why is my hood not extracting properly?

Check if the grease filters are clogged, if the ductwork is obstructed, or if the motor is on. Also ensure the carbon filter (if used) is not saturated. Clean or replace filters as needed.

Can I use the hood without ducting?

Yes, in recirculation mode you need to install a carbon filter. The filtered air is then returned to the kitchen. This is suitable when external ducting is not possible.

How to change the LED bulb in the hood?

Turn off power. Remove the light cover (clip or screw). Pull out the defective LED module and replace with a new one of the same type (3W, G4 base). Reattach the cover.

What should I do if the touch controls stop responding?

First, disconnect the power for 5 minutes to reset the electronics. If the issue persists, check for moisture or grease on the touch surface. Clean gently with a damp cloth. Contact service if still unresponsive.

How often should I service the hood?

Clean grease filters every 2-3 months. Check and replace carbon filter every 6-12 months. Have the motor and electrical parts inspected by a professional every 2 years.

What is the noise level of the hood at different speeds?

At minimum speed: ~45 dB; medium speed: ~50 dB; maximum speed: ~55 dB; boost mode: ~58 dB. These levels ensure quiet operation in normal conditions.

USER MANUAL DHG356XP1 DE DIETRICH

The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 65 cm. If the instructions for installation for the hob specify a greater distance, this has to be taken into account.

The air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).

Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.

The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.

In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.

Check the data label inside the appliance; if the symbol (☐) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.

The following warning is valid in the United Kingdom only: in case your cable is not furnished with a plug, read the following instructions; as the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: – the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black; – the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. – terminal of a three-pin plug.

Check the data label inside the appliance; if the symbol (☐) is NOT printed, read the following: ATTENTION: This appliance must be earthed. When making the electrical connections, check that the current socket has a ground connection.

The following warning is valid in the United Kingdom only: in case your cable is not furnished with a plug, read the following instructions; as the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: – the wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol [±] , or coloured green or green and yellow; – the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black; – the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3 mm, such separating device ensuring disconnection from the main must be included in the fixed installation. If your unit features a power lead and plug, position this so the plug is accessible.

Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.

ATTENTION: This appliance must be grounded.

USE

Avoid using materials which could cause spurts of flame (flambées) near the appliance.

When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.

To avoid possible risks of fire always comply with the indicated instructions when cleaning anti-grease filters and when removing grease deposits from the appliance.

MAINTENANCE

Thorough servicing guarantees correct and long-lasting operation.

Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abrasive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

DESCRIPTION OF THE APPLIANCE

The description and characteristics shown in this document are for information only and not obligatory. Indeed, we reserve the right to carry out any modification or improvement of the quality of certain of our products without prior notice.

As with all hoods, these apparatuses can be installed in either filtering version or duction version.

In the Filtering version (Fig. 1), the air and vapours conveyed by the appliance are depurated by charcoal filter and recirculated around the room. ATTENTION: Using the hood as a filtering one it is necessary to use the charcoal filters that purifies the air sent back into the room.

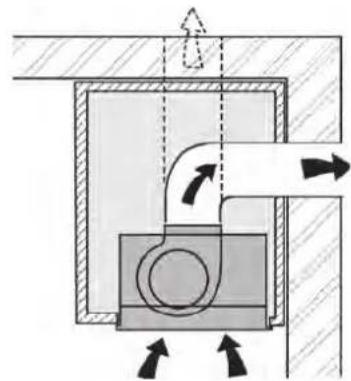

In the Ducting version (Fig. 2), cooking vapours and odours are conveyed straight outside by a disposal duct which passes through the wall/ceiling. Use of charcoal filters is therefore unnecessary.

Decide at the beginning which type of installation to adopt.

Your apparatus is supplied in the filtering version so that if you want to install the apparatus in the duction version you must remove the carbon filters.

This apparatus conforms to the 16.08.89 regulation relating to the limitation of radio-electric disturbances (EC Directive n./6.889 modified by the EC Directive 8/.308.).

Fig. 1

Cross-sectional diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Fig. 2

Cross-sectional diagram of a mechanical or hydraulic system with directional arrows indicating flow or movement (no text or labels)

INSTALLATION

It is advisable to entrust the installation operations to specialised personnel.

Installation in filtering version

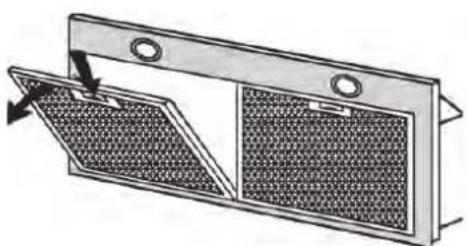

To facilitate installation, before starting remove the grease filter/s: press inward on the clamp at the handle and pull the filter downward (Fig. 3).

Fig. 3a

Diagram of a double-door air vent with mesh grating and ventilation slots (no text or symbols)

Fig. 3b

Diagram of a mesh fan or vent with a handle, showing internal structure and mounting points (no text or symbols)

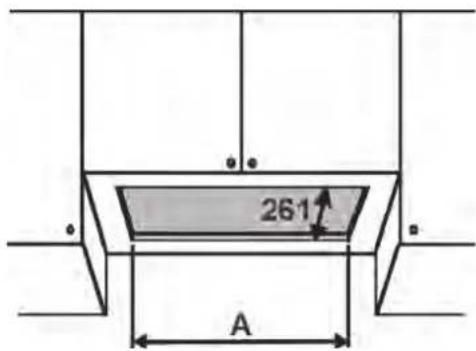

Cut a hole in the bottom of the pensile cupboard in order to settle the appliance (Fig. 4).

Install the wiring system.

Insert the appliance in the hole (Fig. 4)

Tighten the 2 screws inside the appliance (Fig. 5) until it fits snug on the bottom of the wall unit. Avoid tightening the two screws with excessive force.

To the air venting flange of the apparatus connect a proper pipe that can convey the air to the upper part of the pensile cupboard. Make the electrical connection of the hood by means of the power supply cable.

Fig. 4

Installation in ducting version

Cut a hole in the bottom of the pensile cupboard in order to settle the appliance (Fig.4).

Install the wiring system and prepare the air venting hole.

Insert the appliance in the hole (Fig. 4)

Tighten the 2 screws inside the appliance (Fig. 5) until it fits snug on the bottom of the wall unit. Avoid tightening the two screws with excessive force.

To get optimal conditions the air venting pipe should: be as short as possible, have the lowest number of bends (max bend angle: 90°), be made of material approved by local authorities (according to the State), have its inner side as regular and smooth as possible. It is moreover recommended to avoid drastic changes of pipe cross section (recommended diameter: 150 mm).

Using a proper pipe, connect the air venting flange of the apparatus to the air venting hole you made beforehand.

Make the electrical connection of the hood by means of the power supply cable.

FUNCTIONING OF THE APPARATUS

Depending on the model, the unit is equipped with the following controls:

C -II speed switch - Pressing once more the timer starts working: it will turn the motor OFF after a 10' working time: the led blinks for all this time

D -III speed switch - The timer works as for switch C

E -IV speed switch - The timer works as for switch C.

At the end of a working time of about 30 hours, all the leds blink all together to tell that the grease filters must be cleaned. After the cleaned filters are on again, press one of the three speed switches to allow the counting to start again.

DHG316XP

CONTROLS - Fig. 7:

A -Light ON/OFF switch

B -Motor ON/OFF - I speed switch

C -II speed switch

D -III speed switch

E - motor on light.

Fig. 6

Fig. 7

Technical data - DHG316XP:

• 1 Motor - power 135W
• Voltage: 230-240V single phase
• 2 halogen lamps 20W
• Supplied with 150 cm electricity supply cable with plug.
• Gross weight: Kg.8,4
• Net weight: Kg.6,9
• 1 metallic grease filter

Technical data - DHG376XP:

• 1 Motor - power 300W
• Voltage: 230-240V single phase
• 2 halogen lamps 20W
• Supplied with 150 cm electricity supply cable with plug.
• Gross weight: Kg.10,4
• Net weight: Kg.8,9
• 1 metallic grease filter

• 1 Motor - power 300W
• Voltage: 230-240V single phase
• 2 halogen lamps 20W
• Supplied with 150 cm electricity supply cable with plug.
• Gross weight: Kg.8,2
• Net weight: Kg.7,2
• 2 metallic grease filters

Technical data - DHG356XP:

• 1 Motor - power 155W
• Voltage: 230-240V single phase
• 2 halogen lamps 20W
• Supplied with 150 cm electricity supply cable with plug.
• Gross weight: Kg.8,4
• Net weight: Kg.6,9
• 1 metallic grease filter

Technical data - DHG377XP:

• 1 Motor - power 300W
• Voltage: 230-240V single phase
  -2 halogen lamps 20W
• Supplied with 150 cm electricity supply cable with plug.
• Gross weight: Kg.10,5
• Net weight: Kg.9,5
• 2 metallic grease filters

Dimensions (Fig. 8)
Fig. 8

While connecting the electricity make sure that the tension is that indicated in the technical lable.

Before proceeding to cleaning or maintenance operations remove the tension.

Connecting the electricity must be performed by a specialised technician in conformity with the regulation in force.

This apparatus is constructed so as to belong to the I insulation class and therefore needs grounding.

MAINTENANCE

REMOVE THE TENSION AT THE HOOD (PLUG or SWITCH) BEFORE ANY OPERATION-

Thorough servicing guarantees correct and long-lasting operation.

-Maintenance of the casing:

Avoid products containing abrasives when cleaning the casing.

-Maintenance of the anti-grease filters:

The anti-grease filters require regular maintenance and must be cleaned periodically every two months.

Remove the anti-grease filters in correspondence with the handle, push the stop inward and pull the filter downwards (Fig.9). Wash them with a normal neutral product in commerce, then rinse abundantly and dry. The washing can be carried out in the dishwasher making sure not to let the filters make contact with dirty or silver dishes. Remount the anti-grease filters.

Fig. 9a

Diagram of a double door with mesh pattern and directional arrows indicating movement (no text or symbols)

Fig. 9b

Diagram of a metal grate with a mesh pattern and a downward arrow indicating force or direction (no text or symbols)

-Maintenance of the carbon filters:

If you are using the filtering version apparatus, the carbon filters (Ref.: DHK306AP1) need to be changed every six months on average depending on the use made of the hood.

The anti-grease filters (Fig. 9a, 9b) need to be removed first in order to remove the carbon filters. Remove the two metal filter retainers (M) and position the charcoal filter inside the grease filter; fit the two filter retainers back on again to secure the charcoal filter (Fig.10). Change the carbon filters and remount the anti-grease filters.

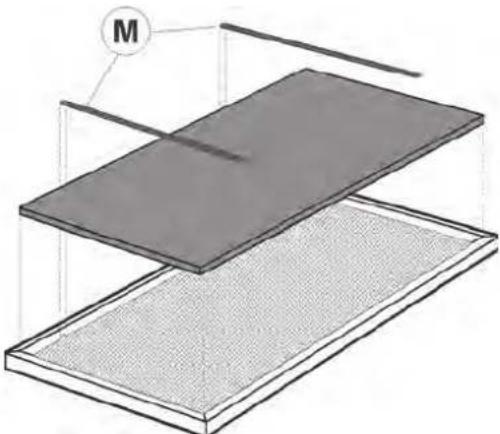

Fig. 10

3D diagram of layered material structure with labeled component M (no text or symbols beyond label)

-Changing the halogen lamps:

To change the halogen bulbs open the cover levering from the proper slots (Fig.11). Change with a lamp of the same kind. CAUTION: Do not handle glass bulb with bare hands.

Fig. 11

Technical diagram of a bathroom sink with a magnified inset showing a circular component (no text or symbols)

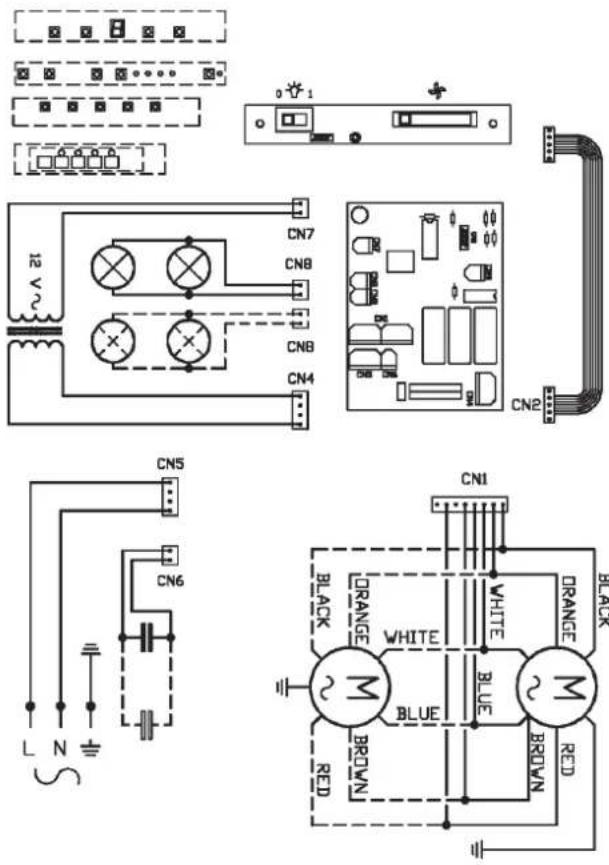

SCHÉMA ÉLECTRIQUE - WIRING DIAGRAM - ELEKTRISCHER SCHALTPLAN SCHEMA ELETTRICO - ESQUEMA ELÉCTRICO - ESQUEMA ELÉCTRICO ELEKTRISCH SCHEMA

DHG377XP

DHG386XP DHG376XP

SCHÉMA ÉLECTRIQUE - WIRING DIAGRAM - ELEKTRISCHER SCHALTPLAN SCHEMA ELETTRICO - ESQUEMA ELÉCTRICO - ESQUEMA ELÉCTRICO ELEKTRISCH SCHEMA

DHG316XP

DHG356XP
