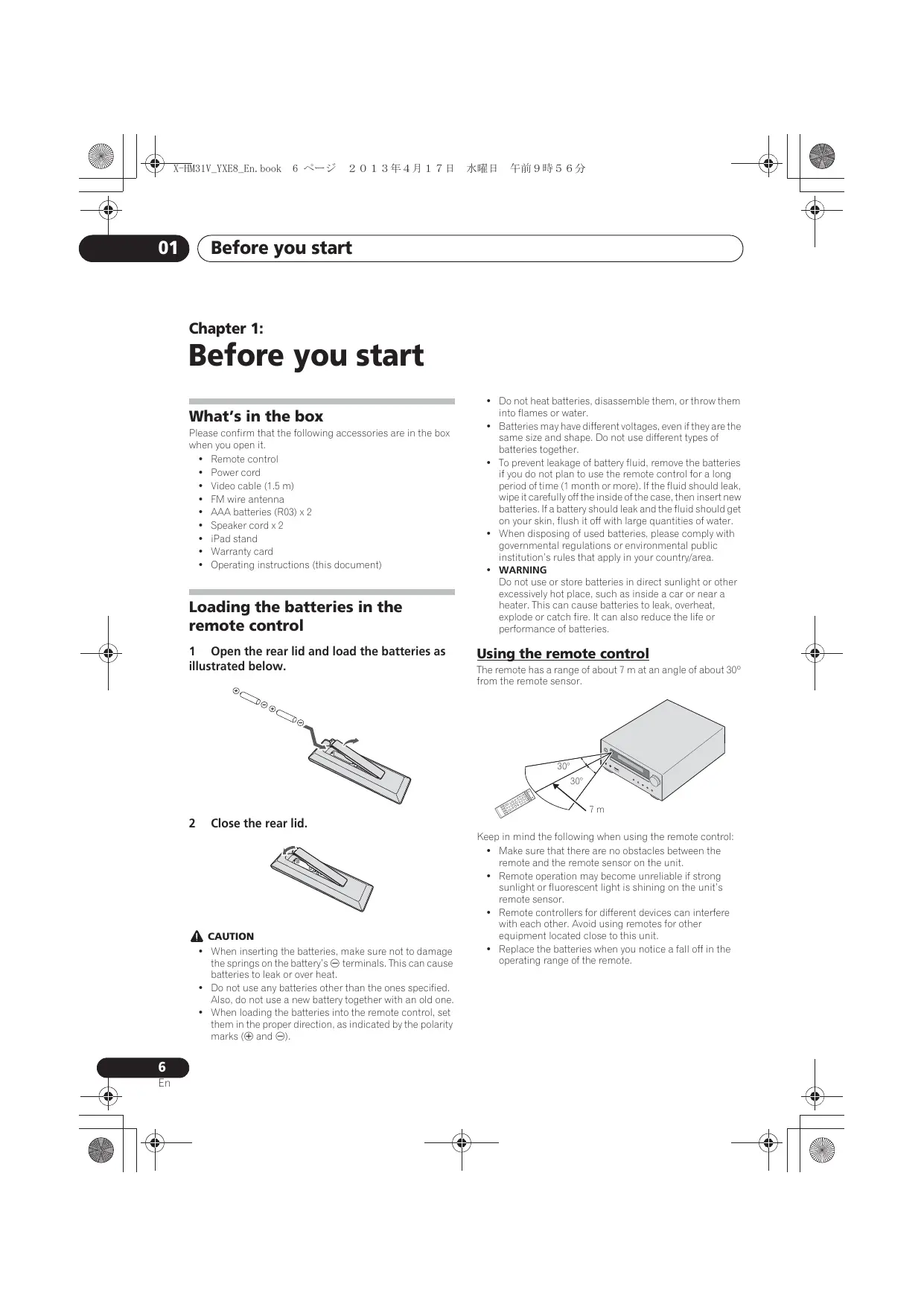

Before you start What’s in the box Please confirm that the following accessories are in the box when you open it.

• Operating instructions (this document) Loading the batteries in the remote control 1 Open the rear lid and load the batteries as illustrated below.

• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area.
• WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. Using the remote control The remote has a range of about 7 m at an angle of about 30º from the remote sensor. INPU

Close the rear lid. CAUTION

• When inserting the batteries, make sure not to damage the springs on the battery’s terminals. This can cause batteries to leak or over heat.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Part names and functions

Part names and functions

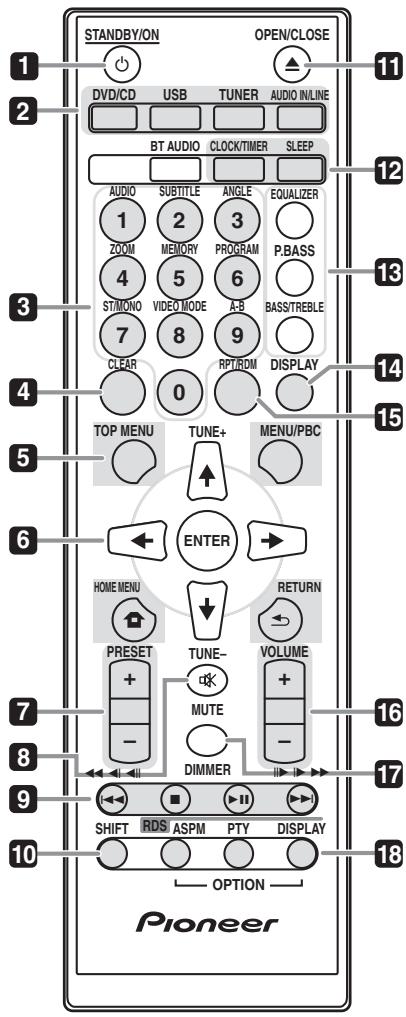

AUDIO* SLEEP For discs or files including multiple audio streams/ channels, the audio stream/channel can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available.

On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available. BASS/TREBLE

AUDIO Input function buttons Use to select the input source to this receiver (pages 19, 20, 26, 28 and 31). OPEN/CLOSE

DVD/CD 1 STANDBY/ON Switches the receiver between standby and on (page 15). STANDBY/ON

On DVD-Video discs containing multiple angles, the angle can be switched during playback.

ZOOM* Zooming on the image. For images stored in iPod/ iPhone/iPad, this button is not available.

ST/MONO* Use to switch the sound mode between stereo and monaural (page 28).

The specified section within a single title or track is played repeatedly. OPTION

CLEAR Press to clear the selected item. Use this for example if you use to clear the programmed play (page 23).

Part names and functions

• Initial Settings (page 32) RETURN Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting. Initial Settings

• Play Mode The Play Mode function may not work for some discs or files. For files stored on iPod/iPhone/iPad, this function is not available.

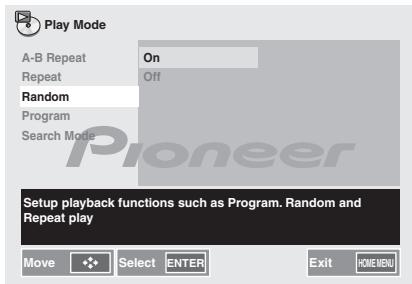

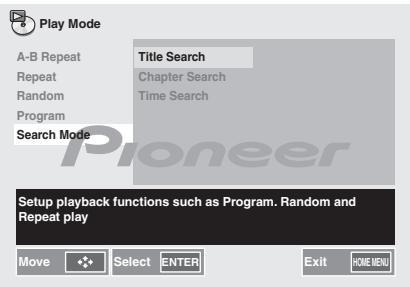

Search Mode Setup playback functions such as Program. Random and Repeat play Select ENTER Exit HOME MENU A-B Repeat (page 21) The specified section within a single title or track is played repeatedly. Repeat (page 22) Plays titles, chapters, tracks or files repeatedly. Random (page 22) Plays titles, chapters or tracks in random order. Program (page 23) Plays titles, chapters, tracks or files in the order in which you program them. Search Mode (page 24) Plays the specified number or time within the title, chapter, track or file. The Play Mode function may not work for some discs or files. For files stored in iPod/iPhone/iPad, this function is not available.

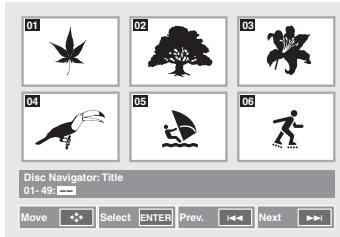

• Disc Navigator Select and plays title, chapter, track or file from the Disc Navigator.

FGHI(TUNE +/–), ENTER

Use to select/switch system settings and modes, and to confirm actions. Use TUNE +/– can be used to find radio frequencies (page 28). Playback control buttons Use to control each function after you have selected it using the input function buttons (page 20). Press to start playback. Press to stop playback. +)/• Press to return to the beginning of the currently playing track or file. Press twice to move back to the beginning of the previous track or file.

• Press and hold during playback to fast-reverse.
• Press in the pause mode to move backward frame-byframe. (DVD-Video only)
• Press and hold in the pause mode for slow play in the reverse direction. (DVD-Video only) ,*0.
• Press during playback to skip ahead to the beginning of the next track or file.
• Press and hold during playback to fast-forward.
• Press in the pause mode to move forward frame-byframe. (DVD-Video, Video CD or DivX files only)
• Press and hold in the pause mode for slow play in the forward direction. (DVD-Video, Video CD or DivX files only)

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Part names and functions 10 SHIFT Detatching and replacing the front grille The front grille of this speaker system is removable. Proceed as follows: 11 OPEN/CLOSE Use to open or close the disc tray (page 20). English Press to access the ‘blue’ commands (above the buttons) on the remote. These buttons are marked with an asterisk (*) in this section.

Play PAUSE 1 Grab the bottom of the grille, and gently pull it toward you to remove the bottom portion. 2 Next, grab the top part of the grille and gently pull it toward you to remove the top portion. Slow Backward Slow Forward Fast Backward Fast Forward Time display Subtitle Language Audio Language 3 To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place. Audio format 15 RPT/RDM Press to change the repeat play or randomize order play setting from a DVD-Video, Video CD or CD (page 21). 16 Volume control buttons Use to set the listening volume (page 15). 17 DIMMER Dims or brightens the display. The brightness can be controlled in four steps (page 15). 18 Tuner control buttons RDS ASPM Use to search for RDS Auto station program memory (page 29). RDS PTY Use to search for RDS program types (page 29). RDS DISPLAY Press to change the RDS display for information mode (page 29). Note

• The BT AUDIO button is not available for this unit.
• The OPTION buttons are not available for this unit.

Part names and functions Front panel

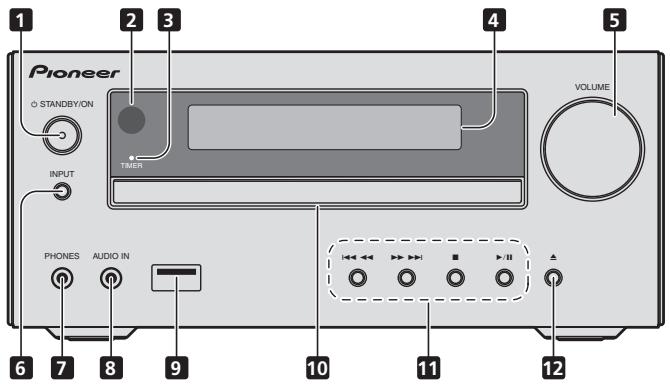

1 STANDBY/ON button Switches the receiver between standby and on (page 15).

Remote sensor Receives the signals from the remote control.

TIMER indicator Lights when the unit power is off but when the timer setting is activated.

USB terminal Use to connect your USB mass storage device or Apple iPod/ iPhone/iPad as an audio source (pages 19 and 26). 10 Disc tray Place the disc, label side up (page 20). 11 Playback control buttons Select the desired track or file to be played back. Stop current playback. Stop playback or resume playback from the point where it was paused.

Headphone socket Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 17).

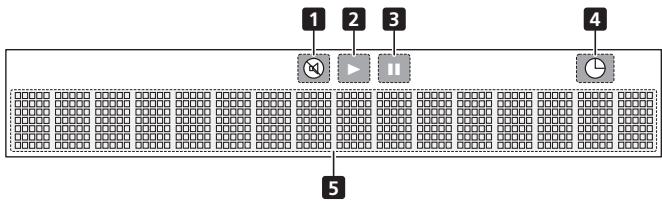

Part names and functions

Lights when the sound is muted. Note

• The mute icon will be displayed in red.

Timer function is set.

Character display Displays various system information.

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed. Speaker connection
• The provided speaker wire with the red tube is for the (+) terminal. Connect the wire with red tube the (+) terminal, and other wire to the (–) terminal. Right speaker Left speaker

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.
• These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.
• Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.
• Do not allow the speaker cable core to come into contact with the receiver body.

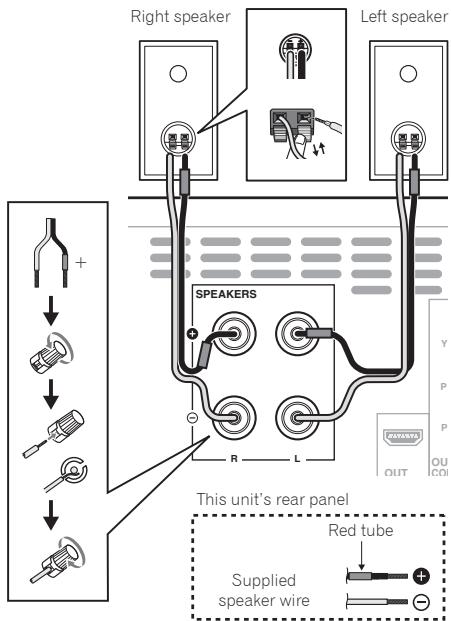

COM This unit’s rear panel Red tube Supplied speaker wire CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Do not connect any speakers other than those supplied to this system.

- If the speaker cable core comes into contact with any metal portion of the receiver’s body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily. Note

• There is no difference between L and R speakers.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

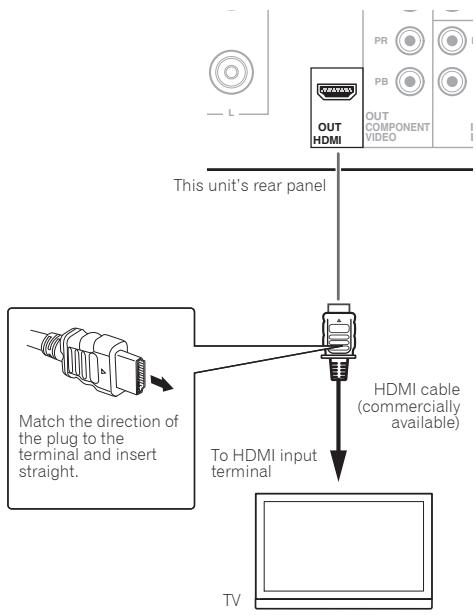

Connections By using an HDMI cable, digital signals can be transferred to an HDMI-compatible TV on a single cable with no loss of picture or sound quality. After connecting, make this unit's resolution and HDMI color settings according to the HDMIcompatible TV. Also refer to the operating instructions with the HDMI-compatible TV. The term HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

• When playing a disc or USB storage device content, this unit can transfer digital signals by the HDMI OUT terminal. Use the video cable for playing other content.
• This unit’s interface is designed based on the HighDefinition Multimedia Interface specification.
• When an HDMI-compatible device is connected, the resolution is displayed on the front panel display.
• The resolution of the video signals output from this unit’s HDMI OUT terminal is changed manually. Change the HDMI Resolution setting (page 33).
• This unit is designed for connection to HDMI-compatible devices. It may not operate properly if connected to DVI devices.

This unit’s rear panel Match the direction of the plug to the terminal and insert straight. HDMI cable (commercially available) To HDMI input terminal

Connections Audio signals that can be output from this unit’s HDMI OUT terminal

• 44.1 kHz to 96 kHz, 16-bit/ 20-bit/ 24-bit 2-channel linear PCM audio (including 2-channel downmixing)
• Dolby Digital 5.1-channel audio

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. To customers in Norway and Sweden CAUTION

• To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit. Plugging in CAUTION
• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below. Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. After you’ve finished making all connections, plug the unit into an AC outlet. AC IN

Getting started To turn the power on General control Press the 1 STANDBY/ON to turn the power on. After use: Input function Press the 1 STANDBY/ON to enter the power stand-by mode. When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function. Note

• In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode. LINE Setting the clock TOP MENU STANDBY/ON OPEN/CLOSE

DVD/CD AUDIO IN USB/iPod Display brightness control Press DIMMER to dims the display brightness. The brightness can be controlled in four steps.

Press 1 STANDBY/ON to turn the power on.

Press CLOCK/TIMER on the remote control. “CLOCK” is shown on the main display.

Press ENTER. 4 Press HI to set the day, then press ENTER. 5 Press HI to set the hour, then press ENTER. 6 Press HI to set the minute, then press ENTER to confirm. 7 Press ENTER To confirm the time display: Volume auto set-in If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30. Volume control Turn the volume knob towards VOLUME (on main unit) or press VOLUME +/– (on remote control) to increase or decrease the volume. CAUTION

• The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss. Muting The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume. Press the CLOCK/TIMER. The time display will appear for about 10 seconds. To readjust the clock: Perform “Setting the clock” from step 1. Note
• When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

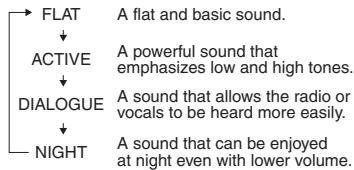

Getting started Sound controls Setting the wake-up timer Equalizer Used to change the existing timer setting, or to set a new timer. When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears. FLAT ACTIVE A flat and basic sound. A powerful sound that emphasizes low and high tones. A sound that allows the radio or DIALOGUE vocals to be heard more easily. NIGHT A sound that can be enjoyed at night even with lower volume. P.BASS control Each time the P.BASS button on the remote control is pressed, the bass frequency mode will change. Note

• P.BASS control is initially set to OFF. Bass/treble control Press the BASS/TREBLE, then press FG/HI to adjust the bass or treble. Note
• The EQUALIZER and P.BASS cannot operate simultaneously. The most recently selected of these two functions will be the one used.
• BASS/TREBLE can operate alongside either the EQUALIZER or P.BASS. When one of the above two functions is selected, the function that is not selected will be displayed as follows.

When P.BASS setting (ON/OFF) is changed

• EQUALIZER : FLAT 2 When EQUALIZER setting (ON/OFF) is changed

Press 1 STANDBY/ON to turn the power on.

Press and hold CLOCK/TIMER. 3 Press HI to select “ONCE“ or “DAILY“, then press ENTER. ONCE – Works once only at a preset time. DAILY – Works at the preset time on a preset day. 4 Press HI to select “TIMER SET“, then press ENTER. 5 Press HI to select the timer playback source, then press ENTER.

• DVD/CD, FM, USB/iPod, AUDIO IN and LINE can be selected as the playback source. 6 Press HI to select the timer day, then press ENTER. 7 Press HI to set the hour, then press ENTER. 8 Press HI to set the minute, then press ENTER.
• Set the time to finish as in steps 7 and 8 above. 9 Adjust the volume press VOLUME +/– , then press ENTER. 10 Press 1 STANDBY/ON to enter the power standby mode.
• The TIMER indicator lights up.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

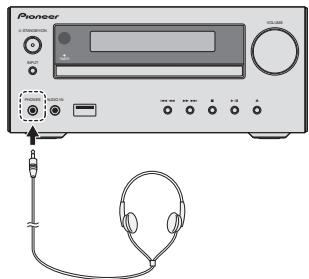

Getting started An existing timer setting can be reused. Using Headphones 1 Follow steps 1 to 3 in “Setting the wake-up timer”. Connect the headphones plug to the PHONES terminal. When the headphones are connected, there is no sound output from the speakers. 2 Press HI to select “TIMER ON“, then press ENTER. English Calling the wake-up timer

Turn off the timer setting. 1 Follow steps 1 to 3 in “Setting the wake-up timer”. 2 Press HI to select “TIMER OFF“, then press ENTER. Using the wake-up timer 1 Press 1 STANDBY/ON to turn the power off. 2 At the wake-up time, this unit will turn on automatically and play the selected input function. Note

• If at the wake-up time iPod/iPhone/iPad is not connected to this unit or a disc is not inserted, this unit will be turned to on and not play back the track.
• Some discs may not be played automatically at the wakeup time.
• When setting the timer set at least one minute between the start and end time.

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
• Before plugging in or unplugging the headphone, reduce the volume.
• Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 : and 50 :. The recommended impedance is 32 :.
• Audio from the iPod/iPhone/iPad cannot be heard via the headphones connected to the unit. “HP MUTE” will be displayed if you connect the headphones when the iPod/iPhone/iPad function is selected. Using the sleep timer The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it. 1 Press SLEEP repeatedly to select a switch off time. Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed. Note
• The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

iPod/iPhone/iPad playback

iPod/iPhone/iPad playback

• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.
• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad. Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad. This unit can not transfer music, movies and images from an iPod/iPhone/iPad via the HDMI OUT and COMPONENT VIDEO terminal. Playback setting for iPod/iPhone/iPad music can be performed from this unit or the iPod/iPhone/iPad itself. Connecting your iPod/iPhone/iPad Confirming what iPod/iPhone/iPad models are supported The iPod/iPhone/iPad playable on this unit are shown below. iPod/iPhone/iPad USB Terminal (Audio only) iPod nano (3/4/5/6/7G)

• Pioneer does not guarantee that this unit plays iPod/ iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of noncopyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.
• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.
• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ ios/eu/).

Connecting iPod/iPhone/iPad using supplied iPad stand 1 Connect the iPod/iPhone/iPad cable to the unit. 2 Pass the iPod/iPhone/iPad cable through the bottom of the stand and connect it to the iPod/ iPhone/iPad.

Set the iPod/iPhone/iPad on the stand.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

iPod/iPhone/iPad playback

Connect your iPod/iPhone/iPad.

• If an iPod/iPhone/iPad is connected while the unit is turned on, playback of the iPod/iPhone/iPad will not begin.

English Playing iPod/iPhone/iPad

Press USB as the input source. “USB/iPod” is shown on the main display. 3 When the recognition is completed, will begin playing automatically.

• The available iPod/iPhone/iPad playback control from the unit are !, + ), *,.
• In the following case, operate your iPod/iPhone/iPad directly: - Searching a file by artist name or genre. - Playing in the repeat or random mode. CAUTION
• When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts. Note
• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.
• iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)
• When input is switched from USB/iPod to another function, iPod/iPhone/iPad playback is temporarily stopped. Important If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:
• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn’t seem to work, try resetting your iPod/iPhone/ iPad.
• Check the iPod/iPhone/iPad software is supported by this unit. If the iPod/iPhone/iPad cannot be operated, check the following items:
• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit. When at iPod/iPhone/iPad connector port, HDMI OUT and COMPONENT VIDEO will have no output, and USB terminal does not support iPod, iPhone and iPad playback.

Press 1 STANDBY/ON to turn the power on. The selected input is displayed on the front panel display.

• When playing discs or files, turn the TV on and switch TV input before starting.
• You can change the screen display language of the unit (Display settings on page 33). 2 Press DVD/CD on the remote control or INPUT repeatedly on the main unit to select DVD/CD input. Please wait until you see the “NO DISC“. When a disc is already on the disc tray, press $ OPEN/CLOSE to eject the disc.

Press $ OPEN/CLOSE to open the disc tray.

Place the disc on the disc tray, label side up. CAUTION

• Do not place two discs in one disc tray.
• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.
• Do not push the disc tray whilst it is moving.
• If the power fails whilst the tray is open, wait until the power is restored.
• Be sure to place 8 cm disc in the middle of the disc tray. Note
• Due to the structure of the disc information, it takes longer to read the disc has written by many files than a normal CD (approximately 20 to 90 seconds).
• When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.
• Rewritable multi-session discs with unfinished writing, can still be played.
• If TV or radio interference occurs during DVD/CD operation, move the unit away from the TV or radio. Tip
• When no operation has done in DVD/CD mode and the audio file is not played for more than 30 minutes, the power will automatically turn off.

Press $ OPEN/CLOSE to close the disc tray.

Press ! to start playback.

STANDBY/ON OPEN/CLOSE

The HOME MENU is displayed. SLEEP EQUALIZER

MENU/PBC TUNE+ The specified section within a single title or track is played repeatedly.

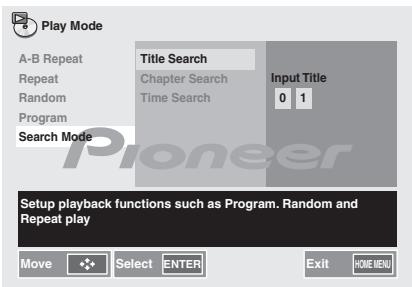

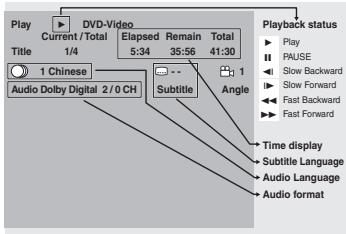

PTY DISPLAY Direct track search By using the number buttons (0 to 9), you can specify and play the title, chapter, track or file you want to view/listen to. Use the numeric buttons on the remote control to select the desired title, chapter, track or file whilst playing the selected disc. Note

• The title, chapter, track or file number higher than the number of titles, chapters, tracks or files on the disc cannot be selected.
• During random play, direct track search is not possible. Initial Settings 2 Use FG to select Play Mode, then press ENTER. The Play Mode screen is displayed. 3 Use FG to select A-B Repeat, then press ENTER or I.

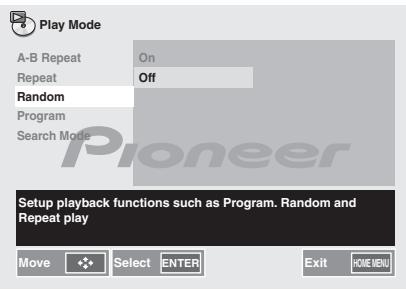

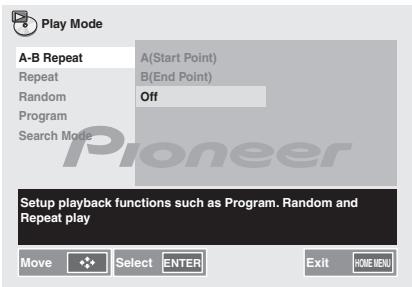

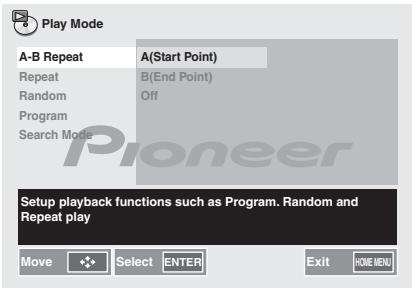

Use FG to select the A(Start Point). Play Mode To stop playback: Press #. A-B Repeat A(Start Point) Repeat B(End Point) Random Off Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

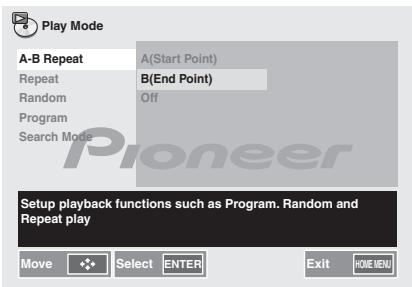

Select ENTER Exit HOME MENU Use FG to select the B(End Point). Play Mode A-B Repeat A(Start Point) Repeat B(End Point) Random Off Program Search Mode Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU

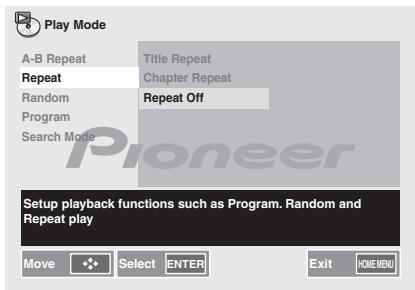

Disc playback To cancel repeat play: Note

• When A-B repeat playback starts, “A-B repeat” will be displayed on the screen.
• A-B repeat play is disabled on some discs.
• A-B repeat play for DVD is possible only within a title.
• A-B repeat play for CD is possible only within a track.
• Some scenes on DVD may not allow A-B repeat play.

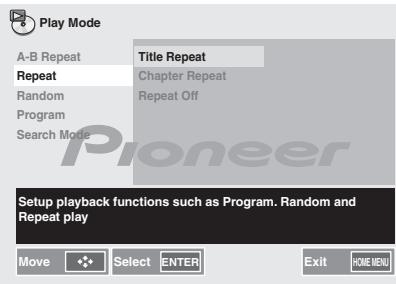

Repeat B(End Point) Random Off Title Repeat Repeat Chapter Repeat Random Repeat Off Search Mode Play Mode A(Start Point) A-B Repeat Program Use FG to select the Off. A-B Repeat Use FG to select the Repeat Off. “REPEAT OFF” is displayed on the main display. Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU Program Search Mode Random play Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU Repeat play Follow steps 1 to 2 in “A-B Repeat play”. 2 Use FG to select Random, then press ENTER or I. Use FG to select the title repeat. Repeat Chapter Repeat Random Repeat Off Play Mode A-B Repeat

Repeat Off Random Search Mode Play Mode Title Repeat Use FG to select the On. Program “REPEAT TITLE” is displayed on the main display. A-B Repeat Follow steps 1 to 2 in “A-B Repeat play”. “RANDOM ON” is displayed on the main display. 2 Use FG to select Repeat, then press ENTER or I.

Plays titles, chapters, tracks or files repeatedly.

Plays titles, chapters or tracks in random order. Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU Program Search Mode Note Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU Note

• After performing repeat play, be sure to press #. Otherwise, the disc will play continuously.
• During repeat play, random play is not possible.

• If you press the , during random play, you can move to the track selected next by the random operation. On the other hand, the + does not allow you to move to the previous track. The beginning of the track being played will be located.
• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
• During random play, repeat play is not possible.

To cancel random play: Use FG to select the Random Off. “RANDOM OFF” is displayed on the main display. Program A-B Repeat

Repeat Off Current Program Step

Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit Move Follow steps 1 to 2 in “A-B Repeat play”. 2 Use FG to select Program, then press ENTER or I. 3 Use FG to select Create/Edit, then press ENTER. The Create/Edit screen differs according to the disc or file. Play Mode Create/Edit Repeat Playback Start Random Playback Stop Program Program Delete Search Mode Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit Exit HOME MENU

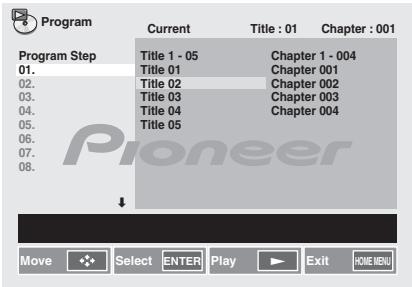

• To add to a program, first select the place in the program (the program step), next select the title, chapter or track, then press ENTER (files are added at the end of program).
• Press RETURN to return to the previous screen. If you return to the previous screen when inputting it, the settings you have programmed are cleared.
• To delete a step, highlight it and press CLEAR. You can choose up to 24 selections for playback in the order you like. A-B Repeat

Playback will start. Note

• To play a program that has already been set, select Playback Start from the program screen, then press ENTER.
• To resume normal playback, select Playback Stop from the program screen, then press ENTER. The program remains in memory.
• To cancel the entire program, select Program Delete from the program screen, then press ENTER.
• Programs can be played repeatedly. Select Program Repeat from Repeat on the Play Mode screen during programmed playback.
• Programs cannot be played in random order (random play is not possible during programmed play). HOME MENU

Disc playback Search mode About downloading MP3/WMA Plays the specified number or time within the title, chapter, track or file. There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD/DVD disc.

• Your downloaded song/files are for personal use only. Any other usage of the song without owner’s permission, is against the law.

Follow steps 1 to 2 in “A-B Repeat play”. 2 Use FG to select Search Mode, then press ENTER. 3 Use FG to select Title search, then press ENTER or I. Will be played in order from the file that is stored in the upper folder. Ex. Play Mode A-B Repeat Title Search Repeat Chapter Search Random Time Search About playback order ROOT FOLDER A (FOLDER 1) (FOLDER 2) Program FOLDER C (FOLDER 4) FILE 3 FILE 4 FILE 5 FOLDER D (FOLDER 5) FILE 6 FILE 7 FILE 8 FOLDER E (FOLDER 6) Search Mode Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU 4 Use the numeric buttons to select Input Title. Play Mode A-B Repeat Title Search Repeat Chapter Search Random Time Search Input Title

Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

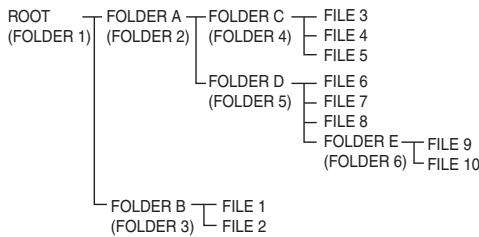

Select ENTER Exit HOME MENU FOLDER B (FOLDER 3) FILE 1 FILE 2 The file will be played in order listed above. FILE 9 FILE 10

To play by specifying a file. STANDBY/ON OPEN/CLOSE

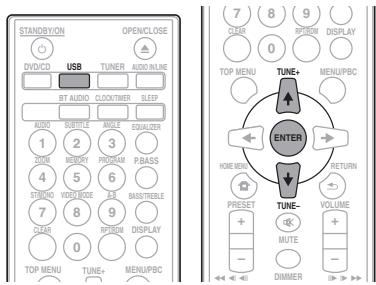

USB playback Procedure to playback DivX or MP3/ WMA/JPEG file Playing USB storage devices It is possible to listen to two-channel audio using the USB interface on the front of this receiver.

• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

To play by specifying a file. OPEN/CLOSE

AUDIO Press USB as the input source. “USB/iPod” is shown on the main display.

Connect the USB storage device.

CLEAR “GUI” appear on the main display automatically.

• This receiver does not support a USB hub.
• If an iPod/iPhone/iPad is connected to the unit, the unit will automatically begin charging it. A-B

If DivX, MP3, WMA or JPEG files are mixed in the USB storage device. USB storage device (commercially available) DivX

When the recognition is completed, press ! to start playback.

• When changing to a different input source, stop the USB memory playback first before changing. 4 Disconnect USB storage device from the USB terminal. Turn the power off before removing the USB storage device. Note
• USB flash drive that supports USB 2.0 can be used.
• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 35.
• When a USB storage device is not playing and no operations have been performed for more than 30 minutes, the unit will automatically power off.

Playing in the desired order (Programmed Play) This unit can play repeatedly folders stored in the USB storage device. For details, see Programmed play on page 23. English 00:00 / 00:00 320kbps

Using the tuner Listening to the radio broadcasts The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this. To receive an FM stereo transmission:

• Press ST/MONO to select stereo mode and “AUTO” will be displayed. Improving poor FM reception: 1 Press ST/MONO repeatedly to select MONO. This will change the tuner from stereo to mono and usually improve the reception.

STANDBY/ON OPEN/CLOSE

CLEAR EQUALIZER ENTER HOME MENU RETURN P.BASS PRESET BASS/TREBLE If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 40 stations.

TUNE+ Saving station presets VOLUME TUNE–

Tune to a station you want to memorize. See Tuning above for more on this.

Press MEMORY. The preset number will flash. 3 Press PRESET +/– to select the preset channel number. Manual tuning: 4 Press MEMORY to store that station in memory. Note

• When radio interference occurs, automatic tuning may stop automatically at that point.
• Automatic tuning will skip weak signal stations.
• To stop the automatic tuning, press #.
• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first. Finally, the station name will appear.
• Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see page 30.

BASS/TREBLE Press and hold TUNE +/–, scanning will start automatically and the tuner will stop at the first receivable broadcast station. Press the TUNE +/– repeatedly to tune in to the desired station.

CLEAR 1 Press the 1 STANDBY/ON to turn the power on.

Tuning SLEEP EQUALIZER If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.

• Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased. Note
• The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

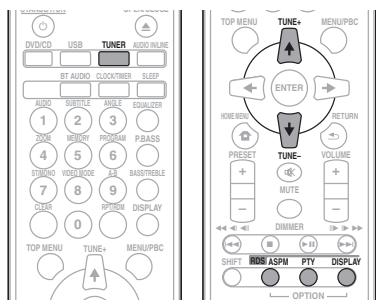

Using the tuner 1 Press PRESET +/– to select the desired station. To scan the preset stations The stations saved in the memory can be scanned automatically. (Preset memory scan)

Press and hold PRESET +/–. The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each. 2 Press PRESET +/– again when the desired station is located. To erase entire preset memory

Press TUNER on the remote control. 2 Press CLEAR until “MEMORY CLEAR” appears. Note

• All stations will be erased. You can search the following program types: News – News Current Affairs – Current Affairs Information – General Information Sport – Sport Education – Educational Drama – Radio plays, etc. Cultures – National or regional culture, theater, etc. Science – Science and technology Varied Speech – Usually talkbased material, such as quiz shows or interviews. Pop Music – Pop music Rock Music – Rock music Easy Listening – Easy listening Light Classics M – ‘Light’ classical music Serious Classics – ‘Serious’ classical music Other Music – Music not fitting above categories Weather & Metr – Weather reports Using the Radio Data System (RDS) Finance – Stock market reports, commerce, trading, etc. Children’s Progs – Programs for children Social Affairs – Social affairs Religion – Programs concerning religion Phone In – Public expressing their views by Phone Travel & Touring – Holidaytype travel rather than traffic announcements Leisure & Hobby – Leisure interests and hobbies Jazz Music – Jazz Country Music – Country music National Music – Popular music in a language other than English Oldies Music – Popular music from the ‘50s and’ 60s Folk Music – Folk music Documentary – Documentary Alarm Test – Broadcasting when testing emergency broadcast equipment or receivers. Alarm – Alarm! An introduction to RDS Searching for RDS programs Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example. One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

Press RDS PTY on the remote control. English To recall a memorised station

You can search a program type listed above. “SELECT” will appear for about 6 seconds. 3 Press HI to select the program type you want to hear. Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously. 4 Whilst the selected program type is displayed (within 6 seconds), Press RDS PTY again. After the selected program type has been lit for 2 seconds, “SEARCH” will appear, and the search operation will start. Note

• If the display has stopped flashing, start again from step

2. If the unit finds a desired program type, the

corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed.

• If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.

• If no station can be found, “NOT FOUND” will appear for 4 seconds. Information provided by RDS Each time the RDS DISPLAY is pressed, the display will switch as follows: STANDBY/ON OPEN/CLOSE

PTY DISPLAY OPTION Station name (PS) Frequency Programme type (PTY) Radio text (RT) When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order: No RDS FM 98.80 MHz Using the Auto Station Program Memory (ASPM) Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.

Press TUNER on the remote control. 2 Press and hold down RDS ASPM on the remote control. After “ASPM” has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MHz). After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then “END” will appear for 4 seconds.

To stop the ASPM operation before it is complete: Press # whilst it is scanning for stations. The stations which are already stored in memory will be kept there. Note

• If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.
• Any station which has the same frequency as the one stored in memory will not be stored.
• If 40 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
• If no station have been stored in memory, “END” will appear for about 4 seconds.
• If the RDS signals are very weak, station names may not be stored in memory.
• The same station name can be stored in different channels.
• In a certain area or during certain time periods, the station names may temporarily be different. Notes for RDS operation If any of the following events occur, it does not mean that the unit is faulty:
• “PS”, “NO PS” and a station name appear alternately, and properly.
• If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
• When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
• “NO PS”, “NO PTY” or “NO RT” will flash for about 5 seconds, and then the frequency will be displayed. Notes for radio text:
• The first 16 characters of the radio text will appear and then they will scroll across the display.
• If you tune in to an RDS station which is not broadcasting any radio text, “NO RT” will be displayed when you switch to the radio text position.
• Whilst radio text data is received or when the text contents change, “RT” will be displayed.

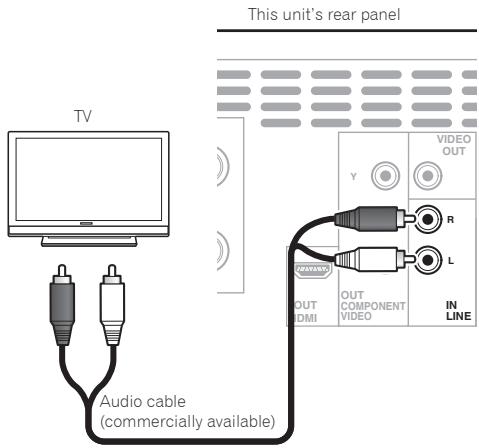

Other connections CAUTION

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. Connecting auxiliary components Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.

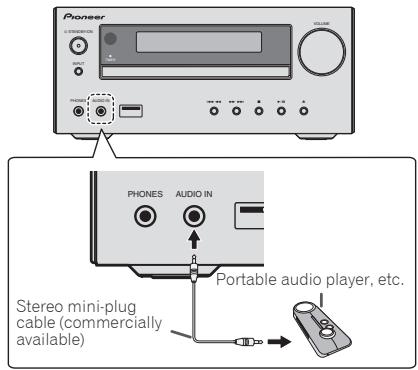

• This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of the USB terminal. Connect the rear panel LINE IN audio jacks to your auxiliary playback component. English

1 Press AUDIO IN/LINE twice as the input source. When LINE is selected, “LINE” will be displayed on the main display. Press AUDIO IN/LINE as the input source. When AUDIO IN is selected, “AUDIO IN” will be displayed on the main display. Note

• If the AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

Changing the settings

Changing the settings Settings for DVD/CD and USB playback

Press HOME MENU. HOME MENU screen appears.

• Closing the HOME MENU screen. Press HOME MENU. The factory default settings are indicated in italic. Important
• The following settings are available for a disc or USB storage device content. They are not available for iPod/iPhone/iPad, tuner, external input (AUDIO IN/LINE).
• In the USB/iPod mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen. Audio Settings parameters Settings Audio DRC (High/Medium/Low/Off) What it does
• This makes loud sounds weaker and weak sounds louder. Change the setting for example when watching movies late at night.
• This setting only affects Dolby Digital sound.
• The effect depends on the volume of the connected TV, AV receiver or amplifier, speakers, etc. Try different settings, and choose the one providing the strongest effect. Video Adjust parameters Settings What it does Sharpness (Fine/Standard/Soft) Adjusts the picture’s sharpness. Brightness (-20 to +20) Adjusts the picture’s brightness. Contrast (-16 to +16) Adjusts the ratio of the brightness of the brightest and darkest portions of the picture. Gamma (-3 to +3) Adjusts the look of the dark portions of the picture. Hue (green 9 to red 9) Adjusts the balance between green and red. Chroma Level (-9 to +9) Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons. Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0 upon purchase. Initial Settings parameters
• Use these settings to make detailed unit settings.
• Initial Settings cannot be selected during playback. Stop the disc first.

Changing the settings

Digital Audio Out settings What it does HDMI Out Select the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)/Auto/Off ) according to the connected HDMI-compatible device. English Settings Video Output settings Settings What it does TV Screen Change the picture display format (4:3 (Letter Box)/4:3 (Pan & Scan)/16:9 (Wide)/16:9 (Compressed)), according to the connected TV. HDMI Resolution Change the resolution of the video signals output from the HDMI OUT terminals (720x576i/720x576p/ 1280x720p/1920x1080i/1920x1080p). If the image does not appear correctly after changing the setting, return the setting to “720x576p.” Refer to Setting the HDMI Resolution settings back to their defaults below. HDMI Color Change the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component). Language settings Settings What it does Audio Language Change the language when listening to the sound of DVD-Video discs (English/available languages/ Other Language). Subtitle Language Change the language of the subtitles displayed for DVD-Video discs (English/available languages/ Other Language). DVD Menu Lang. Change the language used for the menu displays of DVD-Video discs (w/ Subtitle Lang./available languages/Other Language). Subtitle Display Select whether to display subtitles (On) or not (Off).

• If the above setting is used to select “Other Language,” perform operations while referring to Language Code Table on page 37. Display settings Settings What it does OSD Language Change the language of the operation messages (Play, Stop, etc.) displayed on the TV screen (English/ available languages). Angle Indicator Select whether to display the angle mark on the TV screen (On) or not (Off). On Screen Display Select whether to display operation messages (Play, Stop, etc.) on the TV screen (On) or not (Off). Options settings Settings What it does Parental Lock Restrict DVD-Video viewing (Password/Level Change/Country Code). See Language Code Table on page 37 in order to set the “Country Code.” DivX(R) VOD Display the registration code required for playing DivX(R) VOD files (Activate/Deactivate). Setting the HDMI Resolution settings back to their defaults

Additional information

Additional information Troubleshooting Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions. General problem Problem Check Remedy Settings you have made have Was the power cord unplugged? been cleared. When power cord is unplugged, the settings you have made is cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord. Difference in volume between DVDs, CDs, MP3, WMA, iPod/iPhone/iPad, Tuner, AUDIO IN and LINE. This is not a problem with this unit. The volume may sound differently depending on the input source and recording format. This unit cannot be operated with the remote control. Are you operating from far away? Operate within 7 m, 30º of the remote sensor on the front panel (page 6). Is the remote control sensor exposed The remote control signals may not be received properly if the to direct sunlight or strong artificial remote control sensor is exposed to direct sunlight or strong light from a fluorescent bulb, etc.? artificial light from a fluorescent bulb, etc. Are the batteries dead? Disc cannot be played or disc Is the disc scratched? is ejected automatically. Is the disc dirty?

Wipe the dirt off the disc (page 41). Is this unit placed in a humid location? There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an airconditioner, etc. (page 40). DVD VR cannot be played. Is the disc supported CPRM? This unit does not support CPRM. You can play only DVD VR of a non CPRM. Picture is stretched, or aspect ratio cannot be switched. Is the aspect ratio properly set on the Refer to the TV’s operating instructions and set the TV’s aspect ratio connected TV? properly. Is TV Screen properly set? Set TV Screen properly (page 32). This setting is available for a disc or USB storage device content. For movies and images stored in iPod/iPhone/iPad, operate your iPod/iPhone/iPad. During playback, picture is disturbed or dark. This is not a problem with this unit. This unit supports Rovi copy protection. With some TVs, the picture may not display properly when playing discs including copy prevention signals. This is not a malfunction. Are this unit and TV connected via a video deck? When this unit and TV are connected via a video deck, this unit’s analog copy protect function may cause the picture being played on the video deck not to display properly. Connect this unit and TV directly. Sound volume may be too high. Sound and video may be unsteady if sound volume is set too high; in this case, lower the sound volume. Sound and video are intermittent during disc playback.

Replace the batteries (page 6). Scratched discs may not play.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Additional information

Check Remedy Folder or file names are not recognized. (DivX, WMA, MP3 and JPEG) Have you exceeded the maximum number of folder or file names this unit can recognize? Up to 255 folders can be recognized on one disc. Up to 648 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files. Time is required to play JPEG Are you playing large files? files. Some time may be required to display large files. Black bars are displayed when playing JPEG files. Black bars may be displayed along the top and bottom or sides when JPEG files with different aspect ratios are played. Are you playing files with different aspect ratios? The unit turns off automatically. English Problem If no play back and no operation has done for 30 minutes or more, the unit turns off automatically. When a USB storage device is connected Problem Check Remedy USB storage device is not recognized. Is the USB storage device properly connected? Connect the device securely (all the way in). Is the USB storage device connected This unit does not support USB hubs. Connect the USB storage via a USB hub? device directly. Is the USB storage device supported This unit only supports USB mass storage class devices. by this unit? This unit supports portable flash memory and digital audio playback devices. Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported. USB flash drive that supports USB 2.0 can be used. This device does not support the use of external hard disc drives. This is not a problem with this unit. Turn the power off then back on. Some USB storage devices may not be recognized properly. File cannot be played. Is the file copyright-protected (by DRM)? This is not a problem with this unit. Copyright-protected files cannot be played. Files stored on a computer cannot be played. It may not be possible to play some files. Folder or file names are not displayed or are not properly displayed. Do the folder of file names contain more than 30 characters? The maximum number of characters displayable for the folder and file names is 30. Folder or file names are not displayed in alphabetical order. This is not a problem with this unit. The order of the folder and file names displayed Disc Navigator depends on the order in which the folders or files were recorded on the USB storage device. Much time is required to recognize the USB storage device. What is the USB storage devices capacity? Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes). Power is not supplied to the USB storage device. Is AUTH ERROR displayed on the Turn the power off then back on. front panel display? No power is supplied if the power consumption is Turn the power off, then disconnect and reconnect the USB storage device. too high. Press INPUT to switch to the other input, then switch again to the USB/iPod input.

Additional information When connected to an HDMI-compatible device Problem Check Picture is not displayed. Is the resolution properly set? Remedy Set HDMI Resolution properly for the connected device (page 33). Restore HDMI Resolution to the default setting (720x576p) (page 33). Is the HDMI cable properly connected? Connect the cable securely (all the way in). Sound is not produced or is distorted. Is HDMI Out properly set? Set HDMI Out to LPCM (2CH) or Auto (page 33). Multichannel audio signals are not output. Is HDMI Out properly set? Set HDMI Out to Auto (page 33). Colors are not properly displayed on TV screen. Is HDMI Color properly set? Change the HDMI Color setting (page 33). With some cables, 1080p video signals will not be output. When an iPod/iPhone/iPad is connected

Problem Remedy Can’t operate the iPod/iPhone/iPad by the remote control. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 18). Can’t operate the iPod/iPhone/iPad. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 18). If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Additional information

Additional information Playable discs and formats

• Commercially available DVD-Video discs
• DVD-R/ -RW/ -R DL and DVD+R/ +RW/ +R DL discs recorded in the Video mode DVD-Video DVD VR Super Video CD Video CD DVD-R/ -RW/ -R DL discs recorded in the VR mode This unit does not support CPRM Super Video CDs Video CDs
• Commercially available audio CDs
• CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format Audio CD JPEG JPEG Files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices DivX® DivX video files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices WMA WMA files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices MP3 MP3 files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices

• Only the discs that have been finalized can be played.

• Discs recorded in packet write mode (UDF format) are not compatible with this unit.
• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.
• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.

is a trademark of DVD Format/ Logo Licensing Corporation. Note

• This unit does not support multisession discs or multiborder recording.
• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A “session” or “border” is one recording unit, consisting of a complete set of data from lead-in to lead-out. Discs that cannot be played

Blu-ray discs HD DVDs AVCHD AVCREC DVD-Audio discs DVD-RAM discs SACDs CD-G About region numbers DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold. This player’s region number(s) is (are) as shown below.

• DVD-Video: 2 Discs not including these numbers cannot be played. Discs playable on this player are as shown below.
• DVDs: 2 (including 2) and ALL Regarding copy protected CDs This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.
• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play. About playing DualDiscs A DualDisc is a new two-sided disc, one side of which contains DVD content - video, audio, etc. - while the other side contains non-DVD content such as digital audio material.
• The DVD side of a DualDisc can be played on this unit (excluding any DVD-Audio content).
• The non-DVD, audio side of the disc is not compatible with this unit.
• It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.
• For more detailed information on DualDisc specifications, please refer to the disc manufacturer or disc retailer.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Additional information

• It may not be possible to play discs recorded using a computer due to the application settings or computer’s environment settings. Record discs in a format playable on this unit. For details, contact the dealer.
• It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder’s lens, etc. Displaying external subtitle files
• The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 33 to match the subtitle file.
• This unit supports the following language groups: Group 1 Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv) Group 2 Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl) Group 3 Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk) Supported video file formats Group 4 Hebrew (iw), Yiddish (ji) DivX Group 5 Turkish (tr) Playable files
• Files protected by DRM (Digital Rights Management) cannot be played.
• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

• DivX is a media technology created by DivX, Inc. DivX media files contain image data.
• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/ audio tracks.

• DivX Certified® to play DivX® video, including premium content.
• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
• This item incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. File extensions: .avi and .divx (these must be used for this unit to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this unit.
• Files not containing DivX video signals cannot be played, even if they have the extension “.avi”. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. English Playing discs created on computers or BD/DVD recorders

• Some external subtitle files may be displayed incorrectly or not at all.
• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10. Supported image file formats JPEG Resolution: Up to 3072 x 2048 pixels File extensions: .jpg and .JPG (must be used for this unit to recognize JPEG files - do not use for other file types)
• This unit supports baseline JPEG.
• This unit supports Exif Ver.2.2.
• This unit does not support progressive JPEG. Supported audio file formats
• This unit does not support lossless encoding. MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.
• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 64 kbps to 384 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time.

Additional information WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time. Cautions on use When moving this unit When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press 1STANDBY/ON, wait for “STAND BY” disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal, or AUDIO IN mini-plug jack. Place of installation
• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces. Avoid the following locations:

Places exposed to direct sunlight Humid or poorly ventilated places Extremely hot places Places exposed to vibrations Places in which there is much dust or cigarette smoke Places exposed to soot, steam or heat (kitchens, etc.) Do not place objects on this unit Do not place any objects on top of this unit. Do not obstruct the ventilation holes. Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage. Do not expose to heat. Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit’s power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit’s power is on. If this happens, turn the unit’s power off.

About condensation If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place. Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully. Cleaning the lens
• This unit’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Additional information About iPod/iPhone/iPad Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
• Be sure to read the cautions included with the disc. Cleaning discs
• Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths. English Handling discs

“Made for iPod,” and “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Restoring all the settings to the defaults

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label’s glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs. Use the steps below to restore the all settings to their defaults.

Press 1STANDBY/ON to turn the power on. 2 Press DVD/CD on the remote control or INPUT on the main unit repeatedly to select DVD/CD input.

Press $ OPEN/CLOSE to open the disc tray.

Press 1STANDBY/ON while pressing #. Use the buttons on this unit’s top panel. “DEFAULT” is displayed while the settings are being restored. Power is turned off. About specially shaped discs Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

Additional information Note Specifications

• The specifications are applicable when the power supply is 230 V.
• Specifications and the design are subject to possible modifications without notice, due to improvements.

© 2013 PIONEER CORPORATION. All rights reserved.

;+09B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸱ᖺ㸲᭶㸯㸵᪥ࠉỈ᭙᪥ࠉ༗๓㸷᫬㸳㸴ศ

Additional information

Repeat Off Random Program Play Mode Search Mode A-B Repeat Title Repeat Repeat Chapter Repeat Random Repeat Off Setup playback functions such as Program. Random and Repeat play Program Search Mode Move Setup playback functions such as Program. Random and Repeat play Move

Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

STANDBY/ON OPEN/CLOSE

STANDBY/ON OPEN/CLOSE

Random Repeat Off Repeat Off Program Random Search Mode Program Search Mode Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit Setup playback functions such as Program. Random and Repeat play HOME MENU Move Select ENTER Exit HOME MENU Hinweis

Repeat Off Current Program Step

Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

STANDBY/ON OPEN/CLOSE

STANDBY/ON OPEN/CLOSE

Select ENTER Exit HOME MENU Usare FG per selezionare B(End Point). Español Setup playback functions such as Program. Random and Repeat play Play Mode A-B Repeat A(Start Point) Repeat B(End Point) Random Off Program Search Mode Setup playback functions such as Program. Random and Repeat play Move Select ENTER Exit HOME MENU

Repeat Off Si visualizzerà “REPEAT TITLE” sulla schermata principale. Random Program Search Mode Play Mode A-B Repeat Title Repeat Repeat Chapter Repeat Random Repeat Off Setup playback functions such as Program. Random and Repeat play Program Search Mode Move Setup playback functions such as Program. Random and Repeat play Move

Current Program Step

Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

STANDBY/ON OPEN/CLOSE

Disc Navigator: Title

STANDBY/ON OPEN/CLOSE

Repeat Off Random Program Search Mode Play Mode A-B Repeat Title Repeat Repeat Chapter Repeat Random Repeat Off Setup playback functions such as Program. Random and Repeat play Program Move Search Mode Setup playback functions such as Program. Random and Repeat play Move

Current Program Step

Program Search Mode Setup playback functions such as Program. Random and Repeat play

STANDBY/ON OPEN/CLOSE

Title Repeat Repeat Off Repeat Chapter Repeat Random Random Repeat Off Program A-B Repeat Search Mode Program Search Mode Setup playback functions such as Program. Random and Repeat play Setup playback functions such as Program. Random and Repeat play Move Move Select ENTER Exit Select ENTER Exit HOME MENU HOME MENU Nota Nota

Program Search Mode Setup playback functions such as Program. Random and Repeat play Move

STANDBY/ON OPEN/CLOSE
