Product Type	Plasma Screen Stand
Brand	PIONEER
Model	PDK-FS07
Compatibility	PIONEER 42" and 50" plasma screens (PDP-507XD, PDP-507XA, PDP-427XD, PDP-427XA, PDP-4270XD, PDP-4270XA)
Dimensions (W x H x D)	701 x 860 x 567 mm (with tall column and deep shelf)
Weight	19.5 kg
Material	Steel
Shelf Load Capacity	10 kg maximum
Shelf Interior Dimensions	420 mm (width) x 102 mm (height), depth 349 mm
Screws Provided	M8 hexagon socket screws (long, medium, short) and M5x10 mm screws
Tools Required	Phillips screwdriver (not provided) and supplied hex key
Installation	By at least two people
Safety	Tip prevention with bolts and cables (not provided)
Usage	Indoor only
Included Accessories	Base stand, support columns, shelf, covers, stoppers, hex key, instruction manual

Frequently Asked Questions - PDK-FS07 PIONEER

Which screens are compatible with the PDK-FS07 stand?

This stand is designed exclusively for PIONEER 42-inch (PDP-427XD, PDP-427XA, PDP-4270XD, PDP-4270XA) and 50-inch (PDP-507XD, PDP-507XA) plasma screens. It is not compatible with other brands or models.

How to install the provided shelf?

Remove the shelf cover, install the left and right brackets on the base stand, then push the shelf panel from the back and secure it with the push rivet. The shelf can be positioned at two levels (front or rear).

Which screws to use for a 50-inch screen with speaker?

For a 50-inch screen with a bottom speaker, use the medium hexagon socket screws (M8 x 40 mm, black) at the top and the short hexagon socket screws (M8 x 30 mm, black) at the bottom. Tighten with the supplied hex key.

How to prevent the screen from tipping over?

After installation, attach M8 bolts (12-15 mm length) to the screen and connect them with strong cables to a stable wall or pillar. These precautions are essential to avoid falls in case of an earthquake.

Can I use this stand with a screen other than PIONEER?

No, this stand is specifically designed for the listed PIONEER plasma screens. Using it with other equipment may cause instability and risk of falling. Pioneer disclaims any liability for damages.

What tools are needed for assembly?

You will need a Phillips screwdriver (not provided) and the supplied 6 mm hex key for the hexagon socket screws. All screws and parts are included.

How to attach the screen to the support column?

Insert the support columns into the slots at the center of the bottom part of the screen. Then, first screw in the top screws, then the bottom screws using the hex key. Make sure the screen is well aligned.

What is the load capacity of the shelf?

The shelf can hold up to 10 kg. Do not exceed this limit and do not place objects that could obstruct the screen's heat dissipation.

Do I need to install the stand with two people?

Yes, Pioneer recommends that installation be carried out by at least two people to handle the screen safely and avoid accidents.

How to clean the stand?

Use a soft, dry cloth to dust the stand. Do not use harsh chemicals or abrasives that could damage the finish.

USER MANUAL PDK-FS07 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

IMPORTANT NOTICE

Record the model number and serial number of this equipment below.

Model No. PDK-FS07 Serial No.

Keep this number for future use.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_

D3-4-2-1-7a_A_En

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

Contents

Cautions 2

List of parts and equipment included 3

Installation and assembly instructions 4

Preventing equipment from falling over 7

Specifications 8

Dimensions diagram 8

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a floor stand exclusively designed for Plasma Displays (PDP-507XD / PDP-507XA / PDP-507XG / PDP-507XDA / PDP-427XD / PDP-427XA / PDP-427XG / PDP-427XDA / PDP-4270XD / PDP-4270XA) from Pioneer. Note that it is not designed for use with any other equipment. For further information, please contact the store where you purchased your display.

• Do not install or modify the product other than specified.
• Do not use this stand for a Plasma Display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• When selecting the location in which the stand is to be placed, be sure to select a location with a surface sufficiently strong to bear the weight of the stand and Plasma Display. (Product weight is listed on page 8)
• Make sure the installation location is a level, flat, and stable surface and take proper precautions when installing it to make sure its weight is evenly distributed.
• Depending on the type of surface on which the stand is placed, the legs may leave marks on the surface, and this should be taken into consideration when selecting the place in which the stand is to be placed.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.

There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.

• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

After Installation

• Never lean on the Plasma Display or apply heavy pressure to the stand.
• Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see page 7).
• Do not move the stand with the Plasma Display etc. still attached.

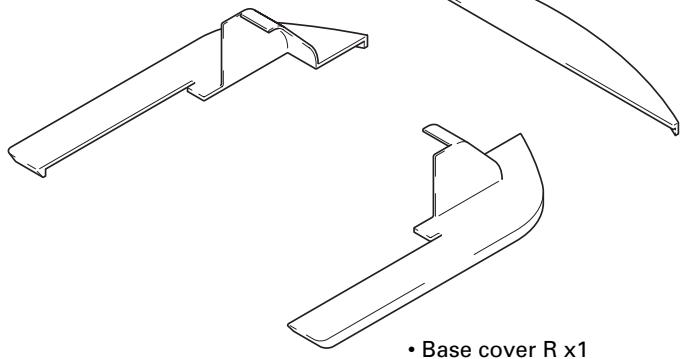

List of parts and equipment included

Be sure to check that all the parts and equipment listed below have been included before beginning to assemble your stand.
- Note that a Philips screwdriver (not included) is required for assembly.

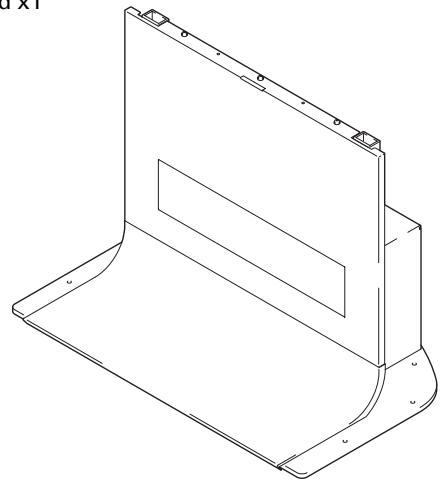

- Stand x1
- Base cover rear x1

- Base cover L x1

- Shelf support R x1

- Shelf support L x1

- Support column stopper x2

- Short hexagonal bolts (M8 x 30 mm [1-3/16 inch]: black) x2

- Middle hexagonal bolts (M8 x 40 mm [1-9/16 inch]: black) x2

- Long hexagonal bolts (M8 x 60 mm [2-3/8 inch]: silver) x2

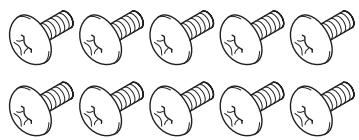

- Screw (M5 x 10 mm [13/32 inch]) x10

- Shelf panel x1

- Hexagonal wrench x1 (Opposite side 6 mm for M8 use)

- Operating instructions (this document) x1

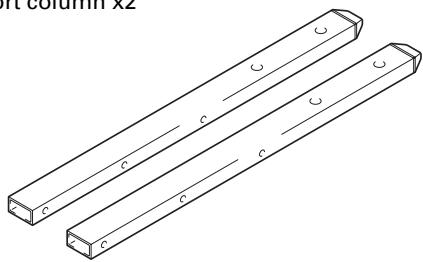

- Support column x2

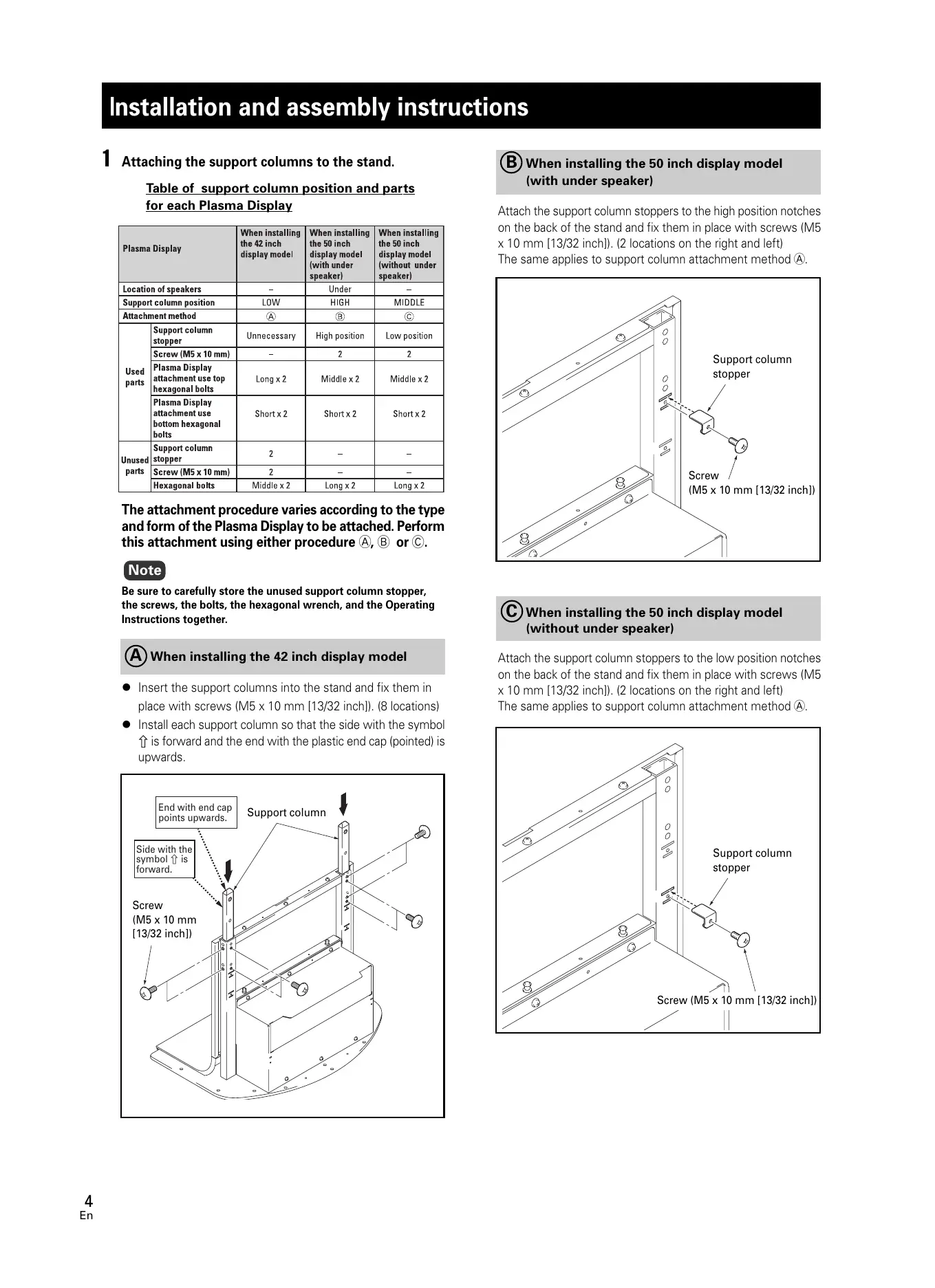

Installation and assembly instructions

1 Attaching the support columns to the stand.

Table of support column position and parts for each Plasma Display

Plasma Display		When installing the 42 inch display model	When installing the 50 inch display model (with under speaker)	When installing the 50 inch display model (without under speaker)
Location of speakers		-	Under	-
Support column position		LOW	HIGH	MIDDLE
Attachment method		A	B	C
Used parts	Support column stopper	Unnecessary	High position	Low position
	Screw (M5 x 10 mm)	-	2	2
	Plasma Display attachment use top hexagonal bolts	Long x 2	Middle x 2	Middle x 2
	Plasma Display attachment use bottom hexagonal bolts	Short x 2	Short x 2	Short x 2
Unused parts	Support column stopper	2	-	-
	Screw (M5 x 10 mm)	2	-	-
	Hexagonal bolts	Middle x 2	Long x 2	Long x 2

The attachment procedure varies according to the type and form of the Plasma Display to be attached. Perform this attachment using either procedure A, B or C.

Note

Be sure to carefully store the unused support column stopper, the screws, the bolts, the hexagonal wrench, and the Operating Instructions together.

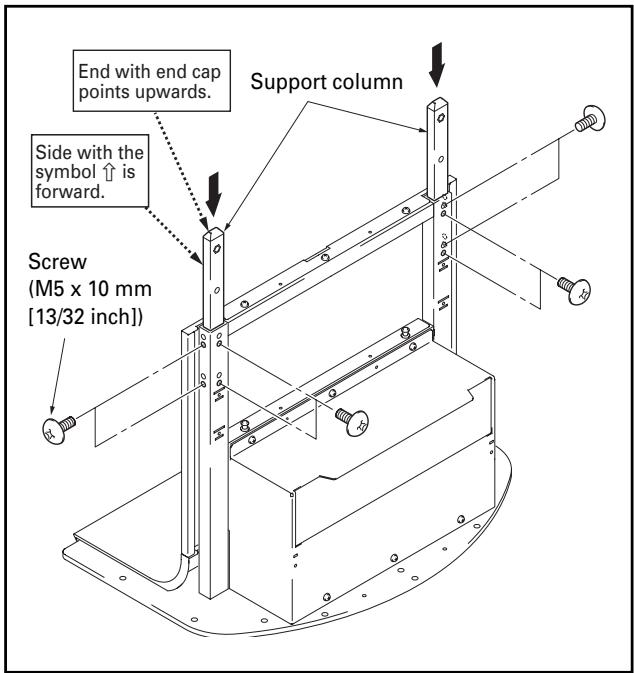

When installing the 42 inch display model

• Insert the support columns into the stand and fix them in place with screws (M5 x 10 mm [13/32 inch]). (8 locations)
• Install each support column so that the side with the symbol is forward and the end with the plastic end cap (pointed) is upwards.

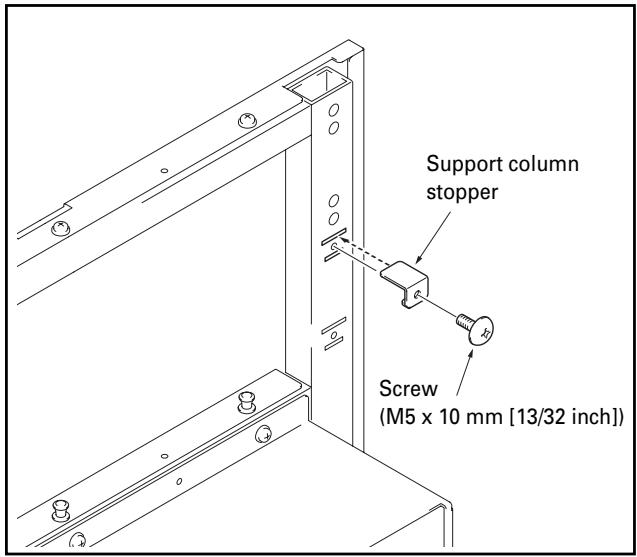

When installing the 50 inch display model (with under speaker)

Attach the support column stoppers to the high position notches on the back of the stand and fix them in place with screws (M5 x 10 mm [13/32 inch]). (2 locations on the right and left) The same applies to support column attachment method A.

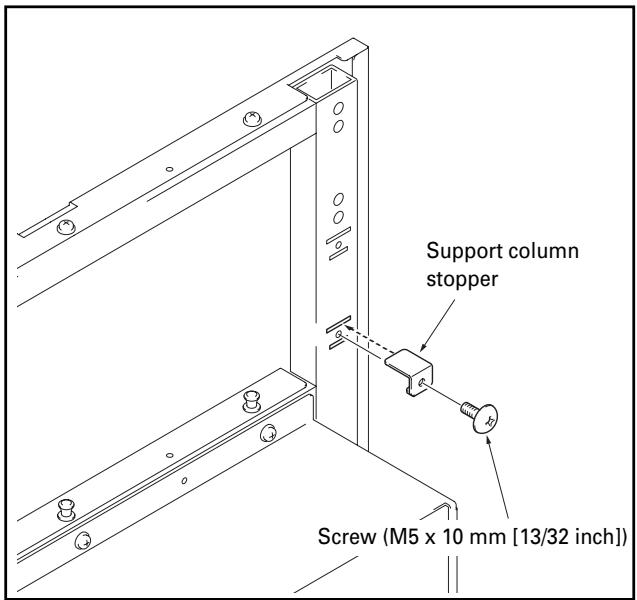

When installing the 50 inch display model (without under speaker)

Attach the support column stoppers to the low position notches on the back of the stand and fix them in place with screws (M5 x 10 mm [13/32 inch]). (2 locations on the right and left) The same applies to support column attachment method A.

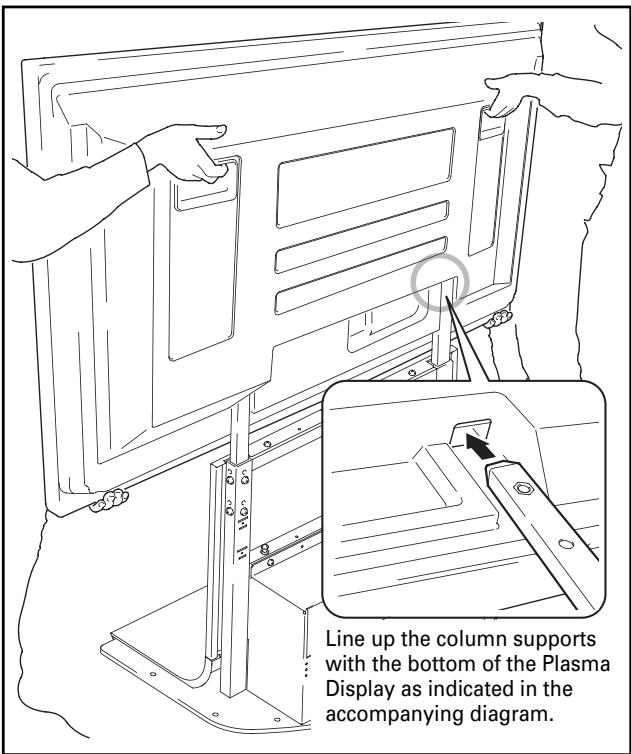

2 Attach Plasma Display to support column.

Fit the stand's support columns into the slots in the center of the bottom of the Plasma Display then slowly insert them directly into the slots. Be extremely careful not to insert the support columns of the stand into any part of the Plasma Display other than the stand insertion slots. Note that doing so might damage the Plasma Display panel or its ports or result in the warping of the stand.

If the Plasma Display is fitted with handles, it is usually best to hold the display by its handles when attaching it to the support column.

• Be sure to work with at least one other person when attaching the display.
• Be careful not to allow your fingers get caught between the display and support column.

3 Use the short, the middle or the long hexagonal bolts to fix the Plasma Display to the support column (4 locations).

Please install starting with the bolts on the top.

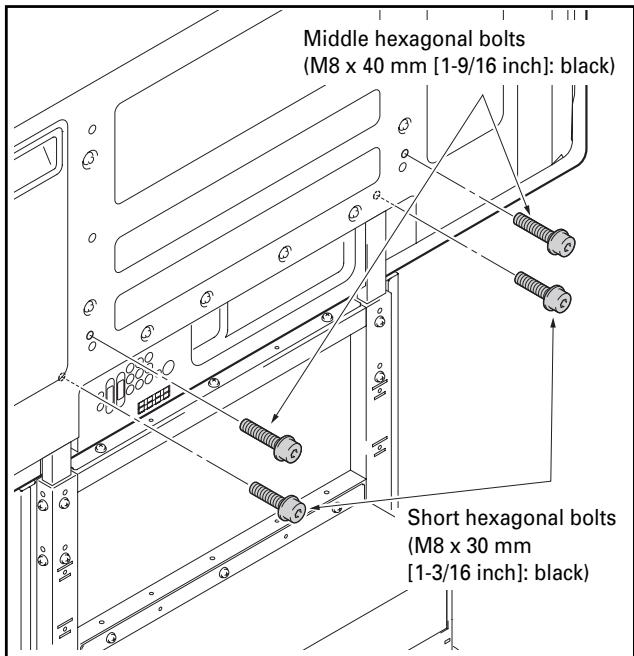

When installing the 50 inch display model

Use the following bolts to fix it with the hexagonal wrench. Top ......... Middle hexagonal bolts (M8 x 40 mm [1-9/16 inch]: black) Bottom ... Short hexagonal bolts (M8 x 30 mm [1-3/16 inch]: black)

It you are attaching speakers, do so at this stage.
See the installation instructions provided with your speakers for instructions on how to install them.

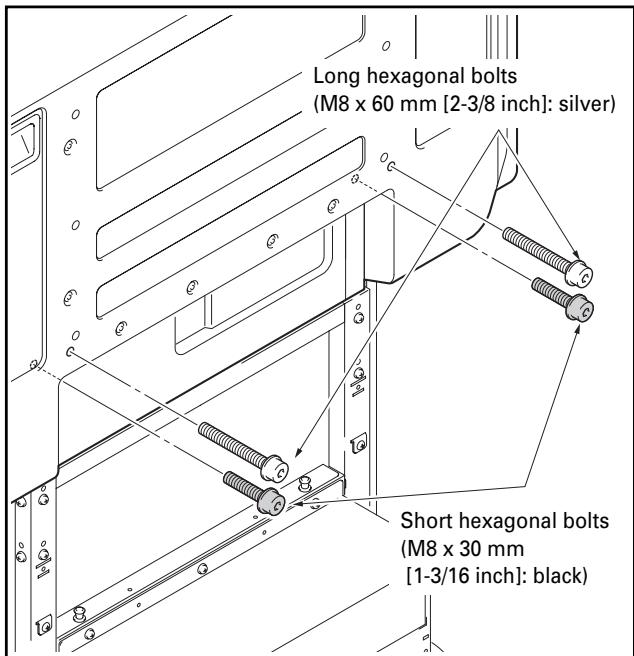

When installing the 42 inch display model

Use the following bolts to fix it with the hexagonal wrench. Top ......... Long hexagonal bolts (M8 x 60 mm [2-3/8 inch]: silver) Bottom ... Short hexagonal bolts (M8 x 30 mm [1-3/16 inch]: black)

4 When using a shelf.

A shelf can be attached to the stand.

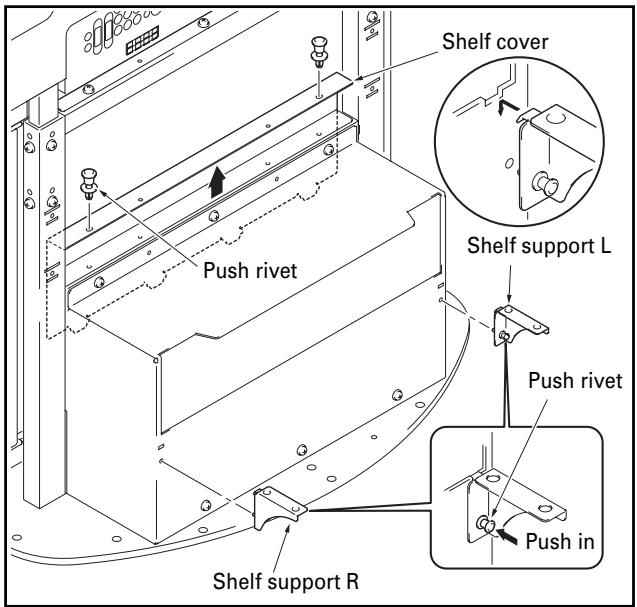

① Remove the shelf cover and then attach the shelf supports L and R to the stand.

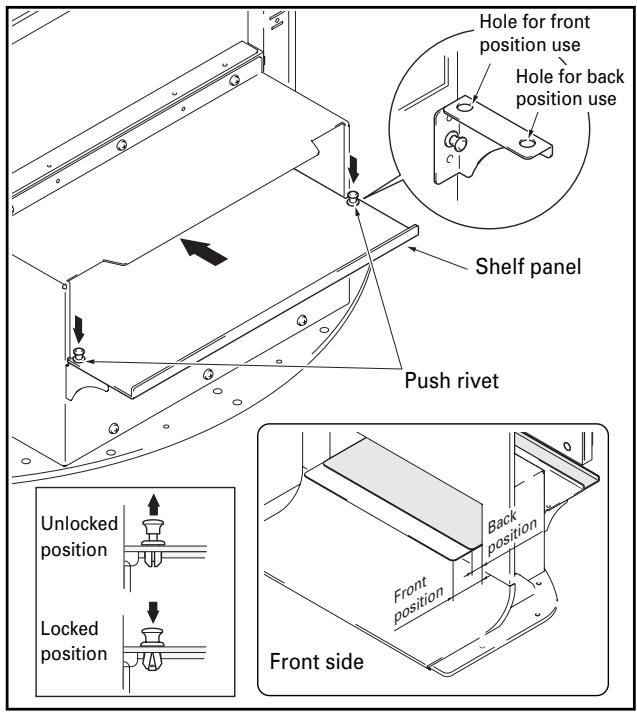

② Push the shelf panel in from behind and fix it in place with the push rivet.

• The shelf panel installation position be selected from two levels: either the front or the back. Set it according to the device you have.
• When changing its position, you can easily remove it by pulling up the knob on the top of the push rivet.

Interior dimensions of the shelf opening: 420 mm [16-17/32 inch] (effective width) x 102 mm [4-1/32 inch] (height) Depth of the shelf: 349 mm [13-3/4 inch] Bearing capacity: up to 10 kg [20.1 lbs]

Note

Be careful when installing anything other than a media receiver (particularly an AV amplifier etc.) on this shelf, because it may block heat discharge etc. For details, see the instruction manual for each device.

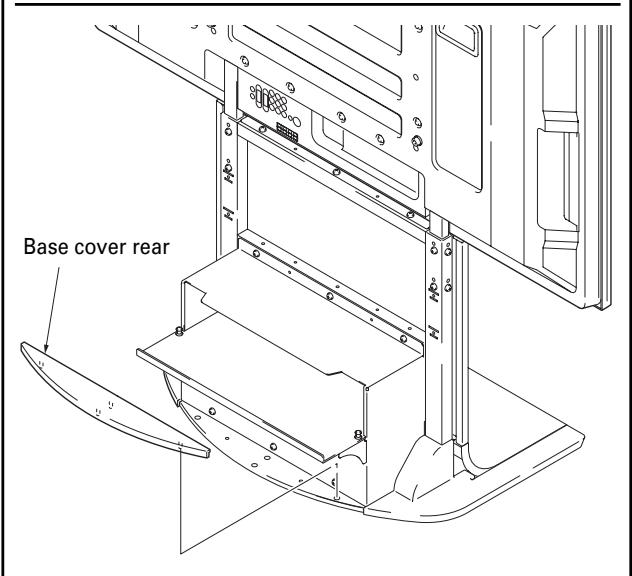

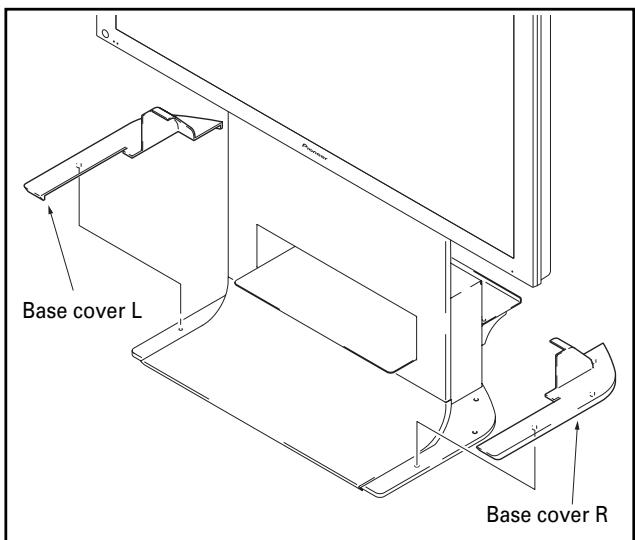

5 Installing base covers L, R and rear.

Insert them along the base.

After installing the stand, be sure to take special care to ensure that the Plasma Display will not fall over.

• Because of the Plasma Display's weight, if it could fall down, this can result in injury.
• For safety, be sure to take special care to ensure that the Plasma Display will not fall over.

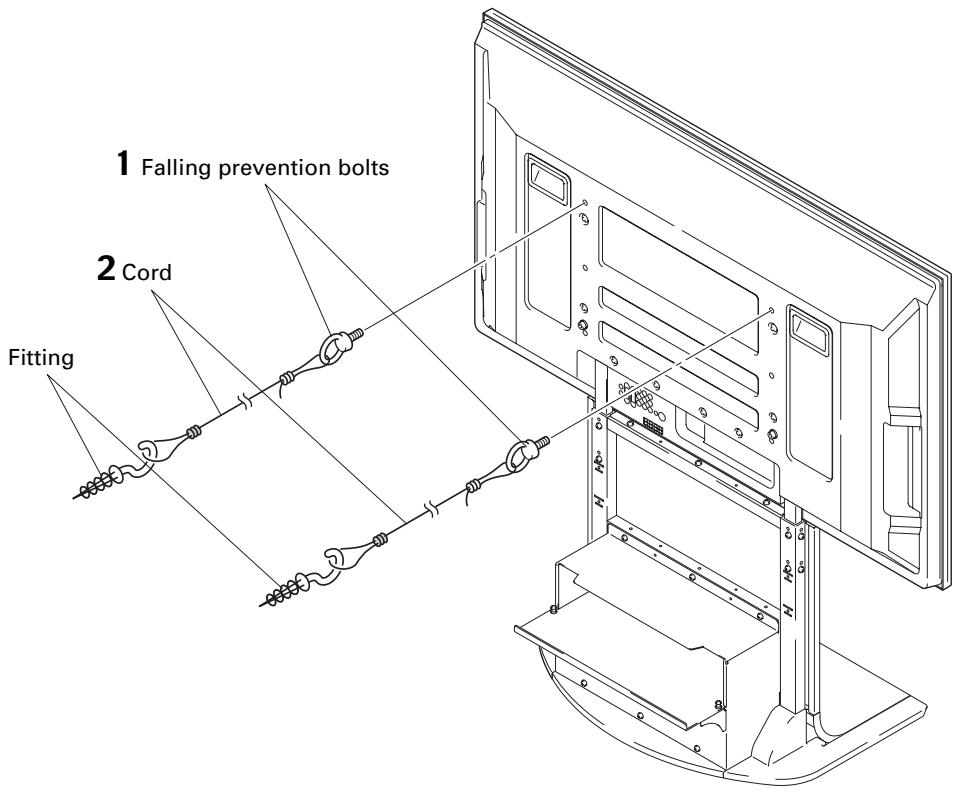

1 Attaching falling prevention bolts to the Plasma Display.

2 Using strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

• Perform this work in the same way on the left and right sides.
• The length of the cords used must be long enough to allow the stand to rotate freely.

Note

Use falling prevention bolts, ropes and fittings that are available on the market.

Recommended bolts: Nominal diameter M8 Length 12 mm to 15 mm (1/2 inch to 5/8 inch)

Caution

• An area of the floor with adequate strength should always be used to support the Plasma Display.
  Failure to do so could result in personal injury and physical damage.
• When installing the Plasma Display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the Plasma Display could fall down and cause injury.
• The screws, hooks and other fittings that you use to secure the Plasma Display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Specifications

External dimensions 701 mm (W) x 860 mm (H) x 567 mm (D) (27-19/32 in. (W) x 33-27/32 in. (H) x 22-5/16 in. (D))

[When using high position support column and deep position shelf panel]

Weight 19.5 kg (43.0 lbs)

• The above specifications and exterior may be modified without prior notice to improve the product.

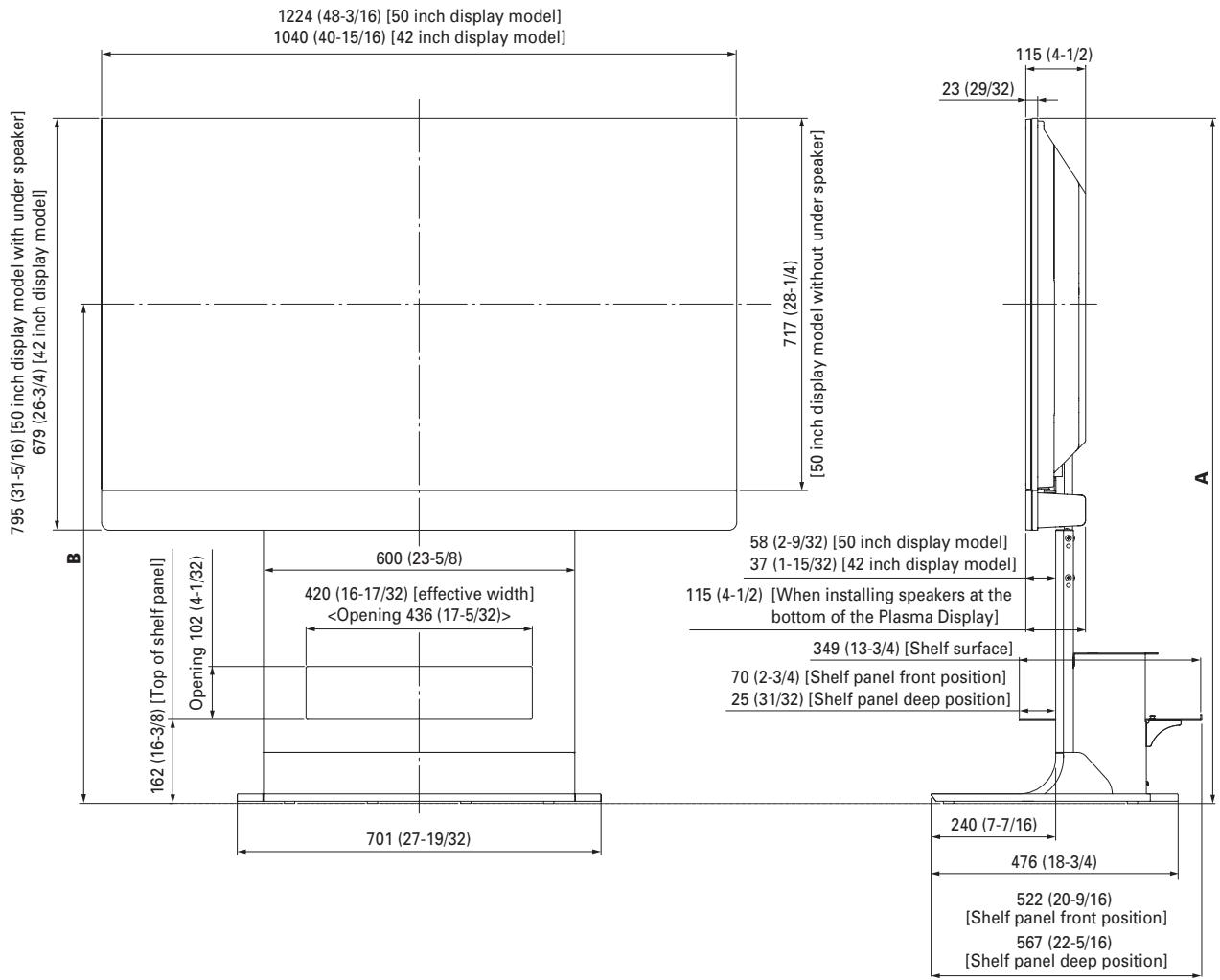

Dimensions diagram

Unit: mm (inch)

Plasma Display	Location of speakers	Full height (Dimensions A)	Center of screen (Dimensions B)
50 inch display model	With under speaker	1321.5 (52-1/32)	963 (37-29/32)
	Without under speaker	1244 (48-31/32)	885.5 (34-7/8)
42 inch display model	-	1205 (47-7/16)	902 (35-1/2)
