Product type	Electronic device stand (floor stand)
Brand	Pioneer
Model	PDK-FS02
Materials	Steel, glass
Dimensions (height adjustable)	From 1126 mm to 1417 mm (depending on console position and screen model)
Weight (stand alone)	34.2 kg
Maximum total weight (stand + screen + speakers)	75.7 kg (depending on model)
Maximum load on glass panel	20 kg
Compatibility	Pioneer plasma screens: PDP-434HDE, PDP-434HDG, PDP-504HDE, PDP-504HDG
Casters	Yes (for easy movement)
Anti-tip safety	Cable and hook fastening system (not included)
Height adjustment	3 positions (upper, center, lower)
Cable management	Column cover and cable ties included
Included parts	Central column, base, glass panel, PDP console, glass brackets, covers, screws, hex key, etc.
Required tools	Phillips screwdriver (not included)
Care and cleaning	Use a soft, dry cloth. Do not use abrasive products.
Installation conditions	Flat and solid surface, indoors, away from shocks and vibrations

Frequently Asked Questions - PDK-FS02 PIONEER

What screens are compatible with the Pioneer PDK-FS02 stand?

This stand is designed exclusively for Pioneer plasma screens of the PDP-434HDE, PDP-434HDG, PDP-504HDE and PDP-504HDG series. Use with other screens is not recommended.

What is the maximum weight supported by the glass panel?

The glass panel can support a maximum load of 20 kg. Never place equipment exceeding this weight.

How to install the plasma screen on the stand?

Installation requires at least two people. Slide the central column into the base, attach the PDP console at the desired height, then place the screen on the support feet and secure it with the long hex bolts provided.

Is the stand easy to move?

Yes, the stand is equipped with casters. To move it, always hold the central column, never the screen or glass panel. Be careful with thick carpets that could block the casters.

How to prevent the screen from tipping over?

Use safety hooks and cables (not included) to secure the screen to a wall or pillar. Hooks with a diameter of M8 and 12 to 15 mm long are recommended.

Can the stand be used with speakers?

Yes, it is possible to install speakers on the sides or below the screen. Use the long support feet provided if the speakers are underneath.

How to adjust the screen height?

The PDP support console can be attached to the upper, central or lower holes of the central column. The central holes correspond to a standard installation.

How to clean the stand?

Use a soft, dry cloth. Never use abrasive products or solvents. For the glass panel, clean gently with a glass cleaner.

What are the external dimensions of the stand?

Dimensions vary depending on the height adjustment and screen model. For example, for a PDP-434 screen with side speakers in the central position, the total height is 1176 mm and the screen center is at 850 mm.

Does the stand come with assembly instructions?

Yes, a detailed instruction manual is included in the packaging. It contains all assembly steps and safety precautions.

USER MANUAL PDK-FS02 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

Isometric line drawing of a rectangular electronic component with slots and mounting holes (no text or symbols)

• ベース × 1


Isometric line drawing of a flat rectangular object with two vertical cylindrical components on top (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

• 棚ガラス × 1


Simple line drawing of a rectangular object with a horizontal bar and arrow, no text or symbols present.

• ガラスステイ（左右：各1）×2


Line drawing of a Y-shaped metal bracket with mounting holes (no text or symbols)

• 支柱 L × 2
  [長い支柱]


Technical line drawing of two rectangular metal brackets with holes, no text or symbols present

注意

Technical line drawing of a mechanical component with flanged ends and a central slot (no text or symbols)

Isometric line drawing of a mechanical component with two flanges and a central slot (no text or symbols)

Isometric line drawing of a structural frame or bracket (no text or symbols)

• ケーブルクランプ × 4


Four identical diagonal lines with small protrusions at each end, no text or symbols present.

Illustration of eight identical screwdrivers arranged in two rows (no text or symbols)

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

Contents

Cautions ...... 10

List of parts and equipment included 11

Installation and assembly instructions .... 12

Moving the stand and display 16

Preventing equipment from falling over 16

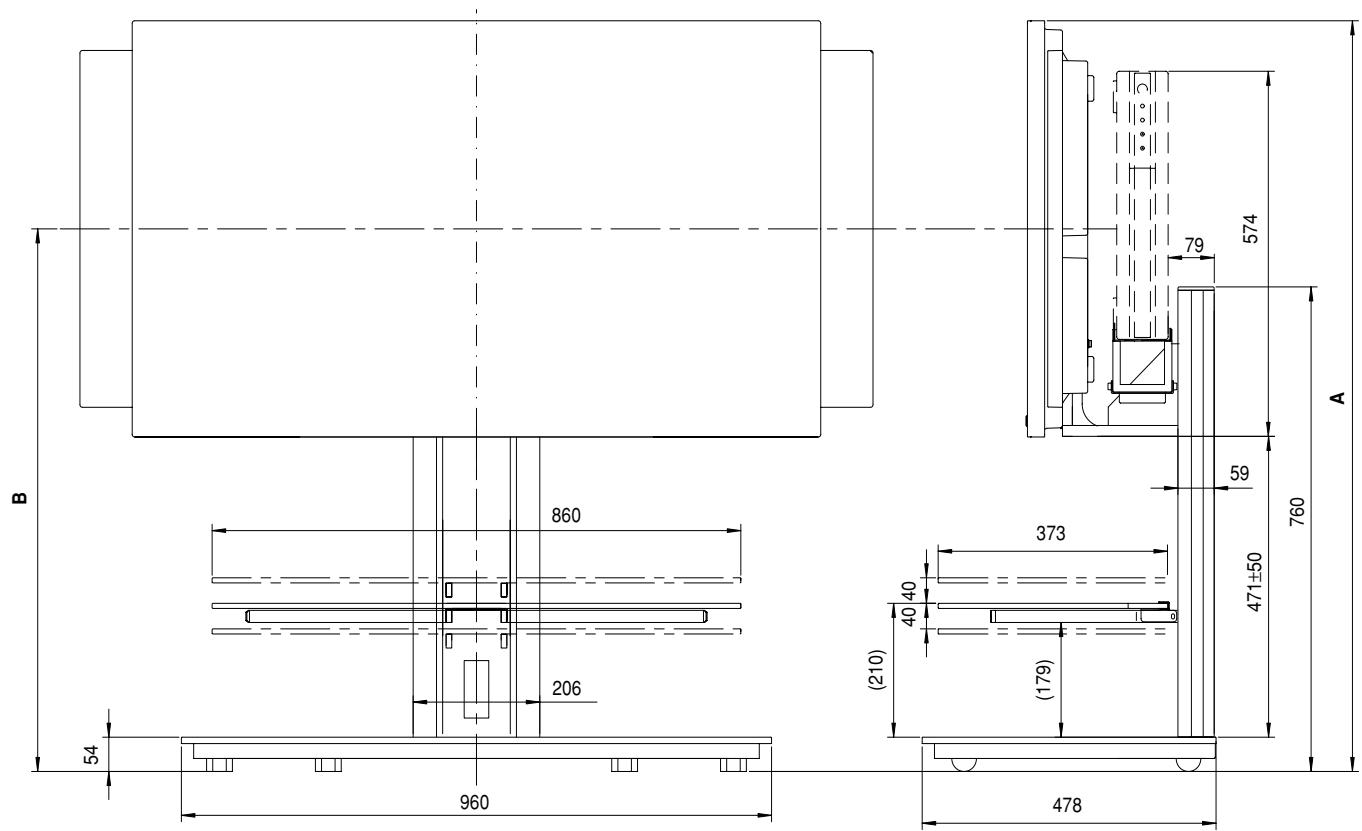

External dimensions diagram ...... 17

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a floor stand exclusively designed for plasma displays (PDP-504HDE / PDP-504HDG / PDP-434HDE / PDP-434HDG) from Pioneer. Note that it is not designed for use with any other equipment. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified. Do not use this stand for a plasma display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• When selecting the location in which the stand is to be placed, be sure to select a location with a surface sufficiently strong to bear the weight of the stand and plasma display. (Product weight is listed on p. 17.)
• Make sure the installation location is a level, flat, and stable surface and take proper precautions when installing it to make sure its weight is evenly distributed.
• Depending on the type of surface on which the stand is placed, the casters may leave marks on the surface, and this should be taken into consideration when selecting the place in which the stand is to be placed.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

After Installation

• Never lean on the plasma display or apply heavy pressure to the stand.
• Note that while the stand is fitted with casters to make it easily movable, when moving the stand you should always follow the instructions given on p. 16 under Moving the stand and display.
• Because of the nature of glass, the application of shocks to the edges can make it easy for the glass to break, and the application of any such shocks should therefore be strictly avoided. Due care should also be taken to keep children from bumping into the edges, as doing so might result in injury.

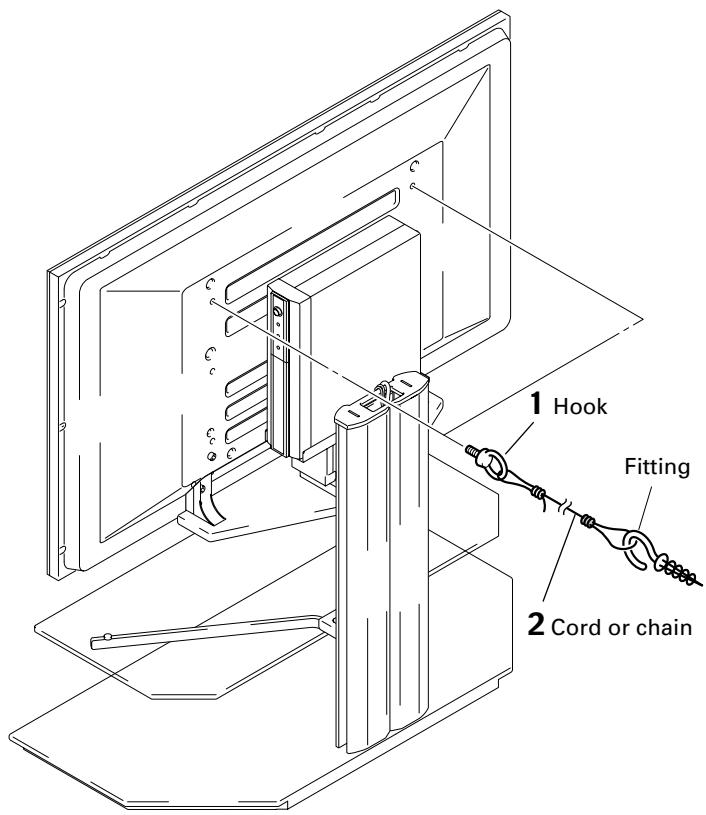

• Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 16).

List of parts and equipment included

Be sure to check that all the parts and equipment listed below have been included before beginning to assemble your stand.

- Note that a Philips screwdriver (not included) is required for assembly.

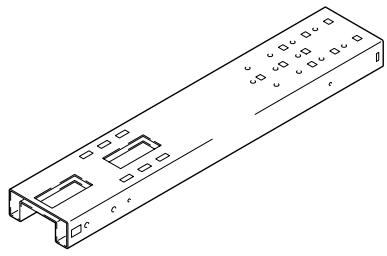

• Center support column x1


Isometric line drawing of a rectangular metal enclosure with cutouts and mounting holes (no text or symbols)

• Base x1


Isometric line drawing of a rectangular object with two small protrusions on top (no text or symbols)

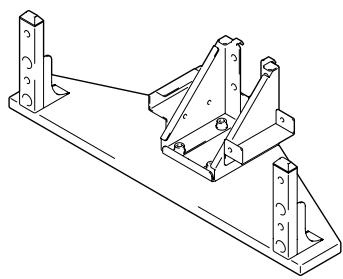

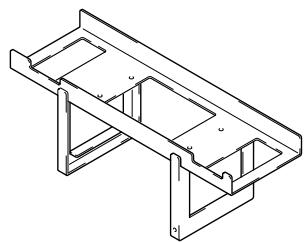

• PDP bracket x1 (with short support legs)


Technical line drawing of a mechanical bracket assembly (no text or symbols)

• Glass panel x1


Caution

• Glass stays (x2, one left and one right)

Simple line drawing of a Y-shaped metal bracket with mounting holes (no text or symbols)

• Long support legs x2


Technical line drawing of two rectangular metal beams with holes, no text or symbols present

The glass panel should be kept in its packing box until you are ready to attach it to the stand to guard against breakage.

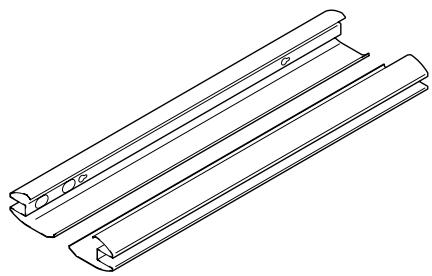

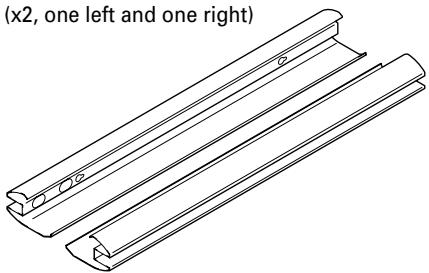

• Support column covers (x2, one left and one right)


Technical line drawing of a mechanical component with two parallel grooves and a central slot, labeled (x2, one left and one right)

• Cable cover x1 (for attachment to support column)


• Cap x1


Line drawing of a mechanical component with two notches and a central slot (no text or symbols)

• Hexagonal wrench x1 (Opposite side 6mm for M8 use)

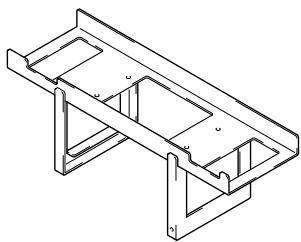

• MR holder x1


Isometric line drawing of a structural frame or bracket (no text or symbols)

• Cable clamps x4


Four identical diagonal lines with small protrusions, no text or symbols present

• Short hexagonal bolts (M8 x 16 mm) x8


Illustration of eight different types of screws arranged in two rows (no text or symbols)

• Screws (M4 x 10 mm) x6


• Operating instructions (This document) x1

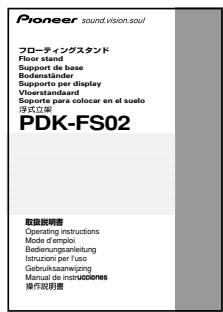

Pioneer sound vision soul フローティングスタンド Flavor stand Support de base Bodenständer Supporto per display Vicerstandaard Seporte para colocar en el suelo 浮式立架 PDK-FS02 取扱説明書 Operating instructions Mode d'emploi Bedienungsanleitung Instruzioni per luso Gebruiksamiping Manual de instruções 操作説明書

• Long hexagonal bolts (M8 x 35 mm) x4


• Screws (M4 x 8 mm) x2


Installation and assembly instructions

(Stand shown below is a 43-inch display stand with short support legs)

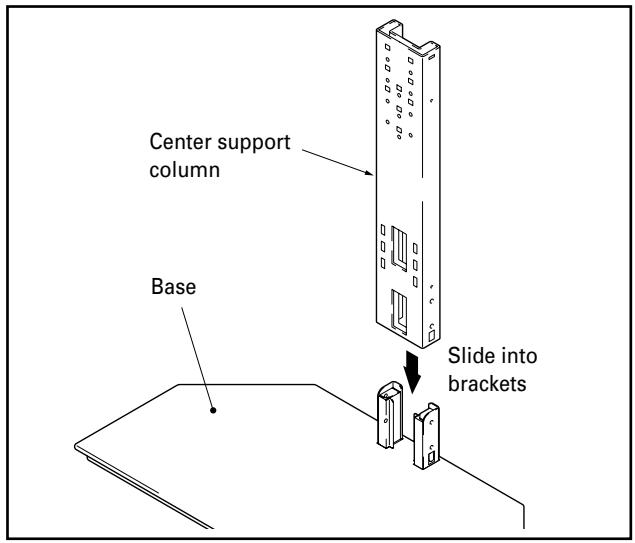

1 Slide center support column into brackets on base.

Center support column Base Slide into brackets

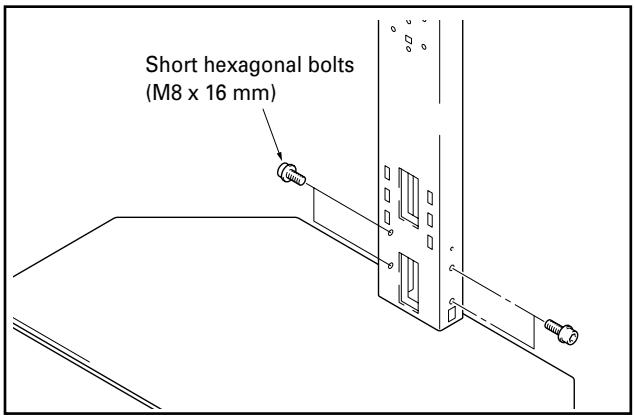

2 Use short hexagonal bolts to fix center support column into place (4 locations).

Short hexagonal bolts (M8 x 16 mm)

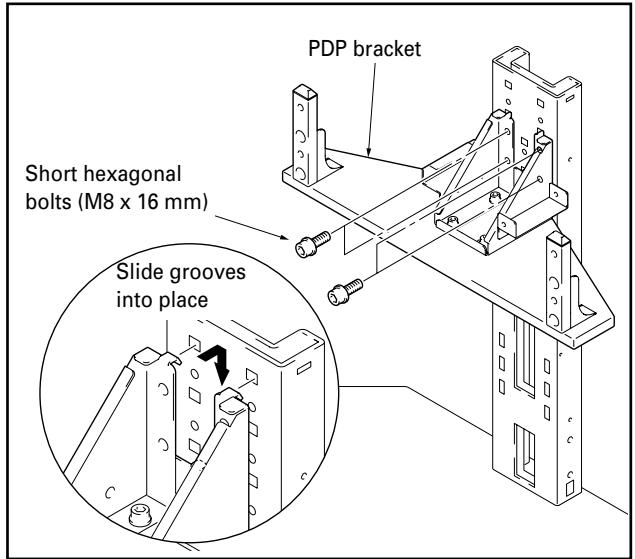

3 Use short hexagonal bolts to attach PDP bracket to center support column (bolts must be screwed in four locations).

The bracket may be screwed into the upper holes, middle holes, or lower holes of the center support column to adjust the height of the display. The middle holes are designed to be used for standard installation.

PDP bracket Short hexagonal bolts (M8 x 16 mm) Slide grooves into place

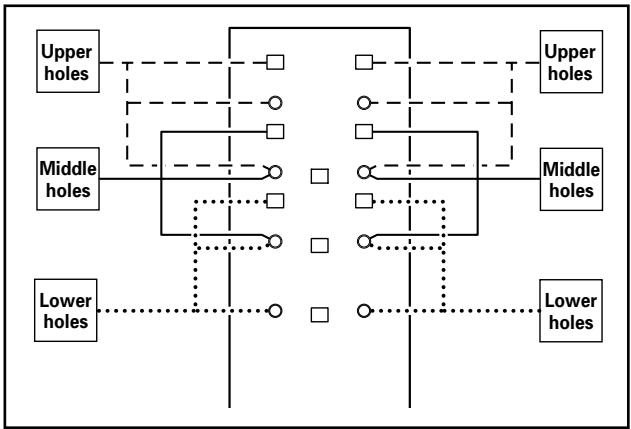

◆ Locations of holes on center support column for attachment of PDP bracket.


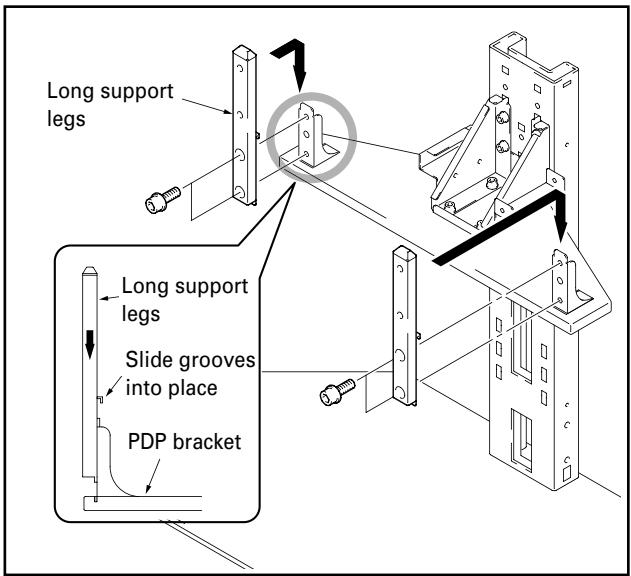

When installing speakers below the plasma display

Remove the short support legs attached to the PDP bracket and replace them with the long support legs. (Use the hexagonal wrench included with the stand to do so.) When installing speakers below the plasma display, attach the speakers to the plasma display before attaching the speakers and display to the stand.

Note

Use the short support legs if speakers are to be installed at the sides of the plasma display.

Long support legs Long support legs Slide grooves into place PDP bracket

The types of plasma displays which may be used with the stand differ depending on the length of the support legs attached to the PDP bracket, so you should check to see if the display to be attached is compatible before proceeding.

❖ Precautions when installing speakers below the plasma display
- Place the plasma display as shown in the figure.
- See the installation instructions provided with your speakers for instructions on how to install them.

Note

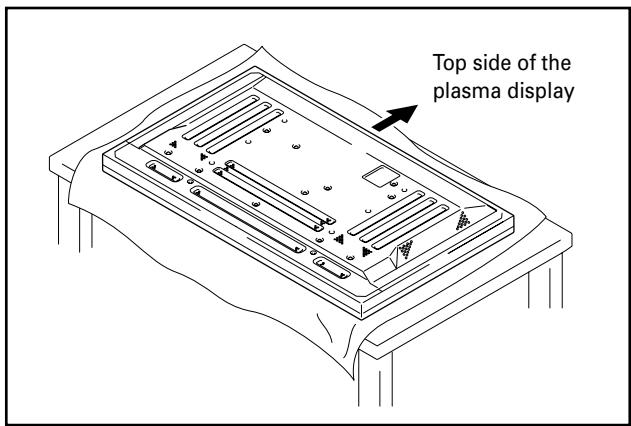

• Spread a sheet or similar material so that the display will not be scratched or damaged.
  ● Always install it on top of a stable table or similar surface.

Top side of the plasma display

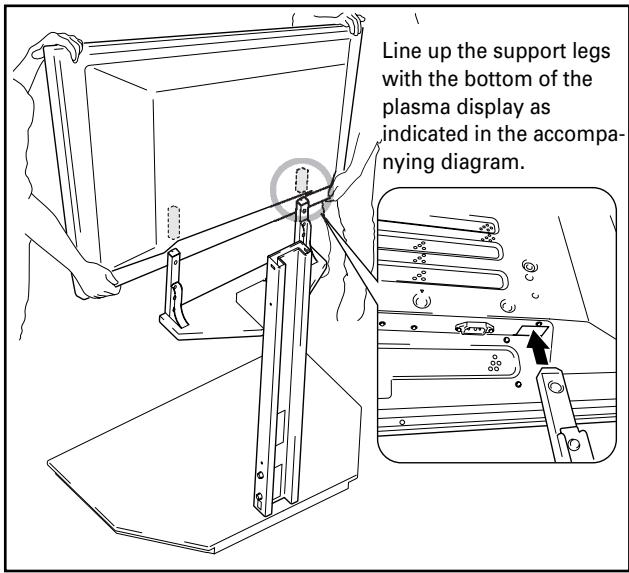

4 Attach plasma display to support legs.

Fit the stand's support legs into the slots in the center of the bottom of the plasma display then slowly insert them directly into the slots. Be extremely careful not to insert the support legs of the stand into any part of the plasma display other than the stand insertion slots. Note that doing so might damage the plasma display panel or its ports or result in the warping of the stand.

If the plasma display is fitted with handles, it is usually best to hold the display by its handles when attaching it to the support legs.

Line up the support legs with the bottom of the plasma display as indicated in the accompa- nying diagram.

• Be sure to work with at least one other person when attaching the display.
• Be careful not to allow your fingers get caught between the display and support legs.
• If the PDP bracket has been placed into the upper bracket holes and speakers are to be installed below the plasma display, care must be taken to ensure that the display is firmly supported as its position will be higher.

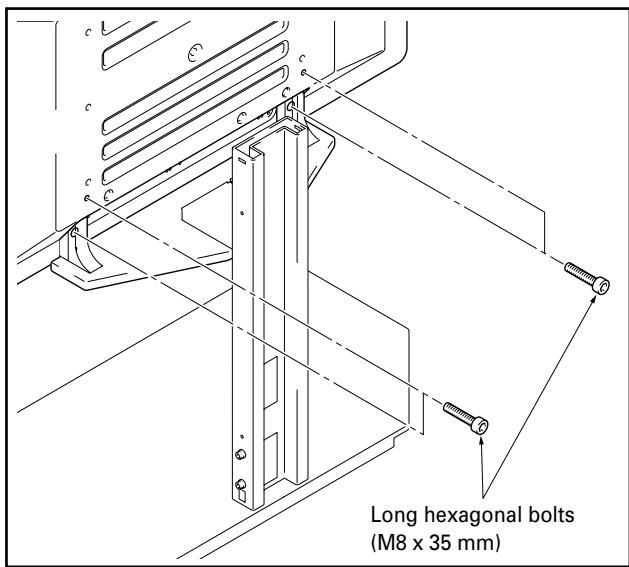

5 Use the long hexagonal bolts to fix the plasma display to the support legs (4 locations).

Long hexagonal bolts (M8 x 35 mm)

• If speakers are to be installed at the sides of the plasma display, they should be attached at this phase.
• See the installation instructions provided with your speakers for instructions on how to install them.

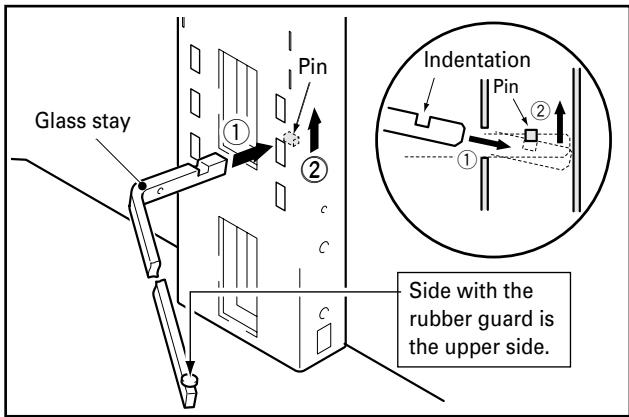

6 Attach left and right glass stays to support column.

① Insert the glass stays into the holes provided, pushing them all the way into the holes so that they point slightly downwards.
② Press down on the tips of the glass stays to lower them and fit the indentations into pins.

Glass stay ① ② Pin Indentation Pin ① Side with the rubber guard is the upper side.

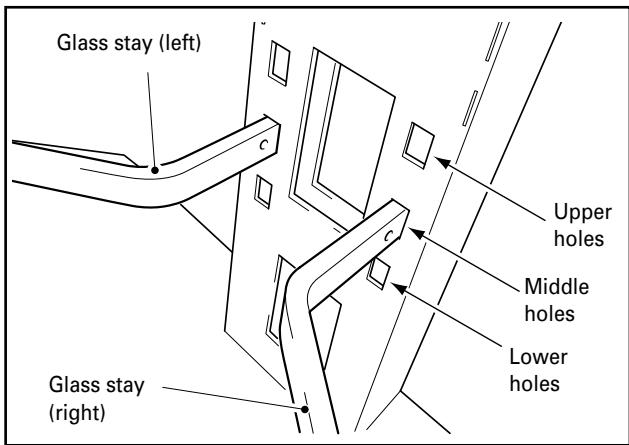

Glass stays may be inserted into the upper, middle, or lower holes to adjust the height of the glass panel. (The middle holes are designed to be used for standard installation.)

Glass stay (left) Upper holes Middle holes Lower holes Glass stay (right)

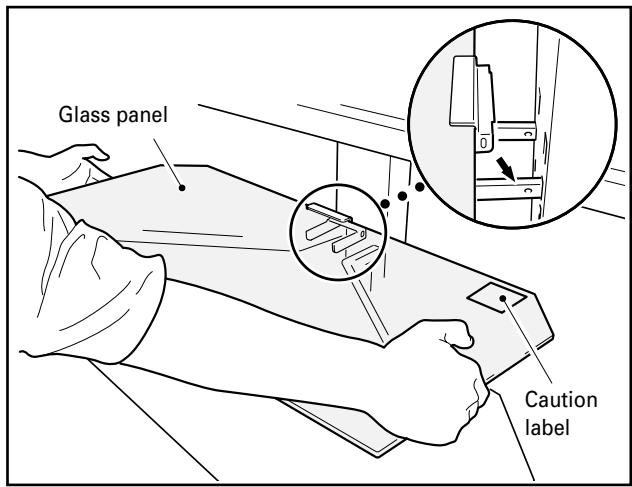

7 Fit glass panel into glass stays.

Note

The glass panel should be installed with the warning label facing upwards.

Glass panel Caution label

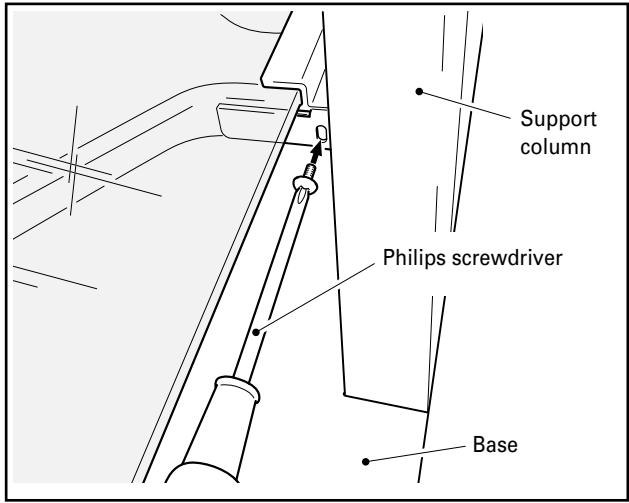

8 Fix it with the screws (M4 x 10 mm) (2 locations: left and right).

Support column Philips screwdriver Base

Be sure to use the screws to fix the glass panel into place. Note that failing to do so could cause the glass panel to fall off if you come into contact with it and result in the panel breaking.

9 What to do when attaching an upright media receiver.

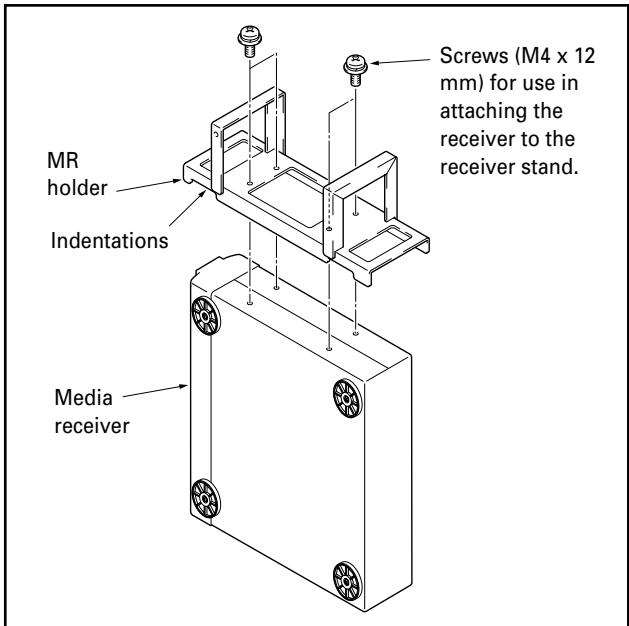

① Fit the MR holder over the sides of the media receiver and fix into place using the four screws (M4 x 12 mm) provided for use in attaching the receiver to the receiver stand.

Note

• The legs of the MR holder are on the side of the holder with the indentations. Be sure to attach the holder in the correct direction.
• Do not attach the MR holder to anything other than a media receiver.

MR holder Indentations Media receiver Screws (M4 x 12 mm) for use in attaching the receiver to the receiver stand.

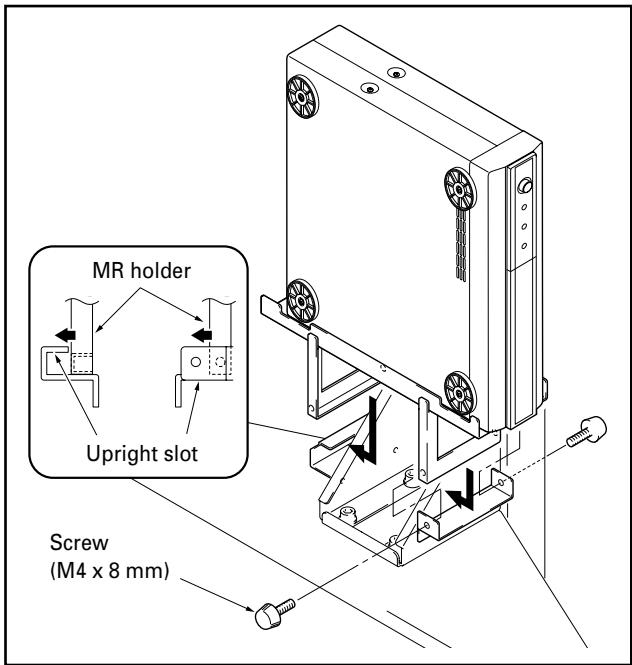

② Fit the legs of the MR holder over the upright slots of the MR holder bracket and fix into place with screws (M4 x 8 mm).

Note

• Do not attach any other equipment other than a media receiver in this location.
• Never place vases, dehumidifiers, or any other objects or devices with liquids in them on top of the PDP bracket.

MR holder Upright slot Screw (M4 x 8 mm)

10 Place equipment onto glass panel and connect equipment to display.

• Place the equipment to be connected to the display onto the glass panel and then connect the equipment to the display.
• Note that the glass panel and base are designed to be able to withstand loads of up to only 20 kilograms (44.1 lbs), and that the weight of the equipment placed onto the glass panel should never exceed this limit.

Note

When a video deck is placed on the glass panel, there may be times when the video deck interferes with the plasma display and causes distortion in the picture depending on the place of the video deck or on other conditions. If this happens, place the video deck on the base instead to avoid interference.

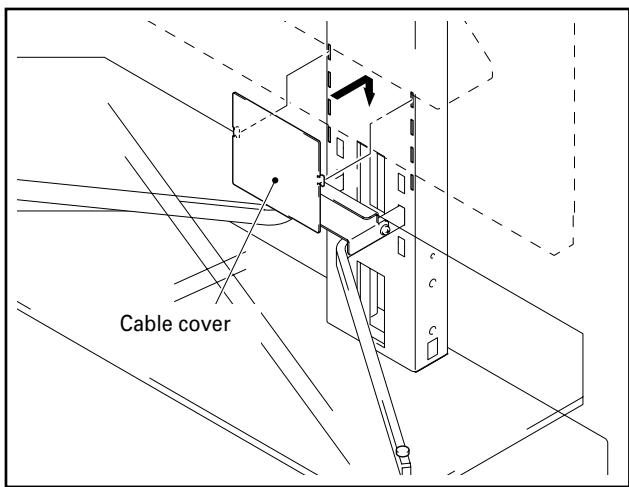

11 Attach cable cover.

Fit the cable cover into the center support column.

Note

Be careful when doing so not to allow cables to get caught between the cable cover and the cable insertion slots.

Cable cover

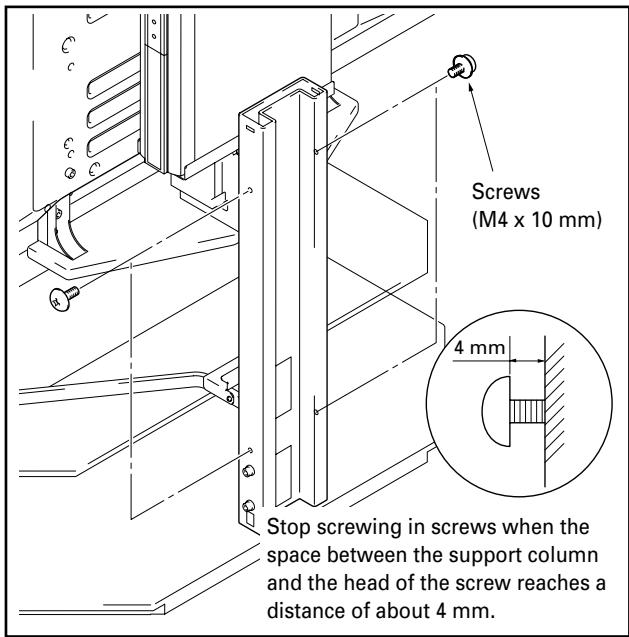

12 Partially screw four screws (M4 x 10 mm) into the sides of the center support column.

Screws (M4 x 10 mm) 4 mm Stop screwing in screws when the space between the support column and the head of the screw reaches a distance of about 4 mm.

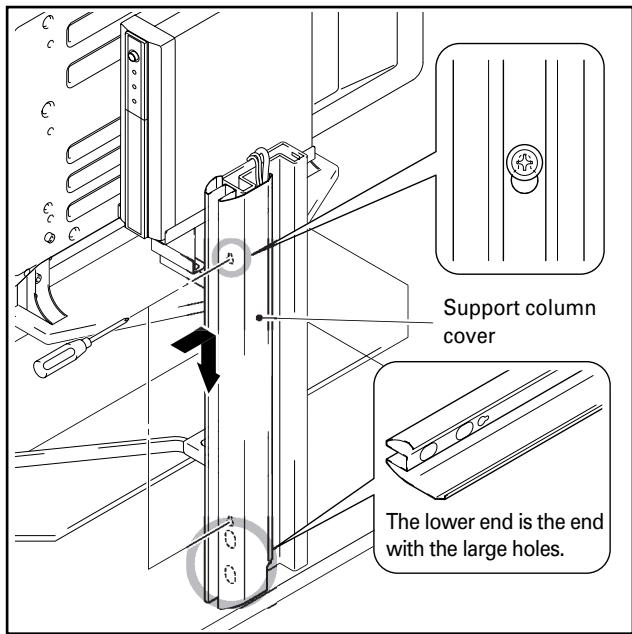

13 Attach one support column cover to the center support column to cover cables, then completely screw in the screws (2 screws, on the top and bottom).

Support column cover The lower end is the end with the large holes.

Caution

Be careful not to allow cables to become caught in the support column covers.

14 Follow the same procedure to attach the support column cover on the other side, then completely screw in the screws (2 screws, on the top and bottom)

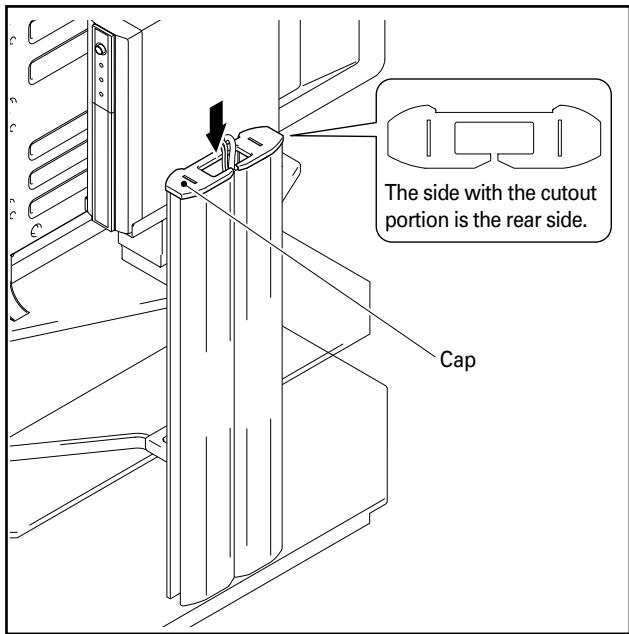

15 Attach cap.

The side with the cutout portion is the rear side. Cap

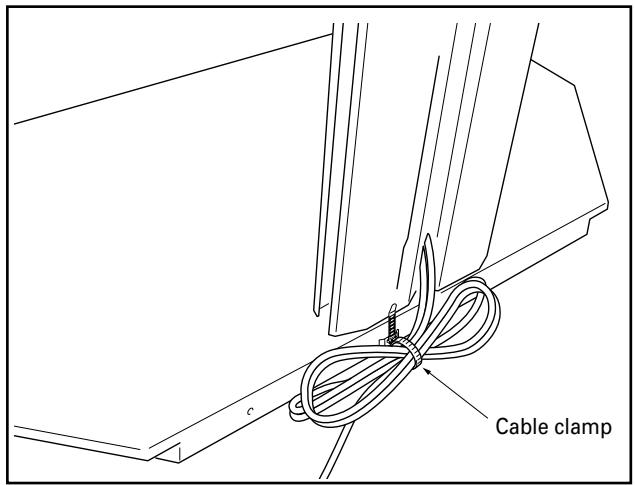

16 Attach cable clamps.

The cable clamps may be used to bundle up any excess lengths of cable as shown in the diagram below.

Note

Be careful not to step on any cables when moving the stand.

Cable clamp

Moving the stand and display

• When moving the stand and display, hold the stand by its center support column.
• When moving the stand and display, never do so by holding the plasma display, speakers, or glass panel, as doing so might result in breakage or damage to the equipment.
• When moving over an uneven surface of any kind, pick up the stand and display by the base of the stand.
• Be careful when you place the stand and display on a thick carpeted surface, because when you do, the fibers may become entwined in the casters preventing them from rolling.
• When moving the stand and display. Depending on the type of surface on which the stand is placed, the casters may leave marks on the surface, and this should be taken into consideration when selecting the place in which the stand is to be placed.

Preventing equipment from falling over

After installing the stand, be sure to take measures so that the equipment will not fall over.

1 Attaching falling prevention bolts (hooks) to the plasma display.
2 Using strong cords or chains to firmly stabilize it to a wall, pillar, or other sturdy element.

Perform the same procedure on the left and right, making sure when doing so that the lengths and positions of both restraints are symmetrical.

Note

Use hooks, ropes, chains, and fittings that are available on the market.

Recommended hook:

Nominal diameter M8

Length 12 to 15 mm

1 Hook Fitting 2 Cord or chain

External dimensions diagram

Weight

Stand only: 34.2 kg (75.4lbs)

Stand and plasma display: 67.5 kg (148.8 lbs) [When used with a PDP-434HDE / PDP-434HDG display with speakers attached.]

75.7 kg (166.4 lbs) [When used with a PDP-504HDE / PDP-504HDG display with speakers attached.]

B 860 206 54 960 A 79 574 59 760 373 40 (210) (179) 471±50 478

(Units: mm)

Plasma display	Location of speakers	Position	Full height (Dimensions A)	Center of screen (Dimensions B)
PDP-434HDE PDP-434HDG	At sides of plasma display	Upper	1,226	900
		Middle	1,176	850
		Lower	1,126	800
	Below plasma display	Upper	1,332	1,006
		Middle	1,282	956
		Lower	1,232	906
PDP-504HD PDP-504HDG	At sides of plasma display	Upper	1,311	943
		Middle	1,261	893
		Lower	1,211	843
	Below plasma display	Upper	1,417	1,049
		Middle	1,367	999
		Lower	1,317	949

- The above specifications and exterior may be modified without prior notice to improve the product.

Isometric line drawing of a rectangular metal frame with cutouts and mounting holes (no text or symbols)

Simple line drawing of a rectangular object with a horizontal bar and label 'Attention' below (no other text or symbols)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Illustration of seven different types of screws arranged in two rows (no text or symbols)

Isometric line drawing of a flat rectangular object with two vertical cylindrical pins on top (no text or symbols)

Line drawing of a Y-shaped metal bracket with two protrusions (no text or symbols)

Isometric line drawing of a structural frame or bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of two rectangular metal brackets with circular holes, no text or symbols present

• Couvercle x1 unité


Line drawing of a mechanical component with two notches and a central slot (no text or symbols)

Four identical diagonal metal rods with protruding pins, shown in black and white (no text or symbols)

Isometric line drawing of a rectangular electronic component with slots and cutouts (no text or symbols)

• Grundplatte: 1


Isometric line drawing of a flat rectangular object with two vertical cylindrical pins on top (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

• Glasplatte: 1


Simple line drawing of a three-legged support bracket (no text or symbols)

• Lange Stützbeine: 2


Technical line drawing of two rectangular metal brackets with holes, no text or symbols present

Technical line drawing of a mechanical component with flanged ends and internal slots (no text or symbols)

Line drawing of a mechanical component with two notches and a handle (no text or symbols)

Isometric line drawing of a structural frame or bracket (no text or symbols)

Illustration of four elongated metal rods with small protrusions at the ends (no text or symbols)

Illustration of eight different types of screws arranged in two rows (no text or symbols)

• Schrauben (M4 x 10mm) : 6

Isometric line drawing of a rectangular electronic device with slots and mounting brackets (no text or symbols)

• Base x 1


Isometric line drawing of a rectangular object with two small protrusions on top (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Line drawing of a Y-shaped metal bracket with two protrusions (no text or symbols)

Technical line drawing of two rectangular metal profiles with circular holes (no text or symbols)

Attenzione

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Isometric line drawing of a mechanical component with two notches and a central slot (no text or symbols)

• Porta RM (Ricevitore Media) x1


Isometric line drawing of a structural frame or bracket (no text or symbols)

Four identical elongated metal rods with small protrusions, arranged horizontally (no text or symbols)

Illustration of eight different types of screws (no text or symbols)

• Viti (M4 x 10mm) x 6

Isometric line drawing of a rectangular electronic device with slots and mounting brackets (no text or symbols)

• Voetstuk x 1


Isometric line drawing of a rectangular object with two small protrusions on top (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

• Glaspaneel x 1


Waarschuwing

Line drawing of a Y-shaped metal bracket with mounting holes (no text or symbols)

• Lange steunen x 2


Technical line drawing of two rectangular metal brackets with holes, no text or symbols present

Waarschuwing

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Isometric line drawing of a mechanical component with two notches and a central slot (no text or symbols)

• MR-houder x 1


Isometric line drawing of a structural frame or bracket (no text or symbols)

• Kabelklemmen x 4


Illustration of four elongated metal rods with small protrusions at the ends (no text or symbols)

Illustration of eight different types of screws (no text or symbols)

• Schroeven (M4 x 10 mm) x 6

1 Haak Appendage 2 Snoer of ketting

Gewicht

Standaard: 34,2 kg

Isometric line drawing of a rectangular electronic device with slots and mounting brackets (no text or symbols)

• Panel de vidrio x1


Technical line drawing of a mechanical component with flanged ends and internal channels (no text or symbols)

Illustration of eight different screwdrivers arranged in two rows (no text or symbols)

• Pernos hexagonales largos (M8 x 35 mm) x 4


• Base x1


Isometric line drawing of a flat rectangular plate with two small protrusions on top (no text or symbols)

Line drawing of a Y-shaped metal bracket with mounting holes (no text or symbols)

Isometric line drawing of a structural frame or bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of two rectangular metal beams with holes, no text or symbols present

• Casquete x 1


Isometric line drawing of a mechanical component with two flanges and a central slot (no text or symbols)

Pure diagram of four elongated metal rods with protruding connectors (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Isometric line drawing of a rectangular electronic device with slots and mounting brackets (no text or symbols)

• 基座 × 1


Isometric line drawing of a flat rectangular object with two small protrusions on top (no text or symbols)

• PDP 托架 × 1
  附带支柱 S [短支柱]


Technical line drawing of a mechanical bracket assembly (no text or symbols)

• 璃擱板 × 1


Simple line drawing of a rectangular object with a horizontal bar and arrowhead, labeled '警生' (no other text or symbols)

Line drawing of a Y-shaped metal bracket with mounting holes (no text or symbols)

• 支柱×2
  [長支柱]


Technical line drawing of two rectangular metal brackets with holes, no text or symbols present

警告

Line drawing of a mechanical component with two notches and a central slot (no text or symbols)

• 支柱蓋板（左右：各1）×2


Technical line drawing of a mechanical component with flanged ends and mounting holes (no text or symbols)

• MR 支架 × 1


Isometric line drawing of a structural frame or bracket (no text or symbols)

• 纜線夾 × 4

Four identical diagonal lines with small protrusions, resembling a stylized musical instrument or tool (no text or symbols)

Illustration of eight different types of screws (no text or symbols)

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

CUSTOMER SERVICE HOTLINE : [phone]

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Published by Pioneer Corporation.

Copyright © 2003 Pioneer Corporation.

All rights reserved.

パイオニア株式会社

PIONEER ELECTRONICS AUSTRALIA PTY.LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road #04-01, Singapore 159936, TEL: [phone]

PIONEER HIGH FIDELITY TAIWAN CO., LTD. 13FL., No44 Chung Shan North Road, Sec.2. Taipei, Taiwan, TEL: [phone]

PIONEER ELECTRONICS (CHINA) LTD. Room 1704-06, 17/F World Trade Centre, 280 Gloucester Rd. Causeway Bay, Hong Kong, TEL: [phone]

PIONEER GULF FZE Lob 11-017, Jebel Ali Free Zone P.O. BOX 61226, Jebel Ali, Dubai, United Arab Emirates, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]
