ZU510T - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Laser Projector
Brand	Optoma
Model	ZU510T
Native Resolution	WUXGA (1920 x 1200)
Brightness	5,100 ANSI lumens
Contrast Ratio	100,000:1
Light Source	Laser
Light Source Life	Up to 30,000 hours (ECO mode)
Dimensions (W x D x H)	424 x 335 x 108 mm
Weight	Approximately 13 kg
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	380 W (max), < 0.5 W standby
Main Features	Short-throw projection, keystone correction, 3D Ready, motorized zoom, motorized focus
Connectivity	HDMI, VGA, USB, RJ45, RS232, audio input/output
Maintenance and Cleaning	Clean the air filter every 1,000 hours; use a dry, soft cloth for the lens
Security	Auto power-off function, password lock, flip detection
Spare Parts and Repairability	Replaceable air filter and light source; Optoma technical support available
General Information	Professional projector for conference rooms or events; fixed or mobile installation

Frequently Asked Questions - ZU510T OPTOMA

How to turn on the Optoma ZU510T projector?

Press the Power button on the control panel or remote control. Make sure the power cable is plugged in.

What to do if the image is blurry?

Use the focus ring on the lens or the motorized focus function via the menu. Also check the projection distance.

How to replace the air filter?

Turn off the projector and unplug it. Open the filter compartment on the side, remove the old filter and insert a new compatible filter. Close the compartment.

Can I use the projector with an external battery?

No, the projector requires a 100-240 V mains power supply and cannot be powered by a standard external battery.

How to connect a computer to the projector?

Use an HDMI or VGA cable to connect the computer to the corresponding port on the projector. Select the appropriate source in the menu.

The projector overheats and shuts down, what to do?

Check that the air filter is not blocked and that the ventilation vents are clear. Clean the filter if necessary. Make sure the projector is not in a confined space.

How to adjust keystone correction?

Go to the Display menu and select Keystone Correction. Use the directional keys to adjust vertical and horizontal.

What display modes are available?

The projector offers several preset modes: Presentation, Cinema, sRGB, DICOM, and a customizable User mode.

How to use the 3D function?

Activate 3D mode in the menu. Use compatible DLP-Link 3D glasses and appropriate 3D content via HDMI.

Where to find the projector's serial number?

The serial number is on a label on the back or bottom of the projector. It is also accessible in the Information menu.

USER MANUAL ZU510T OPTOMA

Line drawing of a projector with ventilation slots and a control panel (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

AVERTISSEMENT

Illustration of a projector with a camera lens and label 'Projecteur' below (no other text or symbols)

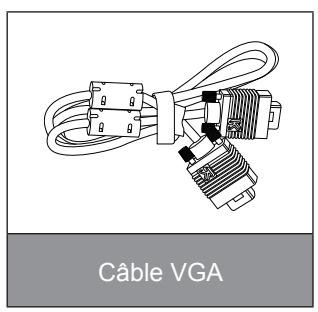

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)

ANNEXES

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK

www.optoma.eu

Téléphone

[e-mail]

Benelux BV

Randstad 22-123

1316 BW Almere

The Netherlands

www.optoma.nl

[phone]

[phone]

France

Bâtiment E

81-83 avenue Edouard Vaillant

92100 Boulogne Billancourt,

France

[phone]

[phone]

[e-mail]

Espagne

C/ José Hierro,36 Of. 1C

28522 Rivas VaciaMadrid,

Espagne

[phone]

[phone]

Allemagne

Wiesenstrasse 21 W

D40549 Düsseldorf,

Allemagne

[phone]

[phone]

[e-mail]

Scandinavie

Lerpeveien 25

3040 Drammen

Norvège

[phone]

[phone]

[e-mail]

PO.BOX 9515

3038 Drammen

Norvège

Corée

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku,

seoul,135-815, KOREA

+82+2+34430004

+82+2+34430005

Japan

東京都足立区綾瀬3-25-18

株式会社オーエス

[e-mail]

www.os-worldwide.com

Taiwan

12F., No. 213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
