USER MANUAL MQ 9087 GOURMET BRAUN

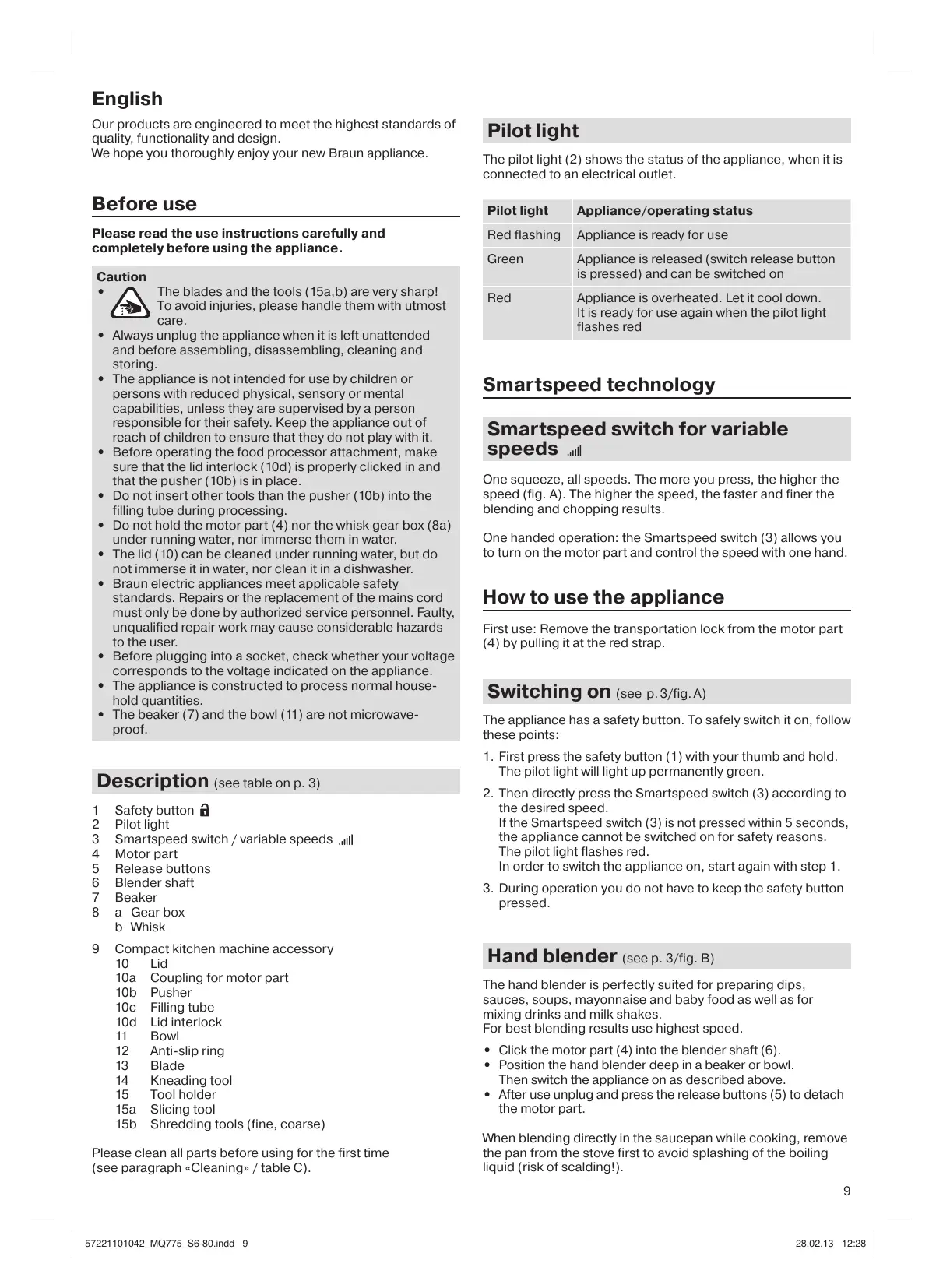

Our products are engineered to meet the highest standards of quality, functionality and design.

We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read the use instructions carefully and completely before using the appliance.

Caution

The blades and the tools (15a,b) are very sharp! To avoid injuries, please handle them with utmost care.
- Always unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
- The appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety. Keep the appliance out of reach of children to ensure that they do not play with it.
- Before operating the food processor attachment, make sure that the lid interlock (10d) is properly clicked in and that the pusher (10b) is in place.
- Do not insert other tools than the pusher (10b) into the filling tube during processing.
- Do not hold the motor part (4) nor the whisk gear box (8a) under running water, nor immerse them in water.
- The lid (10) can be cleaned under running water, but do not immerse it in water, nor clean it in a dishwasher.
- Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorized service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.
- Before plugging into a socket, check whether your voltage corresponds to the voltage indicated on the appliance.
- The appliance is constructed to process normal household quantities.
- The beaker (7) and the bowl (11) are not microwave-proof.

Description (see table on p. 3)

1 Safety button
2 Pilot light
3 Smartspeed switch / variable speeds
4 Motor part
5 Release buttons
6 Blender shaft
7 Beaker
8 a Gear box b Whisk

9 Compact kitchen machine accessory

10 Lid
10a Coupling for motor part
10b Pusher
10c Filling tube
10d Lid interlock
11 Bowl
12 Anti-slip ring
13 Blade
14 Kneading tool
15 Tool holder
15a Slicing tool
15b Shredding tools (fine, coarse)

Please clean all parts before using for the first time (see paragraph «Cleaning»/table C).

Pilot light

The pilot light (2) shows the status of the appliance, when it is connected to an electrical outlet.

Pilot light	Appliance/operating status
Red flashing	Appliance is ready for use
Green	Appliance is released (switch release button is pressed) and can be switched on
Red	Appliance is overheated. Let it cool down. It is ready for use again when the pilot light flashes red

Smartspeed technology

Smartspeed switch for variable speeds

One squeeze, all speeds. The more you press, the higher the speed (fig. A). The higher the speed, the faster and finer the blending and chopping results.

One handed operation: the Smartspeed switch (3) allows you to turn on the motor part and control the speed with one hand.

How to use the appliance

First use: Remove the transportation lock from the motor part (4) by pulling it at the red strap.

Switching on (see p.3/fig.A)

The appliance has a safety button. To safely switch it on, follow these points:

1. First press the safety button (1) with your thumb and hold. The pilot light will light up permanently green.
2. Then directly press the Smartspeed switch (3) according to the desired speed.
   If the Smartspeed switch (3) is not pressed within 5 seconds, the appliance cannot be switched on for safety reasons. The pilot light flashes red. In order to switch the appliance on, start again with step 1.
3. During operation you do not have to keep the safety button pressed.

Hand blender (see p. 3/fig. B)

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milk shakes.

For best blending results use highest speed.

• Click the motor part (4) into the blender shaft (6).
• Position the hand blender deep in a beaker or bowl. Then switch the appliance on as described above.
• After use unplug and press the release buttons (5) to detach the motor part.

When blending directly in the saucepan while cooking, remove the pan from the stove first to avoid splashing of the boiling liquid (risk of scalding!).

Recipe example: Mayonnaise

250 g oil (e.g. sunflower oil), 1 egg and 1 extra egg yolk,

1-2 tbsp. vinegar (approx. 15 g), salt and pepper to taste

Place all ingredients (at room temperature) into the beaker in the a.m. order. Place the hand blender on the bottom of the beaker. Operate the hand blender at maximum speed, keep it in this position until the oil starts emulsifying. Then without switching off slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. Processing time: from 1 minute (for salad) up to 2 minutes for more stiffness (e.g. for dip).

Whisk (see p. 3/fig. B)

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

• Insert the whisk (8b) into the whisk gear box (8a) then click the motor part (4) into the gear box.
• Place the whisk in a bowl and only then switch the appliance on.
• After use, unplug and press the release buttons (5) to detach the motor part. Then pull the whisk out of the gear box.

Tips for best results

• Use a medium-sized bowl.
• Move the whisk clockwise, holding it slightly inclined.
• Whipped cream (max. 400 ml chilled cream, min. 30% fat content, 4 - 8^ ): Start with low speed (light pressure on the switch) and increase the speed (more pressure on switch) while whipping.
• Beaten egg whites (max. 4 eggs): Start with a medium speed (half way pressure on switch) and increase the speed (more pressure on switch) while whipping.

Compact kitchen machine accessory

The compact kitchen machine accessory (9) is perfectly suited for

• chopping and blending
• kneading dough (based on max. 250 g flour)
• slicing and shredding

Chopping (see p. 4/fig. D)

Using the blade (13) you can chop meat, cheese, onions, herbs, garlic, carrots, walnuts, hazelnuts, almonds etc.

For best results, please refer to the maximum quantities and speed settings indicated in the processing tables of section D and E.

Do not chop extremely hard food, such as ice cubes, nutmeg, coffee beans or grains.

Before chopping ...

• pre-cut meat, cheese, onions, garlic, carrots, chillies
• remove stems from herbs, shell nuts
• remove bones, tendons and gristle from meat
• always make sure that the anti-slip ring (12) is attached to the chopper bowl

Caution: The blade is very sharp! Always hold it by the upper plastic part and handle it carefully.

Carefully remove the plastic cover from the blade.

1. Place the blade on the centre pin of the bowl (11) and give it a turn so that it locks.

2. Fill the bowl with food. Attach the lid (10) onto the bowl with the interlock (10d) positioned next to the bowl handle.

3. To lock the lid, turn it clockwise so that the interlock engages with a «click» above the handle.
4. Insert the motor part (4) into the coupling (10a) until it locks.
5. Plug in the appliance and make sure the pusher is in place.
6. Switch the appliance on and hold the bowl with the other hand.
7. After use unplug and press the release buttons (5) to remove the motor part. Remove the pusher.
8. Press the lid interlock (10d) and hold it. Turn the lid (10) counter-clockwise to unlatch it.
9. Lift the lid up.
10. Carefully take out the blade before removing the processed food. To remove the blade, slightly turn it then pull it off.

Mixing light dough

Using the blade (13), you may also mix light dough like a pancake batter or a cake mixture based on up to 250 g flour.

Recipe example: Pancake batter

First pour 375 ml milk into the bowl, then add 250 g flour and finally 2 eggs. Using full speed, mix the batter until smooth.

Kneading dough

Picture section D also applies for the use of the kneading tool. The kneading tool (14) is ideal for kneading different dough types like yeast dough or pastry (based on max. 250 g flour).

• Place the kneading tool into the bowl (11).
• Fill the bowl with max. 250g flour, then add the other ingredients except liquids.
• Turn the appliance on at full speed.
• Add liquids through the filling tube while the motor is running.
  Maximum kneading time: 1 minute - then allow the motor part to cool down for 10 minutes.

Recipe example: Pizza dough

250 g flour, 1/2 tsp salt, 1/2 tsp dried yeast, 5 tbsp olive oil, 150 ml water (lukewarm).

Recipe example: Pastry

250 g flour, 170 g butter (cold/hard, small pieces), 80 g sugar, 1 vanilla sugar, 1 small egg, 1 pinch salt

For good results, do not use warm, soft butter.

Stop kneading shortly after dough has formed a ball. Dough will become too soft from excessive kneading.

Slicing/shredding (see p. 5/fig. E)

Using the slicing tool (15a), you can slice e.g. cucumbers, onions, mushrooms, apples, carrots, radishes, raw potatoes, courgettes, cabbage.

Using the shredding tools (15b), you can shred e.g. apples, carrots, raw potatoes, beetroot, cabbage, cheese (soft to medium).

1. Place a tool (15a,b) into the tool holder (15) and snap into position. Place the tool holder on the centre pin of the bowl and make sure it locks into place.

2. Attach the lid (10) onto the bowl with the interlock (10d) positioned next to the bowl handle.

3. To lock the lid, turn it clockwise so that the interlock engages with a «click» above the handle.

4. Insert the motor part into the coupling (10a) until it locks.

5. Plug in the appliance and insert the food to be processed into the filling tube.
6. Switch the appliance on to operate. Never reach into the filling tube when the appliance is switched on. Always use the pusher (10a) to feed in food.
7. After use unplug and press the release buttons (5) to detach the motor part.
8. Press the lid interlock (10d) and hold it.
   Turn the lid (10) counter-clockwise to unlatch it.
9. Lift the lid up.
10. Take out the tool holder before removing the processed food. To remove the tool (15a,b), push it up at the one end that protrudes at the bottom side of the tool holder.

Recipe example: Vanilla-Honey-Prunes

(as a pancake stuffing or spread):

• Fill the «hc» chopper bowl (MQ 20, see accessories) with 50g prunes and 70g creamy honey.
• Chop 4 seconds at maximum speed (fully press the Smartspeed button).
• Add 10 ml water (vanilla-flavoured).
• Resume chopping for another 1.5 seconds.

Cleaning (see p. 3/fig. C)

Clean the motor part (4) and the whisk gear box (8a) with a damp cloth only. The lid (10) can be cleaned under running water, but do not immerse it in water, nor clean it in a dishwasher. All other parts can be cleaned in a dishwasher.

You may remove the anti-slip rings from the chopper bowls for extra thorough cleaning.

When processing foods with a high pigment content (e.g. carrots), the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before cleaning them.

Accessories

can be bought individually, not available in every country

MQ 20:	350 ml compact chopper to chop herbs, onions, garlic, chillies, nuts etc.
MQ 30:	500 ml chopper to chop carrots, meat, onions, etc.
MQ 40:	1000 ml chopper to chop, mix, blend and crush ice

Subject to change without notice.

This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 on materials intended for contact with food.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.
