Spin SI1050 - Milk frother Eldom - Free user manual and instructions

Product Type	Milk frother
Brand	Eldom
Model	Spin SI1050
Power Consumption	550–650 W
Power Supply	220–240 V ~ 50 Hz
Capacity (Foaming)	200 ml
Capacity (Heating)	230 ml
Heating Temperature	Approx. 65°C ± 5°C
Functions	Warm and cold frothing, heating, hot chocolate preparation
Control	Button with indicator lights
Attachments	Frothing attachment, mixing attachment, storage compartment
Tank Material	Stainless steel
Safety Features	Automatic shut-off, overfill protection
Base Protection	Do not immerse in water
Dishwasher Safe Parts	Lid and attachments (top rack, max 50°C)
Hand Wash	Removable parts with mild detergent, avoid abrasives
Storage	Integrated storage compartment for attachments
Warranty	Domestic use only; control lamp not covered
Intended Use	Household only
Overfill Protection	Do not exceed MAX level indicator

Frequently Asked Questions - Spin SI1050 Eldom

How do I froth milk?

Place the tank on the base, install the frothing attachment, pour milk up to the MAX level (200 ml for foaming), close the lid, and press the button twice. The indicator light will show the process. The appliance shuts off automatically.

Can I froth cold milk?

Yes, for cold frothing, follow the same steps but the indicator light will be a different symbol (□). The appliance will froth without heating.

What is the maximum capacity?

For foaming: 200 ml. For heating only or cold mixing: 230 ml. Do not exceed the MAX level marked inside the tank.

How do I clean the milk frother?

Unplug and cool down. Wash the lid and attachments in warm soapy water or dishwasher (top rack, max 50°C). Wipe the base with a damp cloth. Never immerse the base in water.

Can I wash the base in the dishwasher?

No, never immerse the base in water or rinse it under running water. Clean with a damp cloth only.

What type of milk should I use for best froth?

Use milk with fat content over 3.0% for best results. Whole milk works well.

How do I make hot chocolate?

Pour milk up to the MAX level, install the mixing attachment, add powdered or finely crushed solid chocolate, close lid, press button once then three times. The appliance will heat and mix.

What do the indicator lights mean?

The appliance has different lights for each function: ⚠ for warm frothing/heating, □ for cold frothing, and a light for heating only. Refer to the manual for exact symbols.

Is the appliance safe for children to use?

Children aged 8 and older can use it under supervision. Children under 8 should be kept away from the appliance and power cord.

What should I do if the appliance does not start?

Ensure the tank is properly placed on the base, milk is within the level, and the lid is closed. Check the power connection. If it still does not work, contact authorized service.

USER MANUAL Spin SI1050 Eldom

Modern stainless steel electric kettle with black handle and 'eldom' branding, no visible text or symbols on the device itself.

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

1. Carefully read all instructions before using the appliance.
2. Connect the appliance base only to a suitably earthed socket compatible with the parameters indicated in the instructions.
3. The appliance should be placed on a stable and dry surface.
4. Before turning on the appliance, make sure that milk is in the tank. Do not turn on an empty appliance.
5. Do not pour milk above the max. level indicator. Overfilling may result in uncontrolled outflow of hot milk, flooding electrical connections, and short circuiting).
6. The device can be used by children aged 8 and older and not by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
7. When unsupervised, the appliance that is plugged in to the mains or is filled with hot milk may pose hazard for children.
8. Never immerse the appliance base in water while washing-up.
9. The appliance is made of materials which can be recycled.
10. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
11. This appliance is designed for domestic use only; when

used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

1. Never use the appliance base if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
2. children without supervision. Protect the appliance and the power cord against children under 8 years old.
3. Do not use outdoors.
4. Do not immerse the cord or the appliance in water.
5. Unplug before cleaning.
6. Use only in households.
7. Do not use with damaged cord.
8. If the cord is damaged, to avoid danger, exchange it by authorised service providers.
9. Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
10. Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage.

WARNING:

Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

EN

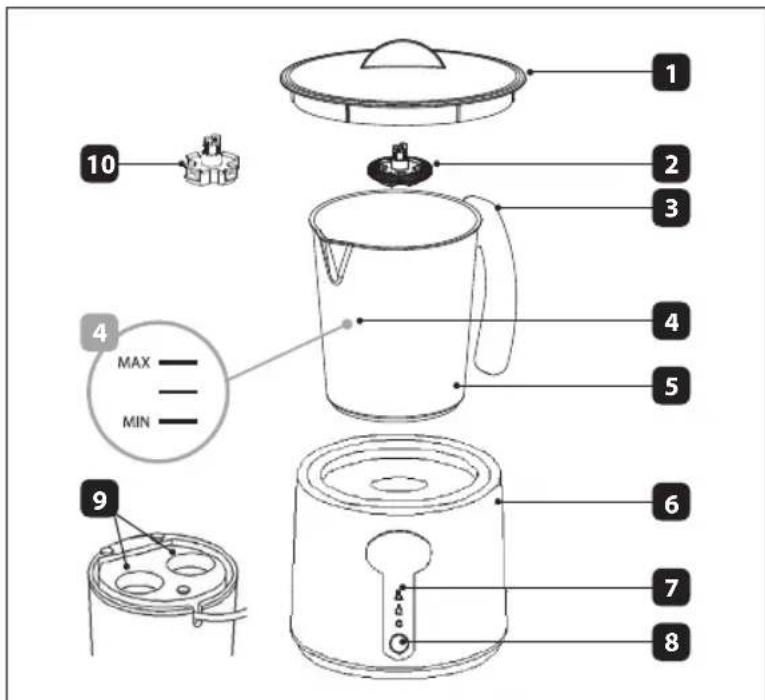

1. Lid
2. Frothing attachment
3. Handle
4. Indicator
5. Container
6. Base
7. Control lights
8. Powerswitch
9. Storage compartment for attachments
10. Mixing attachment

SPECIFICATION

power: 550-650 W

power supply: 220-240V \~ 50Hz

capacity:

- foaming: 200 ml

- heating: 230 ml

TIP FUNCTION		MAXIMUM CAPACITY	MARKING INSIDE THETANK
	Frothing and heating up / Cold frothing / Hot-chocolate preparation	200ml	MAX — MIN ←
	Heating up / Cold mixing.	230ml	MAX — ← MIN ←

INTENDED USE

The SI1050 foaming unit is intended for heating up and foaming of milk, as well as for preparation of beverages on the basis of milk. The appliance heats up milk to about 65 +/- 5°C.

SETTING UP THE APPLIANCE

Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.

Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see: Cleaning and maintenance).

For the best results, use milk with fat content over 3.0%.

Warm milk frothing

• Place the tank (5) in the base (6).
  • Install the required tip inside the tank (5)
• Pour milk into the tank in the volume not exceeding the maximum level -
• Place the lid (1) with the sealing gasket
• Press the button (8) twice. The control light ⚠ will go on to start the frothing process.
• The appliance will switch off automatically, and the control light will go off. The appliance may be turned off at any time with the button (8).
• Then remove the lid (1).
• While holding the appliance by the handle (3), remove the tank (5) from the base and pour out the milk to a cup. If needed, use a wooden spoon so as not to damage the coat of the tank.

Cold milk frothing

• Place the tank (5) in the base (8).
  • Install the required tip inside the tank (5).
• Pour milk into the tank in the volume not exceeding the maximum level -
• Place the lid (1) with the sealing gasket.
• Press the button (8) twice. The control light □ will go on to start the frothing process.
• The appliance will switch off automatically, and the control light will go off. The appliance may be turned off at any time with the button (8).
• Then remove the lid (1).
• While holding the appliance by the handle (3), remove the tank (5) from the base and pour out the milk to a cup. If needed, use a wooden spoon so as not to damage the coat of the tank.

Heating up milk

• Place the tank (5) in the base (6).
  • Install the required tip inside the tank (5).
• Pour milk into the tank in the volume not exceeding the maximum level -
• Place the lid (1) with the sealing gasket.
• Press the button (8) twice. The control light will go on and the heating process will start.
• The appliance will switch off automatically, and the control light will go off. The appliance may be turned off at any time with the button (8).
• Then remove the lid (1).
• While holding the appliance by the handle (3), remove the tank (5) from the base and pour out the milk to a cup.

NOTE. Do not pour milk above the maximum level for the given function.

Hot-chocolate preparation

• Place the tank (5) in the base (8).
  • Install the required tip inside the tank (5).
• Pour milk into the tank in the volume not exceeding the maximum level -
• Press the button (8) once. Then add the powdered chocolate or the finely crushed solid chocolate.
• Place the lid (1) with the sealing gasket.
• Press the button (8) three times. The control light ⚠ will go on and the heating process will start.
• The appliance will switch off automatically, and the control light will go off. The appliance may be turned off at any time with the button (8).
• Then remove the lid (1).
• While holding the appliance by the handle (3), remove the tank (5) from the base and pour out the milk to a cup.

NOTE. The solid chocolate must be finely crushed (preferably grated or blended). Too-large pieces can block the attachment (2).

After use, wait for about 2 minutes for the thermostat to reset. This time may be shortened when cold water is poured into the tank. Dry clean the appliance before its use.

CLEANING AND MAINTENANCE

• Clean the appliance immediately after use and cooling down.
• Before cleaning, turn off the appliance with the button (8), disconnect from the power supply and wait to cool down.
• Never immerse the base (6) in water, and do not rinse under running water.
• The external surfaces may be cleaned with a damp cloth.
• Wash the elements (1), (2) in warm water with addition of washdish, use a soft sponge and rinse under running water.
• Do not use abrasive agents, cleaning powders, acetone, alcohol, etc.
• The elements (1), (4) may be washed in a dishwasher, placed on the upper shelf. Make sure that they are placed away from the heating element. The maximum temperature is 50°C.

ENVIRONMENT PROTECTION

• the device is made of materials which can be reused or recycled.
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment.

GUARANTEE

• the device is designed to be used in households.
  • not for professional use.
• the control lamp is not subject to guarantee.
• the guarantee expires when device is used improperly.
