MEKO SI500 - Milk frother Eldom - Free user manual and instructions

Product Type	Electric Milk Frother
Brand	Eldom
Model	MEKO SI500
Capacity	250 ml
Dimensions (approx.)	25 x 10 x 10 cm
Weight	0.8 kg
Power Consumption	500 W
Voltage	220-240 V
Frequency	50/60 Hz
Functions	Frothing, Heating
Material	Stainless Steel, Plastic
Cord Length	0.8 m
Automatic Shut-Off	Yes
Overheat Protection	Yes
Dishwasher Safe Parts	Whisk only
Cleaning	Rinse immediately after use
Indicators	LED Operation Light
Color	Silver/Black
Noise Level	< 60 dB
Warranty	2 Years
Included Accessories	Whisk, Lid
Repairability	Spare parts available

Frequently Asked Questions - MEKO SI500 Eldom

How do I use the MEKO SI500 milk frother?

Pour milk into the stainless steel jug up to the max fill line. Attach the whisk, close the lid, and press the button. The LED indicator shows operation. For cold froth, omit heating. The device shuts off automatically when done.

Can I heat milk without frothing?

Yes, the MEKO SI500 can heat milk without frothing by removing the whisk and selecting the heating function. The heating mode warms milk to around 65°C for optimal taste.

What types of milk can be frothed?

The frother works best with whole milk for creamy froth. Semi-skimmed and plant-based milks (soy, almond, oat) also froth but produce less volume. Avoid lactose-free milk as it may not froth well.

How do I clean the MEKO SI500?

Unplug and let cool. Remove the whisk and lid. Rinse the jug and lid with warm water and mild detergent. The whisk is dishwasher safe (top rack). Wipe the base with a damp cloth. Do not immerse the base in water.

Is the whisk dishwasher safe?

Yes, the whisk is dishwasher safe. Place it on the top rack. For hand cleaning, rinse immediately after use to prevent milk residue buildup.

What is the maximum capacity?

The maximum liquid capacity is 250 ml for frothing and heating. Do not exceed the max fill line inside the jug to avoid overflow.

Does the milk frother have automatic shut-off?

Yes, the MEKO SI500 features automatic shut-off when the cycle is complete or if the device overheats. This ensures safety and prevents burning.

Can I make hot chocolate or other warm drinks?

Yes, you can heat milk for hot chocolate by using the heating function without the whisk. Add chocolate syrup or powder afterward and stir. The heating mode is ideal for warm beverages.

Why is my milk frother not working?

Check that the device is plugged in and the lid is properly closed. The safety mechanism prevents operation if the lid is open. Also ensure the max fill line is not exceeded. If still not working, contact customer support.

How do I descale the MEKO SI500?

Descale every 2-3 months depending on water hardness. Mix equal parts water and white vinegar, fill to max line, run a heating cycle. Rinse thoroughly with clean water and repeat. Regular descaling maintains performance.

USER MANUAL MEKO SI500 Eldom

White and black electric kettle with 'eldom' logo, no visible text or symbols on body

WSKAZÓWKI BEZPIECZEŃSTWA

Simple line drawing of a finger pressing a button with a square button and heat swabs (no text or symbols)

1. Please read all these instructions carefully before using this appliance.
2. Carefully read all instructions before using the appliance.
3. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
4. The appliance should be placed on a stable and dry surface.
5. Before turning on the appliance, make sure that milk is in the tank. Do not turn on an empty appliance.
6. Do not pour milk above the max.level indicator. Overfilling may result in uncontrolled outflow of hot milk, flooding electrical connections, and short circuiting).
7. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
8. When unsupervised, the appliance that is plugged in to the mains or is filled with hot milk may pose hazard for children.
9. Never immerse the kettle in water while washing-up.
10. The appliance is made of materials which can be recycled.

11. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

12. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

13. Never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
14. children without supervision. Protect the appliance and the power cord against children under 8 years old.
15. Do not use outdoors.
16. Do not immerse the cord or the appliance in water.
17. Unplug before cleaning.
18. Use only in households.
19. Serves only for ironing clothes.
20. Do not place in horizontal position on ironing board while ironing.
21. Do not use with damaged cord.
22. If the cord is damaged, to avoid danger, exchange it by authorised service providers.
23. Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
24. Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage.

WARNING:

Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

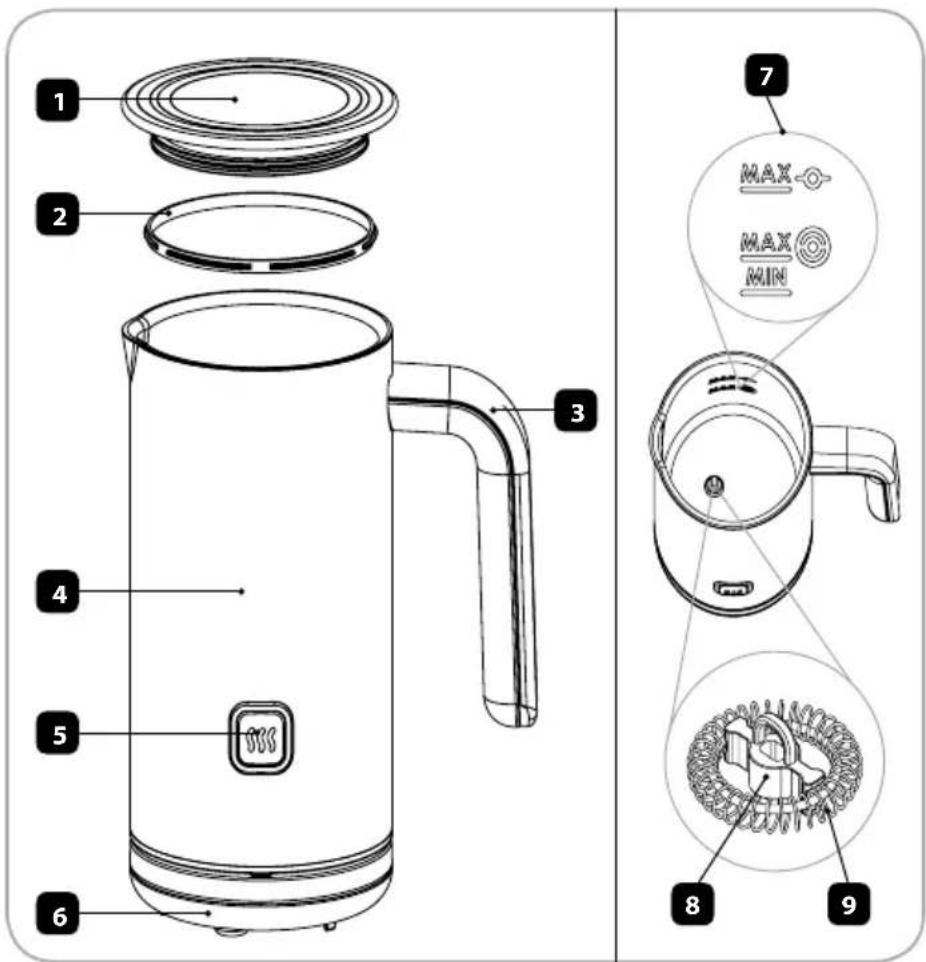

DESCRIPTION

1. Cap
2. Sealing gasket
3. Handle
4. Tank
5. On/off button with control light
6. Base
7. Indicator
8. Mixing tip
9. Frothing spring

SPECIFICATION

- Power: 500 W

- Power supply:

230 V \~ 50 Hz

- Capacity:

- foaming: 150 ml

- mixing: 300 ml

INTENDED USE

The SI500 foaming unit is intended for heating up and foaming of milk, as well as for preparation of beverages on the basis of milk. The appliance heats up milk to about 63 +/- 5°C or foams milk to about 65 +/- 5°C.

USE

Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.

Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see:

Cleaning and maintenance).

Simple line drawing of a finger pressing a button with a textured square (no text or symbols)

TIP FUNCTION		MAXIMUM CAPACITY	MARKING INSIDE THE TANK	OPERATION TIME
	Foaming and heating up.	150ml 60-100s
(without a spring)	Mixing and heating up.	300ml 80-160s

Table 1

OPERATION

Place the base (6) on flat and stable surface and connect to the mains.

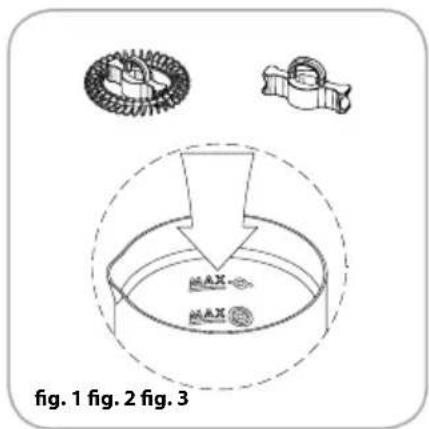

Install the required tip inside the tank (4) (Fig. 1)

Place the tank on the base (6).

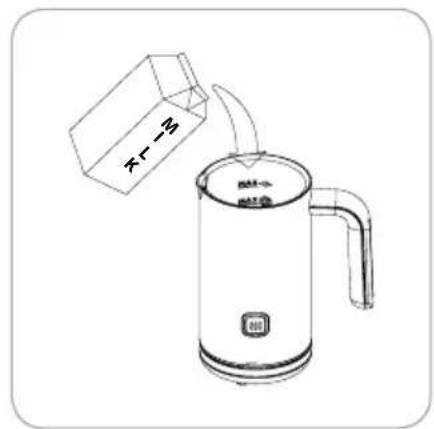

Pour the required volume of milk in accordance with the selected function: Table 1 (Fig. 2.).

For the best results, use milk with fat content over 3.0%.

When the mixing function is selected, powdered cocoa (etc.) may be added to milk.

NOTE. Do not pour milk above the maximum level for the given function.

Place the cap (1) with the sealing gasket (2).

Activate the appliance with the button (5) (Fig. 3). The control light will go on.

The appliance will switch off automatically and the control light will go off.

Remove the cap (1).

While holding the appliance by the handle (3), remove the tank (4) from the base and pour out the milk to a cup. If needed, use a wooden spoon so as not to damage the coat of the tank.

After use, wait for about 2 minutes for the thermostat to reset. This time may be shortened when cold water is poured into the tank. Dry clean the appliance before its use.

CLEANING AND MAINTENANCE

The appliance or any of its parts are not suitable for washing in a dishwasher.

Clean the appliance immediately after use and cooling down.

Before cleaning, turn off the appliance with the button (5), disconnect from the power supply and wait to cool down.

Never immerse the base (6) and the tank (4) in water, and do not rinse them under running water. The external surfaces

may be cleaned with a damp cloth.

Clean the internal tank with a soft cloth with a few drops of washing agent and rinse it thoroughly.

Make sure the unit is dry before you use it.

Rinse the cap (1) and the sealing gasket (2) and the tip (8, 9) removed from the tank under running water.

Do not use abrasive agents, cleaning powders, acetone, alcohol, etc., for cleaning.

ENVIRONMENTAL PROTECTION

- The appliance is made of materials which can be recycled.

- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

- This appliance is designed for domestic use only.

- It cannot be used for professional purposes or for other than the intended use.

- Improper use will nullify the guarantee.

BEZPEČNOSTNÍ PODMÍNKY

Simple line drawing of a finger pressing a button with a square button and heat swabs (no text or symbols)

Simple line drawing of a finger pressing a square button with a circular outline (no text or symbols)

ТЕХНИЧЕСКИЕ ДАННЫЕ

Simple line drawing of a finger pressing a button with a textured square (no text or symbols)

URČENIE

Simple line drawing of a finger pressing a button with a circular outline (no text or symbols)

KONCOVKA FUNKCIE	MAXIMÁLNY OBJEM	OZNAČENIE VO VNÚTRI NÁDOBY	DOBA PRÁCE
	Napenenie s ohriatím 150ml 60-100s
(bez pružinky)	Miešanie s ohriatím 300ml 80-160s

Tabulka 1

OBSLUHA

Podstavec (6) postavte na plochý a stabilný povrch a pripojte ho k sieti.

RENDELTETÉS

Simple line drawing of a finger pressing a button with three wavy lines on the button (no text or symbols)

Simple line drawing of a finger pressing a button with a thermal icon, enclosed in a dashed circle (no text or symbols)
