KW82 - Planer BLACK & DECKER - Free user manual and instructions

Product Type	Portable Planer
Brand	Black & Decker
Model	KW82
Intended Use	Planing and grooving of wood and plastic
Power Supply	Mains 230 V, 50 Hz
Input Power	900 W
No-Load Speed	17 000 min⁻¹
Planing Width	82 mm
Planing Depth	Up to 3 mm
Grooving Depth	Up to 15 mm
Weight	4.2 kg
Sound Pressure Level (LpA)	92 dB(A)
Sound Power Level (LWA)	103 dB(A)
Hand/Arm Vibration	3.49 m/s²
Insulation Type	Double insulation
Blades	Reversible, sold separately
Main Functions	Planing, grooving, beveling at 45°
Supplied Accessories	Parallel guide, depth stop, chip bag, ejection adapter, wrench
Maintenance	Cleaning ventilation slots, replacing blades and belt
Safety	Lock-off button, automatic stop, detailed safety instructions
Repairability	Repair by qualified personnel, recommended original parts
Warranty	24 months (excluding professional use or negligence)

Frequently Asked Questions - KW82 BLACK & DECKER

How do I replace the cutting blades?

Undo the bolts with the provided wrench, slide the blade off the holder. Turn the blade over for a new face or replace it. Replace the blade centered in the holder and tighten the bolts. Always replace both blades at the same time.

How do I adjust the cutting depth?

Turn the adjustment knob (4) to the desired depth. The scale (8) indicates the depth. Set the knob to the 'P' position when the tool is not in use.

How do I install the parallel guide?

Hold the guide (11) in front of the tool, insert the locking knob (12) into the hole (13) and tighten. To remove, reverse the process.

How do I use the depth stop for grooving?

Attach the stop (15) with the locking knob (17) into the hole (18). Adjust the depth by loosening the knob, then tighten. This limits the depth for grooving.

How do I connect a vacuum cleaner to the planer?

Slide the vacuum hose (25) into the chip ejection port (3). You can also use the supplied chip bag.

How do I change the chip ejection direction?

Insert the adapter (19) into the desired port (right or left) aligning the notch with the slot, then screw. Block the other port with the plug (20).

What are the essential safety instructions?

Wear safety glasses, do not wear loose clothing, keep children away, unplug before any adjustment, and wait for the blades to stop completely before setting the tool down.

How do I maintain the planer?

Regularly clean the ventilation slots with a dry brush. Use a damp cloth and mild detergent for cleaning. Never immerse the tool.

How do I replace the drive belt?

Loosen the screws (26) and remove the cover (27). Remove the worn belt. Fit the new belt (28) first on the large pulley (29), then on the small one (30), turning manually. Replace the cover.

What should I do if the planer does not start?

Check that the plug is properly connected and that the lock-off button (2) is pressed before pressing the switch. If the problem persists, contact a Black & Decker authorized repair center.

USER MANUAL KW82 BLACK & DECKER

English 5

Deutsch 9

Français 14

Italiano 19

Nederlands 24

Español 29

Português 34

Svenska 39

Norsk 44

Dansk 49

Suomi 54

Ελληνικά 59

Intended use

Your Black & Decker planer has been designed for planing wood, wood products and plastics. The tool is intended for hand-held use. This tool is intended for consumer use only.

General safety rules

Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS.

1. Work area

a. Keep work area clean and well lit.

Cluttered and dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b. Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

ENGLISH

f. Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

1. Battery tool use and care

a. Ensure the switch is in the off position before inserting battery pack.

Inserting the battery pack into power tools that have the switch on invites accidents.

b. Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

c. Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

d. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

e. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Additional safety instructions for planers

- Wait for the cutters to stop before setting the tool down. An exposed cutter may engage the surface and lead to possible loss of control and serious injury.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

- This appliance is not intended for use by young or infirm persons without supervision. Children must be supervised to ensure they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Features

This tool includes some or all of the following features.

1. On/off switch

2. Lock-off button

3. Shavings discharge outlet

4. Planing depth adjustment knob

5. Planing depth graduation

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

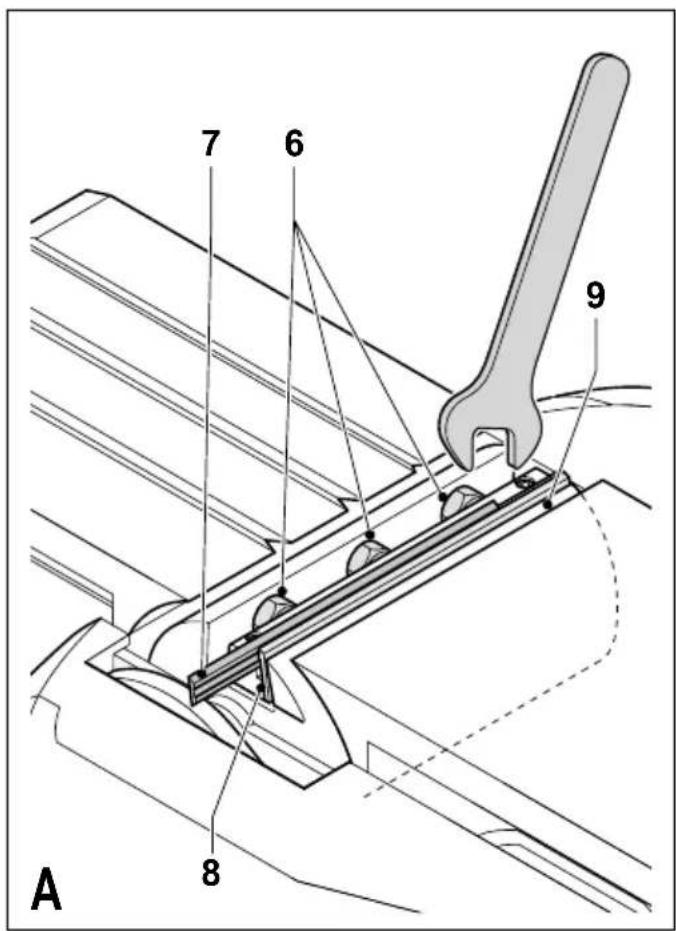

Replacing the cutting blades (fig. A)

The cutting blades provided with this tool are reversible. Replacement cutting blades can be obtained from your local retailer.

Removing

◆ Loosen the bolts (6) using the spanner supplied.

◆ Slide the blade (7) out of the holder (8).

◆ Reverse the blade so that the unused side comes in position. If both sides are worn, the blade must be replaced.

Fitting

◆ Slide the blade into the holder until it is centred in the holder.

◆ Make sure that the holder remains centred in the barrel (9).

◆ Tighten the bolts using the spanner supplied.

◆ Always replace both cutters.

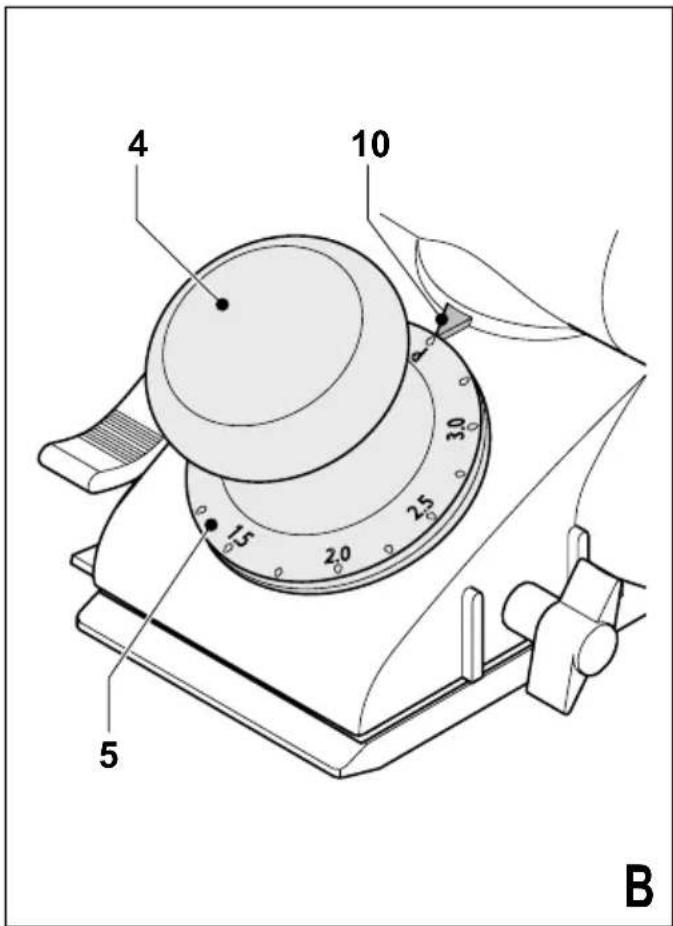

Adjusting the depth of cut (fig. B)

The depth of cut is indicated by the marking (10). The setting range can be read from the graduation (5).

- Turn the planing depth adjustment knob (4) to the required depth of cut.

- Turn the knob to the 'P' position whenever the tool is not in use.

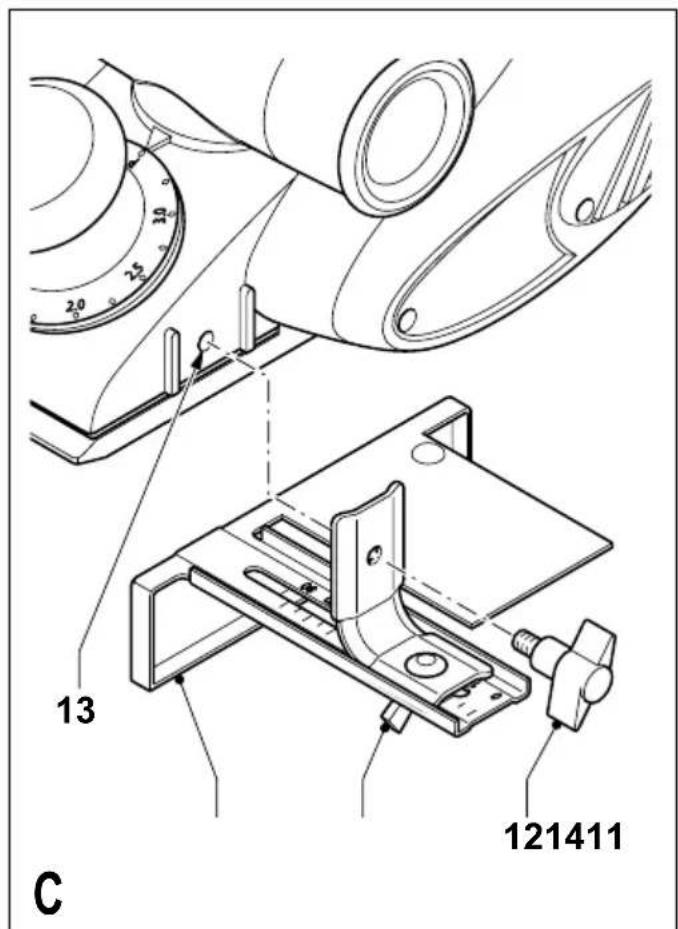

Fitting and removing the parallel fence (fig. C)

The parallel fence (11) is used for optimum control on narrow workpieces.

◆ Hold the parallel fence (11) in front of the tool as shown.

◆ Fit the parallel fence by inserting the locking knob (12) into the hole (13).

◆ Tighten the locking knob.

◆ To remove the parallel fence proceed in reverse order.

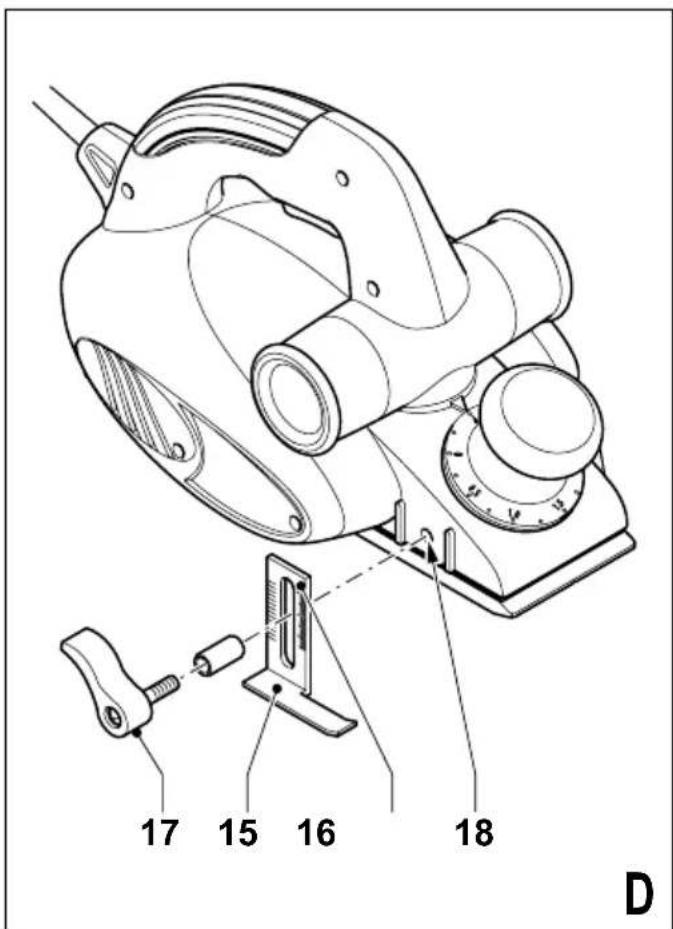

Fitting and removing the rebating depth stop (fig. D)

The rebating depth stop (15) is used for limiting the planing depth during rebating.

◆ Hold the stud (16) in front of the tool as shown.
◆ Fit the rebating depth stop by inserting the locking knob (17) into the hole (18).
◆ Fasten the locking knob.
◆ To remove the rebating depth stop proceed in reverse order.

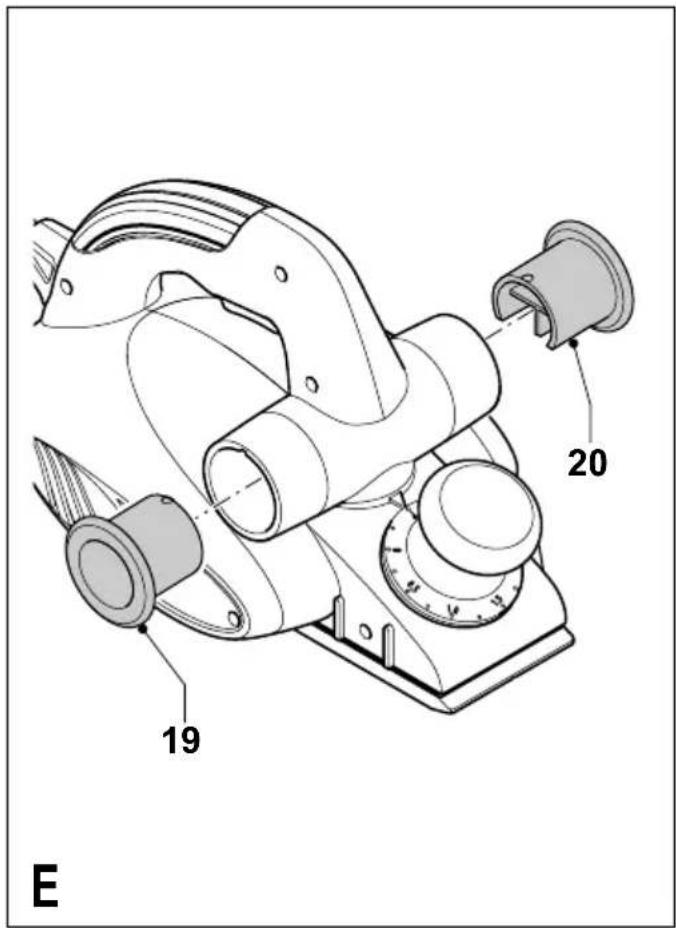

Adjusting the shavings discharge outlet (fig. E)

The tool facilitates both left-hand and right-hand side shavings discharge.

• Insert the adaptor (19) into the desired outlet opening, aligning the notch with the recess. Twist the adaptor clockwise as soon as it is fully inserted.
• Insert the plug (20) into the opposite opening, following the above procedure.
  ◆ Provide for a suitable dust extraction.

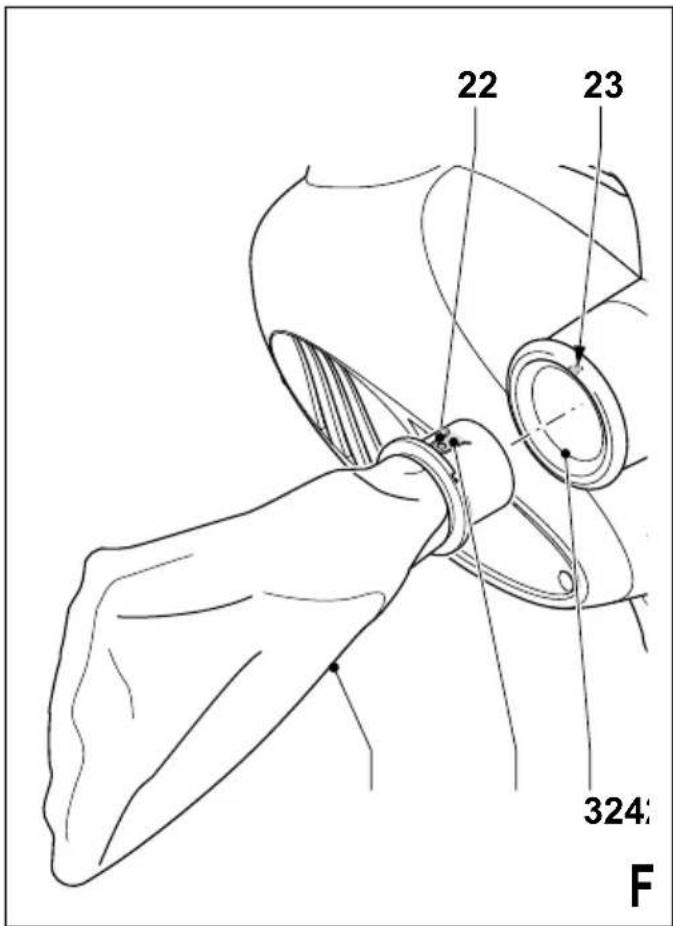

Fitting and removing the shavings bag (fig. F)

◆ Slide the shavings bag (21) into the shavings discharge outlet (3).
◆ Push the shavings bag into place. Make sure that the lug (22) is correctly located into the hole (23) on the inside of the shavings bag.
◆ To remove the shavings bag, press the tab (24) and pull the shavings bag out of the outlet.

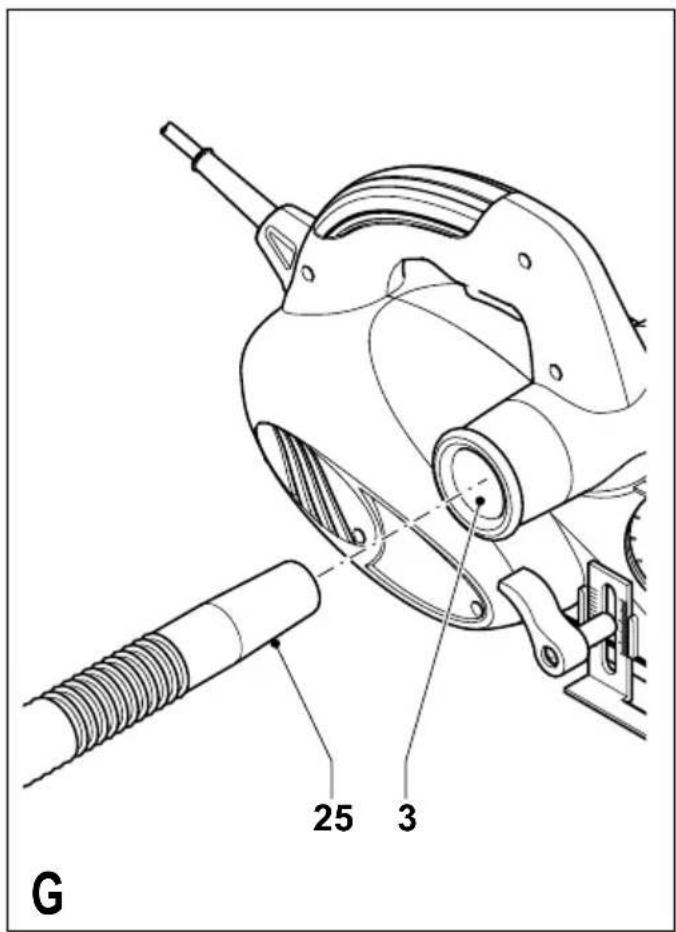

Connecting a vacuum cleaner to the tool (fig. G)

◆ Slide the vacuum cleaner hose (25) into the shavings discharge outlet (3).

Use

Warning! Let the tool work at its own pace. Do not overload.

• Adjust the depth of cut.
  ◆ If necessary, fit and adjust the parallel fence.
  ◆ Use sharp cutters only.

Adjusting the parallel fence (fig. C)

◆ Slacken the wing nut (14).
◆ Slide the parallel fence(10) into the desired position.
◆ Fasten the wing nut.

Adjusting the rebating depth stop (fig. D)

◆ Slacken the locking knob (17).
◆ Set the depth stop (15) to the desired position.
◆ Fasten the locking knob.

Switching on and off

Switching on

• Keep the lock-off button (2) depressed and press the on/off switch (1).
  ◆ Release the lock-off button.

Switching off

◆ Release the on/off switch.

Planing

◆ Hold the tool with the nose piece of the shoe resting on top of the workpiece surface.
◆ Switch the tool on.
◆ Move the tool steadily forward to perform the cutting stroke.
◆ Switch the tool off after the stroke has been completed.

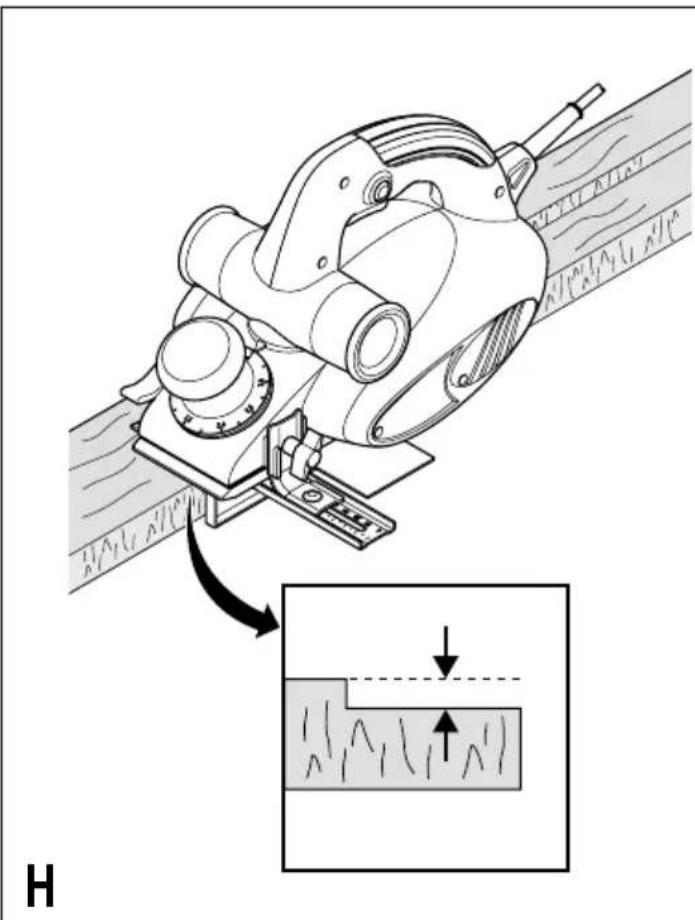

Rebating (fig. H & I)

◆ Fit and adjust the parallel fence.
◆ Fit and adjust the rebating depth stop.
◆ Proceed as for planing.

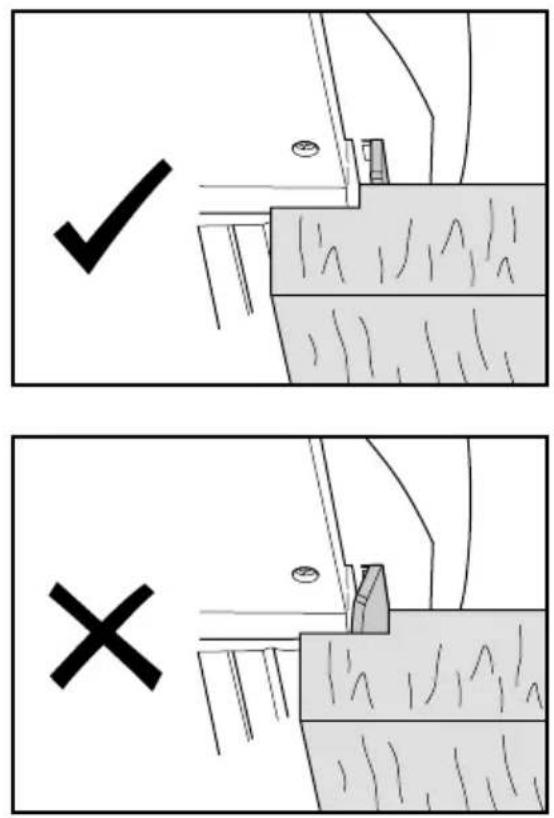

- When performing a rebate cut, make sure that the guard is not trapped, twisted or blocked. Always make sure that the shoe is placed flat against the rebate edge.

Chamfering edges

The V-groove in the nose piece of the shoe enables you to chamfer edges at 45^ angles.

◆ Hold the tool at an angle with the groove around the edge of the workpiece and perform the cutting stroke.

Hints for optimum use

◆ Move the tool along the grain of the wood.
If the grain is cross or curly, or if the workpiece material is a hard type of wood, adjust the depth of cut to take only a very thin shaving at each pass and take several passes to achieve the desired result.
- To keep the tool in a straight line, press down the front of the tool at the start, and press down the back of the tool at the end of the cutting stroke.

Maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• Regularly clean the ventilation slots with a clean, dry paint brush.
• To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

ENGLISH

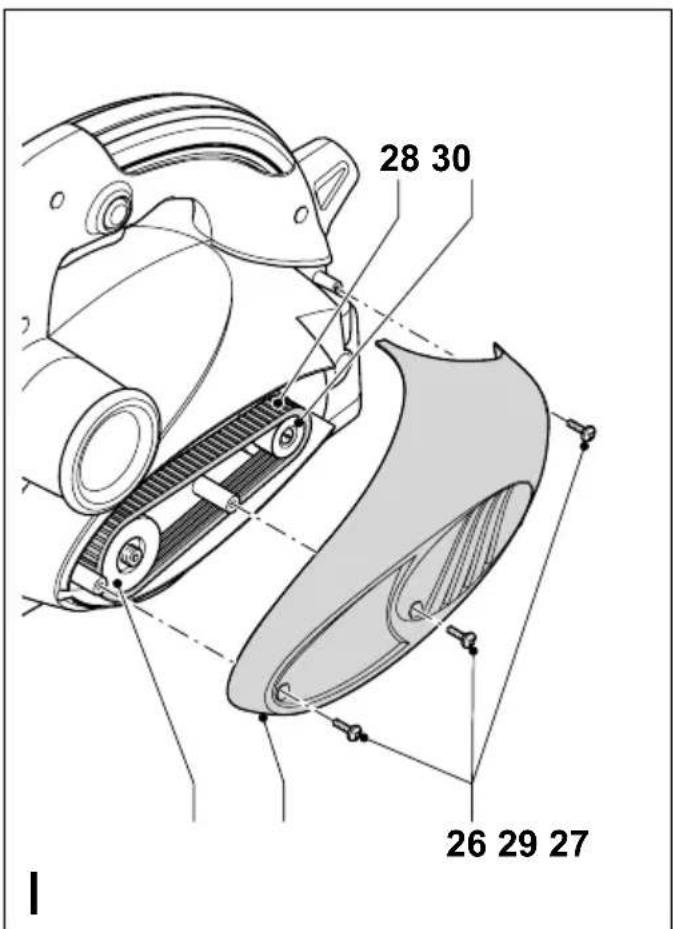

Replacing the drive belt (fig. J)

◆ Loosen the screws (26) and remove the cover (27).
◆ Remove the old drive belt.
◆ Place the new belt (28) over the pulleys. Place the belt over the large pulley (29) first, then over the small pulley (30), whilst manually rotating the belt steadily.
◆ Put the cover back in place and tighten the screws.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Technical data

KW82
Voltage V 230
Power input W 900
No-load speed min	^-1 17,000
Planing width mm 82
Planing depth mm 3
Rebating depth mm 15
Weight kg 4.2

EC declaration of conformity

Black & Decker declares that these products conform to: 98/37/EC, 89/336/EEC, 2002/96/EC, EN 60745, EN 55014, EN 61000

L_pA (sound pressure) 92 dB(A), L_WA (acoustic power) 103 dB(A), hand/arm weighted vibration 3.49 m/s ^2

K_pA (sound pressure uncertainty) 3 dB(A), K_WA (acoustic power uncertainty) 3 dB(A)

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-9-2005

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
- The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

Spennymoor, County Durham DL16 6JG,

Royaume Uni

1-9-2005

Garantie

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

Verenigd Koninkrijk

1-9-2005

Garantie

Spennymoor, County Durham DL16 6JG,

Reino Unido

1-9-2005

Garantía

Director de Engenharia do Consumo

Spennymoor, County Durham DL16 6JG,

Reino Unido

1-9-2005

Garantia

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

Storbrittannien

1-9-2005

Reservdelar / reparationer

Spennymoor, County Durham DL16 6JG,

Storbritannia

1-9-2005

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

Storbritannien

1-9-2005

Reservedele / reparationer

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

Iso-Britannia

1-9-2005

Dealer address Date of purchase

Händleradresse Kaufdatum

◆ Data protection act: Tick the box if you prefer

not to receive further information.
