Brand	Concept
Model	ZH0040
Product type	Jar sterilizer / Water heater & kettle
Power supply	230 V ~ 50/60 Hz
Power	2000 W
Tank volume	27 liters
Jar capacity	22 jars of 0.72 L or 34 jars of 0.37 L
Temperature range	From 80 °C to 100 °C depending on function
Timer	Adjustable up to 60 minutes (example); Keep Warm function
Main functions	Sterilization, cooking, hot beverage preparation, keep warm, blanching, juice production
Display	Digital screen with icons
Controls	START/STOP, TIMER buttons, temperature adjustment
Material	Stainless steel (tank) and plastic (exterior parts)
Safety	Automatic shut-off at end of cycle, overheating protection, lockable lid, low water level alert
Maintenance and cleaning	Exterior cleaning with damp sponge; descaling recommended; drain via tap
Cleaning the drain tap	Unscrew the lever, wash with soap, rinse, reassemble
First use	Fill with 6 L of water, heat to max for 60 min, empty and cool
Warranty	24 months from date of purchase
Country of manufacture	Czech Republic
Customer service	www.my-concept.cz

Frequently Asked Questions - ZH0040 Concept

How to use the sterilizer for the first time?

Before first use, clean the interior of the tank, fill it with about 6 liters of water, set the temperature to maximum and the timer to 60 minutes, then press START/STOP. Once the time is up, let it cool and empty the appliance. It is then ready to use.

How much water should I put in the sterilizer?

The water level must not exceed 4 cm from the top edge. For sterilization, fill up to 75% of the jar height. The maximum capacity of the tank is 27 liters.

How many jars can I sterilize at once?

You can sterilize up to 22 jars of 0.72 liters or 34 jars of 0.37 liters. Place the closed jars on the grid at the bottom of the sterilizer.

How do I set the temperature and sterilization time?

Turn the START/STOP control to select the desired temperature (see sterilization table). Then press TIMER to set the time in minutes. Confirm by pressing START/STOP. The screen shows the clock icon and the countdown begins.

What does the container icon on the display mean?

If the container icon appears on the screen, it indicates that the liquid has evaporated. Immediately fill with liquid to avoid any risk of burns and damage to the appliance.

How to use the Keep Warm function?

Select the desired temperature, then press the TIMER button until the infinity icon appears. Press START/STOP. The appliance maintains the temperature until you press START/STOP again to stop.

How to clean the sterilizer after use?

Unplug the appliance and let it cool. Clean the exterior with a slightly damp sponge. Never immerse the appliance in water. For the drain tap, unscrew the lever, wash with soap, rinse and reassemble. Periodic descaling with a commercial product is recommended.

What are the important safety precautions?

Never leave the appliance unattended, do not cover the openings, keep at least 15 cm away from combustible materials, do not touch with wet hands, unplug before cleaning, and do not immerse the cord or appliance in water.

What to do in case of odor during first use?

The odor is normal and dissipates quickly. It comes from the heating of new components. Ventilate the room if necessary.

How to benefit from the warranty?

The warranty is 24 months from the date of purchase. For any claim, contact your dealer or an authorized service center (list on www.my-concept.com). Keep the purchase receipt and follow the instructions in the manual.

USER MANUAL ZH0040 Concept

Concept rice cooker with black and silver casing, no visible text or symbols on body

CZ

The image contains no text or characters. It is a blank gray rectangle with no visible content, figures, or markings.

The image contains no text or characters. It is a blank gray square with a thin border. Therefore, there is no OCR result to output.

HU LV DE

RENSK PL

The image contains no text or characters. Therefore, the correct OCR output is an empty string.

IT ES

RO

Poděkování

4

ZH0040ZH0040

5

concept

concept

Obecné informace

12

ZH0040ZH0040

SK

concept

concept

SK

Informacje ogólne

36

ZH0040ZH0040

LV

concept

concept

LV

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 230 V - 50/60 Hz
Input 2000 W
Volume 27 l

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
• Do not leave the appliance unattended during operation.
• Only place the appliance on a stable and heat-resistant surface away from other heat sources. This surface must have sufficient load capacity to support the appliance even with the contents being prepared. Leave a space of at least 15 cm around the appliance.
• Keep the appliance away from flammable materials, do not place anything on top of the appliance.
• Do not load paper or plastic materials inside the appliance.
• Do not cover the openings of the appliance, there is a risk of overheating.
• Do not store anything inside the appliance.
• Keep the appliance clean at all times. Do not allow foreign objects to get into the grid openings. It could cause short circuit, damage to the appliance or cause fire.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the

EN

concept

concept

EN

appliance only under the supervision of responsible person, who is familiar with the instructions.

• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not allow the power cord to hang freely over the edge of the worktop where children might reach it.
• Do not use the appliance on a wet surface, there is a risk of electric shock.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

- Do not use the power cord to move or handle the appliance.

- Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.

- Do not touch the appliance with wet hands.

- If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- The appliance is only suitable for home use and is not intended for commercial use.

- Do not immerse the power cord, plug or appliance in water or any other liquid.

- Check the appliance and the power cord for damage regularly. Never switch on a damaged appliance.

- Switch off the appliance before cleaning and after use.

- If you notice smoke, switch off the appliance and unplug it. Leave covered with a lid to prevent the possible spread of the fire.

- Do not repair the appliance yourself. Contact an authorized service centre.

- Do not immerse the power cord, plug or appliance in water or any other liquid.

- Check the appliance and the power cord for damage regularly. Never switch on a damaged appliance.

- Switch off the appliance before cleaning and after use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed

by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

- Only carry the appliance when it is cold and empty! Hold the cooled and completely empty appliance only by the handles provided!

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

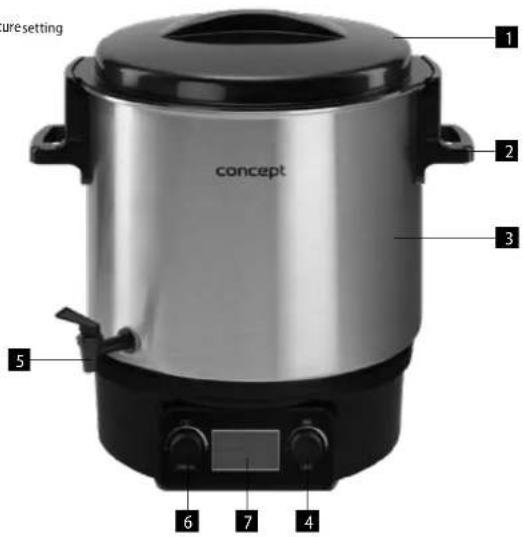

PRODUCT DESCRIPTION

1 Ltd

2 Handles

3 Pot

4 TIMER

5 Drain tap

6 START/STOP temperature setting

7 Display

44

ZH0040ZH0040

EN

concept

concept

EN

General information

This appliance is intended for: canning, cooking, preparing hot drinks, maintaining a hot liquid, blanching vegetables, sterilizing must, etc.

Dense liquids must be heated slowly and stirred continuously to prevent them from burning. Switching on the pot without water or other liquid can damage the enamel surface. Allow the appliance to cool down before using it again. Be careful when adding water to the appliance that is in operation, there is a risk of scalding from hot steam.

When used for the first time, an odour may occur, but it will disappear after a short time.

Capacity

The appliance has a capacity of 27 litres. The liquid level must not be higher than 4 cm below the upper edge of the appliance. Maximum 22 jars with a volume of 0.72 litres or 34 jars with a volume of 0.37 litres.

Important information

Boil the pot before using it for the first time.

Fill the appliance with about 6 litres of water, set the temperature to maximum, set the timer to 60 minutes and switch on the appliance by pressing the START/STOP button. After the set time has elapsed, the appliance switches off automatically. After cooling and pouring out the water, the appliance is ready for use. When cold, the body of the pot may have an elliptical shape that flattens when heated.

INSTRUCTIONS FOR USE

1. Insert the canning rack into the appliance.

2. Place the closed jars on the rack.

3. Fill the appliance with water up to 75% of the height of the jars. Make sure that the jars are well sealed so that no water enters them.

4. Place the lid on the pot.

5. Canning - turn the knob to select the desired temperature (START/STOP) and time (TIMER). To start the program, press START/STOP (Fig. 1). The pot starts to heat up. When the appliance reaches the selected temperature, the clock icon will appear on the display and the timer will start counting down (Fig. 2). An acoustic signal announces the end of the program.

6. Juice production - turn the START/STOP knob all the way to the right to select the maximum temperature, press the TIMER button, the timer will turn off (Fig. 3). Press the START/STOP button, the pot will heat up to the highest temperature and will generate the maximum amount of steam to reduce the juice. Once the juice is reduced to the desired density, press the START/STOP button to turn off the program.

7. KEEP WARM (maintaining the temperature) - select the desired temperature, press the TIMER button, the infinity icon will appear on the display, the timer is off (Fig. 4). Press the START/STOP button, the pot will heat up to the desired temperature and will maintain it until you press START/STOP to turn it off.

WARNING! If the container icon appears on the display, the liquid has completely evaporated. Carefully add the liquid immediately, there is a risk of scalding!

Warning: The stated time and temperatures are only indicative, they depend on the amount of water and ripeness of the fruits, etc.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

CANNING TABLE

Fruits Temperature in °C Time in minutes
Soft/hard apples 90 30/40
Apple purée 90 30
Cherries 80 30
Soft/hard pears	90 30/80
Strawberries, blackberries	80 25
Rhubarb	100	30
Raspberries, gooseberries	80 30
Red currants, cranberries	90 25
Apricots 90 30
Mirabelle plums, greengages	90 30
Peaches 90 30
Plums	90 30
Quince	95 25
Blueberries	85 25

Vegetables	Temperature in °C Time in minutes
Cauliflower	100	90
Asparagus	100	120
Peas	100	120
Gherkins	90 30
Carrot	100	90
Pumpkin	90 30
Kohlrabi	100	90
Celery	100	110
Brussels sprouts, red cabbage	100	110
Mushrooms	100	110
Beans	100	120
Tomatoes, tomato purée	90 30

EN

concept

concept

EN

Meat Temperature in °C	Time in minutes
Roast meat, pieces, cooked meat 100.85
Broth 100.60
Game, cooked poultry 100.75
Cooked stew, sauces 100.75
Minced meat, sausage (raw) 100.110

NOTICE: The jars are hot after the canning cycle is completed. Be careful to avoid burning yourself. Be careful when removing the jars from the pot and use protective gloves (pot holders).

CLEANING AND MAINTENANCE

WARNING!

• Before each cleaning of the appliance, unplug the power cord from the electrical outlet!
  • Make sure the appliance has cooled before handling it!
  • To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the
  surface of the appliance!
• Never clean the appliance under running water, do not rinse it or immerse it in water!

We recommend cleaning the drain tap

When cleaning the drain tap, we recommend unscrewing the drain lever.

1. Remove the lever by turning it counter-clockwise.
2. Wash the drain lever with a mild soap solution.
3. Rinse it in clean water.
4. Allow the mild soap solution to flow through the drain tap. Use detergent on stubborn dirt inside the tap.
5. Then rinse it under clean water.
6. Put the drain lever back on the drain tap.

Descaling

During normal use, deposition of impurities from the water occurs. Use commercially available descaling agents to clean them (follow the manufacturer's instructions). After descaling, rinse the appliance with clean water.

RECOMMENDATION

• Wrap the cable around the spool and insert the plug into the holder in the centre of the appliance base.
• Store the jars with fruits in a cool, dry place.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
  • Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

48

Danksagung

Généralités

84

ZH0040ZH0040

RO

concept

concept

RO

Informatii generale

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

ASPICO KFT
