Product type	Steam cleaner
Brand	Hoover
Model	SteamJet SCD1600 011
Nominal power	1600 W
Water tank capacity	500 ml
Heating time	3 to 5 minutes
Steam autonomy	About 15 minutes
Power cord length	5 m
Weight	3 kg
Power supply	220-240 V, 50-60 Hz
Variable steam function	Yes
Ready steam indicator	Green light
Water shortage indicator	Yellow light
Safety system	Safety lock on handle
Compatible floor types	Hard floors (tiles, varnished parquet, etc.)
Included accessories	3 extension tubes, cleaning brush, wipe (x1), brush connector, upholstery cloth (x1), window/cloth tool, metal brush, angled brush, small brush, large brush, squeegee, concentration nozzle, funnel, measuring cup
Maintenance	Empty the tank after use; descale if water is hard; wash wipes at 30°C without bleach
Warranty	According to conditions of the country of sale
Standards	CE, compliant with EU directives 2014/35/EU, 2014/30/EU, 2011/65/EC

Frequently Asked Questions - SteamJet SCD1600 011 HOOVER

How to fill the water tank?

Turn off the appliance and press the trigger to release pressure, then unplug it. Remove the cap by pushing and turning counterclockwise, fill with the funnel without exceeding the max level, then replace the cap by turning clockwise.

Why doesn't the green light turn on?

The green light indicates steam is ready. If it doesn't turn on, check that the appliance is plugged in and turned on. The heating time is about 3 to 5 minutes. If the light stays off, the tank may be empty or the appliance is defective.

How to adjust the steam amount?

Use the steam regulator on the handle to adjust the steam pressure as needed.

Can I use detergents in the tank?

No, use only water. Detergents or other liquids can damage the appliance.Do not add chemicals.

What to do if the appliance does not produce steam?

Check that the appliance is plugged in and turned on, that the tank contains water, and that the safety lock is unlocked. Wait for the green light to turn on. If the problem persists, descaling may be necessary.

How to descale the steam cleaner?

Fill the tank with clean water, close the cap, then shake gently to remove scale. Empty the water and repeat until clean. Perform this regularly if water is hard.

What accessories are included and what are they used for?

The kit includes a floor brush, a concentration nozzle, a window tool, a squeegee, brushes (metal, angled, small, large) and a flat upholstery nozzle. Each accessory is suitable for specific surfaces: windows, joints, grilles, etc.

How to clean the wipe after use?

Wash the wipe by hand or machine at 30°C maximum with a mild detergent.Do not use bleach or fabric softener.

Can the appliance be used on carpets?

Yes, it is possible to refresh rugs and carpets using the floor brush. Follow the same procedure as for hard floors, but avoid saturating the fabric.

What to do in case of water leakage?

Immediately stop the appliance, unplug it and let it cool down. Check that the tank cap is properly closed. If the leak persists, contact an authorized Hoover repairer.

USER MANUAL SteamJet SCD1600 011 HOOVER

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Keep the appliance out of reach of children when it is energized or cooling down.

The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord.

This appliance must be earthed.

The appliance shall not be left unattended while it is connected to the supply mains.

Do not use your appliance out of doors.

Use only attachments, consumables or spares recommended or supplied by Hoover.

Do not use the appliance to clean or direct steam towards animals, people or plants.

Liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

Filling Instructions:

Switch off the product and press the steam release trigger to release any remaining steam pressure, and then unplug the cleaner before adding water.

1. Remove the clean water tank cap by pushing down and turning anti clockwise. [6]

2. Fill the measuring jug no more than the max. fill line.

3. Insert the funnel into the water tank and fill the water. [7]

4. Replace the cap by pushing down and turning clockwise.

5. Ensure the handle safety latch is locked. [5]

The filling aperture must not be opened during use.

Danger of Scalding.

Caution, hot surface. Avoid contact with steam.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not position the appliance above you when cleaning the stairs.

When using the cleaning tools ensure to always steady the appliance with your other hand. This will ensure that the appliance does not fall while in use.

Do not handle the plug or appliance with wet hands.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

Hoover service: To ensure the continued safe and operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

Do not immerse the appliance in water or other liquids.

Do not use detergents or liquids other than water inside the appliance.

For UK and Ireland only: This appliance has a 13 amp mains plug. If you need to change the fuse in the mains plug, use a 13amp ASTA (BS1362) fuse.

GETTING TO KNOW YOUR CLEANER

A. Variable Steam Dial

B. Water Shortage Indicator Light (Yellow)

C. On Indicator Light (Metallic Red)

D. On/Off Button

E. Steam Ready Indicator Light (Green)

F. Water Tank Cap

G. Carry Handle

H. Tool Storage

I. Cleaner Main Body

J. Extension Tubes (3pcs)

K. Floor Head

L. Floor Head Cloth (x1)

M. Floor Head Connector

N. Upholstery Cloth (x1)

O. Window / Upholstery Tool

P1. Metal Brush

P2. Angled Nozzle

P3. Small Brush

P4. Large Brush

P5. Scraper Tool

Q. Concentration Nozzle

R1. Funnel

R2. Measuring Jug

S. Steam Handle

T. Hose

U. Steam Trigger

V. Safety Latch

W. Extension Tube Release Latch

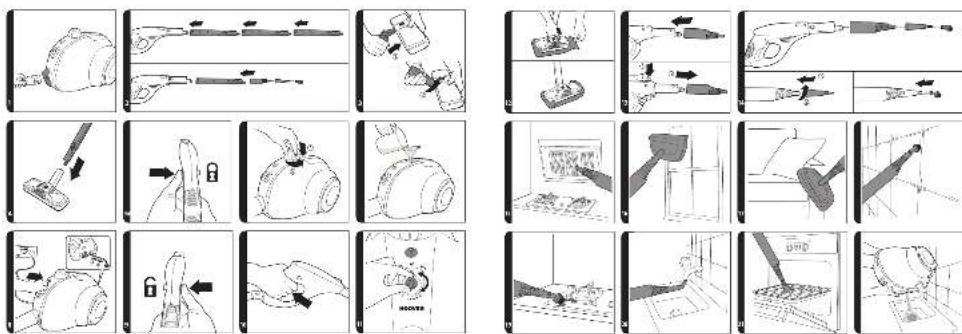

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

Attach the hose to the main body of the cleaner. [1]

1. Attach the extension tube to the hose handle. Connect the other extension tubes together. [2]

2. Attach the floor head to the connector until it clicks. Rotate the connector ensuring it is locked in place. [3]

3. Attach the floor head connector to the extension tubes. [4]

4. Ensure the handle safety latch is locked. [5]

NOTE: To remove the extension tubes from the handle or the floor head from the tubes, press the release latch and pull apart.

USING YOUR CLEANER

1. Remove the clean water tank cap by pushing down and turning anti clockwise. [6]

2. Fill the measuring jug no more than the Max. fill line.

3. Insert the funnel into the water tank and fill the unit with water. [7]

4. Replace the cap by pushing down and turning clockwise.

5. Ensure the handle safety latch is locked. [5]

IMPORTANT: Always switch off the product and press the steam release trigger to release any remaining steam pressure, and then unplug the cleaner before adding water.

STEAM CLEANING HARD FLOORS

IMPORTANT: Always switch off the product and press the steam release trigger to release any remaining steam pressure, and then unplug the cleaner before adding water or changing a textile pad or accessory tool.

1. Ensure the floor head is connected to the extension tube.
2. Place the floor head onto the floor cloth. Lift the levers on either side of the floor head to secure each end of the floor cloth in place. [12]
3. Plug the steam cleaner into the mains power and switch on. The red ON light will illuminate. [8]
4. After a few minutes the green steam ready light will illuminate indicating the cleaner is ready for use. [8]
5. Release the steam handle safety latch. [9]
6. To produce steam press the steam trigger button. [10]
7. If necessary adjust the variable steam dial to adjust pressure. [11]
8. Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas.
9. Remove the floor cloth from floor head and use brush for stubborn dirt.

REFRESHING CARPETS

1. Repeat steam cleaning hard floors operated steps 2-8 as detailed above.

ACCESSORIES

All accessories can fit onto the concentration nozzle which can be attached to the hose handle or the end of the tube.

1. Ensure the handle safety latch is locked. [5]

2. To attach the concentration nozzle push onto the handle/extension tube until it clicks in place. [13]

3. Push the desired small tool onto the concentration tool aligning the arrows. [14]

4. Twist clockwise to secure in place. [14]
5. Plug the steam cleaner into the mains power. The red ON light will illuminate. [8]
6. After a few minutes the green Steam Ready light will illuminate indicating the cleaner is ready for use. [8]
7. Release the steam handle safety latch. [9]
8. To produce steam press the Steam Trigger Button. [10]
9. If necessary adjust the variable steam dial to adjust pressure. [11]

NOTE: The concentration tool must be attached before fitting any other small tools.

Concentration Nozzle Use on heavily soiled areas such as showers, kitchens. [15]

Window Tool Use on windows and mirrors for a smear free clean. [16]

Upholstery Tool Use the upholstery cloth over the window tool for use on sofas and chair fabrics. [17]

Plastic Brushes Use on stubborn grease and grime. [18]

Metal Brush For oven grills and racks. [19]

Angled Nozzle For hard to reach areas such as taps etc. [20]

Scraper Tool Ideal for dried residue in ovens or defrosting freezers. [21]

IMPORTANT: Always unplug the cleaner when adding water, changing a textile pad or accessory tool.

CLEANER MAINTENANCE

IMPORTANT: Always ensure the cleaner has fully cooled down before performing any maintenance tasks.

Empty the water tank

1. Switch off the cleaner using the on/off switch, [8] but ensure the plug is still connected to the mains. Hold the steam trigger down and release any remaining steam from the boiler, [10]
2. After all the steam has been released unplug cleaners from mains and allow the water in the boiler to cool down.
   NOTE: Make sure the cleaner is switched off but plug in when doing step 1.
3. Put the steam handle safety latch on. [5]
4. Once the boiler has cooled down you can then remove the clean water tank cap by pressing down and rotating the cap in an anticlockwise direction. PLEASE ENSURE NO STEAM IS EMITTED WITH THIS ACTION !!! IF SO STOP AS THE BOILER IS NOT FULLY COOLED. [6]
5. Remove the cap, lift the cleaner and empty any remaining water. [22]

Removing and cleaning the textile pad

1. Unplug the cleaner from the mains power and ensure the unit has cooled.
2. Remove the cleaning cloths from floor head or window tool.
3. Wash the cleaning cloths by hand or machine with a mild detergent at Max. temperature 30° C.

IMPORTANT: Do not use bleach or fabric softener when washing the textile pad.

TROUBLESHOOTING

Should you have a problem with the product, complete this simple user checklist before calling your local HOOVER service.

The steam cleaner will not switch on.

• Check the unit is plugged in.
• Check the power cord.

The product is not producing steam.

• Check the unit is switched on.
  • There may be no water in the water tank.
• The safety latch may be locked. If so unlock the safety latch.
• The water is not at the correct temperature. The green light will illuminate when ready.

The cleaner is taking a long time to heat up.

• If you live in a hard water area the water tank may have become blocked. The unit will have to be descaled.
• To complete this task fill tank with clean water, close cap, shake cleaner to detach any limescale or dirt from the Tank, empty residue. Repeat this operation until clean.

The cleaning cloth won't pick up dirt.

- The cleaning pad may already be saturated with dirt and needs to be washed.

Refer to the Maintenance section.

IMPORTANT INFORMATION

Hoover Spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Consumables:

Textile Pad (2pcs): 35601391 (AC26)

Textile Pad (3pcs): 35601392 (AC27)

Floor Brush: 35601393 (G149)

GB

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

The Environment:

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

This product complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EC.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
