Product Type	Stand mixer with integrated induction cooktop
Model	Cooking Chef XL KCL95
Bowl Capacity	3 litres (maximum fill level)
Weighing Capacity	Up to 6 kg
Temperature Range	20°C to 180°C (cooking mode)
Speed Settings	Pulse; stir intervals 1,2,3,4; continuous speeds min to max; HSHT mode

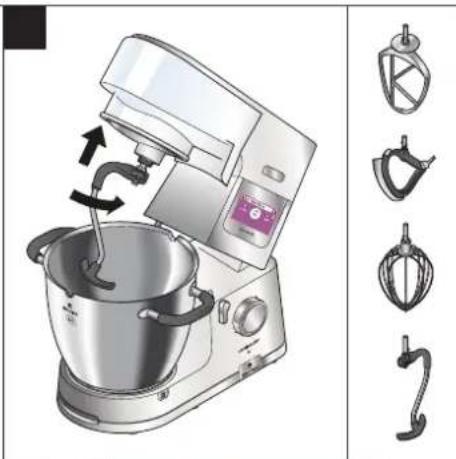

Included Tools	K-Beater, whisk, dough tool, stir tool, creaming beater, stir assist clip, high temperature spatula, dough scraper, spanner
Steamer Attachment	Included (handle supports, supporting ring, folding handles, removable tray, egg holders)
Display	Touch screen
WiFi Connectivity	IEEE 802.11 b/g/n 2.4 GHz; compatible with Kenwood World App
Preset Programmes	Egg white whisking, sponge cake, dough kneading, dough proving, chocolate melting, Swiss meringue, Italian meringue, fruit compote, popcorn, steam, all in one dishes, chunky soup, slow cook
Attachment Outlets	High speed outlet, slow speed outlet, bowl tool socket, stir tool socket
Power Consumption (Standby)	Networked: <1.5W; Non-networked: <0.3W; Off: <0.3W
Care and Cleaning	Most parts dishwasher safe; bowl hand wash recommended; wipe appliance with damp cloth
Safety Features	Overload protection, automatic speed limit above 60°C, heat shield, splashguard, safety sensors
Warranty	Subject to legal provisions; contact authorised Kenwood Service Centre

Frequently Asked Questions - Cooking Chef XL KCL95 KENWOOD

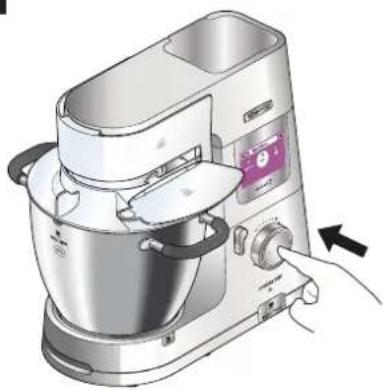

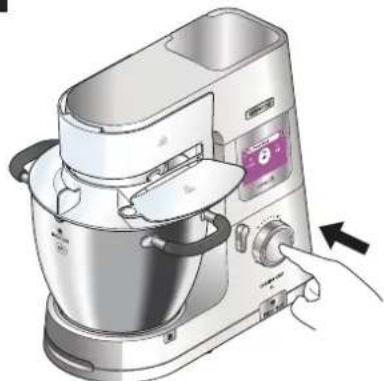

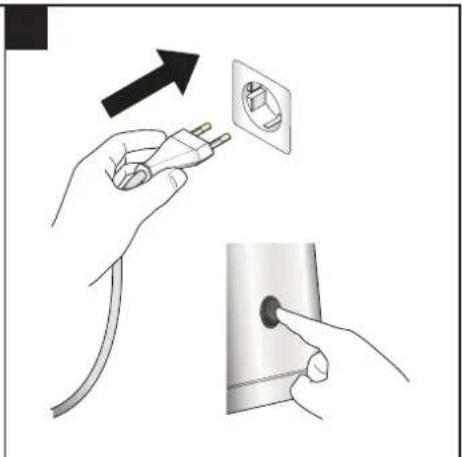

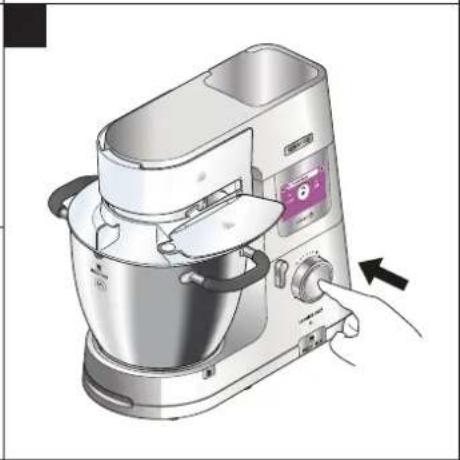

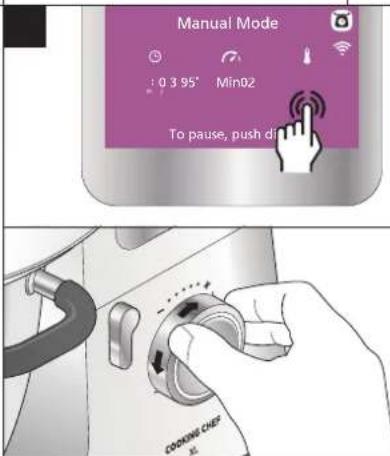

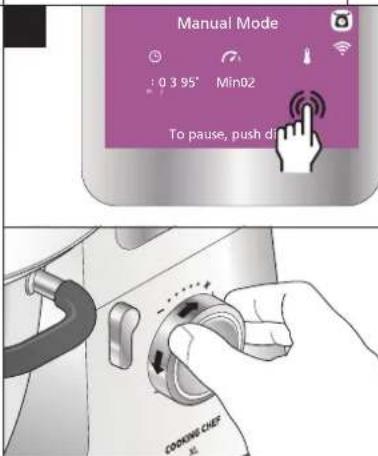

How do I start the Cooking Chef XL?

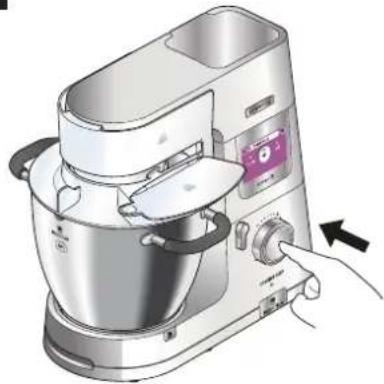

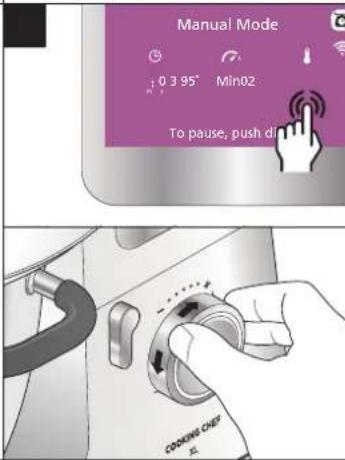

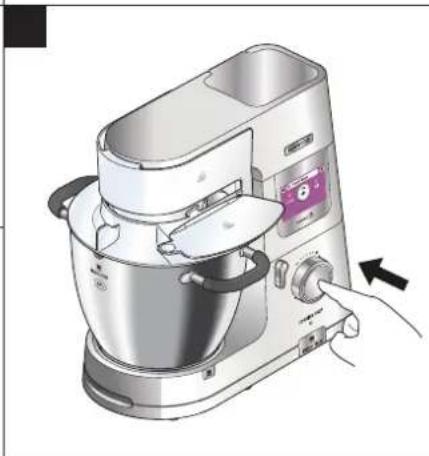

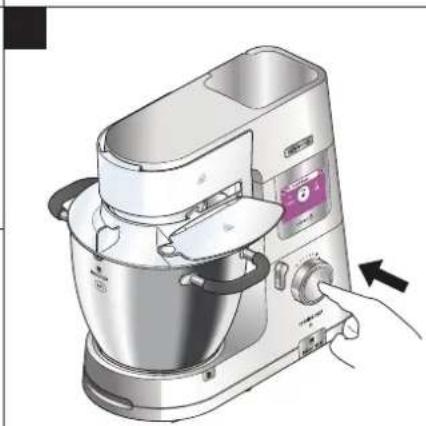

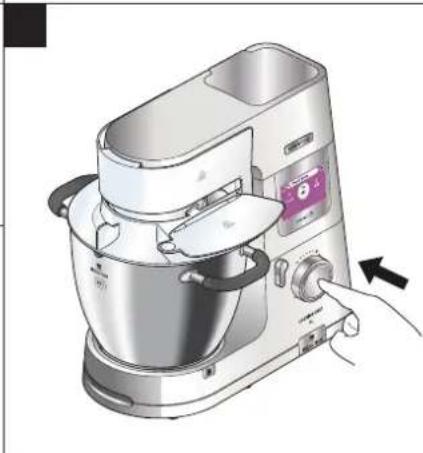

After setting the desired time, speed, and temperature, press the control dial to start the machine. To pause, press the dial again.

Why is food burning on the bottom of the bowl?

Possible causes: temperature setting too high, incorrect tool, stir delay too long, tool not low enough, timer too long, or dirty sensors. Reduce temperature, use the correct tool, increase stir frequency, adjust tool height, shorten cooking time, and ensure the bowl base and sensors are clean and dry.

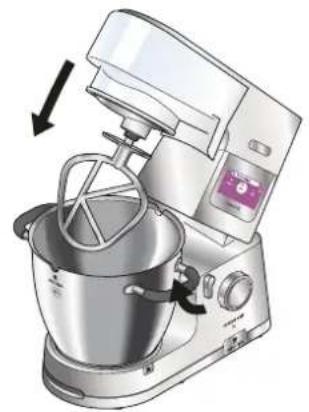

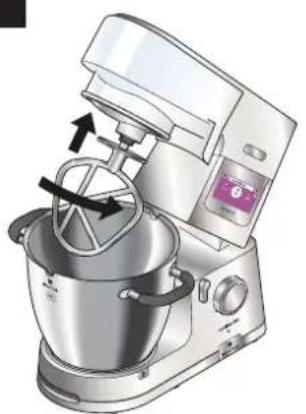

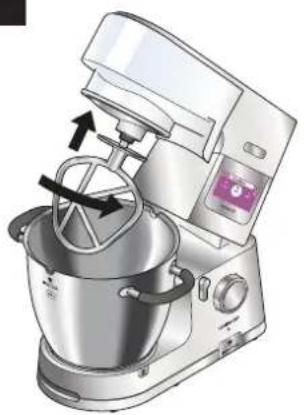

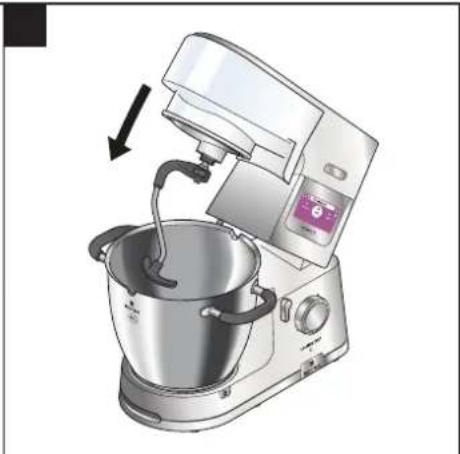

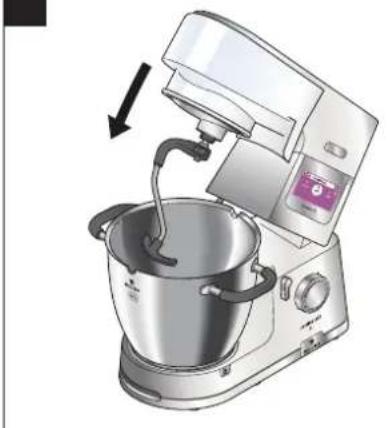

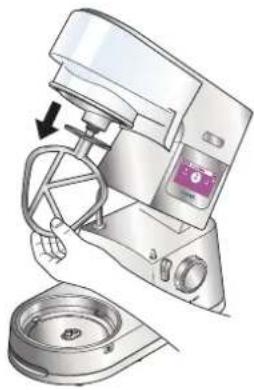

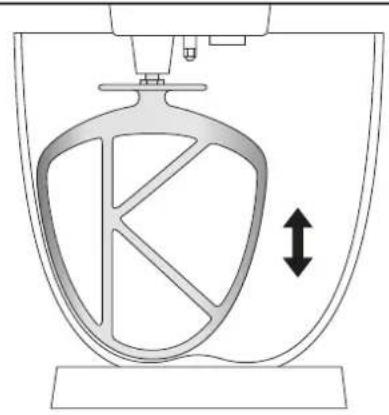

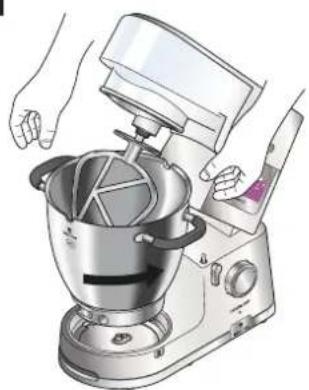

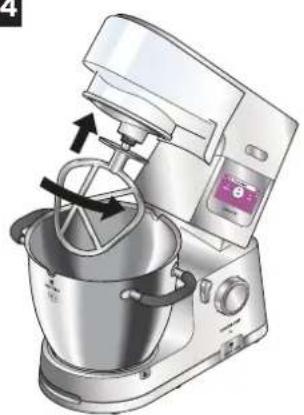

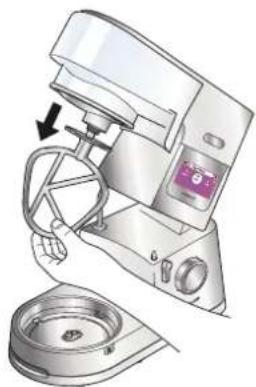

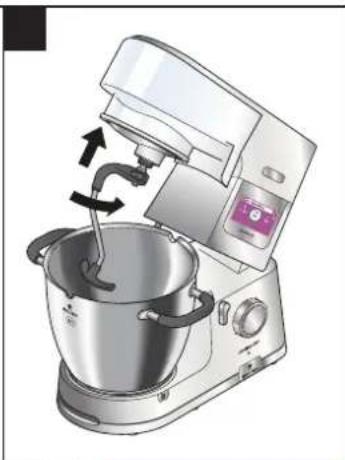

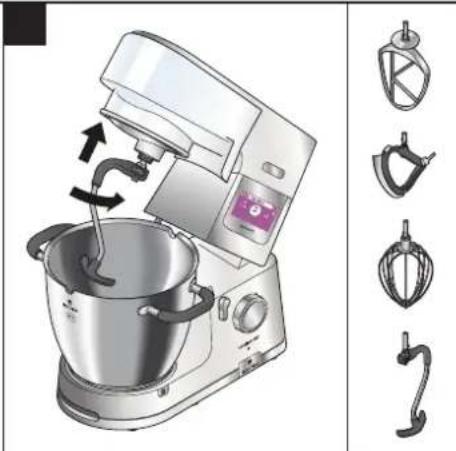

How do I adjust the tool height?

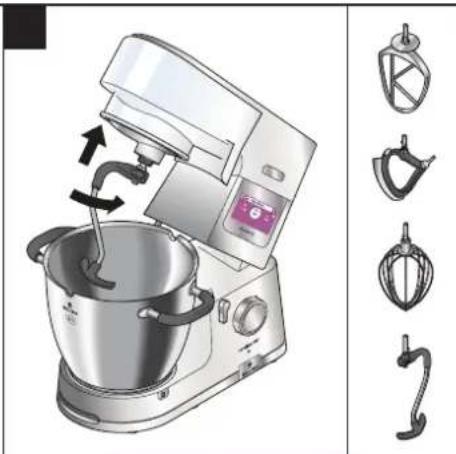

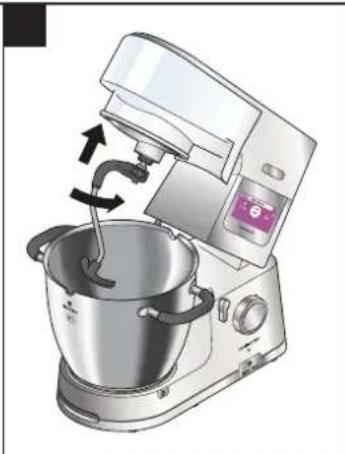

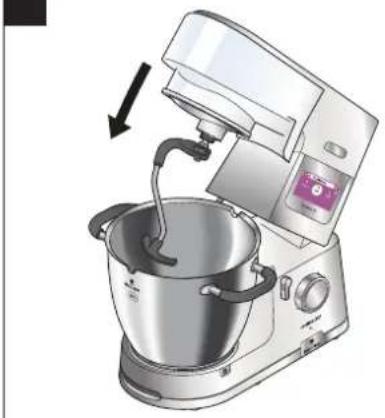

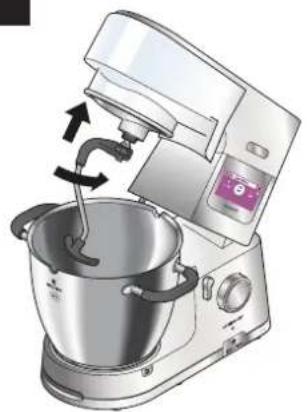

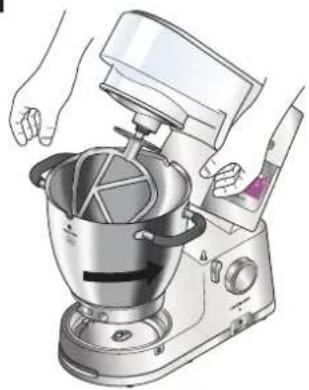

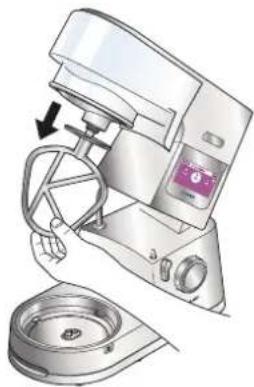

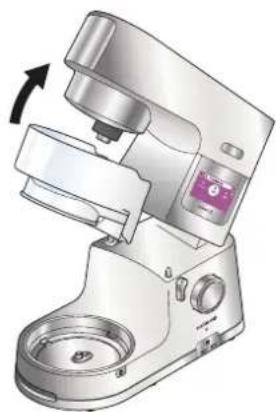

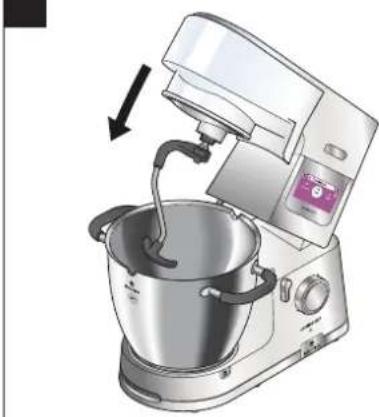

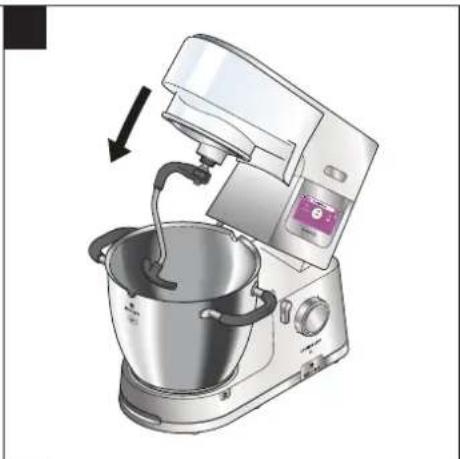

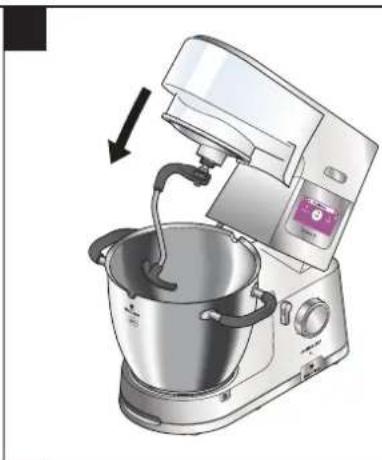

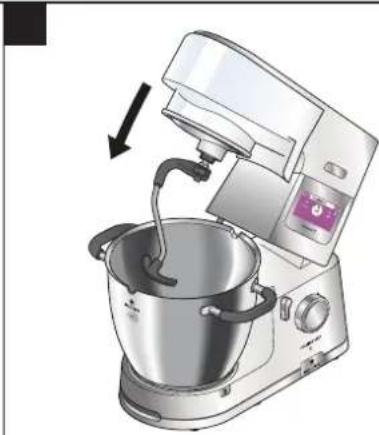

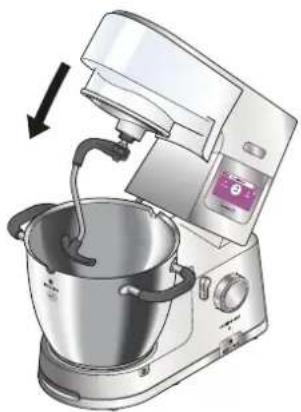

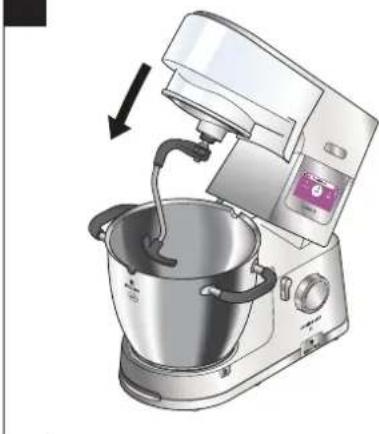

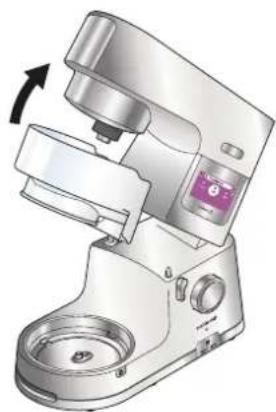

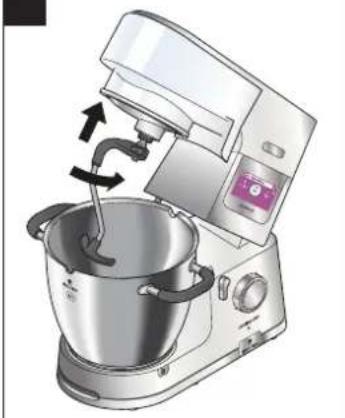

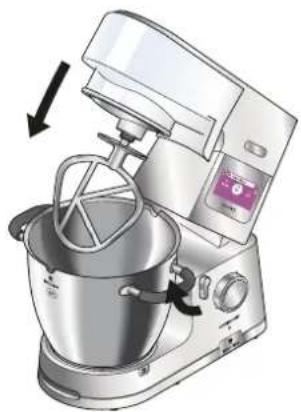

Unplug the appliance. Raise the mixer head and insert the tool. Lower the head, then raise again and remove the tool. Use the supplied spanner to loosen the nut. For whisk, K-Beater, or creaming beater: turn the shaft anti-clockwise to lower, clockwise to raise. For stir tool: turn the adjustment wheel clockwise to lower, anti-clockwise to raise. Tighten the nut after adjustment.

Can I use the whisk for heavy mixtures like creaming fat and sugar?

No, the whisk is not suitable for heavy mixtures. Use the K-Beater or creaming beater for such tasks to avoid damaging the whisk.

What is High Speed High Temperature (HSHT) mode?

HSHT mode allows mixing at high speeds when the bowl temperature is 60°C or above. It must only be used with the whisk or stir tool. A warning will appear on the display; press 'yes' to confirm. The machine must not be left unattended in this mode, and the maximum capacity is 3 litres with the splashguard fitted.

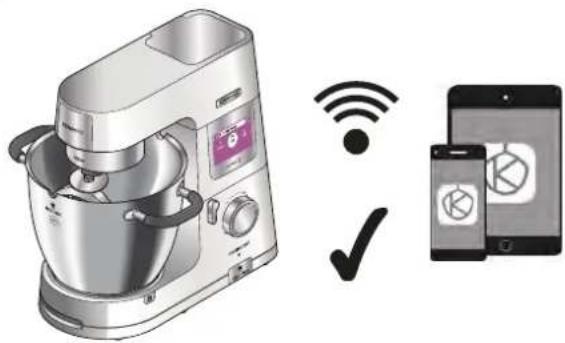

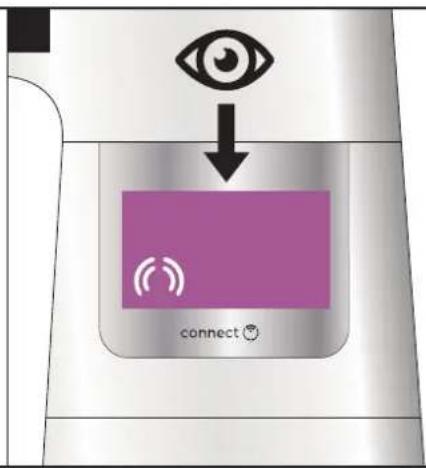

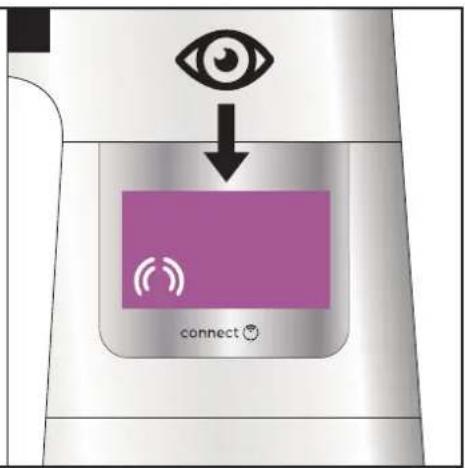

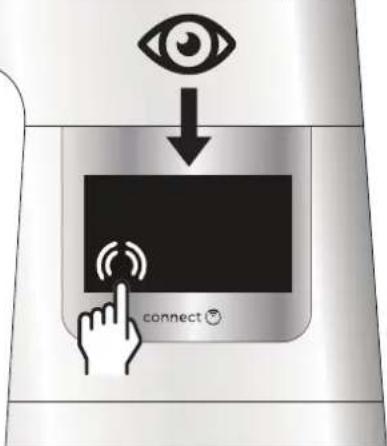

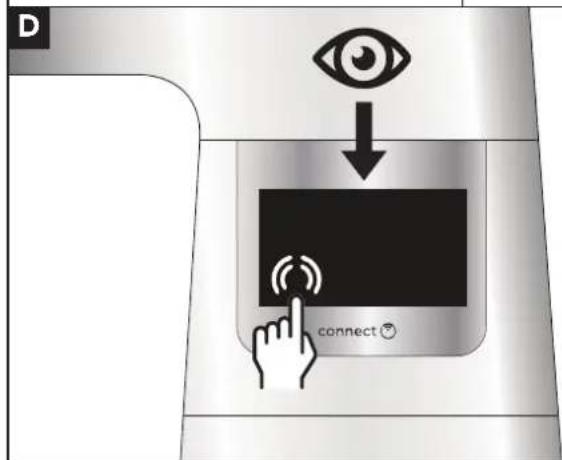

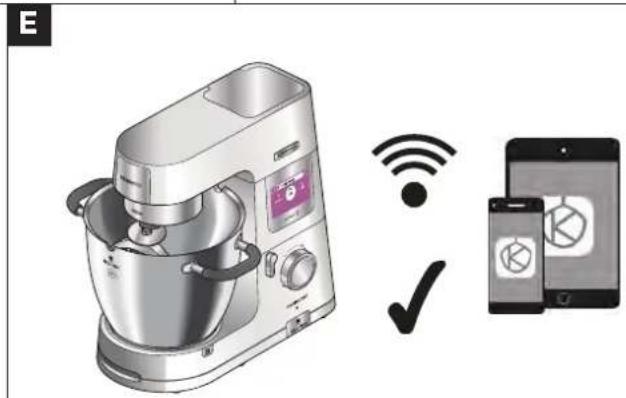

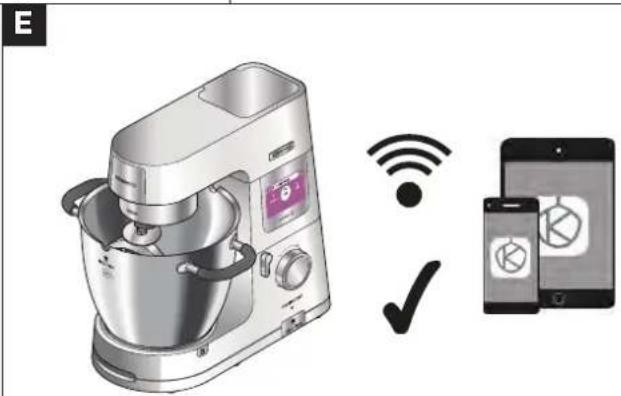

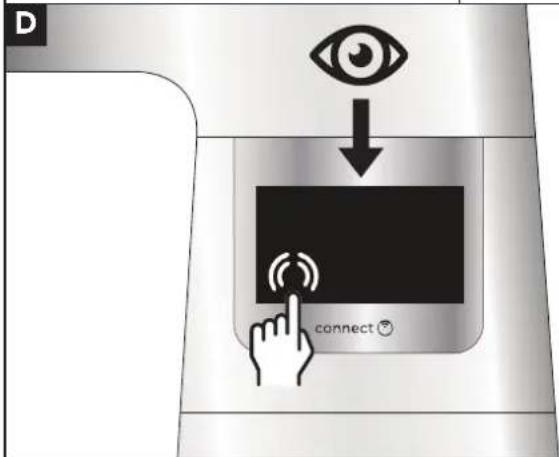

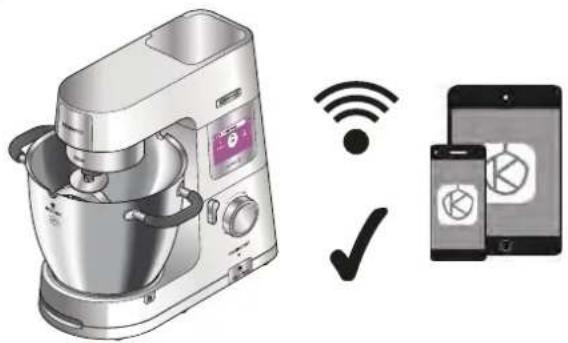

How do I connect the Cooking Chef XL to WiFi?

Plug in and turn on the appliance. Go to Settings > WiFi > Connect on the touch screen. Follow the instructions and enter the PIN number displayed on the screen when prompted by the Kenwood World App. Ensure your smartphone is on the same 2.4 GHz WiFi network.

The machine stops during operation. What should I do?

Possible causes: overload protection activated, maximum capacity exceeded, or the mixer head was lifted. Unplug and check for obstructions. If overloaded, remove some ingredients and restart. If the head was lifted, lower it and press the control dial to resume. If the motor doesn't restart, wait 15 minutes and try again. If the problem persists, contact an authorised Kenwood Service Centre.

What does error code E34 mean?

Error E34 indicates a WiFi connection issue. Go to Settings > WiFi > Forget Network to forget the network, then restart the setup process from the Kenwood World App. Ensure your WiFi password is correct and the router is working.

How should I clean the stainless steel bowl?

Wash the bowl by hand with warm soapy water and dry thoroughly, or place it in the dishwasher. Avoid using wire brushes, steel wool, or bleach. For limescale, use vinegar or a suitable descaler. If food sticks, soak in warm soapy water and use a nylon brush. Discoloration does not affect performance.

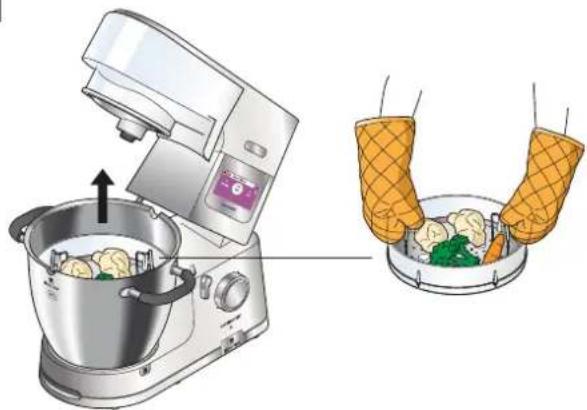

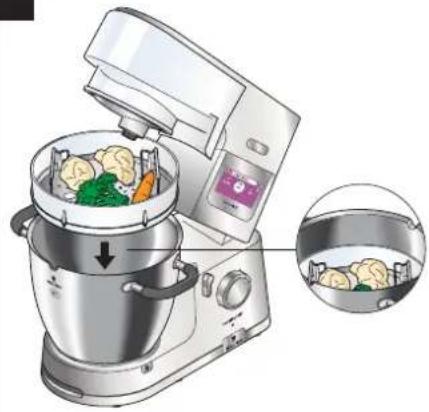

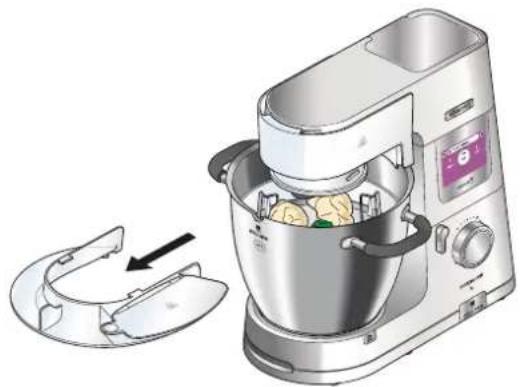

How do I use the steamer attachment?

Place the removable tray on a flat surface with handles folded inward. Fit the supporting ring onto the tray, then fold out handles and clip onto supports. Add food to the tray. Pour 500 ml of water (filtered recommended) into the bowl. Assemble the steamer into the bowl, fit the heat shield and splashguard, then select the Steam preset on the display. Adjust cooking time and press the control dial to start. Always use oven gloves when handling hot parts.

USER MANUAL Cooking Chef XL KCL95 KENWOOD

o Plug and Fuse Information 4

o Care and Cleaning 5-6

o Parts List 7-8

o Connecting To The Kenwood World App 8-9

Usage Diagrams and Usage Instructions 8-9

To Set Up Your Cooking Chef XL 9-10

Usage Diagrams and Usage Instructions 9-10

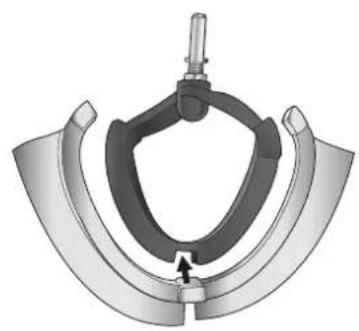

To Assemble the Creaming Beater 10

○ Usage Diagrams and Usage Instructions 10

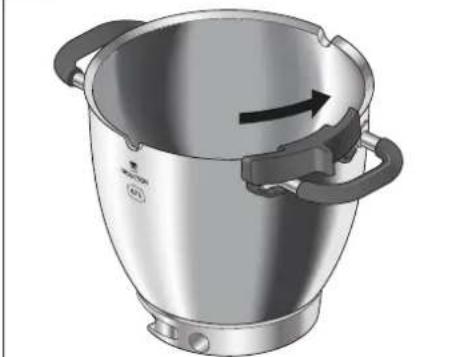

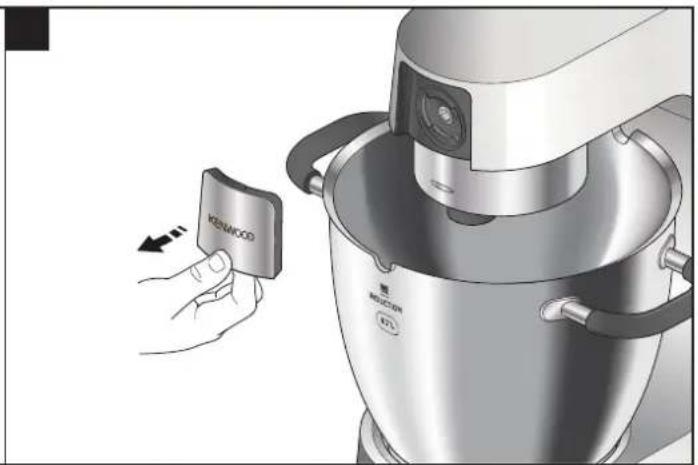

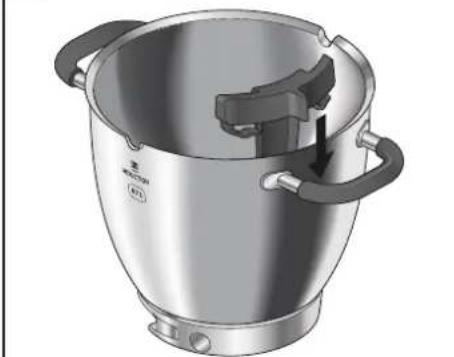

To Fit and Remove Your Stir Assist Clip 11

Usage Diagrams and Usage Instructions 11

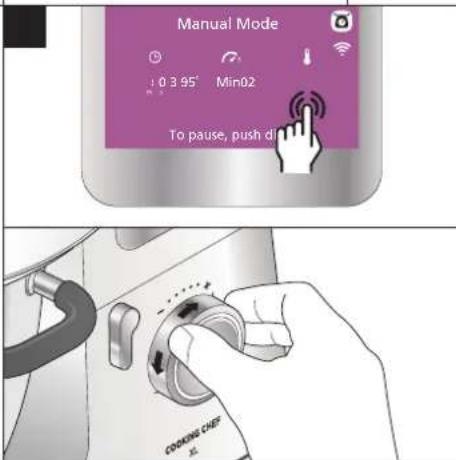

To Use Your Cooking Chef XL - Manual Operation (Cooking Mode) 11-12

○ Usage Diagrams and Usage Instructions 11- 12

High Speed High Temperature Mode (HSHT) 13

- Recipes 13

To Use Your Cooking Chef XL - Manual Operation (Non Cooking) 14-17

Usage Diagrams and Usage Instructions 14-15

Usage Charts 16- 17

○ Bowl Tools (Recommended Operating Speeds and Temperatures) 18

To Use Your Cooking Chef XL - Display Screen Explained 19

o Temperature and Speed Settings 20

To Use Your Cooking Chef XL - Attachments 21

Usage Diagrams and Usage Instructions 21

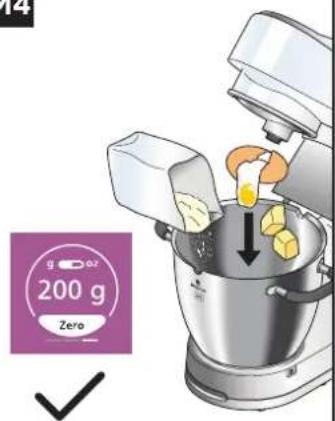

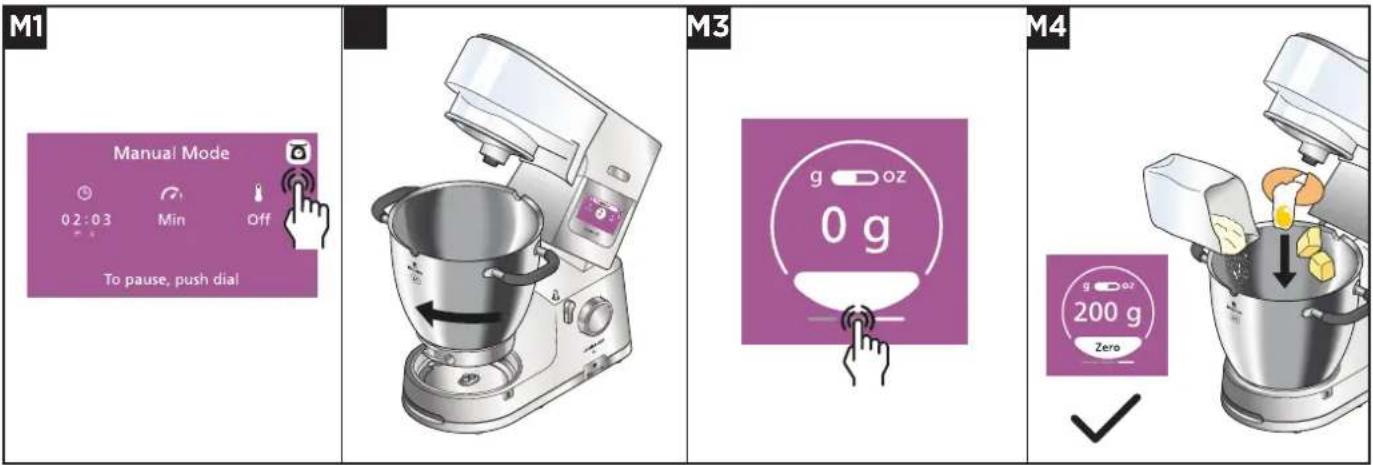

To Use Your Cooking Chef XL - Weighing Function 22

Usage Diagrams and Usage Instructions 22

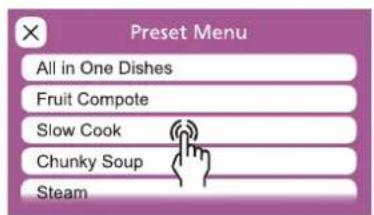

To Use Your Cooking Chef XL - Presets 22-24

Usage Diagrams and Usage Instructions 22

- Preset Usage Chart 23-24

- Recipes 24

To Use Your Cooking Chef XL - Steamer Attachment 25-26

Usage Diagrams and Usage Instructions 25-26

Usage Chart 26

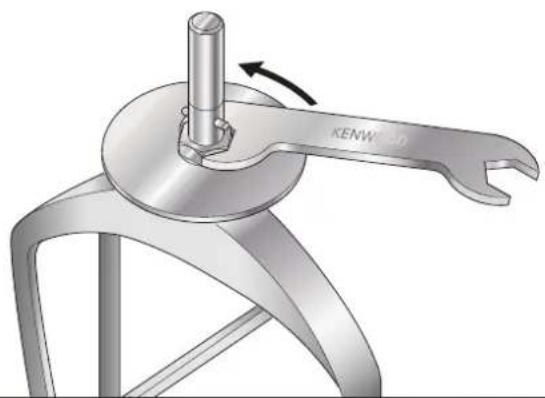

o Tool Adjustment 27

Usage Diagrams and Usage Instructions 27

o Service and Customer Care Information 28

o Troubleshooting Guide 29-31

o Eco Design Information 32

Important note - electronic medical implants

- Like all induction heating products, this appliance generates short-range magnetic fields. If any user or person in close proximity has a pacemaker or other active implants, please consult a doctor before use, concerning any possible incompatibility to prevent any risk to health.

• Read these instructions carefully and retain for future reference.

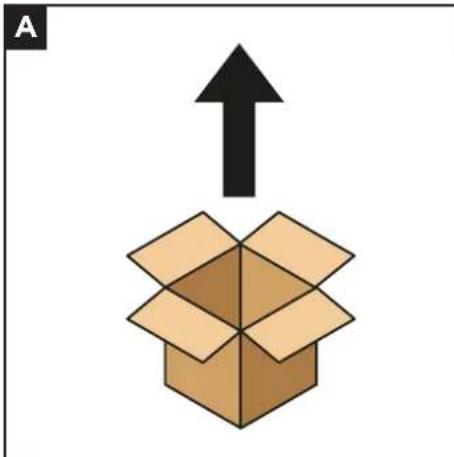

• Remove all packaging and any labels. (The rating label on the base of the machine should not be removed).
• If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard
• Always ensure the ON/OFF switch is in the 'O' (OFF) position before unplugging..

- Always switch off and unplug the appliance before fitting or removing tools/attachments, after use and before cleaning.

● Always keep body parts, hair, jewellery and loose clothing away from moving parts and fitted attachments.

- Never put your fingers etc., into the hinge mechanism.

- When using an attachment, read the safety and usage instructions that come with it.

- Aways take care when lifting this appliance as it is heavy. Ensure the head is locked and that the bowl, tools, outlet covers and cord are secure before lifting.

- When moving the appliance always pick up by the pedestal base and mixer head. Do not lift or carry the appliance by the bowl handle or by attachments fitted to either the slow speed outlet or high speed outlet..

- Never let the cord hang down where a child could grab it.

- Never let the power unit, cord or plug get wet.

- Never insert anything through the air vents.

- When using this appliance ensure it is positioned on a level surface away from the edge. Make sure it is at least 10 cm from walls and ensure that the vents are not blocked. Do not position below overhanging cupboards.

- Misuse of your appliance can result in injury.

- Do not use excessive force when pressing the touch screen and never use a sharp object to operate it.

- Do not use the whisk for heavy mixtures (e.g. creaming fat and sugar) as you could damage it.

- The power-supply cord is used to reduce risk resulting from becoming entangled in or tripping. Extension cords may be used if care is exercised in their use. If an extension cord is used:

o The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;

The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. If the appliance is of the earthed type, the extension cord should be a earthing-type 3-wire cord. The electrical rating of the appliance is listed on the bottom of the unit.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

● This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

● Children should be supervised to ensure that they do not play with the appliance.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

- The maximum rating is based on the mini chopper/mill attachment that draws the greatest load. Other attachments may draw less power.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not move or raise the mixer head with an attachment fitted as the Stand Mixer could become unstable

- Do not operate your appliance near the edge or overhanging the work surface or apply force to an attachment when fitted, as this may cause the unit to become unstable and tip over, which may result in injury.

- Never use an unauthorised attachment.

- Do not use more than one outlet (Bowl tool socket, High Speed Outlet or Slow Speed Outlet) at a time.

- Ensure that the bowl is always fitted when operating the appliance when using a bowl tool.

Cooking Mode

• As with all induction cooking appliances do not place credit cards, magnetic media or sensitive electronic equipment near to the appliance when in use.
  ● Never leave the appliance on unattended when in a non cooking mode.
• When leaving the appliance unattended in the cooking mode, pay close attention to the following:

o ensure the instructions are followed with regards to temperatures and maximum quantities to process;

o make sure the unit and cord are positioned out of reach of children and away from the edge of the work surface;

o check the progress on a regular basis to ensure enough liquid is added and food is not overcooking.

- Never use a damaged appliance. Get it checked or repaired: see 'Service and Customer Care'.

o Never use an unauthorised attachment or more than one attachment at once.
o Never exceed the maximum capacities and when using the induction heater never exceed the 3 litre maximum fill level marked on the inside of the bowl.

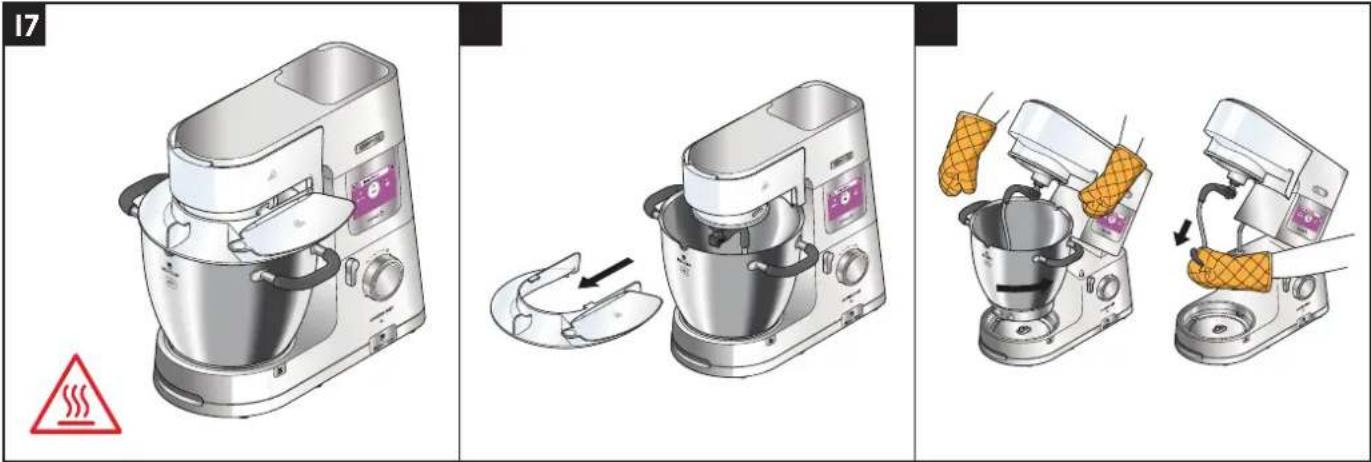

- Always be careful when handling or touching any part of the appliance when being used in the cook mode or after cooking, IN PARTICULAR THE BOWL, SPLASHGUARD AND TOOLS as they will remain HOT long after the appliance has been switched off. Use the handles to remove and carry the bowl.

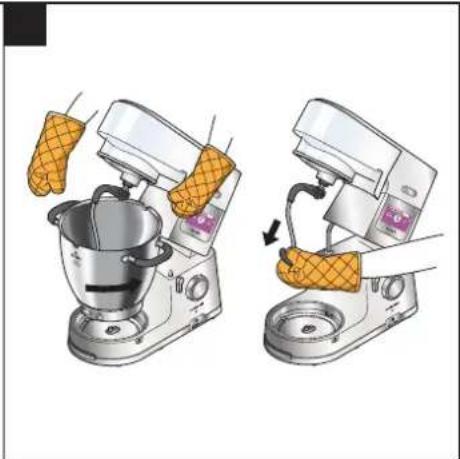

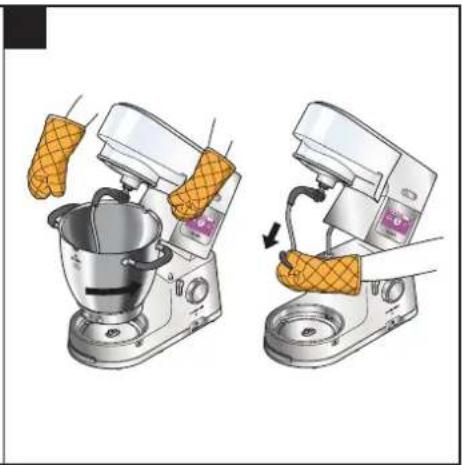

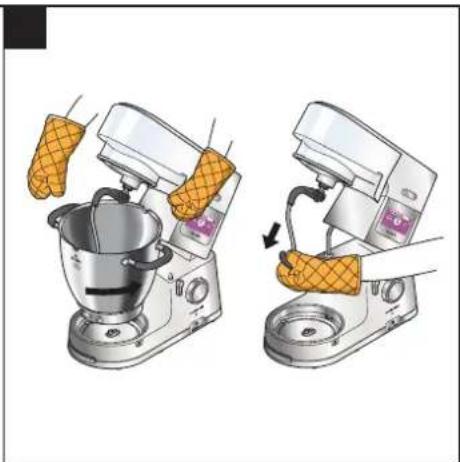

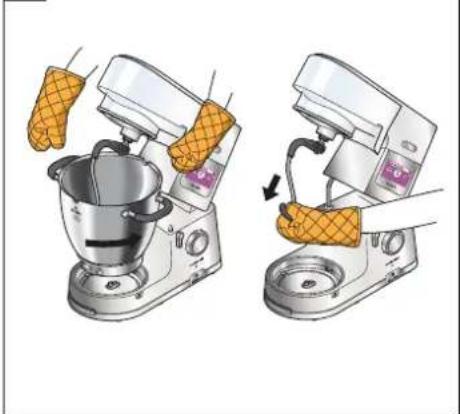

- Use oven gloves when handling the hot bowl and hot mixing tools.

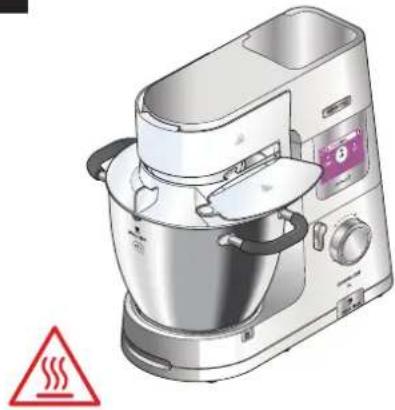

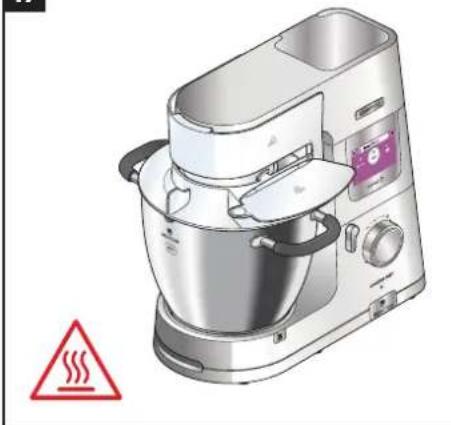

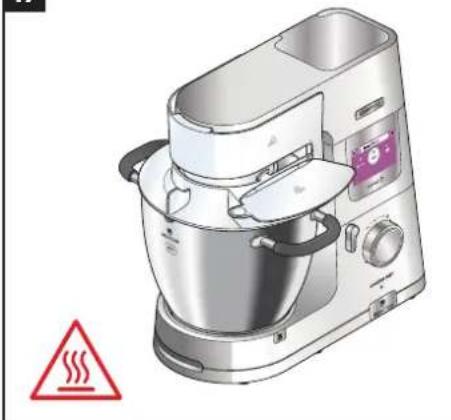

• The symbol marked on the product indicates a surface that can become hot during use.

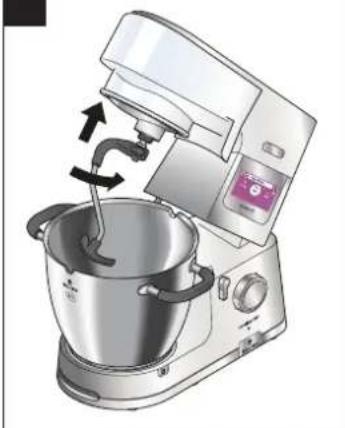

• Always take care when removing bowl tools after extended use as they may get hot. The underside of the bowl will remain hot long after the heating has stopped.
• Always use caution when handling and use the work surface protection mat when placing the bowl on heat sensitive surfaces.
• Always be careful of steam escaping from the mixer bowl particularly when opening the lid in the splashguard or when raising the mixer head.
• If transferring hot food from the mixer to the blender, always allow the ingredients to cool to room temperature before placing in the blender.
• Only use the bowl and tools supplied with this appliance. Never use the bowl with any other heat source.
• Never operate the appliance in the cook mode with the bowl empty.
• For the correct and safe operation of the induction cooker ensure that the bowl base and temperature sensors are clean and dry before cooking.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the bowl pedestal/induction area as they can get hot.
• Do not use the appliance for deep frying foods.
  • Always ensure food is thoroughly cooked before eating.
• Do not exceed 250ml when cooking with oil.
• Food should be eaten shortly after cooking or allowed to cool quickly and then refrigerated as soon as possible.

High Speed High Temperature Mode (HSHT) - To mix at high speed at temperatures of 60 oc and above.

• This function must only be used with the whisk and/or stir tool.
• You should not exceed the maximum cooking capacity of 3 litres.

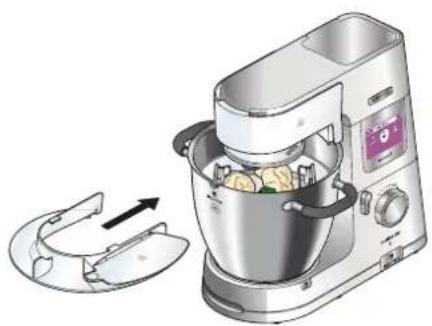

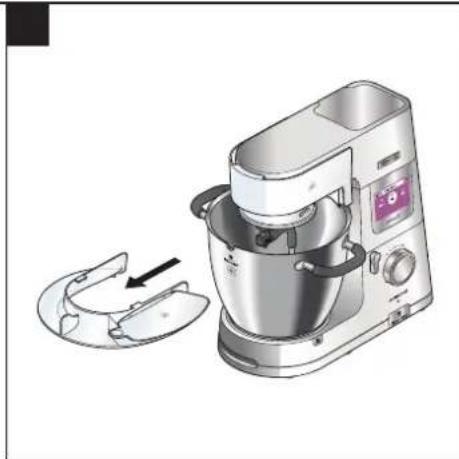

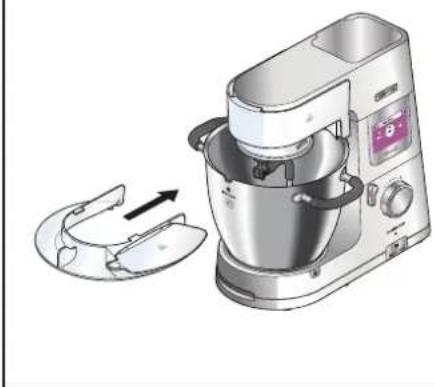

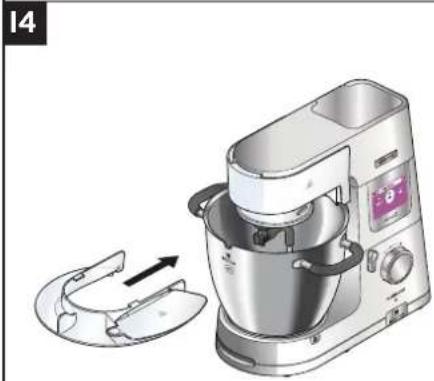

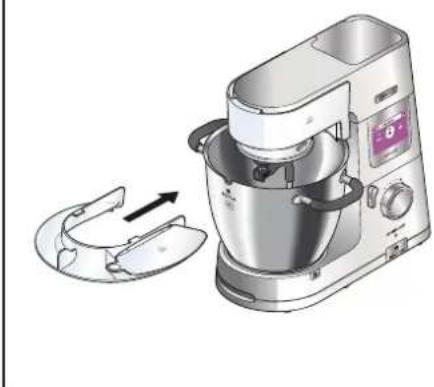

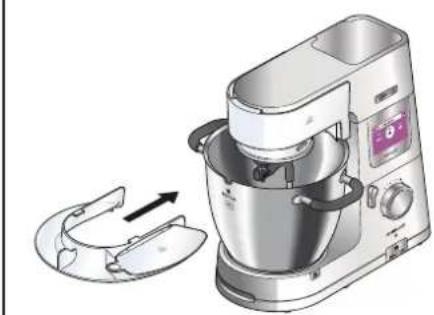

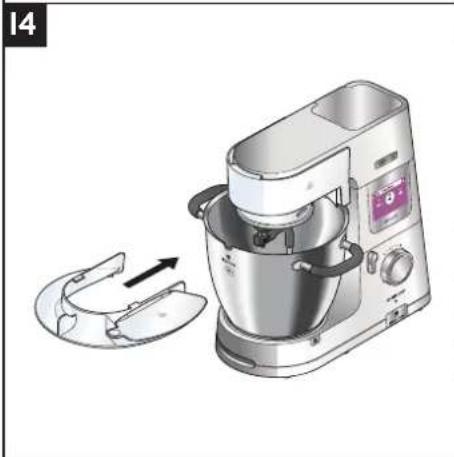

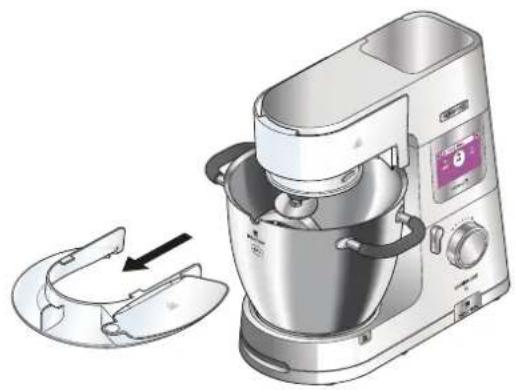

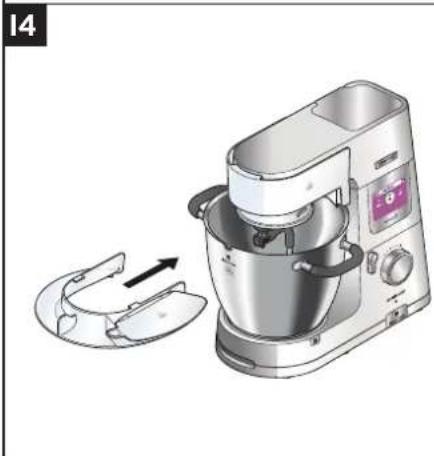

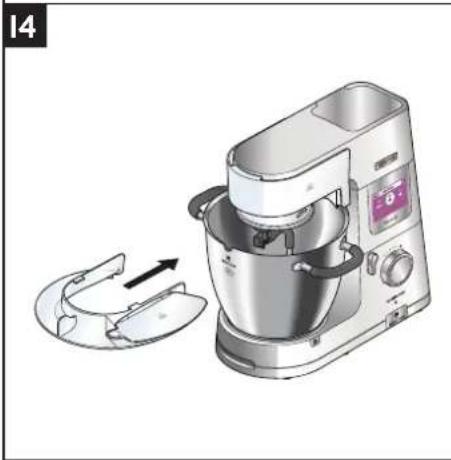

• Ensure that the splashguard is fitted.
• The machine must not be left unattended.

Creaming Beater

● Not suitable for use when cooking using oil.

Steamer attachment

• This attachment produces steam which can burn you.
• Do not get burnt by steam coming out of your steamer basket, especially when removing the splashguard or lifting the feed chute lid.
• Always take care when handling parts; any liquid, condensation, steamer part or Stand mixer part will be very hot. Use oven gloves.
  ● Always unplug the appliance before fitting or removing parts or cleaning.
  ● Cook meat, poultry, fish and seafood thoroughly. And never cook them from frozen.
• Do not reheat cooked food in your steamer.

Power Consumption

• With ON/OFF Switch in "I" Position and Wi-Fi network port activated.
  o Automatically switches to Networked Standby Mode within 20 minutes of inactivity and the display screen turns off.
  o Networked Standby Mode Power: <1.5W.
• With ON/OFF Switch in "I" Position and Wi-Fi network port de-activated.
  o Automatically switches to Off Mode within 20 mins of inactivity and the display screen turns off.
  o Off Mode Power: <0.3W.
• With ON/OFF Switch in "O" Position.
  o Automatic switching to OFF Mode: Not applicable
  o Off Mode Power: <0.3W.

Plug and Fuse Information

Before plugging in

● Make sure your electricity supply is the same as the one shown on the underside of the power unit.

Important - Plug and Fuse Information

- The wires in the cord are coloured as follows:

Blue = Neutral, Brown = Live, Green/Yellow = Earth.

THIS APPLIANCE MUST BE EARTHED

- If the plug is cut off it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a socket outlet.

- If the plug supplied with your appliance has a fuse fitted and the fuse fails it must be replaced with one of the same rating.

Note:

- For non-rewireable Plug Type G the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by colour and a replacement may be obtained from your Kenwood Authorised Repairer (see Service).

Plug Type G

● This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

- This appliance is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

● Always switch off and unplug before cleaning.
- A little grease may appear at outlet ② when you first use it. This is normal - just wipe it off.
- The metal surfaces of the temperature sensors may show signs of wear during normal use. This does not affect the performance of the product.
- Do not leave the creaming beater fitted to the mixer when not in use.

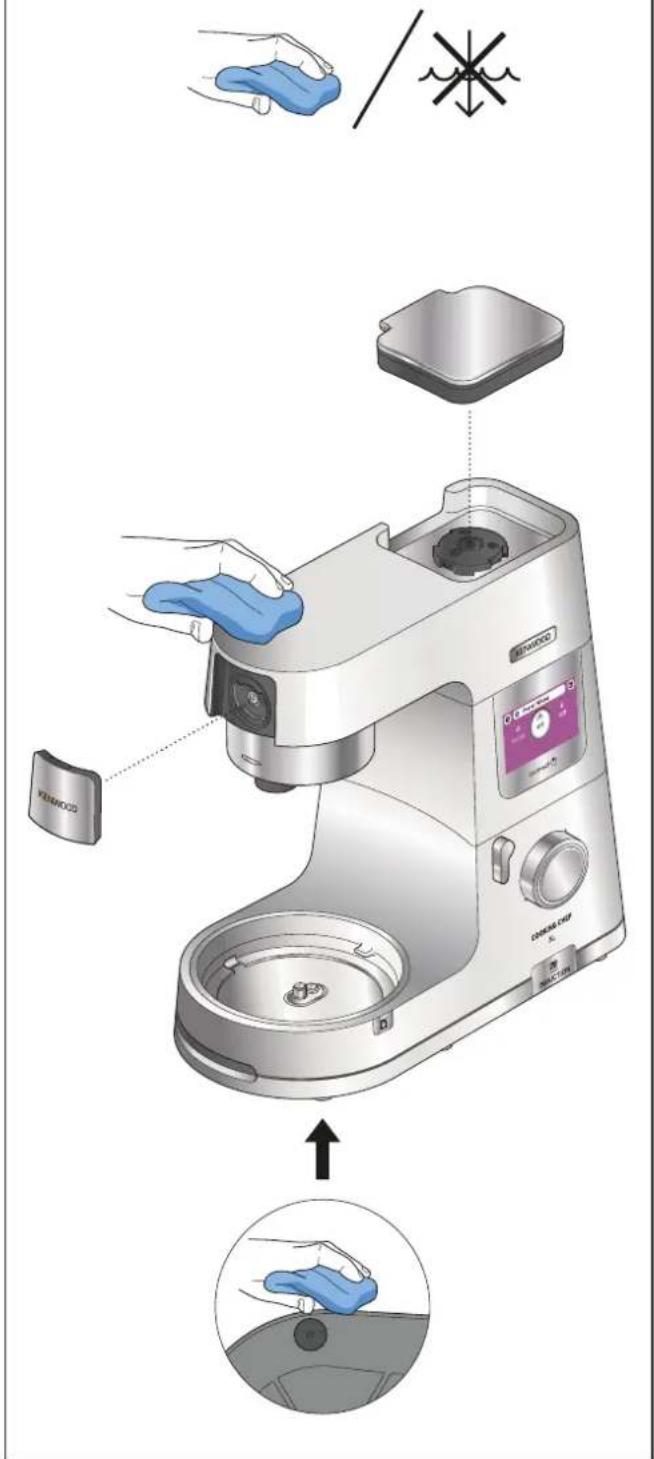

Appliance, outlet covers

● Wipe with a damp cloth, then dry (Including the feet on the underside of the machine).
● Never use abrasives or immerse in water.

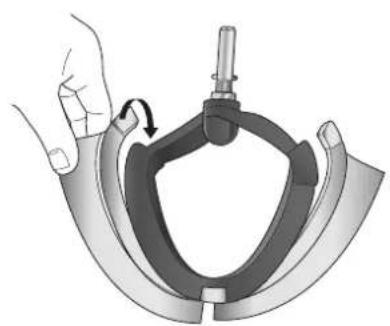

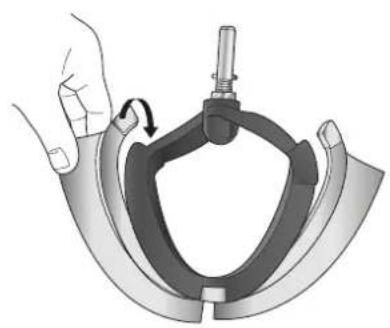

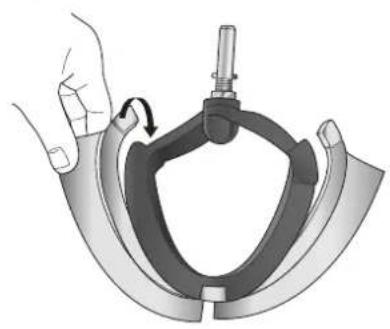

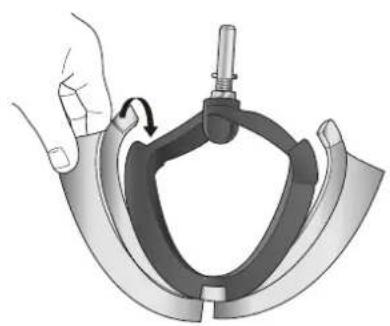

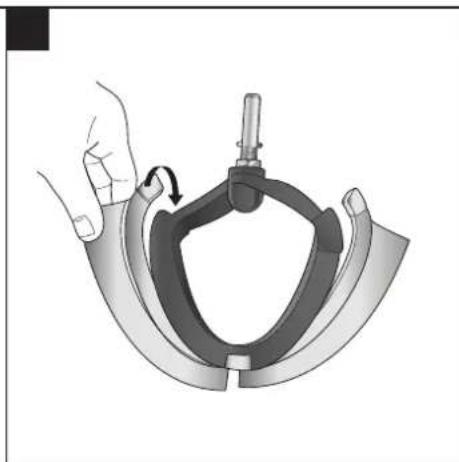

Creaming beater

● Always remove the flexible wiper blade from the tool before cleaning.
- Wash the flexible wiper blade and tool in hot soapy water, then dry thoroughly. Alternatively the parts can be washed in a dishwasher.

Note: Please inspect the condition of the tool body before and after use and also regularly inspect the condition of the wiper blade and replace it if there are any signs of wear.

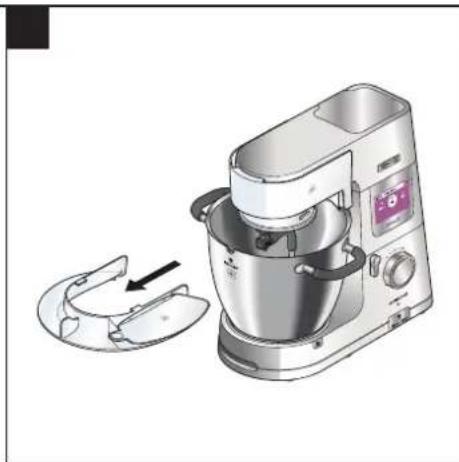

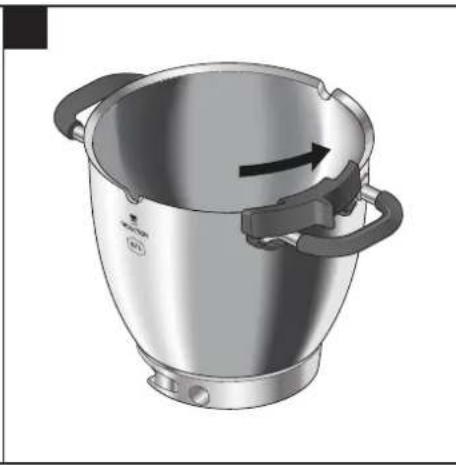

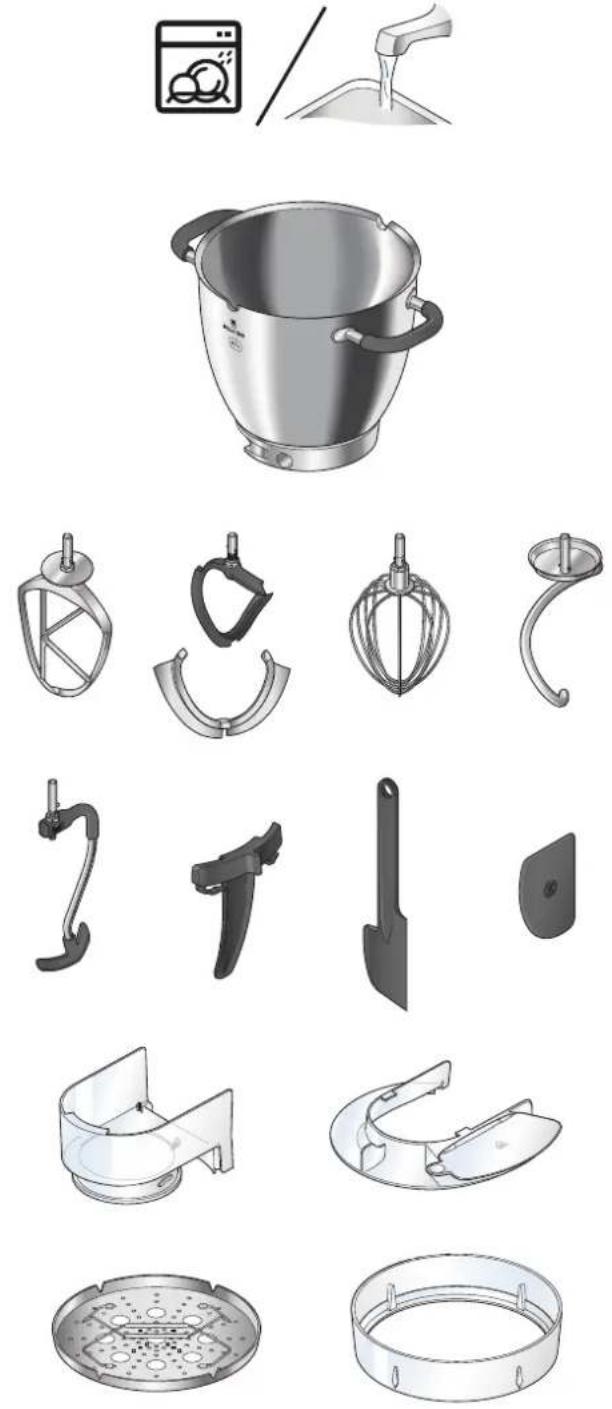

Bowl, Tools, Splashguard, Stir Assist Clip

• Wash by hand, then dry thoroughly or wash in the dishwasher (refer to chart R).
• Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar or a suitable descaler to remove limescale.
• If food sticks or burns on the inside of the bowl, remove as much as possible using the spatula provided. Fill the bowl with warm soapy water and allow to soak. Remove any stubborn deposits using a nylon brush.
• Any discolouration of the bowl will not affect its performance.

Drain Hole

- Ensure this area is free from food. If necessary use a pipe cleaner or cotton bud to clean.

Temperature sensors

● Wipe with a damp cloth then dry thoroughly. Never use abrasives or sharp instruments to clean the sensors.

Steamer Attachment

● Always switch off and unplug before removing the attachment from the Stand Mixer.
- For easier cleaning always wash the parts immediately after use.

All parts can be washed in hot soapy water, then dried thoroughly. Alternatively they can be washed in the dishwasher.

- Ordinary water and food contains salts and acids which can sometimes effect metal surfaces such as the inside of the mixer bowl. Should this occur clean with a nylon brush, a non abrasive scourer or a proprietary stainless steel cleaner.

R

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

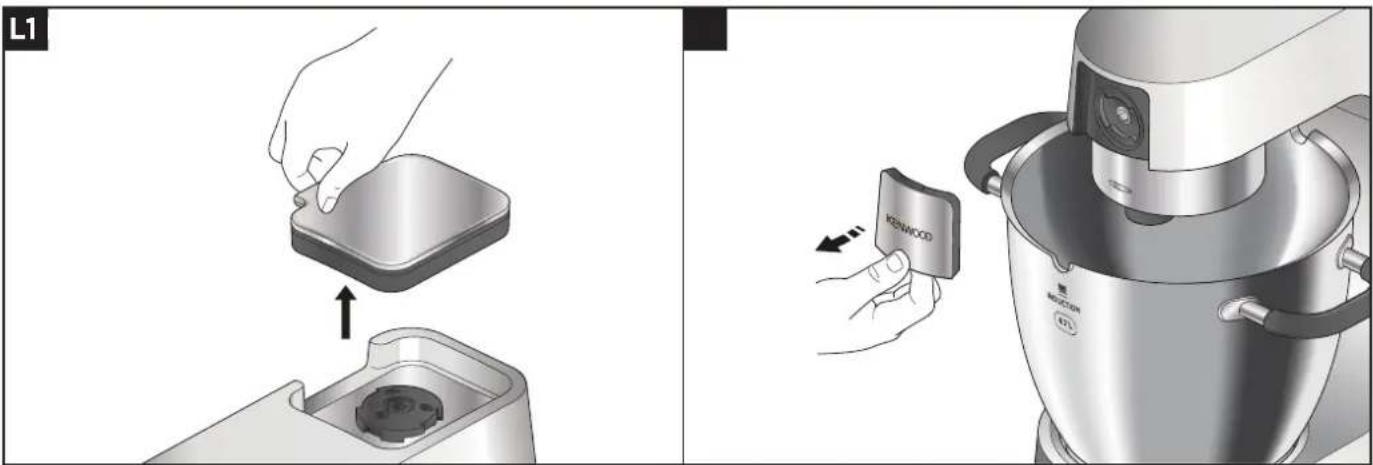

Attachment outlets

① High speed outlet (HSO)
② Slow speed outlet (SSO)
③ Bowl tool socket
④ Stir tool socket

Mixer

⑤ High speed outlet cover
⑥ Mixer head
⑦ Slow speed outlet cover

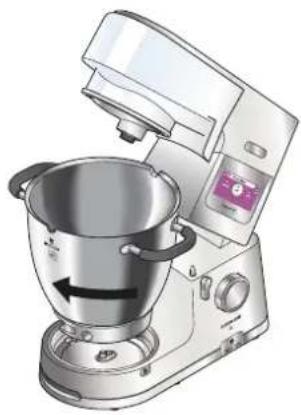

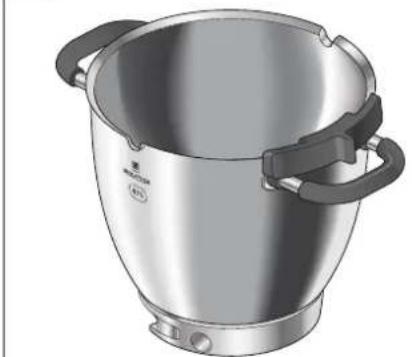

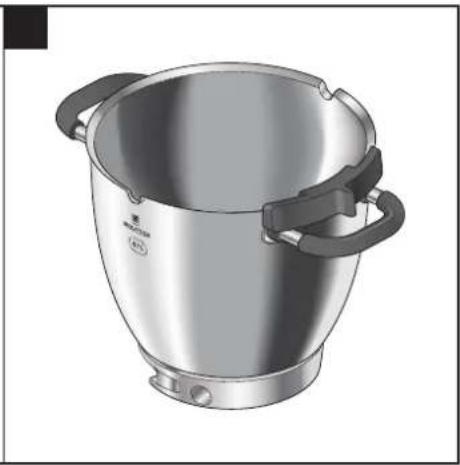

⑧ Cooking chef bowl

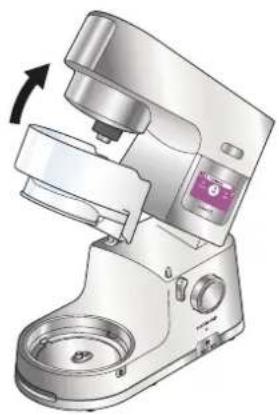

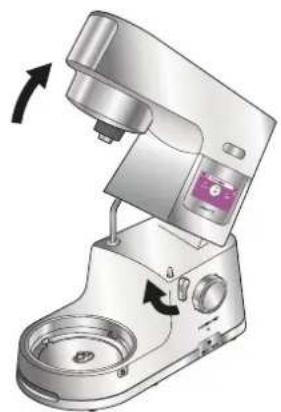

⑨ Head - lift lever

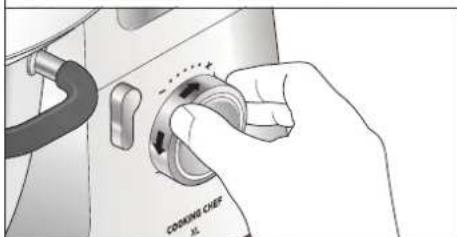

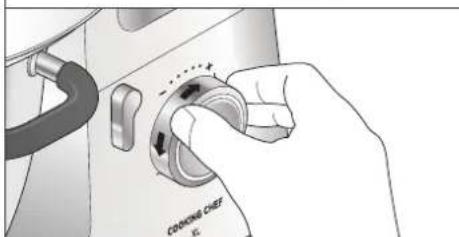

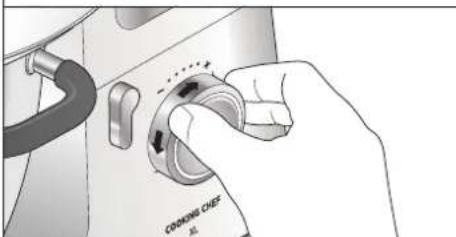

⑩ Control dial
⑪ On/Off switch
⑫ Display screen
⑬ Work surface protection mat
⑭ Drain hole
⑮ Bowl pedestal/induction area
⑯ Air vents
⑰ Temperature sensors

18 Heat shield
⑲ Rubber seal (removable)
20 Splashguard
②1 Feed chute lid
②2 K-Beater
23 Creaming Beater
②4 Whisk
25 Dough tool
26 Stir tool
27 Stir assist clip
28 High temperature spatula
29 Dough scraper
30 Spanner

Steamer Attachment

③1 Handle supports
③2 Supporting ring
33 Folding handles
③4 Removeable tray
35 Egg holders

Connecting to Kenwood World App

Usage Diagrams and Usage Instructions

Illustration of an open box with an upward arrow, no text or symbols present

Illustration of hands inserting a plug into an electrical socket, showing the installation process (no text or symbols)

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Important

• WiFi - Operates with IEEE802.11 b, g and n at 2.4 GHz only.
• Compatibility - Kenwood World App compatible with latest versions of iOS and Android.
• Factory reset - When disposing of the appliance, it is important to factory reset it to protect your personal data. Selecting this option will erase all WiFi data stored on the appliance and restore it to factory settings.
  To factory reset your appliance, select
  Settings >Factory Reset.

The Kenwood World App will allow you to control your appliance through your smart phone or tablet.

1 Plug in and press the On/Off switch on the side of the power unit.

2 Select Settings > WiFi > Connect and follow the instructions on the touch screen.

PIN number

• This will be required when prompted by the Kenwood World App.
- The appliance can only be connected when the PIN Number is shown on the display screen. If the PIN is entered incorrectly, follow the instructions on the app and retry.
• To display the unit's PIN number, select

Settings > WiFi > Connect and follow the instructions on the display screen (only when connected to WiFi).

To Set Up Your Cooking Chef XL

Usage Diagrams and Usage Instructions

F1

Illustration of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Technical illustration of a kitchen mixer with directional arrow indicating rotation (no text or symbols)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with a bowl and handle, showing no text or symbols

Illustration of a kitchen mixer with a stand mixer, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Important

- Make sure the induction area, temperature sensors and external surface of the bowl base are clean. Failure to do this will affect the heat sensor, resulting in poor cooking performance.

Splashguard Assembly

• The splashguard assembly consists of 2 pieces: the heat shield and the splashguard.
• The heat shield is to protect the mixer head from steam produced during the cooking process.
• The splashguard should not be fitted to the bowl unless used in conjunction with the heat shield.
• Only fit and remove the splashguard when the mixer head is in the lock position.

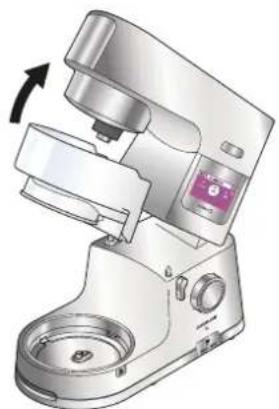

1 Turn the head-lift lever clockwise and raise the mixer head until it locks.

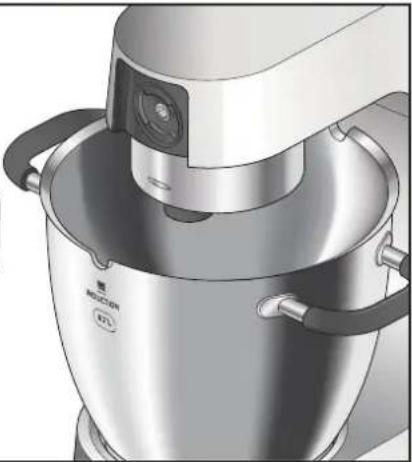

2 Push the heat shield upwards onto the underside of the mixer head until fully located.
- If using the Cooking chef without heat, it is not necessary to fit the heat shield unless using the Splashguard.
3 Fit the bowl to the base. Turn clockwise to lock into place.

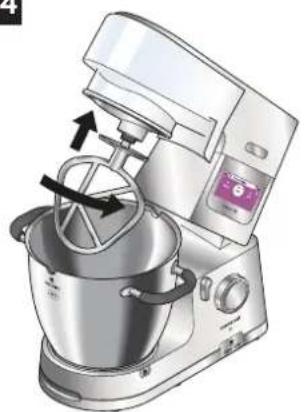

4 Place the required tool in the bowl tool socket or stir tool socket if using the stir tool, locating the pin in the groove and then turn to lock into position.
• To remove a tool, reverse the above step. (Always use oven gloves to remove tools after cooking).
- Stir Tool - when using the stir tool the stir assist clip can also be used to assist the mixing action, see 'To Fit and Remove your Stir Assist Clip'.

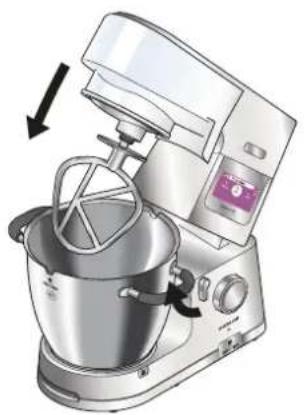

5 To lower the mixer head, raise it slightly, then turn the head lift lever clockwise. Lower into the locked position.

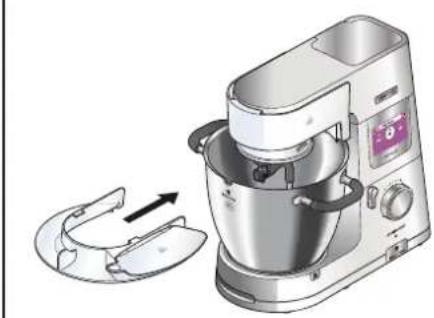

6 Rest the splashguard on the bowl rim and then slide forward until fully located.
- During mixing, ingredients can be added directly to the bowl via the feed chute.

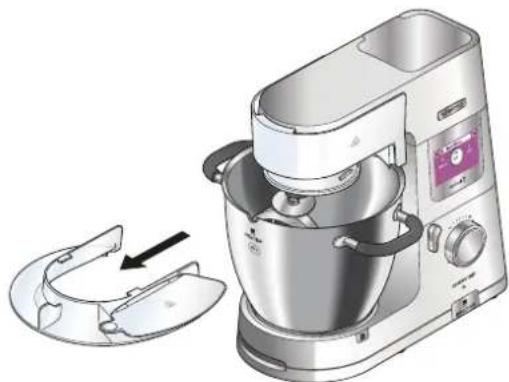

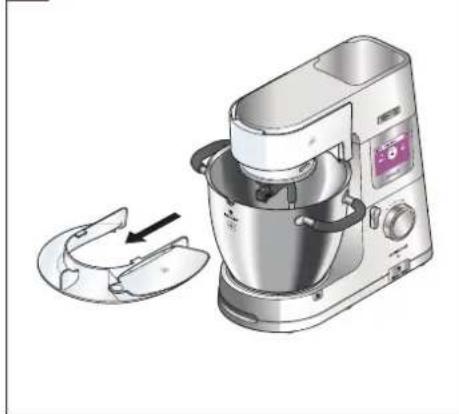

7 To remove the splashguard simply slide it away from the appliance.

Note: The splashguard will remain attached to the heat shield when the mixer head is raised unless removed before lifting the mixer head.

8 To remove the heat shield, raise the mixer head until it locks. Remove the tool, then pull the heat shield downwards from the underside of the mixer head.

To Assemble The Creaming Beater

Usage Diagram and Usage Instructions

G1

Mechanical clamp assembly diagram showing a U-shaped component with a central fastener (no text or symbols)

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

Illustration of a hand holding a mechanical clamp or bracket, with an arrow indicating rotation (no text or symbols present)

Important

The wiper blade is supplied already fitted and should always be removed before cleaning.

1 Carefully fit the flexible wiper blade onto the tool by locating the base of the wiper blade into the slot then fit one side into the groove before gently hooking the end in place. Repeat with the other side.

To Fit And Remove Your Stir Assist Clip

Usage Diagrams and Usage Instructions

H1

Illustration of a stainless steel cooking pot with handle and lid (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Important

• The stir assist clip should not be fitted when using the K-Beater, whisk, dough tool or creaming beater.
• The stir assist clip can be used to assist the mixing action.

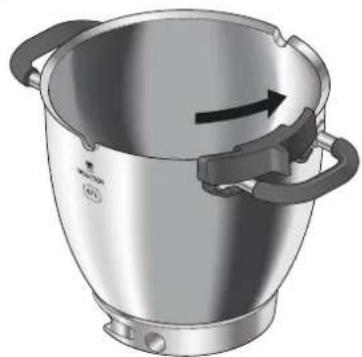

1 Slot the stir assist clip over the side of the bowl with the vertical ridge on the inside and the clips on the outside.
2 Turn the clip anti-clockwise onto the bowl handles.
3 To remove, reverse the procedure.

To Use Your Cooking Chef XL- Manual Operation (Cooking Mode)

Usage Diagrams and Usage Instructions

11

Illustration of a kitchen mixer blending red berries with liquid, showing the mixing bowl and kitchen (no text or symbols)

•

Illustration of a kitchen mixer with rotating handle and mixing bowl (no text or symbols)

Five different mechanical or electrical component illustrations, no text or symbols present

m = 311

Illustration of a kitchen mixer with a bucket being inserted (no text or symbols visible)

14

Illustration of a kitchen mixer with a side panel showing the blade and handle (no text or symbols)

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

Important

• Be careful when handling or touching any part of the appliance when being used in the cooking mode or after cooking, IN PARTICULAR THE BOWL AND TOOLS as they will remain HOT long after the appliance has been switched off.
• Use the two side handles to remove and carry the bowl. Use oven gloves when handling the hot bowl and hot tools.

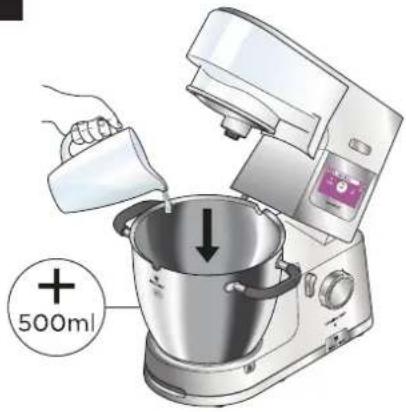

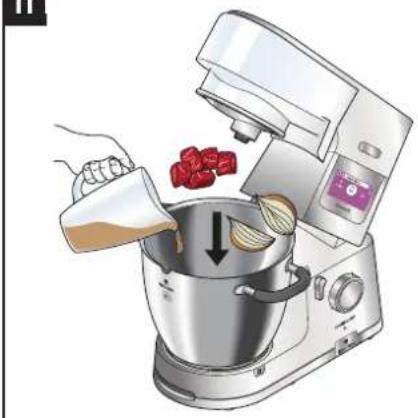

1 Add the relevant ingredients to be cooked.
2 Fit the required tool and splashguard.
3 Set the required time, speed and temperature.

Turn the control dial anti-clockwise to use stir intervals and pulse.

Turn the control dial clockwise to use continuous speeds.

4 Press the control dial to start.

• To stop the unit at any time, press the control dial. Take care as the unit will be hot.
• To stop the heating process at any time, change the temperature to 'OFF'.
• If at any time the mixer head is raised during an operation, the heating process will pause and the bowl tool will stop and will not restart when the mixer head is lowered. To restart the mixer, lower the mixer head and press the control dial.
  5 Once the timer has counted down and cooking has finished the unit will beep 3 times.

Note: If no time has been set, the heating and stirring processes will automatically end once the timer has reached 8 hours.

Hints and Tips - Cooking

• Some recipes, in particular those with a high water content, will not be able to reach a cooking temperature above 100^ C (as this is the boiling point of water).
• When adding ingredients to the bowl during cooking, turn the speed down and add the ingredients slowly and evenly.
  • To heat sauces quickly use a continuous stir setting.
• If using the splashguard during cooking, always remove it before lifting the mixer head. Be aware of condensation formed on the splashguard and heat shield.
• When lifting the mixer head lift it slowly to allow any liquid on the underside of the heat shield to flow back into the bowl.
• Four stir delay functions are available which enable you to select the appropriate amount of stirring for individual recipes. Some recipes will require constant stirring to stop ingredients from sticking to the bottom of the bowl, whereas others will benefit from intermittent stirring to maintain the texture of the food.

High Speed, High Temperature Mode (HSHT) (To mix at high speed at temperatures of 60^ C and above)

Important - High Speed High Temperature Mode (HSHT)

• If the bowl temperature exceeds 60oC, for safety reasons the speed is automatically limited even if a higher speed has been selected.
• The speed will not automatically increase when the temperature drops below 60°C. The speed must be turned to the OFF position first and the desired speed reselected.
• This Function MUST ONLY be used with the whisk and/or stir stool.
• You should not exceed the maximum capacity of 3 litres and you must ensure that the splashguard is fitted.
  • The machine must not be left unattended.

1 Select time (if applicable), speed and temperature of 60^ C or above.
2 A warning will pop up on the display screen advising that you are entering HSHT mode
3 Once the warning has been read and understood, press yes to confirm that you are happy to enter HSHT mode.
4 Press the control dial to start.

Recipes

Recipe Tool Used Preset / Manual Settings Ingredients
Crème Anglaise		Manual Settings	Add the following all at once:250g full fat milk250g double cream1 tsp vanilla extract2 tbsp cornflour96g egg yolk,80g caster sugar} mix together
Rice Pudding			Add the following all at once:150g short grain rice1L full fat milk75g caster sugar2 tsp vanilla extract

To Use Your Cooking Chef XL- Manual Operation (Non Cooking)

Usage Diagrams and Usage Instructions

J1

Illustration of a kitchen mixer blending ingredients into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel, showing no text or symbols on the device itself.

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel showing a drop, no text or symbols present

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the side panel (no text or symbols visible)

Important

• Do not use the whisk for heavy mixtures (all in one cakes and creaming fat and sugar) as you could damage it.
• Never exceed the maximum capacities and speeds stated – you may overload the machine.
• Ensure the feet on the underside of the machine and the work surface are clean and dry before using the appliance.

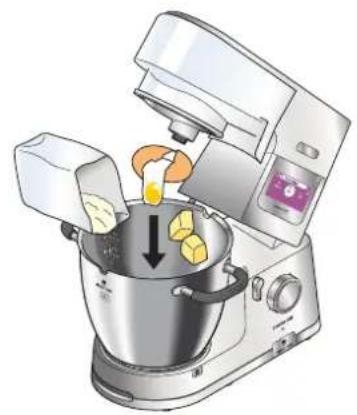

1 Add the relevant ingredients to be mixed.

2 Set the required time, speed and temperature.

Note: To use the machine as a mixer without heat, select 'Off' when setting the temperature. Turn the control dial anti-clockwise to use stir intervals and pulse. Turn the control dial clockwise to use continuous speeds.

3 Fit the required tool and splashguard if necessary.

4 Press the control dial to start.

• To stop the unit at any time, press the control dial. If in cooking mode, take care as the unit will be hot.
- To stop the heating process at any time, change the temperature to 'OFF'.
- If at any time the mixer head is raised during an operation, the heating process will pause and the bowl tool will stop and will not restart when the mixer head is lowered. To restart the mixer, lower the mixer head and press the control dial.

5 Once a programme has finished, the unit will beep 3 times.

Note: If no time has been set, the heating and stirring processes will automatically end once the timer has reached 8 hours.

Hints and Tips - Non Cooking

• To avoid splashing of ingredients gradually increase the speed.
• K-Beater - to fully incorporate the ingredients, stop mixing and scrape down the bowl with the spatula frequently.
• Use cold ingredients for pastry unless your recipe says otherwise.
• When creaming fat and sugar for cake mixes, always use the fat at room temperature or soften it first.
• Creaming Beater - Two wiper blades are supplied with your high temperature creaming beater. Use one wiper blade for sweet recipes and the other for savoury recipes.
• Whisk - Do not use the whisk for heavy mixtures (all in one cakes and creaming fat and sugar) as you could damage it.
• Before whisking egg whites, make sure there is no grease or egg yolk on the whisk or the bowl. Best results achieved when eggs are at room temperature.

Hints and Tips - Dough Tool

• Never exceed the maximum capacities and speeds stated - you may overload the machine.
• If you hear the machine labouring, switch off, remove half the dough and do each half separately.
  • The ingredients mix best if you put the liquid in first.
• Dried Yeast (the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and sugar and leave to stand for 10 minutes until frothy.
• Fresh yeast: crumble into the flour
• Other types of yeast: follow the manufacturer's instructions.

Usage Chart

K			MAX (mins)		L
			910 g	1	2
			4 kg(20 egg mix)	Min-Max 2-4
			3 kg Min-Max 5-10
			MAX (mins)		L
			1.5 kg Min-Max 4
			4 kg(20 egg mix)	Min-Max 1-2
			3 kg Min-Max 2-5
			MAX (mins)		L
			16 Max 1 12 -2
			[60x0] 250 g 500 g 200 g	Min 10 secs
				Max 1-1 12
			[HOTV] x 2 180 ml	Max 1-2
K			MAX (mins)
			1.6 kg — 960 g	Min-1 5
			1.6 kg 720 g18-22°C 800 g 180 g	Min-1 5

× 2
180 ml

To Use Your Cooking Chef XL - Bowl Tools (Recommended Operating Speeds and Temperatures)

	i	ii	iii
	20°C-59°C Min-Max
	60°C-180°C N/A
	20°C-180°C Min-Max
	20°C-59°C 2
	60°C-180°C N/A
	20°C-59°C Min-Max
	60°C-180°C	1 - 4
	20°C-180°C	1 - 4
	20°C-180°C	1 - 4
	20°C-180°C Min-Max

To Use Your Cooking Chef XL - Display Screen Explained

	Tap this icon to open the settings menu.
	Tap this icon to open the pre-set programmes menu.
	Tap this icon to weigh ingredients into the bowl.
[D78S]m s	Shows the time selected in hours (h), minutes (m) and seconds (s).
	Shows the stir interval selected.If an intermittent speed (2 → 4) is selected, the outer ring will progressively increase and the appliance will stir when it is full.
###▲	Shows the temperature selected.A pulsing red background indicates the machine is in heating mode.A solid red background indicates the machine has reached the set temperature.An intermittent arrow pointing downwards indicates the appliance is cooling down.An intermittent arrow pointing upwards indicates the machine is heating up.
	Indicates that a setting (time, speed or temperature) cannot be adjusted.
Status Information	Text here shows status information.
	Indicates that the bowl, its contents and any parts being used are hot. Please handle with care.
	Indicates that the appliance is connected to a WiFi network.
###	Indicates that the appliance is in the high speed high temperature mode (HSHT)
###	Turn the control dial anti-clockwise to use stir intervals and pulse.Turn the control dial clockwise to use continuous speeds min - max.

Temperature and Speed Settings

Temperature Guidelines	60°C Melting Chocolate
	72°C - 82°C Poaching
	98°C - 99°C Simmering
	100°C Boiling, steaming
	130°C - 140°C Sauteing vegetables
	180°C Browning meat
	(P) Pulse - For short bursts of maximum power.
		Stir interval 1 - The mixer will operate at a constant slow speed. Used for folding light ingredients into heavier mixtures.
		Stir interval 2 - Intermittent stir with short pauses. When set to this speed, intermittently operates on a slow speed every 10 seconds for 1.5 revolutions.
		Stir interval 3 - Intermittent stir with medium pauses. When set to this speed, intermittently operates on a slow speed every 30 seconds for 1.5 revolutions.
		Stir interval 4 - Intermittent stir with long pauses. When set to this speed, intermittently operates on a slow speed every 5 minutes for 1.5 revolutions.
	Speed min - max Continuous speeds gradually increasing to max
	HSHT To mix at temperatures above 60°C using speeds Min-Max.

Usage Diagrams and Usage Instructions

1 Remove High speed outlet/Slow Speed outlet cover (if applicable).

High-Speed Outlet Cover

• To remove the cover, use the grip and lift upwards.
• To fit, place the cover over the outlet and push downwards.

Slow-Speed Outlet Cover

• To remove the cover, use the grip on the underside and pull outwards.
- To fit, locate the catch at the top of the cover into the outlet recess and push to clip into position.

2 Fit attachment according to specific instructions supplied.

3 Set the required time and speed.
4 Press the control dial to start.
5 To stop the unit at any time, press the control dial again.

Recipe

Prune Marinade

200g Clear Runny Honey

40g Soft Prunes

40ml Water

1 Place all ingredients into the mini chopper/mill. Refrigerate overnight.
2 Fit the attachment to the Stand mixer.
3 Switch to pulse for 4 seconds.
4 Use as required.

(Note: Mini chopper/mill attachment available to purchase separately)

Usage Diagrams and Usage Instructions

Important

• Always place the appliance on a dry flat, stable surface prior to weighing.
- Do not apply pressure to the mixer or bowl whilst weighing as this will affect the accuracy of the scales.
- The weighing function can be used with the mixer head in either the down or up position.
• The weighing function is accurate up to 6kg.

1 Select the weighing function

on the touch screen.

2 Fit the bowl.
3 Zero the scale.
4 Weigh the ingredients.
5 To change between units tap the unit button on the weighing screen.

To Use Your Cooking Chef XL - Presets

Usage Diagrams and Usage Instructions

N1

1 Select the Preset Menu.
2 Choose the preset you wish to use.
3 Follow the instructions on the display screen.
4 To stop the unit at any time, press the control dial. Take care as the bowl and tools will be hot.

Preset Usage Chart

The default settings can be adjusted to suit your recipe, where available.Non-adjustable settings are indicated by the icon.When "Heating" is shown on the display screen, the timer will not start counting down until the correct temperature has been reached.
Preset Recommended Tool Default Settings		(adjustable)	Keep Warm Stage		Recipe Ideas /Uses
Egg White Whisking		[62SY]n 15 secs (15 secs - 5 mins)Max(4 Max)[44EZ]OFF		16 Egg whites for chocolate mousse
Sponge Cake		[12ZY]n (30 secs - 5 mins)1 - Max(1 - Max)[X4A4]OFF		4 kg (20 Egg Mix)	Victoria Sponge, Cupcakes
Dough Kneading		ins(1 mins - 30 mins)Min to 1 (min - 2)[TTWWH]OFF		1.6 kg	Bread Rolls, Pizza
Dough Proving		(5 mins - 2 hrs)[02DT]OFF(25°C - 35°C)			Proving yeasted doughs
Chocolate Melting		ins(5 mins - 2 hrs)[7A0T]160°C		500 g Chocolate Mousse
Swiss Meringue		ins(1 mins - 20 mins)[A5SA]Max(4 Max)[6TAA]40°C		x 8	Base for Buttercream frosting
Italian Meringue		ins(1 mins - 20 mins)HSHT 6(1 - Max)60°C - 85°C		[SCKK]x 8	Lemon Meringue PieBaked Alaska
Fruit Compote		ins(5 secs - 8 hrs)1(1 - 4)[026Y]104°C	30 mins[IMAGE]62°C	1.5 kg Cake Fillings, Dessert toppings
Popcorn		ins(5 mins - 10 mins)[3700]OFF[48XX]180°C		20 g20 g	For fresh homemade popcorn* For best results always use the preset.
Preset Recommended Tool Default Settings		(adjustable)	Keep Warm Stage	(Max)	Recipe Ideas / Uses
Steam				450 g Salmon en Papillote
All in One Dishes				3 L Bolognese
Chunky Soup				3 L Minestrone, Broths
Slow Cook 2 hrs				3 L Beef bourguignon

Recipes

Recipe Tool Used Preset / Manual Settings Ingredients
Minestrone		Chunky Soup20 mins32-398°C	Add the following all at once:100g pancetta, diced2 garlic cloves, chopped50g Arborio rice21⁄2 tbsp tomato puree70g savoy cabbage1 tsp dried rosemary2 tsp dried sage1 celery stick, sliced60g leek, sliced75g onion, sliced75g carrot, sliced1L hot vegetable stockSalt and pepper
Beef Stroganoff		All in One Dishes30 mins42-3103°C	Add the following all at once:600g beef, diced1 tbsp paprika1 tbsp butter1 garlic clove, chopped400g beef stock200g mushroom, sliced150g onion, sliced300g carrot, sliced200ml single cream1 tbsp cornstarch mix together1 tbsp waterSalt and pepper
Popcorn		PopcornminsOFF180°C	Add the following all at once:50g Popcorn Kernels20g Sunflower Oil* For best results always use the preset.

Usage Diagrams and Usage Instructions

01

Diagram showing a circular container being dropped into a perforated plate (no text or symbols)

Illustration of two identical steamer trays with food items inside, no text or symbols present

Illustration of a kitchen mixer with food being placed inside, showing a pan and side view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being removed (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Important

• Be careful when handling anything: any liquid, condensation, steamer part or Stand Mixer part will be very hot. Use oven gloves.
• Do not attempt to fit a mixing tool when using the steamer basket.
• Do not cook food in the mixer bowl whilst using the steamer basket.
• Do not allow the unit to boil dry, top up with water as necessary.
• When using your steamer basket, always keep your Cooking Chef away from walls and overhanging cupboards: the steam could damage them.

1 Place the removable tray on a flat surface ensuring that the handles are folded inwards.
2 Fit the supporting ring onto the tray ensuring that the handle supports on the ring fit next to the V shaped cut outs in the tray.
3 Fold out the handles and clip onto the handle supports.
4 Place the food to be cooked onto the tray. Vegetables should be thoroughly cleaned and peeled as required.
5 Add the required amount of water to the bowl (see cooking chart). Filtered water is best as it reduces limescale and spotting.
6 Place the assembled steamer into the bowl - it will find its own height.
7 Fit the heatshield to the mixer head.

8 Fit the bowl and steamer basket to the Kitchen Machine.
9 Lower the mixer head and then fit the splashguard.
10 Select the steam pre-set and adjust the cooking time (as per the Recommended Cooking Chart). Press the control dial to start
11 Allow to cook for the required time.
12 Remove the splashguard.
13 Lift the mixer head.
14 Lift out the steamer basket by the handles - take care to prevent them folding inwards.
15 Place the steamer basket on a large plate or other suitable container.
16 Unclip the handles and fold in towards the centre. Lift off the supporting ring and fold out the handles.
17 Remove the food.

Hints and Tips

• Liquid left in the bowl is good for making soup or stock. Be careful it will be very hot.
• Leave gaps between pieces of food.
  • Stir large amounts half way through cooking.
  • Similar sized pieces of food cook more evenly.
• If steaming more than 1 type of food, if something needs less time, add it later.
• If you lift the feed chute lid or remove the splashguard, steam will escape and cooking may take longer.
• Food will continue cooking when your Stand Mixer switches off, so remove food immediately.
• If your food's not cooked enough, reset the time. You may need to top up with water.
• The cooking times are a guide only. Always check that food is thoroughly cooked before eating.

Usage Chart

[P]		(MAX) (Mins)
		450 g 20 500 ml
		3 15 500 ml
		450 g 15 500 ml
		450 g 20-30 650 ml
		450 g 30-40 650 ml
		300 g	30-40	650 ml
		450 g	15-20	500 ml

Usage Diagrams and Usage Instructions

Q1

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Important

• Dough Tool - This tool is set at factory and is not adjustable.
• Whisk and K-Beater. The whisk and K-Beater should be almost touching the bottom of the bowl. If necessary adjust the height using the spanner provided.
• Stir Tool and Creaming Beater - The Stir Tool and Creaming Beater should just touch the bottom of the bowl.

Whisk, K-Beater, Creaming Beater - Adjustment

1 Unplug the appliance.
2 Raise the mixer head and insert the whisk, K-Beater or high temperature creaming beater.
3 Lower the mixer head. If the clearance needs to be adjusted, raise the mixer head and remove the tool.
4 Using the spanner provided loosen the nut sufficiently to allow adjustment of the shaft. To lower the tool closer to the bottom of the bowl, turn the shaft anti-clockwise. To raise the tool away from the bottom of the bowl turn the shaft clockwise.
5 Re-tighten the nut.
6 Fit the tool to the mixer and lower the mixer head. (Check its position see points above).
7 Repeat the above steps as necessary until the tool is set correctly. Once this is achieved tighten the nut securely.

Stir Tool Adjustment

1 Unplug the appliance.
2 Raise the mixer head and insert the stir tool.
3 Lower the mixer head. If the tool needs adjustment, raise the mixer head and use the spanner to loosen the nut, then lower the mixer head.
4 To lower the tool closer to the bottom of the bowl, turn the adjustment wheel clockwise. To raise the tool away from the bottom of the bowl, turn the adjustment wheel anti-clockwise.
5 Re-tighten the nut.

Service and Customer Care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the 'Troubleshooting Guide' section in the manual or visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
  • Designed and engineered by Kenwood in the UK.
  • Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Troubleshooting Guide

Problem	Cause	Solution
The machine will not operate in the heat mode and displays an error message and gives a warning beep.	One of the safety sensors has been activated.	Check display screen for notification of cause.Ensure the head is lowered and locked.Ensure all outlet covers are correctly fitted.Ensure the heat shield is correctly fitted.Ensure the cooking chef bowl is corrected fitted.
The machine changes speed or speed is limited during cooking.	The speed is automatically limited when the bowl contents reach 60°C and the hot temperature warning indicator will be on.	This is a safety feature.
Food burning on the base of the bowl.	1 The temperature setting selected may be too high.Incorrect tool being used.The stir delay is too long.The tool may not be low enough in the bowl.The timer has been set for too long.The sensor and/or the underside of bowl may not be clean.	1 Reduce the temperature.Check the most suitable tool is being used and adjusted correctly.Increase the frequency of the stir delay or increase to a continuous operation.Adjust the tool.Cook for a shorter length of time (ensure food is thoroughly cooked).Ensure that these areas are kept clean and dry.
Consistency of food not maintained.	1 Temperature selected too high.Stir delay too frequent.Ingredients cooked for too long.Incorrect tool being used.	1 Reduce temperature.Reduce stir delay.Reduce the cooking time (ensure food is thoroughly cooked).Check the most suitable tool is being used.
Inconsistent mixing speed.1 Ingredients too large, hard or too firm.1 Cut food into	Smaller pieces, remove stones from fruit, slowly melt ingredients without a tool in position (but ensure a speed has been selected).Add ingredients after the head is lowered.Check the most suitable tool is being used.
Difficult to shut mixer head.1 Firm ingredients such as chocolate in the bottom of the bowl prevent the mixer head from locking down.Stir tool has been incorrectly fitted.	1 Add ingredients after the mixer head is lowered.Ensure the stir tool is fitted into the stir tool outlet.
Motor speed is limited when using attachments	Hot bowl fitted. Remove the bowl, or cool the bowl to below 60°C.
The whisk or K-Beater knocks against the bottom of the bowl or not reaching the ingredients in the bottom of the bowl.The high temperature creaming beater not picking up ingredients from the bottom of the bowl.	Tool at the wrong height and needs adjusting.	Adjust the height using a suitable spanner - see "Tool Height Adjustment" section.
The whisk, K-Beater or creaming beater knock against the stir assist clip.	Stir assist clip is fitted. Remove stir assist clip	- this should be used when using the stir tool only.
Slow speed attachment cannot be fitted.	Check your attachment is compatible for use with your model.Twist connection system required (Model KAX)	Attachment must have the KAX twist connection system to fit the outlet.If you own attachments featuring the Bar Connection System you will need to use the KAT002ME adaptor to connect these to the Twist Connection System on your Stand Mixer.For more information visit www.kenwoodworld.com/twist.
The Stand Mixer stops during operation.	Overload protection or overheat system activated.Maximum capacity exceeded.	Unplug and check for obstruction or overloading.If the machine will not operate, remove some of the ingredients to reduce the load and restart.If this still does not resolve the problem, unplug and allow to stand for 15 minutes. Plug in and reselect the speed.If the machine does not restart following the above procedure contact "customer care" for further advice.
The Stand Mixer stops during operation.	Mixer head lifted. Lower the mixer head and restart.
Screen switches off. Stand Mixer has	been left plugged infor more than 20 minutes without being operated and has gone into Standby mode.	Press the touch screen or turn the control dial to reset.
The Stand Mixer stops during operation.	Heat shield removed or an outlet cover removed.	Fit the heat shield or outlet cover and then restart.
Display screen shows an alpha/ numerical error code.	Appliance not functioning properly. Contact an authorised Kenwood Service Centre. To find up to date details of your nearest Kenwood Service Centre visit www.kenwoodworld.com or the website specific to your country.
No power to appliance /display screen not coming on.	Appliance not plugged in.On/Off switch not operated.Appliance has gone into standby mode.	Check appliance plugged in.Press the On/Off switch to the On position.Touch the display screen or rotate the control dial.
Appliance not operating. Control dial	not pressed. Press the control dial to start cooking.
Timer not counting down on display screen.	During the heating stage the timer will not count down until the correct temperature is reached or 5 minutes have passed.Temperature set above 100^ but water content of food preventing temperature going above 100^ .	Normal operation.Reduce or select correct temperature.
Temperature of bowl contents does not go above 100^ .	Water content of ingredients may prevent the temperature from going above 100^ .	Normal operation.
Heavy movement or vibrations during operation.	Uneven load in bowl causing excessive vibrations.Maximum capacity exceeded.Wrong tool or speed used.	Reduce quantity or rearrange food in bowl and restart unit.Refer to the relevant programme and recommended speed charts for correct tool and speed to use.
Display shows error message E:34 WiFi connection issue. Check WiFi Password.		Forget WiFi network, go to Settings > WiFi> Forget Network.Restart Appliance Setup from the Kenwood World App.
slow flashing	Unable to find known WiFi network Appliance may have moved, router may be turned off or may require a restart.
fast flashing	WiFi available, but unable to connect to cloud servers.	Router may require a restart, or contact your Internet Service Provider.Check for working Internet connection on local network.
Display shows error message E42 Bowl Dry Error (Steam preset error) Add water to the bowl
Explanation of appliance beeping sounds
1) Fast single beep. 1) Pressing the control dial to start or stop the machine or the head is lifted during operation		Normal Operation
2) Quick double beep3) Triple Beep	2) Appliance waiting - appliance will give a quick double beep 10 minutes and 5 minutes before the end of the keep warm cycle.3) Signifies the following:- End of preset programme- End of manual operation- End of keep warm cycle- When appliance is about to stir.	Normal OperationNormal Operation
When contacting customer care, you may be required to supply details of the software version. This can be found by pressing the settings menu icon, then selecting " About Appliance".
Display screen shows "- -". The scale	is zeroing. Normal operation.
Display screen shows a minus reading.	Display not zeroed and either ingredients or the bowl/lid/attachment has been removed.Ingredients or items are pressed against or underneath the appliance.Appliance is pressed against a wall.	Either zero the screen, replace the missing ingredients or refit the bowl.Ensure there are no ingredients or items pressed against or underneath the appliance.Ensure there is space between the appliance and any walls.Zero the display before weighing next ingredients.
Display screen not registering small quantities.	Quantity weighed too small. Use teaspoon or	tablespoon measures for very small quantities.
Weight changed on display screen.	Appliance moved during operation.Edge of bowl touched during weighing of ingredients.	Always place the appliance on a dry flat stable surface prior to weighing.Do not move the appliance or touch the bowl during operation of the weighing function.Zero the display before weighing next ingredients.
Unable to switch quickly between metric and imperial units.	Appliance is reconfiguring to display previously selected unit and measurement.	Wait 5 seconds and try again.
Weighing in app (weight displayed on mobile device) is slow to respond.	Poor WiFi signal strength.Mobile device not connected to the same local WiFi home network.	Ensure appliance has good signal strength(contact your internet service provider for guidance on how to improve).Make sure mobile device is connected to the same local WiFi home network as appliance (go to mobile device settings and select your local WiFi network).
If the problem persists contact your nearest authorised Kenwood Service Centre. To find up to date details of your nearest Kenwood Service Centre visit www.kenwoodworld.com or the website specific to your country.

Network Port: Single WiFi network port, activated by default.

Model No.: TYPE: KCL95
RF Frequency Range: 2412 - 2472 MHz
Maximum Transmit Power: < 20 dBm

Communications Protocol: IEEE802.11 b, g, n

The KCL95 has a single WiFi network port and is intended for use as remotely operated, network equipment.

- The Network Port can be deactivated in the WiFi settings menu and selecting "Off".

- The Network Port can be re-activated in the WiFi settings menu and selecting "On".

Reactivation: The appliance can be reactivated from standby mode by;

- From networked standby: Touch the display screen, rotate the control dial or remotely via the App.

- From non-networked standby: Touch the display screen, rotate the control dial.

- The bowl and lid should always be kept fitted to the main unit so that it can be operated remotely.

Factory Reset - Important

When disposing of the appliance, it is important to factory reset it to protect your personal data. Selecting this option will erase all WiFi data stored on the appliance and restore it to factory settings. To factory reset your appliance, select Settings> Factory Reset.

WEBSITE

Modes Power consumption
Non-Networked Standby - After 20 mins of inactivity display screen turns off. Wi-Fi network port de-activated.	0.2W
Networked Standby - After 20 mins of inactivity display screen turns off and all Wi-Fi network ports remain activated.	0.7W
Off -Activated by switch on rear of unit. 0.0W

Nederlands

- Veiligheid 34-35

WAARSCHUWING: DIT APPARAAT MOET GEAARD ZIJN.

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an electrical socket, showing installation and disassembly (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Belangrijk

Mechanical clamp or bracket assembly with a central component and curved base (no text or symbols visible)

•

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

m = 311

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Belangrijk

Illustration of a stainless steel cooking pot with handles and a black lid (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Belangrijk

Illustration of a kitchen mixer blending ingredients into a bowl, with red food being added (no text or symbols)

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

Illustration of a kitchen mixer with a bucket and handle, showing no text or symbols

Illustration of a kitchen mixer with a side panel showing the lid and blade (no text or symbols)

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with gongs and a side view showing the process (no text or symbols)

Belangrijk

Illustration of a kitchen mixer blending yellow batter into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a rotating bowl and control panel (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

J7

Illustration of a kitchen mixer with a side panel showing a cutaway view (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the valve (no text or symbols visible)

Belangrijk

Illustration of a hand placing a small container into a device with an arrow indicating the process (no text or symbols present)

Diagram showing a circular container being dropped into a perforated plate (no text or symbols)

Illustration of two identical steamer trays with food items inside, no text or symbols present

Illustration of a kitchen mixer with food being placed inside, showing a pan and side view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being removed (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Belangrijk

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Belangrijk

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an electrical socket, showing installation and disassembly (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Important

Mechanical clamp or bracket assembly with a central pin (no text or symbols visible)

The image is too blurry to recognize any text content.

Illustration of a hand holding a mechanical clamp or bracket, showing a curved arm and handle (no text or symbols)

•

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Important

Illustration of a stainless steel cooking pot with black handle and side handles (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Important

Illustration of a kitchen mixer blending food into a bowl with red peppers being added (no text or symbols)

•

Illustration of a kitchen mixer with a bowl and stand, showing mechanical components and piping (no text or symbols)

Four different mechanical or electrical component illustrations, no text or symbols present

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a bucket and stand mixer, showing no text or symbols.

14

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Important

Illustration of a kitchen mixer blending yellow batter into a bowl (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a stand mixer and control panel (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

m = 311

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

m = 311

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the side panel and a circular base (no text or symbols)

Important

Illustration of a hand placing a small container into a container with an arrow indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no visible text or symbols)

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being removed (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Important

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Important

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Zubehör-Anschlüsse

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an open socket, showing electrical connection (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Wichtig

Mechanical clamp or bracket assembly with a central component and curved base (no text or symbols visible)

The image is too blurry to recognize any text content.

Illustration of a hand holding a mechanical clamp or bracket with a rotating arrow indicating rotation (no text or symbols present)

m = 311

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Wichtig

Illustration of a stainless steel cooking pot with handles and a side-mounted valve (no text or symbols)

Illustration of a stainless steel cooking pot with two handles and an arrow indicating rotation (no text or symbols)

Illustration of a stainless steel cooking pot with black handles (no text or symbols)

Wichtig

Illustration of a kitchen mixer blending red berries with liquid, showing the mixing bowl and hand pouring liquid (no text or symbols)

Illustration of a kitchen mixer with a bowl and stand mixer, showing no text or symbols.

Illustration of a kitchen mixer with a bowl and stand mixer, showing no text or symbols.

14

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Wichtig

Illustration of a kitchen mixer blending yellow cheese into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the valve, showing no text or symbols.

Wichtig

Illustration of a hand placing a small component into a container with an arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being removed (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Wichtig

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Wichtig

Illustration of kitchen utensils including a pot, kitchen handles, and various kitchenware (no text or labels)

Illustration of an open box with a black upward arrow above it (no text or symbols)

m = 311

Illustration of hands connecting a plug to an open socket and a plug into a socket (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Importante

Mechanical clamp or bracket assembly with a central pin (no text or symbols visible)

•

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

•

Illustration of a hand holding a mechanical clamp or clamp device with a curved handle and lever (no text or symbols)

Importante

Illustration of a stainless steel cooking pot with black handle and side handles (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Importante

Illustration of a kitchen mixer blending red berries with liquid, showing the mixing bowl and pouring liquid (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a cooking pot and lever (no text or symbols)

14

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Importante

Illustration of a kitchen mixer blending ingredients into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the side panel and a black arrow indicating motion (no text or symbols present)

Importante

Illustration of a hand placing a small component into a container with an arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being added (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with two gloves (no text or symbols)

Importante

Diagram of a mechanical device with a central fan-like component and directional arrow, no text or symbols present.

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Importante

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

3D rendering of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Illustration of a kitchen mixer with a rotating knob and handle (no text or symbols)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a stand mixer and fan (no text or symbols)

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Importante

Mechanical clamp assembly with curved metal components (no text or symbols visible)

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

Illustration of a hand holding a mechanical clamp or bracket, with an arrow indicating rotation (no text or symbols present)

Importante

Illustration of a stainless steel cooking pot with handles and lid (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Importante

Illustration of a kitchen mixer blending red peppers into a bowl with liquid, showing a hand pouring liquid from a container (no text or symbols)

•

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a bucket being inserted, showing no text or symbols.

14

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Importante

Illustration of a kitchen mixer with a side-mounted control panel and directional arrow (no text or symbols)

M3

M4

Important

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being added (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with two gloves (no text or symbols)

Importante

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Importante

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Illustration of an open box with an upward arrow, no text or symbols present

Illustration of hands inserting a plug into an electrical socket, showing the installation process (no text or symbols)

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Importante

Illustration of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Illustration of a kitchen mixer with a rotating knob and handle (no text or symbols)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a hand operating the side panel (no text or symbols visible)

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Importante

Mechanical clamp or bracket assembly with a central fastener (no text or symbols visible)

•

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

•

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Importante

3D rendering of a stainless steel cooking pot with black handles and a central handle (no text or symbols visible)

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Importante

Illustration of a kitchen mixer blending food into a bowl with red peppers being added (no text or symbols)

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

Illustration of a kitchen mixer with a stand mixer, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Importante

Illustration of a kitchen mixer blending yellow cheese into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the side panel (no text or symbols visible)

Importante

Illustration of a hand placing a small container into a machine (no text or symbols)

Exterior view of a modern kitchen mixer (no visible text or symbols)

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with food being processed, showing blade and lid components (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Importante

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Importante

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an open socket and a plug inserted into a wall (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Important

Illustration of a kitchen mixer with rotating buttons and handle (no text or symbols)

Illustration of a kitchen mixer with a rotating knob and handle (no text or symbols)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with a bowl and stand mixer (no text or symbols)

Illustration of a kitchen mixer with a side panel and rotating fan (no text or symbols)

Illustration of a kitchen mixer with a side panel showing the blade and handle (no text or symbols)

Important

Mechanical clamp or bracket assembly with curved metal components and a central mounting hole (no text or symbols visible)

m = 311

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

m = 311

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Important

Illustration of a stainless steel cooking pot with black handle and side handles (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Important

Illustration of a kitchen mixer blending food into a bowl with red peppers being added (no text or symbols)

•

Illustration of a kitchen mixer with a bowl and stand, showing mechanical components and piping (no text or symbols)

Four different mechanical or electrical component illustrations, no text or symbols visible

•

Illustration of a kitchen mixer with a bucket and stand mixer (no text or symbols)

14

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

17

Illustration of a stainless steel kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Important

Illustration of a kitchen mixer with a side-mounted control panel and mixing bowl (no text or symbols)

M3

M4

Important

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed from a plastic cover (no text or symbols present)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with food being processed, showing intake and cooling cover (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with two gloves (no text or symbols)

Important

Consells i suggeriments

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Important

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Udtag til tilbehør

Illustration of an open box with an upward arrow, no text or symbols present

Illustration of hands inserting a plug into an electrical socket, showing the installation process (no text or symbols)

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Vigtigt

Illustration of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Illustration of a kitchen mixer with a rotating knob and handle (no text or symbols)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with a pot and handle, showing no text or symbols

Illustration of a kitchen mixer with a stand mixer and fan (no text or symbols)

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Vigtigt

Mechanical component diagram showing a curved bracket with a central fastener (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a hand holding a mechanical clamp or bracket, showing a curved arm and handle (no text or symbols present)

•

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Vigtigt

Illustration of a stainless steel cooking pot with handles and lid (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Vigtigt

Illustration of a kitchen mixer blending red peppers into a bowl with liquid, showing a hand pouring liquid from a container (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

The image is too blurry to recognize any text content.

Illustration of a kitchen mixer with a bucket being inserted, showing no text or symbols.

14

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

17

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with waffles and a side view showing the process (no text or symbols)

Vigtigt

Illustration of a hand placing a small component into a container with an arrow indicating motion (no text or symbols)

Illustration of a kitchen mixer with a side-mounted control panel and rotating bowl (no text or symbols)

M3

M4

Vigtigt

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being removed (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Vigtigt

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Vigtigt

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Uttag för tillbehör

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an electrical socket, showing installation and disassembly (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Viktigt

Mechanical clamp assembly diagram showing a U-shaped component with a central fastener (no text or symbols)

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

Illustration of a hand holding a mechanical clamp or clamp device, with no visible text or symbols.

Viktigt

3D rendering of a stainless steel cooking pot with handles and internal components (no text or symbols visible)

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Viktigt

Illustration of a kitchen mixer blending food into a bowl with red peppers being added (no text or symbols)

Illustration of a kitchen mixer with a bowl and stand mixer, showing no text or symbols.

Four different mechanical or electrical component diagrams, no text or symbols present

Illustration of a kitchen mixer with a bowl and stand, showing no text or symbols.

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and control panel, showing no text or symbols.

Illustration of a kitchen mixer with two hands operating the motor (no text or symbols present)

Viktigt

Illustration of a kitchen mixer blending yellow cheese into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the side panel (no text or symbols visible)

Viktigt

Illustration of a hand placing a small component into a container with an arrow indicating motion (no text or symbols)

Illustration of a stainless steel kitchen mixer (no text or symbols visible)

Diagram showing a circular container being dropped into a perforated plate (no text or symbols)

Illustration of two identical food containers with steamers and vegetables, no text or symbols present.

Illustration of a kitchen mixer with food being placed inside, showing a pan and side view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being added (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with hands holding ovens (no text or symbols)

Viktigt

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Viktigt

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Tilbehøruttak

Illustration of an open box with a black upward arrow above it (no text or symbols)

Illustration of hands connecting a plug to an open socket, showing electrical connection (no text or symbols)

D

E

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Viktig

Mechanical clamp or bracket assembly with a central component and curved base (no text or symbols visible)

•

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

The image is too blurry to recognize any text content.

Illustration of a hand holding a mechanical clamp or bracket, with no visible text or symbols

Viktig

3D rendering of a stainless steel cooking pot with black handles and a side cover (no text or symbols visible)

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Viktig

Illustration of a kitchen mixer blending red and yellow ingredients into a bowl (no text or symbols)

Illustration of a kitchen mixer with a bowl and handle, showing mechanical components and motion arrows (no text or symbols)

Four different mechanical or electrical component diagrams, no text or symbols present

Illustration of a kitchen mixer with a bowl and stand mixer, showing no text or symbols.

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Pure graphical element with no text, numbers, or symbols visible

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with waffles and a side view showing the process (no text or symbols)

Viktig

Illustration of a kitchen mixer blending yellow cheese into a bowl (no text or symbols)

•

Illustration of a kitchen mixer with rotating fan and mixing bowl (no text or symbols)

Illustration of a kitchen mixer with a side panel and directional arrow indicating rotation (no text or symbols)

J4

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols.

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

J7

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with hands operating it (no text or symbols visible)

Illustration of a kitchen mixer with a hand operating the valve (no text or symbols visible)

Viktig

Illustration of a hand placing a small electronic component into a container with an arrow indicating motion (no text or symbols)

Illustration of a modern kitchen mixer with control panel and side handles (no text or symbols visible)

Tabell for forhåndsinnstilt bruk (forts.)

Forhåndsinnstilling Anbefalt redskap Standardinstillinger (justerbare)			Varmholding	(Max)	Oppskrift, ideer/bruksområde
Dampe				450 g Laks en Papillote
Gryteretter				3 | Bolognese
Supper med biter				3 | Minestrone, kraft
Langtidskoking 2 time				3 | Biff bourguignon

Oppskrift

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being added (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with two gloves (no text or symbols)

Viktig

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and curved base (no text or symbols)

Viktig

Illustration of kitchen utensils including a pot, kitchen sink, and various kitchenware (no text or labels)

Illustration of an open box with an upward arrow, no text or symbols present

Illustration of hands inserting a plug into an electrical socket, showing the installation process (no text or symbols)

Illustration of a kitchen mixer with wireless signal icons and smartphone (no text or symbols)

Tärkeää

Illustration of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Illustration of a kitchen mixer with a directional arrow indicating rotation (no text or symbols present)

Illustration of a kitchen mixer with a bowl and control panel (no text or symbols)

F4

Illustration of a kitchen mixer with a bucket and fan, showing no text or symbols

Illustration of a kitchen mixer with a stand mixer, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Tärkeää

Mechanical clamp assembly with curved metal components and a central bracket (no text or symbols visible)

Illustration of a hand holding a mechanical clamp or bracket with a rotating arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a mechanical clamp or bracket, with an arrow indicating rotation (no text or symbols present)

Tärkeää

3D rendering of a stainless steel cooking pot with handles and lid (no text or symbols visible)

Illustration of a stainless steel cooking pot with two handles and an arrow indicating direction (no text or symbols)

Illustration of a stainless steel cooking pot with two handles (no text or symbols)

Tärkeää

Illustration of a kitchen mixer blending red peppers into a bowl with liquid, showing food being added (no text or symbols)

Illustration of a kitchen mixer with control panel and kitchen utensils (no text or symbols)

Illustration of a kitchen mixer with a bucket and stand mixer, showing no text or symbols.

Illustration of a kitchen mixer with a side panel and handle mechanism (no text or symbols)

Illustration of a kitchen mixer with a hand pressing a button (no text or symbols visible)

17

Illustration of a modern kitchen mixer with a warning symbol (no text or labels)

Illustration of a kitchen mixer with a side panel and handle, showing no text or symbols on the device itself.

Illustration of a kitchen mixer with waffles and a side view showing the process (no text or symbols)

Tärkeää

Illustration of a kitchen mixer with food being placed into a bowl, showing a drop and magnified view (no text or symbols)

04

Illustration of a kitchen mixer with a side panel and handle, showing food being processed (no text or symbols)

Illustration of a kitchen mixer with control panel and hand gesture (no text or symbols)

Illustration of a kitchen mixer with a warning symbol (no text or labels)

07

Illustration of a kitchen mixer with a side panel showing food being added (no text or symbols)

Illustration of a kitchen mixer blending food into a bowl with two gloves (no text or symbols)

Tärkeää

Diagram of a mechanical device with a central fan-like component and directional arrow (no text or symbols)

Mechanical component diagram showing a lever mechanism with a central shaft and base, no text or symbols present.

Tärkeää
