GHP
5-55|5-65|5-65X|5-75|5-75X|500X
BOSCH
R Original instruction
Symbols on the machine
Read all safety warnings and all instructions. Failure to follow the warningsnd instruc- may result in electric shock, fire serious injury.
General hazard safety alert.
Never direct the water jet at people, animals, the unit or electric components.
Warning: High pressure jets can be dangerous if subject to misuse.
According to the applicable regulations, the appliance must never be used on the drinking water network with-
out a system separator. Use a separator as per IEC 61770 Type BA.
Water flowing though a system separator is considered not drinkable. For self priming use special suction kit 3 m long (F 016 800 335).
User qualification and personal protection
This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.
12 | English
The unit must not be operated by children or juveniles. Children should be supervised to ensure that they do not play with the unit.
▶The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit.
Wear personal protective equipment (PPE) e. g. safety goggles, dust mask etc. to protect against water, particles and/or aerosols sprayed back from parts. Do not inhale aerosols if self-priming from external sources. Such water can contain disease-causing agents.
▶ Do not use the appliance within the range of persons unless they also wear protective clothing.
Connecting to the mains
▶The voltage indicated on the rating plate must correspond to the voltage of the power source.
▶The operating voltage is 230 V AC, (for non-European countries 220 V or 240 V, as applicable).
This is a class I unit and may only be connected to properly earthed power sources.
▶The electric supply installation shall be made by a qualified electrician and comply with IEC 60364-1.
▶ We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
Requirements for extension cords and plugs
▶ Warning: Inadequate extension cords can be dangerous. The extension cord must have an earth wire. Extension cord, plug and socket must be of waterproof construction, protected against splashed water and intended for outdoor use. If in doubt, contact a qualified electrician or the nearest Bosch Service Centre.
▶The following wire dimensions are recommended: Up to 20 m length, 2.5 mm 2 wire diameter, up to 50 m length 4.0 mm 2 wire diameter.
▶ If your plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorized customer service agent. In case of electric plug with internal fuse, the replacement plug should have the same fuse ratings as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
▶ Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
▶ Remove the plug from socket whenever the machine is left unattended for any period.
▶ Do not touch the plug or socket with wet hands.
▶ Do not pull plug while operating the device.
English | 13
▶The connection between supply cord and extension cord must kept dry and off the ground 60 cm above.
▶ Do not use the unit, if the power supply cord or important parts, e. g. high-pressure hose, power gun or safety devices are damaged.
▶ Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
Water connection
▶ Observe the regulations of your water supply company.
The appliance should never be used on the drinking water supply without a back flow valve. Water which has passed the back flow valve is regarded as undrinkable.
High-pressure hose
▶ High-pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the manufacturer.
▶A damaged high-pressure hose can burst and must be replaced immediately. Never pull the hose over sharp edges. Don't pull if the hose is entangled.
Use of detergents
▶ Only use detergents recommended by the manufacturer. Comply with the application, disposal and warning instructions of the detergent manufacturers.
▶We recommend that the detergents are not used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash immediately with plenty of water and if swallowed contact a doctor immediately.
▶ Do not use solvent-containing liquids, undiluted acids, acetone or solvents! This includes petrol, paint thinners, heating oil. The sprayed vapour is highly flammable, explosive and toxic.
Observe before use
The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.
▶ Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.
▶The unit must be positioned on its supports vertical or horizontal on solid ground.
▶ All current-conducting components in the working area must be protected against splashed water.
The water jet from the high-pressure nozzle produces a significant recoil at the gun. Therefore hold the gun and spray lance firmly with both hands.
14 | English
Do not direct the water jet at the machine itself.
Do not direct the jet against yourself or others in order to clean clothes or footwear.
▶The gun trigger must not be temporarily or permanently fixed in the open position during operation.
▶ Metal parts may become hot after prolonged usage, if necessary wear protective gloves.
▶ High pressure washing during storm, excessive rain etc. must be avoided, especially when there is a risk of lightning.
▶The appropriate safety regulations must be observed when using the unit in dangerous areas (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.
▶ Materials containing substances which are hazardous to your health (e.g. asbestos) must not be sprayed.
Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm in order to avoid damages by the high-pressure jet. The first indication of damage is the discolouration of the tyre. Damaged vehicle tyres/tyre valves are dangerous to life.
Observe before maintenance
▶ Switch off the unit and pull out the mains plug prior to all maintenance and care.
▶ Repairs may only be carried out by authorised Bosch Service Centres.
▶Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safety and without any breakdowns.
Symbols in manual
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.
Symbol Meaning
| Movement direction |
| Reaction direction |
| Weight |
| On |
| Off |

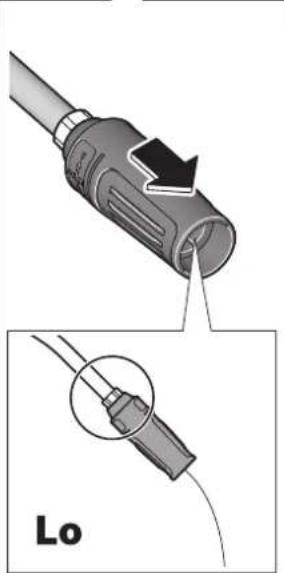

| Lo Low pressure |

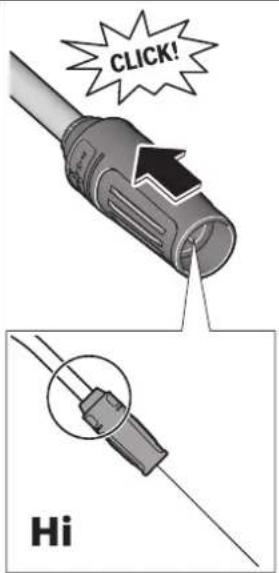

| Hi High pressure |
| Accessories |
Intended Use
This product is intended for professional use of cleaning areas around houses and objects, cleaning of tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch for this product are used. Intended use is related to operation within 0°C and 50°C ambient temperature.
Product Features
The numbering of the product features refers to the illustrations on the graphics pages.
1 Trigger
2 Trigger safety lock
3 Power gun
4 Lance screw connector coupling
5 Stainless steel spray lance
6 Nozzle

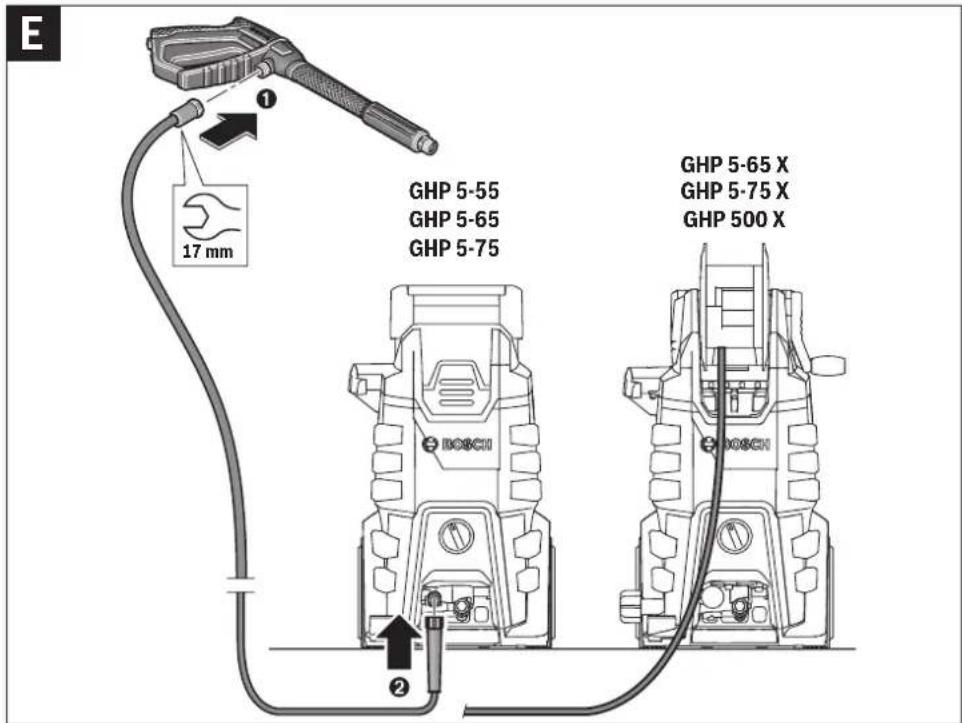

7 Pressure hose fitting (power gun)

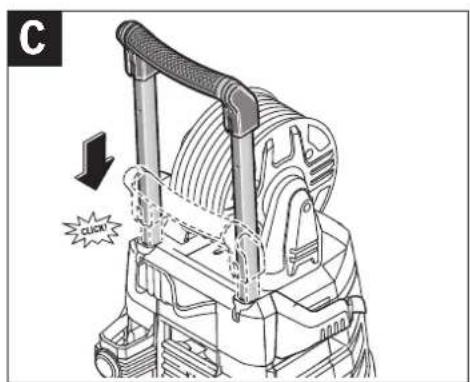

8 Handle
English | 15
| 9 Additional storage space(GHP 5-55/GHP 5-65/GHP 5-75) | 22 Rear lifting handle |
| 23 Cable holder |
| 10 Top lance holder | 24 Hose reel handle(GHP 500 X/GHP 5-65 X/GHP 5-75 X) |
| 11 Main switch |
| 12 Bottom lance holder | 25 Hose reel(GHP 500 X/GHP 5-65 X/GHP 5-75 X) |
| 13 Connection for high pressure hose(GHP 5-55/GHP 5-65/GHP 5-75) | 26 Pressure adjustment knob(GHP 5-75/GHP 5-75 X) |
| 14 Water inlet connection |

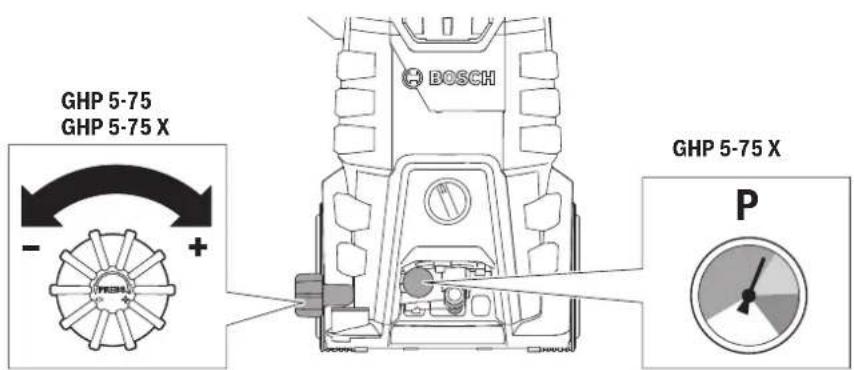

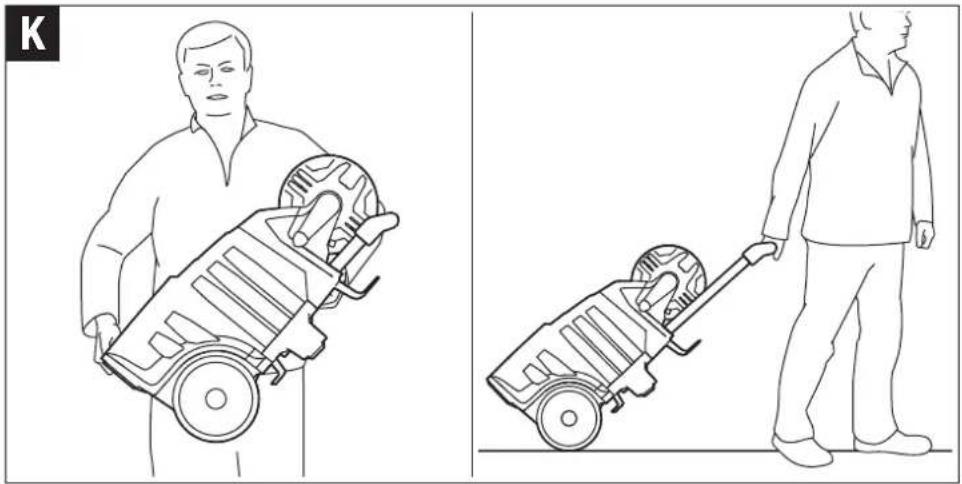

| 15 Auxiliary lifting handle | 27 Pressure gauge(GHP 5-75 X) |
| 16 Transport wheels |
| 17 Foot pedal | 28 High pressure hose(GHP 5-55/GHP 5-65/GHP 5-75) |
| 18 Detergent gauge |
| 19 Detergent hose | Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program. |
| 20 Rubber foot |
| 21 Storage |
Technical Data
| Pressure washer | | GHP 5-55 | GHP 500X | GHP 5-65 | GHP 5-65X | GHP 5-75 | GHP 5-75X |
| Article number | 3 600... J10 4..J10 9..J10 5..J10 6..J10 7..J10 8.. |
| Rated power | kW 2.2 2.2 2.4 2.4 2.6 2.6 |
| Supply temperature max. | °C 50 50 50 50 50 50 |
| Rated flow rate | I/h 500 500 485 485 560 560 |
| Rated pressure | MPa 11.5 11.5 13.0 13.0 14.0 14.0 |
| Max. operating pressure | MPa 13.0 13.0 16.0 16.0 18.5 18.5 |
| Rated Flow | I/h 520 520 520 520 570 570 |
| Maximum inlet pressure | MPa | 1 | 1 | 1 | 1 | 1 | 1 |
| Kickback force at the gun to the maximum pressure | N | 19.71 | 19.71 | 20.46 | 20.46 | 24.37 | 24.37 |
| Motor insulation | | Class F | Class F | Class F | Class F | Class F | Class F |
| Motor protection | | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 |
| Autostop function | | ● | ● | ● | ● | ● | ● |
| Pressure gauge | | - | - | - | - | - | ● |
| Pressure adjusting knob | | - | - | - | - | ● | ● |
| Hose reel | | - | ● | - | ● | - | ● |
| Net impedance | Ω | - | - | 0.32 | 0.32 | 0.32 | 0.32 |
| Weight according to EPTA-Procedure 01:2014 | kg 22.0 24.8 23.5 25.0 26.7 28.2 |
| Protection class | | ±/I | ±/I | ±/I | ±/I | ±/I | ±/I |
Serial number See serial number (rating plate) on pressure washer. Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.32 ohm.
16 | English
Noise/Vibration Information
| Sound emission values determined according to 7.. J10 8.. EN 60335-2-79. |
| Typically the A-weighted noise levels of the product are: |
| Sound pressure level | dB(A) | 78 | 78 | 78 | 78 | 77 | 77 |
| Sound power level | dB(A) | 92 | 92 | 92 | 92 | 91 | 91 |
| Uncertainty K | dB | =2.5 | =2.5 | =2.5 | =2.5 | =2.3 | =2.3 |
| Wear hearing protection! |
| Vibration total values an (triax vector sum) and uncertainty K determined according to EN 60335-2-79: |
| Vibration emission value an | m/s 2 | =1.841 | =1.841 | =1.841 | =1.841 | =1.841 | =1.841 |
| Uncertainty K | m/s 2 | =1.5 | =1.5 | =1.5 | =1.5 | =1.5 | =1.5 |
Note: Rated output pressure can only be achieved, if the flow rate at the water input is sufficient. The flow rate is sufficient if a 10 litre bucket can be filled in less than 1 minute.
CAUTION: Permanent operation with lack of water at the water input can damage the pump.
NOTE: For a sufficient water supply use a short hose with a diameter not thinner than 1/2" (13 mm). Hoses longer than 10 m should have a diameter of 3/4" (19 mm). Open the water tap completely. All connections must be tight. Clean the water filters periodically (see chapter Maintenance).
- It is recommended to use always an external water filter (accessory). Check water filter for tight assembly.
- If necessary, screw on an hose adapter (not supplied with the machine).

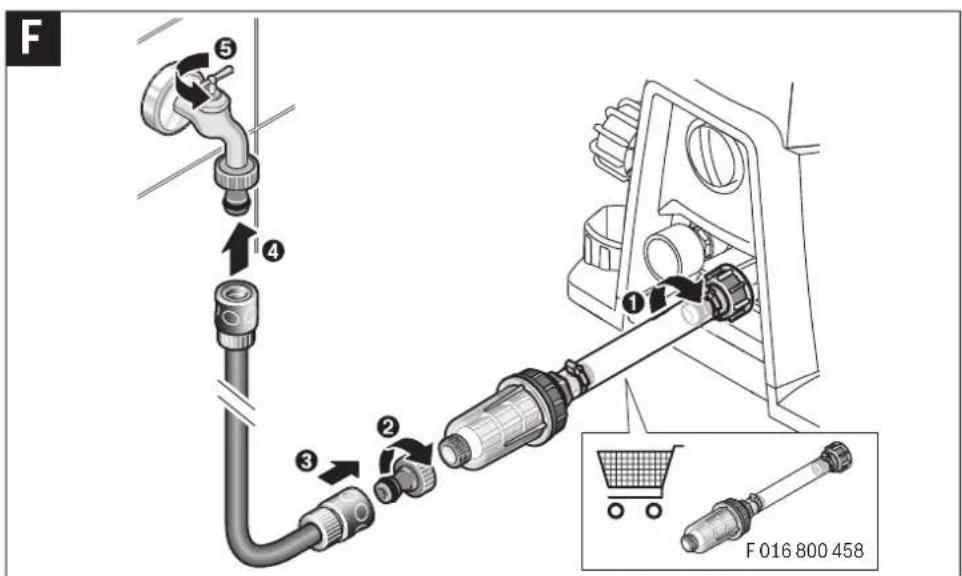

- Connect a suitable water hose, best with 1/2" (13 mm) or 3/4" (19 mm) diameter.
- Open the water tap completely and check all connections for tightness.
Connecting to the mains (see figure G)
NOTE: Rated output pressure is only available, if the machine is connected to a stable mains voltage. Using a long connection cable with a thin wire cross section, an uncoiled cable drum, operating other machines concurrently at the same circuit or voltage fluctuations outside accessible tolerances impede motor starting or result in low output pressure.
NOTE: Bleed the unit each time the water hose is connected to the water tab according to the following procedure:
Leave the main switch at OFF (0) position.
Disconnect the lance from the gun.
- As soon the trigger of the gun is operated, air and water exits noisily. Hold the trigger until water exits steadily from the gun. Release the trigger.
- Reconnect the lance.
- Switch on the machine for operation.
- Press the safety release and operate the trigger of the gun.

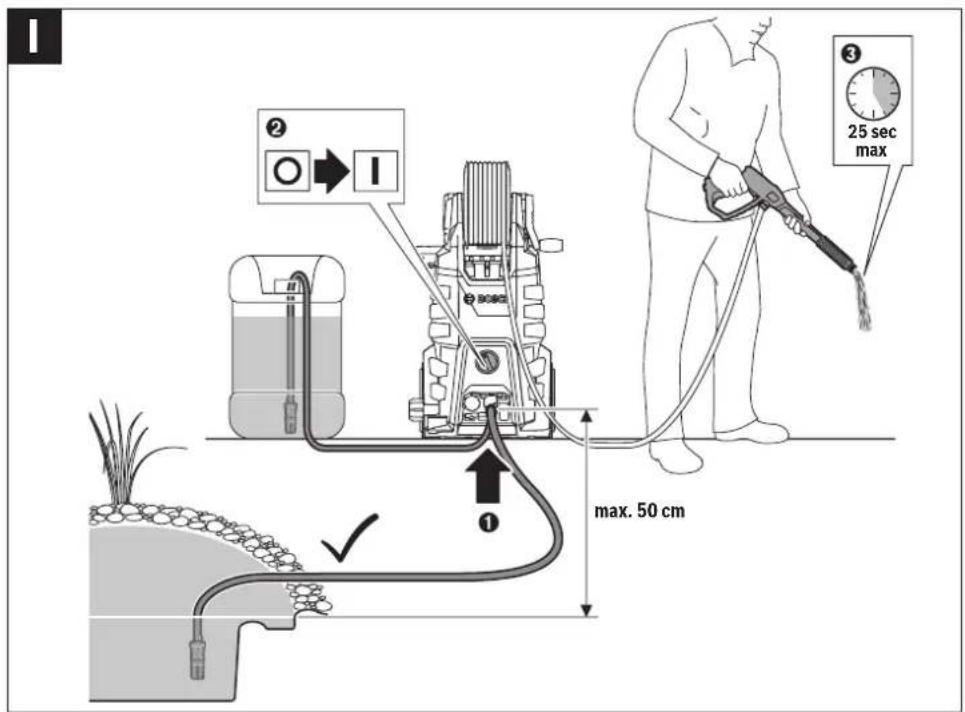

This high-pressure washer will self prime and can draw water from water tanks and natural water sources. It's IMPORTANT that the water is clean and both BOSCH inlet filter and external filter are clear and fitted to the machine (see chapter Maintenance).
Use the Self Priming accessory kit comprising:
- Inlet strainer with non return valve
- 3 m reinforced supply hose
– Universal coupling to the pressure washer
This enables the pressure washer to draw water up to 0.5 m above the water level in the source in approximately 25 – 50 seconds.
Fully immerse the 3 m hose into the water to displace the air in the hose. Connect the 3 m hose to the power washer and make sure that the inlet strainer remains under water.
Run the pressure washer with the lance disconnected until a steady flow of water appears from the high pressure hose. Stop if this has not been achieved within 25–50 seconds and check all the connections. Switch off and connect the lance and nozzle to operate.
It is important that hose and couplings are of good quality and are tightly connected, and that the seals are undamaged and properly inserted. Loose connections can impede the priming (drawing in).
English | 17
When connecting the pressure washer to a water tank with a suitable tap outlet, first connect the supply hose (not provided) to the tank outlet, open the tap to allow the water to displace all the air in the hose and then connect to the pressure washer.
Only use detergents recommended by the manufacturer.
Comply with the application, disposal and warning instructions of the detergent manufacturers.
Pull out the suction hose at the rear and put it into a bottle with detergent (not supplied with).
Pull the nozzle of the lance into low pressure position.
Switch on the gun. After a few seconds foam exits at the nozzle.
Ajust the knob at the rear to dose the quantity.
Turn the nozzle left/right to adjust the water jet.
Troubleshooting
| Problem Possible Cause Corrective Action |
| Motor refuses to start Plug not connected | Connect plug |
| Mains socket faulty Use another socket |
| Fuse faulty/blown Replace fuse |
| Extension cable damaged Try without extension cable |
| Motor protector has activated Allow to cool for 15 minutes |
| Frozen Wait for pump/water supply hose/accessory to thaw |
| Motor stops Fuse faulty/blown Replace fuse |
|
|
|
| Fuses blow Fuses incorrectly rated Change to a mains supply higher than the pressure washer amp consumption |
| Motor starts but no pressure | Nozzle partly blocked Clean nozzle |
| Motor “sounds” but fails to start | Insufficient power supply | Check that the voltage of the mains power supply line is the same as that on the plate |
| Voltage loss due to use of extension cable | Check characteristics of extension cable |
| Appliance not used for a long period of time | Contact your Bosch Service Centre |
| Problems with TSS (Total Stop System) device | Contact your Bosch Service Centre |
| Pressure pulsating | Air in the inlet water supply hose/pump | Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained |
| Inadequate water supply | Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter |
| Water filter blocked | Clean water filter |
| Water supply hoses squeezed | Straighten out kinked water supply hoses |
| High pressure hose too long | Remove high pressure extension hose. Retry (extension hose max. 7 m) |
| Pressure too low, but steady | Nozzle worn | Change the nozzle |
| Note: Several types of accessory will normally deliver a lower pressure | Start/stop valve worn Activate trigger five times in quick succession |
Bosch Power Tools 1 609 92A 3EV | (16.5.17)
18 | English
| Problem Possible Cause Corrective Action |
| Motor starts up but with restricted or no working pressure | No water supply Connect water supply |
| Water filter clogged up Clean the water filter |
| Nozzle clogged up Clean nozzle |
| The pressure washer starts irregularly by itself | Pump/spray gun leaky Contact your Bosch Service Centre |
| Water leaks from machine Leaking pump A slight water leak is permissible; in case | of excessive leak, contact Bosch Service Centre |
| No detergent taken in Adjustable nozzle on high pressure setting | Set nozzle on low pressure setting |
|
|
|
|
|
|
Disconnect the water hose from the water tap.
Disconnect the lance from the gun.
Direct the gun to the ground and switch on the machine for operation.
Operate the trigger of the gun and drain all water from the system.
CAUTION: Do not run the machine longer the 25 seconds. Store the high-pressure washer in a dry place.
CAUTION: Scaling and frost damages are not covered under warranty. Remaining water in the machine will freeze at temperatures below 0 °C and destroy the pump. Within climate zones where temperature can reach 4 °C or below, the machine must be drained after last use if being stored prior to the cold season.
Maintenance and Service
Maintenance
▶ Stop, remove plug from the power supply and disconnect from water supply.
Note: To ensure long and reliable service, carry out the following maintenance regularly.
Check for obvious defects such as loose fixings, and worn or damaged components.
Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.
We recommend to service the product every 200 (GHP 5-55, GHP 5-65, GHP 5-65 X, GHP 500 X)/300 (GHP 5-75, GHP 5-75 X) hours of running time with the authorised Bosch Service Centre.
Clean the filters periodically once a week. Mention cleaning with vinegar can remove scales faster. Keep it immersed in vinegar for 30 mins. (see figures M – N)
Clean the nozzle.
Grease the O rings. (see figure O)
After-sales Service and Application Service www.bosch-professional.com
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Français | 19
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Environmental Protection
Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc.
For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.
For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.
Disposal
The pressure washer, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of pressure washers into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Français
Robert Bosch (France) S.A.S.
27 Manometro (GHP 5-75 X)
28 Tubo flessibile alta pressione (GHP 5-55/GHP 5-65/GHP 5-75)
Ret aldrig vandstrålen mod mennesker, dyr, ma- skinen eller elektriske dele.
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
25 Slangetromle
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
26 Trykindstilling
(GHP 5-75/GHP 5-75 X)
27 Manometer
(GHP 5-75 X)
28 Højtryksslange
(GHP 5-55/GHP 5-65/GHP 5-75)
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Miljøbeskyttelse
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Miljöskydd
Rett aldri vannstrålen mot mennesker, dyr, selve maskinen eller elektriske deler.
27 Manometer (GHP 5-75 X)
28 Høytrykksslange
(GHP 5-55/GHP 5-65/GHP 5-75)
26 Paineenasetus (GHP 5-75/GHP 5-75 X)
27 Manometri (GHP 5-75 X)
28 Paineletku
(GHP 5-55/GHP 5-65/GHP 5-75)
27 Manometre (GHP 5-75 X)
Robert Bosch Sp. z o.o.
BSC
Ul. Szyszkowa 35/37
02-285 Warszawa
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
27 Manometer (GHP 5-75 X)
28 Vysokotlaková hadica
(GHP 5-55/GHP 5-65/GHP 5-75)
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
25 Tambur furtun
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
(GHP 5-75/GHP 5-75 X)
27 Manometru
(GHP 5-75 X)
Service scule electrice
Strada Horia Măcelariu Nr. 30-34, sector 1
013937 Bucureşti
Service scule electrice
Strada Horia Măcelariu Nr. 30-34, sector 1
013937 Bucureşti, România
www.bosch-pt.com/bg/bg/
Ne usmeravajte
mlaz vode nikada
na ljude,
životinje, uredjaj
ili električne
delove.
27 Manometer (GHP 5-75 X)
28 Crevo visokog pritiska
(GHP 5-55/GHP 5-65/GHP 5-75)
Prikazani ili opisani pribor ne spada u standardno pakovanje. Kompletni pribor možete da nadete u našem programu pribora.
Tehnički podaci
| Uredjaj za čišćenje visokim pritiskom | GHP 5-55 | GHP 500X | GHP 5-65 | GHP 5-65X | GHP 5-75 | GHP 5-75X |
| Broj predmeta | 3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8.. |
| Nominalna potrošnja | kW 2,2 2,2 2,4 2,4 2,6 2,6 |
| Temperatura ulaza maks. | °C 50 50 50 50 50 50 |
| Nominalan protok | I/h 500 500 485 485 560 560 |
| Nominalni pritisak | MPa 11,5 11,5 13,0 13,0 14,0 14,0 |
| Maksimalni radni pritisak | MPa 13,0 13,0 16,0 16,0 18,5 18,5 |
| Protok | I/h 520 520 520 520 570 570 |
| Maksimalni ulazni pritisak | MPa | 1 | 1 | 1 | 1 | 1 | 1 |
| Sila povratnog udarca štapa pri maksimalnom pritisku | N | 19,71 | 19,71 | 20,46 | 20,46 | 24,37 | 24,37 |
| Izolacija motora | | Klasa F | Klasa F | Klasa F | Klasa F | Klasa F | Klasa F |
| Vrsta zaštite motora | | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 |
| Funkcija Autostop | | ● | ● | ● | ● | ● | ● |
| Manometar | | - | - | - | - | - | ● |
| Podešavanje pritiska | | - | - | - | - | ● | ● |
| Bubanj za crevo | | - | ● | - | ● | - | ● |
| Mrežna impedanca | Ω | - | - | 0,32 | 0,32 | 0,32 | 0,32 |
| Težina prema EPTA-Procedure 01:2014 | kg 22,0 24,8 23,5 25,0 26,7 28,2 |
| Klasa zaštite | | ± /I | ± /I | ± /I | ± /I | ± /I | ± /I |
| Serijski broj | | Pogledaje serijski broj (Tablica sa tipom) na čistaču visokog pritiska |
27 Manometer (GHP 5-75 X)
28 Visokotlačna gibka cev
(GHP 5-55/GHP 5-65/GHP 5-75)
Prikazan ali opisan pribor ni del standarnega obsega dobave. Celoten pribor je del našega programa pribora.
208 | Slovensko
Tehnični podatki
| Visokotlačni čistilec | GHP 5-55 | GHP 500X | GHP 5-65 | GHP 5-65X | GHP 5-75 | GHP 5-75X |
| Številka artikla | 3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8.. |
| Nazivno vsrkavanje | kW 2,2 2,2 2,4 2,4 2,6 2,6 |
| Temperatura dotoka maks. | °C 50 50 50 50 50 50 |
| Nazivni premer | l/h 500 500 485 485 560 560 |
| Nazivni tlak | MPa | 11,5 | 11,5 | 13,0 | 13,0 | 14,0 | 14,0 |
| Maksimalni delovni tlak | MPa | 13,0 | 13,0 | 16,0 | 16,0 | 18,5 | 18,5 |
| Pretok | l/h 520 520 520 520 570 570 |
| Maksimalni vhodni tlak | MPa | 1 | 1 | 1 | 1 | 1 | 1 |
| Povratna sila pršilne palice pri maksimalnem tlaku | N | 19,71 | 19,71 | 20,46 | 20,46 | 24,37 | 24,37 |
| Izolacija motorja | | Razred F | Razred F | Razred F | Razred F | Razred F | Razred F |
| Vrsta zaščite motorja | | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 | IPX5 |
| Funkcija avtomatskega izklopa | | ● | ● | ● | ● | ● | ● |
| Manometer | | - | - | - | - | - | ● |
| Nastavitev tlaka | | - | - | - | - | ● | ● |
| Boben za gibko cev | | - | ● | - | ● | - | ● |
| Impendanca omrežja | Ω | - | - | 0,32 | 0,32 | 0,32 | 0,32 |
| Teža po EPTA-Procedure 01:2014 | kg | 22,0 | 24,8 | 23,5 | 25,0 | 26,7 | 28,2 |
| Zaščitni razred | | ± /I | ± /I | ± /I | ± /I | ± /I | ± /I |
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
26 Surveregulaator
(GHP 5-75/GHP 5-75 X)
27 Manomeeter (GHP 5-75 X)
28 Körgsurvevoolik
(GHP 5-55/GHP 5-65/GHP 5-75)
27 Manometrs (GHP 5-75 X)
28 Augstspiediena šljutene (GHP 5-55/GHP 5-65/GHP 5-75)
Malatan Trading & Contracting LLC
131:البريد
سلطنة عمان
+968 99886794: م forecasts
International Construction Solutions W L L
البريد: 51 الدوحة
قطر
+974 40065458: هاتف
+974 4453 8585:فاكس
+21671427496/879:hatف
+216 71 428 621:فاكس
Central Motors & Equipment LLC
1984:البريد
(GRAPH 5-75, GHP 5-75X) 300
الصيانة.
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
26 تنظيم فشار
(GHP 5-75/GHP 5-75 X)
27 فشار سنج
(GHP 5-75 X)
28 شلنگ فشار قوى
(GHP 5-55/GHP 5-65/GHP 5-75)
268
Bosch Power Tools 1 609 92A 3EV | (16.5.17)
270
G
H
Bosch Power Tools 1 609 92A 3EV | (16.5.17)
272
274
0
F016800457
GHP 5-55, GHP 500 X
F 016 800 443
GHP 5-65, GHP 5-65 X
F 016 800 444
GHP 5-75, GHP 5-75 X
F 016 800 445
GHP 500 X, GHP 5-55
F 016 800 446
GHP 5-65, GHP 5-65 X
F 016 800 447
GHP 5-75, GHP 5-75 X
F 016 800 448
F016800454
8 m
F 016 800 441
16 m
F 016 800 442
| I | CE |
| de | EU-KonformitätserklärungHochdruckreiniger Sachnummer | | Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen. |
| en | EU Declaration of ConformityPressure washer Article number | | We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. |
| fr | Déclaration de conformité UENettoyeur haute pression | N° d'article | Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous. |
| es | Declaración de conformidad UELimpiadora de alta presión | N° de artículo | Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas. |
| pt | Declaração de Conformidade UELimpador de alta pressão | N.° do produto | Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas. |
| it | Dichiarazione di conformità UEIdropulitrice | Codice prodotto | Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative. |
| nl | EU-conformiteitsverklaringHogedrukreiniger | Productnummer | Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen. |
| da | EU-overensstemmelseserklæringHøjtryksrenser | Typenummer | Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestammelser i følgende direktiver og forordninger og opfylder følgende standarder. |
| sv | EU-konformitetsförklaringHögtryckstvätt | Produktnummer | Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer. |
| no | EU-samsvarserklæringHøytrykkspyler Produktnummer | | Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestammelser i direktivene og forordningene nedenfor og med følgende standarder. |
| fi | EU-vaatimustenmukaisuusvakuutusPainepesuri | Tuotenumero | Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia. |
| el | Δήλωση πιστότητας ΕΕΠλυντικό υψηλής πίεσης | Αριθμός ευρετηρίου | Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα. |
| tr | AB Uygunluk beyaniYüksek basınçli te-mizleyici | Ürün kodu | Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz. |
| pl | Deklaracja zgodności UEMyjka wysokociśnieniowa | Numer katalogowy | Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami. |
| cs | EU prohlásení o shoděVysokotlaký čistič | Objednací číslo | Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami: |
| sk | EÚ vyhlásenie o zhodeVysokotlakový čistič | Vecné číslo | Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami: |
| hu | EU konformitási nyilatkozatNagynyomású tisztító | Cikkszám | Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak. |
CE
||
| ru | Заявление о соответствии ЕСОчиститель Товарный Noвысокого давления | Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниям нижеуказанныхдиректив и распоряжений, а также нижеуказанных норм. |
| uk | Заява про відповідність ЄСОчищувач Товарний номервисокого тиску | Мизаявляємо під нашу одноособову відповідальність, що названі виробивідповідають усім чинним положенням нищеозначених директив ірозпоряджень, а також нижчеозначеним нормам. |
| kk | ЕО сәйкестік мағлүмдамасыЖоғары қысым Өнім нөмірітазалағыш | Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалармен жарлықтардың тиісті қағидаларына сәйкестігін және төмендегінормаларға сай екенін білдіреміз. |
| ro | Declarație de conformitate UEMaşină de curățat cu Număr deînaltă presiune identificare | Declarăm pe proprie răspundere că produsele menționate corespund tuturordispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ceurmează și sunt în conformitate cu următoarele standarde. |
| bg | ЕС декларация за съответствиеВодоструйнаМашина Каталоженомер | С пълна отговорностние декларираме, че посочените продукти отговарят навсички валидни изисквания на директивите и разпоредбите по-долу исъответства на следните стандарти. |
| mk | EU-Изjava за сообразностВисокопритиснапералка Број на дел/артикл | Со целосна одговорност изјавуваме, дека опишаните производи се всогласност со сите релевантни одредби на следните регулативи и прописи иссе во согласност со следните норми. |
| sr | EU-izjava o usaglašenostiUredjaj za čišćenje Broj predmetavisokim pritiskom | Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svimdotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sasledećim standardima. |
| sl | Izjava o skladnosti EUVisokotlačni čistilec Številka artikla | Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemirelevantnimi določili direktiv in uredb ter ustreza naslednjim standardom. |
| hr | EU izjava o sukladnostiVisokotlačni uredaj Kataloški br.za čišćenje | Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svimelevantnim odredbama direktiva i propisima navedenima u nastavku i da su su-kladni sa sljedećim normama. |
| et | EL-vastavusdeklaratsioonKõrgsurvepesur Tootenumber | Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletuddirektiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas järgmis-te normidega. |
| lv | Deklarăcija par atbilstibu ESstandartiemAugstspiedienatirităjs Izstrădăjumanumurs | Mës ar pilnu atbildibu paziņojam, ka šeit aplūkotie izstrădăjumi atbilst visiemtălăk minėtajās direktivās un rīkojumos ietvertajām saistošajām nostădnēm, kăari sekojošiem standartiem. |
| lt | ES atitikties deklaracijaAukšto slėgio plovi-mo jrenginys Gaminio numerism | Atsakingai pareiškiye, kad išvardyti gaminiai atitinka visus privalomus žemiaunurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus. |
| III | CE |
| GHP 5-55 | 3 600 J10 4.. | 2011/65/EU | |
| 2014/30/EU | |
| GHP 500X | 3 600 J10 9.. | 2006/42/EC | |
| 2000/14/EC | |
| EN 60335-1:2012+A11:2014 | |
| EN 60335-2-79:2012 | |
| EN 55014-1:2006 + A1:2009 + A2:2011 | |
| EN 55014-2:2015 | |
| EN 61000-3-2:2014 | |
| EN 61000-3-3:2013 | |
| EN 50581:2012 | |
| GHP 5-65 | 3 600 J10 5.. | 2011/65/EU | |
| 2014/30/EU | |
| GHP 5-65X | 3 600 J10 6.. | 2006/42/EC | |
| 2000/14/EC | |
| GHP 5-75 | 3 600 J10 7.. | EN 60335-1:2012+A11:2014 | |
| EN 60335-2-79:2012 | |
| GHP 5-75X | 3 600 J10 8.. | EN 55014-1:2006 + A1:2009 + A2:2011 | |
| EN 55014-2:2015 | |
| EN 61000-3-2:2014 | |
| EN 61000-3-11:2000 | |
| EN 50581:2012 | |
CE
IV
de 3 600 J10 4../3 600 J10 5../3 600 J10 6../3 600 J10 9..
2000/14/EC: Measured sound power level 92 dB(A), uncertainty K = 2.5 dB, guaranteed sound power level 95 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27
3 600 J10 7../3 600 J10 8..
2000/14/EC: Measured sound power level 91 dB(A), uncertainty K = 2.3 dB, guaranteed sound power level 94 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27
Technical file at: *
fr 3 600 J10 4../3 600 J10 5../3 600 J10 6../3 600 J10 9..
Chairman of Executive
Management
Helmut Heinzelmann
Head of Product Certification
i.v. h=mc
Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY
Stuttgart, 14.05.2019
