GSN36VBFP - Freezer BOSCH - Free user manual and instructions

Product type	Freezer
Brand	Bosch
Model	GSN36VBFP
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	75 kg
Electrical supply	220-240 V, 50 Hz
Annual consumption	280 kWh
Climate class	SN-T
Noise level	42 dB
Net capacity	280 L
Number of drawers	6 drawers
Super freeze function	Yes
Temperature alarm	Visual and audible alarm
Open door alarm	Yes
Interior lighting	LED
Defrost type	Manual
Maintenance and cleaning	Clean with a soft cloth and warm water; do not use abrasive cleaners
Child safety	Control lock function
Repairability index	8/10
Spare parts available	Bosch original parts (drawers, shelves, thermostat, door gasket)
Energy class	E (former A+)
Minimum ambient temperature	10 °C
Electrical connection	Earth connection mandatory

Frequently Asked Questions - GSN36VBFP BOSCH

How to start up my Bosch GSN36VBFP freezer?

After unpacking, let the appliance rest for 2 hours. Plug it into a grounded outlet. Set the desired temperature using the setting buttons. The quick freeze function starts automatically during initial startup.

What is the ideal temperature for the freezer?

The recommended temperature is -18 °C. For quick freezing, activate the Super Frost function 24 hours before adding fresh food.

Why does my freezer make a sound of running water?

This noise is normal and comes from the refrigerant circulating in the circuit. If the noise becomes abnormal, check that the appliance is level and not in contact with furniture.

What to do if the audible alarm sounds?

The alarm sounds if the internal temperature is too high (e.g., door left open). Press the Alarm button to stop it. Check the door closure and the load condition.

When and how to defrost the freezer?

Defrost when the ice layer reaches 1 cm. Unplug the appliance, remove the food, open the door. Place a container under the water drain. Never use sharp objects.

How to clean the interior of the freezer?

Clean with a soft cloth soaked in warm water and a little mild detergent. Rinse and dry. Do not use abrasive products, solvents, or steam cleaners.

How to reduce the energy consumption of my freezer?

Place the appliance in a cool, well-ventilated area away from heat sources. Do not open the door unnecessarily. Allow food to cool before freezing. Defrost regularly.

Can I install the freezer in an unheated room?

Yes, because the climate class SN-T allows use from 10 °C to 43 °C. However, avoid temperatures below 10 °C, as the storage temperature can no longer be guaranteed.

Where to find original spare parts?

Spare parts (drawers, shelves, thermostat, door gasket) are available from the Bosch after-sales service or on the official website. Use model number GSN36VBFP for the search.

What to do in case of a power outage?

Do not open the door. The food remains frozen for several hours depending on quantity. Consult the manual for storage times. If the audible alarm sounds when power returns, press the Alarm button.

USER MANUAL GSN36VBFP BOSCH

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Illustration of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Easy opening handle e свалена.

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or symbols)

i

Ремонт

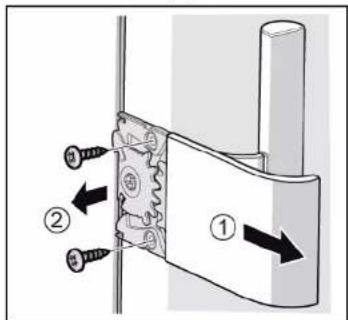

1. 1. Развийте двата винта (1).

2. Свалете горната панта (2).

Ремонт

3D diagram of a rectangular device with a black arrow pointing to the top panel (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Ремонт

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Ručka easy opening handle je uklonjena.

4.3.2 Postavljanje ručke easy opening handle

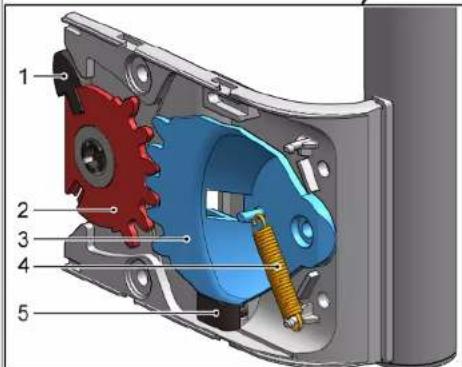

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or labels)

i

Namještanje podkomponenti ručke easy opening handle za postavljanje desne strane vrata opisano je u uputama za postavljanje.

▶ Postavite obratnim redoslijedom.

Popravak

4.4 Zamjena gornjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Zahtjev:

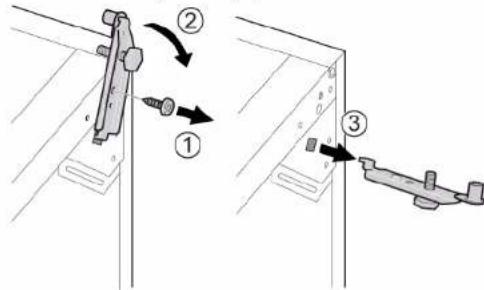

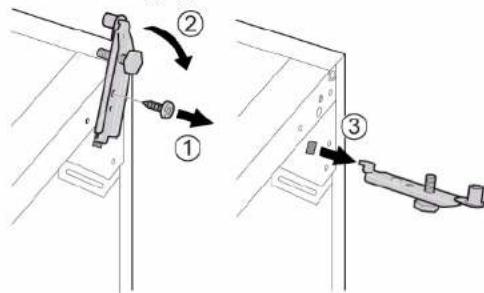

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

Popravak

1. 1. Odvijte dva vijka (1).

2. Uklonite gornji zglob (2).

Gomji zglob vrata je uklonjen.

4.4.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Popravak

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

1. 1. Uklonite poklopac kutije za kabele (1).

2. Uklonite zaštitu kabela (2).

3. Odvojite električni priključak (3).
4. Odvijte dva vijka (4).
5. Uklonite gornji zglob (5).

Gornji zglob vrata je uklonjen.

4.5.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Zahtjev:

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

1. 1. Odvijte vijak (1).

2. Izvadite donji zglob (2).

3. Uklonite donji zglob (3).

Donji je zglob uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena ledomata

Zahtjev:

Vrata su otvorena.

4.9.1 Uklanjanje ledomata

1. Izvucite policu spremnika za zamrznute namirnice s ledomatom (1).
2. Otpustite kuke (2)
3. Uklonite ledomat (3).

Ledomat je uklonjen.

4.9.2 Postavljanje ledomata

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Popravak

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Oprava

Oprava

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Oprava

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

3D mechanical assembly diagram showing internal components with a cylindrical shaft and mounting bracket (no text or symbols)

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Reparation

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Reparation

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Reparation

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

3D cutaway view of a mechanical component with internal parts, no visible text or symbols

i

Reparatie

Reparatie

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Reparatie

Diagram showing a device with a red component and a downward arrow, no readable text or symbols present.

Repair hints - Freezer

i Concerning this document.... 116

1.1 Important information.... 116

1.1.1 Purpose.... 116

1.2 Explanation of symbols 116

1.2.1 Danger levels.... 116

1.2.2 Hazard symbols 116

1.2.3 Structure of the warnings.... 117

1.2.4 General symbols.... 117

Safety.... 118

2.1 General Safety instructions 118

2.1.1 All domestic appliances 118

Tools and aids.... 119

Repair 120

4.5 Replacing door upper hinge (door with display) 128

4.10.1 Removing LED light.... 136

4.10.2 Installing top LED light 137

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Phillips screwdriverPH2
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

1. ① If groove for gasket is it is damaged.

- Contact customer service.

1. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

▶ Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.

4.3.1 Removing easy opening handle

▶ 1. Remove easy opening handle cover (1).

1. Unscrew two screws (2).

Easy opening handle is removed.

4.3.2 Installing easy opening handle

Easy opening handle mechanism should be properly set before installation. Correct arrangement of push rod (1), toothed quadrants (2) and (3), spring (4) and limit stop (5) for the door left side installation is shown on the graphic.

i

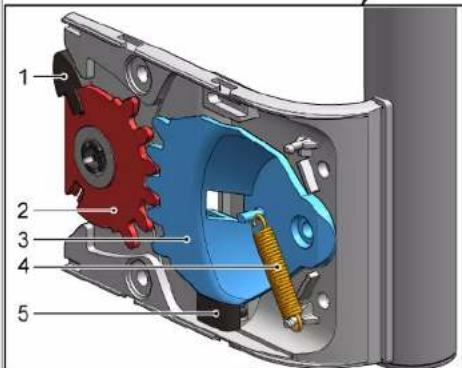

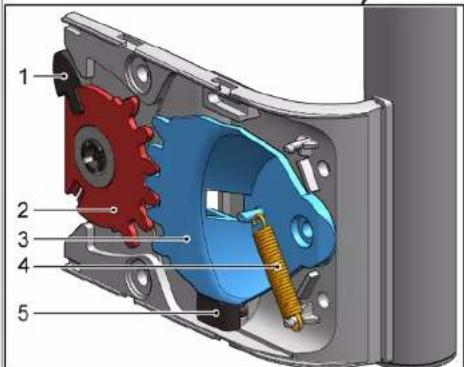

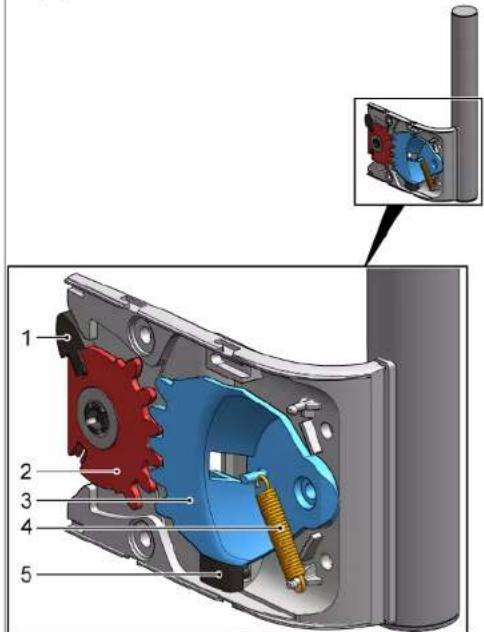

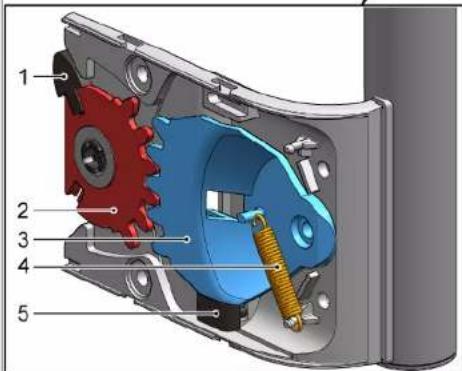

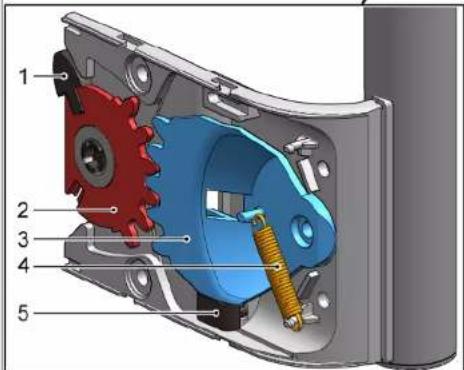

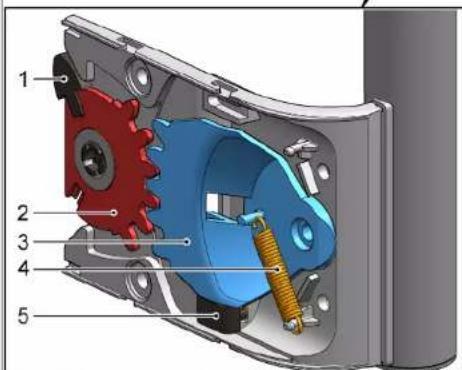

Arrangement of easy opening handle sub-components for door right side installation is described in the document "Installation instruction".

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2).

3. Remove upper hinge cover (3).

Repair

1. 1. Unscrew two screws (1).

2. Remove upper hinge (2).

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
▶ To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

▶ Secure component from falling down.

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

▶ After the repair have a safety test according VDE 0701 or country-

specific regulations performed.

Danger

Risk of electric shock due to live parts!

Death by electrocution

▶ Disconnect appliances from electrical supply at least 60 seconds

before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

Repair

1. Place appliance on the back side.

Repair

2.1. Press upper hinge cover on both sides (1).

1. Move out upper hinge cover (2).
2. Remove upper hinge cover (3).


1. 1. Remove cable box cover (1).
2. Remove cable protection (2).
3. Disconnect electrical connection (3).
4. Unscrew two screws (4).
5. Remove upper hinge (5).

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Appliance is placed on the back side.

√ Upper hinge is removed.→ Page 128

4.6.1 Replacing door lower hinge

1. Remove door.

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

1. 1. Unscrew the screw (1).

2. Turn lower hinge out (2).

3. Remove lower hinge (3).

Lower hinge is removed.

Repair

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

√ Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

√ Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite:

√ Door is open.

4.9.1 Removing ice maker

▶ 1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Ice maker is removed.

4.9.2 Installing ice maker

▶ Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.10.2 Installing top LED light

▶ Install in reverse order.

Remonditeave - Sügavkülmik

i Selle dokumendiga seoses 139

1.1 Tähtis teave 139

1.1.1 Eesmärk 139

1.2 Sümbolite selgitus 139

1.2.1 Ohutasemed.... 139

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

3D cutaway view of a mechanical component with internal parts, no visible text or symbols

i

Remont

Remont

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red component and arrow indicating direction (no text or symbols present)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Easy opening handle -kahva on poistettu.

Korjaus

Korjaus

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a base (no text or symbols)

1. 1. Kierrä ruuvi auki (1).

2. Kierrä alasarana ulos (2).

3. Poista alasarana (3).

Alasarana on poistettu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Korjaus

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

3D diagram of a mechanical component with internal parts, shown in two views (no text or symbols)

i

Réparation

Réparation

3D diagram of a rectangular box with an arrow pointing upward on top, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Réparation

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

3D diagram of a mechanical device with internal components and a cylindrical shaft, no visible text or symbols

Instandsetzen

Instandsetzen

3D diagram of a rectangular box with a black arrow pointing upward on top, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Instandsetzen

Diagram of a mechanical or electrical component with a red rectangular block and downward arrow, no visible text or symbols

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

3D cutaway view of a mechanical component with internal parts, no visible text or symbols

Επισκευή

Επισκευή

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Επισκευή

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

3D mechanical assembly diagram showing internal components with no visible text or symbols

i

Javítás

Javítás

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Javítás

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Riparazione

Riparazione

3D diagram of a rectangular device with an arrow pointing upward on the top panel (no text or symbols)

1. 1. Svitare la vite (1).

2. Ruotare la cerniera inferiore verso l'esterno (2).

3. Togliere la cerniera inferiore (3).

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Riparazione

Diagram showing a device with a red component and a downward arrow, no readable text or symbols present.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Durvju rokturis ir nonemts.

3D diagram of a mechanical component with internal parts, shown in two views (no text or symbols)

i

Remonts

Remonts

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Ledus tvertne ir iznemta.

Diagram of a mechanical or electrical setup with a red component and a black arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

→ LED gaismeklis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

„Easy open handle“ nuimta.

3D mechanical assembly diagram showing a component with internal parts and a cylindrical shaft (no text or symbols)

Remontas

Remontas

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Remontas

LED lemputė išimta.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

easy opening handle er demontert.

3D mechanical assembly diagram showing a cylindrical component with internal components and a highlighted section (no text or symbols)

Reparasjon

1. 1. Skru ut to skruer (1).

2. Demonter øvre hengsel (2).

Reparasjon

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

1. 1. Skru ut skruen (1).

2. Drei den nedre hengselen ut (2).

3. Demonter nedre hengsel (3).

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

→ Beholderen for frysevarer er demontert.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a mechanical assembly with a tool inserted, showing a red component and a gray base (no text or symbols)

Reparasjon

LED-lampen er demontert.

Illustration of hands connecting a cable to a refrigerator panel with shelves and doors (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Naprawy

Naprawy

3D diagram of a white rectangular box with a black arrow pointing upward on top, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.7.2 Montaż półki

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Naprawy

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparação

1. 1. Desaperte dois parafusos (1).

2. Remova a dobradiça superior (2).

Reparação

3D diagram of a rectangular device with a black arrow pointing to the top panel (no text or symbols)

1. 1. Desaperte o parafuso (1).

2. Vire a dobradiça inferior para fora (2).

3. Remova a dobradiça inferior (3).

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red component and directional arrow, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Reparação

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or labels)

i

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Aparate grele, masive!

3D illustration of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a ceiling-mounted device with a red component and black arrow pointing to it (no text or symbols present)

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Repararea

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Tesnenie dvierok je namontované.

Oprava

→ Úchytka easy opening handle je odobratá.

4.3.2 Montáž úchytky easy opening handle

Mechanizmus úchytky easy opening handle by sa mal pred inštaláciou riadne nastavit.

3D diagram of a mechanical component with internal parts, shown in two views: one with a cylindrical shaft and one with a highlighted internal structure (no text or symbols)

Oprava

Oprava

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Oprava

LED svetlo je odobraté.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement, showing internal shelves and compartments (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Ročaj easy opening handle je odstranjen.

Diagram showing a mechanical component with internal parts and a cylindrical shaft, no text or symbols present

i

Popravilo

1. 1. Odvijte vijaka (1).

2. Odstranite zgornji tečaj (2).

Poškodbe hrbta in mišic

Popravilo

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Ledomat je odstranjen.

4.9.2 Namestitev ledomata

▶ Namestite v obratnem vrstnem redu.

Popravilo

Diagram of a ceiling-mounted device with a red component and black arrow pointing to it (no text or symbols present)

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

Diagram of a mechanical or electrical component with a red rectangular block and downward arrow, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparación

Reparación

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparación

4.3 Byta Easy opening handle....509

4.3.1 Ta bort Easy opening handle 509

4.3.2 Montera Easy opening handle....509

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

4.3 Byta Easy opening handle

Nödvändiga verktyg:

Easy opening handle har tagits bort.

4.3.2 Montera Easy opening handle

Reparation

Reparation

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparation

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door with shelves and arrows indicating force or movement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or symbols)

i

Onarim

Onarim

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Onarim

LED ışığı söküldü.
