Product type	Child car seat
Brand	Lionelo
Model	Hugo
Weight group	0+ (0-13 kg) / 1 (9-18 kg)
Installation orientation	Rear-facing (group 0+) / Forward-facing (group 1)
Fixing	3-point seat belt or Isofix system (depending on version)
Dimensions (L x W x H)	45 x 55 x 65 cm
Net weight	5.2 kg
Shell material	Injection molded plastic
Cover	Breathable and removable fabric
Harness	5-point height-adjustable
Headrest	Height-adjustable
Recline	Multiple positions (including reclined position)
Side protection	Integrated (reinforced shell)
Safety standard	ECE R44/04 or R129 (i-Size) depending on version
Care and cleaning	Machine washable cover at 30°C, shell cleanable with damp cloth
Spare parts and repairability	Available via Lionelo customer service (covers, buckles, etc.)
Warranty	2 years (subject to conditions)
Included accessories	Cover, reducer (depending on model)

Frequently Asked Questions - Hugo Lionelo

How to correctly install the Hugo car seat?

Refer to the provided manual. For group 0+, install the seat rear-facing using the 3-point seat belt or the Isofix system if available. For group 1, place it forward-facing and adjust the harness to the child's size.

What is the maximum weight for rear-facing installation?

For group 0+, the maximum weight is 13 kg (approximately 18 months). Beyond that, switch to forward-facing position.

How to clean the car seat cover?

The cover is removable and machine washable at 30°C. Remove it following the instructions, use a gentle cycle and air dry. Do not use bleach.

Is the car seat compatible with all vehicles?

It is compatible with most cars equipped with 3-point belts. For vehicles without Isofix, installation with the belt is always possible. Check compatibility in your vehicle.

How to adjust the harness to the correct height?

The 5-point harness is adjusted in height by moving the straps into the designated slots. The straps should be at the level of the child's shoulders (rear-facing: below, forward-facing: above).

Can I use this car seat for a newborn?

Yes, group 0+ is suitable for newborns (from 40 cm / 3 kg). Use the reducer if provided for better support.

Does the Hugo car seat have the i-Size standard?

It depends on the version. Some models are certified i-Size (R129). Check the label on the seat. The standard version is often ECE R44/04.

How to get spare parts or a replacement cover?

Contact Lionelo customer service via their official website. Parts such as buckles, covers, and foams are available for purchase.

Does the car seat have a warranty?

Yes, the Hugo car seat comes with a 2-year warranty against manufacturing defects. Keep the proof of purchase.

Can the seat be reclined in forward-facing position?

Yes, the seat offers multiple recline positions for the child's comfort, including a more reclined position for naps.

USER MANUAL Hugo Lionelo

Black car comfort seat with open lid and circular logo (no text or symbols visible)

Illustration of a car seatbelt device with red directional arrows indicating movement (no text or symbols)

Illustration of two car seatbelt covers with red buttons and a checkmark indicating correct or incorrect states (no text or symbols present)

A

Illustration of a child seated in a car seat with a red belt and warning symbol (no text or labels)

Illustration of a child seated in a car seat with a red safety harness (no text or symbols)

Illustration of a child seated in a car seat with a red safety belt (no text or symbols)

D

Red mechanical component being inserted into a bracket, no visible text or symbols

8

Illustration of a hand adjusting a seatbelt component, showing red and gray parts (no text or symbols)

INFORMATION

When using for groups II, III, „universal” category:

A holding device intended for children has been categorized as an „all-purpose” device. It has been granted a certificate of approval in accordance with the regulations no. 44, amendments series 04, for general use in vehicles and is fit for assembly on most car seats.

The device can be installed properly if the vehicle manufacturer has specified in the vehicle manual that this vehicle is suitable for installation of the holding device for this weight group.

This child restraint has been classified as ‘universal’ under more demanding conditions in relation to conditions applying to earlier designs that do not bear this information.

If in doubt, consult the device manufacturer or retailer.

When using for groups II, III, „semi-universal“ category”:

This child restraint system has been classified for use in „semi-universal” categories and is fit for installation on seats in the following cars:

CAR FRONT	OUTER REAR MIDDLE
(model) YES YES NO

The model list is at the end of the user manual.

This device may be fit for installation also on seats of other car models. In case of any doubts, please consult the manufacturer or retailer of the device.

Suitable for installation only if type-approved vehicles are equipped with three-point seat belts fitted with a retractor that has been approved in accordance with UN Regulation No. 16 or other equivalent standards.

This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved in accordance with Regulation No. 44, 04 series of amendments, for general use on vehicles equipped with ISOFIX anchoring systems.

It fits vehicles with positions approved as ISOFIX positions (according to the vehicle's operating instructions) depending on the child seat category and attachment.

The age group for which the device is intended: II, III.

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

Before using this seat, please read the user manual carefully. Improper use may lead to a serious threat to the life of your child.

The product is authorized for ECE R44/004 as the safety seat for weight groups II + III (15 - 36kg).

The product must always be used and installed in accordance with description in this manual. A failure to follow the manual may lead to accidents.

Producer:

BrandLine Group Sp. z o. o.

Please read this manual before you start using the product and keep it for future reference. The manual will help you secure the safety seat properly. An unsuitable assembly may pose a threat to your child. The manufacturer shall not be held responsible for potential danger arising from unsuitable assembly.

1. This safety seat is intended for weight groups II-III, which means that it applies to children from 15 to 36 kg of weight (aged 4-11).

II weight group: 15kg-25kg

III weight group: 22kg-36kg

1. If in doubt regarding mounting, contact the manufacturer of the restraint system.

2. Do not install any additional elements to the device without the consent of the competent authorities.

3. Do not use load bearing points of contact other than those described in the instructions and marked on the child restraint.

4. For installation with ISOFIX, refer to the vehicle's instruction manual.

5. The safety seat is intended for vehicles equipped with 3-point seatbelts which have been granted the certificate of approval in accordance with the regulations no. 15 ECG/UN or other equivalent standards.
6. Any belts which fix the safety seat must be tense, adapted to child's body and must not be twisted.
7. All hip straps must be positioned low so that the child's pelvis is held firmly.
8. Do up buckles properly and securely. In case of emergency, a child can be easily taken out of the seat thanks to proper installation of buckles.
9. Please replace the device if it has been subject to considerable loads in the accident.
10. Do not modify this product in any way.
11. Avoid situations in which the safety seat is exposed to direct sunlight. Otherwise it may reach high temperature and in effect scald the child.
12. Do not leave the child in the safety seat unattended.
13. Make sure the luggage and other items which may injure the body in case of accident have been secured properly.
14. Do not use the safety seat without its cover. Do not replace the cover with other not recommended by the manufacturer. The cover is an integral part of the child's safety seat.
15. The safety seat may be used in the car only.
16. It is forbidden to place any items on the child's safety seat.
17. Hard elements and plastic parts of the holding device must be placed and installed in a way that are not trapped due to sliding seat or vehicle door during regular operation.
18. Before every travel, make sure the safety seat has been secured properly and firmly.
19. When driving, the safety seat must be firmly attached to the vehicle seat by means of the seatbelt, even if there is no child.

CAUTION!

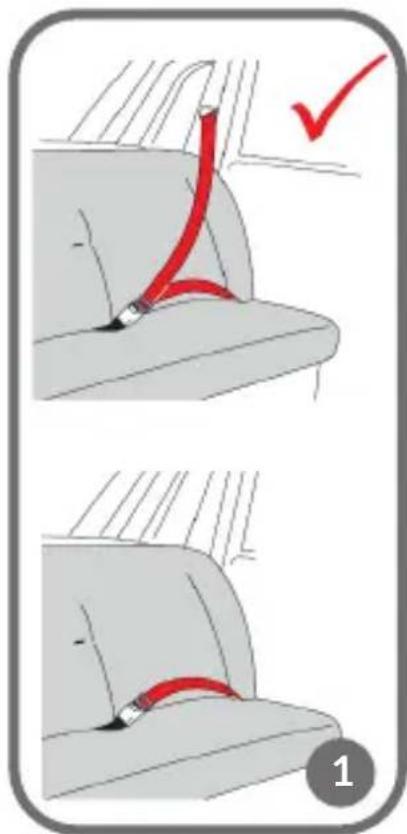

Never use the safety seat with 2-point seatbelts (fig. 1).

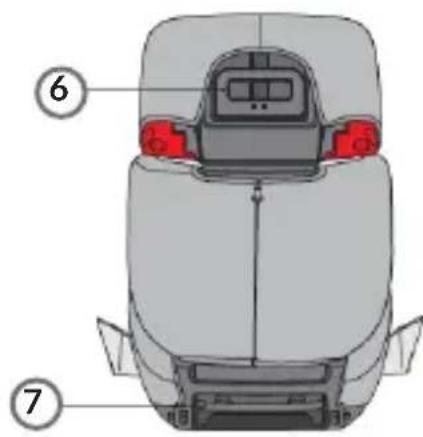

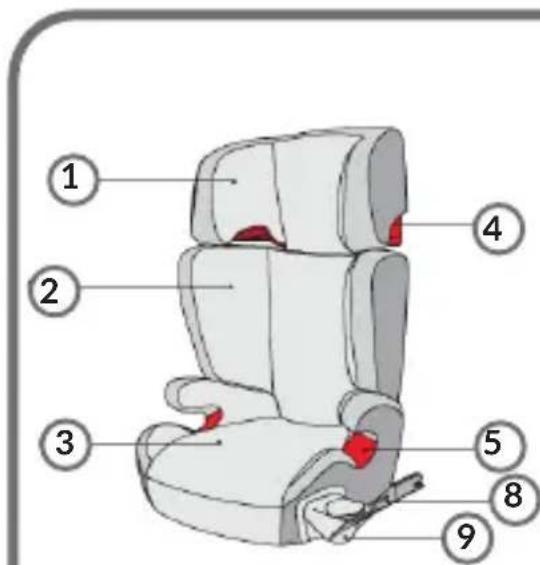

Safety seat outline (fig. 2)

1. Headrest

2. Height adjustment handle

3. Backrest

4. Backrest hinge

5. Seat

6. ISOFIX fixing arm

7. Seatbelt handle

8. Bottle holder

9. Seatbelt guide

How to fix backrest

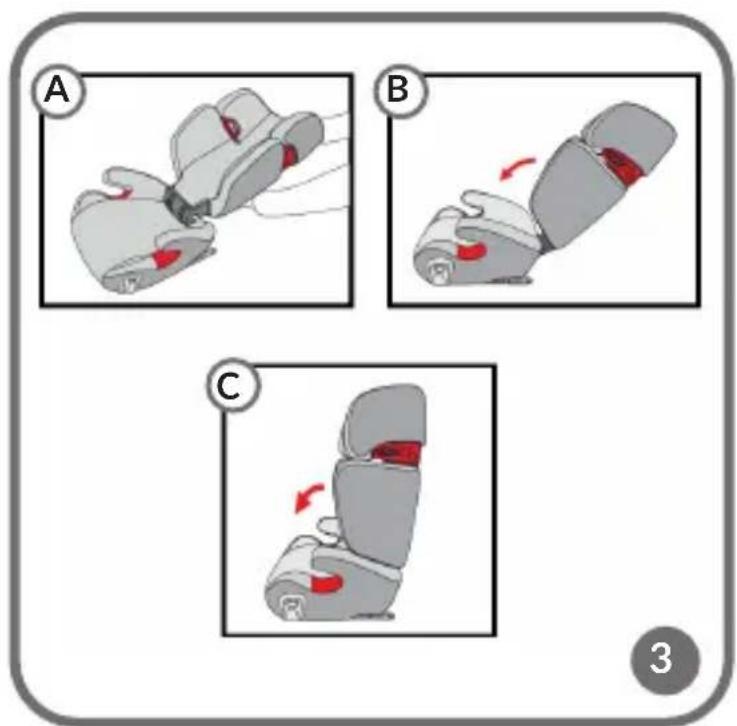

1. Place the backrest horizontally behind the seat, put the hinge on the seat connector (fig. 3A).
2. Straighten the backrest so that the hinge is inserted in the seat connector (fig. 3B).
3. Straighten the backrest completely (fig. 3C).

NOTE: When assembling the backrest, make sure there is nothing between the backrest and seat. Watch your fingers during assembly.

How to adjust headrest

NOTE: Do not use the safety seat if it has not been secured in the car. Place the child in the safety seat once you have finished assembly.

Thanks to a properly secured headrest, the seatbelt is properly positioned and your child is provided with comfort and safety.

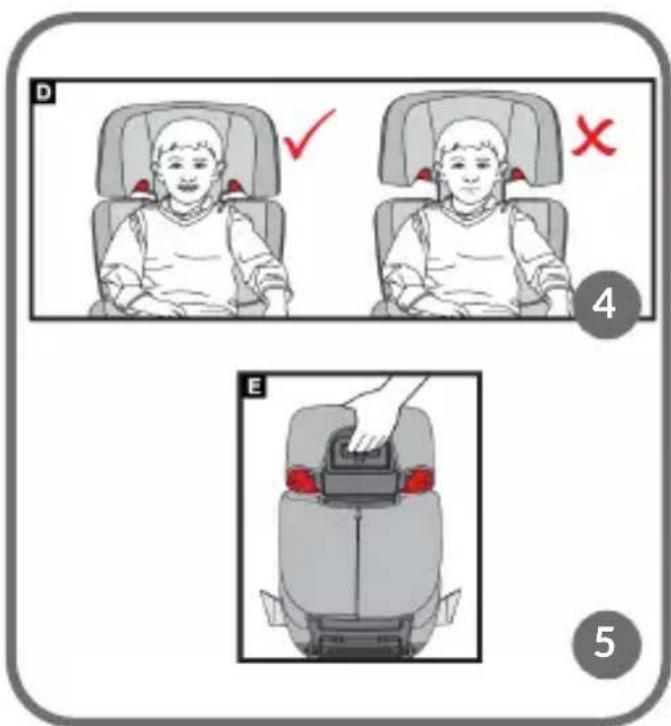

The headrest can be adjusted in eleven positions. The headrest height must be adjusted in a way that two fingers fit between child's arms and headrest (fig. 4).

To set the headrest height (fig. 5):

1. Grab the handle behind the headrest and pull upwards gently.
2. Adjust a suitable headrest height. When you release the handle, the headrest will lock in position.
3. Place the safety seat in the car.
4. Check the headrest for proper height when the child is in the safety seat. If the height is wrong, repeat the procedure.

How to assemble safety seat

Assembly with seatbelt

1. Fastening seatbelts

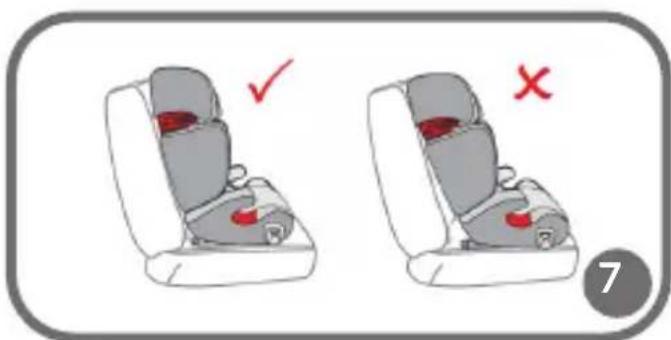

• Place the safety seat on the car seat. Make sure the safety seat backrest fits tight to the seat backrest (fig. 7).
• Place the child in the safety seat.

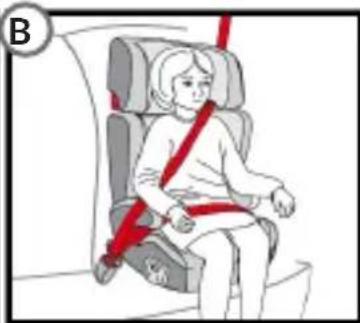

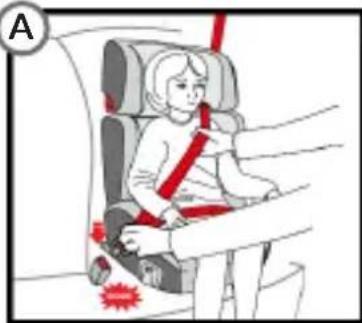

• Pull the seatbelt, carry in front of the child and fasten it (8a).

2. Placing seatbelt in the safety seat handle

- From the seatbelt fastening side - carry the hip part through the red indicator under the elbow rest (8a, 8e).

- The arm part must be carried above the elbow rest.

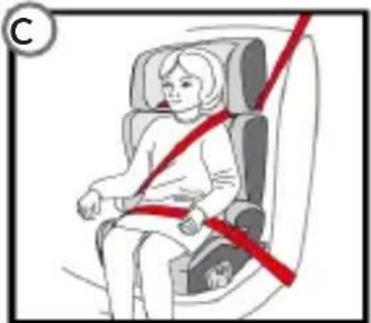

- On the other side – carry the hip part through the red indicator under the elbow rest (8c).

- Remember that the hip part of the seatbelt must be carried as low of the child's hips as possible.

• Carry the arm part of the seatbelt through the red handle in the headrest (8d).
• Make sure the arm part of the seatbelt goes through the collarbone, instead of neck.

Assembly with ISOFIX system

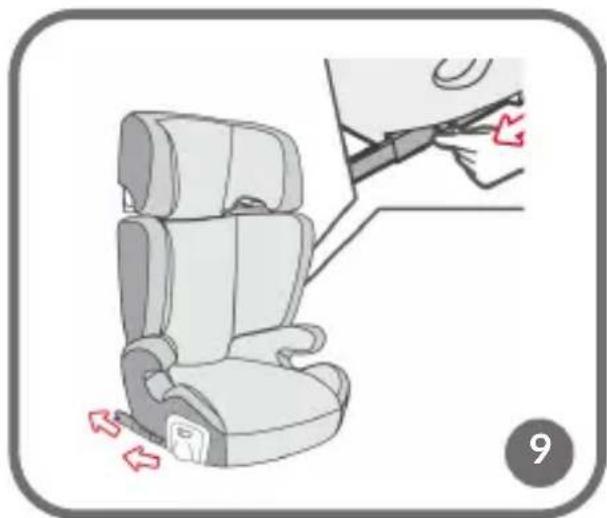

1. Press button on ISOFIX fixing arm and pull it out as far as you can (fig. 9).

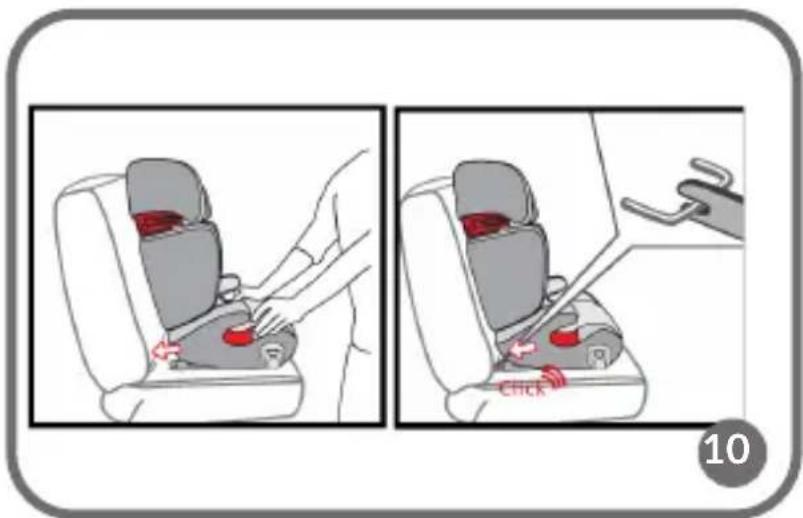

2. Slip the safety seat in ISOFIX fixing in the car until you can hear clicks on both sides. There should be a green button on the arm (fig. 10).

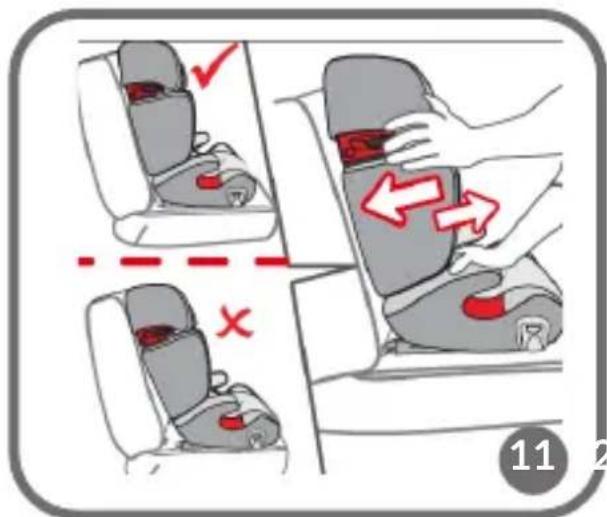

3. Make sure the safety seat has been secured properly. If it sticks out or moves, repeat the assembly (fig. 11).

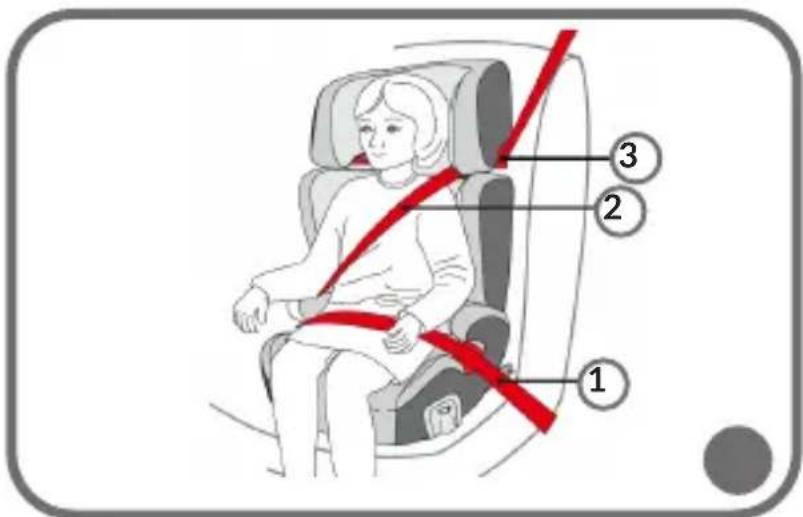

Once you have assembled the seat, make sure that the safety seat has been secured properly again:

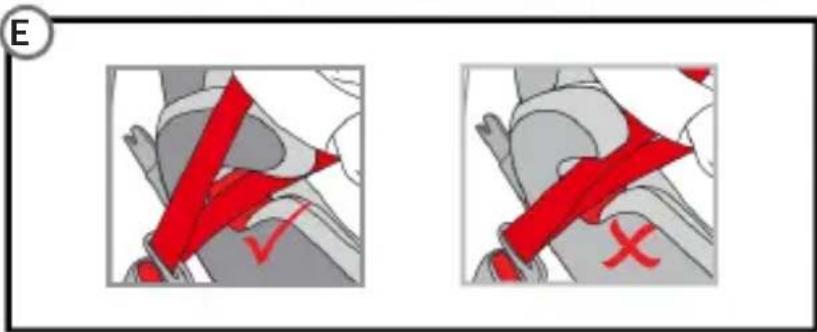

1. Hip part of the seatbelt must go through red indicators under elbow rests on the seat (fig. 12-1).
2. Arm part goes above the elbow rest from the belt fastening side (fig. 12-2).
3. Arm part of the belt goes through the handle under the headrest (fig. 12-3).
4. Seatbelts are tense and must not be twisted.

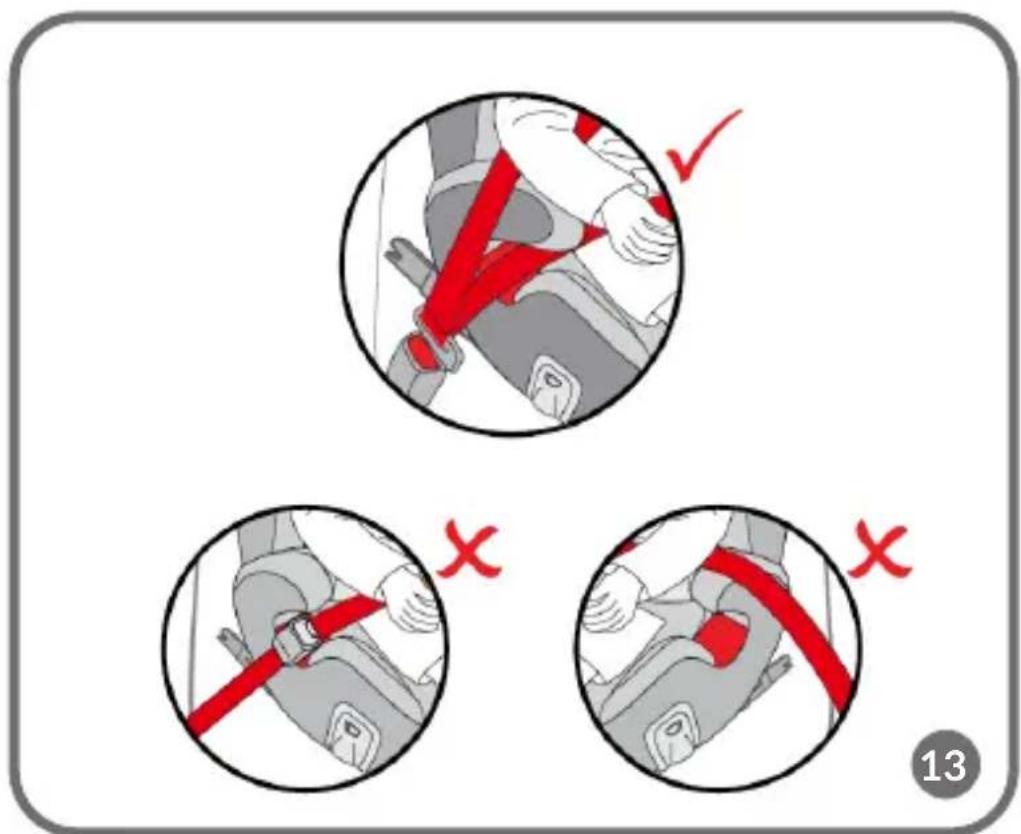

5. Seatbelt fastening is not under the elbow rest (fig. 13).

Cleaning and maintenance

Use the safety seat along with the seat cover only. To disassemble the backrest, put the backrest down and pull upwards to detach it from the seat (fig. 6).

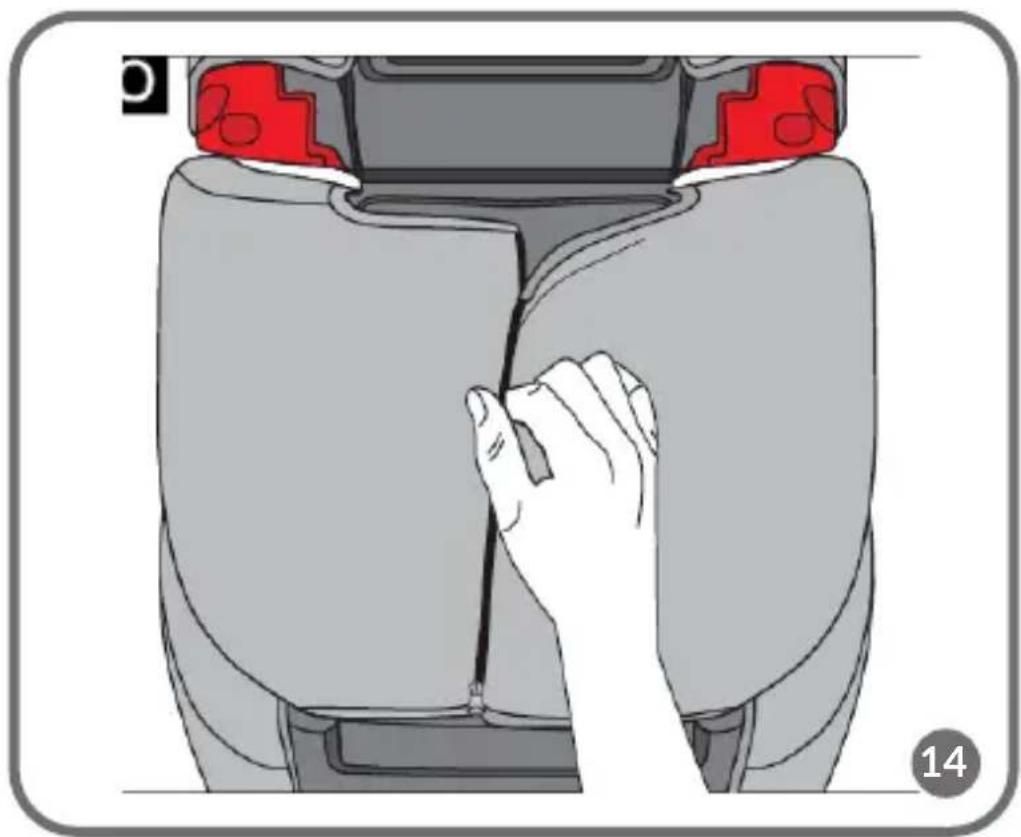

1. To remove the cover, unzip the back of the safety seat (fig. 14).
2. You can remove and wash the cover with a mild detergent in a soft fabric mode and at the temperature of 30^ C.
3. Do not spin or dry in the drum drier.
4. You can use a wet cloth to clean plastic elements of the safety seat. Do not use strong detergents.

The pictures are for reference only. The real design of the products may differ from the pictures presented.
