TCD-33 - Hi-Fi System DENVER - Free user manual and instructions

Product Type	CD/Cassette/Radio Portable Player
Brand	Denver
Model	TCD-33
Power Source	AC mains (detachable cord) or 6 x C size batteries
Radio Bands	FM (mono/stereo) and AM
Antenna	FM antenna (adjustable)
CD Playback	Standard audio CD, play/pause, skip, program (up to 20 tracks), repeat (1/all)
Cassette Player	Play, record, fast forward, rewind, pause, stop/eject
Recording Source	Radio or CD to cassette (with blank tape)
Controls	Function selector (radio/tape/CD), band selector, tuning, volume, CD buttons, tape buttons
Display	LED display (track number, program, repeat, FM stereo indicator, power indicator)
Laser Class	Class 1 laser product
Safety Features	ESD protection, automatic shutdown on error
Dimensions (approx)	320 x 220 x 150 mm
Weight (approx)	2.5 kg
Cleaning	CD lens clean only with recommended cleaner; exterior with soft dry cloth
Environmental	WEEE compliant, separate disposal required

Frequently Asked Questions - TCD-33 DENVER

How do I power the Denver TCD-33?

Connect the detachable AC power cord to a wall outlet matching the rated voltage, or insert 6 x C size batteries into the battery compartment. Remove batteries if not used for long periods to avoid leakage.

How do I listen to the radio on the TCD-33?

Set the FUNCTION selector to RADIO, choose the band (FM/AM) with the BAND selector, tune to a station using the TUNING control, and adjust VOLUME. For FM stereo, set BAND to FM ST.

How do I play a cassette tape?

Set FUNCTION to TAPE. Press STOP/EJECT to open the cassette door, insert a tape, close door, then press PLAY. Use PAUSE to temporarily stop, and STOP/EJECT to stop and open.

Can I record from the radio or CD to a cassette?

Yes. Insert a blank tape, select the source (radio or CD), then press RECORD together with PLAY to start recording. Press STOP/EJECT when finished.

How do I play a CD?

Set FUNCTION to CD, open the CD door, place a disc with label up, close door. Press PLAY/PAUSE to start playback. Use SKIP+/SKIP- to change tracks and press and hold to search.

How do I program tracks on the CD player?

Press STOP first, then PROGRAM. Use SKIP+/SKIP- to select a track, press PROGRAM to confirm. Repeat for up to 20 tracks, then press PLAY/PAUSE to play the program. Press STOP twice to end program mode.

How do I use the repeat function for CDs?

Press REPEAT during or before playback. Each press cycles through: Repeat 1 (flashing indicator), Repeat All (steady indicator), and Normal playback.

What should I do if the display doesn't respond?

This may be due to electrostatic discharge. Switch off and unplug the unit, wait a few seconds, then reconnect and power on. If the problem persists, consult a qualified technician.

How should I clean the Denver TCD-33?

Use a soft, dry cloth for the exterior. For the CD lens, use only a recommended CD lens cleaner. Avoid liquids and abrasive materials.

How do I dispose of the unit correctly?

Do not dispose with household waste. Follow local regulations for electronic waste. Use designated collection points or return to the retailer for environmentally safe recycling.

USER MANUAL TCD-33 DENVER

CD/Cassette/Radio Portable Player

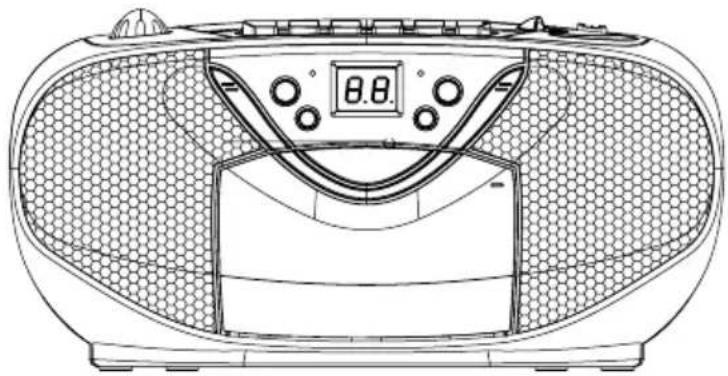

Line drawing of a portable radio with mesh grille and digital display (no text or symbols)

INSTRUCTION MANUAL

WARNING

1. WARNING : Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

1. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2. No naked flame sources, such as lighted candles, should be placed on the apparatus.

3. Attention should be drawn to environmental aspects of battery disposal.

4. Use of the apparatus in moderate climates.

5. The rating and marking information are located at the bottom of the unit.

6. Excessive sound pressure from earphone and headphones can cause hearing loss.

7. The mains plug of unit should be obstructed or should be easily accessed during intended use.

8. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

9. The power cable/disconnect device shall remain easy to operate/disconnect.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTING FLASH WITH ARROWHEAD SYMBOL - within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL -

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, .tnemesab tew a ni ro loop gnimmiws ,butyrdnual ,knis nehctil
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. POWER LINES - An outdoor antenna should be located away from power lines.
11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

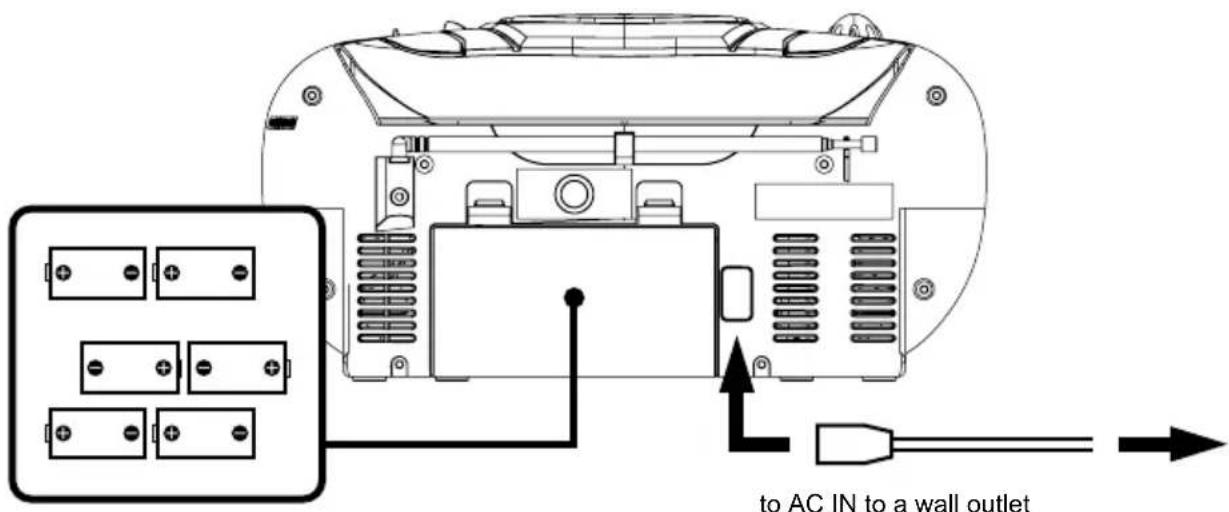

POWER SOURCES

Insert 6 x "C" size batteries into the battery compartment

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 x “C” size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

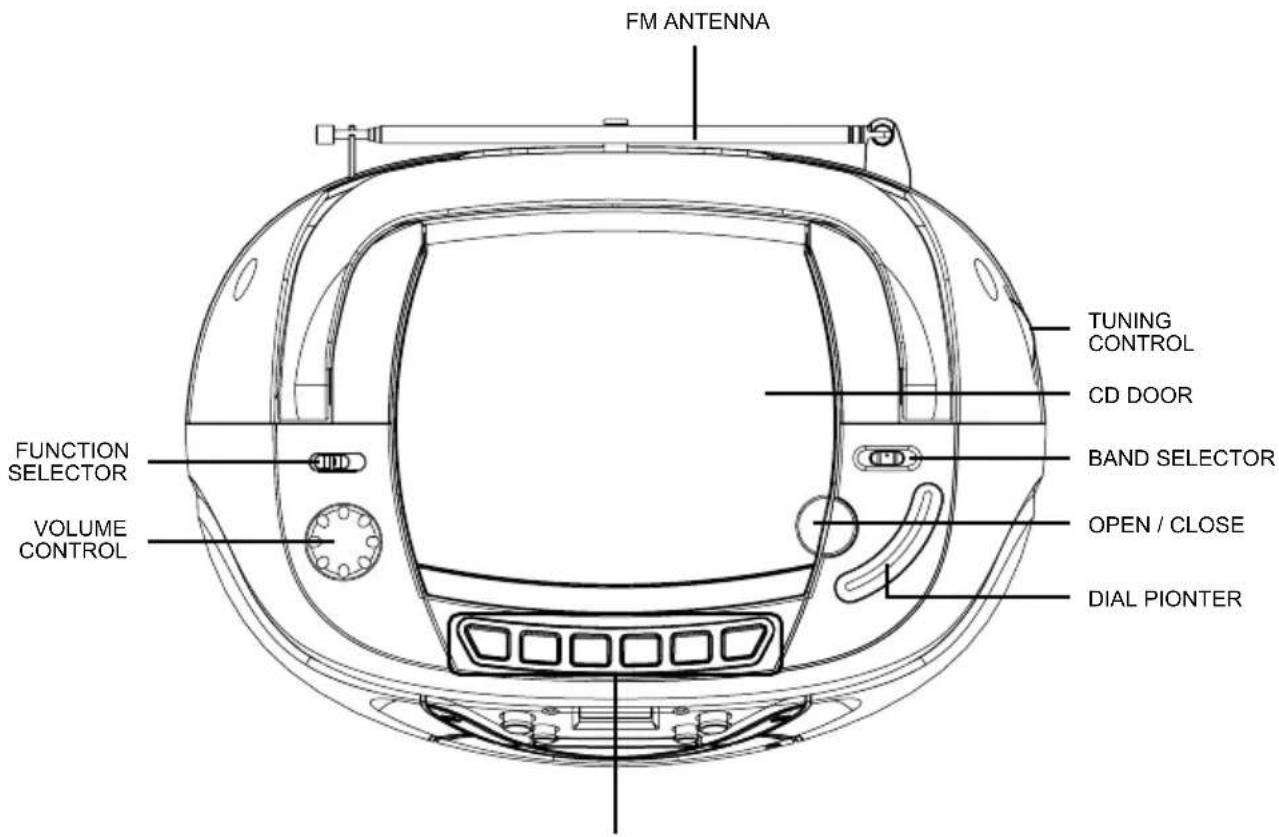

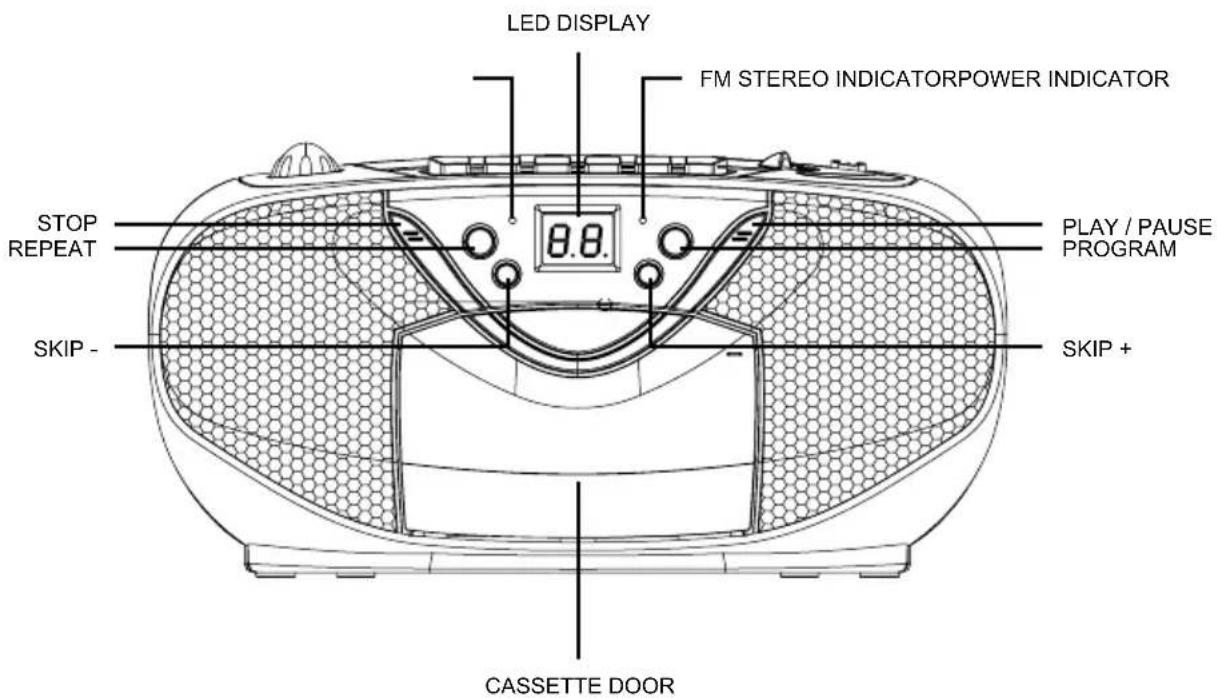

LOCATION OF CONTROL

TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY, RECORD

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

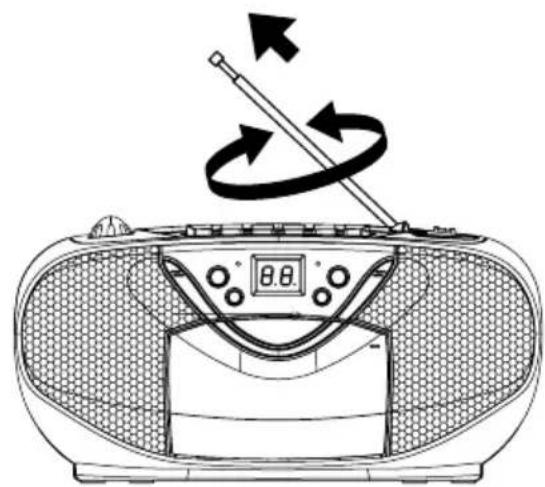

- Reorient the antenna for better reception.

Line drawing of a portable radio with a digital display and antenna, showing no text or symbols

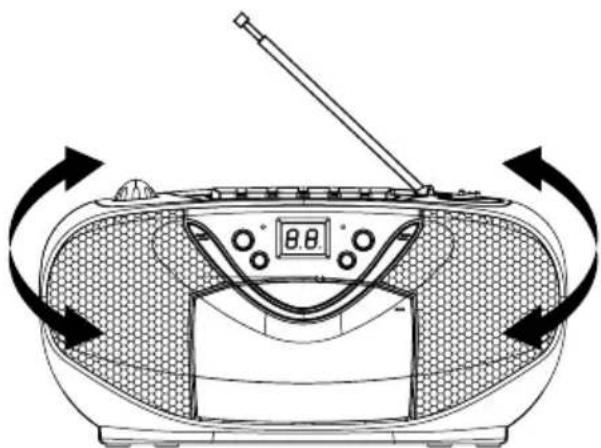

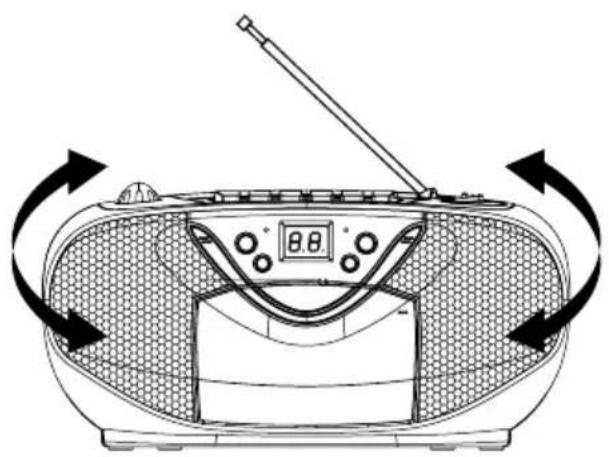

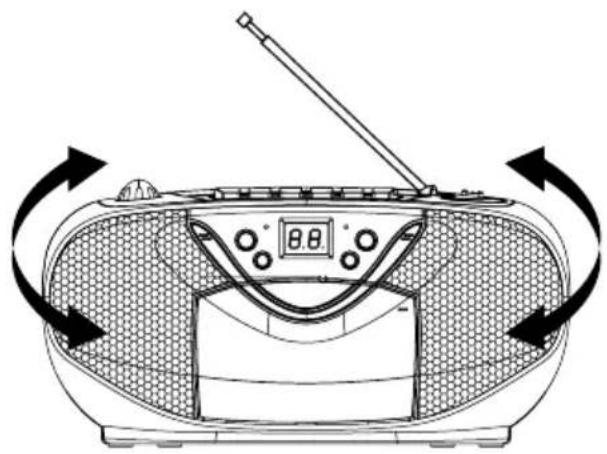

- Reorient the appliance to get better FM reception.

Line drawing of a portable radio with directional arrows indicating rotation and sound wave (no text or symbols)

TAPE OPERATION

GENERAL OPERATION

PAUSE II Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP / EJECT ■Press to stop tape operations.

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD ◀◀ & Press to start rapid tape winding either forward or reverse direction.

REWIND ▶

PLAY ◀Press to start playing tape.

RECORD ● Press it together with "PLAY" button to start recording.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.
   To record from radio - Set the "FUNCTION" selector to "RADIO" mode and adjust the desired station.
   To record from CD - Place a disc on the CD compartment. Set the “FUNCTION” selector to “CD” mode and select the desired track.
3. Press the "RECORD" button together with the "PLAY" button to start recording.
4. Press the "STOP / EJECT" button when finished.

CD OPERATION

GENERAL OPERATION

PLAY / PAUSE ▶ II

Press to start playing CD disc.

Press again to stop playing CD operation temporarily.

Press again to resume playback.

SKIP + ▶▶| &

Press to go to the next track or back to the previous track.

SKIP -

Press and hold while playing until you find the point of the sound.

STOP ■ Press to stop all CD operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD" mode.
2. Open the CD door and place a CD disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Press the "PLAY / PAUSE" button to start playing CD disc.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

CD OPERATION

PROGRAM

Up to 20 tracks can be programmed for disc play in any order.

Be sure to press the "STOP" button before use.

1. Press the "PROGRAM" button, the display will show "01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button.
3. Press the "PROGRAM" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed. Press the "PLAY / PAUSE" button to play the disc in the order you have programmed and the program indicator flashes.

1. Press the "STOP" button twice to terminate programmed play and the program indicator will turn off.

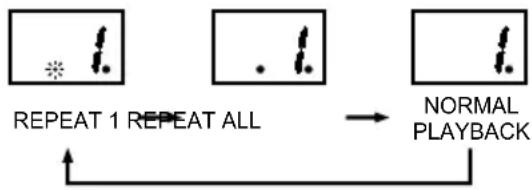

REPEAT

Press the "REPEAT" button before or during playing CD, a single track or all the tracks can be repeated. Each press switches the repeat mode as follows:

1 - REPEAT 1 (The repeat indicator is flashing.)
2 - REPEAT ALL (The repeat indicator is steadily on.)
3 - NORMAL PLAYBACK

Instructions on environment protection

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or environmental restriction (no text present)

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

All rights reserved Copyright Denver Electronics

WWW.DENVER-ELECTRONICS.COM
