Hazy NU6N - Humidifier Eldom - Free user manual and instructions

Product Type	Ultrasonic Humidifier
Brand	Eldom
Model	Hazy NU6N
Power Consumption	30 W
Supply Voltage	230 V ~ 50 Hz
Water Tank Capacity	4.5 L
Mist Output	300 ± 30 ml/h
Recommended Room Size	15 - 20 m²
Operation Time (full tank)	~15 hours
Mist Levels	4 (Low, Middle, Senior, High)
Timer Function	1 - 24 hours
Humidistat Setting	40 - 95% RH (in 5% steps)
Anion Function	Yes (ionizer)
Waterless Protection	Automatic shut-off when tank empty
Ceramic Filter	Replaceable (once a year, clean monthly)
Control Type	Touch buttons with LED display
Nozzle	Rotatable, adjustable direction
Water Type	Clean cold tap water (distilled if hard)
Cleaning	Descaling with 30% vinegar; included brush
Safety Features	Auto shut-off, child safety (8+ years), do not immerse
Dimensions (approx.)	Not specified; typical desktop humidifier
Weight (approx.)	2 kg (estimated)

Frequently Asked Questions - Hazy NU6N Eldom

What type of water should I use in the Eldom Hazy NU6N humidifier?

Use clean, cold tap water. If your tap water is hard, use distilled water to reduce scale buildup. Do not add essential oils or chemical additives.

How do I fill the water tank?

Unplug the unit and ensure the switch is OFF. Remove the tank by the handle, unscrew the cap, fill with water (max 40°C), tighten the cap, and place the tank back on the base.

Why is there no mist coming out?

Possible reasons: no power, not turned ON, water tank empty, too much water in the base, or mist level set too low. Check and adjust accordingly. If the 'Waterless' lamp is on, refill the tank.

How do I clean the humidifier?

Unplug before cleaning. Clean the tank regularly. For scale, pour 30% distilled vinegar onto the ultrasound converter and base, leave for 30 minutes, then scrub with the included brush. Do not immerse in water.

How often should I replace the ceramic filter?

Clean the ceramic filter once a month and replace it once a year. To remove, unscrew it counterclockwise from the cap. The unit can operate without the filter.

Can I use the humidifier with essential oils?

No. Do not add essential oils or any scent additives to the water. This can damage the unit and void the warranty.

What does the 'Waterless' indicator mean?

It means the water tank is empty. The unit will automatically stop humidifying. Refill the tank and reset the timer/humidistat settings.

How do I set the timer?

Press the TIMER button repeatedly to set 1-24 hours. After 3 seconds, the setting is confirmed. The timer counts down and the display alternates between remaining time and humidity.

What should I do if the display shows blinking '30%RH'?

This indicates the current humidity is below 30%. Simply continue using the humidifier; it will humidify until the desired level is reached.

What is the warranty for the Eldom Hazy NU6N?

The appliance is intended for household use. The warranty is void if used professionally or improperly. For specific terms, refer to the warranty attachment in the manual.

USER MANUAL Hazy NU6N Eldom

White and black electric water heater with digital display showing temperature reading (no readable text or symbols on device body)

NAWILŻACZ ULTRADŻWIĘKOWY • ULTRASONIC HUMIDIFIER • ULTRASONIC HUMIDIFIER • LUFTBEFEUCHTER • УЛЬТРАЗВУКОВОЙ УВЛАЖНИТЕЛЬ ВОЗДУХА • ULTRAZVUKOVÝ ZVLHČOVAČ • ULTRAHANGOS PÁRÁSÍTÓ • HUMIDIFICADOR ULTRASÓNICO

Eldom Sp. z o.o.

Close-up of a white plastic mechanical component with a red curved arrow indicating rotation (no text or symbols)

B

Close-up of a white plastic component with a red arrow pointing to a circular feature (no text or symbols visible)

OBSŁUGA

9. "Waterless" (Brak wody)

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

3D rendering of a white LED bulb with ventilation slots and orange rotation arrows indicating motion (no text or symbols)

PRAKTYCZNE PORADY

Please read all these instructions carefully before using this appliance.

1. Before the first use, read this entire user manual thoroughly.
2. Plug in the connecting cable to an outlet with parameters specified in the manual.
3. Always unplug the appliance by pulling by the plug and not by the power supply cord.
4. Use only clean, cold running water or other with a small content of mineral components, at maximum temperature of 40^ C.
5. Do not switch the appliance on when the water tank is empty.
6. Place the appliance on a stable, dry and moisture-resistant surface.
7. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
8. Make sure that children do not play with the equipment.
9. The appliance is intended only for use in a household.
10. Do not use in open air.
11. Do not move or lift during operation. The handle (4) is intended only for carrying the tank with water (3).

12. Do not touch the ultrasound converter when the appliance is at operation.

13. Locate the appliance far from heat sources (heaters, stoves, etc.).

14. Do not pour scent additives into water (essential oils, etc.) or any chemical agents.
15. Do not switch on the appliance when the water tank (3) is not installed.
16. Do not place the appliance near ventilation outlets and electrical devices.
17. Do not insert any objects into the jet (5) of the humidifier.
18. Do not put your hands, face or any other parts of the body near the moisture outlet (5) when the appliance is on.
19. Do not cover the jet (5) of the humidifier when the appliance is on.
20. Before emptying the tank (3) or moving the humidifier, unplug the appliance.
21. Do not leave the appliance unattended.
22. After the use and before cleaning and maintenance of the appliance, unplug it.
23. Do not immerse the appliance in water.
24. Do not use when the power cable is damaged, when the appliance was dropped or damaged in a different manner.
25. Repairs of the equipment can only be performed by an authorized servicing point. Any modernizations or the use of non-original spare parts or elements of the appliance is prohibited and may cause a serious hazard to the user.
26. The company Eldom Sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance.

INSTRUCTION MANUAL

ULTRASONIC HUMIDIFIER NU6N

EN

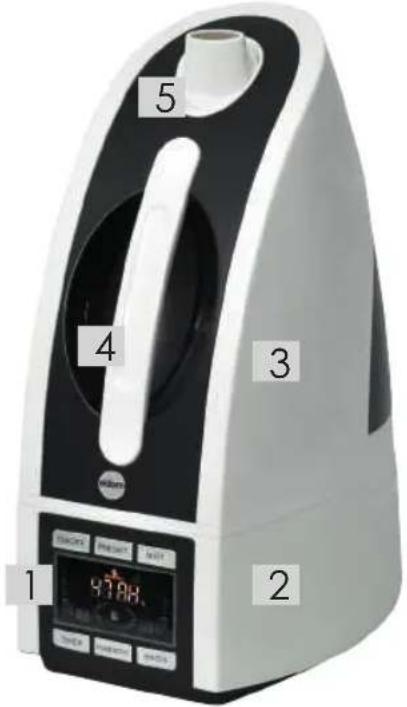

GENERAL DESCRIPTION

1. Control panel
2. Base
3. Water tank
4. Handle for carrying water tank
5. Nozlle
6. Brush

TECHNICAL DATA

• power: 30W
• supply voltage: 230V \~ 50Hz
• capacity 4.5l
• output 300±30ml/h
• appliance output designed for the room 15-20m2
• operation time with full water tank \~ 15 hours

OPERATION

Humidifier positioning

Position the humidifier on a hard and stable surface. Do not position the humidifier on a carpet, lining, parquet floor or surfaces which could be damaged under the influence of water or moisture.

A

Close-up of a white plastic mechanical component with a red curved arrow indicating rotation (no text or symbols)

Humidifier positioning

Position the humidifier on a hard and stable surface. Do not position the humidifier on a carpet, lining, parquet floor or surfaces which could be damaged under the influence of water or moisture.

B

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Tank filling

1. Make sure the appliance is unplugged, and the switch (1) is set in the OFF position.
2. Take hold of the handle (4) and take the tank (3) off the base of the appliance (2).
3. Turn the tank, unscrew the cap A and fill the tank with water. Fix the cap turning it tight.
4. Place the tank (3) on the base (2).

Humidifier operation

Every change of the settings is confirmed by a beep.

1. Set the rotary jet (4).
2. Plug in the appliance. the LED display will on for 2 seconds then be off. The unit stands by.

3. ON/OFF

It takes charge the electric supply of the whole unit. When press ON, the display is on, the machine operates with the lowest mist output, at the same time the fan motor works. When it is OFF, all the functions are invalid, and the display is off.

- symbol signalizes turning the unit off

- humidity level in a room

4. PRESET

When the unit stands by, press this button. The preset time can be chosen from 1 hour to 24 hours. The preset time will be counted down to work with the highest mist output.

5. MIST

4 levels from Low, Middle, Senior to High for different mist output. Changes are signalized by number of illuminated segments

6. TIMER

Settings from 1-24 hours. 0 means cancelling the settings. 3 seconds after your settings, the timer function will be counted down to work by minutes and will display with current humidity by turns for 5 seconds if having set the humidity level.

7. HUMIDISTAT

Settings from 40 -95RH% by 5RH%. 0 means cancelling the settings. 3 seconds after your settings, the humidistat works. It stops when the current humidity is more than the setting level, but the fan motor will keep working for

5 minutes. And will operate when the current humidity is 2RH% less than the setting level.

8. ANION

When the machine stands by, press the ANION button, it works whatever it is humidifying. The fan motor works at the same time. If it is not humidifying, when the ANION is off, the fan motor stops. But if it is humidifying, when the ANION is off, the fan

motor still works.

9. "Waterless"

1. Protection when waterless: When the tank is out of water, the Waterless lamp is on. And the machine stops. Then the settings of TIMER and HUMIDISTAT will be cancelled. When filling the water, it should be reset for the functions.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the appliance.
2. It is recommended to clean the water tank regularly.
3. Do not immerse the humidifier in water or other liquid substance.
4. Do not use any aggressive cleaning agents.
5. It happens that in the base or in the ultrasound converter (C) a scale is formed which can be removed by pouring 30% distilled vinegar on the elements and leaving it there for 30 minutes.
6. For cleaning use the brush (6) located in the base (3).ENVIRONMENTAL

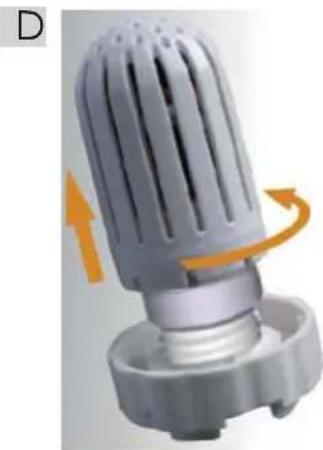

REPLACEMENT AND CLEANING OF A CERAMIC FILTER

Filter significantly reduces adverse effects (e.g. scale deposition on the ultrasound converter) resulting from the use of hard water Replacement and cleaning of a ceramic filter it is recommended to clean the ceramic filter regularly (once a month) and to replace it once a year.

In order to dismount the filter one needs to:

• make sure the appliance is unplugged,
• take hold of the handle (4) and take the tank (3) off the base of the appliance (2)
• turn the tank, unscrew the cap (D)
• turn the filter counterclockwise,
  The unit may operate without an assembled filter.
  The filter can be purchased from ELDOM distributors.

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

3D rendering of a light bulb component with orange rotation arrows indicating motion (no text or symbols)

PRACTICAL ADVICE

1. Do not direct the nozzle towards a wall. The moisture coming out of it may cause damage of the paperwall, etc.

2. Excessive moisture in the room may cause condensation of water on window panes and furniture. If this is the case, turn off the humidifier.

3. Do not use the humidifier in the rooms where the moisture level exceeds 80%.

4. Use tap water to fill the tank, however in case of hard tap water, distilled water is recommended.

5. Do not use scent additives for water (essential oils, etc.)

6. When the humidifier is not used for a long time, its washing and drying is recommended. Keep in a dry place.

7. It is recommended to place the humidifier at least one meter above a floor.

TROUBLE SHOOTING GUIDE

Any trouble found in normal operation, please kindly refer to the following points:

TROUBLE	POSSIBLE REASONS	SHOOTING WAY
LED DISPLAY IS OFF	NO POWER SUPPLY	CONNECT POWER SUPPLY
	NOT PRESS ON	SWITCH ON
LED DISPLAY IS ON, NO MIST NO WIND	TOO MUCH WATER IN THE WATER BASIN (2)	PULL OUT SOME WATER FROM THE WATER BASIN, CLOSED THE COVER OF WATER TANK TIGHTLY
	NO WATER IN WATER TANK	FILL WATER INTO WATER TANK (3)
LED DISPLAY IS ON, NO MIST BUT WITH WIND	MIST OUTPUT IS SET ON THE LOWEST LEVEL	ADJUST THE MIST OUTPUT
LED DISPLAY IS ON, WITH WATER BUT SHOWS WATERLESS	FLOATER IS INTERRUPTED (FIG. 03)	WAVER THE FLOATER, KEEP IT FREE
ABNORMAL NOISE	RESONANT IN WATER TANK WHEN WATER IS TOO LOW	FILL WATER TANK WITH WATER
	UNIT IS ON A UNSTABLE SURFACE	MOVE THE UNIT TO A STABLE FLAT SURFACE
MIST COMING OUT AROUND THE NOZZLE	THERE ARE APERTURES BETWEEN THE NOZZLE AND WATER TANK	DIP THE NOZZLE IN WATER FOR A WHILE AND THEN FIX IT TO THE SOCKET ON WATER TANK
DISPLAY SHOWS BLINKING DIGITAL 30%RH	CURRENT HUMIDITY LEVEL IS LOWER THAN 30%	JUST KEEP IT WORKING
WATER DOESN'T COME DOWN TO BASIN (2)	BACKUP BY FILTER	RINSE THE FILTER BY TAP WATER

PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void. Warranty terms and conditions: see the attachment.

BEZPEČNOSTNÍ PODMÍNKY

Close-up of a white plastic component with a red curved arrow indicating rotation (no text or symbols)

Close-up of a white electronic device component with a red arrow pointing to a circular button (no text or symbols visible)

OBSLUHA

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

3D rendering of a mechanical component with orange motion arrows indicating rotational flow (no text or symbols)

PRAKTICKÉ RADY

Close-up of a white plastic component with a red curved arrow indicating rotation (no text or symbols)

B

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Bedienung

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

3D rendering of a mechanical component with orange rotation arrows indicating motion (no text or symbols)

Close-up of a camera lens component with a red arrow pointing to the lens area (no text or symbols visible)

ЗАМЕНА И ЧИСТА КЕРАМИЧЕСКОГО ФИЛЬТРА

3D rendering of a white LED bulb with orange rotation arrows indicating motion (no text or symbols)

Close-up of a white plastic mechanical component with a red curved arrow indicating rotation (no text or symbols)

B

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

OBSLUHA

Close-up of a white electronic device with a black circular component and a red arrow pointing to it, no visible text or symbols.

3D rendering of a white LED bulb with orange rotation arrow indicating motion (no text or symbols)

Close-up of a white plastic component with a red curved arrow indicating rotation (no text or symbols)

B

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

HASZNÁLAT

Close-up of a white electronic device component with a red arrow pointing to a circular opening (no text or symbols visible)

3D rendering of a white LED bulb with heat sink and orange rotation arrow (no text or symbols)

HASZNOS TANÁCSOK

Close-up of a white mechanical component with a red curved arrow indicating rotation or motion (no text or symbols)

B

Close-up of a white mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

3. ON/OFF (ENCENDIDO/APAGADO)

Close-up of a white mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

D

3D rendering of a mechanical component with orange motion arrows indicating rotation (no text or symbols)

CONSEJOS PRÁCTICOS
