GZ-160 - Ice machine Guzzanti - Free user manual and instructions

Product Type	Ice cream maker
Model	GZ-160
Brand	Guzzanti
Dimensions (Diameter x Height)	228 x 300 mm
Rated Voltage	220-240 V~
Rated Frequency	50 Hz
Rated Power	30 W
Weight	Approx. 2 kg
Freezing Bowl Capacity	Approx. 1 L
Timer Range	5 to 45 minutes (9 preset steps)
Display	Digital countdown timer (minutes and seconds)
Main Functions	Make ice cream, sorbet, frozen yogurt; keep ice cubes cold for up to 5 hours; chill drinks below 0°C for 5-8 hours
Freezing Method	Pre-freeze removable bowl at -18°C for at least 8 hours
Material	Plastic body, metal freezing bowl, transparent cover
Control Buttons	Start/Stop, Time Increase (+), Time Decrease (-)
Safety Features	Motor built-in temperature protector; auto shut-off; child safety warnings
Cleaning	Hand wash removable parts with mild detergent; do not immerse motor base
Accessories Included	Freezing bowl, mixing blade, transparent cover with feeding port, handle cover
Recipes	Includes 8 recipes (milk, banana, mango, matcha raisin, strawberry, chocolate, red bean, yogurt)
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - GZ-160 Guzzanti

How long does the freezing bowl need to be frozen before use?

Place the freezing bowl vertically in a freezer at -18°C or below for at least 8 hours (overnight recommended).

Can I make ice cream without pre-freezing the bowl?

No, the bowl must be thoroughly frozen to achieve the proper consistency. The machine relies on the bowl's cold retention to freeze the mixture.

What is the maximum working time?

The default time is 40 minutes, adjustable from 5 to 45 minutes in increments of 5 minutes using the '+' and '-' buttons.

Can I add mix-ins like chocolate chips during operation?

Only add liquid or semi-liquid ingredients through the feeding port. Do not add solid objects like spoons or scrapers while the machine is running to avoid injury.

How do I stop or pause the machine?

Press the Start/Stop button to pause. Press again to resume the countdown from where it stopped. To reset the time, stop the machine, adjust with +/- , then press Start/Stop again.

Why won't the motor start?

Check that the power cord is plugged in, the outlet has power, and the transparent cover is properly locked in place. If the motor overheats, its thermal protector may have tripped; allow it to cool down before restarting.

How do I clean the ice cream machine?

Unplug the machine. Remove the bowl, mixing blade, and cover; wash them with neutral detergent and water, then dry thoroughly. Wipe the motor base with a damp cloth. Never immerse the motor base in water.

Can I use the freezing bowl to keep drinks cold?

Yes, after freezing, the bowl can keep drinks below 0°C for 5-8 hours. It can also keep ice cubes from melting for up to 5 hours at room temperature.

What ingredients can I use?

You can use milk, cream, sugar, fruits, egg yolks (optional for softer texture), and flavorings. Avoid hot ingredients. The manual provides 8 recipes for various flavors.

Is the ice cream ready immediately after the cycle?

The ice cream will be soft-serve consistency. For harder ice cream, transfer the bowl to the freezer for an additional 30 minutes.

USER MANUAL GZ-160 Guzzanti

Line drawing of a portable kitchen appliance with digital display and control buttons (no text or symbols)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

JEDNOTLIVÉ ČÁSTI ZAŘÍZENÍ

1. Jednotlivé části

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Műszaki adatok

BIZTONSÁGI ÓVINTÉZKEDÉSEK

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

1. Tehnični parametri

Ime izdelka Aparat za pripravo sladoleda
Model GZ-160
Mere ∅ 228 X 300 mm
Nazivna napetost 220 V~
Nazivna frekvenca 50 Hz
Nazivna moč 30 W

NAPOTKI

VARNOSTNI UKREPI

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

SICHERHEITSHINWEISE

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

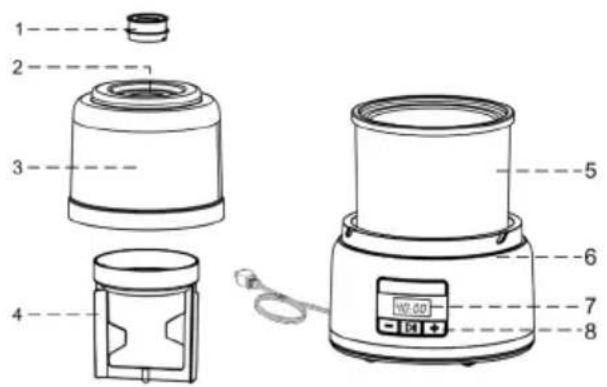

1. Transparent handle cover
2. Feeding port
3. Transparent upper cover
4. Mixing blade
5. Freezing bowl
6. Machine body
7. Display screen
8. Control buttons

2. Technical parameters

Product name Ice cream machine
Product number GZ-160
Dimensions ∅ 228 X 300 mm
Rated voltage 220 V~
Rated frequency 50 Hz
Rated power 30 W

INSTRUCTIONS

1. Before use, clean all parts of the product (except the motor) with neutral detergent, and wipe away any water droplets on the surface of the parts.

A Motor parts must not be touched or immersed in water during cleaning;
B When cleaning, please do not use anything that may easily damage the metal inner bowl.

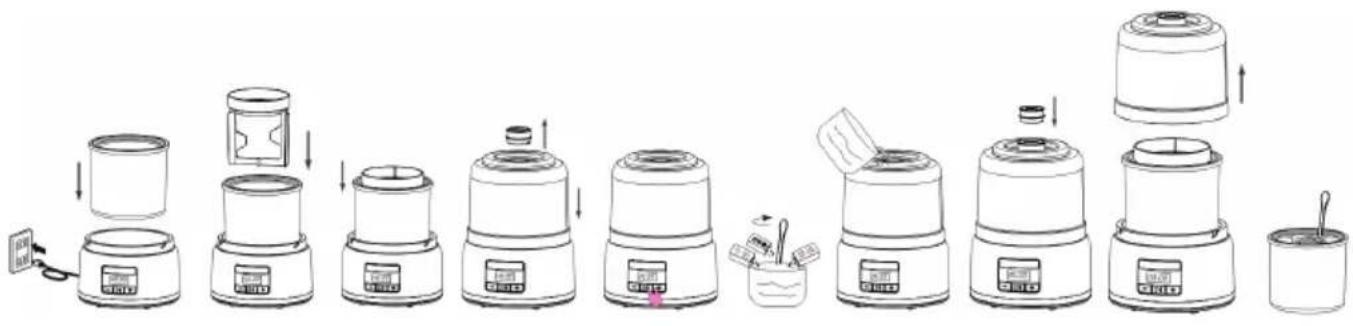

1. Place the freezing bowl vertically in the freezer compartment of the refrigerator, freeze at the temperature below -18^ C for more than 8 hours (it is best to freeze at night and use during the day). At the same time, stir the prepared ingredients evenly and place them in the fridge compartment to cool to 5 10^ C .

2. Place the machine on the table and plug in the power plug.

After powering on, the display will show "40:00" and the product will enter standby mode; put the frozen bowl into the machine, then put the mixing blade into the freezing bowl. Align the transparent up cover with the bowl on the machine and cover it.

Take out the Transparent handle cover (unlock/lock according to the instructions on the cover); press the "Start/Stop" button on the panel to start the machine.

The minutes and seconds will appear on the display.

The timer enters a countdown state; the freezing bowl rotates clockwise.

Pour the prepared ingredients into the feeding port of the transparent up cover, and then close the handle lid. (The display shows that the 40-minute countdown working time is: 39:59/39:58/39:57 ... count down every second until the minutes and seconds are both "00:00", the machine stop working).

The ice cream will be ready after the machine has been churned for about 40 minutes.

Open the transparent up cover and take out the mixing blade.

Please use a spoon or plastic spoon to take out the ice cream from the freezing bowl and it is ready to eat.

While the machine is working, press "Start/Stop" to stop the machine from working.

Press it again and the machine will continue to work according to the original set time.

To reset the time, press the "Start/Stop" button to stop the machine, then press the "-"/"+" button to set the desired time, and then press the "Start/Stop" button to restart the machine. (Note: Do not add anything other than ice cream ingredients, and do not add "hot" ingredients.)

1. The default working time of the machine is 40 minutes. Press the "-"/"+" key to set the working time, which are: 5 minutes, 10 minutes, 15 minutes, 20 minutes, 25 minutes, 30 minutes, 35 minutes, 40 minutes, 45 minutes and nine different working time.

Note:

The ice cream will be soft. If you want hard ice cream, the best way is to put the freezing bowl into the freezer and freeze it for 30 minutes.

Note: The following phenomena are not malfunctions!

The motor has a built-in temperature protector. If the continuous operation time is too long, the protector will automatically cut off the power due to excessive temperature rise. When the motor temperature drops, the thermostat will automatically reset and the motor will restart.

SAFETY PRECAUTIONS

In order to use the installation instructions safely and correctly, and pay attention to the relevant precautions.

WARNING: indicates a situation that could cause death or serious injury to a person.

CAUTION: indicates a situation that may cause personal injury or property damage.

Symbol meaning:

Indicates that such operation is prohibited

Reminds you to pay attention to the operation.

WARNING

• It is prohibited to disassemble, repair or modify the machine body by yourself.

May cause fire and electric shock

• The power must be cut off during repairs

Improper operation may result in electric shock

- Please do not let children touch it during operation.

To avoid electric shock or injury to children

• Do not touch the power plug when your hands are wet

Can cause electric shock

• Clean the dirt on the power plug regularly

Dirt and humidity on plugs can cause insulation failure and lead to fires

• The machine should not be exposed to water or rain

Risk of electric shock or fire

• Do not open the lid during operation,

Do not put in spoons, scrapers and other ice-making utensils.

• Do not operate when the rotating parts are exposed

Can cause injury

WARNING

- Please do not move during operation

Can cause injury

• Do not touch sharp metal

Will cause malfunction

• Do not put the motor part in the refrigerator to freeze

Will cause malfunction

- When turning on the power, hold the insulating part of the power plug and do not pull the power cord directly.

Short-circuiting or breaking of wires may cause electric shock or fire.

• Do not use other power sources other than 220-240V AC power supply
It may cause fire or electric shock. Do not use it when the plug is unstable.

• Do not use in unstable places

Can cause injury

• The cover cannot be installed or removed during operation.

Can cause injury

• If the power cord is damaged, it must

Be replaced by the manufacturer or its maintenance department or similar professionals to avoid danger.

- Do not damage the insulated part of the power cord and the power plug. Do not knot, stretch, pressurize with heavy objects or heat the power cord.

Short-circuiting or breaking of wires may cause electric shock or fire.

• The power cord must be unplugged when not in use

Avoid electric shock and fire caused by abrasion of insulating glue

FAILURE ANALYSIS

"Fault" phenomenon "Fault" analysis

Motor does not rotate 1. Check whether the power cord plug is not inserted into the socket2. Check whether the protection switch and fuse of the power supply system are cut off3. Check if there is a power outage

The mixer is not turning 1. Check if ingredients is frozen2. Check that the clear cover is in place.

REPAIR AND MAINTENANCE

Maintenance

After use, clean parts other than the Machine body with neutral detergent, wipe off water droplets on the surface, and wipe away stains with a cloth.

Note:

During cleaning, the Machine body must not be touched or immersed in water; When cleaning, please do not use anything that may easily damage the metal inner bowl.

Repair

If there is a fault, please check again before requesting repair. If the fault still cannot be eliminated, please go to the designated maintenance point for repair, or contact our company, and please confirm the following matters.

1. Name, address, phone number:
   2 Detailed fault conditions:
   3 Product name, model number:
   4 Purchase date (purchase invoice shall prevail)

Product Features:

1. Make ice cream
   Various flavors of ice cream can be homemade according to everyone's preferences.

2. ice packer
   The product's freezing bowl has excellent cold storage performance and can keep ice cubes from melting for 5 hours at room temperature.

3. Wine cooler

The product's freezing bowl can store drinks at room temperature and can keep the temperature in the container below 0^ C for 5-8 hours.

Ice cream making method:

Preparation before loading the mixer

1. For sugar, use granular sugar, which is easy to dissolve;
2. The materials to be dissolved should be mixed together and easily dissolved;
3. Use riper fruits, clean them, and remove the stems, skins, seeds, cores, etc.
4. The juice should be freshly squeezed or 100% juice sold in the market, which tastes better.
5. The portion size should not exceed half the volume of the container (to prevent the ice cream from expanding and overflowing after ready), and the proportions of each ingredient can be changed according to everyone's preferences.

Recommended steps:

Note: (Egg yolk is only added optionally and is not an essential ingredient; it is to make the ice cream softer and smoother.)

1. Put the sugar and egg yolks in a container, beat them with a whisk or chopsticks until they become milky yellow, and the sugar is completely dissolved.

2. Pour the milk into the pot and heating to a slight boil.

3. Slowly pour the boiled milk into the beaten egg liquid with a spoon, and stir while pouring. Be sure to stir evenly!

(Be careful not to pour all the milk into the egg liquid at once, otherwise the eggs will be cooked by the milk and clump together)

1. Heat the stirred egg milk to a slight boil, let it cool down, then refrigerate it in the refrigerator to about 5 degrees Celsius. Pour the refrigerated whipping cream into the container (freeze the container in advance for better whipping) and beat until 60% creamy. mix with the frozen egg milk and stir until it is fully mixed.

Pour the mixed ingredients into the ice cream bowl through the feeding port! (Recommended freezing temperature is 5 degrees Celsius)

Special attention:

1. The whipping cream must be beaten into a batter.

2. The temperature of the freezing bowl must be low enough. It is recommended to adjust the Freezer temperature to the lowest.

Recipe recommendations:

Fragrant milk ice cream

Ingredients
Milk 450 ml
Light cream 200 ml
Condensed milk (or 70 g sugar) 70 ml

Production Method:

1. Whip the light cream until thick (like milk);
2. The condensed milk, milk and cream mixed evenly and place it in the refrigerator to cool to 5 °C - 10°C;
3. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Banana ice cream

Ingredients
Bananas 2x (about 150 g)
Pure milk 350 ml
Sugar 60 g
Cream 160 g

Production Method:

1. Peel the banana and mash it with a fork;
2. Put the above materials into a container, mix well and put it in the refrigerator to cool to 5^ C - 10^ C.
3. Pour the cooled mixture into the prepared ice cream machine.

Mango ice cream

Ingredients
Mangoes 3x (300 g mango pulp)
Pure milk 200 ml
Light cream 160 ml
White sugar 60 g

Production Method:

1. Take the pulp from the mango and stir it into mango puree;
2. Whip the light cream until thick (like milk);
3. Mix the mango puree and cream evenly and place it in the refrigerator to cool to 5 \~ 10°C;
4. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Matcha raisin ice cream

Ingredients
Fresh cream 130 ml
Milk 330 ml
Raw egg yolks 5x
Sugar 100 g
Matcha powder 15 g
Dried raisins A few

Production Method:

1. Heat the milk to about 60 degrees;
2. Beat the egg yolks with sugar (beat until the sugar melts), then pour in the heated milk, be sure to stir while pouring.
   Then return to heat and cook until slightly boiling; cool the cooked egg milk to about 5;
3. Whip the light cream until thick (like milk);
4. Mix all the ingredients evenly and place in the refrigerator to cool to 5 \~ 10°C;
5. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Strawberry condensed milk ice cream

Ingredients
Milk 200 ml
Sugar 100 ml
Whipping cream 150 g
Strawberries 270 g

Production Method:

1. Whip the light cream until thick (like milk);
2. Puree strawberries;
3. Mix all the ingredients evenly and place in the refrigerator to cool to 5 \~ 10°C;
4. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Chocolate ice cream

Ingredients
Milk 350 ml
Sugar 20 g
Whipping cream 250 g
Chocolate 60 g
* (20 g sugar is too small and not sweet, about 40g light)

Production Method:

1. Add the sugar to the milk and boil it. Add the chopped chocolate while it's still hot. Wait until the chocolate melts, then cool it down with ice water;
2. Whip the light cream until thick (like milk);
3. Pour the whipped cream into the cooled chocolate milk, stir evenly, and place it in the refrigerator to cool to 5 \~ 10°C;
4. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Red bean ice cream:

Ingredients
Red beans 230 g
Cream 160 ml
Milk 230 ml
Sugar 100 g

Production Method:

1. Boil the red beans and stir into a puree; add milk and sugar and mix well;
2. Whip the light cream until thick (like milk);
3. Slowly pour the mixture into the whipped cream, stir evenly, and place it in the refrigerator to cool to 5 \~ 10°C;
4. Start the ice cream machine and pour the refrigerated mixture into the ice cream machine.

Yogurt ice cream

Ingredients
Yogurt 350 ml
Sugar 60 g
Cream 200 g
Strawberry juice 100 ml
Lemon juice 10 g

Production Method:

1. Put the above materials into a container, mix well and put it in the refrigerator to cool to 5 degrees -10°C.

2. Pour the cooled mixture into the prepared ice cream machine.

Table of ingredients and content of toxic and harmful substances:

In order to meet the requirements of the "Administrative Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products", the following provides the names of electrical product components and information on the hazardous substances that may be contained.

Part Name	Content of toxic and harmful substances
	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr6+)	Polybro-minated biphenyls (PBB)	Polybromina-ted diphenyl ethers (PBDE)
Plastic parts	○	○	○	○	○	○
Hardware	○	○	○	○	○	○
Motor components	●	○	○	○	○	○
Circuit board	●	○	●	○	○	○
Power cable	●	○	●	○	○	○
Packaging materials	○	○	○	○	○	○

"means that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirements specified in GB/T 26572-2011.

"● indicates that the content of the hazardous substance in at least all homogeneous materials of this part exceeds the limit requirements specified in GB/T 26572-2011 due to limitations of existing technology and processes. In the above table, the parts marked with "●meet the EU RoHS 2.0 regulations---the EU 2011/65/EU regulations that restrict the use of certain hazardous substances in electronic and electrical products."

Environmentally friendly use period of electronic information products:

Note:

All electrical and electronic products sold in China must be marked with an environmentally friendly use period label. The environmentally friendly use period label refers to the use period under normal use conditions and temperature, and does not include batteries and other consumables.

Waste disposal:

Proper disposal of used machines
	This symbol indicates that this product must not be disposed of at the same time as other household waste. To avoid possible damage to the environment or human health, responsible recycling is required to promote maximum reuse of materials. To return your used appliances, please use the return and recycling system or contact the seller of this product. They can recycle this product for reuse.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
