GZ 124A - Ice machine Guzzanti - Free user manual and instructions

Product Type	Ice Machine
Brand	Guzzanti
Model	GZ 124A
Power Supply	220-240V ~ 50Hz
Ice Making Current	1.1 A
Ice Harvest Current	1.3 A
Refrigerant	R290 (32 g)
Net Weight	9.5 kg
Climate Class	SN/N/ST/T
Protection Type	I
Ice Making Time (approx.)	13 - 25 minutes per cycle
Timer Function	Yes, programmable on/off
Automatic Self-Cleaning	Yes, 20-minute program
Ice Full Detection	Yes, automatic stop
Water Level Detection	Yes, low water warning
Earthing Required	Yes (3-prong grounded plug)
Child Safety	Not for unsupervised children under 8
Cleaning Method	Diluted detergent, warm water, soft cloth
Water Drain	Via drain cap at back/bottom
Water Separator Pipe Maintenance	Periodic cleaning of holes and filters

Frequently Asked Questions - GZ 124A Guzzanti

What should I do if the 'Lack of water' indicator is on?

Turn off the unit, add potable water to the reservoir up to the FULL mark, then restart the ice maker.

How do I set the timer to turn the unit on/off?

Press the TIMER/CLEAN button once. The display shows '1H'. Use the + and - buttons to adjust the time. After 5 seconds, the setting is saved.

How do I start the automatic self-cleaning program?

With the unit plugged in (but off), press and hold the TIMER/CLEAN button for more than 5 seconds. The cleaning cycle lasts 20 minutes and stops automatically.

Why is my ice maker making thin ice cubes?

Thin ice can be caused by high ambient or water temperature. Move the unit to a cooler location or use cooler water. You can also increase the ice making time by pressing + during a cycle (up to 6 minutes).

How do I clean the water separator pipe?

Turn off the unit and disassemble the water separator pipe. Use a slim wire to unclog each hole on the pipe. Reinstall it, ensuring the right terminal connects to the silicone pipe correctly.

What do the error codes E1, E2, and E mean?

E1 indicates a faulty ambient temperature sensor. E2 indicates a faulty water temperature sensor. E means ice making anomaly or refrigerant leakage. The unit may still operate; replace sensors or contact service for E.

How do I drain all water from the unit?

Unplug the unit and remove the drain cap at the back/bottom. Wait a few minutes for complete drainage. For the big water reservoir, plug in the unit (do not start) then remove the cap to allow water to flow out.

Can I use an extension cord?

We do not recommend extension cords. If necessary, use a No. 0.75mm² minimum cord rated at least 16A/250V with a grounded plug.

How often should I clean the ice maker?

It is recommended to exchange water every 24 hours and clean the unit thoroughly every 3 days. Clean the water separator pipe and filters periodically.

What type of refrigerant does the GZ 124A use?

The unit uses R290 (32 g) as refrigerant. It is flammable, so dispose of the appliance according to local regulations and do not damage the refrigerant circuit.

USER MANUAL GZ 124A Guzzanti

Line drawing of a portable ice cream maker with control panel and fan (no text or symbols)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

OBSAH

DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY ...... 3

PŘÍPRAVA SPOTŘEBIČE K POUŽITÍ ...... 3

DŮLEŽITÉ BEZPEČNOSTNÍ TIPY 3

SEZNÁMENÍ SE SPOTŘEBIČEM 6

OBSLUHA A ÚDRŽBA....7

OBSLUHA A ÚDRŽBA

VYBALENÍ SPOTŘEBIČE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY 3

PRÍPRAVA SPOTREBIČA NA POUŽITIE....3

DÔLEŽITÉ BEZPEČNOSTNÉ TIPY....3

OBOZNÁMENIE SA SO SPOTREBIČOM 6

OBSLUHA A ÚDRŽBA....7

VYBALENIE SPOTREBIČA 7

PRIPOJENIE VÝROBNÍKU L'ADU 8

ČISTENIE A ÚDRŽBA VÝROBNÍKA L'ADU....8

POUŽÍVANIE VÁŠHO VÝROBNÍKA L'ADU 10

PROGRAM AUTOMATICKÉHO SAMOČISTENIA....11

ODSTRÁNENIE PRÍPADNÝCH PROBLÉMOV ...... 13

TECHNICKÉ PARAMETRE A SCHÉMA ZAPOJENIA 14

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

OBSLUHA A ÚDRŽBA

VYBALENIE SPOTREBIČA

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

OBSŁUGA I KONSERWACJA

ROZPAKOWANIE URZĄDZENIA

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

HASZNÁLAT ÉS ÁPOLÁS

A KÉSZÜLÉK KICSOMAGOLÁSA

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

DELOVANJE IN VZDRŽEVANJE

RAZPAKIRANJE APARATA

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

IMPORTANT SAFETY INSTRUCTIONS .... 3

PREPARING YOUR ICE MAKER FOR USE....3

IMPORTANT SAFETY TIPS....3

GETTING TO KNOW YOUR UNIT 6

CONNECTING YOUR ICE MAKER....8

CLEANING AND MAINTAINING YOUR ICE MAKER 8

USING YOUR ICE MAKER.... 10

AUTOMATIC SELF-CLEANING PROGRAM....11

TROUBLESHOOTING....13

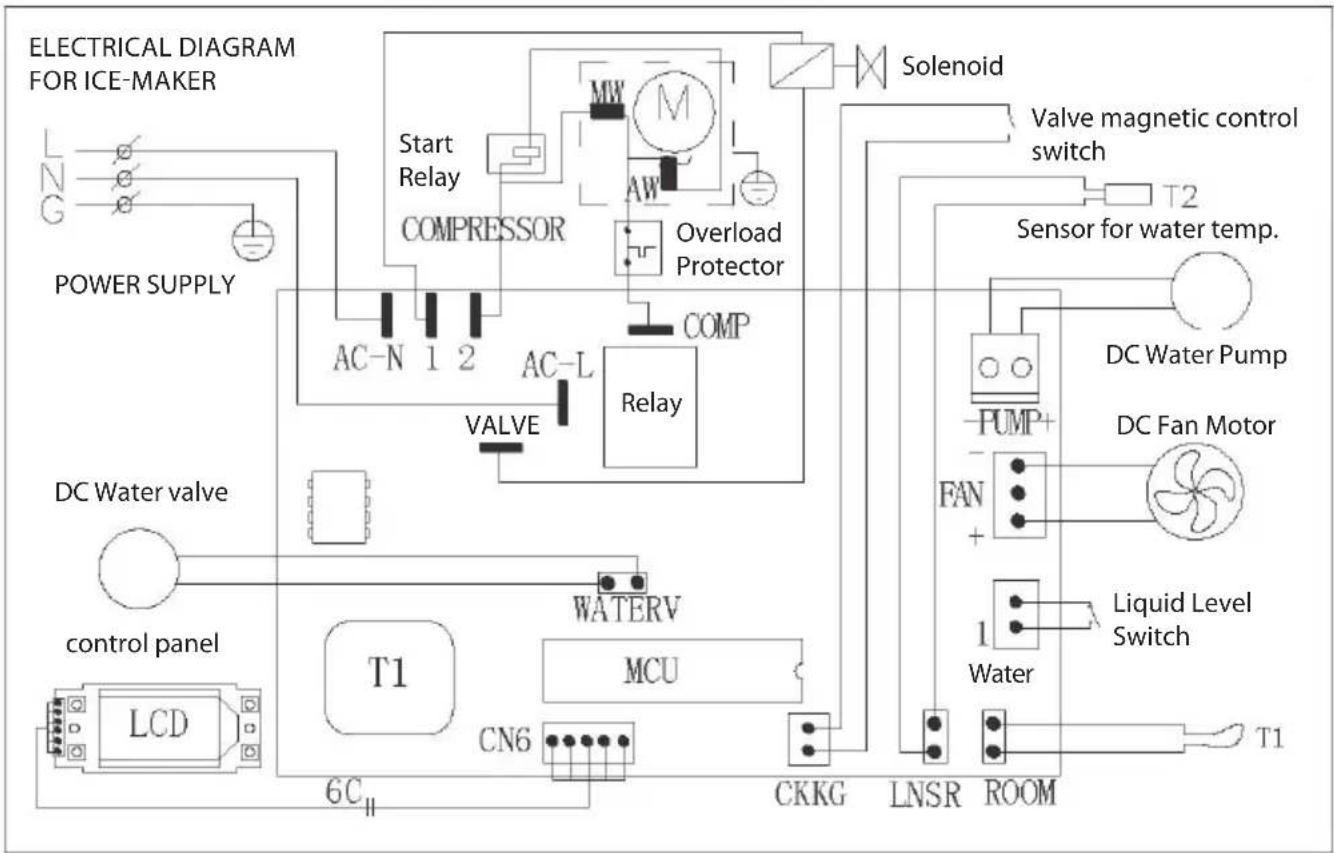

TECHNICAL PARAMETERS & CIRCUIT DIAGRAM 14

IMPORTANT SAFETY INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages manual and your appliance.

Always read and obey all safety massages.

This is the safety alert symbol:

All safety messages will follow the safety alert symbol and the word "DANGER" or "WARNING".

These words mean:

You can be killed or seriously injured if you don't immediate follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

PREPARING YOUR ICE MAKER FOR USE

IMPORTANT SAFETY TIPS

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate this, or any other appliance with a damaged cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

This ice-maker must be positioned so that the plug is accessible.

Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.

- Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from traffic areas, and do not submerge in water.

We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If you must use an extension cord, use No. 0.75mm ^2 minimum size and rated no less than 16A/250V\~ with a plug.

WARNING: This appliance must be earthed.

• Unplug the ice maker before cleaning or making any repairs or servicing.
- Exercise caution and use reasonable supervision when appliance is used near children.
- Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 6 inches of space between the back of your unit and wall. Keep a minimum distance of 6 inches on each side of your unit free.
- Do not use other liquid to make the ice-cube other than water.
- Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
- Do not tip over. To avoid a hazard due to instability of the appliance, it must be placed at even or flat surface.
- If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room temperature before plugging it in.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance must be earthed.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

WARNING: Risk of fire/flammable materials used. Please according to the specifications regarding disposal of the appliance for its flammable blowing

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  • WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process or ice harvesting process, other than those recommended by the manufacturer.

• WARNING: Do not use other type of electrical appliances inside the ice-maker.

IMPORTANT:

The wires in this mains lead are colored in accordance with the following code:

Green	and	Yellow:	Grounding
Blue:		Neutral
Brown:		Live

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by-a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

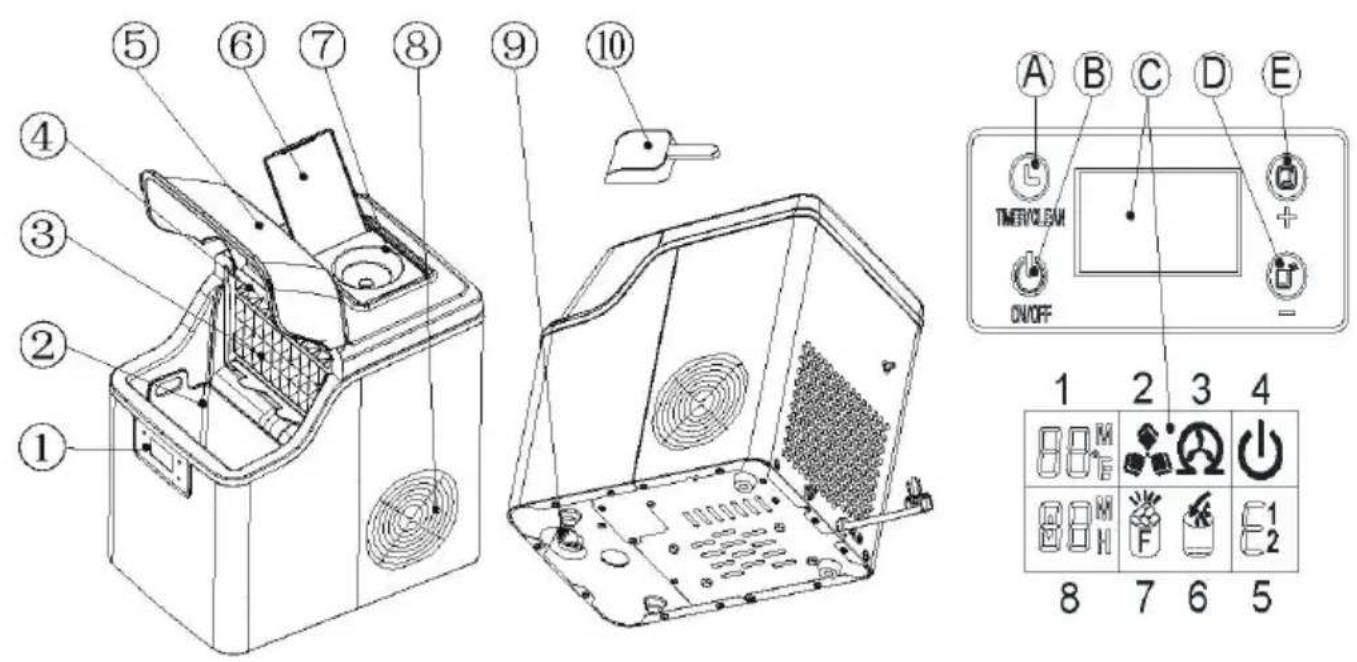

GETTING TO KNOW YOUR UNIT

1. Control Panel:

A. Timer/clean button
Quickly press this button once, to enter the Timer setting program; And press this button for more than 5 seconds, to enter the Cleaning program
B. ON/OFF button
When the unit is off, press this button to turn on the unit;
When the unit is making the ice cube, press this button for more than 5 seconds, the unit will switch to ice harvest process by force.

C. LCD Display window

1. Ambient temp and ice making countdown symbol: when display show , ice making countdown, when display show <°F>, means ambient temp.
2. Ice cube symbol: when the symbol is rotating, the unit is making ice cube, when the symbol flash, the unit is ice harvest.
3. Automatic self-cleaning symbol display
4. ON/OFF symbol.
5. Error code

E1 - Ambient temp senor breakdown.

E2 - water temp sensor breakdown

E - Means ice making anomaly or the refrigerant leaked

1. Lack water warning symbol.
2. Ice full warning symbol.
3. Time setting display area. When show , timer unit ON/OFF, when show , setting ice making time.

D. Ice making and timer reduce.

E. Ice making and timer increase.

1. Ice basket

2. Evaporator

3. Water separator pipe

4. Unit top cover

5. Cover for the water reservoir

6. Support seat for water bottle (Optional, special for the unit supplied by bottled water)

7. Hot Air Outlet

8. Water draining cap: To draining out the water from unit

9. Ice scoop

1. Remove the exterior and interior packaging. Check that ice basket and ice scoop is included. If any parts are missing, please contact our customer service.
2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it.
3. Find a location for your ice maker that is protected from direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Place the ice maker on a level surface. Maker sure that there is at least 6 inches of space between the back and sides of your ice maker and the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging ice maker in.
5. The appliance must be positioned so that the plug is accessible.

WARNING: fill with potable water only.

CONNECTING YOUR ICE MAKER

DANGER

* Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 220-240volt, 50Hz electrical outlet with three-prong.

CLEANING AND MAINTAINING YOUR ICE MAKER

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water from the draining port by unplugging the drain cap on the back.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
5. Dry the interior and exterior with a soft cloth.
6. When the machine is not in use for a long time, open the water drain cap to drain water completely out from the water reservoir.

After using your ice maker for a long time, we also suggest you should clean your unit. Especially to the water separator pipe and the water filters, you must clean them periodically.

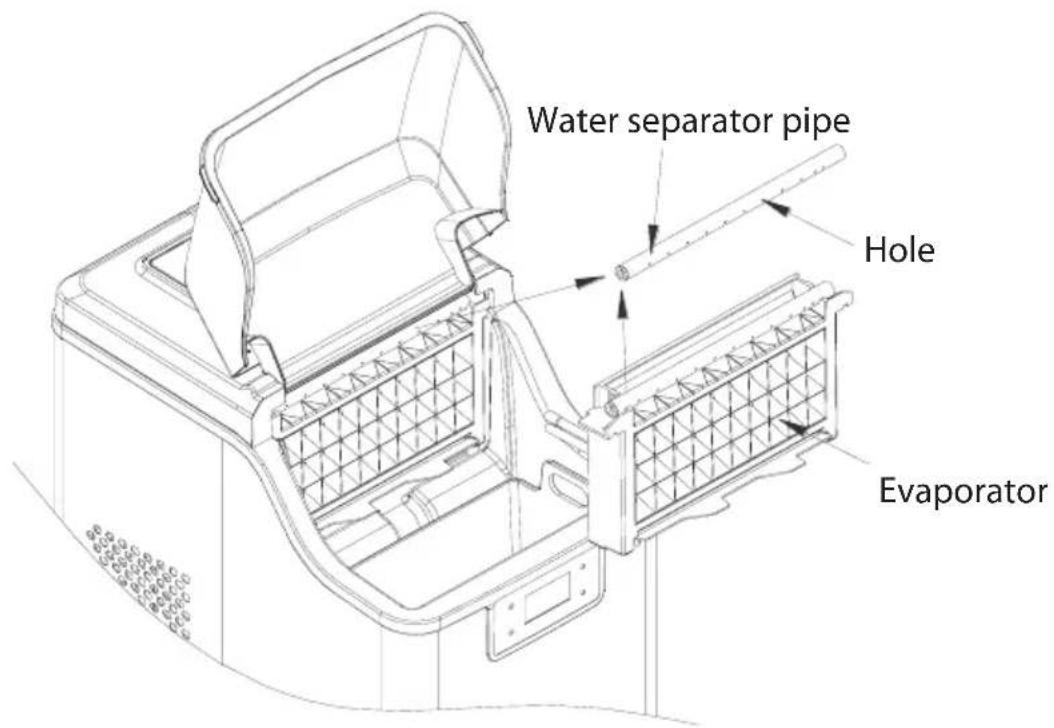

1. If the water separator pipe is blocked and there is no water flowing down when you listen the compressor and the water pump inside are still working, please turn off the unit first and disassemble this pipe down, and clean it. Clean the each hole on the pipe wall displayed in following picture. After cleaning, install back the water separator pipe and be sure the right terminal of the pipe connect to the silicone pipe well and as original.

1. For both of the water tank and the big water reservoir, clean them with diluted detergent, warm water and a soft cloth. Then use the water to rinse the inside, and drain out the water from the draining port by unplugging the drain cap on the back. It will help you keep the unit and ice-cube hygienically, and also make the unit work normally.
2. When cleaning, if find that the ice cube left on the evaporator and can not be taken out easily, you can turn on the unit to let the unit enter the ice making process, then press "ON/OFF" button for more than 5 seconds to let the unit start ice harvest process to melt the ice cube. It will help you remove the hard ice cube.

How to drain out the water from the internal tank and big water reservoir completely

Because the water in the big water reservoir is stop to drain port by the water valve, if you want to drain away all the water, please plug on the unit and but don't start the unit, then remove the drain port cap at the back. Wait some minutes, all of the water will flow out.

USING YOUR ICE MAKER

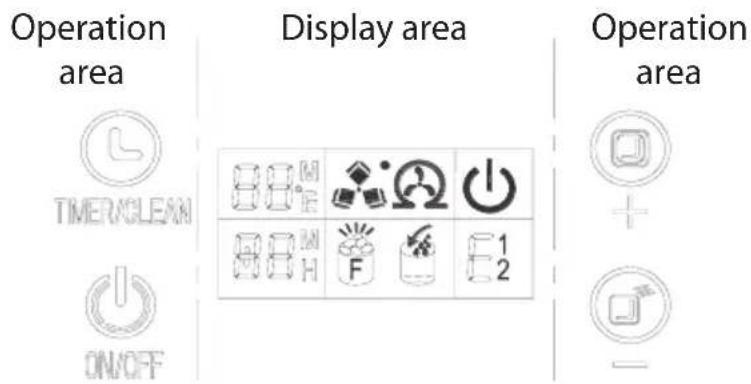

Operation panel and display area

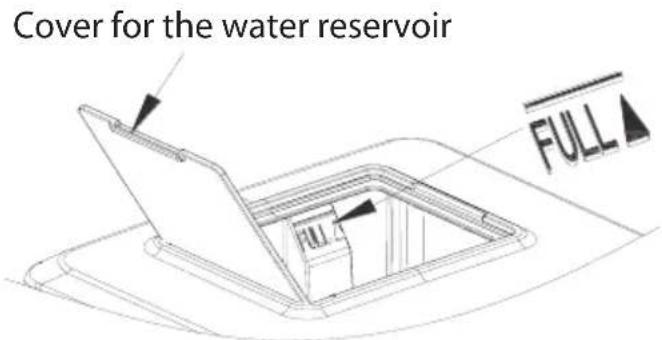

1. Remove the cover of the water reservoir and pour potable water into water reservoir. And be sure to keep water level below the max. level with FULL mark displayed in following picture.

Warning: Do not pour the water into the internal water tank located underneath the ice basket. This tank is not big enough and will effect the ice making performance.

1. How to turn on the unit: Plug the unit, electric power symbol <> will start to flash, and the present ambient temperature will display at top left corner of the displaying window, for example, "80F" letter means the 80 Fahrenheit ambient. Again press the "ON/OFF" button to start the unit, first the water will flow into the water tank to the standard water level, then the compressor start to run to make ice-cube, at same time, power symbol <> will change to display always and ice-cube symbol <> will be rotating state, the ambient temperature display will disappear. After some minutes of ice-making duration, the flashing digit will display in the ambient temperature displaying area, for example, the flashing digit "10M" means that it will take 10 minutes to complete this time ice-making process.

2. When ice maker harvest, symbol <> flash, the water will flow from top water reservoir to bottom water tank through solenoid valve, the symbol <> will be on, when the water in the bottom water tank is full, the symbol <> will be off, then the next ice making cycle start again. When there is no water in the water reservoir, the symbol <> will keep on. Turn off the unit and fill water again, then restart the unit to make ice cube. Or fill water directly and wait 20 mins, the unit will restart.

Remark: The ice making cycle lasts about 13 to 25 minutes, depending on the ambient temperature. And for the first time, according to the initial water temperature, ice-making last time will be a little longer. In the extreme hot room temperature, ice-making time may be Vary a lot, but it will not exceed 35 minutes.

If you think the ice cube is not thick enough, during ice making, press the <+> and <-> to set the ice making lead time. Press one time and the ice making cycle will in crease or Reduce one min, 6 min most. This can only start from the new cycle.

1. When Ice Full symbol < F> is on, the unit will stop, take out the ice cube inside, the unit will start working again.

If press the button more than 5s, when the ice maker is working, the unit will start harvest. Press button , the unit will turn off.

Timer setting. Unit on timer setting. When the unit is working, timer setting the unit off.

Timer setting. When the unit is off, timer the unit on.

Press the button, the display will show <1H>, and then press <+> and <-> to set the time. During the setting, the H is flash, after 5s, the H will keep on and unit will in your Timer setting.

1. Water Drain: take off the Water draining cap the bottom of unit, then drain the water inside. It is better that exchange water every 24 hours and clean unit every 3 days.

AUTOMATIC SELF-CLEANING PROGRAM

Start the self-cleaning program: Plug on the unit, press "TIMER/CLEAN" button on control panel for more than 5 seconds, to enter the self-Cleaning program need 20 minutes. The symbol rotate on display screens, time count down area display 20M.

Cancel the self-cleaning program: It takes about 20 minutes to complete one self-cleaning program. When the program is over, the system will be in off-state automatically. And also you can press the "ON/OFF" button on control panel to cancel the self-cleaning program by force.

Warning

A. Make sure the water tank, water filter and the water separator pipe is not blocked, clean them periodically.
B. The water temp will effect the ice making capacity. The lower temp is, the more ice cube will produce.
C. The cooler ambient temp is, the more ice cube will produce.
D. Always use good quality water to make sure the pump work well. Bad quality water will cause pump noise, but doesn't effect the unit working.
E. The compressor restart 3 mins later if you turn off the unit.

TROUBLESHOOTING

Problem Reason Solution
	Lack of water	Turn off the unit and add water tolevel, then re-start the unit.
	Too much ice cube in the basket.	Remove the ice cube in the basket.
The water reservoir has water, but	The inlet solenoid valve breakdown.	Need the technical service person to maintain.
is on.	Ambient temp sensor breakdown.	The unit can still work, change a new sensor.
is on.	Water temp sensor breakdown.	The unit can still work, change a new sensor.
No water in the water separator pipe.	The holes are blocked.	Use slim wire to prick each hole till the water can flow out easily.
	Water filter block. Clean the water filter.
Ice cube thick and can't drop down.	Ice making cycle too long.	Press <-> to reduce the ice making time.
Ice cube thin.	Ambient temp too high. Move the unit to cool place.
	Water temp too high.	The water temp should be no more than 25°C.
	Ice making short.	Press +to increase the ice making time.
Unit work but no ice cube.	Ambient temp is high or the water temp is high.	Move the unit to somewhere ambient temp lower than 30°C, fill cool water.
	Refrigerant system leakage.	Need the technical service person to maintain.
	Refrigerant system block.	Need the technical service person to maintain.

TECHNICAL PARAMETERS & CIRCUIT DIAGRAM

TECHNICAL PARAMETERS

Model GZ 124A
Protection Type I
Climate Type SN/N/ST/T
Power 220-240V/50Hz
Ice Making Current 1.1A
Ice Harvest Current 1.3A
Refrigerant R290/32g
Net Weight 9.5Kg
Vesicant C	H_10

CIRCUIT DIAGRAM

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
