LS100SUB - Accessoire pour barre de son BLAUPUNKT - Free user manual and instructions

Product Type	Wired Subwoofer (Accessory for Soundbar)
Brand	Blaupunkt
Model	LS100SUB
Subwoofer Dimensions (W x H x D)	130 x 400 x 400 mm
Woofer Size	6.5 inches (165 mm)
Subwoofer Impedance	4 Ω
Output Power (RMS)	60 W (subwoofer)
Total System Output Power	120 W (30W x 2 + 60W subwoofer)
Frequency Response	35 Hz – 20 kHz
Total Harmonic Distortion	<1% (1kHz, 1W)
Power Requirements	DC 24V / 2A (adapter included)
Power Consumption (On Mode)	120 W
Standby Power Consumption	<0.5 W
Connection Type	Wired (attached audio cable)
Compatible Soundbar	Blaupunkt LS100 series (2.1CH soundbar)
Included Accessories	Power adapter, audio cable, remote control, batteries, wall mount kit
Safety Certifications	CE, RoHS
Cleaning Instructions	Unplug, wipe with dry cloth; do not use chemical solvents
Environmental Protection	WEEE compliant, batteries disposal per local regulations

Frequently Asked Questions - LS100SUB BLAUPUNKT

How do I connect the wired subwoofer to the soundbar?

Use the attached audio cable to connect the subwoofer to the Subwoofer Out jack on the rear of the soundbar. Ensure the connection is secure.

Why is there no sound from the subwoofer?

Check that the audio cable is properly connected. Also ensure the soundbar is powered on and the subwoofer output is enabled. If the issue persists, contact service support.

What are the dimensions of the subwoofer?

The subwoofer measures 130 x 400 x 400 mm (Width x Height x Depth).

What is the power output of the subwoofer?

The subwoofer delivers 60 W RMS output power.

Can I use this subwoofer with other soundbars?

This subwoofer is designed specifically for Blaupunkt LS100 series soundbars. It may not work with other brands or models without modification.

How do I clean the subwoofer?

Unplug the subwoofer from power. Use a dry cloth to wipe the exterior. Do not use chemical solvents or aerosol sprays.

What is the frequency response of the subwoofer?

The frequency response is 35 Hz – 20 kHz.

Is the subwoofer equipped with any protection features?

Yes, the subwoofer incorporates safety features such as overload protection and short-circuit protection. Refer to the manual for details.

Does the subwoofer require a separate power source?

Yes, it requires a DC 24V / 2A power adapter (included). Plug it into a standard household outlet.

What is the standby power consumption?

The standby power consumption is less than 0.5 W, complying with ERP2 energy-saving standards.

USER MANUAL LS100SUB BLAUPUNKT

Exterior view of a modern black electronic device with a circular button (no visible text or symbols)

Exterior view of a modern office building (no signage)

Enjoy it.

2.1CH Soundbar with wired subwoofer

Important Safety Instructions

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.

• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
- Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
- Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
• Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.
• Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.

15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.

19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.

21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.

23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.

24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.

25. Try to install the product near a wall socket or extension cord and shall be easily accessible.

26. The highest environmental temperature suitable for this product is 35°C.

27. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment. After 30 minutes without any audio input, the device will automatically switch into standby mode. Follow up the instruction manual to resume the operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 30 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.

6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
16. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.
17. To prevent possible hearing damage, do not listen at high volume levels for long periods.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Many thanks to buy our model, please read and reference this manual carefully before operate the unit. Please keep the manual for future operation reference.

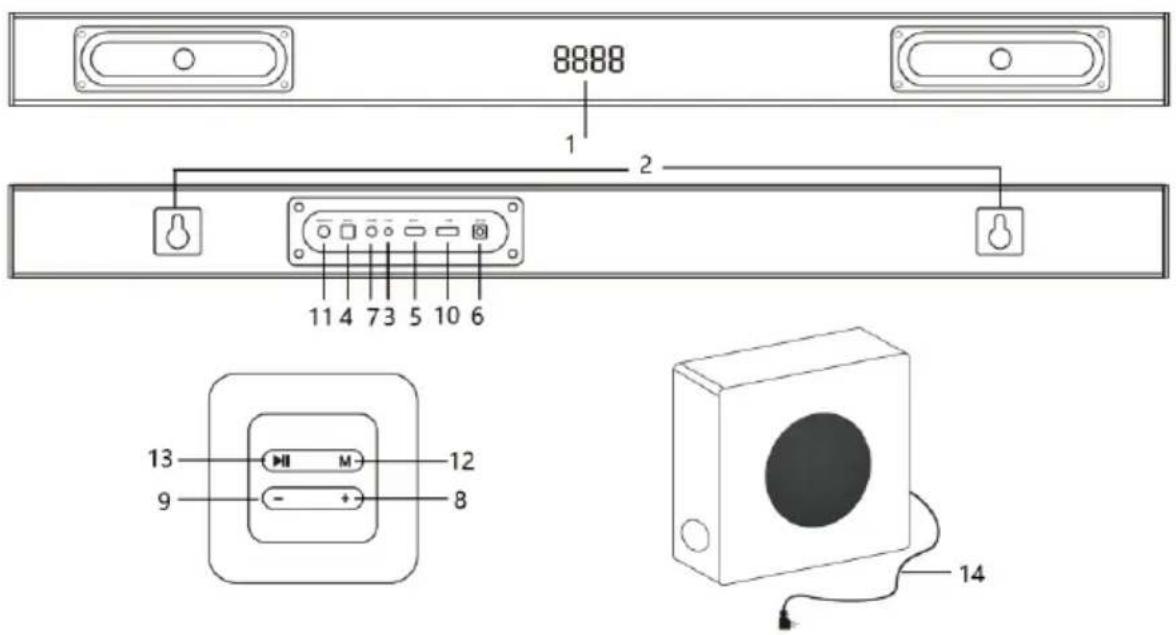

Control panel

1 - Display(BT = Bluetooth, OP=optical, Hd=HDMI, USB=USB, LINE=AUX, CO=coaxial, TUNE=FM radio);
2 - Mounting brackets;
3 - AUX input jack;
4 - Optical input port;
5 - HDMI(ARC) port;
6 - DC input power jack;
7 - Coaxial input jack;
8 – Volume up( press and hold to increase volume level, short press to switch preset FM radio station);
9 – Volume down( press and hold to decrease volume level, short press to switch preset FM radio station);
10 - USB playback port;
11 - Subwoofer out jack for wired subwoofer connection;
12 - Mode button (short press for play source switching between Bluetooth/HDMI/FM/optical/coaxial/AUX IN/USB; long press
3 seconds to standby off the unit)
13 -Play/pause button( short press to scan and save available station automatically in FM radio mode, short press to play or pause playback in USB or Bluetooth mode);
14 - Attached audio cable on wired subwoofer.

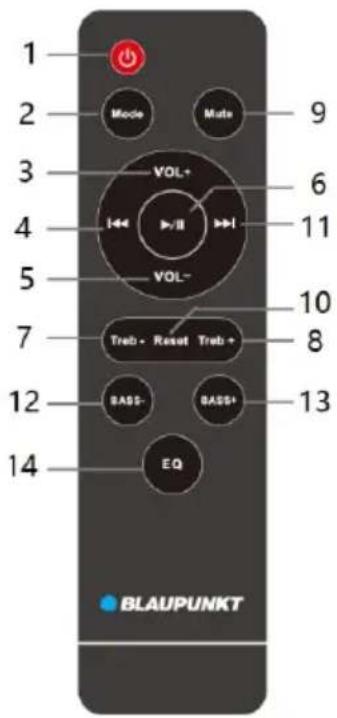

1 - Power button: press it for unit standby on/off.

2 - Mode button: short press for play source switching between Bluetooth/HDMI/FM/optical/coaxial/AUX IN/USB

3,5 - Volume + /- button: press it for volume adjustment.

4,11 - previous/next button: press it to switch previous/next track in Bluetooth or USB mode. Short press to switch preset station, long press 3 seconds to auto scan the available station in upward or downward frequency in FM radio mode.

6 - Play/pause: short press to scan and save available station automatically in FM radio mode, short press to play or pause playback in USB or Bluetooth mode

7, 8 - Treble +/- button: press it to adjust treble level.

9 - Mute button: press it to make the unit in silence, press it again to resume the sound.

10 - reset button: long press 3 seconds to reset the volume/treble/bass/EQ level.

12, 13 - bass +/- button: press it to adjust bass level.

14 - EQ button : press it repeatedly to switch preset equalizer (5 types).

Remote control battery installation

Open up the battery door and insert 2 x AAA dry battery(included) into the compartment; please make sure the polarity of battery will aim and correspond to the positive and negative silkscreen-printed symbol in the compartment. Then close the battery door.

Notes:

a. The best working distance of remote control is within 5 meters without any obstacle in between. Please aim to the remote control sensor locates on the front of unit during operation.
b. The sensitivity of remote control will become weak when the battery power exhausted. Please replace it with fresh one for operation.
c. Please take out the battery in case of none-operation in a long time.
d. Please dispose the battery in an environment friendly way. Please reference the local government requirement for the detail.

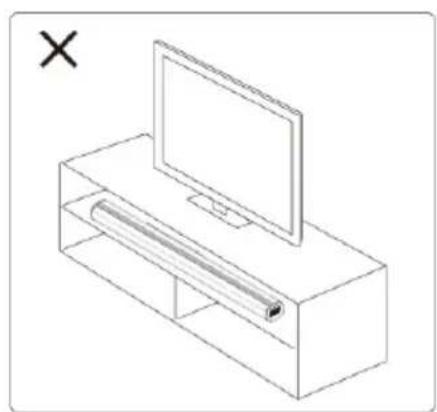

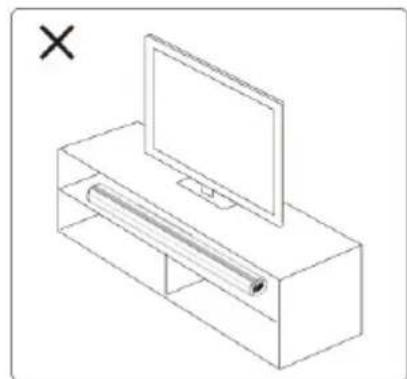

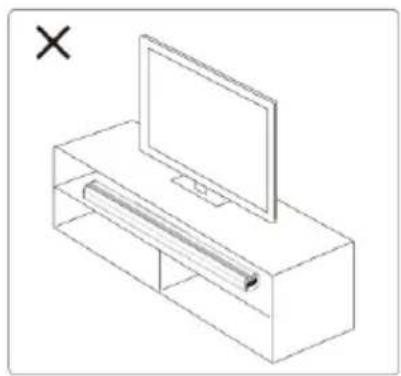

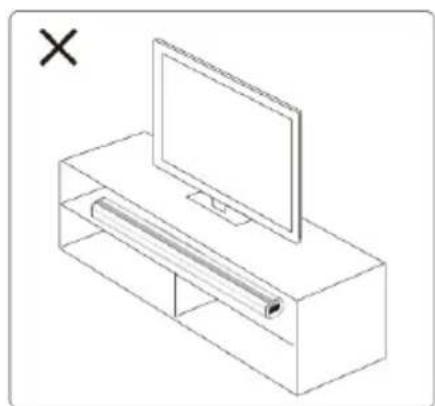

Soundbar placement

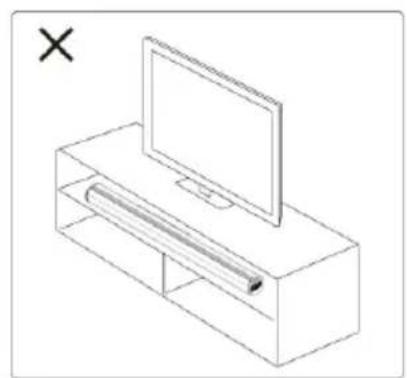

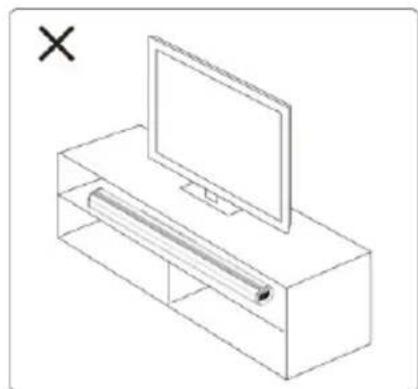

You can choose to place the soundbar on a flat surface or wall-mounting way as following.

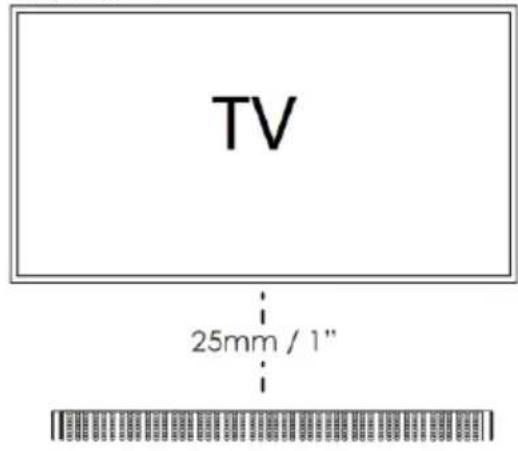

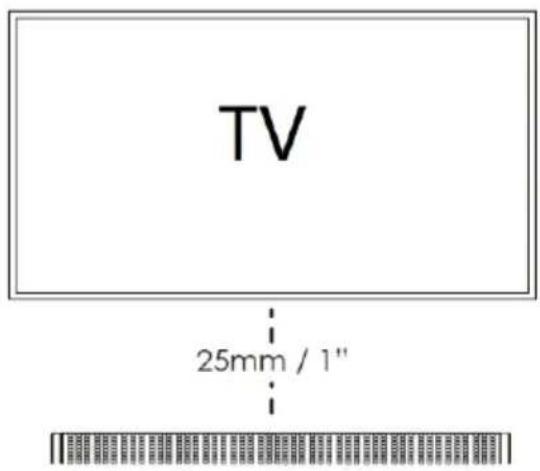

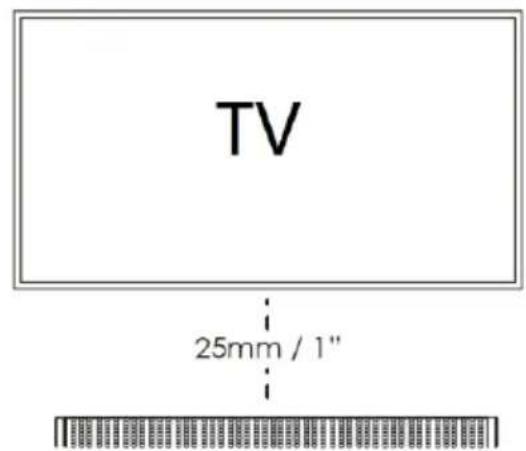

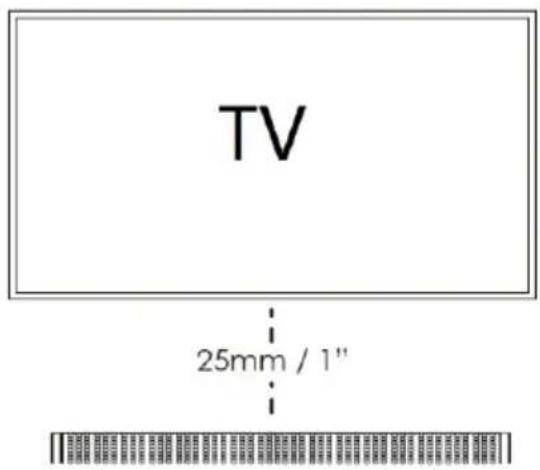

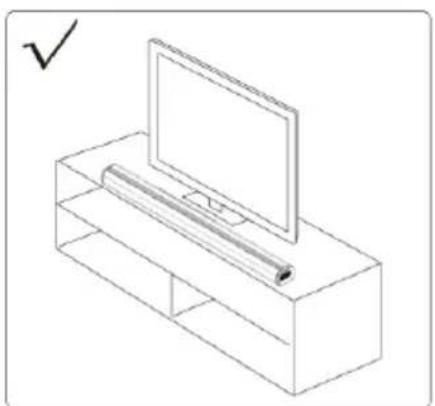

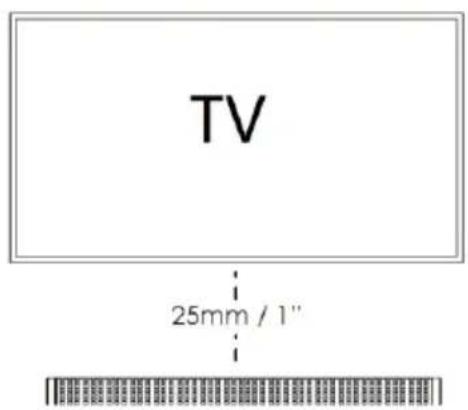

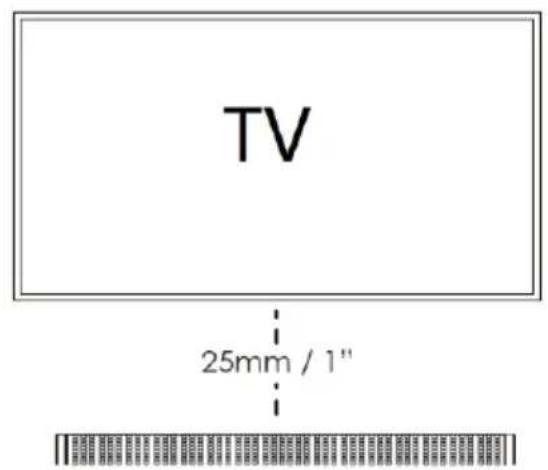

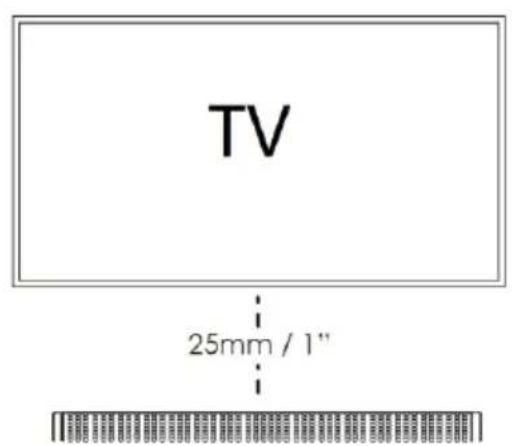

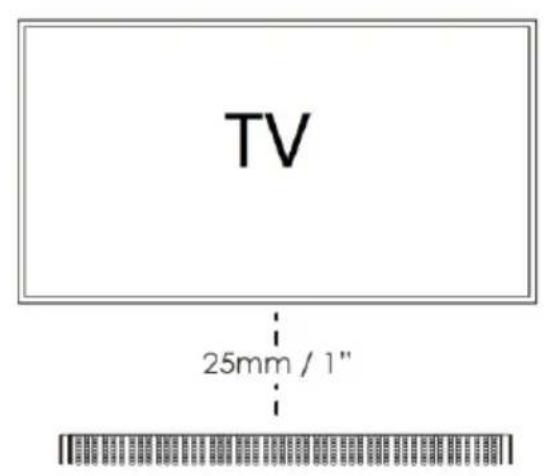

1. Place on a flat surface: Place the unit horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Do not place it inside a cabinet or a walled shelf. Follow this guidance for best sound output and good airflow around the soundbar.

Line drawing of a TV set with a monitor and cable (no text or symbols)

Line drawing of a TV set with a monitor and cable, no text or symbols present

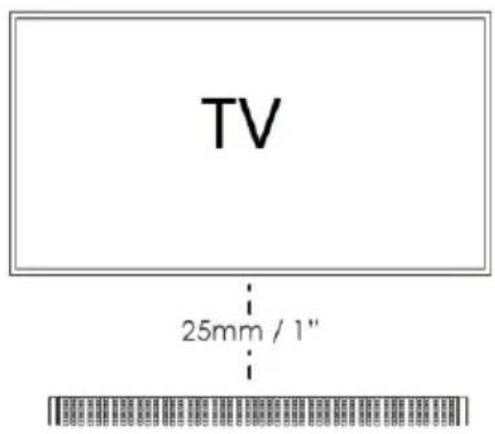

1. Mount on the wall

a. Take the 2pcs supplied plastic wall-mount adaptor to attach and fit with wall-mount bracket on the rear panel of soundbar, take them together for location on the wall. Then mark 4 holes by a pencil which you expect to mount the soundbar, drill the mounting holes directly.
b. Punch the 4pcs supplied plastic anchor into the each drilled hole first, lock the 2pcs plastic wall-mount adaptor by supplied screws on the wall.
c. Hang up the soundbar on the mounted adaptor, then complete the wall-mount installment.

3D diagram of a cylindrical object with internal structure, shown with dimension lines and mounting points (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Simple line diagram with two small blocks and directional arrows, no text or symbols present

3D diagram of a cylindrical mechanical part with two labeled connectors (no text or symbols present)

Warning: If you are not confident to wall-mount the soundbar correctly and securely, please seek the assistance of an experienced and skilled person of professional.

Install the speaker on a vertical, reinforced area of wall. For plastic walls, it is recommended to screw into wall studs for greater security. For optimal performance, allow at least 25mm/1" distance between the soundbar and TV.

Audio wired connection and setting

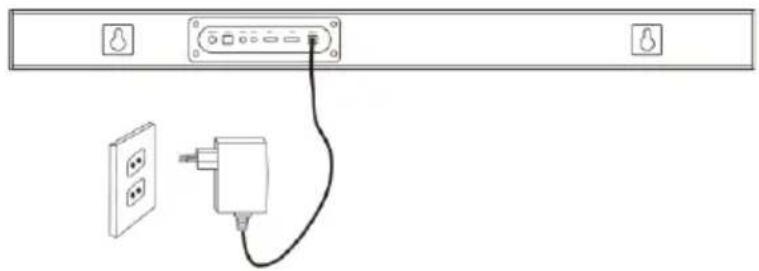

Before power on the unit, please kindly connect the unit first. The soundbar has included digital (optical & coaxial& HDMI(ARC)) and analogue (AUX IN) inputs for different source. You can reference below instruction for the connection depends on what device you have.

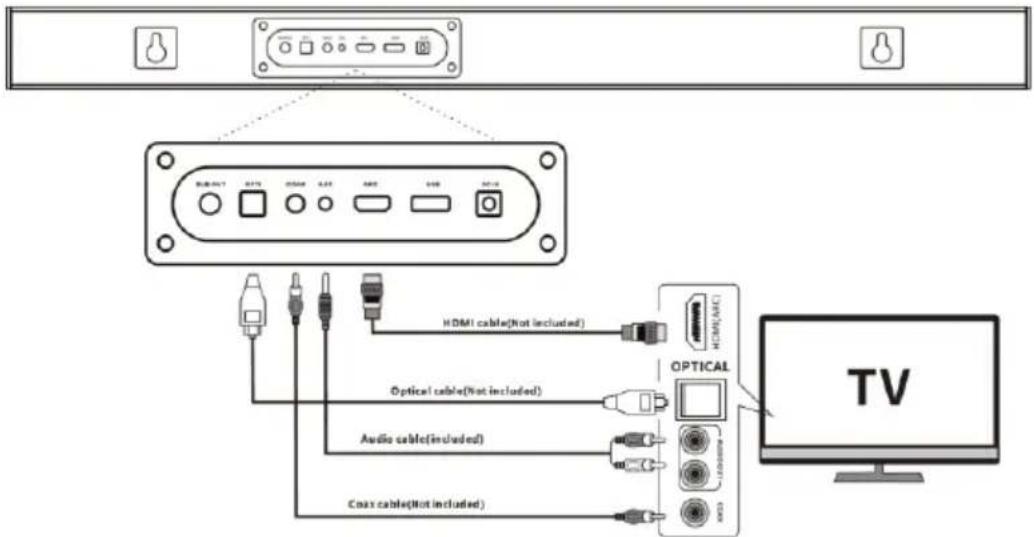

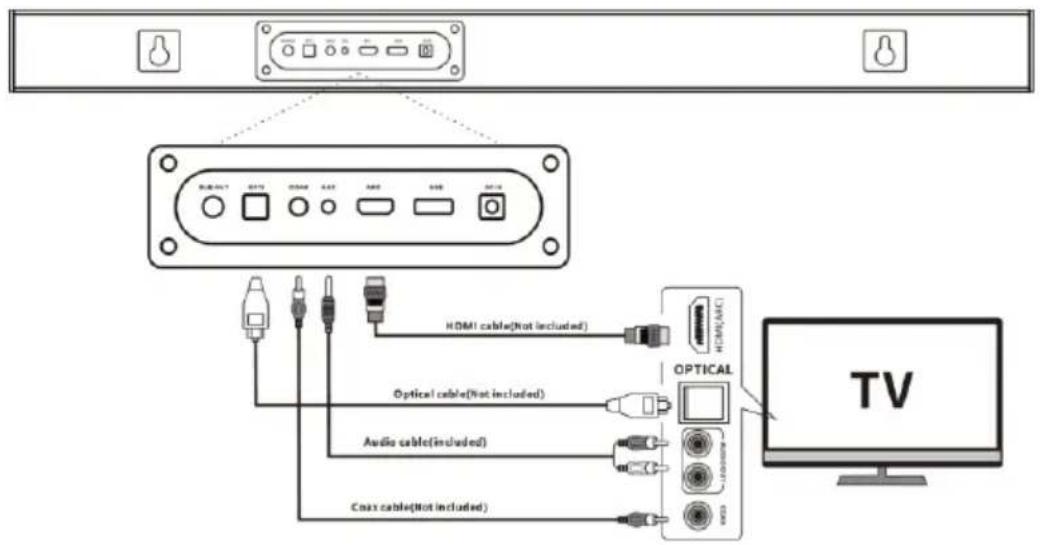

1. Soundbar connect with output of your TV.

Remove the protective cap of the OPTICAL socket, and then using an OPTICAL cable (not included) to connect between the TV's OPTICAL OUT jack and the OPTICAL input jack of soundbar, the HDMI(ARC)/coaxial/AUX input connection is same.

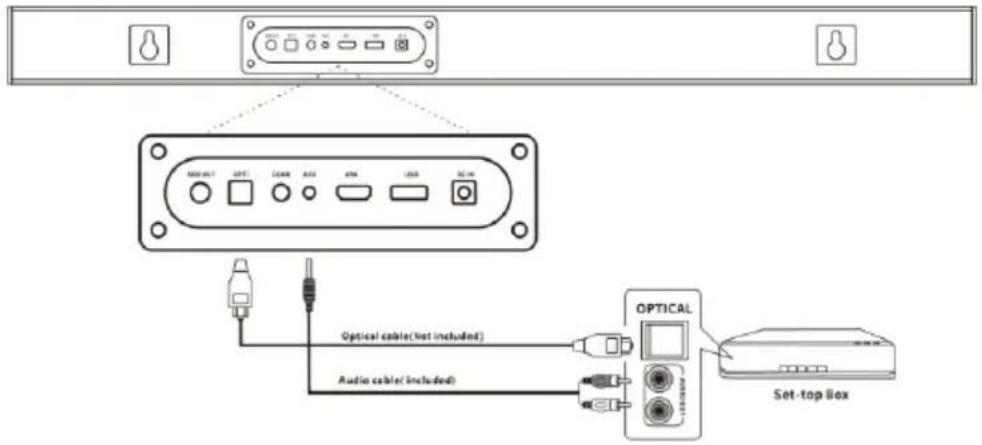

2. Soundbar connect with TV set-top box.

In case of output jack of your TV set-top box has, you can follow up below drawing and select AUX IN/optical connection with Soundbar.

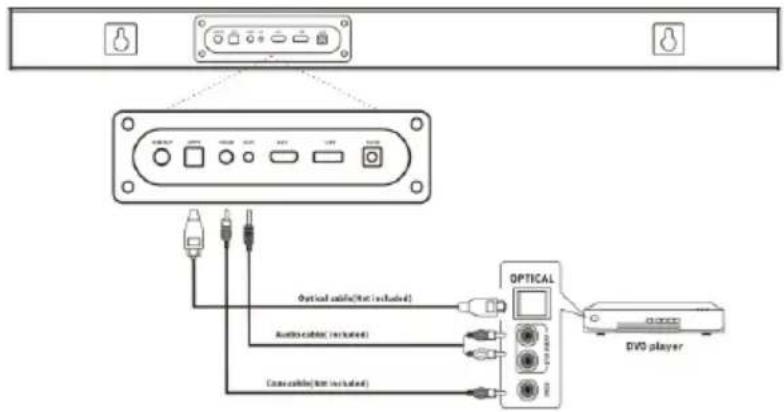

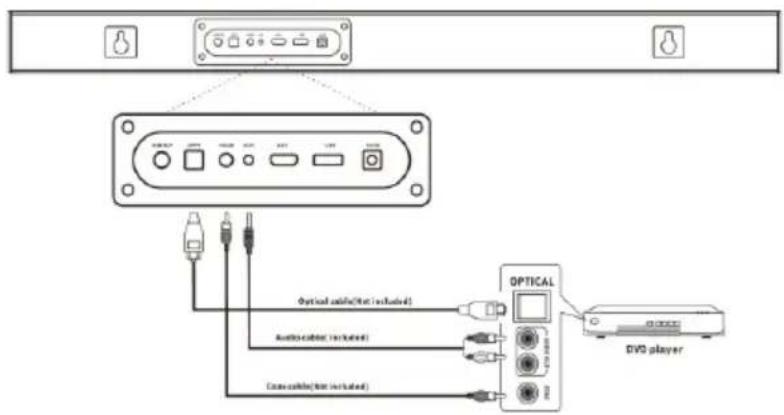

3. Soundbar connect with DVD or Blue-ray DVD player.

In case of output jack of your DVD player or Blue-ray DVD player has, you can follow up below drawing and select AUX IN/optical/coaxial/HDMI connection with soundbar.

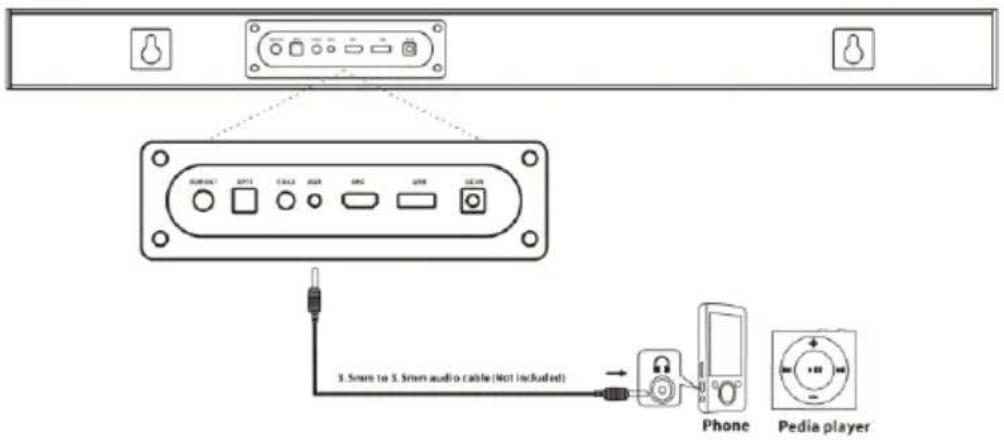

4. Soundbar connect with MP3 player.

The soundbar has included one MP3 Link jack (AUX) which is able to connect with any other MP3 player device. Please reference below drawing for the connection and playing.

Important notes:

1. If there is no sound come out of the soundbar in optical/coaxial or HDMI mode. Make sure the audio setting of your source player (e.g. DVD player, game player, TV) is set to "PCM stereo" or "stereo 2.0" with digital output. Please reference your TV or player manual for this operation.
2. HDMI(ARC): The soundbar supports HDMI with Audio Return Channel(ARC). If your TV has HDMI ARC compliant(reference your TV user manual for details), you can hear the TV audio through your soundbar by using a single HDMI cable(not included). The HDMI ARC connector on the TV may be labelled differently, please pay attention to check your TV's manual.
3. The output sound of optical/coaxial and HDMI mode may louder than AUX IN etc which is normal, because the digital audio signal input and output level is different on audio source player( like DVD player, TV etc).
4. In case finished above connection and setting, you can start to operate the soundbar according to this manual, and entertainment.

Operation

Power connection: Using the attached audio cable of wired subwoofer connect with the subwoofer out jack of soundbar. Plug in the supplied AC/DC power adaptor to an AC household outlet in order to get power source, and then plug the DC connector to the DC input power jack on the back panel of Soundbar. The display will light up, which means the power setting is ready.

Diagram showing a wall-mounted device connected to an electrical outlet with a plug, no text or symbols present

Power on/off: short press the mode button on soundbar to power on and switch play model between Bluetooth/HDMI/FM/optical/coaxial/AUX IN/USB, long press(3 seconds) the power mode button to standby the unit. You also can achieve the same function by pressing power and mode button from remote controller.

Bluetooth operation

This product includes Bluetooth function which can wireless playback the music from other Bluetooth device (like smart phone, tablet, TV etc).

1. Power on the unit, press input button by remote controller repeatedly to enter Bluetooth mode, and the "BT" symbol will flare on display which means the unit is ready to pair.
2. Enable the Bluetooth function on your device, and search the available device (please reference your device manual for operation), then check the available Bluetooth device on the list. Select "BP LS100" for pairing, and the Bluetooth symbol will stable on display after paired successful.
3. Select and play the music from your Bluetooth device, adjust the volume level properly, then the sound will come out from the speaker.
4. In Bluetooth mode, you can do operation like previous/next track selection, play/pause, mute etc. by pressing relevant button from remote controller.

Notices:

a. All Bluetooth devices are not guaranteed for pairing successfully due to different design and brand.
b. The best working distance of Bluetooth is within 10 meters without any obstacle in between.
c. The unit only can pair and work with one Bluetooth device in one time.
d. In case of an incoming phone call during Bluetooth playback; the music will stop temporary, and resume to playback after end the phone call.

e. Long press the play/pause button from remote controller can quit the current Bluetooth device connection, and start pair with other device.

Bluetooth connect with TV: In case of your TV device has Bluetooth function, the soundbar can wireless playback with your TV as well. You have to turn on the Bluetooth function on your TV screen and searching "BP LS100" for connection. Please reference your TV's manual for the details.

USB playback operation

The product includes USB playback function which can decode and playback the music from a USB storage device. Before starting the operation, please copy the MP3 format music into the device; and insert the device into the unit first, because the USB mode is only available when the device plugged on unit successfully. Then the unit will detect and play the inside MP3 music automatically.

In USB playback mode, you can get track selection/play/pause/preset EQ/treble&bass adjustment function etc. by press relevant button from remote controller.

Notes:

a. Connect the USB stick by a USB extension cable for playback is not recommended which may produce noise or intermittent sound due to audio data loss during transfer.
b. Decode and playback all MP3/WAV/WMA format music is not guaranteed.
c. The max supported storage device is up to 32GB.
d. Some different device and brand may take a little long time to playback; please kindly note this is not mal-function.
d. In order to avoid USB stick hitting the wall in soundbar wall-mounted state, we suggest to choose as short as possible USB stick device for playback.

FM radio

The soundbar model includes FM radio function which is able to receive the local FM broadcasting signal for listening.

Scan station: Power on the unit, press mode button repeatedly from remote controller to enter FM radio mode, short press play/pause button from remote controller or side panel of soundbar to auto scan and save(preset) the available station; long press 3 seconds previous/next button from remote controller to auto scan the available station in upward or downward frequency; The unit will auto play the available scanned station. Short press previous/next button from remote controller, or volume +/- button on side panel of soundbar can switch preset station.

In FM mode, you can get volume/treble/bass/EQ function etc. by press relevant buttons.

In order to get better signal, we suggest to place the soundbar next to window. The FM signal antenna is behind the front metal grill. The radio signal may impact by touching, electronic magnet, cable connection etc. Please try to adjust your soundbar placement direction or position to get best signal.

Trouble shooting

1. The speaker cannot turn on.

a. Please check if the power connection is correct.

1. No sound output.

a. Please try to adjust the volume knob, mute button and check the play source.

b. please contact service center for support if the issue remained.

1. Sound distortion.

a. Please try to adjust and play the music at a lower volume level.

b. Check the status of treble/bass setting.

c. Please try to decrease the volume level on outsourcing player like TV etc.

1. The sound is sounding intermittently in Bluetooth mode.

a. Please try to move the Bluetooth device closer to Soundbar.

b. Please try to repair the soundbar with Bluetooth device.

1. There is no sound output in optical or HDMI(ARC) mode.

a. Please check if there was connected properly between soundbar and device.

b. Please make sure that your TV has HDMI(ARC) compliant, and appropriate port was connected. Please set up the TV to HDMI ARC(CEC).

c. Set up audio output mode of TV to PCM format.

1. There is no sound from subwoofer.

a. Please check if the subwoofer connect with soundbar properly.

b. Please contact service support center in case issue remains.

Specifications

General

Power requirements: DC IN 24V/2A

Power consumption (on mode):120 Watt working mode

Standby power consumption :< 0.5 Watt

Output power RMS: 120Watt (30W x 2 + 60W subwoofer)

Total harmonic distortion: <1% (1 kHz, 1W)

Audio input sensitivity: 800 mV

Frequency response: 35 Hz – 20 KHz

USB support music: MP3/WAV/WMA( not guarantee)

USB support device: up to 32GB max.

Soundbar dimensions: 75 x 60 x 950 mm (W x H x D)

Subwoofer dimensions: 130 x 400 x 400 (W x H x D)

FM radio frequency range: 87.5\~108.0MHz

Inputs: 1 x optical, 1 x coaxial, 1 x 3.5mm stereo AUX IN, 1 x HDMI(ARC, V2.0)

Speakers

Soundbar driver impedance: 8Ω *x 2 ; 40*130mm

Woofer impedance: 4 Ω*1; 6.5 inch

Bluetooth

Bluetooth version: V5.0

Work range: approx.10 meters

Transmission frequency: 2.402\~2.480GHz

Protocols: A2DP/AVRCP

(Notes: the product spec may change without prior notice).

Accessories

Remote Control x 1pcs

Remote control battery x 1 pair

Instruction Manual x 1pcs

Warranty card x 1 pcs

Audio cable (3.5mm stereo to RCA) x 1pcs

Wall mount screw: 4pcs x BA3 *14MM +4pcs x plastic wall mount anchor + 2pcs plastic wall mount adaptor

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	Guangzhou Dongcheng Electronics Co., Ltd6th floor, No. 1, Fengdong Baiyun South Street, Huadong Town, Huadu District, Guangzhou, China
Model identifier	DC-2402
Input voltage	220-240	V
Input AC frequency	50/60	Hz
Output voltage	Dc24	V
Output current	2	A
Output power	48.0	W
Average active efficiency	≥89.6	%
Efficiency at low load (10 %)	80.7%	%
No-load power consumption	≤0. 1	W

Line drawing of a rectangular box with a monitor and a scroll, no text or symbols present

Line drawing of a monitor mounted on a box with a cable, no text or symbols present

3D diagram of a cylindrical object with internal components, no text or symbols present

Simple line drawing of a diagonal line with two small dots at endpoints, no text or symbols present

Simple line diagram with two small icons and dashed arrows, no text or symbols present

3D diagram of a cylindrical mechanical part with two connector pins, shown with arrows indicating assembly or connection (no text or symbols present)

Uwaga:

Diagram showing a wall-mounted device connected to a plug, with no visible text or symbols

Upozornění:

Line drawing of a TV set with a monitor and cable (no text or symbols)

Line drawing of a TV set with a monitor and cable, no text or symbols present

2. Montáž na zed:

3D diagram of a cylindrical object with two side flanges and dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints, no text or symbols present.

3D diagram of a cylindrical object with two labeled connectors (no text or symbols present)

Upozornění:

Diagram showing a wall-mounted power outlet connected to a plug, with no text or symbols present.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Line drawing of a rectangular box with a flat top and a vertical scroll inside, no text or symbols present.

Line drawing of a simple TV setup with a monitor and cable holder (no text or symbols)

2. Montáž na stenu:

2. Pripojenie soundbaru k TV dekodéru.

Pozor:

Isometric line drawing of a rectangular box with a flat top and a cylindrical rod on the side (no text or symbols)

Line drawing of a TV set with a monitor and cable rack, no text or symbols present

2. Falra szerelés:

Technical illustration of a cylindrical mechanical component with mounting holes, shown with dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two endpoints marked by dots (no text or symbols)

Diagram of a cylindrical mechanical component with two labeled ports (no text or symbols present)

Figyelem:

Line drawing of a wall-mounted power strip connected to an electrical outlet (no text or symbols)

VAŽNE SIGURNOSNE UPUTE

UGROŽENJE OD ELEKTRIČNOG UDARA NEMOJTE OTVARATI

Oprez:

Kako bi se smanjila opasnost od električnog udara, nemojte skidati poklopac niti stražnj dio uređaja. Unutar uređaja ne postoje komponente za popravak od strane korisnika. Održavanje i popravak opreme izvršava isključivo kvalificirano servisno osoblje.

Objašnjenje grafičkih simbola:

Simbol munje sa sa strelicom koji se nalazi u jednakostraničnom trokutu upozorava na prisutnost neizoliranog „opasnog napona” unutar kućišta uređaja koja može postići veličinu uzrokujuću strujni udar.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika da ovdje su prezentirane važne poruke za rad i održavanjeopreme u dokumentaciji priloženoj uređaju.

Napomene:

Line drawing of a box with a monitor and a rolled paper or scroll on top, no text or symbols present.

Isometric line drawing of a TV set with a monitor and cable (no text or symbols)

2. Montaža na zid:

a. Upotrijebite 2 komada isporučenih plastičnih adaptera za zidnu montažu, pričvrstite ih na nosače za montažu na stražnjoj ploči zvučne trake i isprobajte ih na zidu na konačnom mjestu montaže. Zatim olovkom označite 4 rupe na koje ćete pričvrstiti adaptere za montažu. Provjerite jesu li rupe ispravno poravnate, zatim izbušite rupe za pričvršćivanje.
b. Umetnite 4 komada plastičnih pričvrsnih klinova u izbušene rupe i pomoću isporučenih vijaka pričvrstite 2 komada plastičnih adaptera za zidnu montažu na njih.
c. Objesite soundbar na zidne adaptere.

3D diagram of a cylindrical object with dimension lines and mounting holes, no text or symbols present

Simple line drawing of a diagonal line with two small dots and numbers, no text or symbols present

3D illustration of a cylindrical object with two protruding pins labeled '200' and '200', no text or symbols present.

Žičana audio veza i postavke

Prvo uključite uređaj prije uključivanja zvučne trake. Zvučna traka ima digitalne (optičke/koaksijalni i HDMI (ARC)) i analogne (AUX IN) ulaze za razne izvore. Upute za povezivanje možete pogledati u nastavku, ovisno o uređaju koji imate.

1. Spajanje zvučne trake na TV izlaze.

Uklonite zaštitnu kapicu s OPTICAL priključka, a zatim pomoću optičkog kabela (nije isporučen) spojite OPTICAL OUT priključnicu televizora na OPTICAL ulaznu utičnicu na zvučnoj traci. Veza preko koaksijalni/ HDMI (ARC) / AUX konektora je ista.

3. Spojite zvučnu traku na DVD ili Blu-ray DVD uređaj.

Provjerite koje izlaze ima vaš DVD / Blue-ray DVD uređaj, a zatim upotrijebite odgovarajući kabel za spajanje uređaja na zvučnu traku. Za ispravan rad dovoljno je spojiti se s jednom vrstom konektora.

Pogledajte crtež u nastavku:

4. Spajanje zvučne trake na MP3 uređaj

Zvučna traka ima jedan ulaz MP3 Link (AUX) na koji se može spojiti bilo koji MP3 uređaj. Upotrijebite prikladni kabel završen mini utikačima kao što je prikazano na donjoj slici.

Napomena:

1. Ako sa zvučne trake nema zvuka kad je povezan optičkim/koaksijalni ili HDMI kabelom, provjerite je li postavka digitalnog audio izlaza izvornog uređaja (npr. DVD uređaj, igraća konzola, TV) postavljena na "PCM stereo" ili "stereo 2.0". Pogledajte upute za uporabu televizora ili drugog izvornog uređaja za ovaj postupak.

2. HDMI (ARC): Zvučna traka podržava HDMI ARC standard. Ako je vaš televizor sukladan s HDMI ARC (detalje potražite u korisničkom priručniku za televizor), možete slušati zvuk s televizora putem zvučne trake pomoću jednog HDMI kabela (nije isporučen). HDMI ARC priključak na vašem televizoru može biti drugačije označen, pogledajte korisnički priručnik za vaš TV. 3. Zvučni izlaz u optičkom/koaksijalni i HDMI načinu može biti glasniji nego u načinu AUX IN, što je normalno jer se razina digitalnog audio signala može razlikovati od razine analognog signala.

3. Nakon pravilne montaže i spajanja zvučne trake, koristite je prema ovom korisničkom priručniku.

Rukovanje

Priključak napajanja: Pomoću isporučenog audio kabela spojite subwoofer na Subwoofer Out utičnicu (11) na stražnjoj ploči soundbara. Spojite isporučeni AC/DC adapter na kućnu AC utičnicu za izvor napajanja, zatim uključite utikač u DC ulaz (6) na stražnjoj ploči zvučne trake. Zaslon će se uključiti i napajanje je pravilno priključeno.

Simple line drawing of a wall-mounted device connected to an electrical outlet (no text or symbols)

Uključivanje/isključivanje uređaja: kratko pritisnite gumb za odabir izvora (M) na zvučnoj traci da biste ga uključili i prebacili izvor reprodukcije između Bluetooth / HDMI / FM / optički ulaz / koaksijalni ulaz / AUX / USB; pritisnite i držite (3 sekunde) gumb za odabir izvora da biste uređaj prebacili u stanje čekanja. Iste funkcije možete dobiti i pritiskom na gumb za odabir izvorai zvuk na daljinskom upravljaču.

Bluetooth

Ovaj proizvod ima Bluetooth funkciju koja vam omogućuje bežičnu reprodukciju glazbe s drugog Bluetooth uređaja (poput pametnog telefona, tableta, televizora itd.).

RMS snaga: 120 W (30 W x 2 + 60 W subwoofer)

Ukupno harmonijsko izobličenje: <1% (1kHz, 1W)

Osjetljivost audio ulaza: 800m3

7 - Conector coaxial;

Line drawing of a box with a monitor and a rolled-up cable, no text or symbols present

Line drawing of a TV set with a monitor and cable, no text or symbols present

3D diagram of a cylindrical object with internal grooves and mounting holes, shown with dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Diagram of a cylindrical mechanical component with two connectors and directional arrows indicating assembly (no text or symbols)

2. Conectarea barei de sunet la un set-top box TV.

4. Conectarea barei de sunet la un player MP3

Atentie:

Putere RMS: 120 W (30 W x 2 + 60 W subwoofer)

Забележки:

Line drawing of a TV set with a monitor and stand (no text or symbols)

Line drawing of a TV set with a monitor and cable, no text or symbols present

3D diagram of a cylindrical object with internal structure, shown with dimension lines and mounting points (no text or symbols)

Simple line drawing of a diagonal line with two small dots at the ends (no text or symbols)

3D diagram of a cylindrical object with two small protrusions and directional arrows, no text or symbols present

Забележка:

Simple line drawing of a wall-mounted power plug connected to a power outlet (no text or symbols)

Σημειώσεις:

Line drawing of a rectangular box with a monitor and a scroll, no text or symbols present

Line drawing of a 3D box with a monitor and cylindrical rod, no text or symbols present

Technical illustration of a cylindrical mechanical component with mounting holes, shown with dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

3D diagram of a cylindrical mechanical part with two connectors and directional arrows indicating assembly (no text or symbols)

Προσοχή:

Diagram showing a wall-mounted power outlet connected to an electrical plug, with no text or symbols present.

Märkused:

Line drawing of a TV set with a monitor and cable (no text or symbols)

Line drawing of a 3D box with a monitor and cable, no text or symbols present

2. Paigaldamine seinale:

Technical illustration of a cylindrical mechanical part with mounting holes and dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Simple line drawing of a diagonal line with two vertical tick marks and a small circular symbol at the end (no text or labels)

Diagram of a cylindrical object with two labeled arrows pointing to its ends (no text or symbols present)

Tähelepanu:

Diagram showing a wall-mounted device connected to a plug, with an outlet and power outlet nearby (no text or symbols)

Pastabos

Line drawing of a rectangular box with a monitor and a scroll, no text or symbols present

Line drawing of a 3D box with a monitor and a rolled cable, no text or symbols present

Technical illustration of a cylindrical mechanical part with mounting holes, shown with dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Simple line diagram with two small blocks and a diagonal line, no text or symbols present

3D diagram of a cylindrical object with internal structure and directional arrows, no text or symbols present

2. Garso sistemos prijungimas prie TV dekoderio.

Dèmesio.

Diagram showing a wall-mounted device connected to an electrical outlet with a plug, no text or symbols present

Opozorila:

Isometric line drawing of a rectangular box with a flat top and a rolled paper or scroll on the side (no text or symbols)

Isometric line drawing of a computer monitor mounted on a box with a rolled cable (no text or symbols)

Technical illustration of a cylindrical mechanical component with mounting holes (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Simple line drawing of a diagonal line with two small figures at each end (no text or symbols)

3D diagram of a cylindrical mechanical part with two protruding connectors and directional arrows indicating assembly (no text or symbols)

2. Povezava Soundbarja s televizijskim odkodirnikom

3. Povezava Soundbarja s predvajalnikom DVD ali Blue-ray DVD.

Pozor:

Line drawing of a wall-mounted device with two switches and an electrical outlet connected by a cable (no text or symbols)

Line drawing of a box with a monitor and ruler on top, no text or symbols present

Line drawing of a TV set with a monitor and a rolled-up cable (no text or symbols)

Technical illustration of a cylindrical mechanical part with mounting holes, shown with dimension lines (no text or symbols)

Simple line drawing of a diagonal line with two small dots at endpoints (no text or symbols)

Simple line diagram with two car icons and dashed lines, no text or symbols present

3D diagram of a cylindrical mechanical component with two connectors and directional arrows indicating assembly (no text or symbols)

Piezime:

Simple line drawing of a wall-mounted device connected to an electrical outlet (no text or symbols)

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
