| Product Type | Electric Grill |
| Brand | Zelmer |
| Model | 40Z010 |
| Power Supply | 230 V AC, 50 Hz |
| Temperature Control | Adjustable thermostat (5 settings: I to V) |
| Heating Plate Coating | Non-stick coating |
| Pilot Light | Yes (indicates heating) |
| Heat-Resistant Handles | Yes |
| Grease Drip Tray | Removable |
| Fat Drainage | Yes |
| Safety Features | Thermal protection, grounding required |
| Usage | Indoor household use only |
| Cleaning Thermostat | Wipe with damp cloth only; do not immerse |
| Cleaning Heating Plate | Wipe with damp cloth; do not use abrasive cleaners |
| Dishwasher Safe | No |
| Utensils Recommended | Wooden or silicone utensils to avoid scratching non-stick surface |
Frequently Asked Questions - 40Z010 Zelmer
User questions about 40Z010 Zelmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grill in PDF format for free! Find your manual 40Z010 - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 40Z010 by Zelmer.
USER MANUAL 40Z010 Zelmer
R. 5 successfully sequently (semi-sensory, 2 amks from the
C. Perform visual input to a function
SN: 5-sluphava ma-škort laskby s kostroko.
MIL 5.100-12.5 (1984) - BIL (2007)
10
B) 100% of the U.S. government has a party in the United States
RU 5-2010 HATU A THERMANTO COI SOTOBEN IN DIOFICUM.
EN Cooltraro handles operating from Hues
R. Alstom in stenion 10, mays 1915
(3) Position of the company's performance
- Business revenue and related financial activities
No reoplen-pamu soujgao da
| C | NAVO K POLUTI ELEKTRYKCY GRIL Typ 02/2019 | 7-8 | HDL | INTEKTUNION DE OLANDS GRILL ELECTRIC Typ 02/2019 | 16-16 | HDL | HDLNATAT LAKTAS ELECTRIC GRILL Typ 02/2019 | 20-27 |
| C | NAVO MUSBUL ELEKTRYKCY GRIL Typ 02/2019 | 10-12 | HDL | INTEKTUNION DE OLANDS ELECTRIPNECKOM GRILL Typ 02/2019 | 19-21 | HDL | HDLNATAT LAKTAS ELECTRIC GRILL Typ 02/2019 | 20-30 |
zelmer
www.zeimer.com
A
B
Szanowny Kllendel
Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.
In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.
Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.
Safety and proper use instructions
Danger! / Warning! Health hazard
The supplying cord and extension cord can not be in touch with water or other liquids.
Do not start up the appliance, In case the supplying cord or housing, thermostat and grill are visibly damaged. Make a visual inspection before each start-up.
the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.
Improper repair can result in serious hazard for a user. In case of defects we recommend you to contact qualified service desk.
Place the appliance only at dry, flat, firm and heat-resistant surface.
Do not touch the plug and temperature adjustment knob with wet hands.
Do not touch hot surfaces.
necessary to remove the grill, at first unplug it. After cooling down, move carrying with handles using kitchen gloves, as the handles can be still hot. Take special safety measures!
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
Be careful when removing the tray, protect well the surface under the grill, be careful with hot fat and other hot liquids.
Let the appliance cool down before cleaning or disassembling.
Always disassemble thermostat before immersing in water to avoid electric shock.
Do not immerse temperature sensor, supplying cord or plug neither in water nor in any other liquid.
Caution! Not observance can result in damage to possessions
Connect the appliance to AC mains supply 230 V with grounding. You may use an extension cord (3 conductors) conducting current intensity min. 10 A.
Do not unplug pulling by the cord.
Use the appliance with original thermostat only – with supplying cord and accessories.
Keep the proper space over and around the grill to provide an easy air flow. Do not let the appliance touch curtains, wall-paper, cloths, towels or other combustible materials during operation. Do not use under cupboards or curtains. Be careful in case of surface sensitive for heat – thermo isolating pad is recommended.
Do not place the appliance on or near open fire, hot burner or heated oven.
It is not allowed to use charcoal or similar combustive materials.
Before usage make sure that grease drip tray and grill are properly assembled on the base.
Do not use your grill without grease drip tray assembled.
Do not move the grill pulling by supplying cord.
Do not let the supplying cord touch hot surfaces.
- Use not sharp, the best wooden utensils to turn the food, in order to avoid scratching non-sticking surface.
case it is necessary to use sharp utensils and knives, i.e. to cut something when grilling, at first remove the product from the grill.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
order to avoid any risk posed by an unintentional return to the initial state of thermal protection, the equipment is not to be supplied via an external switch, such as a programmable timer switch, or connected to the circuit regularly enclosed and disabled by the power supply.
s not allowed to cover the heating plate with aluminium foil, lid, etc, which can result with heat accumulation and damage plastic parts and the layer.
Sometimes it is necessary to move the fat manually to fat drainage, in order to do it, use always wooden, not pointed utensils.
Do not use aggressive detergents like cream, milk, paste etc. to clean the casing. They can remove graphic symbols such as: scales, marking, caution signs, etc.
Do not wash the parts in dishwasher.
Dry thoroughly after cleaning. Make sure the appliance is completely dry before thermostat assembling.
estion
Information on the product and suggestions for its use
The appliance is intended for household use, indoors only.
The heating surface is coated with special non-stick layer; therefore do not use sharp utensils for turning grilled products. Use only soft wooden spatula.
In order to provide additional protection, it is recommended to install the residual current device (RCD) with nominal residual power not exceeding 30 mA. You should contact the professional electrician in this concern.
While cooking some fatty dishes, it can be necessary to empty the grease drip tray.
The appliance is intended solely for household use, indoors.
Apply the recommended temperature setting. You can adjust the temperature during grilling if necessary.

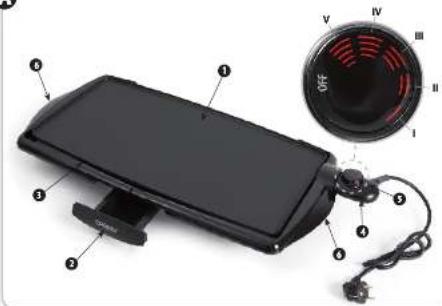

Outline
(Fig. A)
1 Heating plate – grids
2 Grease drip tray
3 Fat drainage
4 Thermostat with supplying cord
5 Pilot lamp
6 Heat-resistant handles
Specifications
The appliance is built in I class isolation, grounding necessary.
Technical parameters are included at the name plate.
Grill meets the requirements of appropriate standards.
The appliance meets the requirements of the following directives:
- Low Voltage Device (LVD) - 2006/95/EC.
- Electro- Magnetic Compatibility (EMC) - 2004/108/EC.
The product is marked with CE symbol on the name plate.
Assembling
(Fig. B)
Remove all stickers before first usage and clean the appliance thoroughly (see: „Cleaning and maintenance”).
Make sure hat the heating plate socket and thermostat plug are dry.
- check if the fat drainage (3) is permeable, clean it and remove dirt if necessary.
① Install the grease drip tray (2) at the grill (1).
② Apply a small amount of oil on the heating plate (1) before usage and distribute it with paper towel.
③ Insert the thermostat with supplying cord (4) in the appliance socket. Make sure that the thermostat knob is in "OFF" position.
④ Connect the supplying cord to the mains supply outlet.
Start-up
●et the thermostat ("I" to "V").
(4) for desired temperature
"I" = the lowest temperature.
“V” = the highest temperature.
During warming up the pilot light (5) glows. When the appliance reaches the set temperature, the light goes off and the heater shall switch off. The grill heat up from time to time, in order to keep the set temperature.
ing first usage, the preserving materials shall be burnt which can cause short emission of unpleasant smell at the initial stage of grilling.
It is not allowed to move the hot appliance during operation! At first switch off and wait until it cools down. Move with heat-resistant handles only.
Operation guidelines
is recommended to wipe the surface with edible oil before grilling products in order to improve the non-sticking properties.
The grilling plate (1) is perfect for preparing eggs, ham, tomatoes, onion, etc. It is also excellent for keeping the dishes warm.
The 3–4 level is recommended in order to obtain uniform grilling.
eat the grill before putting the products on (unless the receipt requires otherwise).
When preparing tender dishes (i.e. fish) after applying spices you can wrap it with aluminium foil.
- soft pieces of meat are the best for grilling.
You can marinate meat in advance, to make it tenderer.
Use special tongs or spatula for turning products on grill, it is not allowed to use pointer forks.
Do not turn the grilled products to often. In case they get brown on both sides, finish grilling at lower temperature. Thanks to it the products shall not get dry and they shall be uniformly grilled.
case the products are not instantly consumed, you can keep them warm with 1 level setting.
It is not allowed to cut the products on the grill, in order to prevent the damages of non- stick layer.
After operation
Set the thermostat in "OFF" position in order to switch off the appliance.
Always disconnect form mains after usage. Let the appliance cool down before disassembling and cleaning.
Cleaning and maintenance
Wash and wipe thoroughly all parts before storage.
Take sure that the plug and heating plate is dry before connecting the thermostat to the heating plate. If necessary, wipe thoroughly with dry cloth and leave for drying for a while.
Thermostat
On no account allow the water get inside the thermostat! Do not clean under running water and do not immerse! Clean the thermostat with damp cloth only.
Heating plate
is forbidden to use caustic cleaning agents, scourers with scouring agents, wire wool, etc., as they can damage non-stick surface.
Remove severe dirt with damp cloth. Use a soft bottle brush for cleaning the grill.
Grease drip tray
- clean the grease drip tray with damp cloth or under running water.
appliance is not intended for being washed in dishwashers!
Ecology – Environment protection
Each user can protect the natural environment. It is neither difficult nor expensive.
In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.
When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
Do not dispose into the domestic waste disposal!!!
The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.
The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
