USER MANUAL 40Z011 Zelmer
- Tumor necrosis (d) improves cooling by reducing moisture for urban food
- Uchstyt z Mierzywa bratiszoguogo spoklengace opitabion
D2617
- D'abit is an important problem
2.1.1.
EN Dip try to easy deaming
20-700-0H23
zelmer
www.zelmercl
www.123.com
zelmer
40Z011
| NAVO X POLUTI ELEKTRYCKY GRILTyp 40/2011 | 7-9 | INDUSTRIAL DE LASLASERGILL ELECTRICTyp 40/2011 | 10-16 | INDUSTRIAL DE LASLASERGILL ELECTRAPHAMI GRILLTyp 40/2011 | 20-27 |
| NAVO MUSICAL ELEKTRYCKY GRILTyp 40/2011 | 10-12 | INDUSTRIAL DE LASLASERGILLPEKHECMAI GRILLTyp 40/2011 | 19-21 | INDUSTRIAL ELECTRIC GRILLTyp 40/2011 | 20-30 |
40Z011
zelmer
www.zeimer.com www.zeimer.com
A
B
Szanowny Kliende!
Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.
Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.
Safety and proper use instructions
Danger! / Warning! Health hazard
The supplying cord and extension cord can not be in touch with water or other liquids.
Do not start up the appliance, In case the supplying cord or housing, thermostat and grill are visibly damaged. Make a visual inspection before each start-up.
the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.
Improper repair can result in serious hazard for a user. In case of defects we recommend you to contact qualified service desk.
- Place the appliance only at dry, flat, firm and heat-resistant surface.
Do not touch the plug and temperature adjustment knob with wet hands.
Do not touch hot surfaces.
necessary to remove the grill, at first unplug it. After cooling down, move carrying with handles using kitchen gloves, as the handles can be still hot. Take special safety measures!
This appliance can be used by children aged 8 years and over as well as persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are properly supervised or have been given instruction on the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless aged 8 years and above and properly supervised.
Let the appliance cool down before cleaning or disassembling.
Always disassemble thermostat before immersing in water to avoid electric shock.
Do not immerse temperature sensor, supplying cord or plug neither in water nor in any other liquid.
Caution! Not observance can result in damage to possessions
Connect the appliance to AC mains supply 230 V with grounding. You may use an extension cord (3 conductors) conducting current intensity min. 10 A.
Do not unplug pulling by the cord.
Use the appliance with original thermostat only – with supplying cord and accessories.
Keep the proper space over and around the grill to provide an easy air flow. Do not let the appliance touch curtains, wall-paper, cloths, towels or other combustible materials during operation. Do not use under cupboards or curtains. Be careful in case of surface sensitive for heat – thermo isolating pad is recommended.
Do not place the appliance on or near open fire, hot burner or heated oven.
- is not allowed to use charcoal or similar combustive materials.
Before usage make sure that grease drip tray and grill are properly assembled on the base.
Do not use your grill without grease drip tray assembled.
Fill the grease drip tray with water up to max level, to reduce smoke emission and make cleaning easier.
Do not move the grill pulling by supplying cord.
Do not let the supplying cord touch hot surfaces.
Use not sharp, the best wooden utensils to turn the food, in order to avoid scratching non-sticking surface.
case it is necessary to use sharp utensils and knives, i.e. to cut something when grilling, at first remove the product from the grill.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
in order to avoid any risk posed by an unintentional return to the initial state of thermal protection, the equipment is not to be supplied via an external switch, such as a programmable timer switch, or connected to the circuit regularly enclosed and disabled by the power supply.
s not allowed to cover the heating plate with aluminium foil, lid, etc, which can result with heat accumulation and damage plastic parts and the layer.
Do not use aggressive detergents like cream, milk, paste etc. to clean the casing. They can remove graphic symbols such as: scales, marking, caution signs, etc.
Do not wash the parts in dishwasher.
Dry thoroughly after cleaning. Make sure the appliance is completely dry before thermostat assembling.
stion
Information on the product and suggestions for its use
The appliance is intended for household use, indoors only.
The heating surface is coated with special non-stick layer; therefore do not use sharp utensils for turning grilled products. Use only soft wooden spatula.
In order to provide additional protection, it is recommended to install the residual current device (RCD) with nominal residual power not exceeding 30 mA. You should contact the professional electrician in this concern.
While cooking some fatty dishes, it can be necessary to empty the grease drip tray.
Apply the recommended temperature setting. You can adjust the temperature during grilling if necessary.

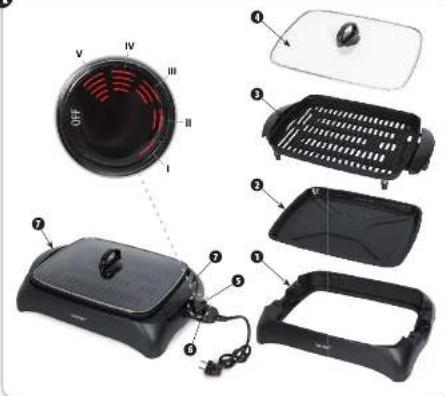

Outline
(Fig. A)
1 Grill base
2 Grease drip tray
3 Heating plate – grids
4 Lid
5 Thermostat with supplying cord
6 Pilot lamp
7 Heat-resistant handles
Specifications
The appliance is built in I class isolation, grounding necessary.
Technical parameters are included at the name plate.
Grill meets the requirements of appropriate standards.
This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.
The appliance meets the requirements of the following directives:
– Low Voltage Device (LVD) – 2006/95/EC.
- Electro- Magnetic Compatibility (EMC) - 2004/108/EC.
The product is marked with CE symbol on the name plate.
Assembling
(Fig. B)
Remove all stickers before first usage and clean the appliance thoroughly (see: „Cleaning and maintenance”).
Make sure hat the heating plate socket and thermostat plug are dry.
① Install the grease drip tray (2) at the base (1).
② Fill the grease drip tray with water up to max level, to reduce smoke emission and make cleaning easier.
③ Assemble the heating plate (3) at the base.
④ Apply a small amount of oil on the heating plate before usage and distribute it with paper towel.
⑤ Cover the grill with the lid (4) if necessary.
⑥ Insert the thermostat with supplying cord (5) in the appliance socket.
⑦ Make sure that the thermostat knob is in "OFF" position.
⑧ Connect the supplying cord to the mains supply outlet.
Start-up
Set the thermostat ("I" to "V").
(5) for desired temperature
"I" = the lowest temperature.
“V” = the highest temperature.
During warming up the pilot light (6) glows. When the appliance reaches the set temperature, the light goes off and the heater shall switch off. The grill heat up from time to time, in order to keep the set temperature.
During first usage, the preserving materials shall be burnt which can cause short emission of unpleasant smell at the initial stage of grilling.
not allowed to move the hot appliance during operation! At first switch off and wait until it cools down. Move with heat-resistant handles only.
Operation guidelines
- is recommended to wipe the surface with edible oil before grilling products in order to improve the non-sticking properties.
The grids (3) are perfect for preparing meat, fish and poultry. The fat and juice flows though the grids spaces down to the grease drip tray which provides preparation of healthy and low-fat meals.
The 3–4 level is recommended In order to obtain uniform grilling.
Heat the grids before putting the products on.
When preparing tender dishes (i.e. fish) after applying spices you can wrap it with aluminium foil. - soft pieces of meat are the best for grilling.
You can marinate meat in advance, to make it more tender.
Use special tongs or spatula for turning products on grill, it is not allowed to use pointer forks.
Do not turn the grilled products to often. In case they get brown on both sides, finish grilling at lower temperature. Thanks to it the products shall not get dry and they shall be uniformly grilled.
case the products are not instantly consumed, you can keep them warm with 1 level setting.
It is not allowed to cut the products on the grill, in order to prevent the damages of non-stick layer.
After operation
- Get the thermostat in "OFF" position in order to switch off the appliance.
always disconnect form mains after usage. Let the appliance cool down before disassembling and cleaning.
Cleaning and maintenance
Wash and wipe thoroughly all parts before storage.
Take sure that the plug and heating plate are dry before connecting the thermostat to the heating plate. If necessary, wipe thoroughly with dry cloth and leave for drying for a while.
Thermostat
On no account allow the water get inside the thermostat! Do not clean under running water and do not immerse! Clean the thermostat with damp cloth only.
Heating plate
- is forbidden to use caustic cleaning agents, scourers with scouring agents, wire wool, etc., as they can damage non-stick surface.
Remove severe dirt with damp cloth. Use a soft bottle brush for cleaning the grids.
Base, grease drip tray, lid
Clean the base, the lid and grease drip tray with damp cloth or under running water.
appliance is not intended for being washed in dishwashers!
Ecology – Environment protection
Each user can protect the natural environment. It is neither difficult nor expensive.
In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.
When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
Do not dispose into the domestic waste disposal!!!
The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.
The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
