Product Type	3-in-1 Sandwich Maker / Waffle Maker / Grill
Brand	ECG
Model	S 299 3in1
Power Supply	220-240 V~ 50/60 Hz, 700 W
Dimensions (approx.)	25 x 25 x 10 cm
Weight (approx.)	1.5 kg
Interchangeable Plates	Sandwich, waffle, grill plates included
Plate Material	Non-stick coating
Indicator Lights	Power (red) and readiness (green)
Handle	Cool-touch handle with lock
Plate Release Latches	Upper and lower plate release latches
Cord Storage	Space for power cord rewinding at bottom
Preheating Time	Approx. 5 minutes
Cooking Time	2–3 minutes for sandwiches
Cleaning	Wipe with damp cloth; plates removable for cleaning; not dishwasher safe
Safety Features	Hot surface warning, automatic temperature control, lockable handle
Usage	Household use only
Included Accessories	3 sets of plates (sandwich, waffle, grill)
Spare Parts Availability	Removable plates available through service
Compliance	EU directives on electromagnetic compatibility and electrical safety

Frequently Asked Questions - S 299 3in1 ECG

Can I use metal utensils on the non-stick plates?

No, do not use metal utensils as they can scratch the non-stick surface. Use only plastic or wooden spatulas.

How do I change the plates?

Ensure the appliance is cool and unplugged. Push the release latches (marked ⑩ and ⑪ on the diagram) to remove the current plates, then snap the desired plates into place.

Why does the appliance smoke when first used?

A slight odor or smoke during first use is normal due to heating elements. We recommend running the appliance without food for a few minutes to burn off any residues.

Can I wash the plates in the dishwasher?

No, do not wash the plates in the dishwasher. Clean them with a damp cloth or sponge, and remove baked-on residue with a plastic spatula.

What does the green light mean?

The green light indicates that the appliance has reached the correct grilling temperature. It may turn on and off during use as the temperature is maintained.

How long does it take to preheat?

Preheating takes about 5 minutes. The red power light stays on, and the green readiness light will go off when ready.

Can I use the appliance without any food?

Yes, for initial burn-in to remove odors. But do not leave it unattended, and ensure it is placed on a heat-resistant surface.

Is the handle supposed to get hot?

No, the handle is designed to stay cool during use. If it becomes hot, check that the lock is secure and contact service if needed.

What types of sandwiches can I make?

You can make toasted sandwiches with any filling. For best results, butter the outer sides of the bread and place filling between two slices.

How do I store the appliance?

Allow it to cool completely, wrap the cord around the bottom storage area, and store in a dry place. Keep out of reach of children.

USER MANUAL S 299 3in1 ECG

Black and white photo of a ECG grater with two side buttons (red and green) on the front panel (no text or symbols on the grater itself)

S 299 3in1

CZ

SENDVIČOVAČ NÁVOD K OBSLUZE

SK

SENDVIČOVAČ NÁVOD NA OBSLUHU

PL

OPIEKACZ INSTRUKCJA OBSŁUGI

HU

SZENDVICSSÜTÖ HASZNÁLATI ÚTMUTATÓ

DE

CZ

1. Handle
2. Power indicator (red) and readiness (green)
3. Stainless steel surface
4. Top lid
5. Top non-stick plate
6. Bottom non-stick plate
7. Space for power cord rewinding
8. Bottom part
9. Handle lock
10. Release latches of the upper plate
11. Release latches of the lower plate

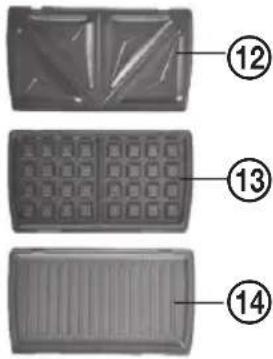

12. Removable plates for making sandwiches, triangular
13. Removable plates for making waffles
14. Removable grilling plates

HR/BIH

Do not immerse in water! – Neponořovat do vody!

Horký povrch!

PŘED PRVNÍM POUŽITÍM

Horúci povrch!

PRED PRVÝM POUŽITÍM

Forró felület!

HU

AZ ELSŐ HASZNÁLATBA VÉTEL ELŐTT

Heiße Oberfläche!

DE

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, the user is responsible for these factors when using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

GB

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Never use the appliance when the power cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock.
4. The appliance should not be left unattended when in operation.
5. We recommend that you do not leave the appliance with plugged in power cable unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
6. Do not use the appliance outside or in a wet environment. Do not touch the power cord or the appliance with wet hands. Risk of electric shock.
7. Pay closer attention when using the appliance near children.

8. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

9. The temperature of surfaces near the operating appliance can be hotter than usual. Place the appliance out of the reach of other objects so as to ensure free circulation of air necessary for its correct operation.

10. Do not touch the grilling plates during or after use or hot parts of the baked product, until is cools off. Only touch the handle to prevent from burning yourself.
11. Do not immerse the appliance nor toasting plates in water and do not clean it under running water.
12. Keep the appliance away from hot surfaces and sources of heat (for example, hot plates).
13. Use only in accordance with instructions provided in this manual. The manufacturer is not liable for any damage caused by the improper use of this appliance.
14. Do not connect the appliance to electrical outlets with remote switch or remotely controlled timer.
15. This appliance is specified for household use.
16. This appliance can be used by children aged eight and older and by the physically, sensory or mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 must be kept away from the appliance and its power supply.

Do not immerse in water!

DANGER FOR CHILDREN: Children may not play with the packaging material. Do not let children play with the plastic bags. Danger of suffocation.

The surfaces marked in this way become hot during use.

Hot surface!

BEFORE USING FOR THE FIRST TIME

1. Read the manual before use and save it for future reference.
2. Remove the packing material and all labels from the appliance.
3. Clean the toasting plates with a damp towel or sponge.

Do not immerse the appliance in water and do not pour water on the grilling plates.

1. Dry it using tea towel or paper towel.

Note: You may note a slight odour of smoke when you use the sandwich maker for the first time. This is normal for most appliances with heating elements and does not present a threat to safety of your appliance. For this reason, we recommend that each type of plate is “burned” without food prior to first use, until the odor or smoke is reduced.

REPLACING THE BAKING PLATES

1. When you open the sandwich maker, push the release latches ⑩ a ⑪ and remove the released plates.
2. Put in the plates that you want to use and push them into the holder until they snap into place.

Never change the non-stick plates of the sandwich maker during operation! The appliance must be cool and disconnected from the outlet!

PREPARING SANDWICHES

1. Prepare the filling for your sandwich. You will need two slices of bread and a suitable filling for each sandwich.
2. Close the sandwich maker and plug it in. Note that the power and readiness indicator lights come on, indicating that the preheating started.
3. Achieving the baking temperature takes about 5 minutes, then the readiness light fades.
4. Open the lid and place the food on the lower grilling plate.
5. To achieve an even better golden-brown color, you can smear some butter on the side of the bread that is in contact with the toasting plate.
6. Place the side of the bread slice with butter on the bottom toasting plate, insert filling and cover with second bread slice with the buttered side up. For optimal results, make sure the filling is placed correctly between the slices of bread.
7. Carefully shut the top toasting plate on the sandwich and fully close the sandwich toaster.
8. Open the sandwich toaster after 2–3 minutes and check that the sandwich is sufficiently toasted. If you like a crispy and well-toasted sandwich, the length of preparation depends on the type of bread, ingredients used and your own personal taste.
9. When your meal is ready, open the lid of the sandwich maker using the handle. To remove the food, use a plastic spatula. Never use metal tongs or knife, you could damage the non-stick surface of the grilling plates.
10. Unplug the sandwich maker from the outlet after use and open it to let it cool.

Note: The green indicator light flashes on and off, signalling readiness for grilling, depending how is the correct temperature of the grilling plates maintained.

CLEANING AND STORAGE

• Always unplug the power cord before cleaning and wait until the sandwich maker cools down. The plates can be removed for easier cleaning. Do not use dishwasher to wash the plates.
- Gently wipe the food residue from the grilling plates. Moisten the baked-in residue using a solution of warm water and detergent and remove it using a plastic spatula, or place a wet paper towel on the grilling plates to soak the baked-in residue.
- Do not use sharp objects, which could scratch the non-stick surface.
- Do not use metal tools to remove food, you could damage the non-stick surface.
- Wipe the external surface of the appliance using wet cloth. Do not use cleaning powders or scrubbers for external surface cleaning. You could damage the surface finish.
- Do not immerse in water or other liquids. Do not wash in the dishwasher.
• Always make sure before storing that the sandwich maker is cool and dry.
- The power cord can be wrapped around the bottom of the appliance for easy storage.

TECHNICAL DATA

Nominal voltage: 220-240 V\~ 50/60 Hz

Nominal input power: 700 W

GB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

SIGURNOSNE UPUTE

Vruća površina!

PRIJE PRVOG KORIŠTENJA

1. Prije upotrebe pažljivo pročitajte upute i spremite ih za buduću uporabu.
2. Uklonite svu ambalažu i naljepnice s uređaja.
3. Očistite plohe za pečenje vlažnom krpom ili spužvom.

Vroča površina!

PRED PRVO UPORABO

1. Pred uporabo temeljito preberite navodila in jih shranite za kasnejšo event. uporabo.
2. Iz aparata odstranite embalažni material in vse nalepke.
3. Površine za pečenje očistite z vlažno krpo ali gobico.

Aparata ne potapljajte v vodo in na površine za pečenje ne spuščajte vode direktno!

1. Posušite s krpo ali papirnato brisačo.

BEZBEDNOSNA UPUTSTVA

Vruća površina!

PRE PRVE UPOTREBE

1. Pre upotrebe pažljivo pročitajte uputstva i sačuvajte ih za upotrebu u budućnosti.
2. Uklonite svu ambalažu i nalepnice sa uređaja.
3. Očistite površine ploča za pečenje vlažnom krpom ili sunderom.

Karštas paviršius!

PRIEŠ NAUDOJIMĄ PIRMA KARTĄ
