S 199 Quattro - Pliers ECG - Free user manual and instructions

Product Type	Pliers
Brand	ECG
Model	S 199 Quattro
Total Length	Approximately 200 mm (7.9 in)
Jaw Length	Approximately 50 mm (2 in)
Weight	Approximately 250 g (0.55 lb)
Material	Chrome vanadium steel
Handle Type	Non-slip, ergonomic grips
Jaw Type	Multi-position adjustable joint with parallel jaws
Cutting Capacity	Up to 3 mm (0.12 in) wire (medium soft)
Gripping Capacity	Flat and round objects up to 30 mm (1.2 in) diameter
Primary Function	Gripping, bending, cutting wires and cables
Additional Function	Integrated wire stripper and crimper
Safety Feature	Locking mechanism for secure storage
Maintenance	Clean with dry cloth; lubricate pivot with light oil periodically
Storage	Store in a dry place, away from moisture
Spare Parts Availability	Replacement grips and pivot pins available from manufacturer
Repairability	User-replaceable parts; disassembly possible with standard tools
Warranty	2 years against defects in materials and workmanship
Compliance	CE, RoHS

Frequently Asked Questions - S 199 Quattro ECG

What is the ECG S 199 Quattro pliers used for?

These pliers are designed for gripping, bending, cutting, stripping, and crimping wires and cables. They are ideal for electrical work, DIY projects, and general purpose tasks.

What materials are the pliers made of?

The pliers are crafted from high-quality chrome vanadium steel, which provides strength, durability, and resistance to corrosion.

Can I cut steel wire with these pliers?

The cutting capacity is up to 3 mm diameter for medium soft wire like copper or aluminum. Hard steel wire may damage the cutting edge.

How do I adjust the jaw opening?

The S 199 Quattro features a multi-position joint. Slide the button on the handle to release the lock, then move the jaws to the desired opening. Release the button to lock in place.

Are replacement parts available?

Yes, replacement grips and pivot pins are available from the ECG manufacturer. Contact customer support for ordering information.

How do I maintain these pliers?

After use, wipe clean with a dry cloth. Periodically apply a drop of light machine oil to the pivot joint to ensure smooth operation. Avoid using solvents or abrasive cleaners.

Is it safe to cut live wires?

No, these pliers are not insulated. Always disconnect the power source before cutting or working with live wires to prevent electric shock.

What is the weight of the pliers?

The pliers weigh approximately 250 grams (0.55 pounds), making them lightweight and comfortable for extended use.

Can I use these pliers for automotive repairs?

Yes, they are suitable for automotive electrical work, such as cutting and stripping wires, crimping connectors, and gripping small parts.

What is the warranty period?

The ECG S 199 Quattro pliers come with a 2-year warranty against manufacturing defects. Proof of purchase is required for warranty claims.

USER MANUAL S 199 Quattro ECG

Black and white photo of a ECG grater with a red button on top (no text or symbols visible)

S 199 Quattro

CZ

SENDVIČOVAČ

NÁVOD K OBSLUZE

SK

NAPEŇOVAČ MLIEKA

NÁVOD NA OBSLUHU

PL

SPIENIACZ DO MLEKA

INSTRUKCJA OBSŁUGI

HU

TEJHABOSÍTÓ

HASZNÁLATI ÚTMUTATÓ

DE

MILCHAUFSCHÄUMER

BEDIENUNGSANLEITUNG

GB

MILK FROTHER

INSTRUCTION MANUAL

SR/MNE

VIŠENAMENSKI APARAT ZA KUVANJE

UPUTSTVO ZA UPOTREBU

SI

PENILNIK ZA MLEKO

NAVODILA

ET

MULTIFUNKTSIONAALNE TOIDUVALMISTAJA

KASUTUSJUHEND

LT

DAUGIAFUNKCINIS PUODAS

INSTRUKCIJŲ VADOVAS

LV

DAUDZFUNKCIJU KATLS

ROKASGRÄMATA

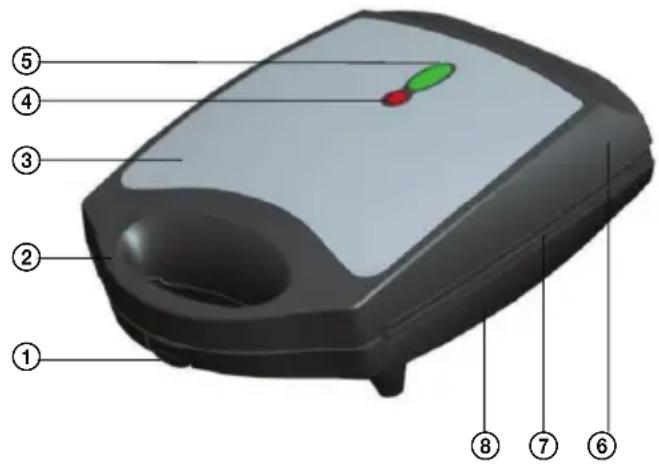

POPIS / POPIS / OPIS / LEÍRÁS / BESCHREIBUNG / DESCRIPTION / OPIS / OPIS / KIRJELDUS / APRAŠYMAS / APRAKSTS

CZ

1. Lid latch
2. Handle
3. Stainless steel surface
4. Power On light (red)
5. Ready to Cook indicator (green)
6. Top lid
7. Non-stick grilling plates
8. Bottom part

SR/MNE

1. Zatvarač poklopca
2. Ručka
3. Površina od nerđajućeg čelika
4. Indikator napajanja (crveni)
5. Indikator spremnosti za tostiranje (zeleni)
6. Gornji poklopac
7. Nelepljive ploče
8. Donji deo

SI

Do not immerse in water! – Neponořovat do vody!

Horký povrch!

PŘED PRVNÍM POUŽITÍM

Horúci povrch!

PRED PRVÝM POUŽITÍM

Forró felület!

HASZNÁLATI UTASÍTÁS

Heiße Oberfläche!

DE

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, the user is responsible for these factors when using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Never use the appliance when the power cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock.
4. The appliance should not be left unattended when in operation.
5. We recommend that you do not leave the appliance with plugged in power cable unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
6. Do not use the appliance outside or in a wet environment. Do not touch the power cord or the appliance with wet hands. Risk of electric shock.
7. Pay closer attention when using the appliance near children.

8. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

9. The temperature of surfaces near the operating appliance can be hotter than usual. Place the appliance out of the reach of other objects so as to ensure free circulation of air necessary for its correct operation.

10. Do not touch the grilling plates during or after use or hot parts of the baked product, until is cools off. Only touch the handle to prevent from burning yourself.
11. Do not immerse the appliance nor toasting plates in water and do not clean it under running water.
12. Keep the appliance away from hot surfaces and sources of heat (for example, hot plates).
13. Use only in accordance with instructions provided in this manual. The manufacturer is not liable for any damage caused by the improper use of this appliance.
14. Do not connect the appliance to electrical outlets with remote switch or remotely controlled timer.
15. This appliance is specified for household use.
16. This appliance can be used by children aged eight and older and by the physically, sensory or mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 must be kept away from the appliance and its power supply.

Do not immerse in water!

DANGER FOR CHILDREN: Children may not play with the packaging material. Do not let children play with the plastic bags. Danger of suffocation.

The surfaces marked in this way become hot during use.

Hot surface!

BEFORE FIRST USE

1. Read the manual before use and save it for future reference.
2. Remove the packing material and all labels from the appliance.
3. Clean the grilling plates with a damp towel or sponge.

Do not immerse the appliance in water and do not pour water on the grilling plates.

1. Dry it using tea towel or paper towel.
2. For best results, coat the grilling plates slightly with a piece of butter or a bit of oil.

Note: You may note a slight odour of smoke when you use the sandwich maker for the first time. This is normal for most appliances with heating elements and does not present a threat to safety of your appliance.

OPERATING INSTRUCTIONS

1. Close the sandwich maker and unplug it. Note that the power and readiness indicator lights come on, indicating that the preheating started.
2. It takes about 3 minutes to reach the grilling temperature, the readiness indicator then switches off.
3. Open the lid and place the food on the lower grilling plate.
4. Close the lid. The readiness light comes on again.
5. After grilling about 2 or 3 minutes the readiness light switches off again. Adjust the cooking time to your own taste and favourite degree of doneness.
6. When your meal is ready, open the lid of the sandwich maker using the handle. To remove the food, use a plastic spatula. Never use metal tongs or knife, you could damage the non-stick surface of the grilling plates.
7. Unplug the sandwich maker from the outlet after use and open it to let it cool.

Note: The green indicator light flashes on and off, signalling readiness for grilling, depending how is the correct temperature of the grilling plates maintained.

MAINTENANCE AND CLEANING

• Always unplug the power cord before cleaning and wait until the sandwich maker cools down. It is not necessary to disassemble the sandwich maker for cleaning.
- Gently wipe the food residue from the grilling plates. Moisten the baked-in residue using a solution of warm water and detergent and remove it using a plastic spatula, or place a wet paper towel on the grilling plates to soak the baked-in residue.
- Do not use sharp objects, which could scratch the non-stick surface.
- Do not use metal tools to remove food, you could damage the non-stick surface.
- Wipe the external surface of the appliance using wet cloth. Do not use cleaning powders or scrubbers for external surface cleaning. You could damage the surface finish.
- Do not immerse in water or other liquids. Do not wash in the dishwasher.

STORING

• Always unplug the sandwich maker before storing it.
• Always make sure before storing that the sandwich maker is cool and dry.
- The power cord can be wrapped around the bottom of the appliance for easy storage.

TECHNICAL SPECIFICATIONS

For the preparation of 8 triangular sandwiches

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 1100 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
