S 865 - Pliers ECG - Free user manual and instructions

Brand	ECG
Model	S 865
Product Type	Sandwich Maker
Capacity	2 square sandwiches
Power Consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless steel design, non-stick coating on grilling plates
Indicator Lights	Power On (red) and Ready to Cook (green)
Handle	Heat insulated
Cord Storage	Built-in cord wrap on bottom
Storage Type	Vertical compact storage
Safety Features	Overheat protection
Cleaning Method	Wipe grilling plates with damp cloth; do not immerse in water
Non-Stick Surface	Yes
Preheating Time	Approximately 3 minutes
Cooking Time	Approximately 2-3 minutes per batch

Frequently Asked Questions - S 865 ECG

How do I use the ECG S 865 sandwich maker?

Close the sandwich maker and plug it in. The red power light and green ready light will come on. Preheating takes about 3 minutes. When the green light goes off, open the lid, place food on the lower grilling plate, close the lid. The green light will come on again. After about 2-3 minutes, the green light goes off, indicating your sandwich is ready. Use a plastic spatula to remove the food. Unplug after use.

What do the indicator lights mean?

The red light indicates that the appliance is powered on. The green light indicates that the grilling plates are at the correct temperature for cooking. It switches off when the desired temperature is reached, and switches on again when the temperature drops, maintaining readiness.

How should I clean the non-stick grilling plates?

Always unplug and let the appliance cool down. Wipe food residue gently with a damp cloth or sponge. For baked-on residue, use a solution of warm water and detergent, or place a wet paper towel on the plates to soak. Use a plastic spatula to remove stubborn residue. Do not use metal tools, abrasive cleaners, or immerse in water.

Can I use metal utensils with the sandwich maker?

No, do not use metal utensils, tongs, or knives as they can damage the non-stick surface. Always use a plastic spatula or wooden utensil to handle food.

What types of bread can I use?

The sandwich maker is designed for standard square bread slices. You can use white, whole wheat, or other bread types. Avoid oversized or irregularly shaped bread that may not fit properly.

Why is there a slight odor when using the sandwich maker for the first time?

A slight odor or smoke is normal during the first use. This is caused by the heating elements burning off manufacturing residues. It is not a safety concern and will disappear after a few uses.

Is it safe to leave the sandwich maker unattended while operating?

No, do not leave the sandwich maker unattended while it is connected to the power supply. Always supervise the appliance to prevent accidents.

Can I use the sandwich maker outdoors?

No, the sandwich maker is intended for indoor use only. Do not use it outdoors or in moist environments to avoid electric shock.

How should I store the sandwich maker after use?

Always unplug and allow the appliance to cool completely and dry. Wrap the power cord around the base for easy storage. Store in a vertical compact position to save space.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by a professional service center to avoid hazards. Do not use the appliance until repaired. Contact ECG authorized service.

USER MANUAL S 865 ECG

Black and red ECG grater with a green handle, no visible text or symbols on the device itself.

S 865 red

SENDVIČOVAČ

NÁVOD K OBSLUZE

SENDVIČOVAČ

NÁVOD NA OBSLUHU

OPIEKACZ

INSTRUKCJA OBSŁUGI

SZENDVICSSÜTÖ

HASZNÁLATI ÚTMUTATÓ

SANDWICH-TOASTER

BEDIENUNGSANLEITUNG

SANDWICH MAKER

INSTRUCTION MANUAL

CZ

SK

PL

HU

DE

GB

BEZPEČNOSTNÍ POKYNY

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not responsible for damage caused during transportation, by improper use, voltage fluctuation or by changing or modifying any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
2. Do not use the sandwich maker if it is damaged in any way or if its power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock.
4. Do not leave the sandwich maker running unattended.
5. Leaving the sandwich maker cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
6. Do not use the sandwich maker outdoors or in moist environments. Do not touch the cord or sandwich maker with wet hands. Risk of electric shock.
7. Close supervision is necessary for operating the sandwich maker near children!
8. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.
9. The temperature of surfaces near the operating appliance can be hotter than usual. Place the sandwich maker out of reach of other objects to ensure sufficient air circulation needed for its proper operation.
10. Do not touch the grilling plates during or after use or hot parts of the baked product, until is cools off. You can touch only the handle to avoid being burned.
11. The grilling plates have a non-stick surface making them easy to clean. Do not use metal or hard objects or tools to clean inner/outer parts of the appliance and for handling the bread, to prevent from damaging the surfaces of grilling plates.
12. Do not rinse the grilling plates under running water or immerse them into water.
13. Keep the sandwich maker away from hot surfaces and sources of heat (for example, hot plates).
14. Use only in accordance with the instructions in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.
15. Do not connect the appliance to electrical outlets with remote switch or remotely controlled timer.
16. This appliance is intended for household use and similar areas, including:

- kitchenette in shops, offices and other workplaces

• appliances used in agriculture
• appliances used by guests in hotels, motels and other accommodations

• appliances used in Bed&Breakfast accommodations

• This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

Hot surface!

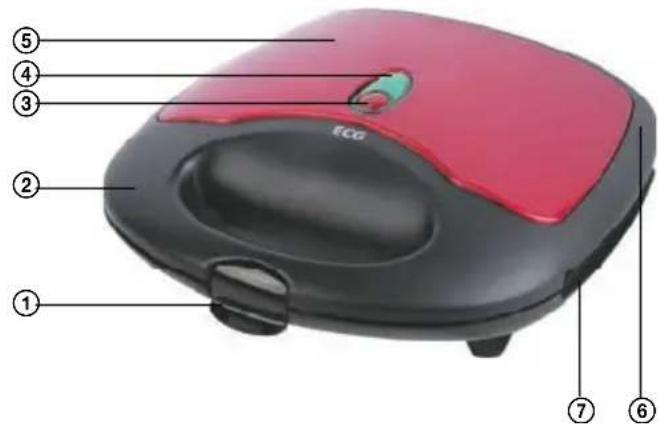

DESCRIPTION

1. Lid latch
2. Handle
3. Power On light (red)
4. Ready to Cook indicator (green)
5. Red surface
6. Top lid
7. Bottom part

BEFORE FIRST USE

1. Read the manual before use and save it for future reference.
2. Remove the packing material and all labels from the appliance.
3. Clean the grilling plates with a damp towel or sponge.

Do not immerse the appliance in water and do not pour water on the grilling plates.

1. Dry it using tea towel or paper towel.
2. Spread a piece of butter or a little oil over the grilling plates.

Note: You may note a slight odour of smoke when you use the sandwich maker for the first time. This is normal for most appliances with heating elements and does not present a threat to safety of your appliance.

OPERATING INSTRUCTIONS

1. Close the sandwich maker and unplug it. Note that the power and readiness indicator lights come on, indicating that the preheating started.
2. It takes about 3 minutes to reach the grilling temperature, the readiness indicator then switches off.
3. Open the lid and place the food on the lower grilling plate.
4. Close the lid. The readiness light comes on again.
5. After grilling about 2 or 3 minutes the readiness light switches off again. Adjust the cooking time to your own taste and favourite degree of doneness.
6. When your meal is ready, open the lid of the sandwich maker using the handle. To remove the food, use a plastic spatula. Never use metal tongs or knife, you could damage the non-stick surface of the grilling plates.
7. Unplug the sandwich maker from the outlet after use and open it to let it cool.

Note: The green indicator light flashes on and off, signalling readiness for grilling, depending how is the correct temperature of the grilling plates maintained.

MAINTENANCE AND CLEANING

• Always unplug the power cord before cleaning and wait until the sandwich maker cools down. It is not necessary to disassemble the sandwich maker for cleaning.
• Gently wipe the food residue from the grilling plates. Moisten the baked-in residue using a solution of warm water and detergent and remove it using a plastic spatula, or place a wet paper towel on the grilling plates to soak the baked-in residue.
• Do not use sharp objects, which could scratch the non-stick surface.
• Do not use metal tools to remove food, you could damage the non-stick surface.
• Wipe the external surface of the appliance using wet cloth. Do not use cleaning powders or scrubbers for external surface cleaning. You could damage the surface fi nish.
• Do not immerse in water or other liquids. Do not wash in the dishwasher.

STORING

• Always unplug the sandwich maker before storing it.
• Always make sure before storing that the sandwich maker is cool and dry.
- The power cord can be wrapped around the bottom of the appliance for easy storage.

TECHNICAL SPECIFICATIONS

For the preparation of 2 square sandwiches

Stainless steel design

Vertical compact storage

Built-in cord storage

Easy to clean grilling plates

Non-stick surface fi nish of the grilling plates

Heat insulated handle

Protection against overheating

Power indicator light / ready for baking light

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 700 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg.cz.

Changes in text and technical parameters reserved.

GB

www.ecg.cz
