Product Type	Food Dehydrator
Brand	Ravanson
Model	SD-1000
Power Consumption	500 W
Number of Drying Trays	5
Tray Material	BPA-free plastic
Temperature Range	35°C - 70°C
Timer Range	Up to 24 hours
Dimensions (W x D x H)	30 cm x 30 cm x 25 cm
Weight	3 kg
Power Supply	220-240 V, 50/60 Hz
Overheat Protection	Yes
Automatic Shut-off	Yes
Adjustable Thermostat	Yes
Cool-Touch Exterior	Yes
Dishwasher-Safe Trays	Yes (top rack)
Spare Parts Available	Trays and mesh sheets

Frequently Asked Questions - SD-1000 Ravanson

How do I use the Ravanson SD-1000 food dehydrator?

Place sliced foods evenly on the trays, set the desired temperature and timer using the control panel, then press start. Refer to the manual for specific drying times.

What foods can I dehydrate with the SD-1000?

You can dehydrate fruits, vegetables, herbs, meat (jerky), and even make fruit leathers. Ensure slices are uniform for even drying.

How do I clean the dehydrator?

Unplug and let cool. Remove trays and wash them in warm soapy water or the top rack of a dishwasher. Wipe the base with a damp cloth. Do not immerse the base.

Why is my food not drying evenly?

Ensure slices are of uniform thickness and not overlapping. Rotate trays halfway through drying if your model lacks an automatic rotation feature.

Can I leave the dehydrator running overnight?

Yes, the SD-1000 has a timer up to 24 hours and an auto shut-off. For safety, place it on a heat-resistant surface away from flammable materials.

What is the maximum temperature setting?

The maximum temperature is 70°C (158°F), suitable for most fruits and vegetables. For jerky, a temperature of 60-65°C is recommended.

How do I store dehydrated food?

Store in airtight containers or vacuum-sealed bags in a cool, dark place. For long-term storage, use oxygen absorbers. Check for moisture before sealing.

What should I do if the unit stops working?

Check the power cord and outlet. Ensure the timer hasn't expired. If it still doesn't work, contact Ravanson customer service. Do not attempt to repair yourself.

Are the trays dishwasher safe?

Yes, the trays are dishwasher safe. Place them on the top rack to avoid warping from high heat. Hand washing is also fine.

Can I purchase replacement trays?

Yes, replacement trays and mesh sheets are available. Contact Ravanson or check online retailers. Use only genuine parts to ensure safety.

USER MANUAL SD-1000 Ravanson

EN User's 8annual De2y7rator

DE Be7ienungsanleitung Tro6kner

Line drawing of a multi-tiered steamer with control panel (no text or symbols)

Mo7el

SD-1000

Pro7u6ent

Ravanson®

GEOERA- SAFETY GUIDE-10ESS

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.

C2)l7ren °re not °w°re o( 7°n-ers t2°t 8°y °r)se 7ur)n-t2e use o( ele6tr)6 7ev)6es.

+eep the device and its cord away from children under 8 years of age. +eep the product out of reach of children.

Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

Damaged cord poses a risk of electric shock.

The plug must fit the socket.

The plug must not be modified in any way.

When removing the plug from an outlet, pull it out by the plug rather than the cord.

Do not use outside. Do not expose to rain. Protect against humidity.

Do not operate with wet hands.

Use only a soft damp (not wet) cloth with mild detergent to clean the appliance. Do not use solvents, petrol or other measures that would damage the device.

Transport in an original packaging that protects against mechanical damages.

The appliance must be repaired only by a qualified person and with the use of original spareparts.

The appliance is intended for home use only.

NOTE! The device is not designed to work with external ti8ers or a separate re8ote control syste8.

NOTE! External surfaces 8ay beco8e hot during use.

Before cleaning, maintenance the device must always be disconnected from power.

Store and transport in packaging providing protection against dust, moisture and mechanical damage.

The device should be repaired by a qualified electrician. Improper repairs can pose a risk of hazard.

No part of the product may be cleaned in a dishwasher unless explicitly stated otherwise

It is advisable to connect the device to the mains via an RCD with the maximum sensitivity of 30 mA

Use

Before use, check the device for mechanical damage and verify that the power cord is not damaged.

Technical specifications:

Voltage: 220 - 240 V

Frequency: 50 - 60 Hz

Rated power: 320 - 380 W

Timer: 00:30 -024:00

Thermostat: Fan 35°C - 40°C - 50°C - 55°C - 60°C - 65°C - 70°C - 75°C

Model SD-1000 is equipped with a fan that forces warm air, optimising the drying process of fruits and vegetables. Dried fruits and vegetables retain almost all of the taste and aroma, being a perfect substitute for fresh vegetables and fruits.

Drying is an excellent method of retaining the taste and aroma of fresh vegetables.

Before use

Wipe all parts of the device clean before the first use.

Clean the trays with a damp cloth. Use a detergent if necessary.

Remove all stickers with a soft brush.

Do not wash the BASE in a dishwasher or submerge it in water or other liquids

After cleaning, turn the device on for 30 minutes without the drying insert. Smoke and odours may be produced when the device is used for the first time. It is normal during the first use. Provide sufficient ventilation. After 30 minutes, rinse the trays with water and dry all parts.

Before cleaning, disconnect the device from the mains and leave to cool down. Dry all parts after cleaning and before storage.

Do not clean the device with aggressive chemicals or abrasive materials. Otherwise, the surface may become damaged.

Asse8bly:

Place the device on a stable, horizontal surface. Install the trays and plug the device to the mains.

The trays can be stacked at 1.4 cm or 2.5 cm intervals to adjust the space to the thickness of dried products.

TIPS: If you place two trays on one another and notice that the upper tray is touching food below it, move the upper tray one position up (see the picture below).

A tray on a higher position

Align the plastic bumps on the inside of the lower edge of the trays with the four vertical plastic sockets Trays in one another

Rotate the trays so that the plastic bumps on the inside of the lower edge of the trays are positioned next to the four vertical plastic sockets.

Operation

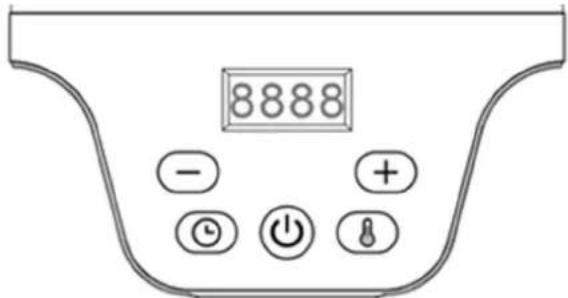

Function buttons:

Digital controls provide easy drying temperature and time control.

1. Place the dryer on a dry, flat surface

2. Place food on the trays and load them into the device

Note: It is advisable to stack at least three trays regardless of whether there is food on them.

1. Connect the power supply. The display shows '0000'

2. How to set the timer and temperature

How to set the ti8er (00:30 - 24:00)

1) Press the button. The display shows the default time 10:00 and blinks. Next, press button + or - several times until the right time is displayed. To quickly change the time, keep button + or - pressed.

How to set the te8perature (35°C - 40°C - 50°C - 55°C - 60°C - 65°C - 70°C - 75°C)

2) Press the () button. The display shows 70°C and blinks. Next, press button + or - several times until the right temperature is displayed. To quickly change the air temperature, keep button + or - pressed.

1. When the time and temperature are set,

press the button. The device starts working. The timer starts.

After the set time, the device turns off automatically. The heater is turned off, and the fan rotates for 10 more seconds. The device beeps five times when the time is over. The display shows 'End'

Disconnect the device from the mains

Remove food from the device after drying. If the food has to be dried again, repeat the steps above.

.)ps on 7ry)n-:

The drying time may vary depending on:

• the size and thickness of the dried pieces (fineness)
• the number of trays used
• the quantity of foods dried
• the humidity in the room where the unit is used
• your preference in terms of the degree of food dryness.

It )s re6o88en7e7 to:

• Control the drying process at least once every hour.
• Rotate and / or change the position of the trays
• 7abel the container used to store dried foods with a date and time of drying. This is helpful in the future to determine the drying time and shelf life.
• Prepare the food properly before drying (wash, dry and cut)
• Assure suitable storage after drying, as this allows the high quality of products and nutrients to be preserved for longer.

Stor°-e:

• Put the dried food in the target containers only after it has cooled down.
• Food can be kept longer in a dark, cool and dry place.
• Removing the maximum amount of air from the container used for storing the dried products allows one to get better results - we recommend vacuum storage.
• The optimal storage temperature is 15^ C or lower.
• Never store dried foods in metal containers
• Containers in which dried food is stored should be tightly sealed.
• Check the state of dried foods. If you notice moisture, we recommend re-drying - this prevents decomposition from starting.
• Dried foods should not be stored for more than 1 year - this maximum period is possible, if food is kept in an airtight container in a refrigerator.

Cle°n)n-°n7 6°re

Unplug the power cord from the electrical outlet. Allow some time for the device to cool down. Use soft damp (not wet) cloth with mild detergent. Do not use solvents, petrol or other and other

measures that would damage the device. Do not use elements that could damage the surface of the oven.

.rou4les2oot)n-

Disconnect from the mains and contact authorized service centre for possible repair.

.r°nsport°t)on °n7 stor°-e

+eep and store in a package protecting from humidity and mechanical damages. +eep away from children.

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items. Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have

been limited in this device.
