Product Type	Drink Cooler (Wine Cooler)
Brand	Guzzanti
Model	GZ 52DD
Temperature Zones	Dual (Upper and Lower)
Refrigerant	R600a
Installation Type	Freestanding
Door Type	Glass Door
Handle	Yes
Adjustable Feet	Yes
Interior Light	Yes (LED)
Lock	Yes (Key lock)
Display	LED Display (Temperature, °C/°F)
Control Type	Touch Buttons
Defrost	Automatic (Defrost sensor)
Max Shelf Load	35 kg
Fans	Yes (Upper and Middle fan)
Energy Saving Tips	Minimize door opening, maintain ventilation, organize bottles
Cleaning	Soft cloth with warm water and neutral detergent; avoid petrol, sulfur, hot water
Safety Features	Grounding required, child safety, no extension cord, R600a warning
Disposal	WEEE symbol, do not dispose with household waste
Included Accessories	Wine shelves, instruction manual, acceptance certificate

Frequently Asked Questions - GZ 52DD Guzzanti

How do I set the temperature on my Guzzanti GZ 52DD drink cooler?

To set the temperature, use the control panel. Press the button labeled for the upper interlay temperature and the button for the lower interlay temperature to adjust each zone separately. The display shows the current temperature in °C or °F, which can be toggled using the °C/°F button.

How do I lock the control panel to prevent accidental changes?

Press and hold the lock button for 3.5 seconds. The Lock Indication LED will light up, indicating the panel is locked. Repeat the same action to unlock.

What should I do if the glass door has condensation?

Condensation on the glass door is normal when ambient humidity is high or when the temperature inside differs greatly from the room temperature. Simply wipe it with a dry cloth.

Can I use an extension cord with this wine cooler?

No, do not use an extension cord. The appliance must be plugged directly into a properly grounded outlet for safety.

How should I clean the drink cooler?

Unplug the appliance before cleaning. Use a soft cloth dampened with warm water and a small amount of neutral detergent. Avoid using sulfur detergent, petrol, or hot water as these may damage plastic parts.

What refrigerant is used in the GZ 52DD?

The refrigerant is R600a (isobutane), which is flammable. Repairs involving the refrigerant system must be carried out by qualified professionals.

Why does the compressor run continuously?

Possible causes include: placing too many warm items inside at once (the compressor will run until they cool), frequent or prolonged door openings, or the ambient temperature being too high. Allow time for the wine cooler to stabilize.

How do I dispose of this appliance properly?

This appliance bears the WEEE symbol (crossed-out wheeled bin). Do not dispose of it with household waste. Take it to a designated collection point for recycling of electrical and electronic equipment.

What is the maximum weight I can place on each shelf?

The maximum load per shelf is 35 kg. Do not exceed this weight to avoid damage.

How long should I wait before first use after moving the cooler?

After transporting the wine cooler, allow it to stand upright for 48 hours before plugging it in. This lets the refrigerant settle and ensures proper operation.

USER MANUAL GZ 52DD Guzzanti

① Tělo spotřebiče

② Ventilátor

③ Regál na víno

④ Přívod vzduchu

⑤ Ovládací panel

Pure electrical connector diagram without any text or symbols

Symbol of a trash bin crossed with no visible text or labels

① Telo spotrebiča

② Ventilátor

③ Regál na víno

④ Prívod vzduchu

⑤ Ovládací panel

Pure electrical connector diagram without any text or symbols

Symbol of a trash bin crossed with no visible text or labels

Pure electrical connector diagram without any text or symbols

OCENA I ELIMINACJA MOŻLIWYCH WAD

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

① A készülék váza

② Ventilátor

③ Bortároló polc

④ Légbemenet

⑤ Vezérlőpanel

⑥ Szabályozóláb

⑦ Üvegajtó

⑧ Fogantyú

Pure electrical connector diagram without any text or symbols

① Ohišje aparata

② Ventilator

③ Polica za steklenice

④ Dovod zraka

Pure electrical connector diagram without any text or symbols

Če v vtičnici ni ozemljitve, morate pripraviti ustrezno ozemljeno vtičnico. Če vtičnica v zidu ne ustreza vtiču, morate najti ustrezno.

Pomembno opozorilo: Obrnite se na kvalificiranega električarja, da preveri nov kabel in vtič.

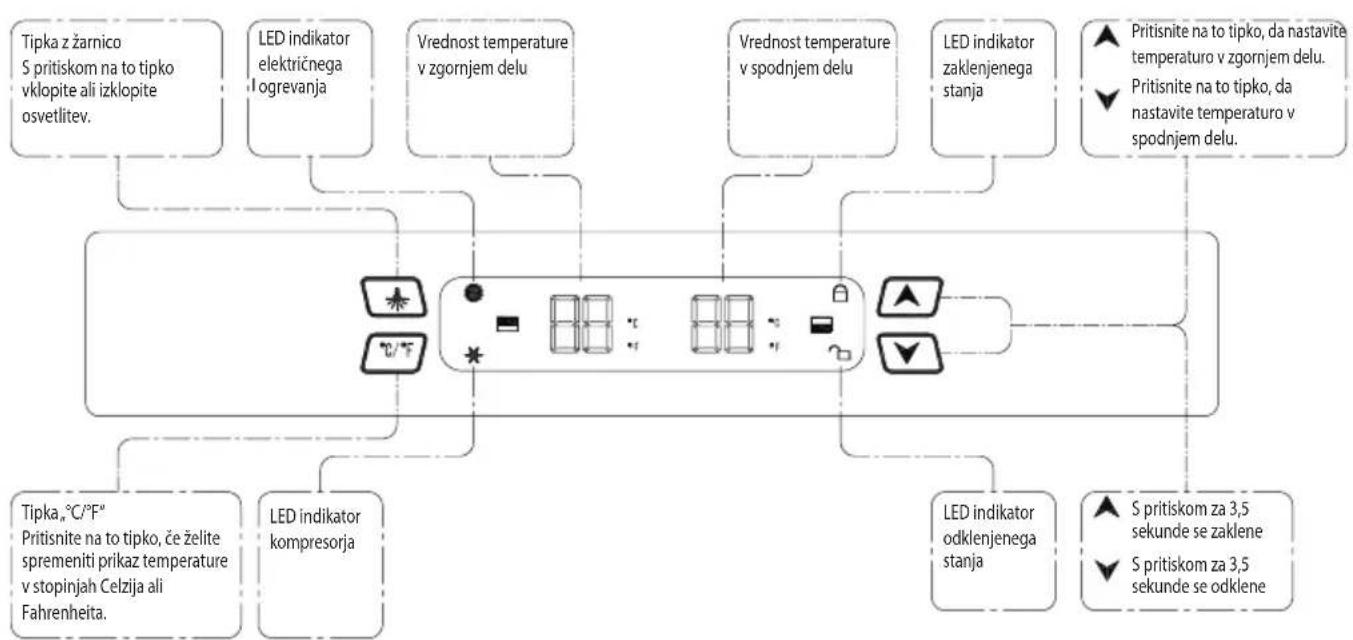

NASTAVITEV TEMPERATURE

Dvoconska temperatura

REDNO VZDRŽEVANJE

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Pure electrical connector diagram without any text or symbols

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Please read the Instructions carefully prior to operation and keep it properly for future reference.

FOREWORD

You are welcomed to choose and use the JC Series Wine Cooler. For proper use, please read the Instructions in detail before installation and use. To avoid unnecessary damages, please keep the Instructions appropriately for future reference.

The Instructions details the precautions related to the transportation, installation, use and routine maintenance and other aspects of the Wine Cooler are listed.

To keep the continuous development of the enterprise and products, the Instructions and its described contents may be amended without any advanced inform. We ask you for your understanding to this.

The version of the Instructions is the universal version of our company, whose appearance may differ from that of the product that you bought. However, this will not influence your use and operation.

TRANSPORTATION AND PLACEMENT

When getting the Wine Cooler, you should ensure that before you unfold the package, there is no fault on the exterior of the Wine Cooler (in the aspects of strike, transformation and so on).

Open the door and check whether the interior is complete (wall, stand, control panel and so on).

When transporting and installing the Wine Cooler, attentions should be paid to:

1. Do not place the Wine Cooler in a too moist place (laundry, hovel, bathroom and so on), and keep it away from heat;
2. Ensure the Wine Cooler is located on a solid and flat ground;
3. Ensure the Wine Cooler is paced on a stable level surface;
4. Ensure the ventilation conditions around the Wine Cooler;
5. Never pad the foam package of the Wine Cooler at the base of it;
6. Ensure the stability of the Wine Cooler by adjusting the adjusting feet if it is a little unstable.

Before the Wine Cooler is switched on at first time, you should wait for 48 hours to allow the refrigeration agent in the Cooler become stable.

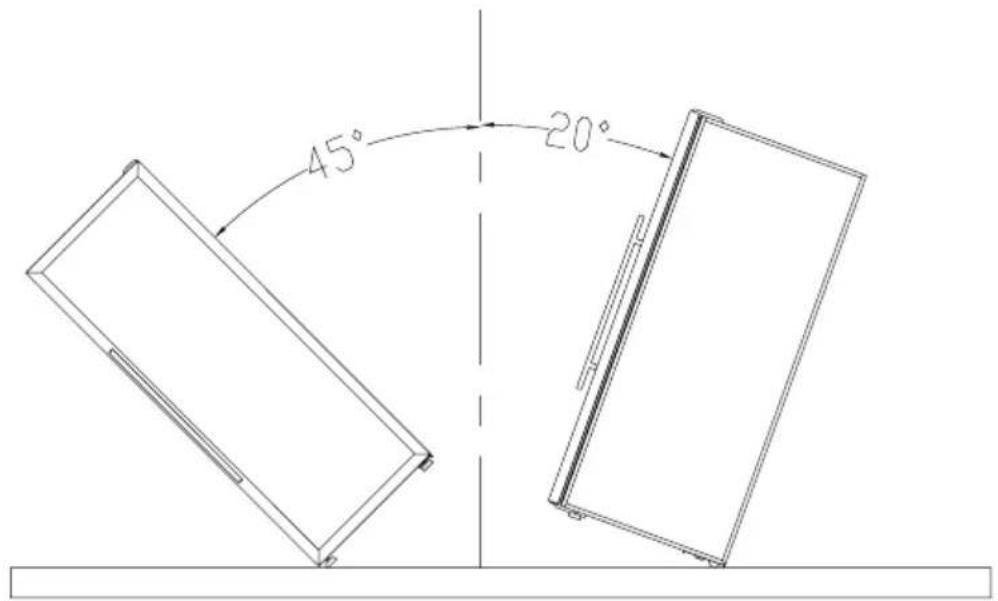

Note: if you have to move the Wine Cooler, the tilt angle should not be more than 45^ , and the tilt angle toward back direction should not be more than 20^ , as shown in the figure:

NAMES OF THE WINE COOLER' PARTS

① Body

⑤ Control panel

② Fan

⑥ Adjustable foot

③ Wine shelf

⑦ Glass door

④ Air inlet

⑧ Handle

Special attention:

1. When in operation, please do not cover the Fan or Air inlet with anything.
2. When the temperature in the Wine Cooler differs too much with that of the environment or the ambient humidity is too high, there may be water mist on the glass door, which is a normal phenomenon. You should just wipe it with dry cloth.
3. If you do not like the film on the sides of the product, you can rip it away.

IMPORTANT SAFETY INSTRUCTIONS

Please pay attention to the following conditions:

When using the Wine Cooler, you should observe some basic preventive measures all the time, including:

1. According to the descriptions of the Instructions, use the Wine Cooler as required;
2. Never close the machine by directly drawing off the power plug when using the Wine Cooler.;

3. The max bearing on the Wine Cooler's shelf is 35Kg. Please do not place objects over 35Kg on the shelf;

4. Never patch or use the power cord with cracks or obvious defects on its ends;

5. Do not use extended cord;

6. Never allow children climb to the neighborhood of the Wine Cooler, sit or stand in the Cooler or hang on the Wine Cooler's stand, or otherwise, the Wine Cooler may be damaged and they may be wounded;

7. Never place objects on the top of the Wine Cooler.

Danger:

Before throwing away the scrapped Wine Cooler, you have to:

1. Remove the glass door;

2. Put the shelf in proper place where children cannot reach;

Special warning:

1. The product is a food cooler, which is forbidden to store inflammable, explosive, erosive, poisonous, radiant objects and other dangerous articles. When storing foods, please observe the relevant local food safety laws.
2. Some products are equipped with door locks. Please keep the keys well and put it in the place where children cannot reach.
3. Please draw off the power plug if the Wine Cooler will not be used for a long time.

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its Service agent or similarly qualified persons in order to avoid a hazard.

This appliance is intended to be used exclusively for the storage of wine.

Note: Because the R600a is inflammable and explosive, the products with R600a as the refrigeration agent must be repaired by professionals in approved maintenance points, if their refrigerating systems need to be repaired. Private disassembly and damages on refrigerating pipes are strictly forbidden.

Because the refrigeration agent is inflammable and explosive and the heat-insulating material is cyclopentane, proper measures should be adopted to discard them for safety and environmental protection.

IMPORTANT SUPPLEMENT OF ELECTRIC CONNECTION

For your safety, the Wine Cooler should be grounded properly.

The power cord for the Wine Cooler is provided with a satisfactory plug, which should be equipped with a grounding socket meeting the standard. Whether the socket is grounded should be judged by professionals.

If there is something unclear about the socket, you should replace it with a new grounding one. If the power cord is damaged, you should ask a qualified electrician to replace it to avoid dangers.

Pure electrical connector diagram without any text or symbols

If there is no ground connection on the socket, you should prepare a proper grounded socket. If the plug does not match with the socket, you should find a suitable one.

Please note: you should find a qualified electrician to check the new cord and Plug.

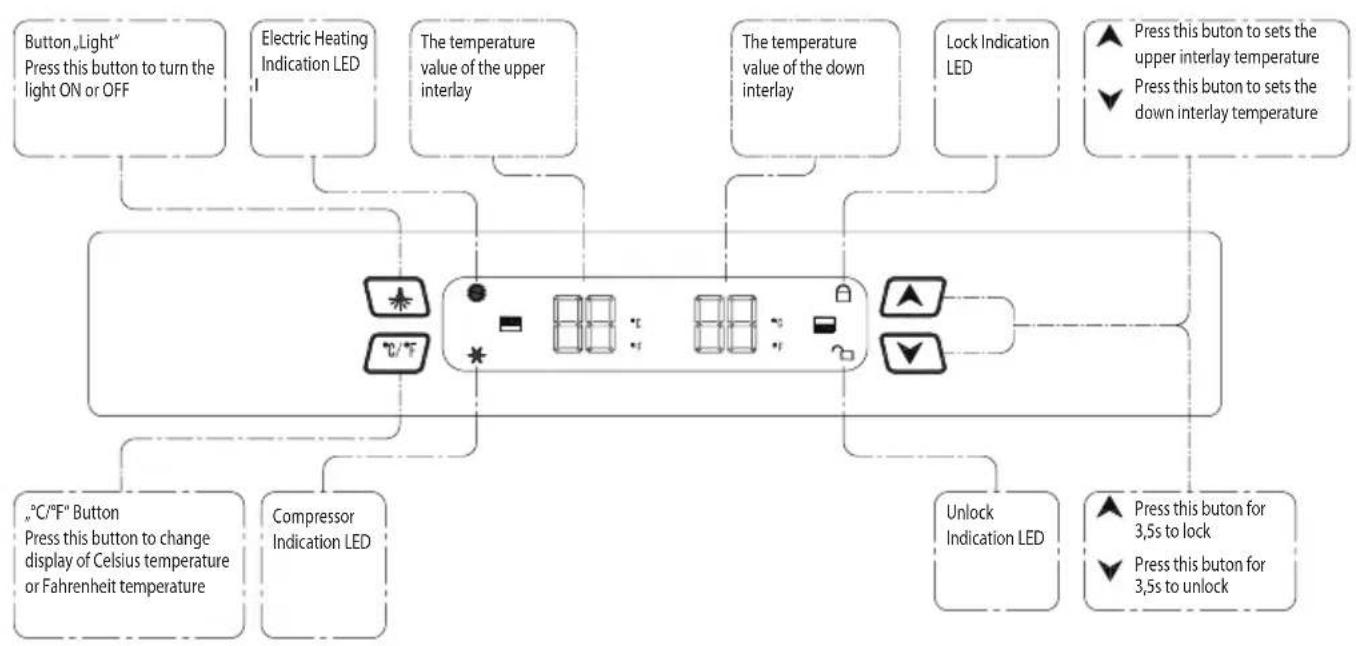

TEMPERATURE ADJUSTMENT

Dual Temperature Zone

ROUTINE MAINTENANCE

Wine Cooler is easy to be used. It is approved to be safe and reliable. As long as you maintain and clean it according to the following manner, it is durable and can make you content.

— Please cut the power when cleaning the Wine Cooler. Wipe the machine with soft cloth that is wetted by the warm water with proper amount of neutral detergent, and then mop it clean with clean water.
— Sulfur detergent, petrol, hot water and the like should be avoid to be used to clean the Wine Cooler, or the plastic parts may be deformed or damaged.
— If the Wine Cooler will not be used for a long time, the power plug should be drawn off and the inner chamber should be cleaned. When the chamber is dry enough, the door can be closed.

Energy-saving Notice:

1. Open door as little as possible in the course of using it
2. Shorten the time as much as possible while opening the drinks cabinet
3. Make both sides of the drinks cabinet as far away from the wall as possible, which enables the circulation of the air and strengthens the cooling effect
4. A good arrangement of wine bottles, which create a good circulation of the inner air in the cabinet
5. Do not place any goods on the top of the drinks cabinet

FAILURE ANALYSIS

The compressor does not shut automatically.

1. Whether the objects put in the chamber at a time are too many? (If the objects put in the chamber at a time are too many, the compressor will run continuously for several hours and return to the shutdown state after these objects are cool enough.)
2. Whether the times of opening the door of the Wine Cooler are too frequent or too long?

The noise is high.

1. Whether the Wine Cooler is located on a stable level surface?
2. Whether the Wine Cooler is placed placidly?
3. Whether the Wine Cooler is contacted with surrounding objects?
4. Whether the voltage is stable?
5. Whether there are sources of resonant excitation nearby the Wine Cooler?

The refrigeration is bad.

1. Whether the temperature is adjusted to be the proper one?
2. Whether the Wine Cooler is close to heat sources ordirectly exposed to sunshine?
3. Whether there is enough room surround the Wine Cooler?
4. Whether too many or too heat objects are placed in?
5. Whether the times of opening the door are too frequent or too long?

Do not refrigerate completely.

1. Whether the power plug is loose or dropped?
2. Whether the voltage is normal?
3. Whether the power fuse is break?
4. Whether the power is down?
5. Whether the set temperature is higher than that of the chamber?

They are not the failure symptoms.

1. When the compressor is working, the surface temperature can reach 80\~90°C.
2. Sometimes, you can hear the bicker in the Wine Cooler, which is the sound of refrigerating agent flowing in the refrigeration system.
3. When the ambient humidity is too high, there may be condensation phenomenon on the surface of the Wine Cooler. Wipe it with soft cloth.

Note: if the methods of examination after the treatment, your wine storage cabinet does not work properly, please contact the local authorized repair department.

Due to the product improvement, the product you used may be not the completely same with the data in the Instructions. Please follow the nameplate of the product.

CIRCUIT DIAGRAM

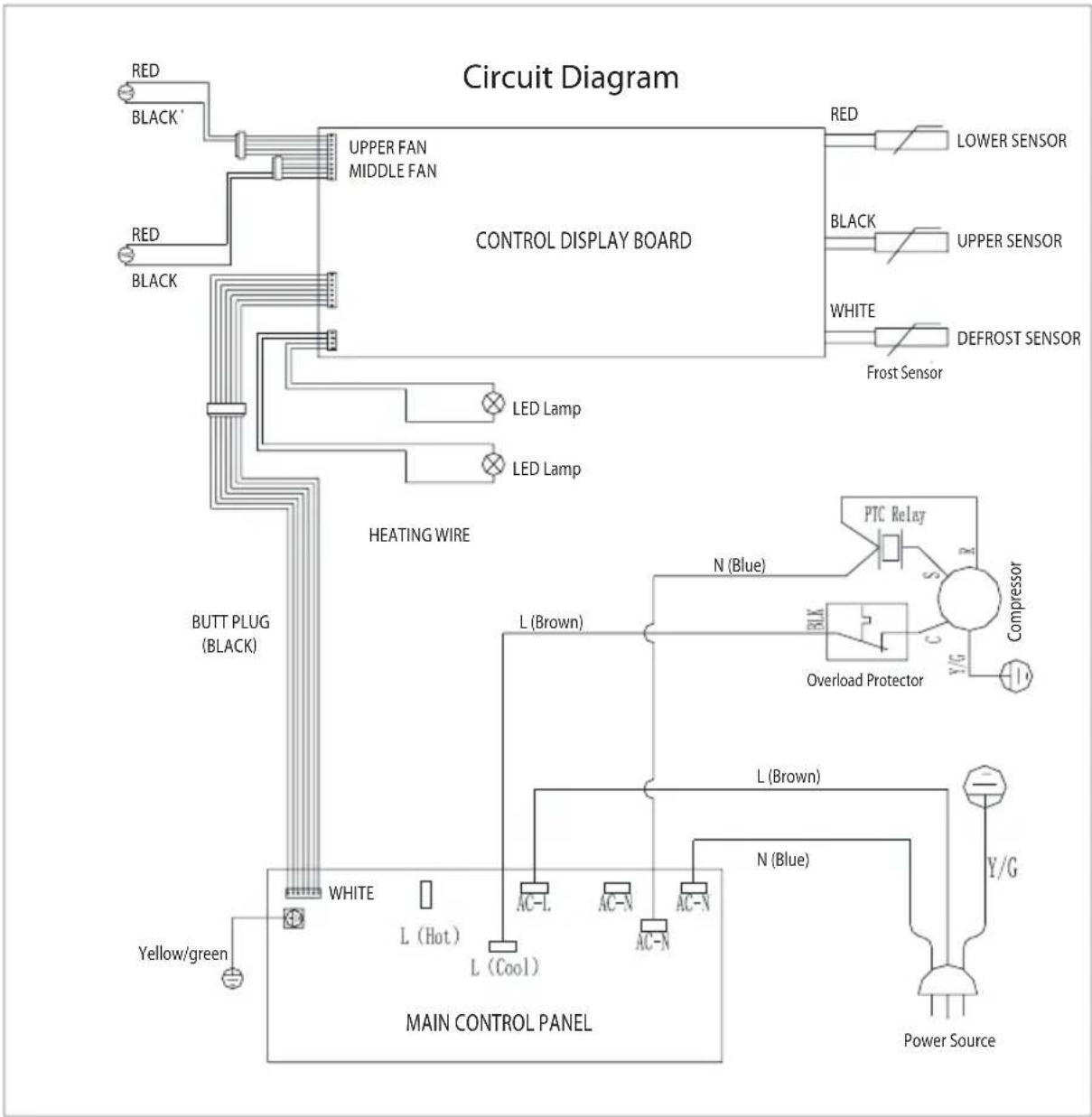

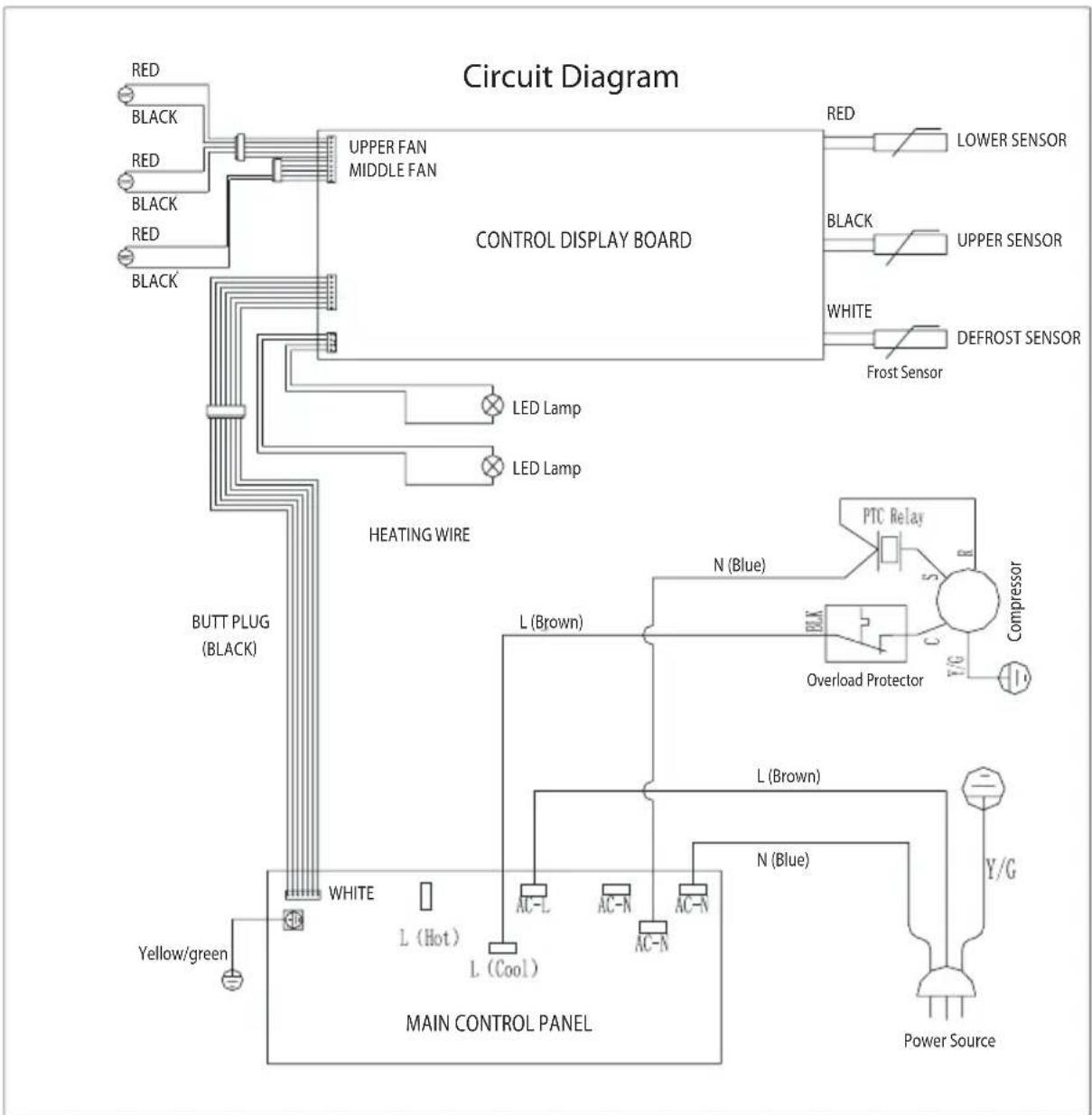

1. Dual Temperature Circuit diagram

PACKING LIST

Instruction Acceptance certificate Wine Cooler
1 1 1

WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant Circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
